目录介绍

• 01.图片缓存策略
  • 1.1 两级缓存
  • 1.2 LruCache介绍
• 02.LruCache源码分析
  • 2.1 源代码
  • 2.2 构造方法分析
  • 2.3 put源码分析
  • 2.4 trimToSize(maxSize)
  • 2.5 get源码分析

00.二级缓存应用实践

• 关于视频播放位置本地记录
• 为何有该需求
  • 主要是公司开发多个定制平板教育app，由于服务端没有做视频播放位置存储功能，为完成任务最后采用本地记录视频播放位置。最好是服务端记录播放位置……
• 如何做技术选型
  • 采用二级缓存，内存缓存和磁盘缓存。关于磁盘缓存，刚开始想着使用sql或者greenDao或者realm数据库，考虑到做成封装库，故要求体积小，尽量不依赖三方库还要效率高，因此磁盘缓存采用DiskLruCache。具体使用看api文档……
• 代码地址
  • https://github.com/yangchong211/YCVideoPlayer

01.图片缓存策略

1.1 LruCache介绍

• 在LruCache的源码中，关于LruCache有这样的一段介绍：

  • cache对象通过一个强引用来访问内容。每次当一个item被访问到的时候，这个item就会被移动到一个队列的队首。当一个item被添加到已经满了的队列时，这个队列的队尾的item就会被移除。

    A cache that holds strong references to a limited number of values. Each time a value is accessed, it is moved to the head of a queue. When a value is added to a full cache, the value at the end of that queue is evicted and may become eligible for garbage collection.

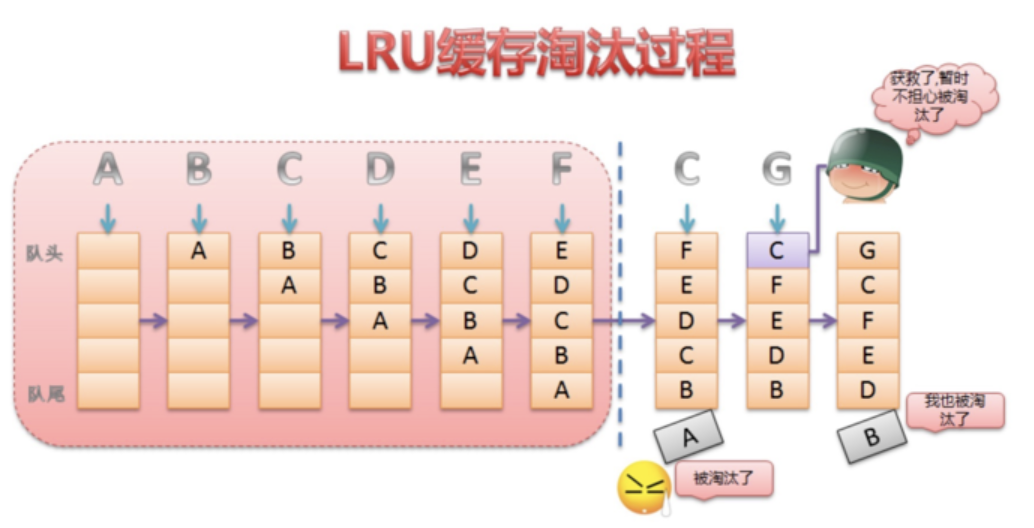

1.2 LruCache核心思想

• LRU是近期最少使用的算法，它的核心思想是当缓存满时，会优先淘汰那些近期最少使用的缓存对象。采用LRU算法的缓存有两种：LrhCache和DisLruCache，分别用于实现内存缓存和硬盘缓存，其核心思想都是LRU缓存算法。
  •
• LruCache的淘汰策略简单说明
  • 将LinkedHashMap中的默认顺序设置为访问顺序，每次调用get，则将该对象移到链表的头部，调用put插入新的对象到链表头部。当内存缓存达到最大值时，就将链表尾部的对象移除。每次put或者remove，都需要判断缓存大小是否足够trimToSize。

02.LruCache源码分析

2.1 源代码

• 下面具体看一下LruCache的实现：

  public class LruCache<K, V> {
      private final LinkedHashMap<K, V> map;

      /** Size of this cache in units. Not necessarily the number of elements. */
      private int size;
      private int maxSize;

      private int putCount;
      private int createCount;
      private int evictionCount;
      private int hitCount;
      private int missCount;

      /**
       * @param maxSize for caches that do not override {@link #sizeOf}, this is
       *     the maximum number of entries in the cache. For all other caches,
       *     this is the maximum sum of the sizes of the entries in this cache.
       */
      public LruCache(int maxSize) {
          if (maxSize <= 0) {
              throw new IllegalArgumentException("maxSize <= 0");
          }
          this.maxSize = maxSize;
          this.map = new LinkedHashMap<K, V>(0, 0.75f, true);
      }

      /**
       * Sets the size of the cache.
       *
       * @param maxSize The new maximum size.
       */
      public void resize(int maxSize) {
          if (maxSize <= 0) {
              throw new IllegalArgumentException("maxSize <= 0");
          }

          synchronized (this) {
              this.maxSize = maxSize;
          }
          trimToSize(maxSize);
      }

      /**
       * Returns the value for {@code key} if it exists in the cache or can be
       * created by {@code #create}. If a value was returned, it is moved to the
       * head of the queue. This returns null if a value is not cached and cannot
       * be created.
       */
      public final V get(K key) {
          if (key == null) {
              throw new NullPointerException("key == null");
          }

          V mapValue;
          synchronized (this) {
              mapValue = map.get(key);
              if (mapValue != null) {
                  hitCount++;
                  return mapValue;
              }
              missCount++;
          }

          /*
           * Attempt to create a value. This may take a long time, and the map
           * may be different when create() returns. If a conflicting value was
           * added to the map while create() was working, we leave that value in
           * the map and release the created value.
           */

          V createdValue = create(key);
          if (createdValue == null) {
              return null;
          }

          synchronized (this) {
              createCount++;
              mapValue = map.put(key, createdValue);

              if (mapValue != null) {
                  // There was a conflict so undo that last put
                  map.put(key, mapValue);
              } else {
                  size += safeSizeOf(key, createdValue);
              }
          }

          if (mapValue != null) {
              entryRemoved(false, key, createdValue, mapValue);
              return mapValue;
          } else {
              trimToSize(maxSize);
              return createdValue;
          }
      }

      /**
       * Caches {@code value} for {@code key}. The value is moved to the head of
       * the queue.
       *
       * @return the previous value mapped by {@code key}.
       */
      public final V put(K key, V value) {
          if (key == null || value == null) {
              throw new NullPointerException("key == null || value == null");
          }

          V previous;
          synchronized (this) {
              putCount++;
              size += safeSizeOf(key, value);
              previous = map.put(key, value);
              if (previous != null) {
                  size -= safeSizeOf(key, previous);
              }
          }

          if (previous != null) {
              entryRemoved(false, key, previous, value);
          }

          trimToSize(maxSize);
          return previous;
      }

      /**
       * Remove the eldest entries until the total of remaining entries is at or
       * below the requested size.
       *
       * @param maxSize the maximum size of the cache before returning. May be -1
       *            to evict even 0-sized elements.
       */
      public void trimToSize(int maxSize) {
          while (true) {
              K key;
              V value;
              synchronized (this) {
                  if (size < 0 || (map.isEmpty() && size != 0)) {
                      throw new IllegalStateException(getClass().getName()
                              + ".sizeOf() is reporting inconsistent results!");
                  }

                  if (size <= maxSize) {
                      break;
                  }

                  Map.Entry<K, V> toEvict = map.eldest();
                  if (toEvict == null) {
                      break;
                  }

                  key = toEvict.getKey();
                  value = toEvict.getValue();
                  map.remove(key);
                  size -= safeSizeOf(key, value);
                  evictionCount++;
              }

              entryRemoved(true, key, value, null);
          }
      }

      /**
       * Removes the entry for {@code key} if it exists.
       *
       * @return the previous value mapped by {@code key}.
       */
      public final V remove(K key) {
          if (key == null) {
              throw new NullPointerException("key == null");
          }

          V previous;
          synchronized (this) {
              previous = map.remove(key);
              if (previous != null) {
                  size -= safeSizeOf(key, previous);
              }
          }

          if (previous != null) {
              entryRemoved(false, key, previous, null);
          }

          return previous;
      }

      /**
       * Called for entries that have been evicted or removed. This method is
       * invoked when a value is evicted to make space, removed by a call to
       * {@link #remove}, or replaced by a call to {@link #put}. The default
       * implementation does nothing.
       *
       * <p>The method is called without synchronization: other threads may
       * access the cache while this method is executing.
       *
       * @param evicted true if the entry is being removed to make space, false
       *     if the removal was caused by a {@link #put} or {@link #remove}.
       * @param newValue the new value for {@code key}, if it exists. If non-null,
       *     this removal was caused by a {@link #put}. Otherwise it was caused by
       *     an eviction or a {@link #remove}.
       */
      protected void entryRemoved(boolean evicted, K key, V oldValue, V newValue) {}

      /**
       * Called after a cache miss to compute a value for the corresponding key.
       * Returns the computed value or null if no value can be computed. The
       * default implementation returns null.
       *
       * <p>The method is called without synchronization: other threads may
       * access the cache while this method is executing.
       *
       * <p>If a value for {@code key} exists in the cache when this method
       * returns, the created value will be released with {@link #entryRemoved}
       * and discarded. This can occur when multiple threads request the same key
       * at the same time (causing multiple values to be created), or when one
       * thread calls {@link #put} while another is creating a value for the same
       * key.
       */
      protected V create(K key) {
          return null;
      }

      private int safeSizeOf(K key, V value) {
          int result = sizeOf(key, value);
          if (result < 0) {
              throw new IllegalStateException("Negative size: " + key + "=" + value);
          }
          return result;
      }

      /**
       * Returns the size of the entry for {@code key} and {@code value} in
       * user-defined units.  The default implementation returns 1 so that size
       * is the number of entries and max size is the maximum number of entries.
       *
       * <p>An entry's size must not change while it is in the cache.
       */
      protected int sizeOf(K key, V value) {
          return 1;
      }

      /**
       * Clear the cache, calling {@link #entryRemoved} on each removed entry.
       */
      public final void evictAll() {
          trimToSize(-1); // -1 will evict 0-sized elements
      }

      /**
       * For caches that do not override {@link #sizeOf}, this returns the number
       * of entries in the cache. For all other caches, this returns the sum of
       * the sizes of the entries in this cache.
       */
      public synchronized final int size() {
          return size;
      }

      /**
       * For caches that do not override {@link #sizeOf}, this returns the maximum
       * number of entries in the cache. For all other caches, this returns the
       * maximum sum of the sizes of the entries in this cache.
       */
      public synchronized final int maxSize() {
          return maxSize;
      }

      /**
       * Returns the number of times {@link #get} returned a value that was
       * already present in the cache.
       */
      public synchronized final int hitCount() {
          return hitCount;
      }

      /**
       * Returns the number of times {@link #get} returned null or required a new
       * value to be created.
       */
      public synchronized final int missCount() {
          return missCount;
      }

      /**
       * Returns the number of times {@link #create(Object)} returned a value.
       */
      public synchronized final int createCount() {
          return createCount;
      }

      /**
       * Returns the number of times {@link #put} was called.
       */
      public synchronized final int putCount() {
          return putCount;
      }

      /**
       * Returns the number of values that have been evicted.
       */
      public synchronized final int evictionCount() {
          return evictionCount;
      }

      /**
       * Returns a copy of the current contents of the cache, ordered from least
       * recently accessed to most recently accessed.
       */
      public synchronized final Map<K, V> snapshot() {
          return new LinkedHashMap<K, V>(map);
      }

      @Override public synchronized final String toString() {
          int accesses = hitCount + missCount;
          int hitPercent = accesses != 0 ? (100 * hitCount / accesses) : 0;
          return String.format("LruCache[maxSize=%d,hits=%d,misses=%d,hitRate=%d%%]",
                  maxSize, hitCount, missCount, hitPercent);
      }
  }


2.2 构造方法

• 可以看到LruCache初始化的时候需要使用泛型，一般这样初始化LruCache对象：

  // 获取应用程序最大可用内存
  int maxMemory = (int) Runtime.getRuntime().maxMemory();
  int cacheSize = maxMemory / 8;
  // 设置图片缓存大小为程序最大可用内存的1/8
  mMemoryCache = new LruCache<String, Bitmap>(cacheSize) {
      @Override
      protected int sizeOf(String key, Bitmap bitmap) {
          return bitmap.getByteCount();
      }
  };


• 例如通过String作为key保存bitmap对象，同时需要传递一个int型的maxSize数值，主要用于设置LruCache链表的最大值。

  • 查看其构造方法：

    // 获取应用程序最大可用内存
    int maxMemory = (int) Runtime.getRuntime().maxMemory();
    int cacheSize = maxMemory / 8;
    // 设置图片缓存大小为程序最大可用内存的1/8
    mMemoryCache = new LruCache<String, Bitmap>(cacheSize) {
    @Override
    protected int sizeOf(String key, Bitmap bitmap) {
        return bitmap.getByteCount();
    }
    };


• 可以看到其主要的是初始化了maxSize和map链表对象。

2.3 put源码分析

• 查看put方法：

  • 需要传递两个参数：K和V，首先做了一下参数的判断，然后定义一个保存前一个Value值得临时变量，让putCount（put执行的次数）自增，让map的size大小自增。

  • LruCache put方法，将键值对压入Map数据结构中，若这是Map的大小已经大于LruCache中定义的最大值，则将Map中最早压入的元素remove掉

    public final V put(K key, V value) {
        if (key == null || value == null) {
            throw new NullPointerException("key == null || value == null");
        }

        V previous;
        synchronized (this) {
            putCount++;
            size += safeSizeOf(key, value);
            previous = map.put(key, value);
            if (previous != null) {
                size -= safeSizeOf(key, previous);
            }
        }

        if (previous != null) {
            entryRemoved(false, key, previous, value);
        }

        trimToSize(maxSize);
        return previous;
    }


  • 需要注意的是这里的

    previous = map.put(key, value);


  • 看一下这里的map.put（）的具体实现：

    @Override
    public V put(K key, V value) {
        if (key == null) {
            return putValueForNullKey(value);
        }

        int hash = Collections.secondaryHash(key);
        HashMapEntry<K, V>[] tab = table;
        int index = hash & (tab.length - 1);
        for (HashMapEntry<K, V> e = tab[index]; e != null; e = e.next) {
            if (e.hash == hash && key.equals(e.key)) {
                preModify(e);
                V oldValue = e.value;
                e.value = value;
                return oldValue;
            }
        }

        // No entry for (non-null) key is present; create one
        modCount++;
        if (size++ > threshold) {
            tab = doubleCapacity();
            index = hash & (tab.length - 1);
        }
        addNewEntry(key, value, hash, index);
        return null;
    }


  • 将Key与Value的值压入Map中，这里判断了一下如果map中已经存在该key，value键值对，则不再压入map，并将Value值返回，否则将该键值对压入Map中，并返回null；返回继续put方法：

    previous = map.put(key, value);
    if (previous != null) {
        size -= safeSizeOf(key, previous);
    }


  • 可以看到这里判断map.put方法的返回值是否为空，如果不为空的话，则说明我们刚刚并没有将我么你的键值对压入Map中，所以这里的size需要自减；然后下面：

    if (previous != null) {
        entryRemoved(false, key, previous, value);
    }


  • 这里判断previous是否为空，如果不为空的话，调用了一个空的实现方法entryRemoved()，也就是说我们可以实现自己的LruCache并在添加缓存的时候若存在该缓存可以重写这个方法；

2.4 trimToSize(maxSize)

• 下面调用了trimToSize(maxSize)方法：

  • 该方法主要是判断该Map的大小是否已经达到阙值，若达到，则将Map队尾的元素（最不常使用的元素）remove掉。

    public void trimToSize(int maxSize) {
    while (true) {
        K key;
        V value;
        synchronized (this) {
            if (size < 0 || (map.isEmpty() && size != 0)) {
                throw new IllegalStateException(getClass().getName()
                        + ".sizeOf() is reporting inconsistent results!");
            }

            if (size <= maxSize) {
                break;
            }

            Map.Entry<K, V> toEvict = map.eldest();
            if (toEvict == null) {
                break;
            }

            key = toEvict.getKey();
            value = toEvict.getValue();
            map.remove(key);
            size -= safeSizeOf(key, value);
            evictionCount++;
        }

        entryRemoved(true, key, value, null);
    }
    }


2.5 get源码分析

• 查看get方法：

  • 可以看到参数值为Key，简单的理解就是通过key值从map中取出Value值。

  • 具体来说，判断map中是否含有key值value值，若存在，则hitCount（击中元素数量）自增，并返回Value值，若没有击中，则执行create(key)方法，这里看到create方法是一个空的实现方法，返回值为null，所以可以重写该方法，在调用get（key）的时候若没有找到value值，则自动创建一个value值并压入map中。

    public final V get(K key) {
    if (key == null) {
        throw new NullPointerException("key == null");
    }

    V mapValue;
    synchronized (this) {
        mapValue = map.get(key);
        if (mapValue != null) {
            hitCount++;
            return mapValue;
        }
        missCount++;
    }

    /*
     * Attempt to create a value. This may take a long time, and the map
     * may be different when create() returns. If a conflicting value was
     * added to the map while create() was working, we leave that value in
     * the map and release the created value.
     */

    V createdValue = create(key);
    if (createdValue == null) {
        return null;
    }

    synchronized (this) {
        createCount++;
        mapValue = map.put(key, createdValue);

        if (mapValue != null) {
            // There was a conflict so undo that last put
            map.put(key, mapValue);
        } else {
            size += safeSizeOf(key, createdValue);
        }
    }

    if (mapValue != null) {
        entryRemoved(false, key, createdValue, mapValue);
        return mapValue;
    } else {
        trimToSize(maxSize);
        return createdValue;
    }
    }
