 [[ml-configuring-url]]
 = Adding custom URLs to machine learning results

-When you create an advanced {anomaly-job} or edit any {anomaly-jobs} in {kib},
-you can optionally attach one or more custom URLs.
+You can optionally attach one or more custom URLs to your {anomaly-jobs}. These
+links appear in the anomalies table in the *Anomaly Explorer* and
+*Single Metric Viewer* and can direct you to dashboards, the *Discover* app, or
+external websites. For example, you can define a custom URL that provides a way
+for users to drill down to the source data from the results set:

-The custom URLs provide links from the anomalies table in the *Anomaly Explorer*
-or *Single Metric Viewer* window in {kib} to {kib} dashboards, the *Discovery*
-page, or external websites. For example, you can define a custom URL that
-provides a way for users to drill down to the source data from the results set.

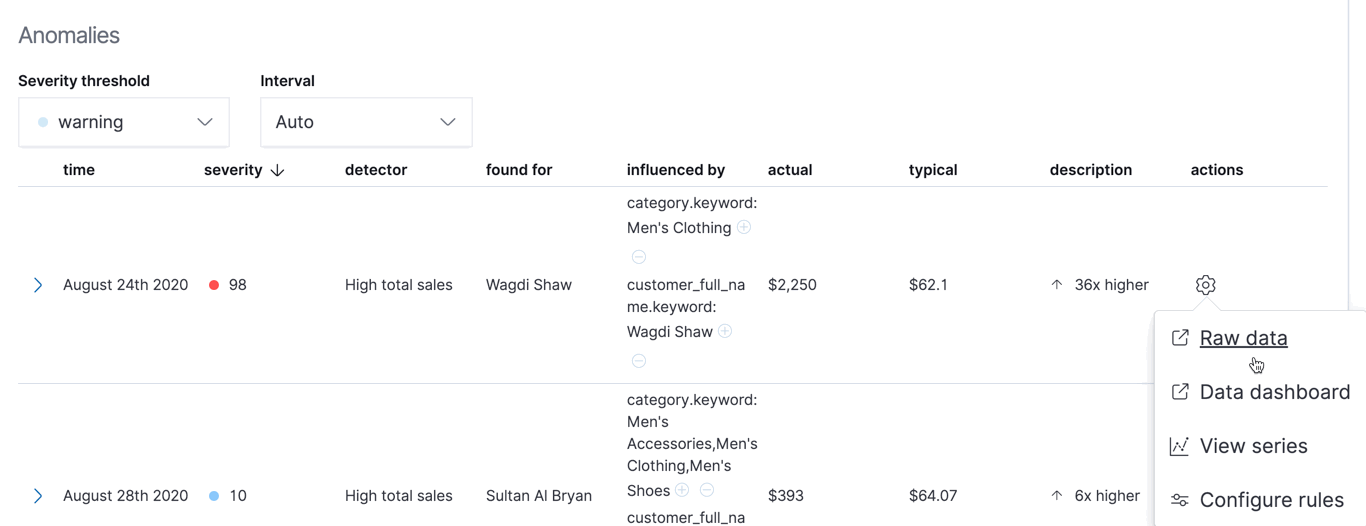

+[role="screenshot"]
+image::images/ml-customurl.gif["An example of the custom URL links in the Anomaly Explorer anomalies table"]

-When you edit an {anomaly-job} in {kib}, it simplifies the creation of the
-custom URLs for {kib} dashboards and the *Discover* page and it enables you to
-test your URLs. For example:

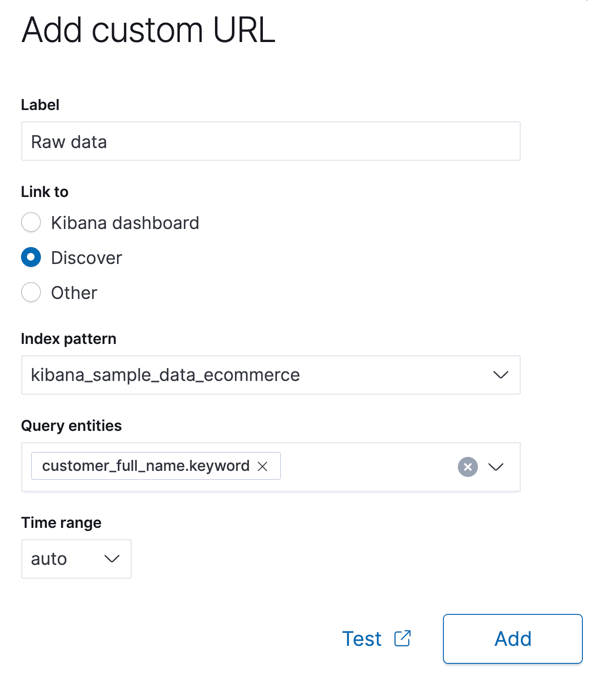

+When you create or edit an {anomaly-job} in {kib}, it simplifies the creation
+of the custom URLs for {kib} dashboards and the *Discover* app and it enables
+you to test your URLs. For example:

 [role="screenshot"]
-image::images/ml-customurl-edit.jpg["Edit a job to add a custom URL"]
+image::images/ml-customurl-edit.gif["Add a custom URL in {kib}",width=50%]

 For each custom URL, you must supply the URL and a label, which is the link text
 that appears in the anomalies table. You can also optionally supply a time
-range. For example, these are the values that are added for `My link 1`:
-
-[role="screenshot"]
-image::images/ml-customurl-detail.jpg["An example of a label and URL"]
-
-As in this case, the custom URL can contain
-<<ml-configuring-url-strings,dollar sign delimited tokens>>, which
-are populated when you click the link in the anomalies table. In this example,
-the custom URL contains `$earliest$`, `$latest$`, and `$service$` tokens, which
-pass the beginning and end of the time span of the selected anomaly and the
-pertinent `service` field value to the target page. If you were interested in
-the following anomaly, for example:
-
-[role="screenshot"]
-image::images/ml-customurl.jpg["An example of the custom URL links in the Anomaly Explorer anomalies table"]
-
-...clicking `My Link 1` opens the *Discover* page and shows results for the
-service and date that were identified in the anomaly:
-
-[role="screenshot"]
-image::images/ml-customurl-discover.jpg["An example of the results on the Discover page"]
-
-Since we specified a time range of 2 hours, the time filter restricts the
-results to the time period two hours before and after the anomaly.
-
-You can also specify these custom URL settings when you create or update
-{anomaly-jobs} by using the APIs.
+range. When you link to *Discover* or a {kib} dashboard, you'll have additional
+options for specifying the pertinent index pattern or dashboard name and query
+entities.

 [discrete]
 [[ml-configuring-url-strings]]
@@ -53,41 +30,33 @@ You can also specify these custom URL settings when you create or update

 You can use dollar sign ($) delimited tokens in a custom URL. These tokens are
 substituted for the values of the corresponding fields in the anomaly records.
-For example, for a configured URL of
-`http://my.datastore.com/dashboards?user=$user_name$`, the value of the
-`user_name` field in the anomaly record is substituted into the `$user_name$`
-token when you click the link in the anomalies table.
+For example, the `Raw data` URL might resolve to `discover#/?_g=(time:(from:'$earliest$',mode:absolute,to:'$latest$'))&_a=(index:ff959d40-b880-11e8-a6d9-e546fe2bba5f,query:(language:kuery,query:'customer_full_name.keyword:"$customer_full_name.keyword$"'))`. In this case, the pertinent value of the `customer_full_name.keyword` field
+is passed to the target page when you click the link.

-NOTE: Not all fields in your source data exist in the anomaly results. If a
+TIP: Not all fields in your source data exist in the anomaly results. If a
 field is specified in the detector as the `field_name`, `by_field_name`,
 `over_field_name`, or `partition_field_name`, for example, it can be used in a
-custom URL. A field that is only used in the `categorization_field_name`
-property, however, does not exist in the anomaly results.
-
-The following keywords can also be used as tokens for string substitution in a
-custom URL: `$earliest$`; `$latest$`; `$mlcategoryregex$`; `$mlcategoryterms$`.
+custom URL. A field that is used only in the `categorization_field_name`
+property, however, does not exist in the anomaly results. When you create your
+custom URL in {kib}, the *Query entities* option is shown only when there are
+appropriate fields in the detectors.

 The `$earliest$` and `$latest$` tokens pass the beginning and end of the time
 span of the selected anomaly to the target page. The tokens are substituted with
 date-time strings in ISO-8601 format. If you selected an interval of 1 hour for
 the anomalies table, these tokens use one hour on either side of the anomaly
-time as the earliest and latest times. The same is also true if the interval is
-set to `Auto` and a one hour interval was chosen. You can override this behavior
-by using the `time_range` setting.
-
-The `$mlcategoryregex$` and `$mlcategoryterms$` tokens pertain to {anomaly-jobs}
-where you are categorizing field values. For more information about this type of
-analysis, see <<ml-configuring-categories>>.
-
-The `$mlcategoryregex$` token passes the regular expression value of the
-category of the selected anomaly, as identified by the value of the `mlcategory`
-field of the anomaly record.
-
-The `$mlcategoryterms$` token likewise passes the terms value of the category of
-the selected anomaly. Each categorization term is prefixed by a plus (+)
-character, so that when the token is passed to a {kib} dashboard, the resulting
-dashboard query seeks a match for all of the terms of the category.
-
+time as the earliest and latest times. You can alter this behavior by setting a
+time range for the custom URL.
+
+There are also `$mlcategoryregex$` and `$mlcategoryterms$` tokens, which pertain
+to {anomaly-jobs} where you are categorizing field values. For more information
+about this type of analysis, see <<ml-configuring-categories>>. The
+`$mlcategoryregex$` token passes the regular expression value of the category of
+the selected anomaly, as identified by the value of the `mlcategory` field of
+the anomaly record. The `$mlcategoryterms$` token passes the terms value of the
+category of the selected anomaly. Each categorization term is prefixed by a plus
+(+) character, so that when the token is passed to a {kib} dashboard, the
+resulting dashboard query seeks a match for all of the terms of the category.
 For example, the following API updates a job to add a custom URL that uses
 `$earliest$`, `$latest$`, and `$mlcategoryterms$` tokens:

@@ -100,7 +69,7 @@ POST _ml/anomaly_detectors/sample_job/_update
           {
             "url_name": "test-link1",
             "time_range": "1h",
-            "url_value": "http://localhost:5601/app/kibana#/discover?_g=(refreshInterval:(display:Off,pause:!f,value:0),time:(from:'$earliest$',mode:quick,to:'$latest$'))&_a=(columns:!(_source),index:AV3OWB68ue3Ht69t29aw,interval:auto,query:(query_string:(analyze_wildcard:!t,query:'$mlcategoryterms$')),sort:!(time,desc))"
+            "url_value": "discover#/?_g=(time:(from:'$earliest$',mode:quick,to:'$latest$'))&_a=(index:'90943e30-9a47-11e8-b64d-95841ca0b247',query:(language:lucene,query_string:(analyze_wildcard:!t,query:'$mlcategoryterms$')),sort:!(time,desc))"
           }
         ]
       }
@@ -110,12 +79,9 @@ POST _ml/anomaly_detectors/sample_job/_update

 When you click this custom URL in the anomalies table in {kib}, it opens up the
 *Discover* page and displays source data for the period one hour before and
-after the anomaly occurred. Since this job was categorizing log messages, some
-`$mlcategoryterms$` token values that were passed to the target page for an
-example anomaly are as follows:
-
-[role="screenshot"]
-image::images/ml-categoryterms.jpg["A query for category terms on the Discover page in {kib}"]
+after the anomaly occurred. Since this job is categorizing log messages, some
+`$mlcategoryterms$` token values that are passed to the target page in the query
+might include `+REC +Not +INSERTED +TRAN +Table +hostname +dbserver.acme.com`.

 [TIP]
 ===============================
