[bsp] add new driver & iar support.

bsp/essemi/es32f369x/.config

@@ -64,7 +64,7 @@ CONFIG_RT_USING_DEVICE=y
 CONFIG_RT_USING_CONSOLE=y
 CONFIG_RT_CONSOLEBUF_SIZE=128
 CONFIG_RT_CONSOLE_DEVICE_NAME="uart0"
-CONFIG_RT_VER_NUM=0x40002
+CONFIG_RT_VER_NUM=0x40003
 # CONFIG_RT_USING_CPU_FFS is not set
 # CONFIG_ARCH_CPU_STACK_GROWS_UPWARD is not set

@@ -114,12 +114,10 @@ CONFIG_RT_PIPE_BUFSZ=512
 CONFIG_RT_USING_SERIAL=y
 # CONFIG_RT_SERIAL_USING_DMA is not set
 CONFIG_RT_SERIAL_RB_BUFSZ=64
-CONFIG_RT_USING_CAN=y
-# CONFIG_RT_CAN_USING_HDR is not set
+# CONFIG_RT_USING_CAN is not set
 # CONFIG_RT_USING_HWTIMER is not set
 # CONFIG_RT_USING_CPUTIME is not set
-CONFIG_RT_USING_I2C=y
-# CONFIG_RT_USING_I2C_BITOPS is not set
+# CONFIG_RT_USING_I2C is not set
 CONFIG_RT_USING_PIN=y
 # CONFIG_RT_USING_ADC is not set
 # CONFIG_RT_USING_PWM is not set
@@ -194,11 +192,15 @@ CONFIG_RT_USING_PIN=y
 #
 # IoT - internet of things
 #
+# CONFIG_PKG_USING_LORAWAN_DRIVER is not set
 # CONFIG_PKG_USING_PAHOMQTT is not set
+# CONFIG_PKG_USING_UMQTT is not set
 # CONFIG_PKG_USING_WEBCLIENT is not set
 # CONFIG_PKG_USING_WEBNET is not set
 # CONFIG_PKG_USING_MONGOOSE is not set
 # CONFIG_PKG_USING_MYMQTT is not set
+# CONFIG_PKG_USING_KAWAII_MQTT is not set
+# CONFIG_PKG_USING_BC28_MQTT is not set
 # CONFIG_PKG_USING_WEBTERMINAL is not set
 # CONFIG_PKG_USING_CJSON is not set
 # CONFIG_PKG_USING_JSMN is not set
@@ -225,6 +227,7 @@ CONFIG_RT_USING_PIN=y
 # CONFIG_PKG_USING_COAP is not set
 # CONFIG_PKG_USING_NOPOLL is not set
 # CONFIG_PKG_USING_NETUTILS is not set
+# CONFIG_PKG_USING_CMUX is not set
 # CONFIG_PKG_USING_PPP_DEVICE is not set
 # CONFIG_PKG_USING_AT_DEVICE is not set
 # CONFIG_PKG_USING_ATSRV_SOCKET is not set
@@ -237,9 +240,10 @@ CONFIG_RT_USING_PIN=y
 # CONFIG_PKG_USING_GAGENT_CLOUD is not set
 # CONFIG_PKG_USING_ALI_IOTKIT is not set
 # CONFIG_PKG_USING_AZURE is not set
-# CONFIG_PKG_USING_TENCENT_IOTHUB is not set
+# CONFIG_PKG_USING_TENCENT_IOT_EXPLORER is not set
 # CONFIG_PKG_USING_JIOT-C-SDK is not set
 # CONFIG_PKG_USING_UCLOUD_IOT_SDK is not set
+# CONFIG_PKG_USING_JOYLINK is not set
 # CONFIG_PKG_USING_NIMBLE is not set
 # CONFIG_PKG_USING_OTA_DOWNLOADER is not set
 # CONFIG_PKG_USING_IPMSG is not set
@@ -256,6 +260,11 @@ CONFIG_RT_USING_PIN=y
 # CONFIG_PKG_USING_ABUP_FOTA is not set
 # CONFIG_PKG_USING_LIBCURL2RTT is not set
 # CONFIG_PKG_USING_CAPNP is not set
+# CONFIG_PKG_USING_RT_CJSON_TOOLS is not set
+# CONFIG_PKG_USING_AGILE_TELNET is not set
+# CONFIG_PKG_USING_NMEALIB is not set
+# CONFIG_PKG_USING_AGILE_JSMN is not set
+# CONFIG_PKG_USING_PDULIB is not set

 #
 # security packages
@@ -263,6 +272,8 @@ CONFIG_RT_USING_PIN=y
 # CONFIG_PKG_USING_MBEDTLS is not set
 # CONFIG_PKG_USING_libsodium is not set
 # CONFIG_PKG_USING_TINYCRYPT is not set
+# CONFIG_PKG_USING_TFM is not set
+# CONFIG_PKG_USING_YD_CRYPTO is not set

 #
 # language packages
@@ -297,6 +308,9 @@ CONFIG_RT_USING_PIN=y
 # CONFIG_PKG_USING_CHINESE_FONT_LIBRARY is not set
 # CONFIG_PKG_USING_LUNAR_CALENDAR is not set
 # CONFIG_PKG_USING_BS8116A is not set
+# CONFIG_PKG_USING_GPS_RMC is not set
+# CONFIG_PKG_USING_URLENCODE is not set
+# CONFIG_PKG_USING_UMCN is not set

 #
 # system packages
@@ -307,6 +321,7 @@ CONFIG_RT_USING_PIN=y
 # CONFIG_PKG_USING_LWEXT4 is not set
 # CONFIG_PKG_USING_PARTITION is not set
 # CONFIG_PKG_USING_FAL is not set
+# CONFIG_PKG_USING_FLASHDB is not set
 # CONFIG_PKG_USING_SQLITE is not set
 # CONFIG_PKG_USING_RTI is not set
 # CONFIG_PKG_USING_LITTLEVGL2RTT is not set
@@ -317,6 +332,12 @@ CONFIG_RT_USING_PIN=y
 # CONFIG_PKG_USING_ROBOTS is not set
 # CONFIG_PKG_USING_EV is not set
 # CONFIG_PKG_USING_SYSWATCH is not set
+# CONFIG_PKG_USING_SYS_LOAD_MONITOR is not set
+# CONFIG_PKG_USING_PLCCORE is not set
+# CONFIG_PKG_USING_RAMDISK is not set
+# CONFIG_PKG_USING_MININI is not set
+# CONFIG_PKG_USING_QBOOT is not set
+# CONFIG_PKG_USING_UCOSIII_WRAPPER is not set

 #
 # peripheral libraries and drivers
@@ -333,6 +354,10 @@ CONFIG_RT_USING_PIN=y
 # CONFIG_PKG_USING_SX12XX is not set
 # CONFIG_PKG_USING_SIGNAL_LED is not set
 # CONFIG_PKG_USING_LEDBLINK is not set
+# CONFIG_PKG_USING_LITTLED is not set
+# CONFIG_PKG_USING_LKDGUI is not set
+# CONFIG_PKG_USING_NRF5X_SDK is not set
+# CONFIG_PKG_USING_NRFX is not set
 # CONFIG_PKG_USING_WM_LIBRARIES is not set
 # CONFIG_PKG_USING_KENDRYTE_SDK is not set
 # CONFIG_PKG_USING_INFRARED is not set
@@ -350,6 +375,21 @@ CONFIG_RT_USING_PIN=y
 # CONFIG_PKG_USING_RPLIDAR is not set
 # CONFIG_PKG_USING_AS608 is not set
 # CONFIG_PKG_USING_RC522 is not set
+# CONFIG_PKG_USING_WS2812B is not set
+# CONFIG_PKG_USING_EMBARC_BSP is not set
+# CONFIG_PKG_USING_EXTERN_RTC_DRIVERS is not set
+# CONFIG_PKG_USING_MULTI_RTIMER is not set
+# CONFIG_PKG_USING_MAX7219 is not set
+# CONFIG_PKG_USING_BEEP is not set
+# CONFIG_PKG_USING_EASYBLINK is not set
+# CONFIG_PKG_USING_PMS_SERIES is not set
+# CONFIG_PKG_USING_CAN_YMODEM is not set
+# CONFIG_PKG_USING_LORA_RADIO_DRIVER is not set
+# CONFIG_PKG_USING_QLED is not set
+# CONFIG_PKG_USING_PAJ7620 is not set
+# CONFIG_PKG_USING_AGILE_CONSOLE is not set
+# CONFIG_PKG_USING_LD3320 is not set
+# CONFIG_PKG_USING_WK2124 is not set

 #
 # miscellaneous packages
@@ -386,6 +426,9 @@ CONFIG_RT_USING_PIN=y
 # CONFIG_PKG_USING_VT100 is not set
 # CONFIG_PKG_USING_ULAPACK is not set
 # CONFIG_PKG_USING_UKAL is not set
+# CONFIG_PKG_USING_CRCLIB is not set
+# CONFIG_PKG_USING_THREES is not set
+# CONFIG_PKG_USING_2048 is not set
 CONFIG_SOC_ES32F3696LT=y

 #
@@ -425,6 +468,28 @@ CONFIG_BSP_USING_UART0=y
 #
 # CONFIG_BSP_USING_CAN is not set

+#
+# ADC Drivers
+#
+# CONFIG_BSP_USING_ADC is not set
+
+#
+# RTC Drivers
+#
+# CONFIG_BSP_USING_RTC is not set
+
+#
+# HWtimer Drivers
+#
+# CONFIG_BSP_USING_HWTIMER0 is not set
+# CONFIG_BSP_USING_HWTIMER1 is not set
+
+#
+# PWM Drivers
+#
+# CONFIG_BSP_USING_PWM0 is not set
+# CONFIG_BSP_USING_PWM1 is not set
+
 #
 # Onboard Peripheral Drivers
 #

bsp/essemi/es32f369x/README.md

@@ -13,9 +13,9 @@ ES-PDS-ES32F369x 是东软载波微电子官方推出的一款基于 ARM Cortex-

 开发板外观如下图所示：

-ES-PDS-ES32F369x-V1.2

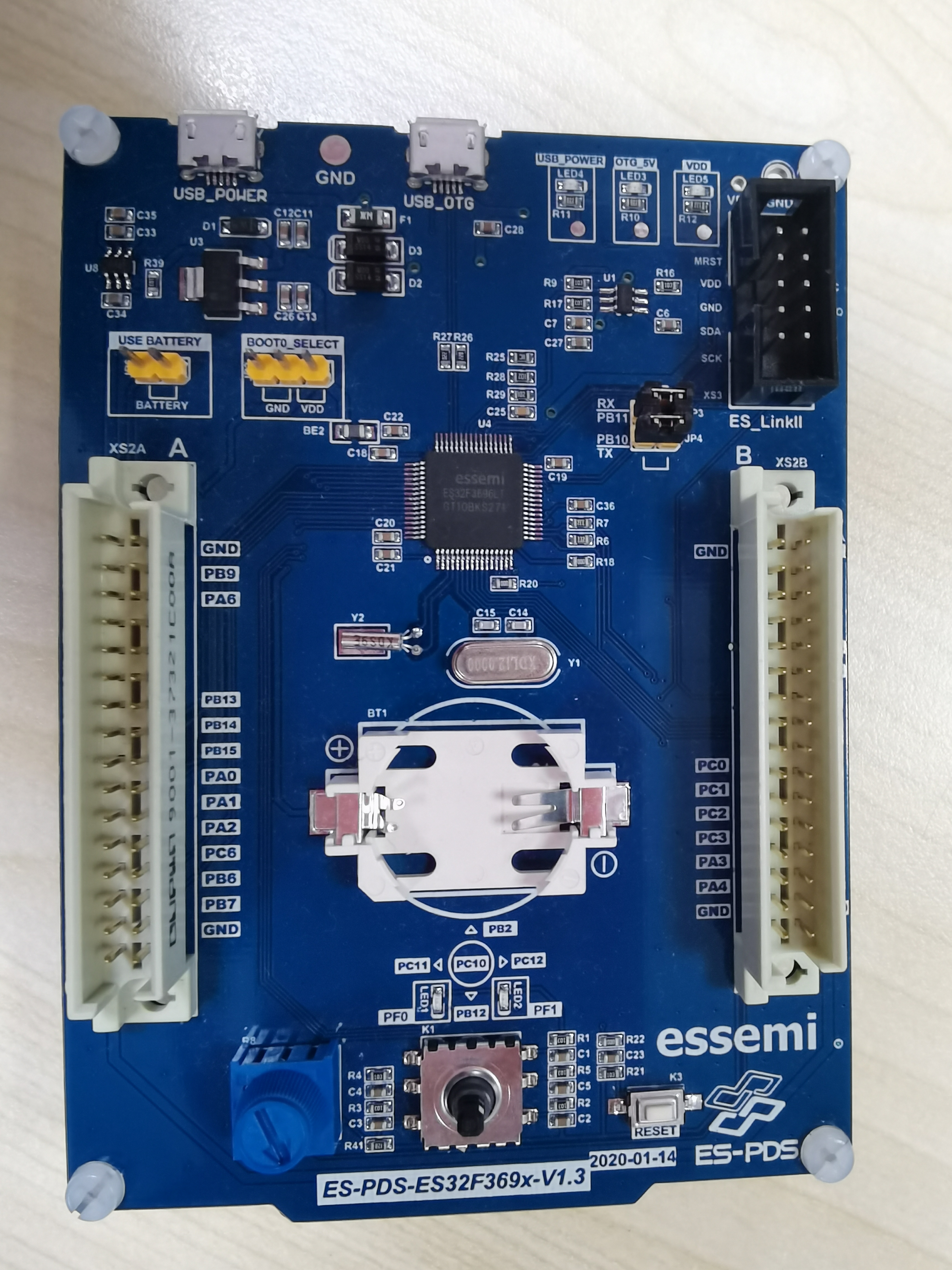

+ES-PDS-ES32F369x-V1.3

-![ES32F0654](figures/ES-PDS-ES32F369x-V1.2.jpg)
+![ES32F0654](figures/ES-PDS-ES32F369x-V1.3.jpg)

 该开发板常用 **板载资源** 如下：

@@ -32,15 +32,19 @@ ES-PDS-ES32F369x-V1.2

 本 BSP 目前对外设的支持情况如下：

-| **板载外设** | **支持情况** | **备注**         |
-| :----------- | :----------: | :--------------- |
-| SPI FLASH    |     支持     | SPI0             |
-| **片上外设** | **支持情况** | **备注**         |
-| GPIO         |     支持     | 50 GPIOs         |
-| UART         |     支持     | UART0/1/2/3/4/5  |
-| SPI          |     支持     | SPI0/1/2         |
-| I2C          |     支持     | I2C0/1           |
-| CAN          |     支持     | CAN0             |
+| **板载外设** | **支持情况** | **备注**        |
+| :----------- | :----------: | :-------------- |
+| SPI FLASH    |     支持     | SPI0            |
+| **片上外设** | **支持情况** | **备注**        |
+| GPIO         |     支持     | 50 GPIOs        |
+| UART         |     支持     | UART0/1/2/3/4/5 |
+| SPI          |     支持     | SPI0/1/2        |
+| I2C          |     支持     | I2C0/1          |
+| CAN          |     支持     | CAN0            |
+| PWM          |     支持     | PWM0/1          |
+| TIMER        |     支持     | TIMER0/1        |
+| RTC          |     支持     | RTC             |
+| ADC          |     支持     | ADC0            |

 ### 1.2  注意事项

@@ -56,7 +60,7 @@ ES-PDS-ES32F369x-V1.2

 使用ESlinkⅡ(mini)连接开发板如下图所示：

-ESLinkⅡ(mini) + ES-PDS-ES32F369x-V1.2
+ESLinkⅡ(mini) + ES-PDS-ES32F369x-V1.3

 ![ESLinkII](figures/ESLinkII-mini.jpg)


bsp/essemi/es32f369x/drivers/Kconfig

@@ -21,25 +21,25 @@ menu "Hardware Drivers Config"
                 bool "Enable UART2 PC12/PD02(T/R)"
                 select RT_USING_SERIAL
                 default y
-                depends on !BSP_USING_HWTIMER1

             config BSP_USING_UART3
                 bool "Enable UART3 PC04/PC05(T/R)"
                 select RT_USING_SERIAL
                 default n
-                depends on !BSP_USING_HWTIMER2
+                depends on !BSP_USING_SPI2

-
             config BSP_USING_UART4
                 bool "Enable UART4 PB06/PB07(T/R)"
                 select RT_USING_SERIAL
                 default n
                 depends on !BSP_USING_I2C0
+                depends on !BSP_USING_PWM0

             config BSP_USING_UART5
                 bool "Enable UART5 PB09/PB08(T/R)"
                 select RT_USING_SERIAL
                 default n
+                depends on !BSP_USING_PWM0
         endmenu

         menu "SPI Drivers"
@@ -60,16 +60,18 @@ menu "Hardware Drivers Config"
                 select RT_USING_SPI
                 select RT_USING_PIN
                 default n
+                depends on !BSP_USING_UART3
         endmenu

         menu "I2C Drivers"
             config BSP_USING_I2C0
-                bool "Enable I2C0 BUS PB08/PB09(SCL/SDA)"
+                bool "Enable I2C0 BUS PB06/PB07(SCL/SDA)"
                 select RT_USING_I2C
                 default n
+                depends on !BSP_USING_PWM0

             config BSP_USING_I2C1
-                bool "Enable I2C1 BUS PB10/PB11(SCL/SDA)"
+                bool "Enable I2C1 BUS PA05/PA06(SCL/SDA)"
                 select RT_USING_I2C
                 default n
         endmenu
@@ -80,6 +82,47 @@ menu "Hardware Drivers Config"
                 select RT_USING_CAN
                 default n
         endmenu
+
+        menu "ADC Drivers"
+            config BSP_USING_ADC
+                bool "Using ADC"
+                select RT_USING_ADC
+                default n
+        endmenu
+
+        menu "RTC Drivers"
+            config BSP_USING_RTC
+                bool "Using RTC"
+                select RT_USING_RTC
+                default n
+        endmenu
+
+        menu "HWtimer Drivers"
+            config BSP_USING_HWTIMER0
+                bool "Using timer0"
+                select RT_USING_HWTIMER
+                default n
+
+            config BSP_USING_HWTIMER1
+                bool "Using timer1"
+                select RT_USING_HWTIMER
+                default n
+        endmenu
+
+        menu "PWM Drivers"
+            config BSP_USING_PWM0
+                bool "Using PWM0 PB06/PB07/PB08/PB09"
+                select RT_USING_PWM
+                default n
+                depends on !BSP_USING_CAN
+                depends on !BSP_USING_I2C0
+
+            config BSP_USING_PWM1
+                bool "Using PWM1 PA00/PA01/PA02/PA03"
+                select RT_USING_PWM
+                default n
+        endmenu
+
     endmenu

     menu "Onboard Peripheral Drivers"

bsp/essemi/es32f369x/drivers/SConscript

@@ -28,6 +28,22 @@ if  GetDepend('BSP_USING_I2C0') or GetDepend('BSP_USING_I2C1'):
 if  GetDepend('BSP_USING_CAN'):
     src += ['drv_can.c']

+# add adc driver code
+if GetDepend(['BSP_USING_ADC']):
+    src += ['drv_adc.c']
+
+# add rtc driver code
+if GetDepend(['BSP_USING_RTC']):
+    src += ['drv_rtc.c']
+
+# add hwtimer driver code
+if GetDepend('BSP_USING_HWTIMER0') or GetDepend('BSP_USING_HWTIMER1'):
+    src += ['drv_hwtimer.c']
+
+# add pwm driver code
+if GetDepend('BSP_USING_PWM0') or GetDepend('BSP_USING_PWM1'):
+    src += ['drv_pwm.c']
+
 CPPPATH = [cwd]
 group = DefineGroup('Drivers', src, depend = [''], CPPPATH = CPPPATH)


bsp/essemi/es32f369x/drivers/board.h

@@ -14,7 +14,7 @@

 #include <es32f36xx.h>

-#define ES32F3_SRAM_SIZE    0x80000
+#define ES32F3_SRAM_SIZE    0x18000
 #define ES32F3_SRAM_END     (0x20000000 + ES32F3_SRAM_SIZE)

 #if defined(__CC_ARM) || defined(__CLANG_ARM)

bsp/essemi/es32f369x/drivers/drv_adc.c

@@ -0,0 +1,194 @@
+/*
+ * Copyright (C) 2018 Shanghai Eastsoft Microelectronics Co., Ltd.
+ *
+ * SPDX-License-Identifier: Apache-2.0
+ *
+ * Change Logs:
+ * Date           Author        Notes
+ * 2019-04-03     wangyq        the first version
+ * 2019-11-01     wangyq        update libraries
+ */
+
+#include <rthw.h>
+#include <rtthread.h>
+#include <rtdevice.h>
+#include "board.h"
+#include "drv_adc.h"
+#include <ald_gpio.h>
+#include <ald_adc.h>
+
+#ifdef RT_USING_ADC
+
+/* define adc instance */
+static struct rt_adc_device _device_adc0;
+
+/* enable or disable adc */
+static rt_err_t es32f3_adc_enabled(struct rt_adc_device *device, rt_uint32_t channel, rt_bool_t enabled)
+{
+    adc_handle_t *_hadc = (adc_handle_t *)device->parent.user_data;
+
+    RT_ASSERT(device != RT_NULL);
+
+    if (enabled)
+    {
+        ADC_ENABLE(_hadc); ;
+    }
+    else
+    {
+        ADC_DISABLE(_hadc);
+    }
+
+    return RT_EOK;
+}
+
+static adc_channel_t es32f3_adc_get_channel(rt_uint32_t channel)
+{
+    adc_channel_t es32f3_channel;
+    gpio_init_t gpio_initstruct;
+
+    /* Initialize ADC pin */
+    gpio_initstruct.mode = GPIO_MODE_INPUT;
+    gpio_initstruct.pupd = GPIO_FLOATING;
+    gpio_initstruct.podrv = GPIO_OUT_DRIVE_1;
+    gpio_initstruct.nodrv = GPIO_OUT_DRIVE_1;
+    gpio_initstruct.flt  = GPIO_FILTER_DISABLE;
+    gpio_initstruct.type = GPIO_TYPE_CMOS;
+    gpio_initstruct.func = GPIO_FUNC_0;
+
+    /* select gpio pin as adc function */
+    switch (channel)
+    {
+    case  0:
+        es32f3_channel = ADC_CHANNEL_0;
+        ald_gpio_init(GPIOC, GPIO_PIN_0, &gpio_initstruct);
+        break;
+    case  1:
+        es32f3_channel = ADC_CHANNEL_1;
+        ald_gpio_init(GPIOC, GPIO_PIN_1, &gpio_initstruct);
+        break;
+    case  2:
+        es32f3_channel = ADC_CHANNEL_2;
+        ald_gpio_init(GPIOC, GPIO_PIN_2, &gpio_initstruct);
+        break;
+    case  3:
+        es32f3_channel = ADC_CHANNEL_3;
+        ald_gpio_init(GPIOC, GPIO_PIN_3, &gpio_initstruct);
+        break;
+    case  4:
+        es32f3_channel = ADC_CHANNEL_4;
+        ald_gpio_init(GPIOA, GPIO_PIN_0, &gpio_initstruct);
+        break;
+    case  5:
+        es32f3_channel = ADC_CHANNEL_5;
+        ald_gpio_init(GPIOA, GPIO_PIN_1, &gpio_initstruct);
+        break;
+    case  6:
+        es32f3_channel = ADC_CHANNEL_6;
+        ald_gpio_init(GPIOA, GPIO_PIN_2, &gpio_initstruct);
+        break;
+    case  7:
+        es32f3_channel = ADC_CHANNEL_7;
+        ald_gpio_init(GPIOA, GPIO_PIN_3, &gpio_initstruct);
+        break;
+    case  8:
+        es32f3_channel = ADC_CHANNEL_8;
+        ald_gpio_init(GPIOA, GPIO_PIN_4, &gpio_initstruct);
+        break;
+    case  9:
+        es32f3_channel = ADC_CHANNEL_9;
+        ald_gpio_init(GPIOA, GPIO_PIN_5, &gpio_initstruct);
+        break;
+    case 10:
+        es32f3_channel = ADC_CHANNEL_10;
+        ald_gpio_init(GPIOA, GPIO_PIN_6, &gpio_initstruct);
+        break;
+    case 11:
+        es32f3_channel = ADC_CHANNEL_11;
+        ald_gpio_init(GPIOA, GPIO_PIN_7, &gpio_initstruct);
+        break;
+    case 12:
+        es32f3_channel = ADC_CHANNEL_12;
+        ald_gpio_init(GPIOC, GPIO_PIN_4, &gpio_initstruct);
+        break;
+    case 13:
+        es32f3_channel = ADC_CHANNEL_13;
+        ald_gpio_init(GPIOC, GPIO_PIN_5, &gpio_initstruct);
+        break;
+    case 14:
+        es32f3_channel = ADC_CHANNEL_14;
+        ald_gpio_init(GPIOB, GPIO_PIN_0, &gpio_initstruct);
+        break;
+    case 15:
+        es32f3_channel = ADC_CHANNEL_15;
+        ald_gpio_init(GPIOB, GPIO_PIN_1, &gpio_initstruct);
+        break;
+    case 16:
+        es32f3_channel = ADC_CHANNEL_16;
+        break;
+    case 17:
+        es32f3_channel = ADC_CHANNEL_17;
+        break;
+    case 18:
+        es32f3_channel = ADC_CHANNEL_18;
+        break;
+    default:
+        break;
+    }
+
+    return es32f3_channel;
+}
+
+static rt_err_t es32f3_get_adc_value(struct rt_adc_device *device, rt_uint32_t channel, rt_uint32_t *value)
+{
+    adc_handle_t *_hadc = (adc_handle_t *)device->parent.user_data;
+    adc_nch_conf_t nm_config;
+
+    RT_ASSERT(device != RT_NULL);
+    RT_ASSERT(value != RT_NULL);
+
+    /* config adc channel */
+    nm_config.channel       = es32f3_adc_get_channel(channel);
+    nm_config.rank          = ADC_NCH_RANK_1;
+    nm_config.samp_time = ADC_SAMPLETIME_4;
+    ald_adc_normal_channel_config(_hadc, &nm_config);
+
+    ald_adc_normal_start(_hadc);
+
+    if (ald_adc_normal_poll_for_conversion(_hadc, 5000) == OK)
+        *value = ald_adc_normal_get_value(_hadc);
+
+    return RT_EOK;
+}
+
+static const struct rt_adc_ops es32f3_adc_ops =
+{
+    es32f3_adc_enabled,
+    es32f3_get_adc_value,
+};
+
+int rt_hw_adc_init(void)
+{
+    int result = RT_EOK;
+    static adc_handle_t _h_adc0;
+
+    /* adc function initialization */
+    _h_adc0.perh = ADC0;
+    _h_adc0.init.data_align = ADC_DATAALIGN_RIGHT;
+    _h_adc0.init.scan_mode = DISABLE;
+    _h_adc0.init.cont_mode = DISABLE;
+    _h_adc0.init.disc_mode = ADC_ALL_DISABLE;
+    _h_adc0.init.disc_nbr = ADC_DISC_NBR_1;
+    _h_adc0.init.conv_res = ADC_CONV_RES_10;
+    _h_adc0.init.clk_div = ADC_CKDIV_128;
+    _h_adc0.init.nche_sel = ADC_NCHESEL_MODE_ALL;
+    _h_adc0.init.neg_ref = ADC_NEG_REF_VSS;
+    _h_adc0.init.pos_ref = ADC_POS_REF_VDD;
+    ald_adc_init(&_h_adc0);
+
+    rt_hw_adc_register(&_device_adc0, "adc0", &es32f3_adc_ops, &_h_adc0);
+
+    return result;
+}
+INIT_BOARD_EXPORT(rt_hw_adc_init);
+
+#endif

bsp/essemi/es32f369x/drivers/drv_adc.h

@@ -0,0 +1,16 @@
+/*
+ * Copyright (C) 2018 Shanghai Eastsoft Microelectronics Co., Ltd.
+ *
+ * SPDX-License-Identifier: Apache-2.0
+ *
+ * Change Logs:
+ * Date           Author        Notes
+ * 2019-04-03     wangyq        the first version
+ */
+
+#ifndef DRV_ADC_H__
+#define DRV_ADC_H__
+
+int rt_hw_adc_init(void);
+
+#endif

bsp/essemi/es32f369x/drivers/drv_gpio.c

@@ -17,10 +17,10 @@

 #ifdef RT_USING_PIN

-#define __ES32F0_PIN(index, gpio, gpio_index) {index, GPIO##gpio, GPIO_PIN_##gpio_index}
-#define __ES32F0_PIN_DEFAULT {-1, 0, 0}
+#define __ES32F3_PIN(index, gpio, gpio_index) {index, GPIO##gpio, GPIO_PIN_##gpio_index}
+#define __ES32F3_PIN_DEFAULT {-1, 0, 0}

-/* ES32F0 GPIO driver */
+/* ES32F3 GPIO driver */
 struct pin_index
 {
     int index;
@@ -30,71 +30,71 @@ struct pin_index

 static const struct pin_index pins[] =
 {
-    __ES32F0_PIN_DEFAULT,
-    __ES32F0_PIN_DEFAULT,
-    __ES32F0_PIN(2, C, 13),
-    __ES32F0_PIN(3, C, 14),
-    __ES32F0_PIN(4, C, 15),
-    __ES32F0_PIN(5, H, 0),
-    __ES32F0_PIN(6, H, 1),
-    __ES32F0_PIN_DEFAULT,
-    __ES32F0_PIN(8, C, 0),
-    __ES32F0_PIN(9, C, 1),
-    __ES32F0_PIN(10, C, 2),
-    __ES32F0_PIN(11, C, 3),
-    __ES32F0_PIN(12, H, 3),
-    __ES32F0_PIN(13, H, 4),
-    __ES32F0_PIN(14, A, 0),
-    __ES32F0_PIN(15, A, 1),
-    __ES32F0_PIN(16, A, 2),
-    __ES32F0_PIN(17, A, 3),
-    __ES32F0_PIN(18, F, 0),
-    __ES32F0_PIN(19, F, 1),
-    __ES32F0_PIN(20, A, 4),
-    __ES32F0_PIN(21, A, 5),
-    __ES32F0_PIN(22, A, 6),
-    __ES32F0_PIN(23, A, 7),
-    __ES32F0_PIN(24, C, 4),
-    __ES32F0_PIN(25, C, 5),
-    __ES32F0_PIN(26, B, 0),
-    __ES32F0_PIN(27, B, 1),
-    __ES32F0_PIN(28, B, 2),
-    __ES32F0_PIN(29, B, 10),
-    __ES32F0_PIN(30, B, 11),
-    __ES32F0_PIN_DEFAULT,
-    __ES32F0_PIN_DEFAULT,
-    __ES32F0_PIN(33, B, 12),
-    __ES32F0_PIN(34, B, 13),
-    __ES32F0_PIN(35, B, 14),
-    __ES32F0_PIN(36, B, 15),
-    __ES32F0_PIN(37, C, 6),
-    __ES32F0_PIN(38, C, 7),
-    __ES32F0_PIN(39, C, 8),
-    __ES32F0_PIN_DEFAULT,
-    __ES32F0_PIN_DEFAULT,
-    __ES32F0_PIN_DEFAULT,
-    __ES32F0_PIN_DEFAULT,
-    __ES32F0_PIN_DEFAULT,
-    __ES32F0_PIN_DEFAULT,
-    __ES32F0_PIN(46, A, 13),
-    __ES32F0_PIN_DEFAULT,
-    __ES32F0_PIN_DEFAULT,
-    __ES32F0_PIN(49, A, 14),
-    __ES32F0_PIN(50, A, 15),
-    __ES32F0_PIN(51, C, 10),
-    __ES32F0_PIN(52, C, 11),
-    __ES32F0_PIN(53, C, 12),
-    __ES32F0_PIN(54, D, 2),
-    __ES32F0_PIN(55, B, 3),
-    __ES32F0_PIN(56, B, 4),
-    __ES32F0_PIN(57, B, 5),
-    __ES32F0_PIN(58, B, 6),
-    __ES32F0_PIN(59, B, 7),
-    __ES32F0_PIN(60, H, 2),
-    __ES32F0_PIN(61, B, 8),
-    __ES32F0_PIN(62, B, 9),
-    __ES32F0_PIN_DEFAULT,
-    __ES32F0_PIN_DEFAULT,
+    __ES32F3_PIN_DEFAULT,
+    __ES32F3_PIN_DEFAULT,
+    __ES32F3_PIN(2, C, 13),
+    __ES32F3_PIN(3, C, 14),
+    __ES32F3_PIN(4, C, 15),
+    __ES32F3_PIN(5, H, 0),
+    __ES32F3_PIN(6, H, 1),
+    __ES32F3_PIN_DEFAULT,
+    __ES32F3_PIN(8, C, 0),
+    __ES32F3_PIN(9, C, 1),
+    __ES32F3_PIN(10, C, 2),
+    __ES32F3_PIN(11, C, 3),
+    __ES32F3_PIN(12, H, 3),
+    __ES32F3_PIN(13, H, 4),
+    __ES32F3_PIN(14, A, 0),
+    __ES32F3_PIN(15, A, 1),
+    __ES32F3_PIN(16, A, 2),
+    __ES32F3_PIN(17, A, 3),
+    __ES32F3_PIN(18, F, 0),
+    __ES32F3_PIN(19, F, 1),
+    __ES32F3_PIN(20, A, 4),
+    __ES32F3_PIN(21, A, 5),
+    __ES32F3_PIN(22, A, 6),
+    __ES32F3_PIN(23, A, 7),
+    __ES32F3_PIN(24, C, 4),
+    __ES32F3_PIN(25, C, 5),
+    __ES32F3_PIN(26, B, 0),
+    __ES32F3_PIN(27, B, 1),
+    __ES32F3_PIN(28, B, 2),
+    __ES32F3_PIN(29, B, 10),
+    __ES32F3_PIN(30, B, 11),
+    __ES32F3_PIN_DEFAULT,
+    __ES32F3_PIN_DEFAULT,
+    __ES32F3_PIN(33, B, 12),
+    __ES32F3_PIN(34, B, 13),
+    __ES32F3_PIN(35, B, 14),
+    __ES32F3_PIN(36, B, 15),
+    __ES32F3_PIN(37, C, 6),
+    __ES32F3_PIN(38, C, 7),
+    __ES32F3_PIN(39, C, 8),
+    __ES32F3_PIN_DEFAULT,
+    __ES32F3_PIN_DEFAULT,
+    __ES32F3_PIN_DEFAULT,
+    __ES32F3_PIN_DEFAULT,
+    __ES32F3_PIN_DEFAULT,
+    __ES32F3_PIN_DEFAULT,
+    __ES32F3_PIN(46, A, 13),
+    __ES32F3_PIN_DEFAULT,
+    __ES32F3_PIN_DEFAULT,
+    __ES32F3_PIN(49, A, 14),
+    __ES32F3_PIN(50, A, 15),
+    __ES32F3_PIN(51, C, 10),
+    __ES32F3_PIN(52, C, 11),
+    __ES32F3_PIN(53, C, 12),
+    __ES32F3_PIN(54, D, 2),
+    __ES32F3_PIN(55, B, 3),
+    __ES32F3_PIN(56, B, 4),
+    __ES32F3_PIN(57, B, 5),
+    __ES32F3_PIN(58, B, 6),
+    __ES32F3_PIN(59, B, 7),
+    __ES32F3_PIN(60, H, 2),
+    __ES32F3_PIN(61, B, 8),
+    __ES32F3_PIN(62, B, 9),
+    __ES32F3_PIN_DEFAULT,
+    __ES32F3_PIN_DEFAULT,
 };

 struct pin_irq_map

bsp/essemi/es32f369x/drivers/drv_hwtimer.c

@@ -0,0 +1,193 @@
+/*
+ * Copyright (C) 2018 Shanghai Eastsoft Microelectronics Co., Ltd.
+ *
+ * SPDX-License-Identifier: Apache-2.0
+ *
+ * Change Logs:
+ * Date           Author       Notes
+ * 2019-3-19      wangyq       the first version
+ * 2019-11-01     wangyq        update libraries
+ */
+
+#include <rthw.h>
+#include <rtthread.h>
+#include <rtdevice.h>
+#include <drv_hwtimer.h>
+#include <board.h>
+#include <ald_cmu.h>
+#include <ald_timer.h>
+
+#ifdef RT_USING_HWTIMER
+
+struct es32f3_hwtimer_dev
+{
+    rt_hwtimer_t parent;
+    timer_handle_t *hwtimer_periph;
+    IRQn_Type IRQn;
+};
+
+#ifdef BSP_USING_HWTIMER0
+static struct es32f3_hwtimer_dev hwtimer0;
+
+void BS16T0_Handler(void)
+{
+    ald_timer_clear_flag_status(hwtimer0.hwtimer_periph, TIMER_FLAG_UPDATE);
+    rt_device_hwtimer_isr(&hwtimer0.parent);
+
+    if (HWTIMER_MODE_ONESHOT == hwtimer0.parent.mode)
+    {
+        ald_timer_base_stop(hwtimer0.hwtimer_periph);
+    }
+}
+#endif
+
+#ifdef BSP_USING_HWTIMER1
+static struct es32f3_hwtimer_dev hwtimer1;
+/* can not use when UART2 Handler is enabled */
+void BS16T1_Handler(void)
+{
+    /* if BS16T1 it */
+    if (ald_timer_get_it_status(hwtimer1.hwtimer_periph, TIMER_IT_UPDATE) &&
+            ald_timer_get_flag_status(hwtimer1.hwtimer_periph, TIMER_FLAG_UPDATE))
+    {
+        ald_timer_clear_flag_status(hwtimer1.hwtimer_periph, TIMER_FLAG_UPDATE);
+        rt_device_hwtimer_isr(&hwtimer1.parent);
+
+        if (HWTIMER_MODE_ONESHOT == hwtimer1.parent.mode)
+        {
+            ald_timer_base_stop(hwtimer1.hwtimer_periph);
+        }
+    }
+}
+#endif
+
+static struct rt_hwtimer_info es32f3_hwtimer_info =
+{
+    96000000, /* maximum count frequency */
+    1,        /* minimum count frequency */
+    65535,    /* counter maximum value */
+    HWTIMER_CNTMODE_UP
+};
+
+static void es32f3_hwtimer_init(rt_hwtimer_t *timer, rt_uint32_t state)
+{
+    struct es32f3_hwtimer_dev *hwtimer = (struct es32f3_hwtimer_dev *)timer->parent.user_data;
+
+    RT_ASSERT(hwtimer != RT_NULL);
+
+    if (1 == state)
+    {
+        ald_timer_base_init(hwtimer->hwtimer_periph);
+        ald_timer_interrupt_config(hwtimer->hwtimer_periph, TIMER_IT_UPDATE, ENABLE);
+        NVIC_EnableIRQ(hwtimer->IRQn);
+    }
+    hwtimer->parent.freq = ald_cmu_get_pclk1_clock();
+    es32f3_hwtimer_info.maxfreq = ald_cmu_get_pclk1_clock();
+    es32f3_hwtimer_info.minfreq = ald_cmu_get_pclk1_clock();
+}
+
+static rt_err_t es32f3_hwtimer_start(rt_hwtimer_t *timer,
+                                     rt_uint32_t cnt,
+                                     rt_hwtimer_mode_t mode)
+{
+    struct es32f3_hwtimer_dev *hwtimer = (struct es32f3_hwtimer_dev *)timer->parent.user_data;
+
+    RT_ASSERT(hwtimer != RT_NULL);
+
+    WRITE_REG(hwtimer->hwtimer_periph->perh->AR, cnt);
+    ald_timer_base_start(hwtimer->hwtimer_periph);
+
+    return RT_EOK;
+}
+
+static void es32f3_hwtimer_stop(rt_hwtimer_t *timer)
+{
+    struct es32f3_hwtimer_dev *hwtimer = (struct es32f3_hwtimer_dev *)timer->parent.user_data;
+
+    RT_ASSERT(hwtimer != RT_NULL);
+
+    ald_timer_base_stop(hwtimer->hwtimer_periph);
+}
+
+static rt_uint32_t es32f3_hwtimer_count_get(rt_hwtimer_t *timer)
+{
+    struct es32f3_hwtimer_dev *hwtimer = (struct es32f3_hwtimer_dev *)timer->parent.user_data;
+    uint32_t hwtimer_count = 0;
+
+    RT_ASSERT(hwtimer != RT_NULL);
+
+    hwtimer_count = READ_REG(hwtimer->hwtimer_periph->perh->COUNT);
+
+    return hwtimer_count;
+}
+
+static rt_err_t es32f3_hwtimer_control(rt_hwtimer_t *timer,
+                                       rt_uint32_t cmd,
+                                       void *args)
+{
+    rt_err_t ret = RT_EOK;
+    rt_uint32_t freq = 0;
+    struct es32f3_hwtimer_dev *hwtimer = (struct es32f3_hwtimer_dev *)timer->parent.user_data;
+
+    RT_ASSERT(hwtimer != RT_NULL);
+
+    switch (cmd)
+    {
+    case HWTIMER_CTRL_FREQ_SET:
+        freq = *(rt_uint32_t *)args;
+        if (freq != ald_cmu_get_pclk1_clock())
+        {
+            ret = -RT_ERROR;
+        }
+        break;
+
+    case HWTIMER_CTRL_STOP:
+        ald_timer_base_stop(hwtimer->hwtimer_periph);
+        break;
+
+    default:
+        ret = RT_EINVAL;
+        break;
+    }
+
+    return ret;
+}
+
+static struct rt_hwtimer_ops es32f3_hwtimer_ops =
+{
+    es32f3_hwtimer_init,
+    es32f3_hwtimer_start,
+    es32f3_hwtimer_stop,
+    es32f3_hwtimer_count_get,
+    es32f3_hwtimer_control
+};
+
+int rt_hw_hwtimer_init(void)
+{
+    rt_err_t ret = RT_EOK;
+
+#ifdef BSP_USING_HWTIMER0
+    static timer_handle_t _hwtimer_periph0;
+    _hwtimer_periph0.perh = BS16T0;
+    hwtimer0.IRQn = BS16T0_IRQn;
+    hwtimer0.hwtimer_periph = &_hwtimer_periph0;
+    hwtimer0.parent.info = &es32f3_hwtimer_info;
+    hwtimer0.parent.ops = &es32f3_hwtimer_ops;
+    ret = rt_device_hwtimer_register(&hwtimer0.parent, "timer0", &hwtimer0);
+#endif
+
+#ifdef BSP_USING_HWTIMER1
+    static timer_handle_t _hwtimer_periph1;
+    _hwtimer_periph1.perh = BS16T1;
+    hwtimer1.IRQn = BS16T1_IRQn;
+    hwtimer1.hwtimer_periph = &_hwtimer_periph1;
+    hwtimer1.parent.info = &es32f3_hwtimer_info;
+    hwtimer1.parent.ops = &es32f3_hwtimer_ops;
+    ret = rt_device_hwtimer_register(&hwtimer1.parent, "timer1", &hwtimer1);
+#endif
+
+    return ret;
+}
+INIT_BOARD_EXPORT(rt_hw_hwtimer_init);
+
+#endif

bsp/essemi/es32f369x/drivers/drv_hwtimer.h

@@ -0,0 +1,16 @@
+/*
+ * Copyright (C) 2018 Shanghai Eastsoft Microelectronics Co., Ltd.
+ *
+ * SPDX-License-Identifier: Apache-2.0
+ *
+ * Change Logs:
+ * Date           Author       Notes
+ * 2019-3-19      wangyq       the first version
+ */
+
+#ifndef DRV_HWTIMER_H__
+#define DRV_HWTIMER_H__
+
+int rt_hw_hwtimer_init(void);
+
+#endif

bsp/essemi/es32f369x/drivers/drv_i2c.c

@@ -16,6 +16,7 @@
 #include "drv_i2c.h"
 #include <ald_i2c.h>
 #include <ald_gpio.h>
+#include <rtdbg.h>

 #ifdef RT_USING_I2C

@@ -55,8 +56,8 @@ static void _i2c_init(void)

     ald_i2c_reset(&_h_i2c0);
     ald_i2c_init(&_h_i2c0);
-    /* PB8->I2C0_SCL, PB9->I2C0_SDA */
-    ald_gpio_init(GPIOB, GPIO_PIN_8 | GPIO_PIN_9, &gpio_instruct);
+    /* PB06->I2C0_SCL, PB07->I2C0_SDA */
+    ald_gpio_init(GPIOB, GPIO_PIN_6 | GPIO_PIN_7, &gpio_instruct);
 #endif

 #ifdef BSP_USING_I2C1
@@ -90,7 +91,7 @@ static rt_size_t es32f3_master_xfer(struct rt_i2c_bus_device *bus,
         {
             if (ald_i2c_master_recv(bus->priv, msg->addr << 1, msg->buf, msg->len, TIMEOUT) != 0)
             {
-                i2c_dbg("i2c bus write failed,i2c bus stop!\n");
+                LOG_E("i2c bus write failed,i2c bus stop!\n");
                 goto out;
             }
         }
@@ -98,7 +99,7 @@ static rt_size_t es32f3_master_xfer(struct rt_i2c_bus_device *bus,
         {
             if (ald_i2c_master_send(bus->priv, msg->addr << 1, msg->buf, msg->len, TIMEOUT) != 0)
             {
-                i2c_dbg("i2c bus write failed,i2c bus stop!\n");
+                LOG_E("i2c bus write failed,i2c bus stop!\n");
                 goto out;
             }
         }
@@ -107,7 +108,7 @@ static rt_size_t es32f3_master_xfer(struct rt_i2c_bus_device *bus,
     ret = i;

 out:
-    i2c_dbg("send stop condition\n");
+    LOG_E("send stop condition\n");

     return ret;
 }

bsp/essemi/es32f369x/drivers/drv_pwm.c

@@ -0,0 +1,171 @@
+/*
+ * Copyright (C) 2018 Shanghai Eastsoft Microelectronics Co., Ltd.
+ *
+ * SPDX-License-Identifier: Apache-2.0
+ *
+ * Change Logs:
+ * Date           Author       Notes
+ * 2019-03-11     wangyq       the first version
+ * 2019-11-01     wangyq        update libraries
+ */
+
+#include <rthw.h>
+#include <rtthread.h>
+#include <rtdevice.h>
+#include <board.h>
+#include <ald_cmu.h>
+#include <ald_timer.h>
+#include <ald_gpio.h>
+
+static void pwm_set_freq(timer_handle_t *timer_initstruct, uint32_t ns)
+{
+    uint64_t _arr = (uint64_t)ald_cmu_get_pclk1_clock() * ns / 1000000000 /
+                    (timer_initstruct->init.prescaler + 1);
+
+    WRITE_REG(timer_initstruct->perh->AR, (uint32_t)_arr);
+    timer_initstruct->init.period   = (uint32_t)_arr;
+}
+
+static void pwm_set_duty(timer_handle_t *timer_initstruct, timer_channel_t ch, uint32_t ns)
+{
+    uint64_t tmp = (uint64_t)ald_cmu_get_pclk1_clock() * ns / 1000000000 /
+                   (timer_initstruct->init.prescaler + 1);
+
+    if (ch == TIMER_CHANNEL_1)
+        WRITE_REG(timer_initstruct->perh->CCVAL1, (uint32_t)tmp);
+    else if (ch == TIMER_CHANNEL_2)
+        WRITE_REG(timer_initstruct->perh->CCVAL2, (uint32_t)tmp);
+    else if (ch == TIMER_CHANNEL_3)
+        WRITE_REG(timer_initstruct->perh->CCVAL3, (uint32_t)tmp);
+    else if (ch == TIMER_CHANNEL_4)
+        WRITE_REG(timer_initstruct->perh->CCVAL4, (uint32_t)tmp);
+}
+
+static rt_err_t es32f3_pwm_control(struct rt_device_pwm *device, int cmd, void *arg)
+{
+    rt_err_t ret = RT_EOK;
+    uint32_t _ccep;
+    timer_channel_t pwm_channel;
+    timer_oc_init_t tim_ocinit;
+    timer_handle_t *timer_initstruct = (timer_handle_t *)device->parent.user_data;
+    struct rt_pwm_configuration *cfg = (struct rt_pwm_configuration *)arg;
+
+    RT_ASSERT(timer_initstruct != RT_NULL);
+
+    tim_ocinit.oc_mode      = TIMER_OC_MODE_PWM1;
+    tim_ocinit.oc_polarity  = TIMER_OC_POLARITY_HIGH;
+    tim_ocinit.oc_fast_en   = DISABLE;
+    tim_ocinit.ocn_polarity = TIMER_OCN_POLARITY_HIGH;
+    tim_ocinit.ocn_idle     = TIMER_OCN_IDLE_RESET;
+    tim_ocinit.oc_idle      = TIMER_OC_IDLE_RESET;
+
+    /* select pwm output channel */
+    if (1 == cfg->channel)
+        pwm_channel = TIMER_CHANNEL_1;
+
+    else if (2 == cfg->channel)
+        pwm_channel = TIMER_CHANNEL_2;
+
+    else if (3 == cfg->channel)
+        pwm_channel = TIMER_CHANNEL_3;
+
+    else if (4 == cfg->channel)
+        pwm_channel = TIMER_CHANNEL_4;
+
+    else
+        return RT_EINVAL;
+
+    switch (cmd)
+    {
+    case PWM_CMD_ENABLE:
+        ald_timer_pwm_start(timer_initstruct, pwm_channel);
+        break;
+
+    case PWM_CMD_DISABLE:
+        ald_timer_pwm_stop(timer_initstruct, pwm_channel);
+        break;
+
+    case PWM_CMD_SET:
+        _ccep = timer_initstruct->perh->CCEP;
+        /* count registers max 0xFFFF, auto adjust prescaler */
+        do
+        {
+            pwm_set_freq(timer_initstruct, cfg->period);
+            timer_initstruct->init.prescaler ++;
+        }
+        while (timer_initstruct->init.period > 0xFFFF);
+        /* update prescaler */
+        WRITE_REG(timer_initstruct->perh->PRES, --timer_initstruct->init.prescaler);
+        ald_timer_oc_config_channel(timer_initstruct, &tim_ocinit, pwm_channel);
+        pwm_set_duty(timer_initstruct, pwm_channel, cfg->pulse);
+        timer_initstruct->perh->CCEP = _ccep;
+        break;
+
+    case PWM_CMD_GET:
+        cfg->pulse = ald_timer_read_capture_value(timer_initstruct, pwm_channel) * 100 /
+                     READ_REG(timer_initstruct->perh->AR);
+        break;
+
+    default:
+        break;
+    }
+    return ret;
+}
+
+const static struct rt_pwm_ops es32f3_pwm_ops =
+{
+    es32f3_pwm_control
+};
+
+int rt_hw_pwm_init(void)
+{
+    rt_err_t ret = RT_EOK;
+    gpio_init_t gpio_initstructure;
+
+    gpio_initstructure.mode = GPIO_MODE_OUTPUT;
+    gpio_initstructure.odos = GPIO_PUSH_PULL;
+    gpio_initstructure.pupd = GPIO_PUSH_UP;
+    gpio_initstructure.podrv = GPIO_OUT_DRIVE_6;
+    gpio_initstructure.nodrv = GPIO_OUT_DRIVE_6;
+    gpio_initstructure.flt  = GPIO_FILTER_DISABLE;
+    gpio_initstructure.type = GPIO_TYPE_TTL;
+
+#ifdef BSP_USING_PWM0 /* 4 channels */
+    static struct rt_device_pwm pwm_dev0;
+    static timer_handle_t timer_initstruct0;
+
+    timer_initstruct0.perh = GP16C4T0;
+    ald_timer_pwm_init(&timer_initstruct0);
+
+    /* gpio initialization */
+    gpio_initstructure.func = GPIO_FUNC_2;
+    ald_gpio_init(GPIOB, GPIO_PIN_6, &gpio_initstructure);
+    ald_gpio_init(GPIOB, GPIO_PIN_7, &gpio_initstructure);
+    ald_gpio_init(GPIOB, GPIO_PIN_8, &gpio_initstructure);
+    ald_gpio_init(GPIOB, GPIO_PIN_9, &gpio_initstructure);
+
+    ret = rt_device_pwm_register(&pwm_dev0, "pwm0", &es32f3_pwm_ops,
+                                 &timer_initstruct0);
+#endif
+
+#ifdef BSP_USING_PWM1 /* 4 channels */
+    static struct rt_device_pwm pwm_dev1;
+    static timer_handle_t timer_initstruct1;
+
+    timer_initstruct1.perh = GP16C4T1;
+    ald_timer_pwm_init(&timer_initstruct1);
+
+    /* gpio initialization */
+    gpio_initstructure.func = GPIO_FUNC_5;
+    ald_gpio_init(GPIOA, GPIO_PIN_0, &gpio_initstructure);
+    ald_gpio_init(GPIOA, GPIO_PIN_1, &gpio_initstructure);
+    ald_gpio_init(GPIOA, GPIO_PIN_2, &gpio_initstructure);
+    ald_gpio_init(GPIOA, GPIO_PIN_3, &gpio_initstructure);
+
+    ret = rt_device_pwm_register(&pwm_dev1, "pwm1", &es32f3_pwm_ops,
+                                 &timer_initstruct1);
+#endif
+
+    return ret;
+}
+INIT_DEVICE_EXPORT(rt_hw_pwm_init);

bsp/essemi/es32f369x/drivers/drv_pwm.h

@@ -0,0 +1,16 @@
+/*
+ * Copyright (C) 2018 Shanghai Eastsoft Microelectronics Co., Ltd.
+ *
+ * SPDX-License-Identifier: Apache-2.0
+ *
+ * Change Logs:
+ * Date           Author       Notes
+ * 2019-03-11     wangyq       the first version
+ */
+
+#ifndef DRV_PWM_H__
+#define DRV_PWM_H__
+
+int rt_hw_pwm_init(void);
+
+#endif

bsp/essemi/es32f369x/drivers/drv_rtc.c

@@ -0,0 +1,158 @@
+/*
+ * Copyright (C) 2018 Shanghai Eastsoft Microelectronics Co., Ltd.
+ *
+ * SPDX-License-Identifier: Apache-2.0
+ *
+ * Change Logs:
+ * Date           Author       Notes
+ * 2019-03-22     wangyq       the first version
+ * 2019-11-01     wangyq        update libraries
+ */
+
+#include <rthw.h>
+#include <rtthread.h>
+#include <rtdevice.h>
+#include <string.h>
+#include "board.h"
+#include "drv_rtc.h"
+#include <ald_cmu.h>
+#include <ald_rtc.h>
+
+#ifdef RT_USING_RTC
+
+static void __rtc_init(rtc_init_t *init)
+{
+    assert_param(IS_RTC_HOUR_FORMAT(init->hour_format));
+    assert_param(IS_RTC_OUTPUT_SEL(init->output));
+    assert_param(IS_RTC_OUTPUT_POLARITY(init->output_polarity));
+
+    ald_rtc_reset();
+    RTC_UNLOCK();
+
+    MODIFY_REG(RTC->CON, RTC_CON_HFM_MSK, init->hour_format << RTC_CON_HFM_POS);
+    MODIFY_REG(RTC->CON, RTC_CON_EOS_MSK, init->output << RTC_CON_EOS_POSS);
+    MODIFY_REG(RTC->CON, RTC_CON_POL_MSK, init->output_polarity << RTC_CON_POL_POS);
+    MODIFY_REG(RTC->PSR, RTC_PSR_SPRS_MSK, init->synch_pre_div << RTC_PSR_SPRS_POSS);
+    MODIFY_REG(RTC->PSR, RTC_PSR_APRS_MSK, init->asynch_pre_div << RTC_PSR_APRS_POSS);
+
+    RTC_LOCK();
+    return;
+}
+
+static rt_err_t es32f0_rtc_control(rt_device_t dev, int cmd, void *args)
+{
+    rt_err_t result = RT_EOK;
+
+    struct tm time_temp;
+    struct tm *pNow;
+    rtc_date_t date;
+    rtc_time_t time;
+
+    switch (cmd)
+    {
+    case RT_DEVICE_CTRL_RTC_GET_TIME:
+
+        ald_rtc_get_date_time(&date, &time, RTC_FORMAT_DEC);
+        time_temp.tm_sec = time.second;
+        time_temp.tm_min = time.minute;
+        time_temp.tm_hour = time.hour;
+        time_temp.tm_mday = date.day;
+        time_temp.tm_mon = date.month - 1;
+        time_temp.tm_year = date.year - 1900 + 2000;
+        *((time_t *)args) = mktime(&time_temp);
+        break;
+
+    case RT_DEVICE_CTRL_RTC_SET_TIME:
+
+        rt_enter_critical();
+        /* converts calendar time time into local time. */
+        pNow = localtime((const time_t *)args);
+        /* copy the statically located variable */
+        memcpy(&time_temp, pNow, sizeof(struct tm));
+        /* unlock scheduler. */
+        rt_exit_critical();
+
+        time.hour = time_temp.tm_hour;
+        time.minute = time_temp.tm_min;
+        time.second = time_temp.tm_sec;
+        date.year = time_temp.tm_year + 1900 - 2000;
+        date.month = time_temp.tm_mon + 1;
+        date.day = time_temp.tm_mday;
+        ald_rtc_set_time(&time, RTC_FORMAT_DEC);
+        ald_rtc_set_date(&date, RTC_FORMAT_DEC);
+        /* start RTC */
+        RTC_UNLOCK();
+        SET_BIT(RTC->CON, RTC_CON_GO_MSK);
+        RTC_LOCK();
+        break;
+
+    case RT_DEVICE_CTRL_RTC_GET_ALARM:
+        break;
+
+    case RT_DEVICE_CTRL_RTC_SET_ALARM:
+        break;
+
+    default:
+        break;
+    }
+
+    return result;
+}
+
+#ifdef RT_USING_DEVICE_OPS
+const static struct rt_device_ops es32f0_rtc_ops =
+{
+    RT_NULL,
+    RT_NULL,
+    RT_NULL,
+    RT_NULL,
+    RT_NULL,
+    es32f0_rtc_control
+};
+#endif
+
+int rt_hw_rtc_init(void)
+{
+    rt_err_t ret = RT_EOK;
+    static struct rt_device rtc_dev;
+    rtc_init_t rtc_initstruct;
+
+    /* enable external 32.768kHz */
+    CMU_LOSC_ENABLE();
+    ald_cmu_losc_safe_config(ENABLE);
+    /* set default time */
+    RTC_UNLOCK();
+    WRITE_REG(RTC->TIME, 0x134251);
+    WRITE_REG(RTC->DATE, 0x1190401);
+    RTC_LOCK();
+    /* RTC function initialization */
+    rtc_initstruct.hour_format = RTC_HOUR_FORMAT_24;
+    rtc_initstruct.asynch_pre_div = 0;
+    rtc_initstruct.synch_pre_div = 32767;
+    rtc_initstruct.output = RTC_OUTPUT_DISABLE;
+    __rtc_init(&rtc_initstruct);
+
+    rtc_dev.type = RT_Device_Class_RTC;
+    rtc_dev.rx_indicate = RT_NULL;
+    rtc_dev.tx_complete = RT_NULL;
+
+#ifdef RT_USING_DEVICE_OPS
+    rtc_dev.ops = &es32f0_rtc_ops;
+#else
+    rtc_dev.init = RT_NULL;
+    rtc_dev.open = RT_NULL;
+    rtc_dev.close = RT_NULL;
+    rtc_dev.read = RT_NULL;
+    rtc_dev.write = RT_NULL;
+    rtc_dev.control = es32f0_rtc_control;
+#endif
+
+    rtc_dev.user_data = RTC;
+
+    ret = rt_device_register(&rtc_dev, "rtc", RT_DEVICE_FLAG_RDWR);
+
+    return ret;
+}
+INIT_DEVICE_EXPORT(rt_hw_rtc_init);
+
+#endif

bsp/essemi/es32f369x/drivers/drv_rtc.h

@@ -0,0 +1,16 @@
+/*
+ * Copyright (C) 2018 Shanghai Eastsoft Microelectronics Co., Ltd.
+ *
+ * SPDX-License-Identifier: Apache-2.0
+ *
+ * Change Logs:
+ * Date           Author       Notes
+ * 2019-03-22     wangyq       the first version
+ */
+
+#ifndef DRV_RTC_H__
+#define DRV_RTC_H__
+
+int rt_hw_rtc_init(void);
+
+#endif

bsp/essemi/es32f369x/drivers/drv_uart.c

@@ -39,7 +39,7 @@ static rt_err_t es32f3x_configure(struct rt_serial_device *serial, struct serial
     gpio_initstructure.odos = GPIO_PUSH_PULL;
     gpio_initstructure.pupd = GPIO_PUSH_UP;
     gpio_initstructure.podrv = GPIO_OUT_DRIVE_1;
-    gpio_initstructure.nodrv = GPIO_OUT_DRIVE_0_1;
+    gpio_initstructure.nodrv = GPIO_OUT_DRIVE_1;
     gpio_initstructure.flt  = GPIO_FILTER_DISABLE;
     gpio_initstructure.type = GPIO_TYPE_TTL;


bsp/essemi/es32f369x/drivers/linker_scripts/link.icf

@@ -0,0 +1,34 @@
+/*###ICF### Section handled by ICF editor, don't touch! ****/
+/*-Editor annotation file-*/
+/* IcfEditorFile="$TOOLKIT_DIR$\config\ide\IcfEditor\cortex_v1_0.xml" */
+/*-Specials-*/
+define symbol __ICFEDIT_intvec_start__ = 0x00000000;
+/*-Memory Regions-*/
+define symbol __ICFEDIT_region_ROM_start__ = 0x00000000;
+define symbol __ICFEDIT_region_ROM_end__   = 0x0007FFFF;
+define symbol __ICFEDIT_region_RAM_start__ = 0x20000000;
+define symbol __ICFEDIT_region_RAM_end__   = 0x20017FFF;
+/*-Sizes-*/
+define symbol __ICFEDIT_size_cstack__ = 0x400;
+define symbol __ICFEDIT_size_heap__   = 0x000;
+/**** End of ICF editor section. ###ICF###*/
+
+
+define memory mem with size = 4G;
+define region ROM_region   = mem:[from __ICFEDIT_region_ROM_start__   to __ICFEDIT_region_ROM_end__];
+define region RAM_region   = mem:[from __ICFEDIT_region_RAM_start__   to __ICFEDIT_region_RAM_end__];
+
+define block CSTACK    with alignment = 8, size = __ICFEDIT_size_cstack__   { };
+define block HEAP      with alignment = 8, size = __ICFEDIT_size_heap__     { };
+
+initialize by copy { readwrite };
+do not initialize  { section .noinit };
+
+place at address mem:__ICFEDIT_intvec_start__ { section .intvec };
+
+place in ROM_region		{ readonly };
+place in RAM_region		{ readwrite,
+						  block CSTACK, last block HEAP };
+
+export symbol __ICFEDIT_region_RAM_start__;
+export symbol __ICFEDIT_region_RAM_end__;

bsp/essemi/es32f369x/project.ewd

@@ -0,0 +1,2810 @@
+<?xml version="1.0" encoding="UTF-8"?>
+<project>
+    <fileVersion>3</fileVersion>
+    <configuration>
+        <name>rt-thread</name>
+        <toolchain>
+            <name>ARM</name>
+        </toolchain>
+        <debug>1</debug>
+        <settings>
+            <name>C-SPY</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>28</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>CInput</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CEndian</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCVariant</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MacOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MacFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>MemOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MemFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>RunToEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RunToName</name>
+                    <state>main</state>
+                </option>
+                <option>
+                    <name>CExtraOptionsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CExtraOptions</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CFpuProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCDDFArgumentProducer</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCDownloadSuppressDownload</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCDownloadVerifyAll</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProductVersion</name>
+                    <state>8.11.1.13270</state>
+                </option>
+                <option>
+                    <name>OCDynDriverList</name>
+                    <state>CMSISDAP_ID</state>
+                </option>
+                <option>
+                    <name>OCLastSavedByProductVersion</name>
+                    <state>8.11.1.13270</state>
+                </option>
+                <option>
+                    <name>UseFlashLoader</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CLowLevel</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCBE8Slave</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>MacFile2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CDevice</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>FlashLoadersV3</name>
+                    <state>$TOOLKIT_DIR$\config\flashloader\</state>
+                </option>
+                <option>
+                    <name>OCImagesSuppressCheck1</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesPath1</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesSuppressCheck2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesPath2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesSuppressCheck3</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesPath3</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OverrideDefFlashBoard</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesOffset1</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesOffset2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesOffset3</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesUse1</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesUse2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesUse3</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCDeviceConfigMacroFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCDebuggerExtraOption</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCAllMTBOptions</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCMulticoreNrOfCores</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCMulticoreMaster</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCMulticorePort</name>
+                    <state>53461</state>
+                </option>
+                <option>
+                    <name>OCMulticoreWorkspace</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCMulticoreSlaveProject</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCMulticoreSlaveConfiguration</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCDownloadExtraImage</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCAttachSlave</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>ARMSIM_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>1</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCSimDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCSimEnablePSP</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCSimPspOverrideConfig</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCSimPspConfigFile</name>
+                    <state></state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>CADI_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>0</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>CCadiMemory</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>Fast Model</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCADILogFileCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCADILogFileEditB</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>CMSISDAP_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>4</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCIarProbeScriptFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CMSISDAPResetList</name>
+                    <version>1</version>
+                    <state>4</state>
+                </option>
+                <option>
+                    <name>CMSISDAPHWResetDuration</name>
+                    <state>300</state>
+                </option>
+                <option>
+                    <name>CMSISDAPHWResetDelay</name>
+                    <state>200</state>
+                </option>
+                <option>
+                    <name>CMSISDAPDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CMSISDAPInterfaceRadio</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CMSISDAPInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiTargetEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPJtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPRestoreBreakpointsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPUpdateBreakpointsEdit</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>RDICatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchUndef</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchData</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchPrefetch</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchMMERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchNOCPERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchCHKERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSTATERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchBUSERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchINTERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSFERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchHARDERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiCPUEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiCPUNumber</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeCfgOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeConfig</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CMSISDAPProbeConfigRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPSelectedCPUBehaviour</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>ICpuName</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCJetEmuParams</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCCMSISDAPUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCCMSISDAPUsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>GDBSERVER_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>0</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>TCPIP</name>
+                    <state>aaa.bbb.ccc.ddd</state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCJTagBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJTagDoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJTagUpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>IJET_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>8</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCIarProbeScriptFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetResetList</name>
+                    <version>1</version>
+                    <state>10</state>
+                </option>
+                <option>
+                    <name>IjetHWResetDuration</name>
+                    <state>300</state>
+                </option>
+                <option>
+                    <name>IjetHWResetDelay</name>
+                    <state>200</state>
+                </option>
+                <option>
+                    <name>IjetPowerFromProbe</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetPowerRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>IjetInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiTargetEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetScanChainNonARMDevices</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetIRLength</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetJtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetProtocolRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetSwoPin</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetCpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IjetSwoPrescalerList</name>
+                    <version>1</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetRestoreBreakpointsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetUpdateBreakpointsEdit</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>RDICatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchUndef</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchData</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchPrefetch</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchMMERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchNOCPERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchCHKERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSTATERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchBUSERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchINTERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSFERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchHARDERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeCfgOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeConfig</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IjetProbeConfigRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiCPUEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiCPUNumber</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetSelectedCPUBehaviour</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>ICpuName</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCJetEmuParams</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetPreferETB</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetTraceSettingsList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetTraceSizeList</name>
+                    <version>0</version>
+                    <state>4</state>
+                </option>
+                <option>
+                    <name>FlashBoardPathSlave</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCIjetUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCIjetUsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>JLINK_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>16</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>JLinkSpeed</name>
+                    <state>1000</state>
+                </option>
+                <option>
+                    <name>CCJLinkDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCJLinkHWResetDelay</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>JLinkInitialSpeed</name>
+                    <state>1000</state>
+                </option>
+                <option>
+                    <name>CCDoJlinkMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCScanChainNonARMDevices</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkIRLength</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkCommRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkTCPIP</name>
+                    <state>aaa.bbb.ccc.ddd</state>
+                </option>
+                <option>
+                    <name>CCJLinkSpeedRadioV2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCUSBDevice</name>
+                    <version>1</version>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCRDICatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchUndef</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchData</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchPrefetch</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkDoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkUpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>CCJLinkInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkResetList</name>
+                    <version>6</version>
+                    <state>5</state>
+                </option>
+                <option>
+                    <name>CCJLinkInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchMMERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchNOCPERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchCHRERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchSTATERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchBUSERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchINTERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchSFERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchHARDERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCJLinkScriptFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCJLinkUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCTcpIpAlt</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkTcpIpSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCCpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSwoClockAuto</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSwoClockEdit</name>
+                    <state>2000</state>
+                </option>
+                <option>
+                    <name>OCJLinkTraceSource</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCJLinkTraceSourceDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCJLinkDeviceName</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>LMIFTDI_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>2</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>LmiftdiSpeed</name>
+                    <state>500</state>
+                </option>
+                <option>
+                    <name>CCLmiftdiDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCLmiftdiLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCLmiFtdiInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCLmiFtdiInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>PEMICRO_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>3</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCJPEMicroShowSettings</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>STLINK_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>4</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCSTLinkInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkResetList</name>
+                    <version>3</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSwoClockAuto</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSwoClockEdit</name>
+                    <state>2000</state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCSTLinkDoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkUpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchMMERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchNOCPERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchCHRERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchSTATERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchBUSERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchINTERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchSFERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchHARDERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSTLinkUsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkJtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkDAPNumber</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSTLinkDebugAccessPortRadio</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>THIRDPARTY_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>0</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>CThirdPartyDriverDll</name>
+                    <state>###Uninitialized###</state>
+                </option>
+                <option>
+                    <name>CThirdPartyLogFileCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CThirdPartyLogFileEditB</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>TIFET_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>1</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCMSPFetResetList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetTargetVccTypeDefault</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetTargetVoltage</name>
+                    <state>###Uninitialized###</state>
+                </option>
+                <option>
+                    <name>CCMSPFetVCCDefault</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCMSPFetTargetSettlingtime</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetRadioJtagSpeedType</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCMSPFetConnection</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetUsbComPort</name>
+                    <state>Automatic</state>
+                </option>
+                <option>
+                    <name>CCMSPFetAllowAccessToBSL</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCMSPFetRadioEraseFlash</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>XDS100_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>6</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>TIPackageOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>TIPackage</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>BoardFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCXds100BreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100DoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100UpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchUndef</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchData</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchPrefetch</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchMMERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchNOCPERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchCHRERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchSTATERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchBUSERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchINTERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchSFERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchHARDERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCXds100SwoClockAuto</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100SwoClockEdit</name>
+                    <state>1000</state>
+                </option>
+                <option>
+                    <name>CCXds100HWResetDelay</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100ResetList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100UsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCXds100UsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100JtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100InterfaceRadio</name>
+                    <state>2</state>
+                </option>
+                <option>
+                    <name>CCXds100InterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100ProbeList</name>
+                    <version>0</version>
+                    <state>2</state>
+                </option>
+                <option>
+                    <name>CCXds100SWOPortRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100SWOPort</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <debuggerPlugins>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\CMX\CmxArmPlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\CMX\CmxTinyArmPlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\embOS\embOSPlugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\OpenRTOS\OpenRTOSPlugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\SafeRTOS\SafeRTOSPlugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\ThreadX\ThreadXArmPlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\TI-RTOS\tirtosplugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\uCOS-II\uCOS-II-286-KA-CSpy.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\uCOS-II\uCOS-II-KA-CSpy.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\uCOS-III\uCOS-III-KA-CSpy.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$EW_DIR$\common\plugins\CodeCoverage\CodeCoverage.ENU.ewplugin</file>
+                <loadFlag>1</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$EW_DIR$\common\plugins\Orti\Orti.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$EW_DIR$\common\plugins\uCProbe\uCProbePlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+        </debuggerPlugins>
+    </configuration>
+    <configuration>
+        <name>Release</name>
+        <toolchain>
+            <name>ARM</name>
+        </toolchain>
+        <debug>0</debug>
+        <settings>
+            <name>C-SPY</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>28</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>CInput</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CEndian</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCVariant</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MacOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MacFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>MemOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MemFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>RunToEnable</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RunToName</name>
+                    <state>main</state>
+                </option>
+                <option>
+                    <name>CExtraOptionsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CExtraOptions</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CFpuProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCDDFArgumentProducer</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCDownloadSuppressDownload</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCDownloadVerifyAll</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProductVersion</name>
+                    <state>8.11.1.13270</state>
+                </option>
+                <option>
+                    <name>OCDynDriverList</name>
+                    <state>ARMSIM_ID</state>
+                </option>
+                <option>
+                    <name>OCLastSavedByProductVersion</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>UseFlashLoader</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CLowLevel</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCBE8Slave</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>MacFile2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CDevice</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>FlashLoadersV3</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesSuppressCheck1</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesPath1</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesSuppressCheck2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesPath2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesSuppressCheck3</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesPath3</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OverrideDefFlashBoard</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesOffset1</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesOffset2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesOffset3</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesUse1</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesUse2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesUse3</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCDeviceConfigMacroFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCDebuggerExtraOption</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCAllMTBOptions</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCMulticoreNrOfCores</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCMulticoreMaster</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCMulticorePort</name>
+                    <state>53461</state>
+                </option>
+                <option>
+                    <name>OCMulticoreWorkspace</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCMulticoreSlaveProject</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCMulticoreSlaveConfiguration</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCDownloadExtraImage</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCAttachSlave</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>ARMSIM_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>1</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCSimDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCSimEnablePSP</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCSimPspOverrideConfig</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCSimPspConfigFile</name>
+                    <state></state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>CADI_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>0</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>CCadiMemory</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>Fast Model</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCADILogFileCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCADILogFileEditB</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>CMSISDAP_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>4</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCIarProbeScriptFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CMSISDAPResetList</name>
+                    <version>1</version>
+                    <state>10</state>
+                </option>
+                <option>
+                    <name>CMSISDAPHWResetDuration</name>
+                    <state>300</state>
+                </option>
+                <option>
+                    <name>CMSISDAPHWResetDelay</name>
+                    <state>200</state>
+                </option>
+                <option>
+                    <name>CMSISDAPDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CMSISDAPInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiTargetEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPJtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPRestoreBreakpointsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPUpdateBreakpointsEdit</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>RDICatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchUndef</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchData</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchPrefetch</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchMMERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchNOCPERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchCHKERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSTATERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchBUSERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchINTERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSFERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchHARDERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiCPUEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiCPUNumber</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeCfgOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeConfig</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CMSISDAPProbeConfigRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPSelectedCPUBehaviour</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>ICpuName</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCJetEmuParams</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCCMSISDAPUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCCMSISDAPUsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>GDBSERVER_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>0</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>TCPIP</name>
+                    <state>aaa.bbb.ccc.ddd</state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCJTagBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJTagDoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJTagUpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>IJET_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>8</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCIarProbeScriptFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetResetList</name>
+                    <version>1</version>
+                    <state>10</state>
+                </option>
+                <option>
+                    <name>IjetHWResetDuration</name>
+                    <state>300</state>
+                </option>
+                <option>
+                    <name>IjetHWResetDelay</name>
+                    <state>200</state>
+                </option>
+                <option>
+                    <name>IjetPowerFromProbe</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetPowerRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>IjetInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiTargetEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetScanChainNonARMDevices</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetIRLength</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetJtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetProtocolRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetSwoPin</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetCpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IjetSwoPrescalerList</name>
+                    <version>1</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetRestoreBreakpointsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetUpdateBreakpointsEdit</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>RDICatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchUndef</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchData</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchPrefetch</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchMMERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchNOCPERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchCHKERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSTATERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchBUSERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchINTERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSFERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchHARDERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeCfgOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeConfig</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IjetProbeConfigRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiCPUEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiCPUNumber</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetSelectedCPUBehaviour</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>ICpuName</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCJetEmuParams</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetPreferETB</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetTraceSettingsList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetTraceSizeList</name>
+                    <version>0</version>
+                    <state>4</state>
+                </option>
+                <option>
+                    <name>FlashBoardPathSlave</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCIjetUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCIjetUsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>JLINK_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>16</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>JLinkSpeed</name>
+                    <state>1000</state>
+                </option>
+                <option>
+                    <name>CCJLinkDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCJLinkHWResetDelay</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>JLinkInitialSpeed</name>
+                    <state>1000</state>
+                </option>
+                <option>
+                    <name>CCDoJlinkMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCScanChainNonARMDevices</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkIRLength</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkCommRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkTCPIP</name>
+                    <state>aaa.bbb.ccc.ddd</state>
+                </option>
+                <option>
+                    <name>CCJLinkSpeedRadioV2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCUSBDevice</name>
+                    <version>1</version>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCRDICatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchUndef</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchData</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchPrefetch</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkDoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkUpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>CCJLinkInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkResetList</name>
+                    <version>6</version>
+                    <state>5</state>
+                </option>
+                <option>
+                    <name>CCJLinkInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchMMERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchNOCPERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchCHRERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchSTATERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchBUSERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchINTERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchSFERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchHARDERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCJLinkScriptFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCJLinkUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCTcpIpAlt</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkTcpIpSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCCpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSwoClockAuto</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSwoClockEdit</name>
+                    <state>2000</state>
+                </option>
+                <option>
+                    <name>OCJLinkTraceSource</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCJLinkTraceSourceDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCJLinkDeviceName</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>LMIFTDI_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>2</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>LmiftdiSpeed</name>
+                    <state>500</state>
+                </option>
+                <option>
+                    <name>CCLmiftdiDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCLmiftdiLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCLmiFtdiInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCLmiFtdiInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>PEMICRO_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>3</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCJPEMicroShowSettings</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>STLINK_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>4</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCSTLinkInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkResetList</name>
+                    <version>3</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSwoClockAuto</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSwoClockEdit</name>
+                    <state>2000</state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCSTLinkDoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkUpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchMMERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchNOCPERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchCHRERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchSTATERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchBUSERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchINTERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchSFERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchHARDERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSTLinkUsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkJtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkDAPNumber</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSTLinkDebugAccessPortRadio</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>THIRDPARTY_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>0</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>CThirdPartyDriverDll</name>
+                    <state>###Uninitialized###</state>
+                </option>
+                <option>
+                    <name>CThirdPartyLogFileCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CThirdPartyLogFileEditB</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>TIFET_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>1</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCMSPFetResetList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetTargetVccTypeDefault</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetTargetVoltage</name>
+                    <state>###Uninitialized###</state>
+                </option>
+                <option>
+                    <name>CCMSPFetVCCDefault</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCMSPFetTargetSettlingtime</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetRadioJtagSpeedType</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCMSPFetConnection</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetUsbComPort</name>
+                    <state>Automatic</state>
+                </option>
+                <option>
+                    <name>CCMSPFetAllowAccessToBSL</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCMSPFetRadioEraseFlash</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>XDS100_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>6</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>TIPackageOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>TIPackage</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>BoardFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCXds100BreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100DoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100UpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchUndef</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchData</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchPrefetch</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchMMERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchNOCPERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchCHRERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchSTATERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchBUSERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchINTERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchSFERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchHARDERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCXds100SwoClockAuto</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100SwoClockEdit</name>
+                    <state>1000</state>
+                </option>
+                <option>
+                    <name>CCXds100HWResetDelay</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100ResetList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100UsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCXds100UsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100JtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100InterfaceRadio</name>
+                    <state>2</state>
+                </option>
+                <option>
+                    <name>CCXds100InterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100ProbeList</name>
+                    <version>0</version>
+                    <state>2</state>
+                </option>
+                <option>
+                    <name>CCXds100SWOPortRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100SWOPort</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <debuggerPlugins>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\CMX\CmxArmPlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\CMX\CmxTinyArmPlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\embOS\embOSPlugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\OpenRTOS\OpenRTOSPlugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\SafeRTOS\SafeRTOSPlugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\ThreadX\ThreadXArmPlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\TI-RTOS\tirtosplugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\uCOS-II\uCOS-II-286-KA-CSpy.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\uCOS-II\uCOS-II-KA-CSpy.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\uCOS-III\uCOS-III-KA-CSpy.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$EW_DIR$\common\plugins\CodeCoverage\CodeCoverage.ENU.ewplugin</file>
+                <loadFlag>1</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$EW_DIR$\common\plugins\Orti\Orti.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$EW_DIR$\common\plugins\uCProbe\uCProbePlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+        </debuggerPlugins>
+    </configuration>
+</project>

bsp/essemi/es32f369x/project.ewp

@@ -0,0 +1,2283 @@
+<project>
+  <fileVersion>3</fileVersion>
+  <configuration>
+    <name>rt-thread</name>
+    <toolchain>
+      <name>ARM</name>
+    </toolchain>
+    <debug>1</debug>
+    <settings>
+      <name>General</name>
+      <archiveVersion>3</archiveVersion>
+      <data>
+        <version>28</version>
+        <wantNonLocal>1</wantNonLocal>
+        <debug>1</debug>
+        <option>
+          <name>ExePath</name>
+          <state>rt-thread\Exe</state>
+        </option>
+        <option>
+          <name>ObjPath</name>
+          <state>rt-thread\Obj</state>
+        </option>
+        <option>
+          <name>ListPath</name>
+          <state>rt-thread\List</state>
+        </option>
+        <option>
+          <name>GEndianMode</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>Input description</name>
+          <state>Automatic choice of formatter, without multibyte support.</state>
+        </option>
+        <option>
+          <name>Output description</name>
+          <state>Automatic choice of formatter, without multibyte support.</state>
+        </option>
+        <option>
+          <name>GOutputBinary</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGCoreOrChip</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>GRuntimeLibSelect</name>
+          <version>0</version>
+          <state>1</state>
+        </option>
+        <option>
+          <name>GRuntimeLibSelectSlave</name>
+          <version>0</version>
+          <state>1</state>
+        </option>
+        <option>
+          <name>RTDescription</name>
+          <state>Use the normal configuration of the C/C++ runtime library. No locale interface, C locale, no file descriptor support, no multibytes in printf and scanf, and no hex floats in strtod.</state>
+        </option>
+        <option>
+          <name>OGProductVersion</name>
+          <state>8.11.1.13270</state>
+        </option>
+        <option>
+          <name>OGLastSavedByProductVersion</name>
+          <state>8.11.1.13270</state>
+        </option>
+        <option>
+          <name>GeneralEnableMisra</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GeneralMisraVerbose</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGChipSelectEditMenu</name>
+          <state>ES32F3696LT	Eastsoft ES32F3696LT</state>
+        </option>
+        <option>
+          <name>GenLowLevelInterface</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>GEndianModeBE</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>OGBufferedTerminalOutput</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GenStdoutInterface</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GeneralMisraRules98</name>
+          <version>0</version>
+          <state>1000111110110101101110011100111111101110011011000101110111101101100111111111111100110011111001110111001111111111111111111111111</state>
+        </option>
+        <option>
+          <name>GeneralMisraVer</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GeneralMisraRules04</name>
+          <version>0</version>
+          <state>111101110010111111111000110111111111111111111111111110010111101111010101111111111111111111111111101111111011111001111011111011111111111111111</state>
+        </option>
+        <option>
+          <name>RTConfigPath2</name>
+          <state>$TOOLKIT_DIR$\INC\c\DLib_Config_Normal.h</state>
+        </option>
+        <option>
+          <name>GBECoreSlave</name>
+          <version>25</version>
+          <state>38</state>
+        </option>
+        <option>
+          <name>OGUseCmsis</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGUseCmsisDspLib</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GRuntimeLibThreads</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CoreVariant</name>
+          <version>25</version>
+          <state>38</state>
+        </option>
+        <option>
+          <name>GFPUDeviceSlave</name>
+          <state>ES32F3696LT	Eastsoft ES32F3696LT</state>
+        </option>
+        <option>
+          <name>FPU2</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>NrRegs</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>NEON</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GFPUCoreSlave2</name>
+          <version>25</version>
+          <state>38</state>
+        </option>
+        <option>
+          <name>OGCMSISPackSelectDevice</name>
+        </option>
+        <option>
+          <name>OgLibHeap</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGLibAdditionalLocale</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGPrintfVariant</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGPrintfMultibyteSupport</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGScanfVariant</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGScanfMultibyteSupport</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GenLocaleTags</name>
+          <state />
+        </option>
+        <option>
+          <name>GenLocaleDisplayOnly</name>
+          <state />
+        </option>
+      </data>
+    </settings>
+    <settings>
+      <name>ICCARM</name>
+      <archiveVersion>2</archiveVersion>
+      <data>
+        <version>34</version>
+        <wantNonLocal>1</wantNonLocal>
+        <debug>1</debug>
+        <option>
+          <name>CCOptimizationNoSizeConstraints</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCDefines</name>
+          <state />
+          <state>ES32F36xx</state>
+        </option>
+        <option>
+          <name>CCPreprocFile</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCPreprocComments</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCPreprocLine</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCListCFile</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCListCMnemonics</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCListCMessages</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCListAssFile</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCListAssSource</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCEnableRemarks</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCDiagSuppress</name>
+          <state>Pa050</state>
+        </option>
+        <option>
+          <name>CCDiagRemark</name>
+          <state />
+        </option>
+        <option>
+          <name>CCDiagWarning</name>
+          <state />
+        </option>
+        <option>
+          <name>CCDiagError</name>
+          <state />
+        </option>
+        <option>
+          <name>CCObjPrefix</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CCAllowList</name>
+          <version>1</version>
+          <state>00000000</state>
+        </option>
+        <option>
+          <name>CCDebugInfo</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IEndianMode</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IProcessor</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IExtraOptionsCheck</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IExtraOptions</name>
+          <state />
+        </option>
+        <option>
+          <name>CCLangConformance</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCSignedPlainChar</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CCRequirePrototypes</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCDiagWarnAreErr</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCCompilerRuntimeInfo</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IFpuProcessor</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>OutputFile</name>
+          <state>$FILE_BNAME$.o</state>
+        </option>
+        <option>
+          <name>CCLibConfigHeader</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>PreInclude</name>
+          <state />
+        </option>
+        <option>
+          <name>CompilerMisraOverride</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCIncludePath2</name>
+          <state />
+          <state>$PROJ_DIR$\..\..\..\libcpu\arm\cortex-m3</state>
+          <state>$PROJ_DIR$\..\..\..\components\finsh</state>
+          <state>$PROJ_DIR$\..\..\..\libcpu\arm\common</state>
+          <state>$PROJ_DIR$\libraries\CMSIS\Include</state>
+          <state>$PROJ_DIR$\drivers</state>
+          <state>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Include</state>
+          <state>$PROJ_DIR$\.</state>
+          <state>$PROJ_DIR$\applications</state>
+          <state>$PROJ_DIR$\..\..\..\components\libc\compilers\common</state>
+          <state>$PROJ_DIR$\..\..\..\include</state>
+          <state>$PROJ_DIR$\..\..\..\components\drivers\include</state>
+          <state>$PROJ_DIR$\libraries\CMSIS\Device\EastSoft\ES32F36xx\Include</state>
+        </option>
+        <option>
+          <name>CCStdIncCheck</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCCodeSection</name>
+          <state>.text</state>
+        </option>
+        <option>
+          <name>IProcessorMode2</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CCOptLevel</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CCOptStrategy</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCOptLevelSlave</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CompilerMisraRules98</name>
+          <version>0</version>
+          <state>1000111110110101101110011100111111101110011011000101110111101101100111111111111100110011111001110111001111111111111111111111111</state>
+        </option>
+        <option>
+          <name>CompilerMisraRules04</name>
+          <version>0</version>
+          <state>111101110010111111111000110111111111111111111111111110010111101111010101111111111111111111111111101111111011111001111011111011111111111111111</state>
+        </option>
+        <option>
+          <name>CCPosIndRopi</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCPosIndRwpi</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCPosIndNoDynInit</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IccLang</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IccCDialect</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IccAllowVLA</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IccStaticDestr</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IccCppInlineSemantics</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IccCmsis</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IccFloatSemantics</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCNoLiteralPool</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCOptStrategySlave</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCGuardCalls</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CCEncSource</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCEncOutput</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCEncOutputBom</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CCEncInput</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IccExceptions2</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IccRTTI2</name>
+          <state>0</state>
+        </option>
+      </data>
+    </settings>
+    <settings>
+      <name>AARM</name>
+      <archiveVersion>2</archiveVersion>
+      <data>
+        <version>10</version>
+        <wantNonLocal>1</wantNonLocal>
+        <debug>1</debug>
+        <option>
+          <name>AObjPrefix</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>AEndian</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>ACaseSensitivity</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>MacroChars</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AWarnEnable</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AWarnWhat</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AWarnOne</name>
+          <state />
+        </option>
+        <option>
+          <name>AWarnRange1</name>
+          <state />
+        </option>
+        <option>
+          <name>AWarnRange2</name>
+          <state />
+        </option>
+        <option>
+          <name>ADebug</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>AltRegisterNames</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>ADefines</name>
+          <state />
+        </option>
+        <option>
+          <name>AList</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AListHeader</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>AListing</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>Includes</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>MacDefs</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>MacExps</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>MacExec</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OnlyAssed</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>MultiLine</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>PageLengthCheck</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>PageLength</name>
+          <state>80</state>
+        </option>
+        <option>
+          <name>TabSpacing</name>
+          <state>8</state>
+        </option>
+        <option>
+          <name>AXRef</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AXRefDefines</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AXRefInternal</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AXRefDual</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AProcessor</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>AFpuProcessor</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>AOutputFile</name>
+          <state>$FILE_BNAME$.o</state>
+        </option>
+        <option>
+          <name>ALimitErrorsCheck</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>ALimitErrorsEdit</name>
+          <state>100</state>
+        </option>
+        <option>
+          <name>AIgnoreStdInclude</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AUserIncludes</name>
+          <state />
+        </option>
+        <option>
+          <name>AExtraOptionsCheckV2</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AExtraOptionsV2</name>
+          <state />
+        </option>
+        <option>
+          <name>AsmNoLiteralPool</name>
+          <state>0</state>
+        </option>
+      </data>
+    </settings>
+    <settings>
+      <name>OBJCOPY</name>
+      <archiveVersion>0</archiveVersion>
+      <data>
+        <version>1</version>
+        <wantNonLocal>1</wantNonLocal>
+        <debug>1</debug>
+        <option>
+          <name>OOCOutputFormat</name>
+          <version>3</version>
+          <state>3</state>
+        </option>
+        <option>
+          <name>OCOutputOverride</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>OOCOutputFile</name>
+          <state>../../../rtthread.bin</state>
+        </option>
+        <option>
+          <name>OOCCommandLineProducer</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>OOCObjCopyEnable</name>
+          <state>1</state>
+        </option>
+      </data>
+    </settings>
+    <settings>
+      <name>CUSTOM</name>
+      <archiveVersion>3</archiveVersion>
+      <data>
+        <extensions />
+        <cmdline />
+        <hasPrio>0</hasPrio>
+      </data>
+    </settings>
+    <settings>
+      <name>BICOMP</name>
+      <archiveVersion>0</archiveVersion>
+      <data />
+    </settings>
+    <settings>
+      <name>BUILDACTION</name>
+      <archiveVersion>1</archiveVersion>
+      <data>
+        <prebuild />
+        <postbuild />
+      </data>
+    </settings>
+    <settings>
+      <name>ILINK</name>
+      <archiveVersion>0</archiveVersion>
+      <data>
+        <version>20</version>
+        <wantNonLocal>1</wantNonLocal>
+        <debug>1</debug>
+        <option>
+          <name>IlinkLibIOConfig</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>XLinkMisraHandler</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkInputFileSlave</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkOutputFile</name>
+          <state>rtthread.out</state>
+        </option>
+        <option>
+          <name>IlinkDebugInfoEnable</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkKeepSymbols</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkRawBinaryFile</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkRawBinarySymbol</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkRawBinarySegment</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkRawBinaryAlign</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkDefines</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkConfigDefines</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkMapFile</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogFile</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogInitialization</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogModule</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogSection</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogVeneer</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkIcfOverride</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkIcfFile</name>
+          <state>$PROJ_DIR$\drivers\linker_scripts\link.icf</state>
+        </option>
+        <option>
+          <name>IlinkIcfFileSlave</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkEnableRemarks</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkSuppressDiags</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkTreatAsRem</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkTreatAsWarn</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkTreatAsErr</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkWarningsAreErrors</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkUseExtraOptions</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkExtraOptions</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkLowLevelInterfaceSlave</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkAutoLibEnable</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkAdditionalLibs</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkOverrideProgramEntryLabel</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkProgramEntryLabelSelect</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkProgramEntryLabel</name>
+          <state>__iar_program_start</state>
+        </option>
+        <option>
+          <name>DoFill</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>FillerByte</name>
+          <state>0xFF</state>
+        </option>
+        <option>
+          <name>FillerStart</name>
+          <state>0x0</state>
+        </option>
+        <option>
+          <name>FillerEnd</name>
+          <state>0x0</state>
+        </option>
+        <option>
+          <name>CrcSize</name>
+          <version>0</version>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CrcAlign</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CrcPoly</name>
+          <state>0x11021</state>
+        </option>
+        <option>
+          <name>CrcCompl</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CrcBitOrder</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CrcInitialValue</name>
+          <state>0x0</state>
+        </option>
+        <option>
+          <name>DoCrc</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkBE8Slave</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkBufferedTerminalOutput</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkStdoutInterfaceSlave</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CrcFullSize</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkIElfToolPostProcess</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogAutoLibSelect</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogRedirSymbols</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogUnusedFragments</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkCrcReverseByteOrder</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkCrcUseAsInput</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkOptInline</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkOptExceptionsAllow</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkOptExceptionsForce</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkCmsis</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkOptMergeDuplSections</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkOptUseVfe</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkOptForceVfe</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkStackAnalysisEnable</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkStackControlFile</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkStackCallGraphFile</name>
+          <state />
+        </option>
+        <option>
+          <name>CrcAlgorithm</name>
+          <version>1</version>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CrcUnitSize</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkThreadsSlave</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkLogCallGraph</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkIcfFile_AltDefault</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkEncInput</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkEncOutput</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkEncOutputBom</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkHeapSelect</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkLocaleSelect</name>
+          <state>1</state>
+        </option>
+      </data>
+    </settings>
+    <settings>
+      <name>IARCHIVE</name>
+      <archiveVersion>0</archiveVersion>
+      <data>
+        <version>0</version>
+        <wantNonLocal>1</wantNonLocal>
+        <debug>1</debug>
+        <option>
+          <name>IarchiveInputs</name>
+          <state />
+        </option>
+        <option>
+          <name>IarchiveOverride</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IarchiveOutput</name>
+          <state>###Unitialized###</state>
+        </option>
+      </data>
+    </settings>
+    <settings>
+      <name>BILINK</name>
+      <archiveVersion>0</archiveVersion>
+      <data />
+    </settings>
+  </configuration>
+  <configuration>
+    <name>Release</name>
+    <toolchain>
+      <name>ARM</name>
+    </toolchain>
+    <debug>0</debug>
+    <settings>
+      <name>General</name>
+      <archiveVersion>3</archiveVersion>
+      <data>
+        <version>28</version>
+        <wantNonLocal>1</wantNonLocal>
+        <debug>0</debug>
+        <option>
+          <name>ExePath</name>
+          <state>Release\Exe</state>
+        </option>
+        <option>
+          <name>ObjPath</name>
+          <state>Release\Obj</state>
+        </option>
+        <option>
+          <name>ListPath</name>
+          <state>Release\List</state>
+        </option>
+        <option>
+          <name>GEndianMode</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>Input description</name>
+          <state />
+        </option>
+        <option>
+          <name>Output description</name>
+          <state />
+        </option>
+        <option>
+          <name>GOutputBinary</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGCoreOrChip</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GRuntimeLibSelect</name>
+          <version>0</version>
+          <state>1</state>
+        </option>
+        <option>
+          <name>GRuntimeLibSelectSlave</name>
+          <version>0</version>
+          <state>1</state>
+        </option>
+        <option>
+          <name>RTDescription</name>
+          <state />
+        </option>
+        <option>
+          <name>OGProductVersion</name>
+          <state>8.11.1.13270</state>
+        </option>
+        <option>
+          <name>OGLastSavedByProductVersion</name>
+          <state />
+        </option>
+        <option>
+          <name>GeneralEnableMisra</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GeneralMisraVerbose</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGChipSelectEditMenu</name>
+          <state />
+        </option>
+        <option>
+          <name>GenLowLevelInterface</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GEndianModeBE</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGBufferedTerminalOutput</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GenStdoutInterface</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GeneralMisraRules98</name>
+          <version>0</version>
+          <state>1000111110110101101110011100111111101110011011000101110111101101100111111111111100110011111001110111001111111111111111111111111</state>
+        </option>
+        <option>
+          <name>GeneralMisraVer</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GeneralMisraRules04</name>
+          <version>0</version>
+          <state>111101110010111111111000110111111111111111111111111110010111101111010101111111111111111111111111101111111011111001111011111011111111111111111</state>
+        </option>
+        <option>
+          <name>RTConfigPath2</name>
+          <state />
+        </option>
+        <option>
+          <name>GBECoreSlave</name>
+          <version>25</version>
+          <state>38</state>
+        </option>
+        <option>
+          <name>OGUseCmsis</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGUseCmsisDspLib</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GRuntimeLibThreads</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CoreVariant</name>
+          <version>25</version>
+          <state>38</state>
+        </option>
+        <option>
+          <name>GFPUDeviceSlave</name>
+          <state>-</state>
+        </option>
+        <option>
+          <name>FPU2</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>NrRegs</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>NEON</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GFPUCoreSlave2</name>
+          <version>25</version>
+          <state>38</state>
+        </option>
+        <option>
+          <name>OGCMSISPackSelectDevice</name>
+        </option>
+        <option>
+          <name>OgLibHeap</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGLibAdditionalLocale</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGPrintfVariant</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGPrintfMultibyteSupport</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGScanfVariant</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OGScanfMultibyteSupport</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>GenLocaleTags</name>
+          <state />
+        </option>
+        <option>
+          <name>GenLocaleDisplayOnly</name>
+          <state />
+        </option>
+      </data>
+    </settings>
+    <settings>
+      <name>ICCARM</name>
+      <archiveVersion>2</archiveVersion>
+      <data>
+        <version>34</version>
+        <wantNonLocal>1</wantNonLocal>
+        <debug>0</debug>
+        <option>
+          <name>CCOptimizationNoSizeConstraints</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCDefines</name>
+          <state />
+          <state>ES32F36xx</state>
+        </option>
+        <option>
+          <name>CCPreprocFile</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCPreprocComments</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCPreprocLine</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCListCFile</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCListCMnemonics</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCListCMessages</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCListAssFile</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCListAssSource</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCEnableRemarks</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCDiagSuppress</name>
+          <state />
+        </option>
+        <option>
+          <name>CCDiagRemark</name>
+          <state />
+        </option>
+        <option>
+          <name>CCDiagWarning</name>
+          <state />
+        </option>
+        <option>
+          <name>CCDiagError</name>
+          <state />
+        </option>
+        <option>
+          <name>CCObjPrefix</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CCAllowList</name>
+          <version>1</version>
+          <state>11111110</state>
+        </option>
+        <option>
+          <name>CCDebugInfo</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IEndianMode</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IProcessor</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IExtraOptionsCheck</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IExtraOptions</name>
+          <state />
+        </option>
+        <option>
+          <name>CCLangConformance</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCSignedPlainChar</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CCRequirePrototypes</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCDiagWarnAreErr</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCCompilerRuntimeInfo</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IFpuProcessor</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>OutputFile</name>
+          <state />
+        </option>
+        <option>
+          <name>CCLibConfigHeader</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>PreInclude</name>
+          <state />
+        </option>
+        <option>
+          <name>CompilerMisraOverride</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCIncludePath2</name>
+          <state />
+          <state>$PROJ_DIR$\..\..\..\libcpu\arm\cortex-m3</state>
+          <state>$PROJ_DIR$\..\..\..\components\finsh</state>
+          <state>$PROJ_DIR$\..\..\..\libcpu\arm\common</state>
+          <state>$PROJ_DIR$\libraries\CMSIS\Include</state>
+          <state>$PROJ_DIR$\drivers</state>
+          <state>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Include</state>
+          <state>$PROJ_DIR$\.</state>
+          <state>$PROJ_DIR$\applications</state>
+          <state>$PROJ_DIR$\..\..\..\components\libc\compilers\common</state>
+          <state>$PROJ_DIR$\..\..\..\include</state>
+          <state>$PROJ_DIR$\..\..\..\components\drivers\include</state>
+          <state>$PROJ_DIR$\libraries\CMSIS\Device\EastSoft\ES32F36xx\Include</state>
+        </option>
+        <option>
+          <name>CCStdIncCheck</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCCodeSection</name>
+          <state>.text</state>
+        </option>
+        <option>
+          <name>IProcessorMode2</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CCOptLevel</name>
+          <state>3</state>
+        </option>
+        <option>
+          <name>CCOptStrategy</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCOptLevelSlave</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CompilerMisraRules98</name>
+          <version>0</version>
+          <state>1000111110110101101110011100111111101110011011000101110111101101100111111111111100110011111001110111001111111111111111111111111</state>
+        </option>
+        <option>
+          <name>CompilerMisraRules04</name>
+          <version>0</version>
+          <state>111101110010111111111000110111111111111111111111111110010111101111010101111111111111111111111111101111111011111001111011111011111111111111111</state>
+        </option>
+        <option>
+          <name>CCPosIndRopi</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCPosIndRwpi</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCPosIndNoDynInit</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IccLang</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IccCDialect</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IccAllowVLA</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IccStaticDestr</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IccCppInlineSemantics</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IccCmsis</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IccFloatSemantics</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCNoLiteralPool</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCOptStrategySlave</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCGuardCalls</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CCEncSource</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCEncOutput</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CCEncOutputBom</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CCEncInput</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IccExceptions2</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IccRTTI2</name>
+          <state>0</state>
+        </option>
+      </data>
+    </settings>
+    <settings>
+      <name>AARM</name>
+      <archiveVersion>2</archiveVersion>
+      <data>
+        <version>10</version>
+        <wantNonLocal>1</wantNonLocal>
+        <debug>0</debug>
+        <option>
+          <name>AObjPrefix</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>AEndian</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>ACaseSensitivity</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>MacroChars</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AWarnEnable</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AWarnWhat</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AWarnOne</name>
+          <state />
+        </option>
+        <option>
+          <name>AWarnRange1</name>
+          <state />
+        </option>
+        <option>
+          <name>AWarnRange2</name>
+          <state />
+        </option>
+        <option>
+          <name>ADebug</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AltRegisterNames</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>ADefines</name>
+          <state />
+        </option>
+        <option>
+          <name>AList</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AListHeader</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>AListing</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>Includes</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>MacDefs</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>MacExps</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>MacExec</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OnlyAssed</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>MultiLine</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>PageLengthCheck</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>PageLength</name>
+          <state>80</state>
+        </option>
+        <option>
+          <name>TabSpacing</name>
+          <state>8</state>
+        </option>
+        <option>
+          <name>AXRef</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AXRefDefines</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AXRefInternal</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AXRefDual</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AProcessor</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>AFpuProcessor</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>AOutputFile</name>
+          <state />
+        </option>
+        <option>
+          <name>ALimitErrorsCheck</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>ALimitErrorsEdit</name>
+          <state>100</state>
+        </option>
+        <option>
+          <name>AIgnoreStdInclude</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AUserIncludes</name>
+          <state />
+        </option>
+        <option>
+          <name>AExtraOptionsCheckV2</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>AExtraOptionsV2</name>
+          <state />
+        </option>
+        <option>
+          <name>AsmNoLiteralPool</name>
+          <state>0</state>
+        </option>
+      </data>
+    </settings>
+    <settings>
+      <name>OBJCOPY</name>
+      <archiveVersion>0</archiveVersion>
+      <data>
+        <version>1</version>
+        <wantNonLocal>1</wantNonLocal>
+        <debug>0</debug>
+        <option>
+          <name>OOCOutputFormat</name>
+          <version>3</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OCOutputOverride</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>OOCOutputFile</name>
+          <state />
+        </option>
+        <option>
+          <name>OOCCommandLineProducer</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>OOCObjCopyEnable</name>
+          <state>0</state>
+        </option>
+      </data>
+    </settings>
+    <settings>
+      <name>CUSTOM</name>
+      <archiveVersion>3</archiveVersion>
+      <data>
+        <extensions />
+        <cmdline />
+        <hasPrio>0</hasPrio>
+      </data>
+    </settings>
+    <settings>
+      <name>BICOMP</name>
+      <archiveVersion>0</archiveVersion>
+      <data />
+    </settings>
+    <settings>
+      <name>BUILDACTION</name>
+      <archiveVersion>1</archiveVersion>
+      <data>
+        <prebuild />
+        <postbuild />
+      </data>
+    </settings>
+    <settings>
+      <name>ILINK</name>
+      <archiveVersion>0</archiveVersion>
+      <data>
+        <version>20</version>
+        <wantNonLocal>1</wantNonLocal>
+        <debug>0</debug>
+        <option>
+          <name>IlinkLibIOConfig</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>XLinkMisraHandler</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkInputFileSlave</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkOutputFile</name>
+          <state>###Unitialized###</state>
+        </option>
+        <option>
+          <name>IlinkDebugInfoEnable</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkKeepSymbols</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkRawBinaryFile</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkRawBinarySymbol</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkRawBinarySegment</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkRawBinaryAlign</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkDefines</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkConfigDefines</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkMapFile</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogFile</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogInitialization</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogModule</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogSection</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogVeneer</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkIcfOverride</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkIcfFile</name>
+          <state>lnk0t.icf</state>
+        </option>
+        <option>
+          <name>IlinkIcfFileSlave</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkEnableRemarks</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkSuppressDiags</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkTreatAsRem</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkTreatAsWarn</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkTreatAsErr</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkWarningsAreErrors</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkUseExtraOptions</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkExtraOptions</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkLowLevelInterfaceSlave</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkAutoLibEnable</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkAdditionalLibs</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkOverrideProgramEntryLabel</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkProgramEntryLabelSelect</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkProgramEntryLabel</name>
+          <state />
+        </option>
+        <option>
+          <name>DoFill</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>FillerByte</name>
+          <state>0xFF</state>
+        </option>
+        <option>
+          <name>FillerStart</name>
+          <state>0x0</state>
+        </option>
+        <option>
+          <name>FillerEnd</name>
+          <state>0x0</state>
+        </option>
+        <option>
+          <name>CrcSize</name>
+          <version>0</version>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CrcAlign</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CrcPoly</name>
+          <state>0x11021</state>
+        </option>
+        <option>
+          <name>CrcCompl</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CrcBitOrder</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>CrcInitialValue</name>
+          <state>0x0</state>
+        </option>
+        <option>
+          <name>DoCrc</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkBE8Slave</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkBufferedTerminalOutput</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkStdoutInterfaceSlave</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CrcFullSize</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkIElfToolPostProcess</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogAutoLibSelect</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogRedirSymbols</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkLogUnusedFragments</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkCrcReverseByteOrder</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkCrcUseAsInput</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkOptInline</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkOptExceptionsAllow</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkOptExceptionsForce</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkCmsis</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkOptMergeDuplSections</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkOptUseVfe</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkOptForceVfe</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkStackAnalysisEnable</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkStackControlFile</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkStackCallGraphFile</name>
+          <state />
+        </option>
+        <option>
+          <name>CrcAlgorithm</name>
+          <version>1</version>
+          <state>1</state>
+        </option>
+        <option>
+          <name>CrcUnitSize</name>
+          <version>0</version>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkThreadsSlave</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkLogCallGraph</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkIcfFile_AltDefault</name>
+          <state />
+        </option>
+        <option>
+          <name>IlinkEncInput</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkEncOutput</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IlinkEncOutputBom</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkHeapSelect</name>
+          <state>1</state>
+        </option>
+        <option>
+          <name>IlinkLocaleSelect</name>
+          <state>1</state>
+        </option>
+      </data>
+    </settings>
+    <settings>
+      <name>IARCHIVE</name>
+      <archiveVersion>0</archiveVersion>
+      <data>
+        <version>0</version>
+        <wantNonLocal>1</wantNonLocal>
+        <debug>0</debug>
+        <option>
+          <name>IarchiveInputs</name>
+          <state />
+        </option>
+        <option>
+          <name>IarchiveOverride</name>
+          <state>0</state>
+        </option>
+        <option>
+          <name>IarchiveOutput</name>
+          <state>###Unitialized###</state>
+        </option>
+      </data>
+    </settings>
+    <settings>
+      <name>BILINK</name>
+      <archiveVersion>0</archiveVersion>
+      <data />
+    </settings>
+  </configuration>
+  <group>
+    <name>Kernel</name>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\src\clock.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\src\components.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\src\device.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\src\idle.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\src\ipc.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\src\irq.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\src\kservice.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\src\mem.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\src\mempool.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\src\object.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\src\scheduler.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\src\signal.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\src\thread.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\src\timer.c</name>
+    </file>
+  </group>
+  <group>
+    <name>Applications</name>
+    <file>
+      <name>$PROJ_DIR$\applications\main.c</name>
+    </file>
+  </group>
+  <group>
+    <name>Drivers</name>
+    <file>
+      <name>$PROJ_DIR$\drivers\board.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\drivers\drv_gpio.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\drivers\drv_uart.c</name>
+    </file>
+  </group>
+  <group>
+    <name>Libraries</name>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_acmp.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_adc.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_bkpc.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_calc.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_can.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_cmu.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_crc.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_crypt.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_dac.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_dma.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_ebi.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_flash.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_flash_ext.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_gpio.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_i2c.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_i2s.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_iap.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_nand.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_nor_lcd.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_pis.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_pmu.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_qspi.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_rmu.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_rtc.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_rtchw.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_spi.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_sram.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_timer.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_trng.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_tsense.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_uart.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_usb.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\ald_wdt.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\ES32F36xx_ALD_StdPeriph_Driver\Source\utils.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\libraries\CMSIS\Device\EastSoft\ES32F36xx\Startup\iar\startup_es32f36xx.s</name>
+    </file>
+  </group>
+  <group>
+    <name>cpu</name>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\libcpu\arm\common\backtrace.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\libcpu\arm\common\div0.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\libcpu\arm\common\showmem.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\libcpu\arm\cortex-m3\cpuport.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\libcpu\arm\cortex-m3\context_iar.S</name>
+    </file>
+  </group>
+  <group>
+    <name>DeviceDrivers</name>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\components\drivers\misc\pin.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\components\drivers\serial\serial.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\components\drivers\src\completion.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\components\drivers\src\dataqueue.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\components\drivers\src\pipe.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\components\drivers\src\ringblk_buf.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\components\drivers\src\ringbuffer.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\components\drivers\src\waitqueue.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\components\drivers\src\workqueue.c</name>
+    </file>
+  </group>
+  <group>
+    <name>finsh</name>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\components\finsh\shell.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\components\finsh\cmd.c</name>
+    </file>
+    <file>
+      <name>$PROJ_DIR$\..\..\..\components\finsh\msh.c</name>
+    </file>
+  </group>
+  <group>
+    <name>libc</name>
+  </group>
+</project>

bsp/essemi/es32f369x/project.eww

@@ -0,0 +1,10 @@
+<?xml version="1.0" encoding="iso-8859-1"?>
+
+<workspace>
+  <project>
+    <path>$WS_DIR$\project.ewp</path>
+  </project>
+  <batchBuild/>
+</workspace>
+
+

bsp/essemi/es32f369x/project.uvprojx

@@ -331,7 +331,7 @@
               <MiscControls />
               <Define>ES32F36xx</Define>
               <Undefine />
-              <IncludePath>.;..\..\..\include;applications;.;drivers;libraries\CMSIS\Device\EastSoft\ES32F36xx\Include;libraries\CMSIS\Include;libraries\ES32F36xx_ALD_StdPeriph_Driver\Include;..\..\..\libcpu\arm\common;..\..\..\libcpu\arm\cortex-m3;..\..\..\components\drivers\include;..\..\..\components\drivers\include;..\..\..\components\drivers\include;..\..\..\components\drivers\include;..\..\..\components\drivers\include;..\..\..\components\finsh;..\..\..\components\libc\compilers\common</IncludePath>
+              <IncludePath>.;..\..\..\include;applications;.;drivers;libraries\CMSIS\Device\EastSoft\ES32F36xx\Include;libraries\CMSIS\Include;libraries\ES32F36xx_ALD_StdPeriph_Driver\Include;..\..\..\libcpu\arm\common;..\..\..\libcpu\arm\cortex-m3;..\..\..\components\drivers\include;..\..\..\components\drivers\include;..\..\..\components\drivers\include;..\..\..\components\finsh;..\..\..\components\libc\compilers\common</IncludePath>
             </VariousControls>
           </Cads>
           <Aads>
@@ -795,27 +795,6 @@
         </Group>
         <Group>
           <GroupName>DeviceDrivers</GroupName>
-          <Files>
-            <File>
-              <FileName>can.c</FileName>
-              <FileType>1</FileType>
-              <FilePath>..\..\..\components\drivers\can\can.c</FilePath>
-            </File>
-          </Files>
-          <Files>
-            <File>
-              <FileName>i2c_core.c</FileName>
-              <FileType>1</FileType>
-              <FilePath>..\..\..\components\drivers\i2c\i2c_core.c</FilePath>
-            </File>
-          </Files>
-          <Files>
-            <File>
-              <FileName>i2c_dev.c</FileName>
-              <FileType>1</FileType>
-              <FilePath>..\..\..\components\drivers\i2c\i2c_dev.c</FilePath>
-            </File>
-          </Files>
           <Files>
             <File>
               <FileName>pin.c</FileName>

bsp/essemi/es32f369x/rtconfig.h

@@ -39,7 +39,7 @@
 #define RT_USING_CONSOLE
 #define RT_CONSOLEBUF_SIZE 128
 #define RT_CONSOLE_DEVICE_NAME "uart0"
-#define RT_VER_NUM 0x40002
+#define RT_VER_NUM 0x40003

 /* RT-Thread Components */

@@ -76,8 +76,6 @@
 #define RT_PIPE_BUFSZ 512
 #define RT_USING_SERIAL
 #define RT_SERIAL_RB_BUFSZ 64
-#define RT_USING_CAN
-#define RT_USING_I2C
 #define RT_USING_PIN

 /* Using USB */
@@ -166,6 +164,18 @@
 /* CAN Drivers */


+/* ADC Drivers */
+
+
+/* RTC Drivers */
+
+
+/* HWtimer Drivers */
+
+
+/* PWM Drivers */
+
+
 /* Onboard Peripheral Drivers */

 /* Offboard Peripheral Drivers */

bsp/essemi/es32f369x/template.ewd

@@ -0,0 +1,2810 @@
+<?xml version="1.0" encoding="UTF-8"?>
+<project>
+    <fileVersion>3</fileVersion>
+    <configuration>
+        <name>rt-thread</name>
+        <toolchain>
+            <name>ARM</name>
+        </toolchain>
+        <debug>1</debug>
+        <settings>
+            <name>C-SPY</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>28</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>CInput</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CEndian</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCVariant</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MacOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MacFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>MemOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MemFile</name>
+                    <state>$TOOLKIT_DIR$\CONFIG\debugger\Eastsoft\ES32F3696LT.ddf</state>
+                </option>
+                <option>
+                    <name>RunToEnable</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RunToName</name>
+                    <state>main</state>
+                </option>
+                <option>
+                    <name>CExtraOptionsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CExtraOptions</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CFpuProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCDDFArgumentProducer</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCDownloadSuppressDownload</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCDownloadVerifyAll</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProductVersion</name>
+                    <state>8.11.1.13270</state>
+                </option>
+                <option>
+                    <name>OCDynDriverList</name>
+                    <state>CMSISDAP_ID</state>
+                </option>
+                <option>
+                    <name>OCLastSavedByProductVersion</name>
+                    <state>8.11.1.13270</state>
+                </option>
+                <option>
+                    <name>UseFlashLoader</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CLowLevel</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCBE8Slave</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>MacFile2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CDevice</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>FlashLoadersV3</name>
+                    <state>$TOOLKIT_DIR$\config\flashloader\Eastsoft\FlashES32F3696x.board</state>
+                </option>
+                <option>
+                    <name>OCImagesSuppressCheck1</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesPath1</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesSuppressCheck2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesPath2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesSuppressCheck3</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesPath3</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OverrideDefFlashBoard</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesOffset1</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesOffset2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesOffset3</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesUse1</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesUse2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesUse3</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCDeviceConfigMacroFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCDebuggerExtraOption</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCAllMTBOptions</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCMulticoreNrOfCores</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCMulticoreMaster</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCMulticorePort</name>
+                    <state>53461</state>
+                </option>
+                <option>
+                    <name>OCMulticoreWorkspace</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCMulticoreSlaveProject</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCMulticoreSlaveConfiguration</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCDownloadExtraImage</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCAttachSlave</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>ARMSIM_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>1</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCSimDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCSimEnablePSP</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCSimPspOverrideConfig</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCSimPspConfigFile</name>
+                    <state></state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>CADI_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>0</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>CCadiMemory</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>Fast Model</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCADILogFileCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCADILogFileEditB</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>CMSISDAP_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>4</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCIarProbeScriptFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CMSISDAPResetList</name>
+                    <version>1</version>
+                    <state>4</state>
+                </option>
+                <option>
+                    <name>CMSISDAPHWResetDuration</name>
+                    <state>300</state>
+                </option>
+                <option>
+                    <name>CMSISDAPHWResetDelay</name>
+                    <state>200</state>
+                </option>
+                <option>
+                    <name>CMSISDAPDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CMSISDAPInterfaceRadio</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CMSISDAPInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiTargetEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPJtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPRestoreBreakpointsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPUpdateBreakpointsEdit</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>RDICatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchUndef</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchData</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchPrefetch</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchMMERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchNOCPERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchCHKERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSTATERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchBUSERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchINTERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSFERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchHARDERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiCPUEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiCPUNumber</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeCfgOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeConfig</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CMSISDAPProbeConfigRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPSelectedCPUBehaviour</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>ICpuName</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCJetEmuParams</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCCMSISDAPUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCCMSISDAPUsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>GDBSERVER_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>0</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>TCPIP</name>
+                    <state>aaa.bbb.ccc.ddd</state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCJTagBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJTagDoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJTagUpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>IJET_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>8</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCIarProbeScriptFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetResetList</name>
+                    <version>1</version>
+                    <state>10</state>
+                </option>
+                <option>
+                    <name>IjetHWResetDuration</name>
+                    <state>300</state>
+                </option>
+                <option>
+                    <name>IjetHWResetDelay</name>
+                    <state>200</state>
+                </option>
+                <option>
+                    <name>IjetPowerFromProbe</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetPowerRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>IjetInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiTargetEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetScanChainNonARMDevices</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetIRLength</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetJtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetProtocolRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetSwoPin</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetCpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IjetSwoPrescalerList</name>
+                    <version>1</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetRestoreBreakpointsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetUpdateBreakpointsEdit</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>RDICatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchUndef</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchData</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchPrefetch</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchMMERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchNOCPERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchCHKERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSTATERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchBUSERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchINTERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSFERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchHARDERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeCfgOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeConfig</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IjetProbeConfigRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiCPUEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiCPUNumber</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetSelectedCPUBehaviour</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>ICpuName</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCJetEmuParams</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetPreferETB</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetTraceSettingsList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetTraceSizeList</name>
+                    <version>0</version>
+                    <state>4</state>
+                </option>
+                <option>
+                    <name>FlashBoardPathSlave</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCIjetUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCIjetUsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>JLINK_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>16</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>JLinkSpeed</name>
+                    <state>1000</state>
+                </option>
+                <option>
+                    <name>CCJLinkDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCJLinkHWResetDelay</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>JLinkInitialSpeed</name>
+                    <state>1000</state>
+                </option>
+                <option>
+                    <name>CCDoJlinkMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCScanChainNonARMDevices</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkIRLength</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkCommRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkTCPIP</name>
+                    <state>aaa.bbb.ccc.ddd</state>
+                </option>
+                <option>
+                    <name>CCJLinkSpeedRadioV2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCUSBDevice</name>
+                    <version>1</version>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCRDICatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchUndef</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchData</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchPrefetch</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkDoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkUpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>CCJLinkInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkResetList</name>
+                    <version>6</version>
+                    <state>5</state>
+                </option>
+                <option>
+                    <name>CCJLinkInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchMMERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchNOCPERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchCHRERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchSTATERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchBUSERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchINTERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchSFERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchHARDERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCJLinkScriptFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCJLinkUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCTcpIpAlt</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkTcpIpSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCCpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSwoClockAuto</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSwoClockEdit</name>
+                    <state>2000</state>
+                </option>
+                <option>
+                    <name>OCJLinkTraceSource</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCJLinkTraceSourceDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCJLinkDeviceName</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>LMIFTDI_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>2</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>LmiftdiSpeed</name>
+                    <state>500</state>
+                </option>
+                <option>
+                    <name>CCLmiftdiDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCLmiftdiLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCLmiFtdiInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCLmiFtdiInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>PEMICRO_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>3</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCJPEMicroShowSettings</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>STLINK_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>4</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCSTLinkInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkResetList</name>
+                    <version>3</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSwoClockAuto</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSwoClockEdit</name>
+                    <state>2000</state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCSTLinkDoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkUpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchMMERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchNOCPERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchCHRERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchSTATERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchBUSERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchINTERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchSFERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchHARDERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSTLinkUsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkJtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkDAPNumber</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSTLinkDebugAccessPortRadio</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>THIRDPARTY_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>0</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>CThirdPartyDriverDll</name>
+                    <state>###Uninitialized###</state>
+                </option>
+                <option>
+                    <name>CThirdPartyLogFileCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CThirdPartyLogFileEditB</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>TIFET_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>1</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCMSPFetResetList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetTargetVccTypeDefault</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetTargetVoltage</name>
+                    <state>###Uninitialized###</state>
+                </option>
+                <option>
+                    <name>CCMSPFetVCCDefault</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCMSPFetTargetSettlingtime</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetRadioJtagSpeedType</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCMSPFetConnection</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetUsbComPort</name>
+                    <state>Automatic</state>
+                </option>
+                <option>
+                    <name>CCMSPFetAllowAccessToBSL</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCMSPFetRadioEraseFlash</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>XDS100_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>6</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>TIPackageOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>TIPackage</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>BoardFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCXds100BreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100DoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100UpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchUndef</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchData</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchPrefetch</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchMMERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchNOCPERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchCHRERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchSTATERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchBUSERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchINTERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchSFERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchHARDERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCXds100SwoClockAuto</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100SwoClockEdit</name>
+                    <state>1000</state>
+                </option>
+                <option>
+                    <name>CCXds100HWResetDelay</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100ResetList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100UsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCXds100UsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100JtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100InterfaceRadio</name>
+                    <state>2</state>
+                </option>
+                <option>
+                    <name>CCXds100InterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100ProbeList</name>
+                    <version>0</version>
+                    <state>2</state>
+                </option>
+                <option>
+                    <name>CCXds100SWOPortRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100SWOPort</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <debuggerPlugins>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\CMX\CmxArmPlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\CMX\CmxTinyArmPlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\embOS\embOSPlugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\OpenRTOS\OpenRTOSPlugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\SafeRTOS\SafeRTOSPlugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\ThreadX\ThreadXArmPlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\TI-RTOS\tirtosplugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\uCOS-II\uCOS-II-286-KA-CSpy.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\uCOS-II\uCOS-II-KA-CSpy.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\uCOS-III\uCOS-III-KA-CSpy.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$EW_DIR$\common\plugins\CodeCoverage\CodeCoverage.ENU.ewplugin</file>
+                <loadFlag>1</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$EW_DIR$\common\plugins\Orti\Orti.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$EW_DIR$\common\plugins\uCProbe\uCProbePlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+        </debuggerPlugins>
+    </configuration>
+    <configuration>
+        <name>Release</name>
+        <toolchain>
+            <name>ARM</name>
+        </toolchain>
+        <debug>0</debug>
+        <settings>
+            <name>C-SPY</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>28</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>CInput</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CEndian</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCVariant</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MacOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MacFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>MemOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MemFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>RunToEnable</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RunToName</name>
+                    <state>main</state>
+                </option>
+                <option>
+                    <name>CExtraOptionsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CExtraOptions</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CFpuProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCDDFArgumentProducer</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCDownloadSuppressDownload</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCDownloadVerifyAll</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProductVersion</name>
+                    <state>8.11.1.13270</state>
+                </option>
+                <option>
+                    <name>OCDynDriverList</name>
+                    <state>ARMSIM_ID</state>
+                </option>
+                <option>
+                    <name>OCLastSavedByProductVersion</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>UseFlashLoader</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CLowLevel</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCBE8Slave</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>MacFile2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CDevice</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>FlashLoadersV3</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesSuppressCheck1</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesPath1</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesSuppressCheck2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesPath2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesSuppressCheck3</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesPath3</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OverrideDefFlashBoard</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesOffset1</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesOffset2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesOffset3</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCImagesUse1</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesUse2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCImagesUse3</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCDeviceConfigMacroFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCDebuggerExtraOption</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCAllMTBOptions</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCMulticoreNrOfCores</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCMulticoreMaster</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCMulticorePort</name>
+                    <state>53461</state>
+                </option>
+                <option>
+                    <name>OCMulticoreWorkspace</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCMulticoreSlaveProject</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCMulticoreSlaveConfiguration</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCDownloadExtraImage</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCAttachSlave</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>ARMSIM_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>1</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCSimDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCSimEnablePSP</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCSimPspOverrideConfig</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCSimPspConfigFile</name>
+                    <state></state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>CADI_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>0</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>CCadiMemory</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>Fast Model</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCADILogFileCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCADILogFileEditB</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>CMSISDAP_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>4</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCIarProbeScriptFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CMSISDAPResetList</name>
+                    <version>1</version>
+                    <state>10</state>
+                </option>
+                <option>
+                    <name>CMSISDAPHWResetDuration</name>
+                    <state>300</state>
+                </option>
+                <option>
+                    <name>CMSISDAPHWResetDelay</name>
+                    <state>200</state>
+                </option>
+                <option>
+                    <name>CMSISDAPDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CMSISDAPInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiTargetEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPJtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPRestoreBreakpointsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPUpdateBreakpointsEdit</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>RDICatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchUndef</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchData</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchPrefetch</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchMMERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchNOCPERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchCHKERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSTATERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchBUSERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchINTERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSFERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchHARDERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiCPUEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPMultiCPUNumber</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeCfgOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeConfig</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CMSISDAPProbeConfigRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CMSISDAPSelectedCPUBehaviour</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>ICpuName</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCJetEmuParams</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCCMSISDAPUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCCMSISDAPUsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>GDBSERVER_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>0</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>TCPIP</name>
+                    <state>aaa.bbb.ccc.ddd</state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCJTagBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJTagDoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJTagUpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>IJET_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>8</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OCIarProbeScriptFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetResetList</name>
+                    <version>1</version>
+                    <state>10</state>
+                </option>
+                <option>
+                    <name>IjetHWResetDuration</name>
+                    <state>300</state>
+                </option>
+                <option>
+                    <name>IjetHWResetDelay</name>
+                    <state>200</state>
+                </option>
+                <option>
+                    <name>IjetPowerFromProbe</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetPowerRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>IjetInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiTargetEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetScanChainNonARMDevices</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetIRLength</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetJtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetProtocolRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetSwoPin</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetCpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IjetSwoPrescalerList</name>
+                    <version>1</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetRestoreBreakpointsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetUpdateBreakpointsEdit</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>RDICatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchUndef</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchData</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchPrefetch</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RDICatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>RDICatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CatchMMERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchNOCPERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchCHKERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSTATERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchBUSERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchINTERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchSFERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchHARDERR</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeCfgOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCProbeConfig</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IjetProbeConfigRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiCPUEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetMultiCPUNumber</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetSelectedCPUBehaviour</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>ICpuName</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OCJetEmuParams</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetPreferETB</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IjetTraceSettingsList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IjetTraceSizeList</name>
+                    <version>0</version>
+                    <state>4</state>
+                </option>
+                <option>
+                    <name>FlashBoardPathSlave</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCIjetUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCIjetUsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>JLINK_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>16</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>JLinkSpeed</name>
+                    <state>1000</state>
+                </option>
+                <option>
+                    <name>CCJLinkDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCJLinkHWResetDelay</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>JLinkInitialSpeed</name>
+                    <state>1000</state>
+                </option>
+                <option>
+                    <name>CCDoJlinkMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCScanChainNonARMDevices</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkMultiTarget</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkIRLength</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkCommRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkTCPIP</name>
+                    <state>aaa.bbb.ccc.ddd</state>
+                </option>
+                <option>
+                    <name>CCJLinkSpeedRadioV2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCUSBDevice</name>
+                    <version>1</version>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCRDICatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchUndef</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchData</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchPrefetch</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCRDICatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkBreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkDoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkUpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>CCJLinkInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkResetList</name>
+                    <version>6</version>
+                    <state>5</state>
+                </option>
+                <option>
+                    <name>CCJLinkInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchMMERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchNOCPERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchCHRERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchSTATERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchBUSERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchINTERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchSFERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchHARDERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCJLinkScriptFile</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCJLinkUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCTcpIpAlt</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCJLinkTcpIpSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCCpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSwoClockAuto</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSwoClockEdit</name>
+                    <state>2000</state>
+                </option>
+                <option>
+                    <name>OCJLinkTraceSource</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCJLinkTraceSourceDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCJLinkDeviceName</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>LMIFTDI_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>2</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>LmiftdiSpeed</name>
+                    <state>500</state>
+                </option>
+                <option>
+                    <name>CCLmiftdiDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCLmiftdiLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCLmiFtdiInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCLmiFtdiInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>PEMICRO_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>3</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCJPEMicroShowSettings</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>STLINK_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>4</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCSTLinkInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkResetList</name>
+                    <version>3</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSwoClockAuto</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSwoClockEdit</name>
+                    <state>2000</state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCSTLinkDoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkUpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchMMERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchNOCPERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchCHRERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchSTATERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchBUSERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchINTERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchSFERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchHARDERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkCatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkUsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSTLinkUsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkJtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSTLinkDAPNumber</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCSTLinkDebugAccessPortRadio</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>THIRDPARTY_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>0</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>CThirdPartyDriverDll</name>
+                    <state>###Uninitialized###</state>
+                </option>
+                <option>
+                    <name>CThirdPartyLogFileCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CThirdPartyLogFileEditB</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>TIFET_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>1</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCMSPFetResetList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetInterfaceRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetInterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetTargetVccTypeDefault</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetTargetVoltage</name>
+                    <state>###Uninitialized###</state>
+                </option>
+                <option>
+                    <name>CCMSPFetVCCDefault</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCMSPFetTargetSettlingtime</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetRadioJtagSpeedType</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCMSPFetConnection</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetUsbComPort</name>
+                    <state>Automatic</state>
+                </option>
+                <option>
+                    <name>CCMSPFetAllowAccessToBSL</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetDoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCMSPFetLogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCMSPFetRadioEraseFlash</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>XDS100_ID</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>6</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OCDriverInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>TIPackageOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>TIPackage</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>BoardFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>DoLogfile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>LogFile</name>
+                    <state>$PROJ_DIR$\cspycomm.log</state>
+                </option>
+                <option>
+                    <name>CCXds100BreakpointRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100DoUpdateBreakpoints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100UpdateBreakpoints</name>
+                    <state>_call_main</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchReset</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchUndef</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchSWI</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchData</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchPrefetch</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchIRQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchFIQ</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchCORERESET</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchMMERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchNOCPERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchCHRERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchSTATERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchBUSERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchINTERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchSFERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchHARDERR</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CatchDummy</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100CpuClockEdit</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCXds100SwoClockAuto</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100SwoClockEdit</name>
+                    <state>1000</state>
+                </option>
+                <option>
+                    <name>CCXds100HWResetDelay</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100ResetList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100UsbSerialNo</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCXds100UsbSerialNoSelect</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100JtagSpeedList</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100InterfaceRadio</name>
+                    <state>2</state>
+                </option>
+                <option>
+                    <name>CCXds100InterfaceCmdLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100ProbeList</name>
+                    <version>0</version>
+                    <state>2</state>
+                </option>
+                <option>
+                    <name>CCXds100SWOPortRadio</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCXds100SWOPort</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <debuggerPlugins>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\CMX\CmxArmPlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\CMX\CmxTinyArmPlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\embOS\embOSPlugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\OpenRTOS\OpenRTOSPlugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\SafeRTOS\SafeRTOSPlugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\ThreadX\ThreadXArmPlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\TI-RTOS\tirtosplugin.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\uCOS-II\uCOS-II-286-KA-CSpy.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\uCOS-II\uCOS-II-KA-CSpy.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$TOOLKIT_DIR$\plugins\rtos\uCOS-III\uCOS-III-KA-CSpy.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$EW_DIR$\common\plugins\CodeCoverage\CodeCoverage.ENU.ewplugin</file>
+                <loadFlag>1</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$EW_DIR$\common\plugins\Orti\Orti.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+            <plugin>
+                <file>$EW_DIR$\common\plugins\uCProbe\uCProbePlugin.ENU.ewplugin</file>
+                <loadFlag>0</loadFlag>
+            </plugin>
+        </debuggerPlugins>
+    </configuration>
+</project>

bsp/essemi/es32f369x/template.ewp

@@ -0,0 +1,2024 @@
+<?xml version="1.0" encoding="UTF-8"?>
+<project>
+    <fileVersion>3</fileVersion>
+    <configuration>
+        <name>rt-thread</name>
+        <toolchain>
+            <name>ARM</name>
+        </toolchain>
+        <debug>1</debug>
+        <settings>
+            <name>General</name>
+            <archiveVersion>3</archiveVersion>
+            <data>
+                <version>28</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>ExePath</name>
+                    <state>rt-thread\Exe</state>
+                </option>
+                <option>
+                    <name>ObjPath</name>
+                    <state>rt-thread\Obj</state>
+                </option>
+                <option>
+                    <name>ListPath</name>
+                    <state>rt-thread\List</state>
+                </option>
+                <option>
+                    <name>GEndianMode</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>Input description</name>
+                    <state>Automatic choice of formatter, without multibyte support.</state>
+                </option>
+                <option>
+                    <name>Output description</name>
+                    <state>Automatic choice of formatter, without multibyte support.</state>
+                </option>
+                <option>
+                    <name>GOutputBinary</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGCoreOrChip</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>GRuntimeLibSelect</name>
+                    <version>0</version>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>GRuntimeLibSelectSlave</name>
+                    <version>0</version>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RTDescription</name>
+                    <state>Use the normal configuration of the C/C++ runtime library. No locale interface, C locale, no file descriptor support, no multibytes in printf and scanf, and no hex floats in strtod.</state>
+                </option>
+                <option>
+                    <name>OGProductVersion</name>
+                    <state>8.11.1.13270</state>
+                </option>
+                <option>
+                    <name>OGLastSavedByProductVersion</name>
+                    <state>8.11.1.13270</state>
+                </option>
+                <option>
+                    <name>GeneralEnableMisra</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GeneralMisraVerbose</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGChipSelectEditMenu</name>
+                    <state>ES32F3696LT	Eastsoft ES32F3696LT</state>
+                </option>
+                <option>
+                    <name>GenLowLevelInterface</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>GEndianModeBE</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OGBufferedTerminalOutput</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GenStdoutInterface</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GeneralMisraRules98</name>
+                    <version>0</version>
+                    <state>1000111110110101101110011100111111101110011011000101110111101101100111111111111100110011111001110111001111111111111111111111111</state>
+                </option>
+                <option>
+                    <name>GeneralMisraVer</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GeneralMisraRules04</name>
+                    <version>0</version>
+                    <state>111101110010111111111000110111111111111111111111111110010111101111010101111111111111111111111111101111111011111001111011111011111111111111111</state>
+                </option>
+                <option>
+                    <name>RTConfigPath2</name>
+                    <state>$TOOLKIT_DIR$\INC\c\DLib_Config_Normal.h</state>
+                </option>
+                <option>
+                    <name>GBECoreSlave</name>
+                    <version>25</version>
+                    <state>38</state>
+                </option>
+                <option>
+                    <name>OGUseCmsis</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGUseCmsisDspLib</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GRuntimeLibThreads</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CoreVariant</name>
+                    <version>25</version>
+                    <state>38</state>
+                </option>
+                <option>
+                    <name>GFPUDeviceSlave</name>
+                    <state>ES32F3696LT	Eastsoft ES32F3696LT</state>
+                </option>
+                <option>
+                    <name>FPU2</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>NrRegs</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>NEON</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GFPUCoreSlave2</name>
+                    <version>25</version>
+                    <state>38</state>
+                </option>
+                <option>
+                    <name>OGCMSISPackSelectDevice</name>
+                </option>
+                <option>
+                    <name>OgLibHeap</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGLibAdditionalLocale</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGPrintfVariant</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGPrintfMultibyteSupport</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGScanfVariant</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGScanfMultibyteSupport</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GenLocaleTags</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>GenLocaleDisplayOnly</name>
+                    <state></state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>ICCARM</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>34</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>CCOptimizationNoSizeConstraints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCDefines</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCPreprocFile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCPreprocComments</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCPreprocLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCListCFile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCListCMnemonics</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCListCMessages</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCListAssFile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCListAssSource</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCEnableRemarks</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCDiagSuppress</name>
+                    <state>Pa050</state>
+                </option>
+                <option>
+                    <name>CCDiagRemark</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCDiagWarning</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCDiagError</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCObjPrefix</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCAllowList</name>
+                    <version>1</version>
+                    <state>00000000</state>
+                </option>
+                <option>
+                    <name>CCDebugInfo</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IEndianMode</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IExtraOptionsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IExtraOptions</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCLangConformance</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSignedPlainChar</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCRequirePrototypes</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCDiagWarnAreErr</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCompilerRuntimeInfo</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IFpuProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OutputFile</name>
+                    <state>$FILE_BNAME$.o</state>
+                </option>
+                <option>
+                    <name>CCLibConfigHeader</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>PreInclude</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CompilerMisraOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCIncludePath2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCStdIncCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCodeSection</name>
+                    <state>.text</state>
+                </option>
+                <option>
+                    <name>IProcessorMode2</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCOptLevel</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCOptStrategy</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCOptLevelSlave</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CompilerMisraRules98</name>
+                    <version>0</version>
+                    <state>1000111110110101101110011100111111101110011011000101110111101101100111111111111100110011111001110111001111111111111111111111111</state>
+                </option>
+                <option>
+                    <name>CompilerMisraRules04</name>
+                    <version>0</version>
+                    <state>111101110010111111111000110111111111111111111111111110010111101111010101111111111111111111111111101111111011111001111011111011111111111111111</state>
+                </option>
+                <option>
+                    <name>CCPosIndRopi</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCPosIndRwpi</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCPosIndNoDynInit</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IccLang</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IccCDialect</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IccAllowVLA</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IccStaticDestr</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IccCppInlineSemantics</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IccCmsis</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IccFloatSemantics</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCNoLiteralPool</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCOptStrategySlave</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCGuardCalls</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCEncSource</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCEncOutput</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCEncOutputBom</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCEncInput</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IccExceptions2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IccRTTI2</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>AARM</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>10</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>AObjPrefix</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>AEndian</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>ACaseSensitivity</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>MacroChars</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AWarnEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AWarnWhat</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AWarnOne</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>AWarnRange1</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>AWarnRange2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>ADebug</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>AltRegisterNames</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>ADefines</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>AList</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AListHeader</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>AListing</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>Includes</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MacDefs</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MacExps</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>MacExec</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OnlyAssed</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MultiLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>PageLengthCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>PageLength</name>
+                    <state>80</state>
+                </option>
+                <option>
+                    <name>TabSpacing</name>
+                    <state>8</state>
+                </option>
+                <option>
+                    <name>AXRef</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AXRefDefines</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AXRefInternal</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AXRefDual</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>AFpuProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>AOutputFile</name>
+                    <state>$FILE_BNAME$.o</state>
+                </option>
+                <option>
+                    <name>ALimitErrorsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>ALimitErrorsEdit</name>
+                    <state>100</state>
+                </option>
+                <option>
+                    <name>AIgnoreStdInclude</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AUserIncludes</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>AExtraOptionsCheckV2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AExtraOptionsV2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>AsmNoLiteralPool</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>OBJCOPY</name>
+            <archiveVersion>0</archiveVersion>
+            <data>
+                <version>1</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>OOCOutputFormat</name>
+                    <version>3</version>
+                    <state>3</state>
+                </option>
+                <option>
+                    <name>OCOutputOverride</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OOCOutputFile</name>
+                    <state>../../../rtthread.bin</state>
+                </option>
+                <option>
+                    <name>OOCCommandLineProducer</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OOCObjCopyEnable</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>CUSTOM</name>
+            <archiveVersion>3</archiveVersion>
+            <data>
+                <extensions></extensions>
+                <cmdline></cmdline>
+                <hasPrio>0</hasPrio>
+            </data>
+        </settings>
+        <settings>
+            <name>BICOMP</name>
+            <archiveVersion>0</archiveVersion>
+            <data />
+        </settings>
+        <settings>
+            <name>BUILDACTION</name>
+            <archiveVersion>1</archiveVersion>
+            <data>
+                <prebuild></prebuild>
+                <postbuild></postbuild>
+            </data>
+        </settings>
+        <settings>
+            <name>ILINK</name>
+            <archiveVersion>0</archiveVersion>
+            <data>
+                <version>20</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>IlinkLibIOConfig</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>XLinkMisraHandler</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkInputFileSlave</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkOutputFile</name>
+                    <state>rtthread.out</state>
+                </option>
+                <option>
+                    <name>IlinkDebugInfoEnable</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkKeepSymbols</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkRawBinaryFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkRawBinarySymbol</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkRawBinarySegment</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkRawBinaryAlign</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkDefines</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkConfigDefines</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkMapFile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogFile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogInitialization</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogModule</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogSection</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogVeneer</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkIcfOverride</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkIcfFile</name>
+                    <state>$PROJ_DIR$\drivers\linker_scripts\link.icf</state>
+                </option>
+                <option>
+                    <name>IlinkIcfFileSlave</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkEnableRemarks</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkSuppressDiags</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkTreatAsRem</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkTreatAsWarn</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkTreatAsErr</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkWarningsAreErrors</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkUseExtraOptions</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkExtraOptions</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkLowLevelInterfaceSlave</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkAutoLibEnable</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkAdditionalLibs</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkOverrideProgramEntryLabel</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkProgramEntryLabelSelect</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkProgramEntryLabel</name>
+                    <state>__iar_program_start</state>
+                </option>
+                <option>
+                    <name>DoFill</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>FillerByte</name>
+                    <state>0xFF</state>
+                </option>
+                <option>
+                    <name>FillerStart</name>
+                    <state>0x0</state>
+                </option>
+                <option>
+                    <name>FillerEnd</name>
+                    <state>0x0</state>
+                </option>
+                <option>
+                    <name>CrcSize</name>
+                    <version>0</version>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CrcAlign</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CrcPoly</name>
+                    <state>0x11021</state>
+                </option>
+                <option>
+                    <name>CrcCompl</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CrcBitOrder</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CrcInitialValue</name>
+                    <state>0x0</state>
+                </option>
+                <option>
+                    <name>DoCrc</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkBE8Slave</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkBufferedTerminalOutput</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkStdoutInterfaceSlave</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CrcFullSize</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkIElfToolPostProcess</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogAutoLibSelect</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogRedirSymbols</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogUnusedFragments</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkCrcReverseByteOrder</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkCrcUseAsInput</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkOptInline</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkOptExceptionsAllow</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkOptExceptionsForce</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkCmsis</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkOptMergeDuplSections</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkOptUseVfe</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkOptForceVfe</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkStackAnalysisEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkStackControlFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkStackCallGraphFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CrcAlgorithm</name>
+                    <version>1</version>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CrcUnitSize</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkThreadsSlave</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkLogCallGraph</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkIcfFile_AltDefault</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkEncInput</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkEncOutput</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkEncOutputBom</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkHeapSelect</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkLocaleSelect</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>IARCHIVE</name>
+            <archiveVersion>0</archiveVersion>
+            <data>
+                <version>0</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>1</debug>
+                <option>
+                    <name>IarchiveInputs</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IarchiveOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IarchiveOutput</name>
+                    <state>###Unitialized###</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>BILINK</name>
+            <archiveVersion>0</archiveVersion>
+            <data />
+        </settings>
+    </configuration>
+    <configuration>
+        <name>Release</name>
+        <toolchain>
+            <name>ARM</name>
+        </toolchain>
+        <debug>0</debug>
+        <settings>
+            <name>General</name>
+            <archiveVersion>3</archiveVersion>
+            <data>
+                <version>28</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>ExePath</name>
+                    <state>Release\Exe</state>
+                </option>
+                <option>
+                    <name>ObjPath</name>
+                    <state>Release\Obj</state>
+                </option>
+                <option>
+                    <name>ListPath</name>
+                    <state>Release\List</state>
+                </option>
+                <option>
+                    <name>GEndianMode</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>Input description</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>Output description</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>GOutputBinary</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGCoreOrChip</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GRuntimeLibSelect</name>
+                    <version>0</version>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>GRuntimeLibSelectSlave</name>
+                    <version>0</version>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>RTDescription</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OGProductVersion</name>
+                    <state>8.11.1.13270</state>
+                </option>
+                <option>
+                    <name>OGLastSavedByProductVersion</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>GeneralEnableMisra</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GeneralMisraVerbose</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGChipSelectEditMenu</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>GenLowLevelInterface</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GEndianModeBE</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGBufferedTerminalOutput</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GenStdoutInterface</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GeneralMisraRules98</name>
+                    <version>0</version>
+                    <state>1000111110110101101110011100111111101110011011000101110111101101100111111111111100110011111001110111001111111111111111111111111</state>
+                </option>
+                <option>
+                    <name>GeneralMisraVer</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GeneralMisraRules04</name>
+                    <version>0</version>
+                    <state>111101110010111111111000110111111111111111111111111110010111101111010101111111111111111111111111101111111011111001111011111011111111111111111</state>
+                </option>
+                <option>
+                    <name>RTConfigPath2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>GBECoreSlave</name>
+                    <version>25</version>
+                    <state>38</state>
+                </option>
+                <option>
+                    <name>OGUseCmsis</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGUseCmsisDspLib</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GRuntimeLibThreads</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CoreVariant</name>
+                    <version>25</version>
+                    <state>38</state>
+                </option>
+                <option>
+                    <name>GFPUDeviceSlave</name>
+                    <state>-</state>
+                </option>
+                <option>
+                    <name>FPU2</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>NrRegs</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>NEON</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GFPUCoreSlave2</name>
+                    <version>25</version>
+                    <state>38</state>
+                </option>
+                <option>
+                    <name>OGCMSISPackSelectDevice</name>
+                </option>
+                <option>
+                    <name>OgLibHeap</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGLibAdditionalLocale</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGPrintfVariant</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGPrintfMultibyteSupport</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGScanfVariant</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OGScanfMultibyteSupport</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>GenLocaleTags</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>GenLocaleDisplayOnly</name>
+                    <state></state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>ICCARM</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>34</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>CCOptimizationNoSizeConstraints</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCDefines</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCPreprocFile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCPreprocComments</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCPreprocLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCListCFile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCListCMnemonics</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCListCMessages</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCListAssFile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCListAssSource</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCEnableRemarks</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCDiagSuppress</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCDiagRemark</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCDiagWarning</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCDiagError</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCObjPrefix</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCAllowList</name>
+                    <version>1</version>
+                    <state>11111110</state>
+                </option>
+                <option>
+                    <name>CCDebugInfo</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IEndianMode</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IExtraOptionsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IExtraOptions</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCLangConformance</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCSignedPlainChar</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCRequirePrototypes</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCDiagWarnAreErr</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCompilerRuntimeInfo</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IFpuProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OutputFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCLibConfigHeader</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>PreInclude</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CompilerMisraOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCIncludePath2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CCStdIncCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCCodeSection</name>
+                    <state>.text</state>
+                </option>
+                <option>
+                    <name>IProcessorMode2</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCOptLevel</name>
+                    <state>3</state>
+                </option>
+                <option>
+                    <name>CCOptStrategy</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCOptLevelSlave</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CompilerMisraRules98</name>
+                    <version>0</version>
+                    <state>1000111110110101101110011100111111101110011011000101110111101101100111111111111100110011111001110111001111111111111111111111111</state>
+                </option>
+                <option>
+                    <name>CompilerMisraRules04</name>
+                    <version>0</version>
+                    <state>111101110010111111111000110111111111111111111111111110010111101111010101111111111111111111111111101111111011111001111011111011111111111111111</state>
+                </option>
+                <option>
+                    <name>CCPosIndRopi</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCPosIndRwpi</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCPosIndNoDynInit</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IccLang</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IccCDialect</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IccAllowVLA</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IccStaticDestr</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IccCppInlineSemantics</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IccCmsis</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IccFloatSemantics</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCNoLiteralPool</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCOptStrategySlave</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCGuardCalls</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCEncSource</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCEncOutput</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CCEncOutputBom</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CCEncInput</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IccExceptions2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IccRTTI2</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>AARM</name>
+            <archiveVersion>2</archiveVersion>
+            <data>
+                <version>10</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>AObjPrefix</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>AEndian</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>ACaseSensitivity</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>MacroChars</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AWarnEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AWarnWhat</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AWarnOne</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>AWarnRange1</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>AWarnRange2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>ADebug</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AltRegisterNames</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>ADefines</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>AList</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AListHeader</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>AListing</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>Includes</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MacDefs</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MacExps</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>MacExec</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OnlyAssed</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>MultiLine</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>PageLengthCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>PageLength</name>
+                    <state>80</state>
+                </option>
+                <option>
+                    <name>TabSpacing</name>
+                    <state>8</state>
+                </option>
+                <option>
+                    <name>AXRef</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AXRefDefines</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AXRefInternal</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AXRefDual</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>AFpuProcessor</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>AOutputFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>ALimitErrorsCheck</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>ALimitErrorsEdit</name>
+                    <state>100</state>
+                </option>
+                <option>
+                    <name>AIgnoreStdInclude</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AUserIncludes</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>AExtraOptionsCheckV2</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>AExtraOptionsV2</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>AsmNoLiteralPool</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>OBJCOPY</name>
+            <archiveVersion>0</archiveVersion>
+            <data>
+                <version>1</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>OOCOutputFormat</name>
+                    <version>3</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OCOutputOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>OOCOutputFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>OOCCommandLineProducer</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>OOCObjCopyEnable</name>
+                    <state>0</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>CUSTOM</name>
+            <archiveVersion>3</archiveVersion>
+            <data>
+                <extensions></extensions>
+                <cmdline></cmdline>
+                <hasPrio>0</hasPrio>
+            </data>
+        </settings>
+        <settings>
+            <name>BICOMP</name>
+            <archiveVersion>0</archiveVersion>
+            <data />
+        </settings>
+        <settings>
+            <name>BUILDACTION</name>
+            <archiveVersion>1</archiveVersion>
+            <data>
+                <prebuild></prebuild>
+                <postbuild></postbuild>
+            </data>
+        </settings>
+        <settings>
+            <name>ILINK</name>
+            <archiveVersion>0</archiveVersion>
+            <data>
+                <version>20</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>IlinkLibIOConfig</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>XLinkMisraHandler</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkInputFileSlave</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkOutputFile</name>
+                    <state>###Unitialized###</state>
+                </option>
+                <option>
+                    <name>IlinkDebugInfoEnable</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkKeepSymbols</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkRawBinaryFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkRawBinarySymbol</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkRawBinarySegment</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkRawBinaryAlign</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkDefines</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkConfigDefines</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkMapFile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogFile</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogInitialization</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogModule</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogSection</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogVeneer</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkIcfOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkIcfFile</name>
+                    <state>lnk0t.icf</state>
+                </option>
+                <option>
+                    <name>IlinkIcfFileSlave</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkEnableRemarks</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkSuppressDiags</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkTreatAsRem</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkTreatAsWarn</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkTreatAsErr</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkWarningsAreErrors</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkUseExtraOptions</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkExtraOptions</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkLowLevelInterfaceSlave</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkAutoLibEnable</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkAdditionalLibs</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkOverrideProgramEntryLabel</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkProgramEntryLabelSelect</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkProgramEntryLabel</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>DoFill</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>FillerByte</name>
+                    <state>0xFF</state>
+                </option>
+                <option>
+                    <name>FillerStart</name>
+                    <state>0x0</state>
+                </option>
+                <option>
+                    <name>FillerEnd</name>
+                    <state>0x0</state>
+                </option>
+                <option>
+                    <name>CrcSize</name>
+                    <version>0</version>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CrcAlign</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CrcPoly</name>
+                    <state>0x11021</state>
+                </option>
+                <option>
+                    <name>CrcCompl</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CrcBitOrder</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>CrcInitialValue</name>
+                    <state>0x0</state>
+                </option>
+                <option>
+                    <name>DoCrc</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkBE8Slave</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkBufferedTerminalOutput</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkStdoutInterfaceSlave</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CrcFullSize</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkIElfToolPostProcess</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogAutoLibSelect</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogRedirSymbols</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkLogUnusedFragments</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkCrcReverseByteOrder</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkCrcUseAsInput</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkOptInline</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkOptExceptionsAllow</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkOptExceptionsForce</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkCmsis</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkOptMergeDuplSections</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkOptUseVfe</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkOptForceVfe</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkStackAnalysisEnable</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkStackControlFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkStackCallGraphFile</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>CrcAlgorithm</name>
+                    <version>1</version>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>CrcUnitSize</name>
+                    <version>0</version>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkThreadsSlave</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkLogCallGraph</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkIcfFile_AltDefault</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IlinkEncInput</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkEncOutput</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IlinkEncOutputBom</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkHeapSelect</name>
+                    <state>1</state>
+                </option>
+                <option>
+                    <name>IlinkLocaleSelect</name>
+                    <state>1</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>IARCHIVE</name>
+            <archiveVersion>0</archiveVersion>
+            <data>
+                <version>0</version>
+                <wantNonLocal>1</wantNonLocal>
+                <debug>0</debug>
+                <option>
+                    <name>IarchiveInputs</name>
+                    <state></state>
+                </option>
+                <option>
+                    <name>IarchiveOverride</name>
+                    <state>0</state>
+                </option>
+                <option>
+                    <name>IarchiveOutput</name>
+                    <state>###Unitialized###</state>
+                </option>
+            </data>
+        </settings>
+        <settings>
+            <name>BILINK</name>
+            <archiveVersion>0</archiveVersion>
+            <data />
+        </settings>
+    </configuration>
+</project>

bsp/essemi/es32f369x/template.eww

@@ -0,0 +1,10 @@
+<?xml version="1.0" encoding="iso-8859-1"?>
+
+<workspace>
+  <project>
+    <path>$WS_DIR$\template.ewp</path>
+  </project>
+  <batchBuild/>
+</workspace>
+
+
