@@ -5,17 +5,21 @@
|
|
|
|
|
|
Attu is an all-in-one milvus administration tool. With Attu, you can dramatically reduce the cost of managing milvus.
|
|
|
|
|
|
-<img src="./.github/images/screenshot.png" alt="attu" width="800" alt="attu" />
|
|
|

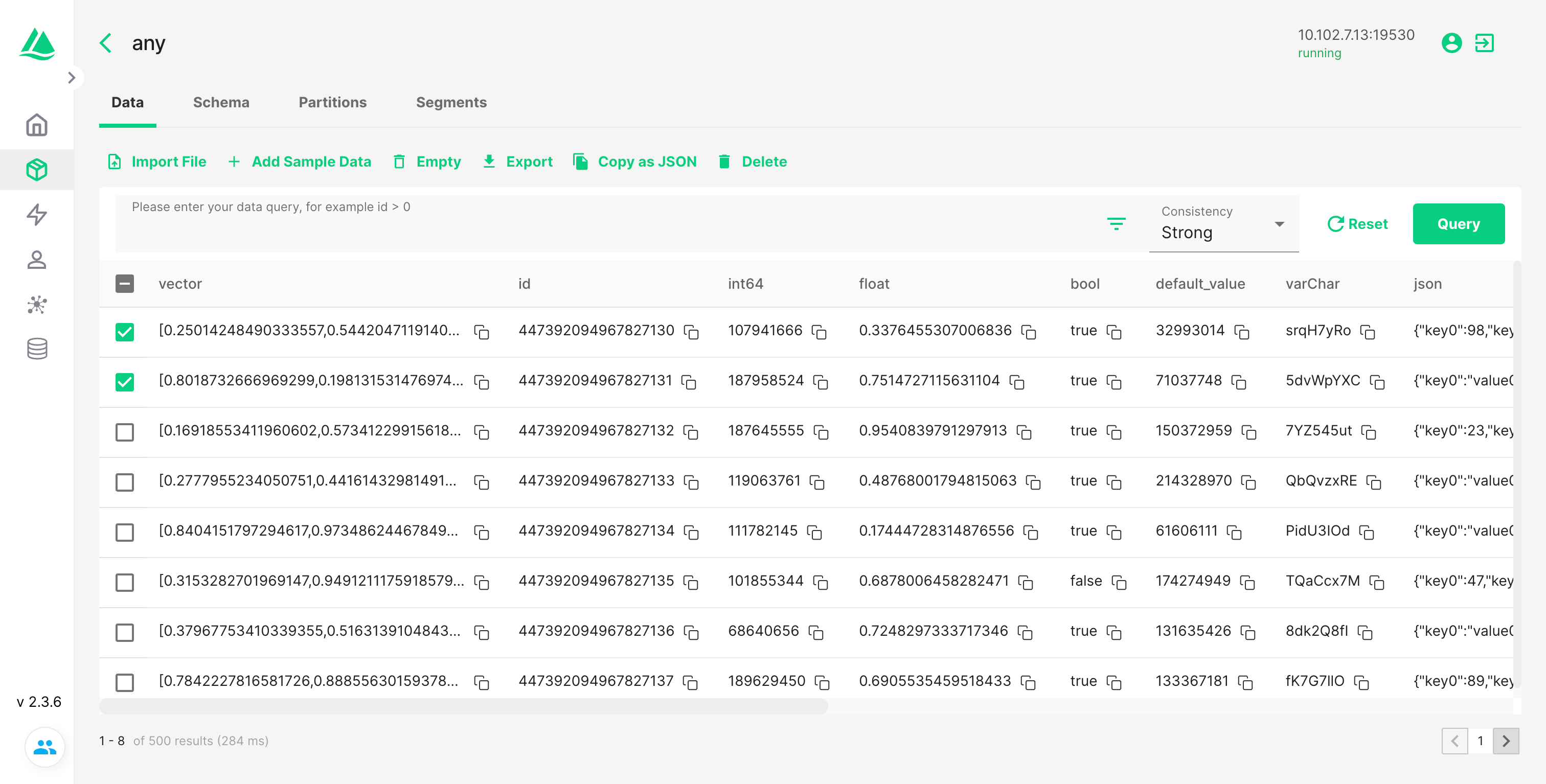

+<img src="./.github/images/data_preview.png" width="800" alt="attu data view" />
|
|
|
|
|
|
-## Quick start guide for Attu
|
|
|
+## Installation Guides
|
|
|
|
|
|
-> ❗ attu version 2.2.3 or higher is incompatible with Milvus versions < v2.2.
|
|
|
+Before you begin, make sure that you have Milvus installed on either [your server](https://milvus.io/docs/install_cluster-docker.md) or [Zilliz Cloud](https://cloud.zilliz.com/signup).
|
|
|
|
|
|
-If you prefer to use a desktop application, you can download the [desktop version of Attu](https://github.com/zilliztech/attu/releases/).
|
|
|
+### Compatiblity
|
|
|
|
|
|
-### Running Attu from Docker
|
|
|
+| Milvus Version | Recommended Attu Version |
|
|
|
+| -------------- | ---------------------------------------------------------------- |
|
|
|
+| 2.3.x | [v2.3.7](https://github.com/zilliztech/attu/releases/tag/v2.3.7) |
|
|
|
+| 2.2.x | [v2.2.8](https://github.com/zilliztech/attu/releases/tag/v2.2.8) |
|
|
|
+| 2.1.x | [v2.2.2](https://github.com/zilliztech/attu/releases/tag/v2.2.2) |
|
|
|
|
|
|
-Before you begin, make sure that you have Milvus installed on either [your server](https://milvus.io/docs/install_cluster-docker.md) or [Zilliz Cloud](https://zilliz.com/cloud). Note that Attu only supports Milvus 2.x and some of the features are not supported yet for Zilliz Cloud.
|
|
|
+### Running Attu from Docker
|
|
|
|
|
|
Here are the steps to start a container for running Attu:
|
|
|
|
|
@@ -25,18 +29,6 @@ docker run -p 8000:3000 -e MILVUS_URL={milvus server IP}:19530 zilliz/attu:v2.3.
|
|
|
|
|
|
Make sure that the Attu container can access the Milvus IP address. After starting the container, open your web browser and enter `http://{ Attu IP }:8000` to view the Attu GUI.
|
|
|
|
|
|
-### Running Attu within Kubernetes
|
|
|
-
|
|
|
-Before you begin, make sure that you have Milvus installed and running within your [K8's Cluster](https://milvus.io/docs/install_cluster-milvusoperator.md). Note that Attu only supports Milvus 2.x.
|
|
|
-
|
|
|
-Here are the steps to start a container for running Attu:
|
|
|
-
|
|
|
-```code
|
|
|
-kubectl apply -f https://raw.githubusercontent.com/zilliztech/attu/main/attu-k8s-deploy.yaml
|
|
|
-```
|
|
|
-
|
|
|
-Make sure that the Attu pod can access the Milvus service. In the example provided this connects directly to `my-release-milvus:19530`. Change this based on the Milvus service name. A more flexible way to achieve this would be to introduce a `ConfigMap`. See this [example]("https://raw.githubusercontent.com/zilliztech/attu/main/examples/attu-k8s-deploy-ConfigMap.yaml") for details.
|
|
|
-
|
|
|
#### Optional Environment Variables for Running Attu Docker
|
|
|
|
|
|
| Parameter | Example | Required | Description |
|
|
@@ -52,6 +44,8 @@ Make sure that the Attu pod can access the Milvus service. In the example provid
|
|
|
|
|
|
To run the Docker container with these environment variables, use the following command:
|
|
|
|
|
|
+#### Attu SSL Example
|
|
|
+
|
|
|
```bash
|
|
|
docker run -p 8000:3000 \
|
|
|
-v /your-tls-file-path:/app/tls \
|
|
@@ -63,29 +57,34 @@ docker run -p 8000:3000 \
|
|
|
zilliz/attu:dev
|
|
|
```
|
|
|
|
|
|
-## Common connection problem using Attu
|
|
|
+### Running Attu within Kubernetes
|
|
|
|
|
|
-- I can't log into the system
|
|
|
- > Make sure that the IP address of the Milvus server can be accessed from the Attu container. [#161](https://github.com/zilliztech/attu/issues/161)
|
|
|
+Before you begin, make sure that you have Milvus installed and running within your [K8's Cluster](https://milvus.io/docs/install_cluster-milvusoperator.md). Note that Attu only supports Milvus 2.x.
|
|
|
|
|
|
-## Features
|
|
|
+Here are the steps to start a container for running Attu:
|
|
|
+
|
|
|
+```code
|
|
|
+kubectl apply -f https://raw.githubusercontent.com/zilliztech/attu/main/attu-k8s-deploy.yaml
|
|
|
+```
|
|
|
|
|
|
-- Basic Dashboard
|
|
|
-- Collection Management: Create, drop, and manage collections using our intuitive interface. You can also create aliases, view collection schemas, and configure indexes with custom parameters.
|
|
|
-- Data Management: Insert entities, preview your data, and run queries to analyze your results.
|
|
|
-- Vector Search/Query: Use our advanced filtering system to search and query vectors with precision.
|
|
|
-- System View: View system information and Milvus node configurations easily.
|
|
|
-- Milvus User Management: Manage users and roles and their permissions with ease.
|
|
|
-- Database Management: Manage databases in Milvus.
|
|
|
-- More Features Coming Soon: Stay tuned for additional features that will make Milvus even more powerful and user-friendly.
|
|
|
+Make sure that the Attu pod can access the Milvus service. In the example provided this connects directly to `my-release-milvus:19530`. Change this based on the Milvus service name. A more flexible way to achieve this would be to introduce a `ConfigMap`. See this [example]("https://raw.githubusercontent.com/zilliztech/attu/main/examples/attu-k8s-deploy-ConfigMap.yaml") for details.
|
|
|
+
|
|
|
+### Install Desktop application
|
|
|
+
|
|
|
+If you prefer to use a desktop application, you can download the [desktop version of Attu](https://github.com/zilliztech/attu/releases/).
|
|
|
+
|
|
|
+## FAQ
|
|
|
+
|
|
|
+- I can't log into the system
|
|
|
+ > Make sure that the IP address of the Milvus server can be accessed from the Attu container. [#161](https://github.com/zilliztech/attu/issues/161)
|
|
|
+- TBD
|
|
|
|
|
|
-## Screenshots
|
|
|
+## More Screenshots
|
|
|
|
|
|
<img src="./.github/images/screenshot.png" alt="attu" width="800" alt="attu" />
|
|
|
<img src="./.github/images/collections.png" alt="attu" width="800" alt="attu" />
|
|
|
<img src="./.github/images/create_collection.png" width="800" alt="attu" />
|
|
|
<img src="./.github/images/create_index.png" width="800" alt="attu" />
|
|
|
-<img src="./.github/images/data_preview.png" width="800" alt="attu" />
|
|
|
<img src="./.github/images/vector_search.png" width="800" alt="attu" />
|
|
|
|
|
|
## ✨ Contributing Code
|
