Merge remote-tracking branch 'github/master'

bsp/gd32vf103v-eval/.config

@@ -0,0 +1,399 @@
+#
+# Automatically generated file; DO NOT EDIT.
+# RT-Thread Configuration
+#
+
+#
+# RT-Thread Kernel
+#
+CONFIG_RT_NAME_MAX=8
+# CONFIG_RT_USING_ARCH_DATA_TYPE is not set
+# CONFIG_RT_USING_SMP is not set
+CONFIG_RT_ALIGN_SIZE=4
+# CONFIG_RT_THREAD_PRIORITY_8 is not set
+CONFIG_RT_THREAD_PRIORITY_32=y
+# CONFIG_RT_THREAD_PRIORITY_256 is not set
+CONFIG_RT_THREAD_PRIORITY_MAX=32
+CONFIG_RT_TICK_PER_SECOND=100
+CONFIG_RT_USING_OVERFLOW_CHECK=y
+CONFIG_RT_USING_HOOK=y
+CONFIG_RT_USING_IDLE_HOOK=y
+CONFIG_RT_IDEL_HOOK_LIST_SIZE=4
+CONFIG_IDLE_THREAD_STACK_SIZE=256
+CONFIG_RT_USING_TIMER_SOFT=y
+CONFIG_RT_TIMER_THREAD_PRIO=4
+CONFIG_RT_TIMER_THREAD_STACK_SIZE=512
+CONFIG_RT_DEBUG=y
+# CONFIG_RT_DEBUG_COLOR is not set
+# CONFIG_RT_DEBUG_INIT_CONFIG is not set
+# CONFIG_RT_DEBUG_THREAD_CONFIG is not set
+# CONFIG_RT_DEBUG_SCHEDULER_CONFIG is not set
+# CONFIG_RT_DEBUG_IPC_CONFIG is not set
+# CONFIG_RT_DEBUG_TIMER_CONFIG is not set
+# CONFIG_RT_DEBUG_IRQ_CONFIG is not set
+# CONFIG_RT_DEBUG_MEM_CONFIG is not set
+# CONFIG_RT_DEBUG_SLAB_CONFIG is not set
+# CONFIG_RT_DEBUG_MEMHEAP_CONFIG is not set
+# CONFIG_RT_DEBUG_MODULE_CONFIG is not set
+
+#
+# Inter-Thread communication
+#
+CONFIG_RT_USING_SEMAPHORE=y
+CONFIG_RT_USING_MUTEX=y
+CONFIG_RT_USING_EVENT=y
+CONFIG_RT_USING_MAILBOX=y
+CONFIG_RT_USING_MESSAGEQUEUE=y
+# CONFIG_RT_USING_SIGNALS is not set
+
+#
+# Memory Management
+#
+CONFIG_RT_USING_MEMPOOL=y
+# CONFIG_RT_USING_MEMHEAP is not set
+# CONFIG_RT_USING_NOHEAP is not set
+CONFIG_RT_USING_SMALL_MEM=y
+# CONFIG_RT_USING_SLAB is not set
+# CONFIG_RT_USING_MEMTRACE is not set
+CONFIG_RT_USING_HEAP=y
+
+#
+# Kernel Device Object
+#
+CONFIG_RT_USING_DEVICE=y
+# CONFIG_RT_USING_DEVICE_OPS is not set
+# CONFIG_RT_USING_INTERRUPT_INFO is not set
+CONFIG_RT_USING_CONSOLE=y
+CONFIG_RT_CONSOLEBUF_SIZE=128
+CONFIG_RT_CONSOLE_DEVICE_NAME="uart0"
+CONFIG_RT_VER_NUM=0x40002
+# CONFIG_RT_USING_CPU_FFS is not set
+# CONFIG_ARCH_CPU_STACK_GROWS_UPWARD is not set
+
+#
+# RT-Thread Components
+#
+CONFIG_RT_USING_COMPONENTS_INIT=y
+CONFIG_RT_USING_USER_MAIN=y
+CONFIG_RT_MAIN_THREAD_STACK_SIZE=2048
+CONFIG_RT_MAIN_THREAD_PRIORITY=10
+
+#
+# C++ features
+#
+# CONFIG_RT_USING_CPLUSPLUS is not set
+
+#
+# Command shell
+#
+CONFIG_RT_USING_FINSH=y
+CONFIG_FINSH_THREAD_NAME="tshell"
+CONFIG_FINSH_USING_HISTORY=y
+CONFIG_FINSH_HISTORY_LINES=5
+CONFIG_FINSH_USING_SYMTAB=y
+CONFIG_FINSH_USING_DESCRIPTION=y
+# CONFIG_FINSH_ECHO_DISABLE_DEFAULT is not set
+CONFIG_FINSH_THREAD_PRIORITY=20
+CONFIG_FINSH_THREAD_STACK_SIZE=4096
+CONFIG_FINSH_CMD_SIZE=80
+# CONFIG_FINSH_USING_AUTH is not set
+CONFIG_FINSH_USING_MSH=y
+CONFIG_FINSH_USING_MSH_DEFAULT=y
+# CONFIG_FINSH_USING_MSH_ONLY is not set
+CONFIG_FINSH_ARG_MAX=10
+
+#
+# Device virtual file system
+#
+# CONFIG_RT_USING_DFS is not set
+
+#
+# Device Drivers
+#
+CONFIG_RT_USING_DEVICE_IPC=y
+CONFIG_RT_PIPE_BUFSZ=512
+# CONFIG_RT_USING_SYSTEM_WORKQUEUE is not set
+CONFIG_RT_USING_SERIAL=y
+# CONFIG_RT_SERIAL_USING_DMA is not set
+CONFIG_RT_SERIAL_RB_BUFSZ=64
+# CONFIG_RT_USING_CAN is not set
+# CONFIG_RT_USING_HWTIMER is not set
+# CONFIG_RT_USING_CPUTIME is not set
+# CONFIG_RT_USING_I2C is not set
+# CONFIG_RT_USING_PIN is not set
+# CONFIG_RT_USING_ADC is not set
+# CONFIG_RT_USING_PWM is not set
+# CONFIG_RT_USING_MTD_NOR is not set
+# CONFIG_RT_USING_MTD_NAND is not set
+# CONFIG_RT_USING_PM is not set
+# CONFIG_RT_USING_RTC is not set
+# CONFIG_RT_USING_SDIO is not set
+# CONFIG_RT_USING_SPI is not set
+# CONFIG_RT_USING_WDT is not set
+# CONFIG_RT_USING_AUDIO is not set
+# CONFIG_RT_USING_SENSOR is not set
+# CONFIG_RT_USING_TOUCH is not set
+# CONFIG_RT_USING_HWCRYPTO is not set
+# CONFIG_RT_USING_WIFI is not set
+
+#
+# Using USB
+#
+# CONFIG_RT_USING_USB_HOST is not set
+# CONFIG_RT_USING_USB_DEVICE is not set
+
+#
+# POSIX layer and C standard library
+#
+# CONFIG_RT_USING_LIBC is not set
+# CONFIG_RT_USING_PTHREADS is not set
+
+#
+# Network
+#
+
+#
+# Socket abstraction layer
+#
+# CONFIG_RT_USING_SAL is not set
+
+#
+# Network interface device
+#
+# CONFIG_RT_USING_NETDEV is not set
+
+#
+# light weight TCP/IP stack
+#
+# CONFIG_RT_USING_LWIP is not set
+
+#
+# AT commands
+#
+# CONFIG_RT_USING_AT is not set
+
+#
+# VBUS(Virtual Software BUS)
+#
+# CONFIG_RT_USING_VBUS is not set
+
+#
+# Utilities
+#
+# CONFIG_RT_USING_RYM is not set
+# CONFIG_RT_USING_ULOG is not set
+# CONFIG_RT_USING_UTEST is not set
+
+#
+# RT-Thread online packages
+#
+
+#
+# IoT - internet of things
+#
+# CONFIG_PKG_USING_PAHOMQTT is not set
+# CONFIG_PKG_USING_WEBCLIENT is not set
+# CONFIG_PKG_USING_WEBNET is not set
+# CONFIG_PKG_USING_MONGOOSE is not set
+# CONFIG_PKG_USING_WEBTERMINAL is not set
+# CONFIG_PKG_USING_CJSON is not set
+# CONFIG_PKG_USING_JSMN is not set
+# CONFIG_PKG_USING_LIBMODBUS is not set
+# CONFIG_PKG_USING_FREEMODBUS is not set
+# CONFIG_PKG_USING_LJSON is not set
+# CONFIG_PKG_USING_EZXML is not set
+# CONFIG_PKG_USING_NANOPB is not set
+
+#
+# Wi-Fi
+#
+
+#
+# Marvell WiFi
+#
+# CONFIG_PKG_USING_WLANMARVELL is not set
+
+#
+# Wiced WiFi
+#
+# CONFIG_PKG_USING_WLAN_WICED is not set
+# CONFIG_PKG_USING_RW007 is not set
+# CONFIG_PKG_USING_COAP is not set
+# CONFIG_PKG_USING_NOPOLL is not set
+# CONFIG_PKG_USING_NETUTILS is not set
+# CONFIG_PKG_USING_AT_DEVICE is not set
+# CONFIG_PKG_USING_ATSRV_SOCKET is not set
+# CONFIG_PKG_USING_WIZNET is not set
+
+#
+# IoT Cloud
+#
+# CONFIG_PKG_USING_ONENET is not set
+# CONFIG_PKG_USING_GAGENT_CLOUD is not set
+# CONFIG_PKG_USING_ALI_IOTKIT is not set
+# CONFIG_PKG_USING_AZURE is not set
+# CONFIG_PKG_USING_TENCENT_IOTHUB is not set
+# CONFIG_PKG_USING_NIMBLE is not set
+# CONFIG_PKG_USING_OTA_DOWNLOADER is not set
+# CONFIG_PKG_USING_IPMSG is not set
+# CONFIG_PKG_USING_LSSDP is not set
+# CONFIG_PKG_USING_AIRKISS_OPEN is not set
+# CONFIG_PKG_USING_LIBRWS is not set
+# CONFIG_PKG_USING_TCPSERVER is not set
+
+#
+# security packages
+#
+# CONFIG_PKG_USING_MBEDTLS is not set
+# CONFIG_PKG_USING_libsodium is not set
+# CONFIG_PKG_USING_TINYCRYPT is not set
+
+#
+# language packages
+#
+# CONFIG_PKG_USING_LUA is not set
+# CONFIG_PKG_USING_JERRYSCRIPT is not set
+# CONFIG_PKG_USING_MICROPYTHON is not set
+
+#
+# multimedia packages
+#
+# CONFIG_PKG_USING_OPENMV is not set
+# CONFIG_PKG_USING_MUPDF is not set
+# CONFIG_PKG_USING_STEMWIN is not set
+# CONFIG_PKG_USING_WAVPLAYER is not set
+
+#
+# tools packages
+#
+# CONFIG_PKG_USING_CMBACKTRACE is not set
+# CONFIG_PKG_USING_EASYFLASH is not set
+# CONFIG_PKG_USING_EASYLOGGER is not set
+# CONFIG_PKG_USING_SYSTEMVIEW is not set
+# CONFIG_PKG_USING_RDB is not set
+# CONFIG_PKG_USING_QRCODE is not set
+# CONFIG_PKG_USING_ULOG_EASYFLASH is not set
+# CONFIG_PKG_USING_ADBD is not set
+
+#
+# system packages
+#
+# CONFIG_PKG_USING_GUIENGINE is not set
+# CONFIG_PKG_USING_CAIRO is not set
+# CONFIG_PKG_USING_PIXMAN is not set
+# CONFIG_PKG_USING_LWEXT4 is not set
+# CONFIG_PKG_USING_PARTITION is not set
+# CONFIG_PKG_USING_FAL is not set
+# CONFIG_PKG_USING_SQLITE is not set
+# CONFIG_PKG_USING_RTI is not set
+# CONFIG_PKG_USING_LITTLEVGL2RTT is not set
+# CONFIG_PKG_USING_CMSIS is not set
+# CONFIG_PKG_USING_DFS_YAFFS is not set
+# CONFIG_PKG_USING_LITTLEFS is not set
+# CONFIG_PKG_USING_THREAD_POOL is not set
+# CONFIG_PKG_USING_ROBOTS is not set
+
+#
+# peripheral libraries and drivers
+#
+# CONFIG_PKG_USING_SENSORS_DRIVERS is not set
+# CONFIG_PKG_USING_REALTEK_AMEBA is not set
+# CONFIG_PKG_USING_SHT2X is not set
+# CONFIG_PKG_USING_STM32_SDIO is not set
+# CONFIG_PKG_USING_ICM20608 is not set
+# CONFIG_PKG_USING_U8G2 is not set
+# CONFIG_PKG_USING_BUTTON is not set
+# CONFIG_PKG_USING_PCF8574 is not set
+# CONFIG_PKG_USING_SX12XX is not set
+# CONFIG_PKG_USING_SIGNAL_LED is not set
+# CONFIG_PKG_USING_LEDBLINK is not set
+# CONFIG_PKG_USING_WM_LIBRARIES is not set
+# CONFIG_PKG_USING_KENDRYTE_SDK is not set
+# CONFIG_PKG_USING_INFRARED is not set
+# CONFIG_PKG_USING_ROSSERIAL is not set
+# CONFIG_PKG_USING_AT24CXX is not set
+# CONFIG_PKG_USING_MOTIONDRIVER2RTT is not set
+# CONFIG_PKG_USING_AD7746 is not set
+# CONFIG_PKG_USING_PCA9685 is not set
+# CONFIG_PKG_USING_I2C_TOOLS is not set
+# CONFIG_PKG_USING_NRF24L01 is not set
+# CONFIG_PKG_USING_TOUCH_DRIVERS is not set
+# CONFIG_PKG_USING_LCD_DRIVERS is not set
+
+#
+# miscellaneous packages
+#
+# CONFIG_PKG_USING_LIBCSV is not set
+# CONFIG_PKG_USING_OPTPARSE is not set
+# CONFIG_PKG_USING_FASTLZ is not set
+# CONFIG_PKG_USING_MINILZO is not set
+# CONFIG_PKG_USING_QUICKLZ is not set
+# CONFIG_PKG_USING_MULTIBUTTON is not set
+# CONFIG_PKG_USING_CANFESTIVAL is not set
+# CONFIG_PKG_USING_ZLIB is not set
+# CONFIG_PKG_USING_DSTR is not set
+# CONFIG_PKG_USING_TINYFRAME is not set
+# CONFIG_PKG_USING_KENDRYTE_DEMO is not set
+# CONFIG_PKG_USING_DIGITALCTRL is not set
+
+#
+# samples: kernel and components samples
+#
+# CONFIG_PKG_USING_KERNEL_SAMPLES is not set
+# CONFIG_PKG_USING_FILESYSTEM_SAMPLES is not set
+# CONFIG_PKG_USING_NETWORK_SAMPLES is not set
+# CONFIG_PKG_USING_PERIPHERAL_SAMPLES is not set
+# CONFIG_PKG_USING_HELLO is not set
+# CONFIG_PKG_USING_VI is not set
+# CONFIG_PKG_USING_NNOM is not set
+# CONFIG_PKG_USING_LIBANN is not set
+
+#
+# Privated Packages of RealThread
+#
+# CONFIG_PKG_USING_CODEC is not set
+# CONFIG_PKG_USING_PLAYER is not set
+# CONFIG_PKG_USING_MPLAYER is not set
+# CONFIG_PKG_USING_PERSIMMON_SRC is not set
+# CONFIG_PKG_USING_JS_PERSIMMON is not set
+# CONFIG_PKG_USING_JERRYSCRIPT_WIN32 is not set
+
+#
+# Network Utilities
+#
+# CONFIG_PKG_USING_WICED is not set
+# CONFIG_PKG_USING_CLOUDSDK is not set
+# CONFIG_PKG_USING_COREMARK is not set
+# CONFIG_PKG_USING_POWER_MANAGER is not set
+# CONFIG_PKG_USING_RT_OTA is not set
+# CONFIG_PKG_USING_RDBD_SRC is not set
+# CONFIG_PKG_USING_RTINSIGHT is not set
+# CONFIG_PKG_USING_SMARTCONFIG is not set
+# CONFIG_PKG_USING_RTX is not set
+# CONFIG_RT_USING_TESTCASE is not set
+# CONFIG_PKG_USING_NGHTTP2 is not set
+# CONFIG_PKG_USING_AVS is not set
+# CONFIG_PKG_USING_JOYLINK is not set
+# CONFIG_PKG_USING_STS is not set
+# CONFIG_PKG_USING_DLMS is not set
+# CONFIG_PKG_USING_AUDIO_FRAMEWORK is not set
+
+#
+# Hardware Drivers Config
+#
+CONFIG_SOC_GD32VF103V=y
+
+#
+# Onboard Peripheral Drivers
+#
+CONFIG_BSP_USING_USART=y
+
+#
+# On-chip Peripheral Drivers
+#
+CONFIG_BSP_USING_UART=y
+CONFIG_BSP_USING_UART0=y
+
+#
+# Board extended module Drivers
+#

bsp/gd32vf103v-eval/.cproject

@@ -0,0 +1,205 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<?fileVersion 4.0.0?><cproject storage_type_id="org.eclipse.cdt.core.XmlProjectDescriptionStorage">
+	<storageModule moduleId="org.eclipse.cdt.core.settings">
+		<cconfiguration id="ilg.gnumcueclipse.managedbuild.cross.riscv.config.elf.debug.1573373326">
+			<storageModule buildSystemId="org.eclipse.cdt.managedbuilder.core.configurationDataProvider" id="ilg.gnumcueclipse.managedbuild.cross.riscv.config.elf.debug.1573373326" moduleId="org.eclipse.cdt.core.settings" name="GD32VF103xB">
+				<externalSettings/>
+				<extensions>
+					<extension id="org.eclipse.cdt.core.ELF" point="org.eclipse.cdt.core.BinaryParser"/>
+					<extension id="org.eclipse.cdt.core.GASErrorParser" point="org.eclipse.cdt.core.ErrorParser"/>
+					<extension id="org.eclipse.cdt.core.GmakeErrorParser" point="org.eclipse.cdt.core.ErrorParser"/>
+					<extension id="org.eclipse.cdt.core.GLDErrorParser" point="org.eclipse.cdt.core.ErrorParser"/>
+					<extension id="org.eclipse.cdt.core.CWDLocator" point="org.eclipse.cdt.core.ErrorParser"/>
+					<extension id="org.eclipse.cdt.core.GCCErrorParser" point="org.eclipse.cdt.core.ErrorParser"/>
+				</extensions>
+			</storageModule>
+			<storageModule moduleId="cdtBuildSystem" version="4.0.0">
+				<configuration artifactName="${ProjName}" buildArtefactType="org.eclipse.cdt.build.core.buildArtefactType.exe" buildProperties="org.eclipse.cdt.build.core.buildArtefactType=org.eclipse.cdt.build.core.buildArtefactType.exe,org.eclipse.cdt.build.core.buildType=org.eclipse.cdt.build.core.buildType.debug" cleanCommand="${cross_rm} -rf" description="" errorParsers="org.eclipse.cdt.core.GASErrorParser;org.eclipse.cdt.core.GmakeErrorParser;org.eclipse.cdt.core.GLDErrorParser;org.eclipse.cdt.core.CWDLocator;org.eclipse.cdt.core.GCCErrorParser" id="ilg.gnumcueclipse.managedbuild.cross.riscv.config.elf.debug.1573373326" name="GD32VF103xB" optionalBuildProperties="org.eclipse.cdt.docker.launcher.containerbuild.property.selectedvolumes=,org.eclipse.cdt.docker.launcher.containerbuild.property.volumes=" parent="ilg.gnumcueclipse.managedbuild.cross.riscv.config.elf.debug" postannouncebuildStep="" postbuildStep="" preannouncebuildStep="" prebuildStep="">
+					<folderInfo id="ilg.gnumcueclipse.managedbuild.cross.riscv.config.elf.debug.1573373326." name="/" resourcePath="">
+						<toolChain errorParsers="" id="ilg.gnumcueclipse.managedbuild.cross.riscv.toolchain.elf.debug.2046554316" name="RISC-V Cross GCC" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.toolchain.elf.debug">
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.addtools.createflash.1879412981" name="Create flash image" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.addtools.createflash" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.addtools.createlisting.579046567" name="Create extended listing" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.addtools.createlisting" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.addtools.printsize.22375292" name="Print size" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.addtools.printsize" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.level.635616459" name="Optimization Level" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.level" useByScannerDiscovery="true" value="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.level.size" valueType="enumerated"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.messagelength.1259743188" name="Message length (-fmessage-length=0)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.messagelength" useByScannerDiscovery="true" value="true" valueType="boolean"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.signedchar.794838266" name="'char' is signed (-fsigned-char)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.signedchar" useByScannerDiscovery="true" value="true" valueType="boolean"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.functionsections.1619069571" name="Function sections (-ffunction-sections)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.functionsections" useByScannerDiscovery="true" value="true" valueType="boolean"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.datasections.800619008" name="Data sections (-fdata-sections)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.datasections" useByScannerDiscovery="true" value="true" valueType="boolean"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.debugging.level.1081266437" name="Debug level" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.debugging.level" useByScannerDiscovery="true" value="ilg.gnumcueclipse.managedbuild.cross.riscv.option.debugging.level.default" valueType="enumerated"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.debugging.format.840127297" name="Debug format" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.debugging.format" useByScannerDiscovery="true"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.toolchain.name.591053848" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.toolchain.name" useByScannerDiscovery="false" value="GNU MCU RISC-V GCC" valueType="string"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.prefix.522742065" name="Prefix" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.prefix" useByScannerDiscovery="false" value="riscv64-unknown-elf-" valueType="string"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.c.101864644" name="C compiler" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.c" useByScannerDiscovery="false" value="gcc" valueType="string"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.cpp.1417590328" name="C++ compiler" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.cpp" useByScannerDiscovery="false" value="g++" valueType="string"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.ar.1238464558" name="Archiver" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.ar" useByScannerDiscovery="false" value="ar" valueType="string"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.objcopy.932624507" name="Hex/Bin converter" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.objcopy" useByScannerDiscovery="false" value="objcopy" valueType="string"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.objdump.1010041609" name="Listing generator" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.objdump" useByScannerDiscovery="false" value="objdump" valueType="string"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.size.2047288003" name="Size command" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.size" useByScannerDiscovery="false" value="size" valueType="string"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.make.308827908" name="Build command" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.make" useByScannerDiscovery="false" value="make" valueType="string"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.rm.1884924570" name="Remove command" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.rm" useByScannerDiscovery="false" value="rm" valueType="string"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.base.1216590122" name="Architecture" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.base" useByScannerDiscovery="false" value="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.arch.rv32i" valueType="enumerated"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.abi.integer.978480188" name="Integer ABI" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.abi.integer" useByScannerDiscovery="false" value="ilg.gnumcueclipse.managedbuild.cross.riscv.option.abi.integer.ilp32" valueType="enumerated"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.codemodel.77807932" name="Code model" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.codemodel" useByScannerDiscovery="false" value="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.codemodel.low" valueType="enumerated"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.div.1100870138" name="Integer divide instructions (-mdiv)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.div" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.multiply.1101325214" name="Multiply extension (RVM)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.multiply" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.atomic.1765202347" name="Atomic extension (RVA)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.atomic" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.compressed.492278601" name="Compressed extension (RVC)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.compressed" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.toolchain.id.566596567" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.toolchain.id" useByScannerDiscovery="false" value="512258282" valueType="string"/>
+							<targetPlatform archList="all" binaryParser="org.eclipse.cdt.core.ELF" id="ilg.gnumcueclipse.managedbuild.cross.riscv.targetPlatform.257777065" isAbstract="false" osList="all" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.targetPlatform"/>
+							<builder buildPath="${workspace_loc:/GD32V103V_EVAL}/Debug" errorParsers="org.eclipse.cdt.core.GmakeErrorParser;org.eclipse.cdt.core.CWDLocator" id="ilg.gnumcueclipse.managedbuild.cross.riscv.builder.468614052" keepEnvironmentInBuildfile="false" managedBuildOn="true" name="Gnu Make Builder" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.builder"/>
+							<tool command="${cross_prefix}${cross_c}${cross_suffix}" commandLinePattern="${COMMAND} ${cross_toolchain_flags} ${FLAGS} -c ${OUTPUT_FLAG} ${OUTPUT_PREFIX}${OUTPUT} ${INPUTS}" errorParsers="org.eclipse.cdt.core.GASErrorParser;org.eclipse.cdt.core.GCCErrorParser" id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.assembler.260700709" name="GNU RISC-V Cross Assembler" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.assembler">
+								<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.assembler.usepreprocessor.1247850980" name="Use preprocessor" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.assembler.usepreprocessor" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+								<option IS_BUILTIN_EMPTY="false" IS_VALUE_EMPTY="false" id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.assembler.include.paths.380773705" name="Include paths (-I)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.assembler.include.paths" useByScannerDiscovery="true" valueType="includePath">
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/lipcpu/common}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/libraries/n22/drivers}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}}&quot;"/>
+								</option>
+								<inputType id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.assembler.input.553075976" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.assembler.input"/>
+							</tool>
+							<tool command="${cross_prefix}${cross_c}${cross_suffix}" commandLinePattern="${COMMAND} ${cross_toolchain_flags} ${FLAGS} -c ${OUTPUT_FLAG} ${OUTPUT_PREFIX}${OUTPUT} ${INPUTS}" errorParsers="org.eclipse.cdt.core.GLDErrorParser;org.eclipse.cdt.core.GCCErrorParser" id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.compiler.488215038" name="GNU RISC-V Cross C Compiler" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.compiler">
+								<option IS_BUILTIN_EMPTY="false" IS_VALUE_EMPTY="false" id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.c.compiler.include.paths.1356152463" name="Include paths (-I)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.c.compiler.include.paths" useByScannerDiscovery="true" valueType="includePath">
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/components/drivers/include}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/components/drivers/include/ipc}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/components/drivers/include/drivers}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/lipcpu/common}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/components/drivers/include}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/components/finsh}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/board}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/drivers}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/include}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/libraries/n22/drivers}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/libraries/n22/env_Eclipse}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/libraries/n22/stubs}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/libraries/GD32VF103_standard_peripheral}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/libraries/GD32VF103_standard_peripheral/Include}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}}&quot;"/>
+								</option>
+								<inputType id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.compiler.input.888297046" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.compiler.input"/>
+							</tool>
+							<tool id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.cpp.compiler.177215711" name="GNU RISC-V Cross C++ Compiler" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.cpp.compiler"/>
+							<tool command="${cross_prefix}${cross_c}${cross_suffix}" commandLinePattern="${COMMAND} ${cross_toolchain_flags} ${FLAGS} ${OUTPUT_FLAG} ${OUTPUT_PREFIX}${OUTPUT} ${INPUTS}" errorParsers="" id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.linker.607423220" name="GNU RISC-V Cross C Linker" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.linker">
+								<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.c.linker.gcsections.12119579" name="Remove unused sections (-Xlinker --gc-sections)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.c.linker.gcsections" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+								<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.c.linker.usenewlibnano.1471711921" name="Use newlib-nano (--specs=nano.specs)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.c.linker.usenewlibnano" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+								<option IS_BUILTIN_EMPTY="false" IS_VALUE_EMPTY="false" id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.c.linker.scriptfile.1155013982" name="Script files (-T)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.c.linker.scriptfile" useByScannerDiscovery="false" valueType="stringList">
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/libraries/n22/env_Eclipse/GD32VF103xB.lds}&quot;"/>
+								</option>
+								<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.c.linker.nostart.1536688125" name="Do not use standard start files (-nostartfiles)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.c.linker.nostart" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+								<inputType id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.linker.input.421391167" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.linker.input">
+									<additionalInput kind="additionalinputdependency" paths="$(USER_OBJS)"/>
+									<additionalInput kind="additionalinput" paths="$(LIBS)"/>
+								</inputType>
+							</tool>
+							<tool id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.cpp.linker.1762099292" name="GNU RISC-V Cross C++ Linker" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.cpp.linker">
+								<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.cpp.linker.gcsections.1774192569" name="Remove unused sections (-Xlinker --gc-sections)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.cpp.linker.gcsections" value="true" valueType="boolean"/>
+							</tool>
+							<tool id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.archiver.228826367" name="GNU RISC-V Cross Archiver" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.archiver"/>
+							<tool command="${cross_prefix}${cross_objcopy}${cross_suffix}" commandLinePattern="${COMMAND} ${FLAGS} ${OUTPUT_FLAG} ${OUTPUT_PREFIX}${OUTPUT}" errorParsers="" id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.createflash.1681627356" name="GNU RISC-V Cross Create Flash Image" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.createflash"/>
+							<tool command="${cross_prefix}${cross_objdump}${cross_suffix}" commandLinePattern="${COMMAND} ${FLAGS} ${OUTPUT_FLAG} ${OUTPUT_PREFIX}${OUTPUT}" errorParsers="" id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.createlisting.1458513031" name="GNU RISC-V Cross Create Listing" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.createlisting">
+								<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.createlisting.source.1870404133" name="Display source (--source|-S)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.createlisting.source" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+								<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.createlisting.allheaders.754276605" name="Display all headers (--all-headers|-x)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.createlisting.allheaders" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+								<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.createlisting.demangle.1718260290" name="Demangle names (--demangle|-C)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.createlisting.demangle" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+								<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.createlisting.linenumbers.90701945" name="Display line numbers (--line-numbers|-l)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.createlisting.linenumbers" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+								<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.createlisting.wide.1117837454" name="Wide lines (--wide|-w)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.createlisting.wide" useByScannerDiscovery="false" value="true" valueType="boolean"/>
+							</tool>
+							<tool command="${cross_prefix}${cross_size}${cross_suffix}" commandLinePattern="${COMMAND} ${FLAGS}" errorParsers="" id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.printsize.1188837593" name="GNU RISC-V Cross Print Size" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.printsize">
+								<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.printsize.format.1723899866" name="Size format" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.printsize.format" useByScannerDiscovery="false"/>
+							</tool>
+						</toolChain>
+					</folderInfo>
+					<folderInfo id="ilg.gnumcueclipse.managedbuild.cross.riscv.config.elf.debug.1573373326.1719837649" name="/" resourcePath="rt-thread/components/drivers/serial">
+						<toolChain id="ilg.gnumcueclipse.managedbuild.cross.riscv.toolchain.elf.debug.1118626854" name="RISC-V Cross GCC" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.toolchain.elf.debug" unusedChildren="">
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.addtools.createflash.1879412981.1873575261" name="Create flash image" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.addtools.createflash.1879412981"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.addtools.createlisting.579046567.1272081571" name="Create extended listing" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.addtools.createlisting.579046567"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.addtools.printsize.22375292.1248826615" name="Print size" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.addtools.printsize.22375292"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.level.635616459.1616780789" name="Optimization Level" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.level.635616459"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.messagelength.1259743188.2124174361" name="Message length (-fmessage-length=0)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.messagelength.1259743188"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.signedchar.794838266.555956293" name="'char' is signed (-fsigned-char)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.signedchar.794838266"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.functionsections.1619069571.532630729" name="Function sections (-ffunction-sections)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.functionsections.1619069571"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.datasections.800619008.493280083" name="Data sections (-fdata-sections)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.optimization.datasections.800619008"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.debugging.level.1081266437.732824503" name="Debug level" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.debugging.level.1081266437"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.debugging.format.840127297.2058743277" name="Debug format" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.debugging.format.840127297"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.toolchain.name.591053848.1079084005" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.toolchain.name.591053848"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.prefix.522742065.310320387" name="Prefix" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.prefix.522742065"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.c.101864644.1817468413" name="C compiler" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.c.101864644"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.cpp.1417590328.978236987" name="C++ compiler" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.cpp.1417590328"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.ar.1238464558.1055427096" name="Archiver" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.ar.1238464558"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.objcopy.932624507.2114451316" name="Hex/Bin converter" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.objcopy.932624507"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.objdump.1010041609.2035898732" name="Listing generator" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.objdump.1010041609"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.size.2047288003.1139735140" name="Size command" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.size.2047288003"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.make.308827908.797389175" name="Build command" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.make.308827908"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.rm.1884924570.1905624689" name="Remove command" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.command.rm.1884924570"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.base.1216590122.1245370120" name="Architecture" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.base.1216590122"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.abi.integer.978480188.847954111" name="Integer ABI" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.abi.integer.978480188"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.codemodel.77807932.1844459674" name="Code model" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.codemodel.77807932"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.div.1100870138.1358265265" name="Integer divide instructions (-mdiv)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.div.1100870138"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.multiply.1101325214.267591485" name="Multiply extension (RVM)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.multiply.1101325214"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.atomic.1765202347.1990757997" name="Atomic extension (RVA)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.atomic.1765202347"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.compressed.492278601.2003133852" name="Compressed extension (RVC)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.target.isa.compressed.492278601"/>
+							<option id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.toolchain.id.566596567.170723681" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.toolchain.id.566596567"/>
+							<targetPlatform archList="all" binaryParser="org.eclipse.cdt.core.ELF" id="ilg.gnumcueclipse.managedbuild.cross.riscv.targetPlatform" isAbstract="false" osList="all" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.targetPlatform"/>
+							<tool id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.assembler.1074707522" name="GNU RISC-V Cross Assembler" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.assembler.260700709">
+								<inputType id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.assembler.input.1454554561" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.assembler.input"/>
+							</tool>
+							<tool id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.compiler.1831398177" name="GNU RISC-V Cross C Compiler" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.compiler.488215038">
+								<option IS_BUILTIN_EMPTY="false" IS_VALUE_EMPTY="false" id="ilg.gnumcueclipse.managedbuild.cross.riscv.option.c.compiler.include.paths.1916574058" name="Include paths (-I)" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.option.c.compiler.include.paths" useByScannerDiscovery="true" valueType="includePath">
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/components/drivers/include}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/components/drivers/include/drivers}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/components/drivers/include/ipc}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/components/drivers/include/drivers}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/lipcpu/common}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/components/drivers/include}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/components/finsh}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/finsh}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/board}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/drivers}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/cpu}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/include}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/rt-thread/include/libc}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/libraries/n22/drivers}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/libraries/n22/env_Eclipse}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/libraries/n22/stubs}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/libraries/GD32VF103_standard_peripheral}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}/libraries/GD32VF103_standard_peripheral/Include}&quot;"/>
+									<listOptionValue builtIn="false" value="&quot;${workspace_loc:/${ProjName}}&quot;"/>
+								</option>
+								<inputType id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.compiler.input.540001010" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.compiler.input"/>
+							</tool>
+							<tool id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.cpp.compiler.652943790" name="GNU RISC-V Cross C++ Compiler" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.cpp.compiler.177215711"/>
+							<tool id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.linker.152259553" name="GNU RISC-V Cross C Linker" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.linker.607423220"/>
+							<tool id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.cpp.linker.1329800486" name="GNU RISC-V Cross C++ Linker" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.cpp.linker.1762099292"/>
+							<tool id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.archiver.1318851383" name="GNU RISC-V Cross Archiver" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.archiver.228826367"/>
+							<tool id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.createflash.406723166" name="GNU RISC-V Cross Create Flash Image" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.createflash.1681627356"/>
+							<tool id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.createlisting.85513256" name="GNU RISC-V Cross Create Listing" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.createlisting.1458513031"/>
+							<tool id="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.printsize.514060807" name="GNU RISC-V Cross Print Size" superClass="ilg.gnumcueclipse.managedbuild.cross.riscv.tool.printsize.1188837593"/>
+						</toolChain>
+					</folderInfo>
+					<sourceEntries>
+						<entry flags="VALUE_WORKSPACE_PATH|RESOLVED" kind="sourcePath" name=""/>
+					</sourceEntries>
+				</configuration>
+			</storageModule>
+			<storageModule moduleId="org.eclipse.cdt.core.externalSettings"/>
+			<storageModule moduleId="ilg.gnumcueclipse.managedbuild.packs"/>
+		</cconfiguration>
+	</storageModule>
+	<storageModule moduleId="cdtBuildSystem" version="4.0.0">
+		<project id="GD32V103V_EVAL.ilg.gnumcueclipse.managedbuild.cross.riscv.target.elf.756742950" name="Executable" projectType="ilg.gnumcueclipse.managedbuild.cross.riscv.target.elf"/>
+	</storageModule>
+	<storageModule moduleId="scannerConfiguration">
+		<autodiscovery enabled="true" problemReportingEnabled="true" selectedProfileId=""/>
+		<scannerConfigBuildInfo instanceId="ilg.gnumcueclipse.managedbuild.cross.riscv.config.elf.release.1542802236;ilg.gnumcueclipse.managedbuild.cross.riscv.config.elf.release.1542802236.;ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.compiler.1471375400;ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.compiler.input.1349005409">
+			<autodiscovery enabled="true" problemReportingEnabled="true" selectedProfileId=""/>
+		</scannerConfigBuildInfo>
+		<scannerConfigBuildInfo instanceId="ilg.gnumcueclipse.managedbuild.cross.riscv.config.elf.debug.1573373326;ilg.gnumcueclipse.managedbuild.cross.riscv.config.elf.debug.1573373326.;ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.compiler.488215038;ilg.gnumcueclipse.managedbuild.cross.riscv.tool.c.compiler.input.888297046">
+			<autodiscovery enabled="true" problemReportingEnabled="true" selectedProfileId=""/>
+		</scannerConfigBuildInfo>
+	</storageModule>
+	<storageModule moduleId="org.eclipse.cdt.core.LanguageSettingsProviders"/>
+	<storageModule moduleId="refreshScope" versionNumber="2">
+		<configuration configurationName="GD32VF103xB">
+			<resource resourceType="PROJECT" workspacePath="/GD32V103V_EVAL"/>
+		</configuration>
+	</storageModule>
+	<storageModule moduleId="org.eclipse.cdt.make.core.buildtargets"/>
+	<storageModule moduleId="org.eclipse.cdt.internal.ui.text.commentOwnerProjectMappings"/>
+</cproject>

bsp/gd32vf103v-eval/.project

@@ -0,0 +1,88 @@
+<?xml version="1.0" encoding="UTF-8"?>
+<projectDescription>
+	<name>GD32V103V_EVAL</name>
+	<comment></comment>
+	<projects>
+	</projects>
+	<buildSpec>
+		<buildCommand>
+			<name>org.eclipse.cdt.managedbuilder.core.genmakebuilder</name>
+			<triggers>clean,full,incremental,</triggers>
+			<arguments>
+			</arguments>
+		</buildCommand>
+		<buildCommand>
+			<name>org.eclipse.cdt.managedbuilder.core.ScannerConfigBuilder</name>
+			<triggers>full,incremental,</triggers>
+			<arguments>
+			</arguments>
+		</buildCommand>
+	</buildSpec>
+	<natures>
+		<nature>org.eclipse.cdt.core.cnature</nature>
+		<nature>org.eclipse.cdt.managedbuilder.core.managedBuildNature</nature>
+		<nature>org.eclipse.cdt.managedbuilder.core.ScannerConfigNature</nature>
+	</natures>
+	<linkedResources>
+		<link>
+			<name>rt-thread</name>
+			<type>2</type>
+			<locationURI>virtual:/virtual</locationURI>
+		</link>
+		<link>
+			<name>rt-thread/components</name>
+			<type>2</type>
+			<locationURI>virtual:/virtual</locationURI>
+		</link>
+		<link>
+			<name>rt-thread/include</name>
+			<type>2</type>
+			<locationURI>$%7BPARENT-2-PROJECT_LOC%7D/include</locationURI>
+		</link>
+		<link>
+			<name>rt-thread/lipcpu</name>
+			<type>2</type>
+			<locationURI>virtual:/virtual</locationURI>
+		</link>
+		<link>
+			<name>rt-thread/src</name>
+			<type>2</type>
+			<locationURI>$%7BPARENT-2-PROJECT_LOC%7D/src</locationURI>
+		</link>
+		<link>
+			<name>rt-thread/components/drivers</name>
+			<type>2</type>
+			<locationURI>virtual:/virtual</locationURI>
+		</link>
+		<link>
+			<name>rt-thread/components/finsh</name>
+			<type>2</type>
+			<locationURI>$%7BPARENT-2-PROJECT_LOC%7D/components/finsh</locationURI>
+		</link>
+		<link>
+			<name>rt-thread/components/src</name>
+			<type>2</type>
+			<locationURI>$%7BPARENT-2-PROJECT_LOC%7D/components/drivers/src</locationURI>
+		</link>
+		<link>
+			<name>rt-thread/lipcpu/bumblebee</name>
+			<type>2</type>
+			<locationURI>$%7BPARENT-2-PROJECT_LOC%7D/libcpu/risc-v/bumblebee</locationURI>
+		</link>
+		<link>
+			<name>rt-thread/lipcpu/common</name>
+			<type>2</type>
+			<locationURI>$%7BPARENT-2-PROJECT_LOC%7D/libcpu/risc-v/common</locationURI>
+		</link>
+		<link>
+			<name>rt-thread/components/drivers/include</name>
+			<type>2</type>
+			<locationURI>$%7BPARENT-2-PROJECT_LOC%7D/components/drivers/include</locationURI>
+		</link>
+		<link>
+			<name>rt-thread/components/drivers/serial</name>
+			<type>2</type>
+			<locationURI>$%7BPARENT-2-PROJECT_LOC%7D/components/drivers/serial</locationURI>
+		</link>
+	</linkedResources>
+</projectDescription>

bsp/gd32vf103v-eval/.settings/language.settings.xml

@@ -0,0 +1,14 @@
+<?xml version="1.0" encoding="UTF-8" standalone="no"?>
+<project>
+	<configuration id="ilg.gnumcueclipse.managedbuild.cross.riscv.config.elf.debug.1573373326" name="GD32VF103xB">
+		<extension point="org.eclipse.cdt.core.LanguageSettingsProvider">
+			<provider copy-of="extension" id="org.eclipse.cdt.ui.UserLanguageSettingsProvider"/>
+			<provider-reference id="org.eclipse.cdt.core.ReferencedProjectsLanguageSettingsProvider" ref="shared-provider"/>
+			<provider-reference id="org.eclipse.cdt.managedbuilder.core.MBSLanguageSettingsProvider" ref="shared-provider"/>
+			<provider class="org.eclipse.cdt.managedbuilder.language.settings.providers.GCCBuiltinSpecsDetector" console="false" env-hash="1737722033620" id="ilg.gnumcueclipse.managedbuild.cross.riscv.GCCBuiltinSpecsDetector" keep-relative-paths="false" name="CDT RISC-V Cross GCC Built-in Compiler Settings" parameter="${COMMAND} ${FLAGS} ${cross_toolchain_flags} -E -P -v -dD &quot;${INPUTS}&quot;" prefer-non-shared="true">
+				<language-scope id="org.eclipse.cdt.core.gcc"/>
+				<language-scope id="org.eclipse.cdt.core.g++"/>
+			</provider>
+		</extension>
+	</configuration>
+</project>

bsp/gd32vf103v-eval/Kconfig

@@ -0,0 +1,20 @@
+mainmenu "RT-Thread Configuration"
+
+config BSP_DIR
+    string
+    option env="BSP_ROOT"
+    default "."
+
+config RTT_DIR
+    string
+    option env="RTT_ROOT"
+    default "../.."
+
+config PKGS_DIR
+    string
+    option env="PKGS_ROOT"
+    default "packages"
+
+source "$RTT_DIR/Kconfig"
+source "$PKGS_DIR/Kconfig"
+source "board/Kconfig"

bsp/gd32vf103v-eval/README.md

@@ -0,0 +1,119 @@
+# GD32VF103 #
+
+## 简介
+
+gd32vf103v-eval 是由兆易创新公司推出的基于开源指令集 RISC-V 架构的开发板。
+
+### 板载资源：
+
+| 硬件 | 描述 |
+| -- | -- |
+| 内核    | Bumblebee                                     |
+| 架构       |  32-bit RV32IMAC                                         |
+| 主频       | 108 MHz                                              |
+
+## 编译说明
+
+### 导入工程
+打开 Eclipse 选择工作空间
+
+![指定工作空间](figures/open_eclipse.png)
+
+打开 Eclipse 后需要导入 RT-Thread 工程
+
+![导入工程](figures/file.png)
+
+选择以存在的工程，并指定工程路径
+
+![选择存在工程](figures/exist.png)
+
+指定工程路径
+
+![指定工程路径](figures/finish_port.png)
+
+
+### 添加环境变量
+设置 Build Tools Path
+
+![build_path](figures/build_path.png)
+
+点击 MCU 列表中的 Build Tools Path 选项，为其选择 SDK 文件包中提供的对应工具
+

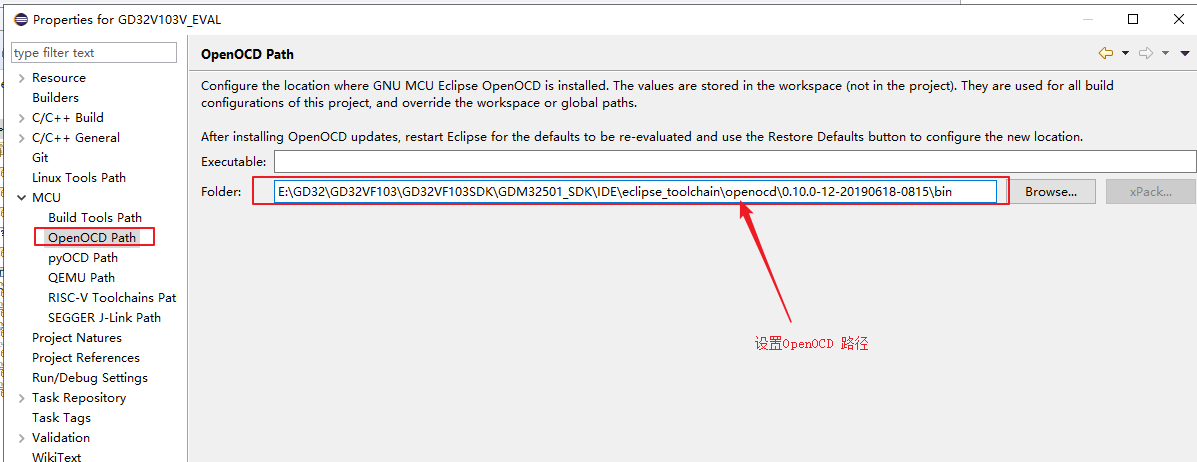

+设置 OpenOCD Path
+
+![open_ocd](figures/open_ocd.png)
+
+点击 MCU 列表中的 OpenOCD Path 选项，为其选择 SDK 文件包中提供的对应工具。
+
+设置 RISC-V Toolchains Path
+
+![risc-v](figures/risc-v-tool.png)
+
+点击 MCU 列表中的 RISC-V Toolchains Paths 选项，为其选择 SDK 文件包中提供的对应工具。
+
+按照以上步骤设置好路径点击编译即可编译工程
+
+![build](figures/build_project.png)
+
+## 烧写及执行
+
+### 替换驱动
+
+1.  执行 JLink_Windows_V622c.exe (可以是任意版本)安装 JLink 驱动程序。
+2.  执行 Zadig.exe，点击 Options->List All Devices。
+3.  在下图 1 处选择 J-Link，2 处选择 WinUSB， 之后点击 3 处 Replace Driver 进行驱动替换。
+
+![zadig](figures/zadig.png)
+
+安装完成之后会弹出如下窗口：
+
+![close](figures/close.png)
+
+### 配置 GDB 调试
+
+在菜单栏中，点击 Run->Debug Configurations，进入 Debug 配置界面，如下图所示：
+
+![open_debug](figures/open_debug.png)
+
+这里使用 OpenOCD 作为 GDB Server，使用GCC工具链中的 GDB 工具作为 GDB Client。双击 GDB OpenOCD Debugging，新建一套 OpenOCD 的配置选项。
+
+Main 选项卡
+
+Main 选项卡配置界面
+
+![main_select](figures/main_select.png)
+
+选择当前工程 GD32VF103，并且选择当前型号的可执行文件，例如：GD32VF103xB\GD32VF103xB.elf。
+
+Debugger 选项卡
+ Debugger 选项卡配置界面
+
+![debug_select](figures/debug_select.png)
+
+在 Debugger 选项卡中，确认红圈中的配置正确。
+其中，“Config options” 是为 OpenOCD 选择配置文件，需要根据当前使用的下载器选择不同的 cfg 文件。
+
+上述配置内容配置好后，点击应用调试。
+### 运行结果
+
+下载程序之后，连接串口(115200-N-8-1)，可以看到 RT-Thread 的输出信息：
+
+```
+ \ | /
+- RT -     Thread Operating System
+ / | \     4.0.2 build Jul 24 2019
+ 2006 - 2019 Copyright by rt-thread team
+msh >
+```
+
+## 驱动支持情况
+
+| 驱动 | 支持情况  |  备注  |
+| ------ | ----  | :------:  |
+| USART | 支持 | UART0_TX/RX：GPIO 9/10 |
+
+## 5. 联系人信息
+
+维护人：
+- [tyustli](https://github.com/tyustli)
+

bsp/gd32vf103v-eval/SConscript

@@ -0,0 +1,18 @@
+# for module compiling
+import os
+Import('RTT_ROOT')
+from building import *
+
+cwd = str(Dir('#'))
+src = Glob('*.c')
+objs = []
+list = os.listdir(cwd)
+
+for d in list:
+    path = os.path.join(cwd, d)
+    if os.path.isfile(os.path.join(path, 'SConscript')):
+        objs = objs + SConscript(os.path.join(d, 'SConscript'))
+
+group = DefineGroup('', src, depend = [''], CPPPATH = [])
+#objs += group
+Return('objs')

bsp/gd32vf103v-eval/SConstruct

@@ -0,0 +1,30 @@
+import os
+import sys
+import rtconfig
+
+if os.getenv('RTT_ROOT'):
+    RTT_ROOT = os.getenv('RTT_ROOT')
+else:
+    RTT_ROOT = os.path.normpath(os.getcwd() + '/../..')
+
+sys.path = sys.path + [os.path.join(RTT_ROOT, 'tools')]
+from building import *
+
+TARGET = 'rtthread.' + rtconfig.TARGET_EXT
+
+env = Environment(tools = ['mingw'],
+    AS = rtconfig.AS, ASFLAGS = rtconfig.AFLAGS,
+    CC = rtconfig.CC, CCFLAGS = rtconfig.CFLAGS,
+    AR = rtconfig.AR, ARFLAGS = '-rc',
+    LINK = rtconfig.LINK, LINKFLAGS = rtconfig.LFLAGS)
+env.PrependENVPath('PATH', rtconfig.EXEC_PATH)
+env['ASCOM'] = env['ASPPCOM']
+
+Export('RTT_ROOT')
+Export('rtconfig')
+
+# prepare building environment
+objs = PrepareBuilding(env, RTT_ROOT)
+
+# make a building
+DoBuilding(TARGET, objs)

bsp/gd32vf103v-eval/applications/SConscript

@@ -0,0 +1,11 @@
+Import('RTT_ROOT')
+Import('rtconfig')
+from building import *
+
+cwd = GetCurrentDir()
+src = Glob('*.c')
+CPPPATH = [cwd, ]
+
+group = DefineGroup('Applications', src, depend = [''], CPPPATH = CPPPATH)
+
+Return('group')

bsp/gd32vf103v-eval/applications/main.c

@@ -0,0 +1,19 @@
+/*
+ * Copyright (c) 2006-2018, RT-Thread Development Team
+ *
+ * SPDX-License-Identifier: Apache-2.0
+ *
+ * Change Logs:
+ * Date           Author       Notes
+ * 2019-07-23     tyustli      first version
+ */
+
+#include <rtthread.h>
+#include <rtdevice.h>
+
+int main(int argc, char *argv[]) {
+    return RT_EOK;
+}
+
+/******************** end of file *******************/
+

bsp/gd32vf103v-eval/board/Kconfig

@@ -0,0 +1,34 @@
+menu "Hardware Drivers Config"
+
+config SOC_GD32VF103V
+    bool
+    select SOC_SERIES_GD32VF103V
+    default y
+
+menu "Onboard Peripheral Drivers"
+
+    config BSP_USING_USART
+        bool "Enable USART (usart0)"
+        select BSP_USING_UART
+        select BSP_USING_UART0
+        default y
+endmenu
+
+menu "On-chip Peripheral Drivers"
+
+    menuconfig BSP_USING_UART
+        bool "Enable USART"
+        default y
+        select RT_USING_SERIAL
+        if BSP_USING_UART
+            config BSP_USING_UART0
+                bool "Enable USART0"
+                default y
+        endif
+endmenu
+
+menu "Board extended module Drivers"
+
+endmenu
+
+endmenu

bsp/gd32vf103v-eval/board/SConscript

@@ -0,0 +1,11 @@
+# RT-Thread building script for component
+
+from building import *
+
+cwd = GetCurrentDir()
+src = Glob('*.c')
+CPPPATH = [cwd]
+
+group = DefineGroup('Drivers', src, depend = [''], CPPPATH = CPPPATH)
+
+Return('group')

bsp/gd32vf103v-eval/board/board.c

@@ -0,0 +1,68 @@
+/*
+ * Copyright (c) 2006-2018, RT-Thread Development Team
+ *
+ * SPDX-License-Identifier: Apache-2.0
+ *
+ * Change Logs:
+ * Date           Author       Notes
+ * 2019-07-23     tyustli      first version
+ *
+ */
+
+#include <rtthread.h>
+#include <rtdevice.h>
+#include "board.h"
+
+#ifdef RT_USING_SERIAL
+#include <drv_usart.h>
+#endif
+
+/*  System Tick Configuration */
+static void systick_config(rt_uint32_t ticks) {
+    /* set value */
+    *(rt_uint64_t *) (TMR_CTRL_ADDR + TMR_MTIMECMP) = ticks;
+    /* enable interrupt */
+    eclic_irq_enable(CLIC_INT_TMR, 0, 0);
+    /* clear value */
+    *(rt_uint64_t *) (TMR_CTRL_ADDR + TMR_MTIME) = 0;
+}
+
+/* This is the timer interrupt service routine. */
+void eclic_mtip_handler(void) {
+    /* clear value */
+    *(rt_uint64_t *) (TMR_CTRL_ADDR + TMR_MTIME) = 0;
+
+    /* enter interrupt */
+    rt_interrupt_enter();
+    /* tick increase */
+    rt_tick_increase();
+
+    /* leave interrupt */
+    rt_interrupt_leave();
+}
+
+void rt_hw_board_init(void) {
+    systick_config(TMR_FREQ / RT_TICK_PER_SECOND);
+
+#ifdef RT_USING_HEAP
+    rt_system_heap_init((void *) HEAP_BEGIN, (void *) HEAP_END);
+#endif
+
+    /* USART driver initialization is open by default */
+#ifdef RT_USING_SERIAL
+    rt_hw_usart_init();
+#endif
+
+    /* Set the shell console output device */
+#ifdef RT_USING_CONSOLE
+    rt_console_set_device(RT_CONSOLE_DEVICE_NAME);
+#endif
+
+    /* Board underlying hardware initialization */
+#ifdef RT_USING_COMPONENTS_INIT
+    rt_components_board_init();
+#endif
+}
+
+/******************** end of file *******************/
+

bsp/gd32vf103v-eval/board/board.h

@@ -0,0 +1,25 @@
+/*
+ * Copyright (c) 2006-2018, RT-Thread Development Team
+ *
+ * SPDX-License-Identifier: Apache-2.0
+ *
+ * Change Logs:
+ * Date           Author       Notes
+ * 2019-07-23     tyustli      first version
+ *
+ */
+
+#ifndef __BOARD__
+#define __BOARD__
+#include "gd32vf103.h"
+
+extern void *_end;
+extern void *_heap_end;
+#define HEAP_BEGIN  &_end
+#define HEAP_END    &_heap_end
+
+void rt_hw_board_init(void);
+
+#endif /* __BOARD__ */
+
+/******************** end of file *******************/

bsp/gd32vf103v-eval/board/gd32vf103_libopt.h

@@ -0,0 +1,64 @@
+/*!
+ \file  gd32vf103_libopt.h
+ \brief library optional for gd32vf103
+
+ \version 2019-6-5, V1.0.0, demo for GD32VF103
+ */
+
+/*
+ Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+ Redistribution and use in source and binary forms, with or without modification,
+ are permitted provided that the following conditions are met:
+
+ 1. Redistributions of source code must retain the above copyright notice, this
+ list of conditions and the following disclaimer.
+ 2. Redistributions in binary form must reproduce the above copyright notice,
+ this list of conditions and the following disclaimer in the documentation
+ and/or other materials provided with the distribution.
+ 3. Neither the name of the copyright holder nor the names of its contributors
+ may be used to endorse or promote products derived from this software without
+ specific prior written permission.
+
+ THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+ WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+ IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+ INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+ NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+ PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+ WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+ OF SUCH DAMAGE.
+ */
+
+#ifndef GD32VF103_LIBOPT_H
+#define GD32VF103_LIBOPT_H
+
+#include "gd32vf103_adc.h"
+#include "gd32vf103_bkp.h"
+#include "gd32vf103_can.h"
+#include "gd32vf103_crc.h"
+#include "gd32vf103_dac.h"
+#include "gd32vf103_dma.h"
+#include "gd32vf103_eclic.h"
+#include "gd32vf103_exmc.h"
+#include "gd32vf103_exti.h"
+#include "gd32vf103_fmc.h"
+#include "gd32vf103_gpio.h"
+#include "gd32vf103_i2c.h"
+#include "gd32vf103_fwdgt.h"
+#include "gd32vf103_dbg.h"
+#include "gd32vf103_pmu.h"
+#include "gd32vf103_rcu.h"
+#include "gd32vf103_rtc.h"
+#include "gd32vf103_spi.h"
+#include "gd32vf103_timer.h"
+#include "gd32vf103_usart.h"
+#include "gd32vf103_wwdgt.h"
+#include "n22_func.h"
+
+#endif /* GD32VF103_LIBOPT_H */
+
+/******************** end of file *******************/
+

bsp/gd32vf103v-eval/drivers/SConscript

@@ -0,0 +1,19 @@
+# RT-Thread building script for component
+
+from building import *
+
+cwd     = GetCurrentDir()
+src     = Split('''
+drv_usart.c
+''')
+CPPPATH = [cwd]
+
+if GetDepend('RT_USING_PIN'):
+    src += ['drv_gpio.c']
+
+if GetDepend('RT_USING_I2C'):
+    src += ['drv_i2c.c']
+
+group = DefineGroup('Drivers', src, depend = [''], CPPPATH = CPPPATH)
+
+Return('group')

bsp/gd32vf103v-eval/drivers/drv_usart.c

@@ -0,0 +1,246 @@
+/*
+ * Copyright (c) 2006-2018, RT-Thread Development Team
+ *
+ * SPDX-License-Identifier: Apache-2.0
+ *
+ * Change Logs:
+ * Date           Author       Notes
+ * 2019-07-23     tyustli      first version
+ */
+
+#include <drv_usart.h>
+
+#ifdef RT_USING_SERIAL
+
+#if !defined(BSP_USING_UART0) && !defined(BSP_USING_UART1) && !defined(BSP_USING_UART2) \
+    && !defined(BSP_USING_UART3) && !defined(BSP_USING_UART4) && !defined(BSP_USING_UART5)
+    #error "Please define at least one BSP_USING_UARTx"
+    /* this driver can be disabled at menuconfig ¡ú RT-Thread Components ¡ú Device Drivers */
+#endif
+
+struct gd32_usart {
+    char *name;
+    rt_uint32_t usart_base;
+    rt_uint32_t usart_clk;
+    rt_uint32_t gpio_clk;
+    rt_uint32_t gpio_port;
+    rt_uint32_t tx_pin;
+    rt_uint32_t rx_pin;
+    IRQn_Type irqn;
+    struct rt_serial_device serial;
+};
+
+enum {
+#ifdef BSP_USING_UART0
+    GDUSART0_INDEX,
+#endif
+};
+
+static struct gd32_usart usart_config[] = {
+#ifdef BSP_USING_UART0
+        { "uart0",
+        USART0,
+        RCU_USART0,
+        RCU_GPIOA,
+        GPIOA,
+        GPIO_PIN_9,
+        GPIO_PIN_10,
+        USART0_IRQn, },
+#endif
+};
+
+static rt_err_t gd32_configure(struct rt_serial_device *serial,
+        struct serial_configure *cfg) {
+    struct gd32_usart *usart;
+    RT_ASSERT(serial != RT_NULL);
+    RT_ASSERT(cfg != RT_NULL);
+
+    usart = (struct gd32_usart *) serial->parent.user_data;
+    RT_ASSERT(usart != RT_NULL);
+
+    /* enable GPIO clock */
+    rcu_periph_clock_enable(usart->gpio_clk);
+    /* enable USART clock */
+    rcu_periph_clock_enable(usart->usart_clk);
+    /* connect port to USARTx_Tx */
+    gpio_init(usart->gpio_port, GPIO_MODE_AF_PP, GPIO_OSPEED_50MHZ,
+            usart->tx_pin);
+    /* connect port to USARTx_Rx */
+    gpio_init(usart->gpio_port, GPIO_MODE_IN_FLOATING, GPIO_OSPEED_50MHZ,
+            usart->rx_pin);
+
+    usart_deinit(usart->usart_base);
+    usart_baudrate_set(usart->usart_base, cfg->baud_rate);
+
+    switch (cfg->data_bits) {
+    case DATA_BITS_8:
+        usart_word_length_set(usart->usart_base, USART_WL_8BIT);
+        break;
+
+    case DATA_BITS_9:
+        usart_word_length_set(usart->usart_base, USART_WL_9BIT);
+        break;
+    default:
+        usart_word_length_set(usart->usart_base, USART_WL_8BIT);
+        break;
+    }
+
+    switch (cfg->stop_bits) {
+    case STOP_BITS_1:
+        usart_stop_bit_set(usart->usart_base, USART_STB_1BIT);
+        break;
+    case STOP_BITS_2:
+        usart_stop_bit_set(usart->usart_base, USART_STB_2BIT);
+        break;
+    default:
+        usart_stop_bit_set(usart->usart_base, USART_STB_1BIT);
+        break;
+    }
+
+    switch (cfg->parity) {
+    case PARITY_NONE:
+        usart_parity_config(usart->usart_base, USART_PM_NONE);
+        break;
+    case PARITY_ODD:
+        usart_parity_config(usart->usart_base, USART_PM_ODD);
+        break;
+    case PARITY_EVEN:
+        usart_parity_config(usart->usart_base, USART_PM_EVEN);
+        break;
+    default:
+        usart_parity_config(usart->usart_base, USART_PM_NONE);
+        break;
+    }
+    usart_hardware_flow_rts_config(usart->usart_base, USART_RTS_DISABLE);
+    usart_hardware_flow_cts_config(usart->usart_base, USART_RTS_DISABLE);
+    usart_receive_config(usart->usart_base, USART_RECEIVE_ENABLE);
+    usart_transmit_config(usart->usart_base, USART_TRANSMIT_ENABLE);
+    usart_enable(usart->usart_base);
+
+    return RT_EOK;
+}
+
+static rt_err_t gd32_control(struct rt_serial_device *serial, int cmd,
+        void *arg) {
+    struct gd32_usart *usart;
+
+    RT_ASSERT(serial != RT_NULL);
+    usart = (struct gd32_usart *) serial->parent.user_data;
+    RT_ASSERT(usart != RT_NULL);
+
+    switch (cmd) {
+    case RT_DEVICE_CTRL_CLR_INT:
+        eclic_irq_disable(usart->usart_base);
+        usart_interrupt_disable(usart->usart_base, USART_INT_RBNE);
+        break;
+    case RT_DEVICE_CTRL_SET_INT:
+        eclic_set_nlbits(ECLIC_GROUP_LEVEL3_PRIO1);
+        eclic_irq_enable(usart->irqn, 1, 0);
+        /* enable USART0 receive interrupt */
+        usart_interrupt_enable(usart->usart_base, USART_INT_RBNE);
+        break;
+    }
+
+    return RT_EOK;
+}
+
+static int gd32_putc(struct rt_serial_device *serial, char ch) {
+    struct gd32_usart *usart;
+
+    RT_ASSERT(serial != RT_NULL);
+    usart = (struct gd32_usart *) serial->parent.user_data;
+    RT_ASSERT(usart != RT_NULL);
+
+    usart_data_transmit(usart->usart_base, (uint8_t) ch);
+    while (usart_flag_get(usart->usart_base, USART_FLAG_TBE) == RESET)
+        ;
+
+    return 1;
+}
+
+static int gd32_getc(struct rt_serial_device *serial) {
+    int ch;
+    struct gd32_usart *usart;
+
+    RT_ASSERT(serial != RT_NULL);
+    usart = (struct gd32_usart *) serial->parent.user_data;
+    RT_ASSERT(usart != RT_NULL);
+
+    ch = -1;
+    if (RESET != usart_flag_get(usart->usart_base, USART_FLAG_RBNE)) {
+        ch = usart_data_receive(usart->usart_base) & 0xff;
+    }
+
+    return ch;
+}
+
+static const struct rt_uart_ops gd32_usart_ops = { gd32_configure, gd32_control,
+        gd32_putc, gd32_getc,
+        RT_NULL };
+
+static void usart_isr(struct rt_serial_device *serial) {
+    struct gd32_usart *usart;
+
+    RT_ASSERT(serial != RT_NULL);
+
+    usart = (struct gd32_usart *) serial->parent.user_data;
+    RT_ASSERT(usart != RT_NULL);
+
+    if ((usart_interrupt_flag_get(usart->usart_base, USART_INT_FLAG_RBNE)
+            != RESET)
+            && (RESET != usart_flag_get(usart->usart_base, USART_FLAG_RBNE))) {
+        rt_hw_serial_isr(serial, RT_SERIAL_EVENT_RX_IND);
+        usart_interrupt_flag_clear(usart->usart_base, USART_INT_FLAG_RBNE);
+        usart_flag_clear(usart->usart_base, USART_FLAG_RBNE);
+    } else {
+        if (usart_flag_get(usart->usart_base, USART_FLAG_CTSF) != RESET) {
+            usart_flag_clear(usart->usart_base, USART_FLAG_CTSF);
+        }
+
+        if (usart_flag_get(usart->usart_base, USART_FLAG_LBDF) != RESET) {
+            usart_flag_clear(usart->usart_base, USART_FLAG_LBDF);
+        }
+
+        if (usart_flag_get(usart->usart_base, USART_FLAG_TC) != RESET) {
+            usart_flag_clear(usart->usart_base, USART_FLAG_TC);
+        }
+    }
+}
+#ifdef BSP_USING_UART0
+
+void USART0_IRQHandler(void) {
+    rt_interrupt_enter();
+
+    usart_isr(&usart_config[GDUSART0_INDEX].serial);
+
+    rt_interrupt_leave();
+}
+
+#endif
+
+int rt_hw_usart_init(void) {
+    rt_size_t obj_num;
+    int index;
+
+    obj_num = sizeof(usart_config) / sizeof(struct gd32_usart);
+    struct serial_configure config = RT_SERIAL_CONFIG_DEFAULT;
+    rt_err_t result = 0;
+
+    for (index = 0; index < obj_num; index++) {
+        usart_config[index].serial.ops = &gd32_usart_ops;
+        usart_config[index].serial.config = config;
+
+        /* register UART device */
+        result = rt_hw_serial_register(&usart_config[index].serial,
+                usart_config[index].name,
+                RT_DEVICE_FLAG_RDWR | RT_DEVICE_FLAG_INT_RX
+                        | RT_DEVICE_FLAG_INT_TX, &usart_config[index]);
+        RT_ASSERT(result == RT_EOK);
+    }
+
+    return result;
+}
+
+#endif /* RT_USING_SERIAL */
+
+/******************** end of file *******************/

bsp/gd32vf103v-eval/drivers/drv_usart.h

@@ -0,0 +1,12 @@
+#ifndef __DRV_UART_H__
+#define __DRV_UART_H__
+
+#include <rtthread.h>
+#include <rtdevice.h>
+#include "board.h"
+
+int rt_hw_usart_init(void);
+
+#endif /* __DRV_USART_H__ */
+
+/******************* end of file *******************/

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_adc.h

@@ -0,0 +1,396 @@
+/*!
+    \file  gd32vf103_adc.h
+    \brief definitions for the ADC
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_ADC_H
+#define GD32VF103_ADC_H
+
+#include "gd32vf103.h"
+
+/* ADC definitions */
+#define ADC0                            ADC_BASE
+#define ADC1                            (ADC_BASE + 0x400U)
+
+/* registers definitions */
+#define ADC_STAT(adcx)                  REG32((adcx) + 0x00U)            /*!< ADC status register */
+#define ADC_CTL0(adcx)                  REG32((adcx) + 0x04U)            /*!< ADC control register 0 */
+#define ADC_CTL1(adcx)                  REG32((adcx) + 0x08U)            /*!< ADC control register 1 */
+#define ADC_SAMPT0(adcx)                REG32((adcx) + 0x0CU)            /*!< ADC sampling time register 0 */
+#define ADC_SAMPT1(adcx)                REG32((adcx) + 0x10U)            /*!< ADC sampling time register 1 */
+#define ADC_IOFF0(adcx)                 REG32((adcx) + 0x14U)            /*!< ADC inserted channel data offset register 0 */
+#define ADC_IOFF1(adcx)                 REG32((adcx) + 0x18U)            /*!< ADC inserted channel data offset register 1 */
+#define ADC_IOFF2(adcx)                 REG32((adcx) + 0x1CU)            /*!< ADC inserted channel data offset register 2 */
+#define ADC_IOFF3(adcx)                 REG32((adcx) + 0x20U)            /*!< ADC inserted channel data offset register 3 */
+#define ADC_WDHT(adcx)                  REG32((adcx) + 0x24U)            /*!< ADC watchdog high threshold register */
+#define ADC_WDLT(adcx)                  REG32((adcx) + 0x28U)            /*!< ADC watchdog low threshold register */
+#define ADC_RSQ0(adcx)                  REG32((adcx) + 0x2CU)            /*!< ADC regular sequence register 0 */
+#define ADC_RSQ1(adcx)                  REG32((adcx) + 0x30U)            /*!< ADC regular sequence register 1 */
+#define ADC_RSQ2(adcx)                  REG32((adcx) + 0x34U)            /*!< ADC regular sequence register 2 */
+#define ADC_ISQ(adcx)                   REG32((adcx) + 0x38U)            /*!< ADC inserted sequence register */
+#define ADC_IDATA0(adcx)                REG32((adcx) + 0x3CU)            /*!< ADC inserted data register 0 */
+#define ADC_IDATA1(adcx)                REG32((adcx) + 0x40U)            /*!< ADC inserted data register 1 */
+#define ADC_IDATA2(adcx)                REG32((adcx) + 0x44U)            /*!< ADC inserted data register 2 */
+#define ADC_IDATA3(adcx)                REG32((adcx) + 0x48U)            /*!< ADC inserted data register 3 */
+#define ADC_RDATA(adcx)                 REG32((adcx) + 0x4CU)            /*!< ADC regular data register */
+#define ADC_OVSCR(adcx)                 REG32((adcx) + 0x80U)            /*!< ADC oversample control register */
+
+/* bits definitions */
+/* ADC_STAT */
+#define ADC_STAT_WDE                    BIT(0)                           /*!< analog watchdog event flag */
+#define ADC_STAT_EOC                    BIT(1)                           /*!< end of conversion */
+#define ADC_STAT_EOIC                   BIT(2)                           /*!< inserted channel end of conversion */
+#define ADC_STAT_STIC                   BIT(3)                           /*!< inserted channel start flag */
+#define ADC_STAT_STRC                   BIT(4)                           /*!< regular channel start flag */
+
+/* ADC_CTL0 */
+#define ADC_CTL0_WDCHSEL                BITS(0,4)                        /*!< analog watchdog channel select bits */
+#define ADC_CTL0_EOCIE                  BIT(5)                           /*!< interrupt enable for EOC */
+#define ADC_CTL0_WDEIE                  BIT(6)                           /*!< analog watchdog interrupt enable */
+#define ADC_CTL0_EOICIE                 BIT(7)                           /*!< interrupt enable for inserted channels */
+#define ADC_CTL0_SM                     BIT(8)                           /*!< scan mode */
+#define ADC_CTL0_WDSC                   BIT(9)                           /*!< when in scan mode, analog watchdog is effective on a single channel */
+#define ADC_CTL0_ICA                    BIT(10)                          /*!< automatic inserted group conversion */
+#define ADC_CTL0_DISRC                  BIT(11)                          /*!< discontinuous mode on regular channels */
+#define ADC_CTL0_DISIC                  BIT(12)                          /*!< discontinuous mode on inserted channels */
+#define ADC_CTL0_DISNUM                 BITS(13,15)                      /*!< discontinuous mode channel count */
+#define ADC_CTL0_SYNCM                  BITS(16,19)                      /*!< sync mode selection */
+#define ADC_CTL0_IWDEN                  BIT(22)                          /*!< analog watchdog enable on inserted channels */
+#define ADC_CTL0_RWDEN                  BIT(23)                          /*!< analog watchdog enable on regular channels */
+
+/* ADC_CTL1 */
+#define ADC_CTL1_ADCON                  BIT(0)                           /*!< ADC converter on */
+#define ADC_CTL1_CTN                    BIT(1)                           /*!< continuous conversion */
+#define ADC_CTL1_CLB                    BIT(2)                           /*!< ADC calibration */
+#define ADC_CTL1_RSTCLB                 BIT(3)                           /*!< reset calibration */
+#define ADC_CTL1_DMA                    BIT(8)                           /*!< direct memory access mode */
+#define ADC_CTL1_DAL                    BIT(11)                          /*!< data alignment */
+#define ADC_CTL1_ETSIC                  BITS(12,14)                      /*!< external trigger select for inserted channel */
+#define ADC_CTL1_ETEIC                  BIT(15)                          /*!< external trigger enable for inserted channel */
+#define ADC_CTL1_ETSRC                  BITS(17,19)                      /*!< external trigger select for regular channel */
+#define ADC_CTL1_ETERC                  BIT(20)                          /*!< external trigger conversion mode for inserted channels */
+#define ADC_CTL1_SWICST                 BIT(21)                          /*!< start on inserted channel */
+#define ADC_CTL1_SWRCST                 BIT(22)                          /*!< start on regular channel */
+#define ADC_CTL1_TSVREN                 BIT(23)                          /*!< channel 16 and 17 enable of ADC0 */
+
+/* ADC_SAMPTx x=0..1 */
+#define ADC_SAMPTX_SPTN                 BITS(0,2)                        /*!< channel n sample time selection */
+
+/* ADC_IOFFx x=0..3 */
+#define ADC_IOFFX_IOFF                  BITS(0,11)                       /*!< data offset for inserted channel x */
+
+/* ADC_WDHT */
+#define ADC_WDHT_WDHT                   BITS(0,11)                       /*!< analog watchdog high threshold */
+
+/* ADC_WDLT */
+#define ADC_WDLT_WDLT                   BITS(0,11)                       /*!< analog watchdog low threshold */
+
+/* ADC_RSQx x=0..2 */
+#define ADC_RSQX_RSQN                   BITS(0,4)                        /*!< nth conversion in regular sequence */
+#define ADC_RSQ0_RL                     BITS(20,23)                      /*!< regular channel sequence length */
+
+/* ADC_ISQ */
+#define ADC_ISQ_ISQN                    BITS(0,4)                        /*!< nth conversion in inserted sequence */
+#define ADC_ISQ_IL                      BITS(20,21)                      /*!< inserted sequence length */
+
+/* ADC_IDATAx x=0..3*/
+#define ADC_IDATAX_IDATAN               BITS(0,15)                       /*!< inserted data n */
+
+/* ADC_RDATA */
+#define ADC_RDATA_RDATA                 BITS(0,15)                       /*!< regular data */
+#define ADC_RDATA_ADC1RDTR              BITS(16,31)                      /*!< ADC1 regular channel data */
+
+/* ADC_OVSCR */
+#define ADC_OVSCR_OVSEN                 BIT(0)                           /*!< oversampling enable */
+#define ADC_OVSCR_OVSR                  BITS(2,4)                        /*!< oversampling ratio */
+#define ADC_OVSCR_OVSS                  BITS(5,8)                        /*!< oversampling shift */
+#define ADC_OVSCR_TOVS                  BIT(9)                           /*!< triggered oversampling */
+#define ADC_OVSCR_DRES                  BITS(12,13)                      /*!< ADC data resolution */
+
+/* constants definitions */
+/* adc_stat register value */
+#define ADC_FLAG_WDE                    ADC_STAT_WDE                                 /*!< analog watchdog event flag */
+#define ADC_FLAG_EOC                    ADC_STAT_EOC                                 /*!< end of conversion */
+#define ADC_FLAG_EOIC                   ADC_STAT_EOIC                                /*!< inserted channel end of conversion */
+#define ADC_FLAG_STIC                   ADC_STAT_STIC                                /*!< inserted channel start flag */
+#define ADC_FLAG_STRC                   ADC_STAT_STRC                                /*!< regular channel start flag */
+
+/* adc_ctl0 register value */
+#define CTL0_DISNUM(regval)             (BITS(13,15) & ((uint32_t)(regval) << 13))   /*!< write value to ADC_CTL0_DISNUM bit field */
+
+/* scan mode */
+#define ADC_SCAN_MODE                   ADC_CTL0_SM                                  /*!< scan mode */
+
+/* inserted channel group convert automatically */
+#define ADC_INSERTED_CHANNEL_AUTO       ADC_CTL0_ICA                                 /*!< inserted channel group convert automatically */
+
+/* ADC sync mode */
+#define CTL0_SYNCM(regval)              (BITS(16,19) & ((uint32_t)(regval) << 16))   /*!< write value to ADC_CTL0_SYNCM bit field */
+#define ADC_MODE_FREE                                        CTL0_SYNCM(0)           /*!< all the ADCs work independently */
+#define ADC_DAUL_REGULAL_PARALLEL_INSERTED_PARALLEL          CTL0_SYNCM(1)           /*!< ADC0 and ADC1 work in combined regular parallel + inserted parallel mode */
+#define ADC_DAUL_REGULAL_PARALLEL_INSERTED_ROTATION          CTL0_SYNCM(2)           /*!< ADC0 and ADC1 work in combined regular parallel + trigger rotation mode */
+#define ADC_DAUL_INSERTED_PARALLEL_REGULAL_FOLLOWUP_FAST     CTL0_SYNCM(3)           /*!< ADC0 and ADC1 work in combined inserted parallel + follow-up fast mode */
+#define ADC_DAUL_INSERTED_PARALLEL_REGULAL_FOLLOWUP_SLOW     CTL0_SYNCM(4)           /*!< ADC0 and ADC1 work in combined inserted parallel + follow-up slow mode */
+#define ADC_DAUL_INSERTED_PARALLEL                           CTL0_SYNCM(5)           /*!< ADC0 and ADC1 work in inserted parallel mode only */
+#define ADC_DAUL_REGULAL_PARALLEL                            CTL0_SYNCM(6)           /*!< ADC0 and ADC1 work in regular parallel mode only */
+#define ADC_DAUL_REGULAL_FOLLOWUP_FAST                       CTL0_SYNCM(7)           /*!< ADC0 and ADC1 work in follow-up fast mode only */
+#define ADC_DAUL_REGULAL_FOLLOWUP_SLOW                       CTL0_SYNCM(8)           /*!< ADC0 and ADC1 work in follow-up slow mode only */
+#define ADC_DAUL_INSERTED_TRIGGER_ROTATION                   CTL0_SYNCM(9)           /*!< ADC0 and ADC1 work in trigger rotation mode only */
+
+/* adc_ctl1 register value */
+#define ADC_DATAALIGN_RIGHT              ((uint32_t)0x00000000U)                     /*!< LSB alignment */
+#define ADC_DATAALIGN_LEFT               ADC_CTL1_DAL                                /*!< MSB alignment */
+
+/* continuous mode */
+#define ADC_CONTINUOUS_MODE              ADC_CTL1_CTN                                /*!< continuous mode */
+
+/* external trigger select for regular channel */
+#define CTL1_ETSRC(regval)               (BITS(17,19) & ((uint32_t)(regval) << 17))  /*!< write value to ADC_CTL1_ETSRC bit field */
+/* for ADC0 and ADC1 regular channel */
+#define ADC0_1_EXTTRIG_REGULAR_T0_CH0    CTL1_ETSRC(0)                               /*!< TIMER0 CH0 event select */
+#define ADC0_1_EXTTRIG_REGULAR_T0_CH1    CTL1_ETSRC(1)                               /*!< TIMER0 CH1 event select */
+#define ADC0_1_EXTTRIG_REGULAR_T0_CH2    CTL1_ETSRC(2)                               /*!< TIMER0 CH2 event select */
+#define ADC0_1_EXTTRIG_REGULAR_T1_CH1    CTL1_ETSRC(3)                               /*!< TIMER1 CH1 event select */
+#define ADC0_1_EXTTRIG_REGULAR_T2_TRGO   CTL1_ETSRC(4)                               /*!< TIMER2 TRGO event select */
+#define ADC0_1_EXTTRIG_REGULAR_T3_CH3    CTL1_ETSRC(5)                               /*!< TIMER3 CH3 event select */
+#define ADC0_1_EXTTRIG_REGULAR_EXTI_11   CTL1_ETSRC(6)                               /*!< external interrupt line 11 */
+#define ADC0_1_EXTTRIG_REGULAR_NONE      CTL1_ETSRC(7)                               /*!< software trigger */
+
+/* external trigger mode for inserted channel */
+#define CTL1_ETSIC(regval)               (BITS(12,14) & ((uint32_t)(regval) << 12))  /*!< write value to ADC_CTL1_ETSIC bit field */
+/* for ADC0 and ADC1 inserted channel */
+#define ADC0_1_EXTTRIG_INSERTED_T0_TRGO  CTL1_ETSIC(0)                               /*!< TIMER0 TRGO event select */
+#define ADC0_1_EXTTRIG_INSERTED_T0_CH3   CTL1_ETSIC(1)                               /*!< TIMER0 CH3 event select */
+#define ADC0_1_EXTTRIG_INSERTED_T1_TRGO  CTL1_ETSIC(2)                               /*!< TIMER1 TRGO event select */
+#define ADC0_1_EXTTRIG_INSERTED_T1_CH0   CTL1_ETSIC(3)                               /*!< TIMER1 CH0 event select */
+#define ADC0_1_EXTTRIG_INSERTED_T2_CH3   CTL1_ETSIC(4)                               /*!< TIMER2 CH3 event select */
+#define ADC0_1_EXTTRIG_INSERTED_T3_TRGO  CTL1_ETSIC(5)                               /*!< TIMER3 TRGO event select */
+#define ADC0_1_EXTTRIG_INSERTED_EXTI_15  CTL1_ETSIC(6)                               /*!< external interrupt line 15 */
+#define ADC0_1_EXTTRIG_INSERTED_NONE     CTL1_ETSIC(7)                               /*!< software trigger */
+
+/* adc_samptx register value */
+#define SAMPTX_SPT(regval)               (BITS(0,2) & ((uint32_t)(regval) << 0))     /*!< write value to ADC_SAMPTX_SPT bit field */
+#define ADC_SAMPLETIME_1POINT5           SAMPTX_SPT(0)                               /*!< 1.5 sampling cycles */
+#define ADC_SAMPLETIME_7POINT5           SAMPTX_SPT(1)                               /*!< 7.5 sampling cycles */
+#define ADC_SAMPLETIME_13POINT5          SAMPTX_SPT(2)                               /*!< 13.5 sampling cycles */
+#define ADC_SAMPLETIME_28POINT5          SAMPTX_SPT(3)                               /*!< 28.5 sampling cycles */
+#define ADC_SAMPLETIME_41POINT5          SAMPTX_SPT(4)                               /*!< 41.5 sampling cycles */
+#define ADC_SAMPLETIME_55POINT5          SAMPTX_SPT(5)                               /*!< 55.5 sampling cycles */
+#define ADC_SAMPLETIME_71POINT5          SAMPTX_SPT(6)                               /*!< 71.5 sampling cycles */
+#define ADC_SAMPLETIME_239POINT5         SAMPTX_SPT(7)                               /*!< 239.5 sampling cycles */
+
+/* adc_ioffx register value */
+#define IOFFX_IOFF(regval)               (BITS(0,11) & ((uint32_t)(regval) << 0))    /*!< write value to ADC_IOFFX_IOFF bit field */
+
+/* adc_wdht register value */
+#define WDHT_WDHT(regval)                (BITS(0,11) & ((uint32_t)(regval) << 0))    /*!< write value to ADC_WDHT_WDHT bit field */
+
+/* adc_wdlt register value */
+#define WDLT_WDLT(regval)                (BITS(0,11) & ((uint32_t)(regval) << 0))    /*!< write value to ADC_WDLT_WDLT bit field */
+
+/* adc_rsqx register value */
+#define RSQ0_RL(regval)                  (BITS(20,23) & ((uint32_t)(regval) << 20))  /*!< write value to ADC_RSQ0_RL bit field */
+
+/* adc_isq register value */
+#define ISQ_IL(regval)                   (BITS(20,21) & ((uint32_t)(regval) << 20))  /*!< write value to ADC_ISQ_IL bit field */
+
+/* ADC channel group definitions */
+#define ADC_REGULAR_CHANNEL              ((uint8_t)0x01U)                            /*!< adc regular channel group */
+#define ADC_INSERTED_CHANNEL             ((uint8_t)0x02U)                            /*!< adc inserted channel group */
+#define ADC_REGULAR_INSERTED_CHANNEL     ((uint8_t)0x03U)                            /*!< both regular and inserted channel group */
+
+#define ADC_CHANNEL_DISCON_DISABLE       ((uint8_t)0x04U)                            /*!< disable discontinuous mode of regular & inserted channel */
+
+/* ADC inserted channel definitions */
+#define ADC_INSERTED_CHANNEL_0           ((uint8_t)0x00U)                            /*!< adc inserted channel 0 */
+#define ADC_INSERTED_CHANNEL_1           ((uint8_t)0x01U)                            /*!< adc inserted channel 1 */
+#define ADC_INSERTED_CHANNEL_2           ((uint8_t)0x02U)                            /*!< adc inserted channel 2 */
+#define ADC_INSERTED_CHANNEL_3           ((uint8_t)0x03U)                            /*!< adc inserted channel 3 */
+
+/* ADC channel definitions */
+#define ADC_CHANNEL_0                    ((uint8_t)0x00U)                            /*!< ADC channel 0 */
+#define ADC_CHANNEL_1                    ((uint8_t)0x01U)                            /*!< ADC channel 1 */
+#define ADC_CHANNEL_2                    ((uint8_t)0x02U)                            /*!< ADC channel 2 */
+#define ADC_CHANNEL_3                    ((uint8_t)0x03U)                            /*!< ADC channel 3 */
+#define ADC_CHANNEL_4                    ((uint8_t)0x04U)                            /*!< ADC channel 4 */
+#define ADC_CHANNEL_5                    ((uint8_t)0x05U)                            /*!< ADC channel 5 */
+#define ADC_CHANNEL_6                    ((uint8_t)0x06U)                            /*!< ADC channel 6 */
+#define ADC_CHANNEL_7                    ((uint8_t)0x07U)                            /*!< ADC channel 7 */
+#define ADC_CHANNEL_8                    ((uint8_t)0x08U)                            /*!< ADC channel 8 */
+#define ADC_CHANNEL_9                    ((uint8_t)0x09U)                            /*!< ADC channel 9 */
+#define ADC_CHANNEL_10                   ((uint8_t)0x0AU)                            /*!< ADC channel 10 */
+#define ADC_CHANNEL_11                   ((uint8_t)0x0BU)                            /*!< ADC channel 11 */
+#define ADC_CHANNEL_12                   ((uint8_t)0x0CU)                            /*!< ADC channel 12 */
+#define ADC_CHANNEL_13                   ((uint8_t)0x0DU)                            /*!< ADC channel 13 */
+#define ADC_CHANNEL_14                   ((uint8_t)0x0EU)                            /*!< ADC channel 14 */
+#define ADC_CHANNEL_15                   ((uint8_t)0x0FU)                            /*!< ADC channel 15 */
+#define ADC_CHANNEL_16                   ((uint8_t)0x10U)                            /*!< ADC channel 16 */
+#define ADC_CHANNEL_17                   ((uint8_t)0x11U)                            /*!< ADC channel 17 */
+
+/* ADC interrupt */
+#define ADC_INT_WDE                      ADC_STAT_WDE                                /*!< analog watchdog event interrupt */
+#define ADC_INT_EOC                      ADC_STAT_EOC                                /*!< end of group conversion interrupt */
+#define ADC_INT_EOIC                     ADC_STAT_EOIC                               /*!< end of inserted group conversion interrupt */
+
+/* ADC interrupt flag */
+#define ADC_INT_FLAG_WDE                 ADC_STAT_WDE                                /*!< analog watchdog event interrupt flag */
+#define ADC_INT_FLAG_EOC                 ADC_STAT_EOC                                /*!< end of group conversion interrupt flag */
+#define ADC_INT_FLAG_EOIC                ADC_STAT_EOIC                               /*!< end of inserted group conversion interrupt flag */
+
+/* ADC resolution definitions */
+#define OVSCR_DRES(regval)               (BITS(12,13) & ((uint32_t)(regval) << 12))
+#define ADC_RESOLUTION_12B               OVSCR_DRES(0)                               /*!< 12-bit ADC resolution */
+#define ADC_RESOLUTION_10B               OVSCR_DRES(1)                               /*!< 10-bit ADC resolution */
+#define ADC_RESOLUTION_8B                OVSCR_DRES(2)                               /*!< 8-bit ADC resolution */
+#define ADC_RESOLUTION_6B                OVSCR_DRES(3)                               /*!< 6-bit ADC resolution */
+
+/* ADC oversampling mode */
+#define ADC_OVERSAMPLING_ALL_CONVERT     0                                           /*!< all oversampled conversions for a channel are done consecutively after a trigger */
+#define ADC_OVERSAMPLING_ONE_CONVERT     1                                           /*!< each oversampled conversion for a channel needs a trigger */
+
+/* ADC oversampling shift */
+#define OVSCR_OVSS(regval)               (BITS(5,8) & ((uint32_t)(regval) << 5))
+#define ADC_OVERSAMPLING_SHIFT_NONE      OVSCR_OVSS(0)                               /*!< no oversampling shift */
+#define ADC_OVERSAMPLING_SHIFT_1B        OVSCR_OVSS(1)                               /*!< 1-bit oversampling shift */
+#define ADC_OVERSAMPLING_SHIFT_2B        OVSCR_OVSS(2)                               /*!< 2-bit oversampling shift */
+#define ADC_OVERSAMPLING_SHIFT_3B        OVSCR_OVSS(3)                               /*!< 3-bit oversampling shift */
+#define ADC_OVERSAMPLING_SHIFT_4B        OVSCR_OVSS(4)                               /*!< 4-bit oversampling shift */
+#define ADC_OVERSAMPLING_SHIFT_5B        OVSCR_OVSS(5)                               /*!< 5-bit oversampling shift */
+#define ADC_OVERSAMPLING_SHIFT_6B        OVSCR_OVSS(6)                               /*!< 6-bit oversampling shift */
+#define ADC_OVERSAMPLING_SHIFT_7B        OVSCR_OVSS(7)                               /*!< 7-bit oversampling shift */
+#define ADC_OVERSAMPLING_SHIFT_8B        OVSCR_OVSS(8)                               /*!< 8-bit oversampling shift */
+
+/* ADC oversampling ratio */
+#define OVSCR_OVSR(regval)               (BITS(2,4) & ((uint32_t)(regval) << 2))
+#define ADC_OVERSAMPLING_RATIO_MUL2      OVSCR_OVSR(0)                               /*!< oversampling ratio X2 */
+#define ADC_OVERSAMPLING_RATIO_MUL4      OVSCR_OVSR(1)                               /*!< oversampling ratio X4 */
+#define ADC_OVERSAMPLING_RATIO_MUL8      OVSCR_OVSR(2)                               /*!< oversampling ratio X8 */
+#define ADC_OVERSAMPLING_RATIO_MUL16     OVSCR_OVSR(3)                               /*!< oversampling ratio X16 */
+#define ADC_OVERSAMPLING_RATIO_MUL32     OVSCR_OVSR(4)                               /*!< oversampling ratio X32 */
+#define ADC_OVERSAMPLING_RATIO_MUL64     OVSCR_OVSR(5)                               /*!< oversampling ratio X64 */
+#define ADC_OVERSAMPLING_RATIO_MUL128    OVSCR_OVSR(6)                               /*!< oversampling ratio X128 */
+#define ADC_OVERSAMPLING_RATIO_MUL256    OVSCR_OVSR(7)                               /*!< oversampling ratio X256 */
+
+/* function declarations */
+/* initialization config */
+/* reset ADC */
+void adc_deinit(uint32_t adc_periph);
+/* configure the ADC sync mode */
+void adc_mode_config(uint32_t mode);
+/* enable or disable ADC special function */
+void adc_special_function_config(uint32_t adc_periph, uint32_t function, ControlStatus newvalue);
+/* configure ADC data alignment */
+void adc_data_alignment_config(uint32_t adc_periph, uint32_t data_alignment);
+/* enable ADC interface */
+void adc_enable(uint32_t adc_periph);
+/* disable ADC interface */
+void adc_disable(uint32_t adc_periph);
+/* ADC calibration and reset calibration */
+void adc_calibration_enable(uint32_t adc_periph);
+/* enable the temperature sensor and Vrefint channel */
+void adc_tempsensor_vrefint_enable(void);
+/* disable the temperature sensor and Vrefint channel */
+void adc_tempsensor_vrefint_disable(void);
+
+/* DMA config */
+/* enable DMA request */
+void adc_dma_mode_enable(uint32_t adc_periph);
+/* disable DMA request */
+void adc_dma_mode_disable(uint32_t adc_periph);
+
+/* regular group and inserted group config */
+/* configure ADC discontinuous mode */
+void adc_discontinuous_mode_config(uint32_t adc_periph, uint8_t adc_channel_group, uint8_t length);
+
+/* configure the length of regular channel group or inserted channel group */
+void adc_channel_length_config(uint32_t adc_periph, uint8_t adc_channel_group, uint32_t length);
+/* configure ADC regular channel */
+void adc_regular_channel_config(uint32_t adc_periph, uint8_t rank, uint8_t adc_channel, uint32_t sample_time);
+/* configure ADC inserted channel */
+void adc_inserted_channel_config(uint32_t adc_periph, uint8_t rank, uint8_t adc_channel, uint32_t sample_time);
+/* configure ADC inserted channel offset */
+void adc_inserted_channel_offset_config(uint32_t adc_periph, uint8_t inserted_channel, uint16_t offset);
+
+/* configure ADC external trigger source */
+void adc_external_trigger_source_config(uint32_t adc_periph, uint8_t adc_channel_group, uint32_t external_trigger_source);
+/* configure ADC external trigger */
+void adc_external_trigger_config(uint32_t adc_periph, uint8_t adc_channel_group, ControlStatus newvalue);
+/* enable ADC software trigger */
+void adc_software_trigger_enable(uint32_t adc_periph, uint8_t adc_channel_group);
+
+/* get channel data */
+/* read ADC regular group data register */
+uint16_t adc_regular_data_read(uint32_t adc_periph);
+/* read ADC inserted group data register */
+uint16_t adc_inserted_data_read(uint32_t adc_periph, uint8_t inserted_channel);
+/* read the last ADC0 and ADC1 conversion result data in sync mode */
+uint32_t adc_sync_mode_convert_value_read(void);
+
+/* watchdog config */
+/* configure ADC analog watchdog single channel */
+void adc_watchdog_single_channel_enable(uint32_t adc_periph, uint8_t adc_channel);
+/* configure ADC analog watchdog group channel */
+void adc_watchdog_group_channel_enable(uint32_t adc_periph, uint8_t adc_channel_group);
+/* disable ADC analog watchdog */
+void adc_watchdog_disable(uint32_t adc_periph);
+/* configure ADC analog watchdog threshold */
+void adc_watchdog_threshold_config(uint32_t adc_periph, uint16_t low_threshold, uint16_t high_threshold);
+
+/* interrupt & flag functions */
+/* get the ADC flag bits */
+FlagStatus adc_flag_get(uint32_t adc_periph, uint32_t adc_flag);
+/* clear the ADC flag bits */
+void adc_flag_clear(uint32_t adc_periph, uint32_t adc_flag);
+/* get the bit state of ADCx software start conversion */
+FlagStatus adc_regular_software_startconv_flag_get(uint32_t adc_periph);
+/* get the bit state of ADCx software inserted channel start conversion */
+FlagStatus adc_inserted_software_startconv_flag_get(uint32_t adc_periph);
+/* get the ADC interrupt bits */
+FlagStatus adc_interrupt_flag_get(uint32_t adc_periph, uint32_t adc_interrupt);
+/* clear the ADC flag */
+void adc_interrupt_flag_clear(uint32_t adc_periph, uint32_t adc_interrupt);
+/* enable ADC interrupt */
+void adc_interrupt_enable(uint32_t adc_periph, uint32_t adc_interrupt);
+/* disable ADC interrupt */
+void adc_interrupt_disable(uint32_t adc_periph, uint32_t adc_interrupt);
+
+/* ADC resolution & oversample */
+/* ADC resolution config */
+void adc_resolution_config(uint32_t adc_periph, uint32_t resolution);
+/* ADC oversample mode config */
+void adc_oversample_mode_config(uint32_t adc_periph, uint8_t mode, uint16_t shift, uint8_t ratio);
+/* enable ADC oversample mode */
+void adc_oversample_mode_enable(uint32_t adc_periph);
+/* disable ADC oversample mode */
+void adc_oversample_mode_disable(uint32_t adc_periph);
+
+#endif /* GD32VF103_ADC_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_bkp.h

@@ -0,0 +1,227 @@
+/*!
+    \file    gd32vf103_bkp.h
+    \brief   definitions for the BKP
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_BKP_H
+#define GD32VF103_BKP_H
+
+#include "gd32vf103.h"
+
+/* BKP definitions */
+#define BKP                             BKP_BASE                 /*!< BKP base address */
+
+/* registers definitions */
+#define BKP_DATA0                       REG16((BKP) + 0x04U)     /*!< BKP data register 0 */
+#define BKP_DATA1                       REG16((BKP) + 0x08U)     /*!< BKP data register 1 */
+#define BKP_DATA2                       REG16((BKP) + 0x0CU)     /*!< BKP data register 2 */
+#define BKP_DATA3                       REG16((BKP) + 0x10U)     /*!< BKP data register 3 */
+#define BKP_DATA4                       REG16((BKP) + 0x14U)     /*!< BKP data register 4 */
+#define BKP_DATA5                       REG16((BKP) + 0x18U)     /*!< BKP data register 5 */
+#define BKP_DATA6                       REG16((BKP) + 0x1CU)     /*!< BKP data register 6 */
+#define BKP_DATA7                       REG16((BKP) + 0x20U)     /*!< BKP data register 7 */
+#define BKP_DATA8                       REG16((BKP) + 0x24U)     /*!< BKP data register 8 */
+#define BKP_DATA9                       REG16((BKP) + 0x28U)     /*!< BKP data register 9 */
+#define BKP_DATA10                      REG16((BKP) + 0x40U)     /*!< BKP data register 10 */
+#define BKP_DATA11                      REG16((BKP) + 0x44U)     /*!< BKP data register 11 */
+#define BKP_DATA12                      REG16((BKP) + 0x48U)     /*!< BKP data register 12 */
+#define BKP_DATA13                      REG16((BKP) + 0x4CU)     /*!< BKP data register 13 */
+#define BKP_DATA14                      REG16((BKP) + 0x50U)     /*!< BKP data register 14 */
+#define BKP_DATA15                      REG16((BKP) + 0x54U)     /*!< BKP data register 15 */
+#define BKP_DATA16                      REG16((BKP) + 0x58U)     /*!< BKP data register 16 */
+#define BKP_DATA17                      REG16((BKP) + 0x5CU)     /*!< BKP data register 17 */
+#define BKP_DATA18                      REG16((BKP) + 0x60U)     /*!< BKP data register 18 */
+#define BKP_DATA19                      REG16((BKP) + 0x64U)     /*!< BKP data register 19 */
+#define BKP_DATA20                      REG16((BKP) + 0x68U)     /*!< BKP data register 20 */
+#define BKP_DATA21                      REG16((BKP) + 0x6CU)     /*!< BKP data register 21 */
+#define BKP_DATA22                      REG16((BKP) + 0x70U)     /*!< BKP data register 22 */
+#define BKP_DATA23                      REG16((BKP) + 0x74U)     /*!< BKP data register 23 */
+#define BKP_DATA24                      REG16((BKP) + 0x78U)     /*!< BKP data register 24 */
+#define BKP_DATA25                      REG16((BKP) + 0x7CU)     /*!< BKP data register 25 */
+#define BKP_DATA26                      REG16((BKP) + 0x80U)     /*!< BKP data register 26 */
+#define BKP_DATA27                      REG16((BKP) + 0x84U)     /*!< BKP data register 27 */
+#define BKP_DATA28                      REG16((BKP) + 0x88U)     /*!< BKP data register 28 */
+#define BKP_DATA29                      REG16((BKP) + 0x8CU)     /*!< BKP data register 29 */
+#define BKP_DATA30                      REG16((BKP) + 0x90U)     /*!< BKP data register 30 */
+#define BKP_DATA31                      REG16((BKP) + 0x94U)     /*!< BKP data register 31 */
+#define BKP_DATA32                      REG16((BKP) + 0x98U)     /*!< BKP data register 32 */
+#define BKP_DATA33                      REG16((BKP) + 0x9CU)     /*!< BKP data register 33 */
+#define BKP_DATA34                      REG16((BKP) + 0xA0U)     /*!< BKP data register 34 */
+#define BKP_DATA35                      REG16((BKP) + 0xA4U)     /*!< BKP data register 35 */
+#define BKP_DATA36                      REG16((BKP) + 0xA8U)     /*!< BKP data register 36 */
+#define BKP_DATA37                      REG16((BKP) + 0xACU)     /*!< BKP data register 37 */
+#define BKP_DATA38                      REG16((BKP) + 0xB0U)     /*!< BKP data register 38 */
+#define BKP_DATA39                      REG16((BKP) + 0xB4U)     /*!< BKP data register 39 */
+#define BKP_DATA40                      REG16((BKP) + 0xB8U)     /*!< BKP data register 40 */
+#define BKP_DATA41                      REG16((BKP) + 0xBCU)     /*!< BKP data register 41 */
+#define BKP_OCTL                        REG16((BKP) + 0x2CU)     /*!< RTC signal output control register */
+#define BKP_TPCTL                       REG16((BKP) + 0x30U)     /*!< tamper pin control register */
+#define BKP_TPCS                        REG16((BKP) + 0x34U)     /*!< tamper control and status register */
+
+/* bits definitions */
+/* BKP_DATA */
+#define BKP_DATA                        BITS(0,15)               /*!< backup data */
+
+/* BKP_OCTL */
+#define BKP_OCTL_RCCV                   BITS(0,6)                /*!< RTC clock calibration value */
+#define BKP_OCTL_COEN                   BIT(7)                   /*!< RTC clock calibration output enable */
+#define BKP_OCTL_ASOEN                  BIT(8)                   /*!< RTC alarm or second signal output enable */
+#define BKP_OCTL_ROSEL                  BIT(9)                   /*!< RTC output selection */
+
+/* BKP_TPCTL */
+#define BKP_TPCTL_TPEN                  BIT(0)                   /*!< tamper detection enable */
+#define BKP_TPCTL_TPAL                  BIT(1)                   /*!< tamper pin active level */
+
+/* BKP_TPCS */
+#define BKP_TPCS_TER                    BIT(0)                   /*!< tamper event reset */
+#define BKP_TPCS_TIR                    BIT(1)                   /*!< tamper interrupt reset */
+#define BKP_TPCS_TPIE                   BIT(2)                   /*!< tamper interrupt enable */
+#define BKP_TPCS_TEF                    BIT(8)                   /*!< tamper event flag */
+#define BKP_TPCS_TIF                    BIT(9)                   /*!< tamper interrupt flag */
+
+/* constants definitions */
+/* BKP data register number */
+typedef enum
+{
+    BKP_DATA_0 = 1,                                              /*!< BKP data register 0 */
+    BKP_DATA_1,                                                  /*!< BKP data register 1 */
+    BKP_DATA_2,                                                  /*!< BKP data register 2 */
+    BKP_DATA_3,                                                  /*!< BKP data register 3 */
+    BKP_DATA_4,                                                  /*!< BKP data register 4 */
+    BKP_DATA_5,                                                  /*!< BKP data register 5 */
+    BKP_DATA_6,                                                  /*!< BKP data register 6 */
+    BKP_DATA_7,                                                  /*!< BKP data register 7 */
+    BKP_DATA_8,                                                  /*!< BKP data register 8 */
+    BKP_DATA_9,                                                  /*!< BKP data register 9 */
+    BKP_DATA_10,                                                 /*!< BKP data register 10 */
+    BKP_DATA_11,                                                 /*!< BKP data register 11 */
+    BKP_DATA_12,                                                 /*!< BKP data register 12 */
+    BKP_DATA_13,                                                 /*!< BKP data register 13 */
+    BKP_DATA_14,                                                 /*!< BKP data register 14 */
+    BKP_DATA_15,                                                 /*!< BKP data register 15 */
+    BKP_DATA_16,                                                 /*!< BKP data register 16 */
+    BKP_DATA_17,                                                 /*!< BKP data register 17 */
+    BKP_DATA_18,                                                 /*!< BKP data register 18 */
+    BKP_DATA_19,                                                 /*!< BKP data register 19 */
+    BKP_DATA_20,                                                 /*!< BKP data register 20 */
+    BKP_DATA_21,                                                 /*!< BKP data register 21 */
+    BKP_DATA_22,                                                 /*!< BKP data register 22 */
+    BKP_DATA_23,                                                 /*!< BKP data register 23 */
+    BKP_DATA_24,                                                 /*!< BKP data register 24 */
+    BKP_DATA_25,                                                 /*!< BKP data register 25 */
+    BKP_DATA_26,                                                 /*!< BKP data register 26 */
+    BKP_DATA_27,                                                 /*!< BKP data register 27 */
+    BKP_DATA_28,                                                 /*!< BKP data register 28 */
+    BKP_DATA_29,                                                 /*!< BKP data register 29 */
+    BKP_DATA_30,                                                 /*!< BKP data register 30 */
+    BKP_DATA_31,                                                 /*!< BKP data register 31 */
+    BKP_DATA_32,                                                 /*!< BKP data register 32 */
+    BKP_DATA_33,                                                 /*!< BKP data register 33 */
+    BKP_DATA_34,                                                 /*!< BKP data register 34 */
+    BKP_DATA_35,                                                 /*!< BKP data register 35 */
+    BKP_DATA_36,                                                 /*!< BKP data register 36 */
+    BKP_DATA_37,                                                 /*!< BKP data register 37 */
+    BKP_DATA_38,                                                 /*!< BKP data register 38 */
+    BKP_DATA_39,                                                 /*!< BKP data register 39 */
+    BKP_DATA_40,                                                 /*!< BKP data register 40 */
+    BKP_DATA_41,                                                 /*!< BKP data register 41 */
+}bkp_data_register_enum;
+
+/* BKP register */
+#define BKP_DATA0_9(number)             REG16((BKP) + 0x04U + (number) * 0x04U)
+#define BKP_DATA10_41(number)           REG16((BKP) + 0x40U + ((number)-10U) * 0x04U)
+
+/* get data of BKP data register */
+#define BKP_DATA_GET(regval)            GET_BITS((uint32_t)(regval), 0, 15)
+
+/* RTC clock calibration value */
+#define OCTL_RCCV(regval)               (BITS(0,6) & ((uint32_t)(regval) << 0))
+
+/* RTC output selection */
+#define RTC_OUTPUT_ALARM_PULSE          ((uint16_t)0x0000U)      /*!< RTC alarm pulse is selected as the RTC output */
+#define RTC_OUTPUT_SECOND_PULSE         ((uint16_t)0x0200U)      /*!< RTC second pulse is selected as the RTC output */
+
+/* tamper pin active level */
+#define TAMPER_PIN_ACTIVE_HIGH          ((uint16_t)0x0000U)      /*!< the tamper pin is active high */
+#define TAMPER_PIN_ACTIVE_LOW           ((uint16_t)0x0002U)      /*!< the tamper pin is active low */
+
+/* tamper flag */
+#define BKP_FLAG_TAMPER                 BKP_TPCS_TEF             /*!< tamper event flag */
+
+/* tamper interrupt flag */
+#define BKP_INT_FLAG_TAMPER             BKP_TPCS_TIF             /*!< tamper interrupt flag */
+
+/* function declarations */
+/* reset BKP registers */
+void bkp_deinit(void);
+/* write BKP data register */
+void bkp_data_write(bkp_data_register_enum register_number, uint16_t data);
+/* read BKP data register */
+uint16_t bkp_data_read(bkp_data_register_enum register_number);
+
+/* RTC related functions */
+/* enable RTC clock calibration output */
+void bkp_rtc_calibration_output_enable(void);
+/* disable RTC clock calibration output */
+void bkp_rtc_calibration_output_disable(void);
+/* enable RTC alarm or second signal output */
+void bkp_rtc_signal_output_enable(void);
+/* disable RTC alarm or second signal output */
+void bkp_rtc_signal_output_disable(void);
+/* select RTC output */
+void bkp_rtc_output_select(uint16_t outputsel);
+/* set RTC clock calibration value */
+void bkp_rtc_calibration_value_set(uint8_t value);
+
+/* tamper pin related functions */
+/* enable tamper pin detection */
+void bkp_tamper_detection_enable(void);
+/* disable tamper pin detection */
+void bkp_tamper_detection_disable(void);
+/* set tamper pin active level */
+void bkp_tamper_active_level_set(uint16_t level);
+
+/* interrupt & flag functions */
+/* enable tamper interrupt */
+void bkp_interrupt_enable(void);
+/* disable tamper interrupt */
+void bkp_interrupt_disable(void);
+/* get tamper flag state */
+FlagStatus bkp_flag_get(void);
+/* clear tamper flag state */
+void bkp_flag_clear(void);
+/* get tamper interrupt flag state */
+FlagStatus bkp_interrupt_flag_get(void);
+/* clear tamper interrupt flag state */
+void bkp_interrupt_flag_clear(void);
+
+#endif /* GD32VF103_BKP_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_can.h

@@ -0,0 +1,717 @@
+/*!
+    \file  gd32vf103_can.h
+    \brief definitions for the CAN
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_CAN_H
+#define GD32VF103_CAN_H
+
+#include "gd32vf103.h"
+
+/* CAN definitions */
+#define CAN0                               CAN_BASE                      /*!< CAN0 base address */
+#define CAN1                               (CAN0 + 0x00000400U)          /*!< CAN1 base address */
+
+/* registers definitions */
+#define CAN_CTL(canx)                      REG32((canx) + 0x00U)         /*!< CAN control register */
+#define CAN_STAT(canx)                     REG32((canx) + 0x04U)         /*!< CAN status register */
+#define CAN_TSTAT(canx)                    REG32((canx) + 0x08U)         /*!< CAN transmit status register*/
+#define CAN_RFIFO0(canx)                   REG32((canx) + 0x0CU)         /*!< CAN receive FIFO0 register */
+#define CAN_RFIFO1(canx)                   REG32((canx) + 0x10U)         /*!< CAN receive FIFO1 register */
+#define CAN_INTEN(canx)                    REG32((canx) + 0x14U)         /*!< CAN interrupt enable register */
+#define CAN_ERR(canx)                      REG32((canx) + 0x18U)         /*!< CAN error register */
+#define CAN_BT(canx)                       REG32((canx) + 0x1CU)         /*!< CAN bit timing register */
+#define CAN_TMI0(canx)                     REG32((canx) + 0x180U)        /*!< CAN transmit mailbox0 identifier register */
+#define CAN_TMP0(canx)                     REG32((canx) + 0x184U)        /*!< CAN transmit mailbox0 property register */
+#define CAN_TMDATA00(canx)                 REG32((canx) + 0x188U)        /*!< CAN transmit mailbox0 data0 register */
+#define CAN_TMDATA10(canx)                 REG32((canx) + 0x18CU)        /*!< CAN transmit mailbox0 data1 register */
+#define CAN_TMI1(canx)                     REG32((canx) + 0x190U)        /*!< CAN transmit mailbox1 identifier register */
+#define CAN_TMP1(canx)                     REG32((canx) + 0x194U)        /*!< CAN transmit mailbox1 property register */
+#define CAN_TMDATA01(canx)                 REG32((canx) + 0x198U)        /*!< CAN transmit mailbox1 data0 register */
+#define CAN_TMDATA11(canx)                 REG32((canx) + 0x19CU)        /*!< CAN transmit mailbox1 data1 register */
+#define CAN_TMI2(canx)                     REG32((canx) + 0x1A0U)        /*!< CAN transmit mailbox2 identifier register */
+#define CAN_TMP2(canx)                     REG32((canx) + 0x1A4U)        /*!< CAN transmit mailbox2 property register */
+#define CAN_TMDATA02(canx)                 REG32((canx) + 0x1A8U)        /*!< CAN transmit mailbox2 data0 register */
+#define CAN_TMDATA12(canx)                 REG32((canx) + 0x1ACU)        /*!< CAN transmit mailbox2 data1 register */
+#define CAN_RFIFOMI0(canx)                 REG32((canx) + 0x1B0U)        /*!< CAN receive FIFO0 mailbox identifier register */
+#define CAN_RFIFOMP0(canx)                 REG32((canx) + 0x1B4U)        /*!< CAN receive FIFO0 mailbox property register */
+#define CAN_RFIFOMDATA00(canx)             REG32((canx) + 0x1B8U)        /*!< CAN receive FIFO0 mailbox data0 register */
+#define CAN_RFIFOMDATA10(canx)             REG32((canx) + 0x1BCU)        /*!< CAN receive FIFO0 mailbox data1 register */
+#define CAN_RFIFOMI1(canx)                 REG32((canx) + 0x1C0U)        /*!< CAN receive FIFO1 mailbox identifier register */
+#define CAN_RFIFOMP1(canx)                 REG32((canx) + 0x1C4U)        /*!< CAN receive FIFO1 mailbox property register */
+#define CAN_RFIFOMDATA01(canx)             REG32((canx) + 0x1C8U)        /*!< CAN receive FIFO1 mailbox data0 register */
+#define CAN_RFIFOMDATA11(canx)             REG32((canx) + 0x1CCU)        /*!< CAN receive FIFO1 mailbox data1 register */
+#define CAN_FCTL(canx)                     REG32((canx) + 0x200U)        /*!< CAN filter control register */
+#define CAN_FMCFG(canx)                    REG32((canx) + 0x204U)        /*!< CAN filter mode register */
+#define CAN_FSCFG(canx)                    REG32((canx) + 0x20CU)        /*!< CAN filter scale register */
+#define CAN_FAFIFO(canx)                   REG32((canx) + 0x214U)        /*!< CAN filter associated FIFO register */
+#define CAN_FW(canx)                       REG32((canx) + 0x21CU)        /*!< CAN filter working register */
+#define CAN_F0DATA0(canx)                  REG32((canx) + 0x240U)        /*!< CAN filter 0 data 0 register */
+#define CAN_F1DATA0(canx)                  REG32((canx) + 0x248U)        /*!< CAN filter 1 data 0 register */
+#define CAN_F2DATA0(canx)                  REG32((canx) + 0x250U)        /*!< CAN filter 2 data 0 register */
+#define CAN_F3DATA0(canx)                  REG32((canx) + 0x258U)        /*!< CAN filter 3 data 0 register */
+#define CAN_F4DATA0(canx)                  REG32((canx) + 0x260U)        /*!< CAN filter 4 data 0 register */
+#define CAN_F5DATA0(canx)                  REG32((canx) + 0x268U)        /*!< CAN filter 5 data 0 register */
+#define CAN_F6DATA0(canx)                  REG32((canx) + 0x270U)        /*!< CAN filter 6 data 0 register */
+#define CAN_F7DATA0(canx)                  REG32((canx) + 0x278U)        /*!< CAN filter 7 data 0 register */
+#define CAN_F8DATA0(canx)                  REG32((canx) + 0x280U)        /*!< CAN filter 8 data 0 register */
+#define CAN_F9DATA0(canx)                  REG32((canx) + 0x288U)        /*!< CAN filter 9 data 0 register */
+#define CAN_F10DATA0(canx)                 REG32((canx) + 0x290U)        /*!< CAN filter 10 data 0 register */
+#define CAN_F11DATA0(canx)                 REG32((canx) + 0x298U)        /*!< CAN filter 11 data 0 register */
+#define CAN_F12DATA0(canx)                 REG32((canx) + 0x2A0U)        /*!< CAN filter 12 data 0 register */
+#define CAN_F13DATA0(canx)                 REG32((canx) + 0x2A8U)        /*!< CAN filter 13 data 0 register */
+#define CAN_F14DATA0(canx)                 REG32((canx) + 0x2B0U)        /*!< CAN filter 14 data 0 register */
+#define CAN_F15DATA0(canx)                 REG32((canx) + 0x2B8U)        /*!< CAN filter 15 data 0 register */
+#define CAN_F16DATA0(canx)                 REG32((canx) + 0x2C0U)        /*!< CAN filter 16 data 0 register */
+#define CAN_F17DATA0(canx)                 REG32((canx) + 0x2C8U)        /*!< CAN filter 17 data 0 register */
+#define CAN_F18DATA0(canx)                 REG32((canx) + 0x2D0U)        /*!< CAN filter 18 data 0 register */
+#define CAN_F19DATA0(canx)                 REG32((canx) + 0x2D8U)        /*!< CAN filter 19 data 0 register */
+#define CAN_F20DATA0(canx)                 REG32((canx) + 0x2E0U)        /*!< CAN filter 20 data 0 register */
+#define CAN_F21DATA0(canx)                 REG32((canx) + 0x2E8U)        /*!< CAN filter 21 data 0 register */
+#define CAN_F22DATA0(canx)                 REG32((canx) + 0x2F0U)        /*!< CAN filter 22 data 0 register */
+#define CAN_F23DATA0(canx)                 REG32((canx) + 0x3F8U)        /*!< CAN filter 23 data 0 register */
+#define CAN_F24DATA0(canx)                 REG32((canx) + 0x300U)        /*!< CAN filter 24 data 0 register */
+#define CAN_F25DATA0(canx)                 REG32((canx) + 0x308U)        /*!< CAN filter 25 data 0 register */
+#define CAN_F26DATA0(canx)                 REG32((canx) + 0x310U)        /*!< CAN filter 26 data 0 register */
+#define CAN_F27DATA0(canx)                 REG32((canx) + 0x318U)        /*!< CAN filter 27 data 0 register */
+#define CAN_F0DATA1(canx)                  REG32((canx) + 0x244U)        /*!< CAN filter 0 data 1 register */
+#define CAN_F1DATA1(canx)                  REG32((canx) + 0x24CU)        /*!< CAN filter 1 data 1 register */
+#define CAN_F2DATA1(canx)                  REG32((canx) + 0x254U)        /*!< CAN filter 2 data 1 register */
+#define CAN_F3DATA1(canx)                  REG32((canx) + 0x25CU)        /*!< CAN filter 3 data 1 register */
+#define CAN_F4DATA1(canx)                  REG32((canx) + 0x264U)        /*!< CAN filter 4 data 1 register */
+#define CAN_F5DATA1(canx)                  REG32((canx) + 0x26CU)        /*!< CAN filter 5 data 1 register */
+#define CAN_F6DATA1(canx)                  REG32((canx) + 0x274U)        /*!< CAN filter 6 data 1 register */
+#define CAN_F7DATA1(canx)                  REG32((canx) + 0x27CU)        /*!< CAN filter 7 data 1 register */
+#define CAN_F8DATA1(canx)                  REG32((canx) + 0x284U)        /*!< CAN filter 8 data 1 register */
+#define CAN_F9DATA1(canx)                  REG32((canx) + 0x28CU)        /*!< CAN filter 9 data 1 register */
+#define CAN_F10DATA1(canx)                 REG32((canx) + 0x294U)        /*!< CAN filter 10 data 1 register */
+#define CAN_F11DATA1(canx)                 REG32((canx) + 0x29CU)        /*!< CAN filter 11 data 1 register */
+#define CAN_F12DATA1(canx)                 REG32((canx) + 0x2A4U)        /*!< CAN filter 12 data 1 register */
+#define CAN_F13DATA1(canx)                 REG32((canx) + 0x2ACU)        /*!< CAN filter 13 data 1 register */
+#define CAN_F14DATA1(canx)                 REG32((canx) + 0x2B4U)        /*!< CAN filter 14 data 1 register */
+#define CAN_F15DATA1(canx)                 REG32((canx) + 0x2BCU)        /*!< CAN filter 15 data 1 register */
+#define CAN_F16DATA1(canx)                 REG32((canx) + 0x2C4U)        /*!< CAN filter 16 data 1 register */
+#define CAN_F17DATA1(canx)                 REG32((canx) + 0x24CU)        /*!< CAN filter 17 data 1 register */
+#define CAN_F18DATA1(canx)                 REG32((canx) + 0x2D4U)        /*!< CAN filter 18 data 1 register */
+#define CAN_F19DATA1(canx)                 REG32((canx) + 0x2DCU)        /*!< CAN filter 19 data 1 register */
+#define CAN_F20DATA1(canx)                 REG32((canx) + 0x2E4U)        /*!< CAN filter 20 data 1 register */
+#define CAN_F21DATA1(canx)                 REG32((canx) + 0x2ECU)        /*!< CAN filter 21 data 1 register */
+#define CAN_F22DATA1(canx)                 REG32((canx) + 0x2F4U)        /*!< CAN filter 22 data 1 register */
+#define CAN_F23DATA1(canx)                 REG32((canx) + 0x2FCU)        /*!< CAN filter 23 data 1 register */
+#define CAN_F24DATA1(canx)                 REG32((canx) + 0x304U)        /*!< CAN filter 24 data 1 register */
+#define CAN_F25DATA1(canx)                 REG32((canx) + 0x30CU)        /*!< CAN filter 25 data 1 register */
+#define CAN_F26DATA1(canx)                 REG32((canx) + 0x314U)        /*!< CAN filter 26 data 1 register */
+#define CAN_F27DATA1(canx)                 REG32((canx) + 0x31CU)        /*!< CAN filter 27 data 1 register */
+
+/* CAN transmit mailbox bank */
+#define CAN_TMI(canx, bank)                REG32((canx) + 0x180U + ((bank) * 0x10U))        /*!< CAN transmit mailbox identifier register */
+#define CAN_TMP(canx, bank)                REG32((canx) + 0x184U + ((bank) * 0x10U))        /*!< CAN transmit mailbox property register */
+#define CAN_TMDATA0(canx, bank)            REG32((canx) + 0x188U + ((bank) * 0x10U))        /*!< CAN transmit mailbox data0 register */
+#define CAN_TMDATA1(canx, bank)            REG32((canx) + 0x18CU + ((bank) * 0x10U))        /*!< CAN transmit mailbox data1 register */
+
+/* CAN filter bank */
+#define CAN_FDATA0(canx, bank)             REG32((canx) + 0x240U + ((bank) * 0x8U) + 0x0U)  /*!< CAN filter data 0 register */
+#define CAN_FDATA1(canx, bank)             REG32((canx) + 0x240U + ((bank) * 0x8U) + 0x4U)  /*!< CAN filter data 1 register */
+
+/* CAN receive fifo mailbox bank */
+#define CAN_RFIFOMI(canx, bank)            REG32((canx) + 0x1B0U + ((bank) * 0x10U))        /*!< CAN receive FIFO mailbox identifier register */
+#define CAN_RFIFOMP(canx, bank)            REG32((canx) + 0x1B4U + ((bank) * 0x10U))        /*!< CAN receive FIFO mailbox property register */
+#define CAN_RFIFOMDATA0(canx, bank)        REG32((canx) + 0x1B8U + ((bank) * 0x10U))        /*!< CAN receive FIFO mailbox data0 register */
+#define CAN_RFIFOMDATA1(canx, bank)        REG32((canx) + 0x1BCU + ((bank) * 0x10U))        /*!< CAN receive FIFO mailbox data1 register */
+
+/* bits definitions */
+/* CAN_CTL */
+#define CAN_CTL_IWMOD                      BIT(0)                       /*!< initial working mode */
+#define CAN_CTL_SLPWMOD                    BIT(1)                       /*!< sleep working mode */
+#define CAN_CTL_TFO                        BIT(2)                       /*!< transmit FIFO order */
+#define CAN_CTL_RFOD                       BIT(3)                       /*!< receive FIFO overwrite disable */
+#define CAN_CTL_ARD                        BIT(4)                       /*!< automatic retransmission disable */
+#define CAN_CTL_AWU                        BIT(5)                       /*!< automatic wakeup */
+#define CAN_CTL_ABOR                       BIT(6)                       /*!< automatic bus-off recovery */
+#define CAN_CTL_TTC                        BIT(7)                       /*!< time triggered communication */
+#define CAN_CTL_SWRST                      BIT(15)                      /*!< CAN software reset */
+#define CAN_CTL_DFZ                        BIT(16)                      /*!< CAN debug freeze */
+
+/* CAN_STAT */
+#define CAN_STAT_IWS                       BIT(0)                       /*!< initial working state */
+#define CAN_STAT_SLPWS                     BIT(1)                       /*!< sleep working state */
+#define CAN_STAT_ERRIF                     BIT(2)                       /*!< error interrupt flag*/
+#define CAN_STAT_WUIF                      BIT(3)                       /*!< status change interrupt flag of wakeup from sleep working mode */
+#define CAN_STAT_SLPIF                     BIT(4)                       /*!< status change interrupt flag of sleep working mode entering */
+#define CAN_STAT_TS                        BIT(8)                       /*!< transmitting state */
+#define CAN_STAT_RS                        BIT(9)                       /*!< receiving state */
+#define CAN_STAT_LASTRX                    BIT(10)                      /*!< last sample value of rx pin */
+#define CAN_STAT_RXL                       BIT(11)                      /*!< CAN rx signal */
+
+/* CAN_TSTAT */
+#define CAN_TSTAT_MTF0                     BIT(0)                       /*!< mailbox0 transmit finished */
+#define CAN_TSTAT_MTFNERR0                 BIT(1)                       /*!< mailbox0 transmit finished and no error */
+#define CAN_TSTAT_MAL0                     BIT(2)                       /*!< mailbox0 arbitration lost */
+#define CAN_TSTAT_MTE0                     BIT(3)                       /*!< mailbox0 transmit error */
+#define CAN_TSTAT_MST0                     BIT(7)                       /*!< mailbox0 stop transmitting */
+#define CAN_TSTAT_MTF1                     BIT(8)                       /*!< mailbox1 transmit finished */
+#define CAN_TSTAT_MTFNERR1                 BIT(9)                       /*!< mailbox1 transmit finished and no error */
+#define CAN_TSTAT_MAL1                     BIT(10)                      /*!< mailbox1 arbitration lost */
+#define CAN_TSTAT_MTE1                     BIT(11)                      /*!< mailbox1 transmit error */
+#define CAN_TSTAT_MST1                     BIT(15)                      /*!< mailbox1 stop transmitting */
+#define CAN_TSTAT_MTF2                     BIT(16)                      /*!< mailbox2 transmit finished */
+#define CAN_TSTAT_MTFNERR2                 BIT(17)                      /*!< mailbox2 transmit finished and no error */
+#define CAN_TSTAT_MAL2                     BIT(18)                      /*!< mailbox2 arbitration lost */
+#define CAN_TSTAT_MTE2                     BIT(19)                      /*!< mailbox2 transmit error */
+#define CAN_TSTAT_MST2                     BIT(23)                      /*!< mailbox2 stop transmitting */
+#define CAN_TSTAT_NUM                      BITS(24,25)                  /*!< mailbox number */
+#define CAN_TSTAT_TME0                     BIT(26)                      /*!< transmit mailbox0 empty */
+#define CAN_TSTAT_TME1                     BIT(27)                      /*!< transmit mailbox1 empty */
+#define CAN_TSTAT_TME2                     BIT(28)                      /*!< transmit mailbox2 empty */
+#define CAN_TSTAT_TMLS0                    BIT(29)                      /*!< last sending priority flag for mailbox0 */
+#define CAN_TSTAT_TMLS1                    BIT(30)                      /*!< last sending priority flag for mailbox1 */
+#define CAN_TSTAT_TMLS2                    BIT(31)                      /*!< last sending priority flag for mailbox2 */
+
+/* CAN_RFIFO0 */
+#define CAN_RFIFO0_RFL0                    BITS(0,1)                    /*!< receive FIFO0 length */
+#define CAN_RFIFO0_RFF0                    BIT(3)                       /*!< receive FIFO0 full */
+#define CAN_RFIFO0_RFO0                    BIT(4)                       /*!< receive FIFO0 overfull */
+#define CAN_RFIFO0_RFD0                    BIT(5)                       /*!< receive FIFO0 dequeue */
+
+/* CAN_RFIFO1 */
+#define CAN_RFIFO1_RFL1                    BITS(0,1)                    /*!< receive FIFO1 length */
+#define CAN_RFIFO1_RFF1                    BIT(3)                       /*!< receive FIFO1 full */
+#define CAN_RFIFO1_RFO1                    BIT(4)                       /*!< receive FIFO1 overfull */
+#define CAN_RFIFO1_RFD1                    BIT(5)                       /*!< receive FIFO1 dequeue */
+
+/* CAN_INTEN */
+#define CAN_INTEN_TMEIE                    BIT(0)                       /*!< transmit mailbox empty interrupt enable */
+#define CAN_INTEN_RFNEIE0                  BIT(1)                       /*!< receive FIFO0 not empty interrupt enable */
+#define CAN_INTEN_RFFIE0                   BIT(2)                       /*!< receive FIFO0 full interrupt enable */
+#define CAN_INTEN_RFOIE0                   BIT(3)                       /*!< receive FIFO0 overfull interrupt enable */
+#define CAN_INTEN_RFNEIE1                  BIT(4)                       /*!< receive FIFO1 not empty interrupt enable */
+#define CAN_INTEN_RFFIE1                   BIT(5)                       /*!< receive FIFO1 full interrupt enable */
+#define CAN_INTEN_RFOIE1                   BIT(6)                       /*!< receive FIFO1 overfull interrupt enable */
+#define CAN_INTEN_WERRIE                   BIT(8)                       /*!< warning error interrupt enable */
+#define CAN_INTEN_PERRIE                   BIT(9)                       /*!< passive error interrupt enable */
+#define CAN_INTEN_BOIE                     BIT(10)                      /*!< bus-off interrupt enable */
+#define CAN_INTEN_ERRNIE                   BIT(11)                      /*!< error number interrupt enable */
+#define CAN_INTEN_ERRIE                    BIT(15)                      /*!< error interrupt enable */
+#define CAN_INTEN_WIE                      BIT(16)                      /*!< wakeup interrupt enable */
+#define CAN_INTEN_SLPWIE                   BIT(17)                      /*!< sleep working interrupt enable */
+
+/* CAN_ERR */
+#define CAN_ERR_WERR                       BIT(0)                       /*!< warning error */
+#define CAN_ERR_PERR                       BIT(1)                       /*!< passive error */
+#define CAN_ERR_BOERR                      BIT(2)                       /*!< bus-off error */
+#define CAN_ERR_ERRN                       BITS(4,6)                    /*!< error number */
+#define CAN_ERR_TECNT                      BITS(16,23)                  /*!< transmit error count */
+#define CAN_ERR_RECNT                      BITS(24,31)                  /*!< receive error count */
+
+/* CAN_BT */
+#define CAN_BT_BAUDPSC                     BITS(0,9)                    /*!< baudrate prescaler */
+#define CAN_BT_BS1                         BITS(16,19)                  /*!< bit segment 1 */
+#define CAN_BT_BS2                         BITS(20,22)                  /*!< bit segment 2 */
+#define CAN_BT_SJW                         BITS(24,25)                  /*!< resynchronization jump width */
+#define CAN_BT_LCMOD                       BIT(30)                      /*!< loopback communication mode */
+#define CAN_BT_SCMOD                       BIT(31)                      /*!< silent communication mode */
+
+/* CAN_TMIx */
+#define CAN_TMI_TEN                        BIT(0)                       /*!< transmit enable */
+#define CAN_TMI_FT                         BIT(1)                       /*!< frame type */
+#define CAN_TMI_FF                         BIT(2)                       /*!< frame format */
+#define CAN_TMI_EFID                       BITS(3,31)                   /*!< the frame identifier */
+#define CAN_TMI_SFID                       BITS(21,31)                  /*!< the frame identifier */
+
+/* CAN_TMPx */
+#define CAN_TMP_DLENC                      BITS(0,3)                    /*!< data length code */
+#define CAN_TMP_TSEN                       BIT(8)                       /*!< time stamp enable */
+#define CAN_TMP_TS                         BITS(16,31)                  /*!< time stamp */
+
+/* CAN_TMDATA0x */
+#define CAN_TMDATA0_DB0                    BITS(0,7)                    /*!< transmit data byte 0 */
+#define CAN_TMDATA0_DB1                    BITS(8,15)                   /*!< transmit data byte 1 */
+#define CAN_TMDATA0_DB2                    BITS(16,23)                  /*!< transmit data byte 2 */
+#define CAN_TMDATA0_DB3                    BITS(24,31)                  /*!< transmit data byte 3 */
+
+/* CAN_TMDATA1x */
+#define CAN_TMDATA1_DB4                    BITS(0,7)                    /*!< transmit data byte 4 */
+#define CAN_TMDATA1_DB5                    BITS(8,15)                   /*!< transmit data byte 5 */
+#define CAN_TMDATA1_DB6                    BITS(16,23)                  /*!< transmit data byte 6 */
+#define CAN_TMDATA1_DB7                    BITS(24,31)                  /*!< transmit data byte 7 */
+
+/* CAN_RFIFOMIx */
+#define CAN_RFIFOMI_FT                     BIT(1)                       /*!< frame type */
+#define CAN_RFIFOMI_FF                     BIT(2)                       /*!< frame format */
+#define CAN_RFIFOMI_EFID                   BITS(3,31)                   /*!< the frame identifier */
+#define CAN_RFIFOMI_SFID                   BITS(21,31)                  /*!< the frame identifier */
+
+/* CAN_RFIFOMPx */
+#define CAN_RFIFOMP_DLENC                  BITS(0,3)                    /*!< receive data length code */
+#define CAN_RFIFOMP_FI                     BITS(8,15)                   /*!< filter index */
+#define CAN_RFIFOMP_TS                     BITS(16,31)                  /*!< time stamp */
+
+/* CAN_RFIFOMDATA0x */
+#define CAN_RFIFOMDATA0_DB0                BITS(0,7)                    /*!< receive data byte 0 */
+#define CAN_RFIFOMDATA0_DB1                BITS(8,15)                   /*!< receive data byte 1 */
+#define CAN_RFIFOMDATA0_DB2                BITS(16,23)                  /*!< receive data byte 2 */
+#define CAN_RFIFOMDATA0_DB3                BITS(24,31)                  /*!< receive data byte 3 */
+
+/* CAN_RFIFOMDATA1x */
+#define CAN_RFIFOMDATA1_DB4                BITS(0,7)                    /*!< receive data byte 4 */
+#define CAN_RFIFOMDATA1_DB5                BITS(8,15)                   /*!< receive data byte 5 */
+#define CAN_RFIFOMDATA1_DB6                BITS(16,23)                  /*!< receive data byte 6 */
+#define CAN_RFIFOMDATA1_DB7                BITS(24,31)                  /*!< receive data byte 7 */
+
+/* CAN_FCTL */
+#define CAN_FCTL_FLD                       BIT(0)                       /*!< filter lock disable */
+#define CAN_FCTL_HBC1F                     BITS(8,13)                   /*!< header bank of CAN1 filter */
+
+/* CAN_FMCFG */
+#define CAN_FMCFG_FMOD(regval)             BIT(regval)                  /*!< filter mode, list or mask*/
+
+/* CAN_FSCFG */
+#define CAN_FSCFG_FS(regval)               BIT(regval)                  /*!< filter scale, 32 bits or 16 bits*/
+
+/* CAN_FAFIFO */
+#define CAN_FAFIFOR_FAF(regval)            BIT(regval)                  /*!< filter associated with FIFO */
+
+/* CAN_FW */
+#define CAN_FW_FW(regval)                  BIT(regval)                  /*!< filter working */
+
+/* CAN_FxDATAy */
+#define CAN_FDATA_FD(regval)               BIT(regval)                  /*!< filter data */
+
+/* consts definitions */
+/* define the CAN bit position and its register index offset */
+#define CAN_REGIDX_BIT(regidx, bitpos)              (((uint32_t)(regidx) << 6) | (uint32_t)(bitpos))
+#define CAN_REG_VAL(canx, offset)                   (REG32((canx) + ((uint32_t)(offset) >> 6)))
+#define CAN_BIT_POS(val)                            ((uint32_t)(val) & 0x1FU)
+
+#define CAN_REGIDX_BITS(regidx, bitpos0, bitpos1)   (((uint32_t)(regidx) << 12) | ((uint32_t)(bitpos0) << 6) | (uint32_t)(bitpos1))
+#define CAN_REG_VALS(canx, offset)                  (REG32((canx) + ((uint32_t)(offset) >> 12)))
+#define CAN_BIT_POS0(val)                           (((uint32_t)(val) >> 6) & 0x1FU)
+#define CAN_BIT_POS1(val)                           ((uint32_t)(val) & 0x1FU)
+
+/* register offset */
+#define STAT_REG_OFFSET                    ((uint8_t)0x04U)             /*!< STAT register offset */
+#define TSTAT_REG_OFFSET                   ((uint8_t)0x08U)             /*!< TSTAT register offset */
+#define RFIFO0_REG_OFFSET                  ((uint8_t)0x0CU)             /*!< RFIFO0 register offset */
+#define RFIFO1_REG_OFFSET                  ((uint8_t)0x10U)             /*!< RFIFO1 register offset */
+#define ERR_REG_OFFSET                     ((uint8_t)0x18U)             /*!< ERR register offset */
+
+/* CAN flags */
+typedef enum {
+	/* flags in TSTAT register */
+	CAN_FLAG_MTE2 = CAN_REGIDX_BIT(TSTAT_REG_OFFSET, 19U), /*!< mailbox 2 transmit error */
+	CAN_FLAG_MTE1 = CAN_REGIDX_BIT(TSTAT_REG_OFFSET, 11U), /*!< mailbox 1 transmit error */
+	CAN_FLAG_MTE0 = CAN_REGIDX_BIT(TSTAT_REG_OFFSET, 3U), /*!< mailbox 0 transmit error */
+	CAN_FLAG_MTF2 = CAN_REGIDX_BIT(TSTAT_REG_OFFSET, 16U), /*!< mailbox 2 transmit finished */
+	CAN_FLAG_MTF1 = CAN_REGIDX_BIT(TSTAT_REG_OFFSET, 8U), /*!< mailbox 1 transmit finished */
+	CAN_FLAG_MTF0 = CAN_REGIDX_BIT(TSTAT_REG_OFFSET, 0U), /*!< mailbox 0 transmit finished */
+	/* flags in RFIFO0 register */
+	CAN_FLAG_RFO0 = CAN_REGIDX_BIT(RFIFO0_REG_OFFSET, 4U), /*!< receive FIFO0 overfull */
+	CAN_FLAG_RFF0 = CAN_REGIDX_BIT(RFIFO0_REG_OFFSET, 3U), /*!< receive FIFO0 full */
+	/* flags in RFIFO1 register */
+	CAN_FLAG_RFO1 = CAN_REGIDX_BIT(RFIFO1_REG_OFFSET, 4U), /*!< receive FIFO1 overfull */
+	CAN_FLAG_RFF1 = CAN_REGIDX_BIT(RFIFO1_REG_OFFSET, 3U), /*!< receive FIFO1 full */
+	/* flags in ERR register */
+	CAN_FLAG_BOERR = CAN_REGIDX_BIT(ERR_REG_OFFSET, 2U), /*!< bus-off error */
+	CAN_FLAG_PERR = CAN_REGIDX_BIT(ERR_REG_OFFSET, 1U), /*!< passive error */
+	CAN_FLAG_WERR = CAN_REGIDX_BIT(ERR_REG_OFFSET, 0U), /*!< warning error */
+} can_flag_enum;
+
+/* CAN interrupt flags */
+typedef enum {
+	/* interrupt flags in STAT register */
+	CAN_INT_FLAG_SLPIF = CAN_REGIDX_BITS(STAT_REG_OFFSET, 4U, 17U), /*!< status change interrupt flag of sleep working mode entering */
+	CAN_INT_FLAG_WUIF = CAN_REGIDX_BITS(STAT_REG_OFFSET, 3U, 16), /*!< status change interrupt flag of wakeup from sleep working mode */
+	CAN_INT_FLAG_ERRIF = CAN_REGIDX_BITS(STAT_REG_OFFSET, 2U, 15), /*!< error interrupt flag */
+	/* interrupt flags in TSTAT register */
+	CAN_INT_FLAG_MTF2 = CAN_REGIDX_BITS(TSTAT_REG_OFFSET, 16U, 0U), /*!< mailbox 2 transmit finished interrupt flag */
+	CAN_INT_FLAG_MTF1 = CAN_REGIDX_BITS(TSTAT_REG_OFFSET, 8U, 0U), /*!< mailbox 1 transmit finished interrupt flag */
+	CAN_INT_FLAG_MTF0 = CAN_REGIDX_BITS(TSTAT_REG_OFFSET, 0U, 0U), /*!< mailbox 0 transmit finished interrupt flag */
+	/* interrupt flags in RFIFO0 register */
+	CAN_INT_FLAG_RFO0 = CAN_REGIDX_BITS(RFIFO0_REG_OFFSET, 4U, 3U), /*!< receive FIFO0 overfull interrupt flag */
+	CAN_INT_FLAG_RFF0 = CAN_REGIDX_BITS(RFIFO0_REG_OFFSET, 3U, 2U), /*!< receive FIFO0 full interrupt flag */
+	/* interrupt flags in RFIFO0 register */
+	CAN_INT_FLAG_RFO1 = CAN_REGIDX_BITS(RFIFO1_REG_OFFSET, 4U, 6U), /*!< receive FIFO1 overfull interrupt flag */
+	CAN_INT_FLAG_RFF1 = CAN_REGIDX_BITS(RFIFO1_REG_OFFSET, 3U, 5U), /*!< receive FIFO1 full interrupt flag */
+} can_interrupt_flag_enum;
+
+/* CAN initiliaze parameters struct */
+typedef struct {
+	uint8_t working_mode; /*!< CAN working mode */
+	uint8_t resync_jump_width; /*!< CAN resynchronization jump width */
+	uint8_t time_segment_1; /*!< time segment 1 */
+	uint8_t time_segment_2; /*!< time segment 2 */
+	ControlStatus time_triggered; /*!< time triggered communication mode */
+	ControlStatus auto_bus_off_recovery; /*!< automatic bus-off recovery */
+	ControlStatus auto_wake_up; /*!< automatic wake-up mode */
+	ControlStatus auto_retrans; /*!< automatic retransmission mode disable */
+	ControlStatus rec_fifo_overwrite; /*!< receive FIFO overwrite mode */
+	ControlStatus trans_fifo_order; /*!< transmit FIFO order */
+	uint16_t prescaler; /*!< baudrate prescaler */
+} can_parameter_struct;
+
+/* CAN transmit message struct */
+typedef struct {
+	uint32_t tx_sfid; /*!< standard format frame identifier */
+	uint32_t tx_efid; /*!< extended format frame identifier */
+	uint8_t tx_ff; /*!< format of frame, standard or extended format */
+	uint8_t tx_ft; /*!< type of frame, data or remote */
+	uint8_t tx_dlen; /*!< data length */
+	uint8_t tx_data[8]; /*!< transmit data */
+} can_trasnmit_message_struct;
+
+/* CAN receive message struct */
+typedef struct {
+	uint32_t rx_sfid; /*!< standard format frame identifier */
+	uint32_t rx_efid; /*!< extended format frame identifier */
+	uint8_t rx_ff; /*!< format of frame, standard or extended format */
+	uint8_t rx_ft; /*!< type of frame, data or remote */
+	uint8_t rx_dlen; /*!< data length */
+	uint8_t rx_data[8]; /*!< receive data */
+	uint8_t rx_fi; /*!< filtering index */
+} can_receive_message_struct;
+
+/* CAN filter parameters struct */
+typedef struct {
+	uint16_t filter_list_high; /*!< filter list number high bits*/
+	uint16_t filter_list_low; /*!< filter list number low bits */
+	uint16_t filter_mask_high; /*!< filter mask number high bits */
+	uint16_t filter_mask_low; /*!< filter mask number low bits */
+	uint16_t filter_fifo_number; /*!< receive FIFO associated with the filter */
+	uint16_t filter_number; /*!< filter number */
+	uint16_t filter_mode; /*!< filter mode, list or mask */
+	uint16_t filter_bits; /*!< filter scale */
+	ControlStatus filter_enable; /*!< filter work or not */
+} can_filter_parameter_struct;
+
+/* CAN errors */
+typedef enum {
+	CAN_ERROR_NONE = 0, /*!< no error */
+	CAN_ERROR_FILL, /*!< fill error */
+	CAN_ERROR_FORMATE, /*!< format error */
+	CAN_ERROR_ACK, /*!< ACK error */
+	CAN_ERROR_BITRECESSIVE, /*!< bit recessive error */
+	CAN_ERROR_BITDOMINANTER, /*!< bit dominant error */
+	CAN_ERROR_CRC, /*!< CRC error */
+	CAN_ERROR_SOFTWARECFG, /*!< software configure */
+} can_error_enum;
+
+/* transmit states */
+typedef enum {
+	CAN_TRANSMIT_FAILED = 0, /*!< CAN transmitted failure */
+	CAN_TRANSMIT_OK = 1, /*!< CAN transmitted success */
+	CAN_TRANSMIT_PENDING = 2, /*!< CAN transmitted pending */
+	CAN_TRANSMIT_NOMAILBOX = 4, /*!< no empty mailbox to be used for CAN */
+} can_transmit_state_enum;
+
+typedef enum {
+	CAN_INIT_STRUCT = 0, /* CAN initiliaze parameters struct */
+	CAN_FILTER_STRUCT, /* CAN filter parameters struct */
+	CAN_TX_MESSAGE_STRUCT, /* CAN transmit message struct */
+	CAN_RX_MESSAGE_STRUCT, /* CAN receive message struct */
+} can_struct_type_enum;
+
+/* CAN baudrate prescaler*/
+#define BT_BAUDPSC(regval)                 (BITS(0,9) & ((uint32_t)(regval) << 0))
+
+/* CAN bit segment 1*/
+#define BT_BS1(regval)                     (BITS(16,19) & ((uint32_t)(regval) << 16))
+
+/* CAN bit segment 2*/
+#define BT_BS2(regval)                     (BITS(20,22) & ((uint32_t)(regval) << 20))
+
+/* CAN resynchronization jump width*/
+#define BT_SJW(regval)                     (BITS(24,25) & ((uint32_t)(regval) << 24))
+
+/* CAN communication mode*/
+#define BT_MODE(regval)                    (BITS(30,31) & ((uint32_t)(regval) << 30))
+
+/* CAN FDATA high 16 bits */
+#define FDATA_MASK_HIGH(regval)            (BITS(16,31) & ((uint32_t)(regval) << 16))
+
+/* CAN FDATA low 16 bits */
+#define FDATA_MASK_LOW(regval)             (BITS(0,15) & ((uint32_t)(regval) << 0))
+
+/* CAN1 filter start bank_number*/
+#define FCTL_HBC1F(regval)                 (BITS(8,13) & ((uint32_t)(regval) << 8))
+
+/* CAN transmit mailbox extended identifier*/
+#define TMI_EFID(regval)                   (BITS(3,31) & ((uint32_t)(regval) << 3))
+
+/* CAN transmit mailbox standard identifier*/
+#define TMI_SFID(regval)                   (BITS(21,31) & ((uint32_t)(regval) << 21))
+
+/* transmit data byte 0 */
+#define TMDATA0_DB0(regval)                (BITS(0,7) & ((uint32_t)(regval) << 0))
+
+/* transmit data byte 1 */
+#define TMDATA0_DB1(regval)                (BITS(8,15) & ((uint32_t)(regval) << 8))
+
+/* transmit data byte 2 */
+#define TMDATA0_DB2(regval)                (BITS(16,23) & ((uint32_t)(regval) << 16))
+
+/* transmit data byte 3 */
+#define TMDATA0_DB3(regval)                (BITS(24,31) & ((uint32_t)(regval) << 24))
+
+/* transmit data byte 4 */
+#define TMDATA1_DB4(regval)                (BITS(0,7) & ((uint32_t)(regval) << 0))
+
+/* transmit data byte 5 */
+#define TMDATA1_DB5(regval)                (BITS(8,15) & ((uint32_t)(regval) << 8))
+
+/* transmit data byte 6 */
+#define TMDATA1_DB6(regval)                (BITS(16,23) & ((uint32_t)(regval) << 16))
+
+/* transmit data byte 7 */
+#define TMDATA1_DB7(regval)                (BITS(24,31) & ((uint32_t)(regval) << 24))
+
+/* receive mailbox extended identifier*/
+#define GET_RFIFOMI_EFID(regval)           GET_BITS((uint32_t)(regval), 3, 31)
+
+/* receive mailbox standrad identifier*/
+#define GET_RFIFOMI_SFID(regval)           GET_BITS((uint32_t)(regval), 21, 31)
+
+/* receive data length */
+#define GET_RFIFOMP_DLENC(regval)          GET_BITS((uint32_t)(regval), 0, 3)
+
+/* the index of the filter by which the frame is passed */
+#define GET_RFIFOMP_FI(regval)             GET_BITS((uint32_t)(regval), 8, 15)
+
+/* receive data byte 0 */
+#define GET_RFIFOMDATA0_DB0(regval)        GET_BITS((uint32_t)(regval), 0, 7)
+
+/* receive data byte 1 */
+#define GET_RFIFOMDATA0_DB1(regval)        GET_BITS((uint32_t)(regval), 8, 15)
+
+/* receive data byte 2 */
+#define GET_RFIFOMDATA0_DB2(regval)        GET_BITS((uint32_t)(regval), 16, 23)
+
+/* receive data byte 3 */
+#define GET_RFIFOMDATA0_DB3(regval)        GET_BITS((uint32_t)(regval), 24, 31)
+
+/* receive data byte 4 */
+#define GET_RFIFOMDATA1_DB4(regval)        GET_BITS((uint32_t)(regval), 0, 7)
+
+/* receive data byte 5 */
+#define GET_RFIFOMDATA1_DB5(regval)        GET_BITS((uint32_t)(regval), 8, 15)
+
+/* receive data byte 6 */
+#define GET_RFIFOMDATA1_DB6(regval)        GET_BITS((uint32_t)(regval), 16, 23)
+
+/* receive data byte 7 */
+#define GET_RFIFOMDATA1_DB7(regval)        GET_BITS((uint32_t)(regval), 24, 31)
+
+/* error number */
+#define GET_ERR_ERRN(regval)               GET_BITS((uint32_t)(regval), 4, 6)
+
+/* transmit error count */
+#define GET_ERR_TECNT(regval)              GET_BITS((uint32_t)(regval), 16, 23)
+
+/* receive  error count */
+#define GET_ERR_RECNT(regval)              GET_BITS((uint32_t)(regval), 24, 31)
+
+/* CAN errors */
+#define ERR_ERRN(regval)                   (BITS(4,6) & ((uint32_t)(regval) << 4))
+#define CAN_ERRN_0                         ERR_ERRN(0)                  /* no error */
+#define CAN_ERRN_1                         ERR_ERRN(1)                  /*!< fill error */
+#define CAN_ERRN_2                         ERR_ERRN(2)                  /*!< format error */
+#define CAN_ERRN_3                         ERR_ERRN(3)                  /*!< ACK error */
+#define CAN_ERRN_4                         ERR_ERRN(4)                  /*!< bit recessive error */
+#define CAN_ERRN_5                         ERR_ERRN(5)                  /*!< bit dominant error */
+#define CAN_ERRN_6                         ERR_ERRN(6)                  /*!< CRC error */
+#define CAN_ERRN_7                         ERR_ERRN(7)                  /*!< software error */
+
+#define CAN_STATE_PENDING                  ((uint32_t)0x00000000U)      /*!< CAN pending */
+
+/* CAN communication mode */
+#define CAN_NORMAL_MODE                    ((uint8_t)0x00U)             /*!< normal communication mode */
+#define CAN_LOOPBACK_MODE                  ((uint8_t)0x01U)             /*!< loopback communication mode */
+#define CAN_SILENT_MODE                    ((uint8_t)0x02U)             /*!< silent communication mode */
+#define CAN_SILENT_LOOPBACK_MODE           ((uint8_t)0x03U)             /*!< loopback and silent communication mode */
+
+/* CAN resynchronisation jump width */
+#define CAN_BT_SJW_1TQ                     ((uint8_t)0x00U)             /*!< 1 time quanta */
+#define CAN_BT_SJW_2TQ                     ((uint8_t)0x01U)             /*!< 2 time quanta */
+#define CAN_BT_SJW_3TQ                     ((uint8_t)0x02U)             /*!< 3 time quanta */
+#define CAN_BT_SJW_4TQ                     ((uint8_t)0x03U)             /*!< 4 time quanta */
+
+/* CAN time segment 1 */
+#define CAN_BT_BS1_1TQ                     ((uint8_t)0x00U)             /*!< 1 time quanta */
+#define CAN_BT_BS1_2TQ                     ((uint8_t)0x01U)             /*!< 2 time quanta */
+#define CAN_BT_BS1_3TQ                     ((uint8_t)0x02U)             /*!< 3 time quanta */
+#define CAN_BT_BS1_4TQ                     ((uint8_t)0x03U)             /*!< 4 time quanta */
+#define CAN_BT_BS1_5TQ                     ((uint8_t)0x04U)             /*!< 5 time quanta */
+#define CAN_BT_BS1_6TQ                     ((uint8_t)0x05U)             /*!< 6 time quanta */
+#define CAN_BT_BS1_7TQ                     ((uint8_t)0x06U)             /*!< 7 time quanta */
+#define CAN_BT_BS1_8TQ                     ((uint8_t)0x07U)             /*!< 8 time quanta */
+#define CAN_BT_BS1_9TQ                     ((uint8_t)0x08U)             /*!< 9 time quanta */
+#define CAN_BT_BS1_10TQ                    ((uint8_t)0x09U)             /*!< 10 time quanta */
+#define CAN_BT_BS1_11TQ                    ((uint8_t)0x0AU)             /*!< 11 time quanta */
+#define CAN_BT_BS1_12TQ                    ((uint8_t)0x0BU)             /*!< 12 time quanta */
+#define CAN_BT_BS1_13TQ                    ((uint8_t)0x0CU)             /*!< 13 time quanta */
+#define CAN_BT_BS1_14TQ                    ((uint8_t)0x0DU)             /*!< 14 time quanta */
+#define CAN_BT_BS1_15TQ                    ((uint8_t)0x0EU)             /*!< 15 time quanta */
+#define CAN_BT_BS1_16TQ                    ((uint8_t)0x0FU)             /*!< 16 time quanta */
+
+/* CAN time segment 2 */
+#define CAN_BT_BS2_1TQ                     ((uint8_t)0x00U)             /*!< 1 time quanta */
+#define CAN_BT_BS2_2TQ                     ((uint8_t)0x01U)             /*!< 2 time quanta */
+#define CAN_BT_BS2_3TQ                     ((uint8_t)0x02U)             /*!< 3 time quanta */
+#define CAN_BT_BS2_4TQ                     ((uint8_t)0x03U)             /*!< 4 time quanta */
+#define CAN_BT_BS2_5TQ                     ((uint8_t)0x04U)             /*!< 5 time quanta */
+#define CAN_BT_BS2_6TQ                     ((uint8_t)0x05U)             /*!< 6 time quanta */
+#define CAN_BT_BS2_7TQ                     ((uint8_t)0x06U)             /*!< 7 time quanta */
+#define CAN_BT_BS2_8TQ                     ((uint8_t)0x07U)             /*!< 8 time quanta */
+
+/* CAN mailbox number */
+#define CAN_MAILBOX0                       ((uint8_t)0x00U)             /*!< mailbox0 */
+#define CAN_MAILBOX1                       ((uint8_t)0x01U)             /*!< mailbox1 */
+#define CAN_MAILBOX2                       ((uint8_t)0x02U)             /*!< mailbox2 */
+#define CAN_NOMAILBOX                      ((uint8_t)0x03U)             /*!< no mailbox empty */
+
+/* CAN frame format */
+#define CAN_FF_STANDARD                    ((uint32_t)0x00000000U)      /*!< standard frame */
+#define CAN_FF_EXTENDED                    ((uint32_t)0x00000004U)      /*!< extended frame */
+
+/* CAN receive fifo */
+#define CAN_FIFO0                          ((uint8_t)0x00U)             /*!< receive FIFO0 */
+#define CAN_FIFO1                          ((uint8_t)0x01U)             /*!< receive FIFO1 */
+
+/* frame number of receive fifo */
+#define CAN_RFIF_RFL_MASK                  ((uint32_t)0x00000003U)      /*!< mask for frame number in receive FIFOx */
+
+#define CAN_SFID_MASK                      ((uint32_t)0x000007FFU)      /*!< mask of standard identifier */
+#define CAN_EFID_MASK                      ((uint32_t)0x1FFFFFFFU)      /*!< mask of extended identifier */
+
+/* CAN working mode */
+#define CAN_MODE_INITIALIZE                ((uint8_t)0x01U)             /*!< CAN initialize mode */
+#define CAN_MODE_NORMAL                    ((uint8_t)0x02U)             /*!< CAN normal mode */
+#define CAN_MODE_SLEEP                     ((uint8_t)0x04U)             /*!< CAN sleep mode */
+
+/* filter bits */
+#define CAN_FILTERBITS_16BIT               ((uint8_t)0x00U)             /*!< CAN filter 16 bits */
+#define CAN_FILTERBITS_32BIT               ((uint8_t)0x01U)             /*!< CAN filter 32 bits */
+
+/* filter mode */
+#define CAN_FILTERMODE_MASK                ((uint8_t)0x00U)             /*!< mask mode */
+#define CAN_FILTERMODE_LIST                ((uint8_t)0x01U)             /*!< list mode */
+
+/* filter 16 bits mask */
+#define CAN_FILTER_MASK_16BITS             ((uint32_t)0x0000FFFFU)      /*!< can filter 16 bits mask */
+
+/* frame type */
+#define CAN_FT_DATA                        ((uint32_t)0x00000000U)      /*!< data frame */
+#define CAN_FT_REMOTE                      ((uint32_t)0x00000002U)      /*!< remote frame */
+
+/* CAN timeout */
+#define CAN_TIMEOUT                        ((uint32_t)0x0000FFFFU)      /*!< timeout value */
+
+/* interrupt enable bits */
+#define CAN_INT_TME                        CAN_INTEN_TMEIE              /*!< transmit mailbox empty interrupt enable */
+#define CAN_INT_RFNE0                      CAN_INTEN_RFNEIE0            /*!< receive FIFO0 not empty interrupt enable */
+#define CAN_INT_RFF0                       CAN_INTEN_RFFIE0             /*!< receive FIFO0 full interrupt enable */
+#define CAN_INT_RFO0                       CAN_INTEN_RFOIE0             /*!< receive FIFO0 overfull interrupt enable */
+#define CAN_INT_RFNE1                      CAN_INTEN_RFNEIE1            /*!< receive FIFO1 not empty interrupt enable */
+#define CAN_INT_RFF1                       CAN_INTEN_RFFIE1             /*!< receive FIFO1 full interrupt enable */
+#define CAN_INT_RFO1                       CAN_INTEN_RFOIE1             /*!< receive FIFO1 overfull interrupt enable */
+#define CAN_INT_WERR                       CAN_INTEN_WERRIE             /*!< warning error interrupt enable */
+#define CAN_INT_PERR                       CAN_INTEN_PERRIE             /*!< passive error interrupt enable */
+#define CAN_INT_BO                         CAN_INTEN_BOIE               /*!< bus-off interrupt enable */
+#define CAN_INT_ERRN                       CAN_INTEN_ERRNIE             /*!< error number interrupt enable */
+#define CAN_INT_ERR                        CAN_INTEN_ERRIE              /*!< error interrupt enable */
+#define CAN_INT_WAKEUP                     CAN_INTEN_WIE                /*!< wakeup interrupt enable */
+#define CAN_INT_SLPW                       CAN_INTEN_SLPWIE             /*!< sleep working interrupt enable */
+
+/* function declarations */
+/* deinitialize CAN */
+void can_deinit(uint32_t can_periph);
+/* initialize CAN struct */
+void can_struct_para_init(can_struct_type_enum type, void* p_struct);
+/* initialize CAN */
+ErrStatus can_init(uint32_t can_periph,
+		can_parameter_struct* can_parameter_init);
+/* CAN filter init */
+void can_filter_init(can_filter_parameter_struct* can_filter_parameter_init);
+/* set can1 fliter start bank number */
+void can1_filter_start_bank(uint8_t start_bank);
+/* enable functions */
+/* CAN debug freeze enable */
+void can_debug_freeze_enable(uint32_t can_periph);
+/* CAN debug freeze disable */
+void can_debug_freeze_disable(uint32_t can_periph);
+/* CAN time trigger mode enable */
+void can_time_trigger_mode_enable(uint32_t can_periph);
+/* CAN time trigger mode disable */
+void can_time_trigger_mode_disable(uint32_t can_periph);
+
+/* transmit functions */
+/* transmit CAN message */
+uint8_t can_message_transmit(uint32_t can_periph,
+		can_trasnmit_message_struct* transmit_message);
+/* get CAN transmit state */
+can_transmit_state_enum can_transmit_states(uint32_t can_periph,
+		uint8_t mailbox_number);
+/* stop CAN transmission */
+void can_transmission_stop(uint32_t can_periph, uint8_t mailbox_number);
+/* CAN receive message */
+void can_message_receive(uint32_t can_periph, uint8_t fifo_number,
+		can_receive_message_struct* receive_message);
+/* CAN release fifo */
+void can_fifo_release(uint32_t can_periph, uint8_t fifo_number);
+/* CAN receive message length */
+uint8_t can_receive_message_length_get(uint32_t can_periph, uint8_t fifo_number);
+/* CAN working mode */
+ErrStatus can_working_mode_set(uint32_t can_periph, uint8_t working_mode);
+/* CAN wakeup from sleep mode */
+ErrStatus can_wakeup(uint32_t can_periph);
+
+/* CAN get error */
+can_error_enum can_error_get(uint32_t can_periph);
+/* get CAN receive error number */
+uint8_t can_receive_error_number_get(uint32_t can_periph);
+/* get CAN transmit error number */
+uint8_t can_transmit_error_number_get(uint32_t can_periph);
+
+/* CAN interrupt enable */
+void can_interrupt_enable(uint32_t can_periph, uint32_t interrupt);
+/* CAN interrupt disable */
+void can_interrupt_disable(uint32_t can_periph, uint32_t interrupt);
+/* CAN get flag state */
+FlagStatus can_flag_get(uint32_t can_periph, can_flag_enum flag);
+/* CAN clear flag state */
+void can_flag_clear(uint32_t can_periph, can_flag_enum flag);
+/* CAN get interrupt flag state */
+FlagStatus can_interrupt_flag_get(uint32_t can_periph,
+		can_interrupt_flag_enum flag);
+/* CAN clear interrupt flag state */
+void can_interrupt_flag_clear(uint32_t can_periph, can_interrupt_flag_enum flag);
+
+#endif /* GD32VF103_CAN_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_crc.h

@@ -0,0 +1,78 @@
+/*!
+    \file  gd32vf103_crc.h
+    \brief definitions for the CRC
+
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_CRC_H
+#define GD32VF103_CRC_H
+
+#include "gd32vf103.h"
+
+/* CRC definitions */
+#define CRC                            CRC_BASE
+
+/* registers definitions */
+#define CRC_DATA                       REG32(CRC + 0x00U)              /*!< CRC data register */
+#define CRC_FDATA                      REG32(CRC + 0x04U)              /*!< CRC free data register */
+#define CRC_CTL                        REG32(CRC + 0x08U)              /*!< CRC control register */
+
+/* bits definitions */
+/* CRC_DATA */
+#define CRC_DATA_DATA                  BITS(0, 31)                     /*!< CRC calculation result bits */
+
+/* CRC_FDATA */
+#define CRC_FDATA_FDATA                BITS(0, 7)                      /*!< CRC free data bits */
+
+/* CRC_CTL */
+#define CRC_CTL_RST                    BIT(0)                          /*!< CRC reset CRC_DATA register bit */
+
+/* function declarations */
+/* deinit CRC calculation unit */
+void crc_deinit(void);
+
+/* reset data register(CRC_DATA) to the value of 0xFFFFFFFF */
+void crc_data_register_reset(void);
+/* read the value of the data register */
+uint32_t crc_data_register_read(void);
+
+/* read the value of the free data register */
+uint8_t crc_free_data_register_read(void);
+/* write data to the free data register */
+void crc_free_data_register_write(uint8_t free_data);
+
+/* calculate the CRC value of a 32-bit data */
+uint32_t crc_single_data_calculate(uint32_t sdata);
+/* calculate the CRC value of an array of 32-bit values */
+uint32_t crc_block_data_calculate(uint32_t array[], uint32_t size);
+
+#endif /* GD32VF103_CRC_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_dac.h

@@ -0,0 +1,242 @@
+/*!
+    \file    gd32vf103_dac.h
+    \brief   definitions for the DAC
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_DAC_H
+#define GD32VF103_DAC_H
+
+#include "gd32vf103.h"
+
+/* DACx(x=0,1) definitions */
+#define DAC                     DAC_BASE
+#define DAC0                    (0U)
+#define DAC1                    (1U)
+
+/* registers definitions */
+#define DAC_CTL                 REG32(DAC + 0x00U)   /*!< DAC control register */
+#define DAC_SWT                 REG32(DAC + 0x04U)   /*!< DAC software trigger register */
+#define DAC0_R12DH              REG32(DAC + 0x08U)   /*!< DAC0 12-bit right-aligned data holding register */
+#define DAC0_L12DH              REG32(DAC + 0x0CU)   /*!< DAC0 12-bit left-aligned data holding register */
+#define DAC0_R8DH               REG32(DAC + 0x10U)   /*!< DAC0 8-bit right-aligned data holding register */
+#define DAC1_R12DH              REG32(DAC + 0x14U)   /*!< DAC1 12-bit right-aligned data holding register */
+#define DAC1_L12DH              REG32(DAC + 0x18U)   /*!< DAC1 12-bit left-aligned data holding register */
+#define DAC1_R8DH               REG32(DAC + 0x1CU)   /*!< DAC1 8-bit right-aligned data holding register */
+#define DACC_R12DH              REG32(DAC + 0x20U)   /*!< DAC concurrent mode 12-bit right-aligned data holding register */
+#define DACC_L12DH              REG32(DAC + 0x24U)   /*!< DAC concurrent mode 12-bit left-aligned data holding register */
+#define DACC_R8DH               REG32(DAC + 0x28U)   /*!< DAC concurrent mode 8-bit right-aligned data holding register */
+#define DAC0_DO                 REG32(DAC + 0x2CU)   /*!< DAC0 data output register */
+#define DAC1_DO                 REG32(DAC + 0x30U)   /*!< DAC1 data output register */
+
+/* bits definitions */
+/* DAC_CTL */
+#define DAC_CTL_DEN0            BIT(0)               /*!< DAC0 enable/disable bit */
+#define DAC_CTL_DBOFF0          BIT(1)               /*!< DAC0 output buffer turn on/turn off bit */
+#define DAC_CTL_DTEN0           BIT(2)               /*!< DAC0 trigger enable/disable bit */
+#define DAC_CTL_DTSEL0          BITS(3,5)            /*!< DAC0 trigger source selection enable/disable bits */
+#define DAC_CTL_DWM0            BITS(6,7)            /*!< DAC0 noise wave mode */
+#define DAC_CTL_DWBW0           BITS(8,11)           /*!< DAC0 noise wave bit width */
+#define DAC_CTL_DDMAEN0         BIT(12)              /*!< DAC0 DMA enable/disable bit */
+#define DAC_CTL_DEN1            BIT(16)              /*!< DAC1 enable/disable bit */
+#define DAC_CTL_DBOFF1          BIT(17)              /*!< DAC1 output buffer turn on/turn off bit */
+#define DAC_CTL_DTEN1           BIT(18)              /*!< DAC1 trigger enable/disable bit */
+#define DAC_CTL_DTSEL1          BITS(19,21)          /*!< DAC1 trigger source selection enable/disable bits */
+#define DAC_CTL_DWM1            BITS(22,23)          /*!< DAC1 noise wave mode */
+#define DAC_CTL_DWBW1           BITS(24,27)          /*!< DAC1 noise wave bit width */
+#define DAC_CTL_DDMAEN1         BIT(28)              /*!< DAC1 DMA enable/disable bit */
+
+/* DAC_SWT */
+#define DAC_SWT_SWTR0           BIT(0)               /*!< DAC0 software trigger bit, cleared by hardware */
+#define DAC_SWT_SWTR1           BIT(1)               /*!< DAC1 software trigger bit, cleared by hardware */
+
+/* DAC0_R12DH */
+#define DAC0_R12DH_DAC0_DH      BITS(0,11)           /*!< DAC0 12-bit right-aligned data bits */
+
+/* DAC0_L12DH */
+#define DAC0_L12DH_DAC0_DH      BITS(4,15)           /*!< DAC0 12-bit left-aligned data bits */
+
+/* DAC0_R8DH */
+#define DAC0_R8DH_DAC0_DH       BITS(0,7)            /*!< DAC0 8-bit right-aligned data bits */
+
+/* DAC1_R12DH */
+#define DAC1_R12DH_DAC1_DH      BITS(0,11)           /*!< DAC1 12-bit right-aligned data bits */
+
+/* DAC1_L12DH */
+#define DAC1_L12DH_DAC1_DH      BITS(4,15)           /*!< DAC1 12-bit left-aligned data bits */
+
+/* DAC1_R8DH */
+#define DAC1_R8DH_DAC1_DH       BITS(0,7)            /*!< DAC1 8-bit right-aligned data bits */
+
+/* DACC_R12DH */
+#define DACC_R12DH_DAC0_DH      BITS(0,11)           /*!< DAC concurrent mode DAC0 12-bit right-aligned data bits */
+#define DACC_R12DH_DAC1_DH      BITS(16,27)          /*!< DAC concurrent mode DAC1 12-bit right-aligned data bits */
+
+/* DACC_L12DH */
+#define DACC_L12DH_DAC0_DH      BITS(4,15)           /*!< DAC concurrent mode DAC0 12-bit left-aligned data bits */
+#define DACC_L12DH_DAC1_DH      BITS(20,31)          /*!< DAC concurrent mode DAC1 12-bit left-aligned data bits */
+
+/* DACC_R8DH */
+#define DACC_R8DH_DAC0_DH       BITS(0,7)            /*!< DAC concurrent mode DAC0 8-bit right-aligned data bits */
+#define DACC_R8DH_DAC1_DH       BITS(8,15)           /*!< DAC concurrent mode DAC1 8-bit right-aligned data bits */
+
+/* DAC0_DO */
+#define DAC0_DO_DAC0_DO         BITS(0,11)           /*!< DAC0 12-bit output data bits */
+
+/* DAC1_DO */
+#define DAC1_DO_DAC1_DO         BITS(0,11)           /*!< DAC1 12-bit output data bits */
+
+/* constants definitions */
+/* DAC trigger source */
+#define CTL_DTSEL(regval)       (BITS(3,5) & ((uint32_t)(regval) << 3))
+#define DAC_TRIGGER_T5_TRGO     CTL_DTSEL(0)         /*!< TIMER5 TRGO */
+#define DAC_TRIGGER_T2_TRGO     CTL_DTSEL(1)         /*!< TIMER2 TRGO */
+#define DAC_TRIGGER_T6_TRGO     CTL_DTSEL(2)         /*!< TIMER6 TRGO */
+#define DAC_TRIGGER_T4_TRGO     CTL_DTSEL(3)         /*!< TIMER4 TRGO */
+#define DAC_TRIGGER_T1_TRGO     CTL_DTSEL(4)         /*!< TIMER1 TRGO */
+#define DAC_TRIGGER_T3_TRGO     CTL_DTSEL(5)         /*!< TIMER3 TRGO */
+#define DAC_TRIGGER_EXTI_9      CTL_DTSEL(6)         /*!< EXTI interrupt line9 event */
+#define DAC_TRIGGER_SOFTWARE    CTL_DTSEL(7)         /*!< software trigger */
+
+/* DAC noise wave mode */
+#define CTL_DWM(regval)         (BITS(6,7) & ((uint32_t)(regval) << 6))
+#define DAC_WAVE_DISABLE        CTL_DWM(0)           /*!< wave disable */
+#define DAC_WAVE_MODE_LFSR      CTL_DWM(1)           /*!< LFSR noise mode */
+#define DAC_WAVE_MODE_TRIANGLE  CTL_DWM(2)           /*!< triangle noise mode */
+
+/* DAC noise wave bit width */
+#define DWBW(regval)            (BITS(8,11) & ((uint32_t)(regval) << 8))
+#define DAC_WAVE_BIT_WIDTH_1    DWBW(0)              /*!< bit width of the wave signal is 1 */
+#define DAC_WAVE_BIT_WIDTH_2    DWBW(1)              /*!< bit width of the wave signal is 2 */
+#define DAC_WAVE_BIT_WIDTH_3    DWBW(2)              /*!< bit width of the wave signal is 3 */
+#define DAC_WAVE_BIT_WIDTH_4    DWBW(3)              /*!< bit width of the wave signal is 4 */
+#define DAC_WAVE_BIT_WIDTH_5    DWBW(4)              /*!< bit width of the wave signal is 5 */
+#define DAC_WAVE_BIT_WIDTH_6    DWBW(5)              /*!< bit width of the wave signal is 6 */
+#define DAC_WAVE_BIT_WIDTH_7    DWBW(6)              /*!< bit width of the wave signal is 7 */
+#define DAC_WAVE_BIT_WIDTH_8    DWBW(7)              /*!< bit width of the wave signal is 8 */
+#define DAC_WAVE_BIT_WIDTH_9    DWBW(8)              /*!< bit width of the wave signal is 9 */
+#define DAC_WAVE_BIT_WIDTH_10   DWBW(9)              /*!< bit width of the wave signal is 10 */
+#define DAC_WAVE_BIT_WIDTH_11   DWBW(10)             /*!< bit width of the wave signal is 11 */
+#define DAC_WAVE_BIT_WIDTH_12   DWBW(11)             /*!< bit width of the wave signal is 12 */
+
+/* unmask LFSR bits in DAC LFSR noise mode */
+#define DAC_LFSR_BIT0           DAC_WAVE_BIT_WIDTH_1  /*!< unmask the LFSR bit0 */
+#define DAC_LFSR_BITS1_0        DAC_WAVE_BIT_WIDTH_2  /*!< unmask the LFSR bits[1:0] */
+#define DAC_LFSR_BITS2_0        DAC_WAVE_BIT_WIDTH_3  /*!< unmask the LFSR bits[2:0] */
+#define DAC_LFSR_BITS3_0        DAC_WAVE_BIT_WIDTH_4  /*!< unmask the LFSR bits[3:0] */
+#define DAC_LFSR_BITS4_0        DAC_WAVE_BIT_WIDTH_5  /*!< unmask the LFSR bits[4:0] */
+#define DAC_LFSR_BITS5_0        DAC_WAVE_BIT_WIDTH_6  /*!< unmask the LFSR bits[5:0] */
+#define DAC_LFSR_BITS6_0        DAC_WAVE_BIT_WIDTH_7  /*!< unmask the LFSR bits[6:0] */
+#define DAC_LFSR_BITS7_0        DAC_WAVE_BIT_WIDTH_8  /*!< unmask the LFSR bits[7:0] */
+#define DAC_LFSR_BITS8_0        DAC_WAVE_BIT_WIDTH_9  /*!< unmask the LFSR bits[8:0] */
+#define DAC_LFSR_BITS9_0        DAC_WAVE_BIT_WIDTH_10 /*!< unmask the LFSR bits[9:0] */
+#define DAC_LFSR_BITS10_0       DAC_WAVE_BIT_WIDTH_11 /*!< unmask the LFSR bits[10:0] */
+#define DAC_LFSR_BITS11_0       DAC_WAVE_BIT_WIDTH_12 /*!< unmask the LFSR bits[11:0] */
+
+/* DAC data alignment */
+#define DATA_ALIGN(regval)      (BITS(0,1) & ((uint32_t)(regval) << 0))
+#define DAC_ALIGN_12B_R         DATA_ALIGN(0)        /*!< data right 12b alignment */
+#define DAC_ALIGN_12B_L         DATA_ALIGN(1)        /*!< data left  12b alignment */
+#define DAC_ALIGN_8B_R          DATA_ALIGN(2)        /*!< data right  8b alignment */
+/* triangle amplitude in DAC triangle noise mode */
+#define DAC_TRIANGLE_AMPLITUDE_1    DAC_WAVE_BIT_WIDTH_1  /*!< triangle amplitude is 1 */
+#define DAC_TRIANGLE_AMPLITUDE_3    DAC_WAVE_BIT_WIDTH_2  /*!< triangle amplitude is 3 */
+#define DAC_TRIANGLE_AMPLITUDE_7    DAC_WAVE_BIT_WIDTH_3  /*!< triangle amplitude is 7 */
+#define DAC_TRIANGLE_AMPLITUDE_15   DAC_WAVE_BIT_WIDTH_4  /*!< triangle amplitude is 15 */
+#define DAC_TRIANGLE_AMPLITUDE_31   DAC_WAVE_BIT_WIDTH_5  /*!< triangle amplitude is 31 */
+#define DAC_TRIANGLE_AMPLITUDE_63   DAC_WAVE_BIT_WIDTH_6  /*!< triangle amplitude is 63 */
+#define DAC_TRIANGLE_AMPLITUDE_127  DAC_WAVE_BIT_WIDTH_7  /*!< triangle amplitude is 127 */
+#define DAC_TRIANGLE_AMPLITUDE_255  DAC_WAVE_BIT_WIDTH_8  /*!< triangle amplitude is 255 */
+#define DAC_TRIANGLE_AMPLITUDE_511  DAC_WAVE_BIT_WIDTH_9  /*!< triangle amplitude is 511 */
+#define DAC_TRIANGLE_AMPLITUDE_1023 DAC_WAVE_BIT_WIDTH_10 /*!< triangle amplitude is 1023 */
+#define DAC_TRIANGLE_AMPLITUDE_2047 DAC_WAVE_BIT_WIDTH_11 /*!< triangle amplitude is 2047 */
+#define DAC_TRIANGLE_AMPLITUDE_4095 DAC_WAVE_BIT_WIDTH_12 /*!< triangle amplitude is 4095 */
+
+/* function declarations */
+/* initialization functions */
+/* deinitialize DAC */
+void dac_deinit(void);
+/* enable DAC */
+void dac_enable(uint32_t dac_periph);
+/* disable DAC */
+void dac_disable(uint32_t dac_periph);
+/* enable DAC DMA */
+void dac_dma_enable(uint32_t dac_periph);
+/* disable DAC DMA */
+void dac_dma_disable(uint32_t dac_periph);
+/* enable DAC output buffer */
+void dac_output_buffer_enable(uint32_t dac_periph);
+/* disable DAC output buffer */
+void dac_output_buffer_disable(uint32_t dac_periph);
+/* get the last data output value */
+uint16_t dac_output_value_get(uint32_t dac_periph);
+/* set DAC data holding register value */
+void dac_data_set(uint32_t dac_periph, uint32_t dac_align, uint16_t data);
+
+/* DAC trigger configuration */
+/* enable DAC trigger */
+void dac_trigger_enable(uint32_t dac_periph);
+/* disable DAC trigger */
+void dac_trigger_disable(uint32_t dac_periph);
+/* configure DAC trigger source */
+void dac_trigger_source_config(uint32_t dac_periph, uint32_t triggersource);
+/* enable DAC software trigger */
+void dac_software_trigger_enable(uint32_t dac_periph);
+/* disable DAC software trigger */
+void dac_software_trigger_disable(uint32_t dac_periph);
+
+/* DAC wave mode configuration */
+/* configure DAC wave mode */
+void dac_wave_mode_config(uint32_t dac_periph, uint32_t wave_mode);
+/* configure DAC wave bit width */
+void dac_wave_bit_width_config(uint32_t dac_periph, uint32_t bit_width);
+/* configure DAC LFSR noise mode */
+void dac_lfsr_noise_config(uint32_t dac_periph, uint32_t unmask_bits);
+/* configure DAC triangle noise mode */
+void dac_triangle_noise_config(uint32_t dac_periph, uint32_t amplitude);
+
+/* DAC concurrent mode configuration */
+/* enable DAC concurrent mode */
+void dac_concurrent_enable(void);
+/* disable DAC concurrent mode */
+void dac_concurrent_disable(void);
+/* enable DAC concurrent software trigger */
+void dac_concurrent_software_trigger_enable(void);
+/* disable DAC concurrent software trigger */
+void dac_concurrent_software_trigger_disable(void);
+/* enable DAC concurrent buffer function */
+void dac_concurrent_output_buffer_enable(void);
+/* disable DAC concurrent buffer function */
+void dac_concurrent_output_buffer_disable(void);
+/* set DAC concurrent mode data holding register value */
+void dac_concurrent_data_set(uint32_t dac_align, uint16_t data0, uint16_t data1);
+
+#endif /* GD32VF103_DAC_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_dbg.h

@@ -0,0 +1,109 @@
+/*!
+    \file  gd32vf103_dbg.h
+    \brief definitions for the DBG
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_DBG_H
+#define GD32VF103_DBG_H
+
+#include "gd32vf103.h"
+
+/* DBG definitions */
+#define DBG                      DBG_BASE
+
+/* registers definitions */
+#define DBG_ID                   REG32(DBG + 0x00U)         /*!< DBG_ID code register */
+#define DBG_CTL                  REG32(DBG + 0x04U)         /*!< DBG control register */
+
+/* bits definitions */
+/* DBG_ID */
+#define DBG_ID_ID_CODE           BITS(0,31)                 /*!< DBG ID code values */
+
+/* DBG_CTL */
+#define DBG_CTL_SLP_HOLD         BIT(0)                     /*!< keep debugger connection during sleep mode */
+#define DBG_CTL_DSLP_HOLD        BIT(1)                     /*!< keep debugger connection during deepsleep mode */
+#define DBG_CTL_STB_HOLD         BIT(2)                     /*!< keep debugger connection during standby mode */
+#define DBG_CTL_FWDGT_HOLD       BIT(8)                     /*!< debug FWDGT kept when core is halted */
+#define DBG_CTL_WWDGT_HOLD       BIT(9)                     /*!< debug WWDGT kept when core is halted */
+#define DBG_CTL_TIMER0_HOLD      BIT(10)                    /*!< hold TIMER0 counter when core is halted */
+#define DBG_CTL_TIMER1_HOLD      BIT(11)                    /*!< hold TIMER1 counter when core is halted */
+#define DBG_CTL_TIMER2_HOLD      BIT(12)                    /*!< hold TIMER2 counter when core is halted */
+#define DBG_CTL_TIMER3_HOLD      BIT(13)                    /*!< hold TIMER3 counter when core is halted */
+#define DBG_CTL_CAN0_HOLD        BIT(14)                    /*!< debug CAN0 kept when core is halted */
+#define DBG_CTL_I2C0_HOLD        BIT(15)                    /*!< hold I2C0 smbus when core is halted */
+#define DBG_CTL_I2C1_HOLD        BIT(16)                    /*!< hold I2C1 smbus when core is halted */
+#define DBG_CTL_TIMER4_HOLD      BIT(18)                    /*!< hold TIMER4 counter when core is halted */
+#define DBG_CTL_TIMER5_HOLD      BIT(19)                    /*!< hold TIMER5 counter when core is halted */
+#define DBG_CTL_TIMER6_HOLD      BIT(20)                    /*!< hold TIMER6 counter when core is halted */
+#define DBG_CTL_CAN1_HOLD        BIT(21)                    /*!< debug CAN1 kept when core is halted */
+
+/* constants definitions */
+/* debug hold when core is halted */
+typedef enum
+{
+    DBG_FWDGT_HOLD             = BIT(8),                    /*!< debug FWDGT kept when core is halted */
+    DBG_WWDGT_HOLD             = BIT(9),                    /*!< debug WWDGT kept when core is halted */
+    DBG_TIMER0_HOLD            = BIT(10),                   /*!< hold TIMER0 counter when core is halted */
+    DBG_TIMER1_HOLD            = BIT(11),                   /*!< hold TIMER1 counter when core is halted */
+    DBG_TIMER2_HOLD            = BIT(12),                   /*!< hold TIMER2 counter when core is halted */
+    DBG_TIMER3_HOLD            = BIT(13),                   /*!< hold TIMER3 counter when core is halted */
+    DBG_CAN0_HOLD              = BIT(14),                   /*!< debug CAN0 kept when core is halted */
+    DBG_I2C0_HOLD              = BIT(15),                   /*!< hold I2C0 smbus when core is halted */
+    DBG_I2C1_HOLD              = BIT(16),                   /*!< hold I2C1 smbus when core is halted */
+    DBG_TIMER4_HOLD            = BIT(17),                   /*!< hold TIMER4 counter when core is halted */
+    DBG_TIMER5_HOLD            = BIT(18),                   /*!< hold TIMER5 counter when core is halted */
+    DBG_TIMER6_HOLD            = BIT(19),                   /*!< hold TIMER6 counter when core is halted */
+    DBG_CAN1_HOLD              = BIT(21),                   /*!< debug CAN1 kept when core is halted */
+}dbg_periph_enum;
+
+/* DBG low power mode configurations */
+#define DBG_LOW_POWER_SLEEP      DBG_CTL_SLP_HOLD           /*!< keep debugger connection during sleep mode */
+#define DBG_LOW_POWER_DEEPSLEEP  DBG_CTL_DSLP_HOLD          /*!< keep debugger connection during deepsleep mode */
+#define DBG_LOW_POWER_STANDBY    DBG_CTL_STB_HOLD           /*!< keep debugger connection during standby mode */
+
+/* function declarations */
+/* read DBG_ID code register */
+uint32_t dbg_id_get(void);
+
+/* low power behavior configuration */
+/* enable low power behavior when the MCU is in debug mode */
+void dbg_low_power_enable(uint32_t dbg_low_power);
+/* disable low power behavior when the MCU is in debug mode */
+void dbg_low_power_disable(uint32_t dbg_low_power);
+
+/* peripheral behavior configuration */
+/* enable peripheral behavior when the MCU is in debug mode */
+void dbg_periph_enable(dbg_periph_enum dbg_periph);
+/* disable peripheral behavior when the MCU is in debug mode */
+void dbg_periph_disable(dbg_periph_enum dbg_periph);
+
+#endif /* GD32VF103_DBG_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_dma.h

@@ -0,0 +1,282 @@
+/*!
+    \file    gd32vf103_dma.h
+    \brief   definitions for the DMA
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_DMA_H
+#define GD32VF103_DMA_H
+
+#include "gd32vf103.h"
+
+/* DMA definitions */
+#define DMA0                            (DMA_BASE)               /*!< DMA0 base address */
+#define DMA1                            (DMA_BASE + 0x0400U)     /*!< DMA1 base address */
+
+/* registers definitions */
+#define DMA_INTF(dmax)                  REG32((dmax) + 0x00U)    /*!< DMA interrupt flag register */
+#define DMA_INTC(dmax)                  REG32((dmax) + 0x04U)    /*!< DMA interrupt flag clear register */
+
+#define DMA_CH0CTL(dmax)                REG32((dmax) + 0x08U)    /*!< DMA channel 0 control register */
+#define DMA_CH0CNT(dmax)                REG32((dmax) + 0x0CU)    /*!< DMA channel 0 counter register */
+#define DMA_CH0PADDR(dmax)              REG32((dmax) + 0x10U)    /*!< DMA channel 0 peripheral base address register */
+#define DMA_CH0MADDR(dmax)              REG32((dmax) + 0x14U)    /*!< DMA channel 0 memory base address register */
+
+#define DMA_CH1CTL(dmax)                REG32((dmax) + 0x1CU)    /*!< DMA channel 1 control register */
+#define DMA_CH1CNT(dmax)                REG32((dmax) + 0x20U)    /*!< DMA channel 1 counter register */
+#define DMA_CH1PADDR(dmax)              REG32((dmax) + 0x24U)    /*!< DMA channel 1 peripheral base address register */
+#define DMA_CH1MADDR(dmax)              REG32((dmax) + 0x28U)    /*!< DMA channel 1 memory base address register */
+
+#define DMA_CH2CTL(dmax)                REG32((dmax) + 0x30U)    /*!< DMA channel 2 control register */
+#define DMA_CH2CNT(dmax)                REG32((dmax) + 0x34U)    /*!< DMA channel 2 counter register */
+#define DMA_CH2PADDR(dmax)              REG32((dmax) + 0x38U)    /*!< DMA channel 2 peripheral base address register */
+#define DMA_CH2MADDR(dmax)              REG32((dmax) + 0x3CU)    /*!< DMA channel 2 memory base address register */
+
+#define DMA_CH3CTL(dmax)                REG32((dmax) + 0x44U)    /*!< DMA channel 3 control register */
+#define DMA_CH3CNT(dmax)                REG32((dmax) + 0x48U)    /*!< DMA channel 3 counter register */
+#define DMA_CH3PADDR(dmax)              REG32((dmax) + 0x4CU)    /*!< DMA channel 3 peripheral base address register */
+#define DMA_CH3MADDR(dmax)              REG32((dmax) + 0x50U)    /*!< DMA channel 3 memory base address register */
+
+#define DMA_CH4CTL(dmax)                REG32((dmax) + 0x58U)    /*!< DMA channel 4 control register */
+#define DMA_CH4CNT(dmax)                REG32((dmax) + 0x5CU)    /*!< DMA channel 4 counter register */
+#define DMA_CH4PADDR(dmax)              REG32((dmax) + 0x60U)    /*!< DMA channel 4 peripheral base address register */
+#define DMA_CH4MADDR(dmax)              REG32((dmax) + 0x64U)    /*!< DMA channel 4 memory base address register */
+
+#define DMA_CH5CTL(dmax)                REG32((dmax) + 0x6CU)    /*!< DMA channel 5 control register */
+#define DMA_CH5CNT(dmax)                REG32((dmax) + 0x70U)    /*!< DMA channel 5 counter register */
+#define DMA_CH5PADDR(dmax)              REG32((dmax) + 0x74U)    /*!< DMA channel 5 peripheral base address register */
+#define DMA_CH5MADDR(dmax)              REG32((dmax) + 0x78U)    /*!< DMA channel 5 memory base address register */
+
+#define DMA_CH6CTL(dmax)                REG32((dmax) + 0x80U)    /*!< DMA channel 6 control register */
+#define DMA_CH6CNT(dmax)                REG32((dmax) + 0x84U)    /*!< DMA channel 6 counter register */
+#define DMA_CH6PADDR(dmax)              REG32((dmax) + 0x88U)    /*!< DMA channel 6 peripheral base address register */
+#define DMA_CH6MADDR(dmax)              REG32((dmax) + 0x8CU)    /*!< DMA channel 6 memory base address register */
+
+/* bits definitions */
+/* DMA_INTF */
+#define DMA_INTF_GIF                    BIT(0)                  /*!< global interrupt flag of channel */
+#define DMA_INTF_FTFIF                  BIT(1)                  /*!< full transfer finish flag of channel */
+#define DMA_INTF_HTFIF                  BIT(2)                  /*!< half transfer finish flag of channel */
+#define DMA_INTF_ERRIF                  BIT(3)                  /*!< error flag of channel */
+
+/* DMA_INTC */
+#define DMA_INTC_GIFC                   BIT(0)                  /*!< clear global interrupt flag of channel */
+#define DMA_INTC_FTFIFC                 BIT(1)                  /*!< clear transfer finish flag of channel */
+#define DMA_INTC_HTFIFC                 BIT(2)                  /*!< clear half transfer finish flag of channel */
+#define DMA_INTC_ERRIFC                 BIT(3)                  /*!< clear error flag of channel */
+
+/* DMA_CHxCTL, x=0..6 */
+#define DMA_CHXCTL_CHEN                 BIT(0)                  /*!< channel enable */
+#define DMA_CHXCTL_FTFIE                BIT(1)                  /*!< enable bit for channel full transfer finish interrupt */
+#define DMA_CHXCTL_HTFIE                BIT(2)                  /*!< enable bit for channel half transfer finish interrupt */
+#define DMA_CHXCTL_ERRIE                BIT(3)                  /*!< enable bit for channel error interrupt */
+#define DMA_CHXCTL_DIR                  BIT(4)                  /*!< transfer direction */
+#define DMA_CHXCTL_CMEN                 BIT(5)                  /*!< circular mode enable */
+#define DMA_CHXCTL_PNAGA                BIT(6)                  /*!< next address generation algorithm of peripheral */
+#define DMA_CHXCTL_MNAGA                BIT(7)                  /*!< next address generation algorithm of memory */
+#define DMA_CHXCTL_PWIDTH               BITS(8,9)               /*!< transfer data width of peripheral */
+#define DMA_CHXCTL_MWIDTH               BITS(10,11)             /*!< transfer data width of memory */
+#define DMA_CHXCTL_PRIO                 BITS(12,13)             /*!< priority level */
+#define DMA_CHXCTL_M2M                  BIT(14)                 /*!< memory to memory mode */
+
+/* DMA_CHxCNT, x=0..6 */
+#define DMA_CHXCNT_CNT                  BITS(0,15)              /*!< transfer counter */
+
+/* DMA_CHxPADDR, x=0..6 */
+#define DMA_CHXPADDR_PADDR              BITS(0,31)              /*!< peripheral base address */
+
+/* DMA_CHxMADDR, x=0..6 */
+#define DMA_CHXMADDR_MADDR              BITS(0,31)              /*!< memory base address */
+
+/* constants definitions */
+/* DMA channel select */
+typedef enum
+{
+    DMA_CH0 = 0,                /*!< DMA Channel0 */
+    DMA_CH1,                    /*!< DMA Channel1 */
+    DMA_CH2,                    /*!< DMA Channel2 */
+    DMA_CH3,                    /*!< DMA Channel3 */
+    DMA_CH4,                    /*!< DMA Channel4 */
+    DMA_CH5,                    /*!< DMA Channel5 */
+    DMA_CH6                     /*!< DMA Channel6 */
+} dma_channel_enum;
+
+/* DMA initialize struct */
+typedef struct
+{
+    uint32_t periph_addr;       /*!< peripheral base address */
+    uint32_t periph_width;      /*!< transfer data size of peripheral */
+    uint32_t memory_addr;       /*!< memory base address */
+    uint32_t memory_width;      /*!< transfer data size of memory */
+    uint32_t number;            /*!< channel transfer number */
+    uint32_t priority;          /*!< channel priority level */
+    uint8_t periph_inc;         /*!< peripheral increasing mode */
+    uint8_t memory_inc;         /*!< memory increasing mode */
+    uint8_t direction;          /*!< channel data transfer direction */
+
+} dma_parameter_struct;
+
+#define DMA_FLAG_ADD(flag, shift)           ((flag) << ((shift) * 4U))                      /*!< DMA channel flag shift */
+
+/* DMA_register address */
+#define DMA_CHCTL(dma, channel)             REG32(((dma) + 0x08U) + 0x14U * (uint32_t)(channel))      /*!< the address of DMA channel CHXCTL register */
+#define DMA_CHCNT(dma, channel)             REG32(((dma) + 0x0CU) + 0x14U * (uint32_t)(channel))      /*!< the address of DMA channel CHXCNT register */
+#define DMA_CHPADDR(dma, channel)           REG32(((dma) + 0x10U) + 0x14U * (uint32_t)(channel))      /*!< the address of DMA channel CHXPADDR register */
+#define DMA_CHMADDR(dma, channel)           REG32(((dma) + 0x14U) + 0x14U * (uint32_t)(channel))      /*!< the address of DMA channel CHXMADDR register */
+
+/* DMA reset value */
+#define DMA_CHCTL_RESET_VALUE               ((uint32_t)0x00000000U)                         /*!< the reset value of DMA channel CHXCTL register */
+#define DMA_CHCNT_RESET_VALUE               ((uint32_t)0x00000000U)                         /*!< the reset value of DMA channel CHXCNT register */
+#define DMA_CHPADDR_RESET_VALUE             ((uint32_t)0x00000000U)                         /*!< the reset value of DMA channel CHXPADDR register */
+#define DMA_CHMADDR_RESET_VALUE             ((uint32_t)0x00000000U)                         /*!< the reset value of DMA channel CHXMADDR register */
+#define DMA_CHINTF_RESET_VALUE              (DMA_INTF_GIF | DMA_INTF_FTFIF | \
+                                             DMA_INTF_HTFIF | DMA_INTF_ERRIF)               /*!< clear DMA channel DMA_INTF register */
+
+/* DMA_INTF register */
+/* interrupt flag bits */
+#define DMA_INT_FLAG_G                      DMA_INTF_GIF                                    /*!< global interrupt flag of channel */
+#define DMA_INT_FLAG_FTF                    DMA_INTF_FTFIF                                  /*!< full transfer finish interrupt flag of channel */
+#define DMA_INT_FLAG_HTF                    DMA_INTF_HTFIF                                  /*!< half transfer finish interrupt flag of channel */
+#define DMA_INT_FLAG_ERR                    DMA_INTF_ERRIF                                  /*!< error interrupt flag of channel */
+
+/* flag bits */
+#define DMA_FLAG_G                          DMA_INTF_GIF                                    /*!< global interrupt flag of channel */
+#define DMA_FLAG_FTF                        DMA_INTF_FTFIF                                  /*!< full transfer finish flag of channel */
+#define DMA_FLAG_HTF                        DMA_INTF_HTFIF                                  /*!< half transfer finish flag of channel */
+#define DMA_FLAG_ERR                        DMA_INTF_ERRIF                                  /*!< error flag of channel */
+
+/* DMA_CHxCTL register */
+/* interrupt enable bits */
+#define DMA_INT_FTF                         DMA_CHXCTL_FTFIE                                /*!< enable bit for channel full transfer finish interrupt */
+#define DMA_INT_HTF                         DMA_CHXCTL_HTFIE                                /*!< enable bit for channel half transfer finish interrupt */
+#define DMA_INT_ERR                         DMA_CHXCTL_ERRIE                                /*!< enable bit for channel error interrupt */
+
+/* transfer direction */
+#define DMA_PERIPHERAL_TO_MEMORY            ((uint8_t)0x0000U)                         		/*!< read from peripheral and write to memory */
+#define DMA_MEMORY_TO_PERIPHERAL            ((uint8_t)0x0001U)                         		/*!< read from memory and write to peripheral */
+
+/* peripheral increasing mode */
+#define DMA_PERIPH_INCREASE_DISABLE         ((uint8_t)0x0000U)                              /*!< next address of peripheral is fixed address mode */
+#define DMA_PERIPH_INCREASE_ENABLE          ((uint8_t)0x0001U)                              /*!< next address of peripheral is increasing address mode */
+
+/* memory increasing mode */
+#define DMA_MEMORY_INCREASE_DISABLE         ((uint8_t)0x0000U)                              /*!< next address of memory is fixed address mode */
+#define DMA_MEMORY_INCREASE_ENABLE          ((uint8_t)0x0001U)                              /*!< next address of memory is increasing address mode */
+
+/* transfer data size of peripheral */
+#define CHCTL_PWIDTH(regval)                (BITS(8,9) & ((uint32_t)(regval) << 8))          /*!< transfer data size of peripheral */
+#define DMA_PERIPHERAL_WIDTH_8BIT           CHCTL_PWIDTH(0U)                                 /*!< transfer data size of peripheral is 8-bit */
+#define DMA_PERIPHERAL_WIDTH_16BIT          CHCTL_PWIDTH(1U)                                 /*!< transfer data size of peripheral is 16-bit */
+#define DMA_PERIPHERAL_WIDTH_32BIT          CHCTL_PWIDTH(2U)                                 /*!< transfer data size of peripheral is 32-bit */
+
+/* transfer data size of memory */
+#define CHCTL_MWIDTH(regval)                (BITS(10,11) & ((uint32_t)(regval) << 10))       /*!< transfer data size of memory */
+#define DMA_MEMORY_WIDTH_8BIT               CHCTL_MWIDTH(0U)                                 /*!< transfer data size of memory is 8-bit */
+#define DMA_MEMORY_WIDTH_16BIT              CHCTL_MWIDTH(1U)                                 /*!< transfer data size of memory is 16-bit */
+#define DMA_MEMORY_WIDTH_32BIT              CHCTL_MWIDTH(2U)                                 /*!< transfer data size of memory is 32-bit */
+
+/* channel priority level */
+#define CHCTL_PRIO(regval)                  (BITS(12,13) & ((uint32_t)(regval) << 12))       /*!< DMA channel priority level */
+#define DMA_PRIORITY_LOW                    CHCTL_PRIO(0U)                                   /*!< low priority */
+#define DMA_PRIORITY_MEDIUM                 CHCTL_PRIO(1U)                                   /*!< medium priority */
+#define DMA_PRIORITY_HIGH                   CHCTL_PRIO(2U)                                   /*!< high priority */
+#define DMA_PRIORITY_ULTRA_HIGH             CHCTL_PRIO(3U)                                   /*!< ultra high priority */
+
+/* memory to memory mode */
+#define DMA_MEMORY_TO_MEMORY_DISABLE        ((uint32_t)0x00000000U)                         /*!< disable memory to memory mode */
+#define DMA_MEMORY_TO_MEMORY_ENABLE         ((uint32_t)0x00000001U)                         /*!< enable memory to memory mode */
+
+/* DMA_CHxCNT register */
+/* transfer counter */
+#define DMA_CHANNEL_CNT_MASK                DMA_CHXCNT_CNT                                  /*!< transfer counter mask */
+
+/* function declarations */
+/* DMA deinitialization and initialization functions */
+/* deinitialize DMA a channel registers */
+void dma_deinit(uint32_t dma_periph, dma_channel_enum channelx);
+/* initialize the parameters of DMA struct with the default values */
+void dma_struct_para_init(dma_parameter_struct* init_struct);
+/* initialize DMA channel */
+void dma_init(uint32_t dma_periph, dma_channel_enum channelx, dma_parameter_struct *init_struct);
+/* enable DMA circulation mode */
+void dma_circulation_enable(uint32_t dma_periph, dma_channel_enum channelx);
+/* disable DMA circulation mode */
+void dma_circulation_disable(uint32_t dma_periph, dma_channel_enum channelx);
+/* enable memory to memory mode */
+void dma_memory_to_memory_enable(uint32_t dma_periph, dma_channel_enum channelx);
+/* disable memory to memory mode */
+void dma_memory_to_memory_disable(uint32_t dma_periph, dma_channel_enum channelx);
+/* enable DMA channel */
+void dma_channel_enable(uint32_t dma_periph, dma_channel_enum channelx);
+/* disable DMA channel */
+void dma_channel_disable(uint32_t dma_periph, dma_channel_enum channelx);
+
+/* DMA configuration functions */
+/* set DMA peripheral base address */
+void dma_periph_address_config(uint32_t dma_periph, dma_channel_enum channelx, uint32_t address);
+/* set DMA memory base address */
+void dma_memory_address_config(uint32_t dma_periph, dma_channel_enum channelx, uint32_t address);
+/* set the number of remaining data to be transferred by the DMA */
+void dma_transfer_number_config(uint32_t dma_periph, dma_channel_enum channelx, uint32_t number);
+/* get the number of remaining data to be transferred by the DMA */
+uint32_t dma_transfer_number_get(uint32_t dma_periph, dma_channel_enum channelx);
+/* configure priority level of DMA channel */
+void dma_priority_config(uint32_t dma_periph, dma_channel_enum channelx, uint32_t priority);
+/* configure transfer data size of memory */
+void dma_memory_width_config(uint32_t dma_periph, dma_channel_enum channelx, uint32_t mwidth);
+/* configure transfer data size of peripheral */
+void dma_periph_width_config(uint32_t dma_periph, dma_channel_enum channelx, uint32_t pwidth);
+/* enable next address increasement algorithm of memory */
+void dma_memory_increase_enable(uint32_t dma_periph, dma_channel_enum channelx);
+/* disable next address increasement algorithm of memory */
+void dma_memory_increase_disable(uint32_t dma_periph, dma_channel_enum channelx);
+/* enable next address increasement algorithm of peripheral */
+void dma_periph_increase_enable(uint32_t dma_periph, dma_channel_enum channelx);
+/* disable next address increasement algorithm of peripheral */
+void dma_periph_increase_disable(uint32_t dma_periph, dma_channel_enum channelx);
+/* configure the direction of data transfer on the channel */
+void dma_transfer_direction_config(uint32_t dma_periph, dma_channel_enum channelx, uint32_t direction);
+
+/* flag and interrupt functions */
+/* check DMA flag is set or not */
+FlagStatus dma_flag_get(uint32_t dma_periph, dma_channel_enum channelx, uint32_t flag);
+/* clear the flag of a DMA channel */
+void dma_flag_clear(uint32_t dma_periph, dma_channel_enum channelx, uint32_t flag);
+/* check DMA flag and interrupt enable bit is set or not */
+FlagStatus dma_interrupt_flag_get(uint32_t dma_periph, dma_channel_enum channelx, uint32_t flag);
+/* clear the interrupt flag of a DMA channel */
+void dma_interrupt_flag_clear(uint32_t dma_periph, dma_channel_enum channelx, uint32_t flag);
+/* enable DMA interrupt */
+void dma_interrupt_enable(uint32_t dma_periph, dma_channel_enum channelx, uint32_t source);
+/* disable DMA interrupt */
+void dma_interrupt_disable(uint32_t dma_periph, dma_channel_enum channelx, uint32_t source);
+
+#endif /* GD32VF103_DMA_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_eclic.h

@@ -0,0 +1,62 @@
+/*!
+    \file  gd32vf103_eclic.h
+    \brief definitions for the ECLIC(Enhancement Core-Local Interrupt Controller)
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_ECLIC_H
+#define GD32VF103_ECLIC_H
+
+#include "gd32vf103.h"
+
+/* constants definitions */
+#define ECLIC_PRIGROUP_LEVEL0_PRIO4        0    /*!< 0 bits for level 4 bits for priority */
+#define ECLIC_PRIGROUP_LEVEL1_PRIO3        1    /*!< 1 bits for level 3 bits for priority */
+#define ECLIC_PRIGROUP_LEVEL2_PRIO2        2    /*!< 2 bits for level 2 bits for priority */
+#define ECLIC_PRIGROUP_LEVEL3_PRIO1        3    /*!< 3 bits for level 1 bits for priority */
+#define ECLIC_PRIGROUP_LEVEL4_PRIO0        4    /*!< 4 bits for level 0 bits for priority */
+
+#define __SEV           eclic_send_event
+
+/* function declarations */
+/* set the priority group */
+void eclic_priority_group_set(uint32_t prigroup);
+/* enable the interrupt request */
+void eclic_irq_enable(uint32_t source, uint8_t level, uint8_t priority);
+/* disable the interrupt request */
+void eclic_irq_disable(uint32_t source);
+
+/* reset system */
+void eclic_system_reset(void);
+/* send event(SEV) */
+void eclic_send_event(void);
+
+#endif /* GD32VF103_ECLIC_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_exmc.h

@@ -0,0 +1,126 @@
+/*!
+    \file  gd32vf103_exmc.h
+    \brief definitions for the EXMC
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_EXMC_H
+#define GD32VF103_EXMC_H
+
+#include "gd32vf103.h"
+
+/* EXMC definitions */
+#define EXMC                              (EXMC_BASE)                   /*!< EXMC register base address */
+
+/* registers definitions */
+/* NOR/PSRAM */
+#define EXMC_SNCTL0                       REG32(EXMC + 0x00U)           /*!< EXMC SRAM/NOR flash control register 0 */
+#define EXMC_SNTCFG0                      REG32(EXMC + 0x04U)           /*!< EXMC SRAM/NOR flash timing configuration register 0 */
+#define EXMC_SNWTCFG0                     REG32(EXMC + 0x104U)          /*!< EXMC SRAM/NOR flash write timing configuration register 0 */
+
+/* bits definitions */
+/* NOR/PSRAM */
+/* EXMC_SNCTLx, x=0 */
+#define EXMC_SNCTL_NRBKEN                 BIT(0)                        /*!< NOR bank enable */
+#define EXMC_SNCTL_NRMUX                  BIT(1)                        /*!< NOR bank memory address/data multiplexing */
+#define EXMC_SNCTL_NRTP                   BITS(2,3)                     /*!< NOR bank memory type */
+#define EXMC_SNCTL_NRW                    BITS(4,5)                     /*!< NOR bank memory data bus width */
+#define EXMC_SNCTL_NREN                   BIT(6)                        /*!< NOR flash access enable */
+#define EXMC_SNCTL_NRWTPOL                BIT(9)                        /*!< NWAIT signal polarity */
+#define EXMC_SNCTL_WREN                   BIT(12)                       /*!< write enable */
+#define EXMC_SNCTL_NRWTEN                 BIT(13)                       /*!< NWAIT signal enable */
+#define EXMC_SNCTL_ASYNCWAIT              BIT(15)                       /*!< asynchronous wait */
+
+/* EXMC_SNTCFGx, x=0 */
+#define EXMC_SNTCFG_ASET                  BITS(0,3)                     /*!< address setup time */
+#define EXMC_SNTCFG_AHLD                  BITS(4,7)                     /*!< address hold time */
+#define EXMC_SNTCFG_DSET                  BITS(8,15)                    /*!< data setup time */
+#define EXMC_SNTCFG_BUSLAT                BITS(16,19)                   /*!< bus latency */
+
+/* constants definitions */
+/* EXMC NOR/SRAM timing initialize struct */
+typedef struct
+{
+    uint32_t bus_latency;                                               /*!< configure the bus latency */
+    uint32_t asyn_data_setuptime;                                       /*!< configure the data setup time,asynchronous access mode valid */
+    uint32_t asyn_address_holdtime;                                     /*!< configure the address hold time,asynchronous access mode valid */
+    uint32_t asyn_address_setuptime;                                    /*!< configure the data setup time,asynchronous access mode valid */
+}exmc_norsram_timing_parameter_struct;
+
+/* EXMC NOR/SRAM initialize struct */
+typedef struct
+{
+    uint32_t norsram_region;                                            /*!< select the region of EXMC NOR/SRAM bank */
+    uint32_t asyn_wait;                                                 /*!< enable or disable the asynchronous wait function */
+    uint32_t nwait_signal;                                              /*!< enable or disable the NWAIT signal */
+    uint32_t memory_write;                                              /*!< enable or disable the write operation */
+    uint32_t nwait_polarity;                                            /*!< specifies the polarity of NWAIT signal from memory */
+    uint32_t databus_width;                                             /*!< specifies the databus width of external memory */
+    uint32_t memory_type;                                               /*!< specifies the type of external memory */
+    uint32_t address_data_mux;                                          /*!< specifies whether the data bus and address bus are multiplexed */
+    exmc_norsram_timing_parameter_struct* read_write_timing;            /*!< timing parameters for read and write */
+}exmc_norsram_parameter_struct;
+
+/* EXMC register address */
+#define EXMC_SNCTL(region)                REG32(EXMC + 0x08U * (region))                  /*!< EXMC SRAM/NOR flash control register */
+#define EXMC_SNTCFG(region)               REG32(EXMC + 0x04U + 0x08U * (region))          /*!< EXMC SRAM/NOR flash timing configuration register */
+
+/* NOR bank memory data bus width */
+#define SNCTL_NRW(regval)                 (BITS(4,5) & ((uint32_t)(regval) << 4))
+#define EXMC_NOR_DATABUS_WIDTH_8B         SNCTL_NRW(0)                  /*!< NOR data width 8 bits */
+#define EXMC_NOR_DATABUS_WIDTH_16B        SNCTL_NRW(1)                  /*!< NOR data width 16 bits */
+
+/* NOR bank memory type */
+#define SNCTL_NRTP(regval)                (BITS(2,3) & ((uint32_t)(regval) << 2))
+#define EXMC_MEMORY_TYPE_SRAM             SNCTL_NRTP(0)                 /*!< SRAM,ROM */
+#define EXMC_MEMORY_TYPE_PSRAM            SNCTL_NRTP(1)                 /*!< PSRAM,CRAM */
+#define EXMC_MEMORY_TYPE_NOR              SNCTL_NRTP(2)                 /*!< NOR flash */
+
+/* EXMC NOR/SRAM bank region definition */
+#define EXMC_BANK0_NORSRAM_REGION0        ((uint32_t)0x00000000U)       /*!< bank0 NOR/SRAM region0 */
+
+/* EXMC NWAIT signal polarity configuration */
+#define EXMC_NWAIT_POLARITY_LOW           ((uint32_t)0x00000000U)       /*!< low level is active of NWAIT */
+#define EXMC_NWAIT_POLARITY_HIGH          ((uint32_t)0x00000200U)       /*!< high level is active of NWAIT */
+
+/* function declarations */
+/* deinitialize EXMC NOR/SRAM region */
+void exmc_norsram_deinit(uint32_t norsram_region);
+/* exmc_norsram_parameter_struct parameter initialize */
+void exmc_norsram_struct_para_init(exmc_norsram_parameter_struct* exmc_norsram_init_struct);
+/* initialize EXMC NOR/SRAM region */
+void exmc_norsram_init(exmc_norsram_parameter_struct* exmc_norsram_init_struct);
+/* EXMC NOR/SRAM bank enable */
+void exmc_norsram_enable(uint32_t norsram_region);
+/* EXMC NOR/SRAM bank disable */
+void exmc_norsram_disable(uint32_t norsram_region);
+
+#endif /* GD32VF103_EXMC_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_exti.h

@@ -0,0 +1,244 @@
+/*!
+    \file    gd32vf103_exti.h
+    \brief   definitions for the EXTI
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_EXTI_H
+#define GD32VF103_EXTI_H
+
+#include "gd32vf103.h"
+
+/* EXTI definitions */
+#define EXTI                         EXTI_BASE
+
+/* registers definitions */
+#define EXTI_INTEN                   REG32(EXTI + 0x00U)      /*!< interrupt enable register */
+#define EXTI_EVEN                    REG32(EXTI + 0x04U)      /*!< event enable register */
+#define EXTI_RTEN                    REG32(EXTI + 0x08U)      /*!< rising edge trigger enable register */
+#define EXTI_FTEN                    REG32(EXTI + 0x0CU)      /*!< falling trigger enable register */
+#define EXTI_SWIEV                   REG32(EXTI + 0x10U)      /*!< software interrupt event register */
+#define EXTI_PD                      REG32(EXTI + 0x14U)      /*!< pending register */
+
+/* bits definitions */
+/* EXTI_INTEN */
+#define EXTI_INTEN_INTEN0            BIT(0)                   /*!< interrupt from line 0 */
+#define EXTI_INTEN_INTEN1            BIT(1)                   /*!< interrupt from line 1 */
+#define EXTI_INTEN_INTEN2            BIT(2)                   /*!< interrupt from line 2 */
+#define EXTI_INTEN_INTEN3            BIT(3)                   /*!< interrupt from line 3 */
+#define EXTI_INTEN_INTEN4            BIT(4)                   /*!< interrupt from line 4 */
+#define EXTI_INTEN_INTEN5            BIT(5)                   /*!< interrupt from line 5 */
+#define EXTI_INTEN_INTEN6            BIT(6)                   /*!< interrupt from line 6 */
+#define EXTI_INTEN_INTEN7            BIT(7)                   /*!< interrupt from line 7 */
+#define EXTI_INTEN_INTEN8            BIT(8)                   /*!< interrupt from line 8 */
+#define EXTI_INTEN_INTEN9            BIT(9)                   /*!< interrupt from line 9 */
+#define EXTI_INTEN_INTEN10           BIT(10)                  /*!< interrupt from line 10 */
+#define EXTI_INTEN_INTEN11           BIT(11)                  /*!< interrupt from line 11 */
+#define EXTI_INTEN_INTEN12           BIT(12)                  /*!< interrupt from line 12 */
+#define EXTI_INTEN_INTEN13           BIT(13)                  /*!< interrupt from line 13 */
+#define EXTI_INTEN_INTEN14           BIT(14)                  /*!< interrupt from line 14 */
+#define EXTI_INTEN_INTEN15           BIT(15)                  /*!< interrupt from line 15 */
+#define EXTI_INTEN_INTEN16           BIT(16)                  /*!< interrupt from line 16 */
+#define EXTI_INTEN_INTEN17           BIT(17)                  /*!< interrupt from line 17 */
+#define EXTI_INTEN_INTEN18           BIT(18)                  /*!< interrupt from line 18 */
+
+/* EXTI_EVEN */
+#define EXTI_EVEN_EVEN0              BIT(0)                   /*!< event from line 0 */
+#define EXTI_EVEN_EVEN1              BIT(1)                   /*!< event from line 1 */
+#define EXTI_EVEN_EVEN2              BIT(2)                   /*!< event from line 2 */
+#define EXTI_EVEN_EVEN3              BIT(3)                   /*!< event from line 3 */
+#define EXTI_EVEN_EVEN4              BIT(4)                   /*!< event from line 4 */
+#define EXTI_EVEN_EVEN5              BIT(5)                   /*!< event from line 5 */
+#define EXTI_EVEN_EVEN6              BIT(6)                   /*!< event from line 6 */
+#define EXTI_EVEN_EVEN7              BIT(7)                   /*!< event from line 7 */
+#define EXTI_EVEN_EVEN8              BIT(8)                   /*!< event from line 8 */
+#define EXTI_EVEN_EVEN9              BIT(9)                   /*!< event from line 9 */
+#define EXTI_EVEN_EVEN10             BIT(10)                  /*!< event from line 10 */
+#define EXTI_EVEN_EVEN11             BIT(11)                  /*!< event from line 11 */
+#define EXTI_EVEN_EVEN12             BIT(12)                  /*!< event from line 12 */
+#define EXTI_EVEN_EVEN13             BIT(13)                  /*!< event from line 13 */
+#define EXTI_EVEN_EVEN14             BIT(14)                  /*!< event from line 14 */
+#define EXTI_EVEN_EVEN15             BIT(15)                  /*!< event from line 15 */
+#define EXTI_EVEN_EVEN16             BIT(16)                  /*!< event from line 16 */
+#define EXTI_EVEN_EVEN17             BIT(17)                  /*!< event from line 17 */
+#define EXTI_EVEN_EVEN18             BIT(18)                  /*!< event from line 18 */
+
+/* EXTI_RTEN */
+#define EXTI_RTEN_RTEN0              BIT(0)                   /*!< rising edge from line 0 */
+#define EXTI_RTEN_RTEN1              BIT(1)                   /*!< rising edge from line 1 */
+#define EXTI_RTEN_RTEN2              BIT(2)                   /*!< rising edge from line 2 */
+#define EXTI_RTEN_RTEN3              BIT(3)                   /*!< rising edge from line 3 */
+#define EXTI_RTEN_RTEN4              BIT(4)                   /*!< rising edge from line 4 */
+#define EXTI_RTEN_RTEN5              BIT(5)                   /*!< rising edge from line 5 */
+#define EXTI_RTEN_RTEN6              BIT(6)                   /*!< rising edge from line 6 */
+#define EXTI_RTEN_RTEN7              BIT(7)                   /*!< rising edge from line 7 */
+#define EXTI_RTEN_RTEN8              BIT(8)                   /*!< rising edge from line 8 */
+#define EXTI_RTEN_RTEN9              BIT(9)                   /*!< rising edge from line 9 */
+#define EXTI_RTEN_RTEN10             BIT(10)                  /*!< rising edge from line 10 */
+#define EXTI_RTEN_RTEN11             BIT(11)                  /*!< rising edge from line 11 */
+#define EXTI_RTEN_RTEN12             BIT(12)                  /*!< rising edge from line 12 */
+#define EXTI_RTEN_RTEN13             BIT(13)                  /*!< rising edge from line 13 */
+#define EXTI_RTEN_RTEN14             BIT(14)                  /*!< rising edge from line 14 */
+#define EXTI_RTEN_RTEN15             BIT(15)                  /*!< rising edge from line 15 */
+#define EXTI_RTEN_RTEN16             BIT(16)                  /*!< rising edge from line 16 */
+#define EXTI_RTEN_RTEN17             BIT(17)                  /*!< rising edge from line 17 */
+#define EXTI_RTEN_RTEN18             BIT(18)                  /*!< rising edge from line 18 */
+
+/* EXTI_FTEN */
+#define EXTI_FTEN_FTEN0              BIT(0)                   /*!< falling edge from line 0 */
+#define EXTI_FTEN_FTEN1              BIT(1)                   /*!< falling edge from line 1 */
+#define EXTI_FTEN_FTEN2              BIT(2)                   /*!< falling edge from line 2 */
+#define EXTI_FTEN_FTEN3              BIT(3)                   /*!< falling edge from line 3 */
+#define EXTI_FTEN_FTEN4              BIT(4)                   /*!< falling edge from line 4 */
+#define EXTI_FTEN_FTEN5              BIT(5)                   /*!< falling edge from line 5 */
+#define EXTI_FTEN_FTEN6              BIT(6)                   /*!< falling edge from line 6 */
+#define EXTI_FTEN_FTEN7              BIT(7)                   /*!< falling edge from line 7 */
+#define EXTI_FTEN_FTEN8              BIT(8)                   /*!< falling edge from line 8 */
+#define EXTI_FTEN_FTEN9              BIT(9)                   /*!< falling edge from line 9 */
+#define EXTI_FTEN_FTEN10             BIT(10)                  /*!< falling edge from line 10 */
+#define EXTI_FTEN_FTEN11             BIT(11)                  /*!< falling edge from line 11 */
+#define EXTI_FTEN_FTEN12             BIT(12)                  /*!< falling edge from line 12 */
+#define EXTI_FTEN_FTEN13             BIT(13)                  /*!< falling edge from line 13 */
+#define EXTI_FTEN_FTEN14             BIT(14)                  /*!< falling edge from line 14 */
+#define EXTI_FTEN_FTEN15             BIT(15)                  /*!< falling edge from line 15 */
+#define EXTI_FTEN_FTEN16             BIT(16)                  /*!< falling edge from line 16 */
+#define EXTI_FTEN_FTEN17             BIT(17)                  /*!< falling edge from line 17 */
+#define EXTI_FTEN_FTEN18             BIT(18)                  /*!< falling edge from line 18 */
+
+/* EXTI_SWIEV */
+#define EXTI_SWIEV_SWIEV0            BIT(0)                   /*!< software interrupt/event request from line 0 */
+#define EXTI_SWIEV_SWIEV1            BIT(1)                   /*!< software interrupt/event request from line 1 */
+#define EXTI_SWIEV_SWIEV2            BIT(2)                   /*!< software interrupt/event request from line 2 */
+#define EXTI_SWIEV_SWIEV3            BIT(3)                   /*!< software interrupt/event request from line 3 */
+#define EXTI_SWIEV_SWIEV4            BIT(4)                   /*!< software interrupt/event request from line 4 */
+#define EXTI_SWIEV_SWIEV5            BIT(5)                   /*!< software interrupt/event request from line 5 */
+#define EXTI_SWIEV_SWIEV6            BIT(6)                   /*!< software interrupt/event request from line 6 */
+#define EXTI_SWIEV_SWIEV7            BIT(7)                   /*!< software interrupt/event request from line 7 */
+#define EXTI_SWIEV_SWIEV8            BIT(8)                   /*!< software interrupt/event request from line 8 */
+#define EXTI_SWIEV_SWIEV9            BIT(9)                   /*!< software interrupt/event request from line 9 */
+#define EXTI_SWIEV_SWIEV10           BIT(10)                  /*!< software interrupt/event request from line 10 */
+#define EXTI_SWIEV_SWIEV11           BIT(11)                  /*!< software interrupt/event request from line 11 */
+#define EXTI_SWIEV_SWIEV12           BIT(12)                  /*!< software interrupt/event request from line 12 */
+#define EXTI_SWIEV_SWIEV13           BIT(13)                  /*!< software interrupt/event request from line 13 */
+#define EXTI_SWIEV_SWIEV14           BIT(14)                  /*!< software interrupt/event request from line 14 */
+#define EXTI_SWIEV_SWIEV15           BIT(15)                  /*!< software interrupt/event request from line 15 */
+#define EXTI_SWIEV_SWIEV16           BIT(16)                  /*!< software interrupt/event request from line 16 */
+#define EXTI_SWIEV_SWIEV17           BIT(17)                  /*!< software interrupt/event request from line 17 */
+#define EXTI_SWIEV_SWIEV18           BIT(18)                  /*!< software interrupt/event request from line 18 */
+
+/* EXTI_PD */
+#define EXTI_PD_PD0                  BIT(0)                   /*!< interrupt/event pending status from line 0 */
+#define EXTI_PD_PD1                  BIT(1)                   /*!< interrupt/event pending status from line 1 */
+#define EXTI_PD_PD2                  BIT(2)                   /*!< interrupt/event pending status from line 2 */
+#define EXTI_PD_PD3                  BIT(3)                   /*!< interrupt/event pending status from line 3 */
+#define EXTI_PD_PD4                  BIT(4)                   /*!< interrupt/event pending status from line 4 */
+#define EXTI_PD_PD5                  BIT(5)                   /*!< interrupt/event pending status from line 5 */
+#define EXTI_PD_PD6                  BIT(6)                   /*!< interrupt/event pending status from line 6 */
+#define EXTI_PD_PD7                  BIT(7)                   /*!< interrupt/event pending status from line 7 */
+#define EXTI_PD_PD8                  BIT(8)                   /*!< interrupt/event pending status from line 8 */
+#define EXTI_PD_PD9                  BIT(9)                   /*!< interrupt/event pending status from line 9 */
+#define EXTI_PD_PD10                 BIT(10)                  /*!< interrupt/event pending status from line 10 */
+#define EXTI_PD_PD11                 BIT(11)                  /*!< interrupt/event pending status from line 11 */
+#define EXTI_PD_PD12                 BIT(12)                  /*!< interrupt/event pending status from line 12 */
+#define EXTI_PD_PD13                 BIT(13)                  /*!< interrupt/event pending status from line 13 */
+#define EXTI_PD_PD14                 BIT(14)                  /*!< interrupt/event pending status from line 14 */
+#define EXTI_PD_PD15                 BIT(15)                  /*!< interrupt/event pending status from line 15 */
+#define EXTI_PD_PD16                 BIT(16)                  /*!< interrupt/event pending status from line 16 */
+#define EXTI_PD_PD17                 BIT(17)                  /*!< interrupt/event pending status from line 17 */
+#define EXTI_PD_PD18                 BIT(18)                  /*!< interrupt/event pending status from line 18 */
+
+/* constants definitions */
+/* EXTI line number */
+typedef enum {
+    EXTI_0 = BIT(0),                                          /*!< EXTI line 0 */
+    EXTI_1 = BIT(1),                                          /*!< EXTI line 1 */
+    EXTI_2 = BIT(2),                                          /*!< EXTI line 2 */
+    EXTI_3 = BIT(3),                                          /*!< EXTI line 3 */
+    EXTI_4 = BIT(4),                                          /*!< EXTI line 4 */
+    EXTI_5 = BIT(5),                                          /*!< EXTI line 5 */
+    EXTI_6 = BIT(6),                                          /*!< EXTI line 6 */
+    EXTI_7 = BIT(7),                                          /*!< EXTI line 7 */
+    EXTI_8 = BIT(8),                                          /*!< EXTI line 8 */
+    EXTI_9 = BIT(9),                                          /*!< EXTI line 9 */
+    EXTI_10 = BIT(10),                                        /*!< EXTI line 10 */
+    EXTI_11 = BIT(11),                                        /*!< EXTI line 11 */
+    EXTI_12 = BIT(12),                                        /*!< EXTI line 12 */
+    EXTI_13 = BIT(13),                                        /*!< EXTI line 13 */
+    EXTI_14 = BIT(14),                                        /*!< EXTI line 14 */
+    EXTI_15 = BIT(15),                                        /*!< EXTI line 15 */
+    EXTI_16 = BIT(16),                                        /*!< EXTI line 16 */
+    EXTI_17 = BIT(17),                                        /*!< EXTI line 17 */
+    EXTI_18 = BIT(18),                                        /*!< EXTI line 18 */
+} exti_line_enum;
+
+/* external interrupt and event  */
+typedef enum {
+    EXTI_INTERRUPT = 0,                                       /*!< EXTI interrupt mode */
+    EXTI_EVENT                                                /*!< EXTI event mode */
+} exti_mode_enum;
+
+/* interrupt trigger mode */
+typedef enum {
+    EXTI_TRIG_RISING = 0,                                     /*!< EXTI rising edge trigger */
+    EXTI_TRIG_FALLING,                                        /*!< EXTI falling edge trigger */
+    EXTI_TRIG_BOTH                                            /*!< EXTI rising edge and falling edge trigger */
+} exti_trig_type_enum;
+
+/* function declarations */
+/* initialization, EXTI lines configuration functions */
+/* deinitialize the EXTI */
+void exti_deinit(void);
+/* enable the configuration of EXTI initialize */
+void exti_init(exti_line_enum linex, exti_mode_enum mode, exti_trig_type_enum trig_type);
+/* enable the interrupts from EXTI line x */
+void exti_interrupt_enable(exti_line_enum linex);
+/* enable the events from EXTI line x */
+void exti_event_enable(exti_line_enum linex);
+/* disable the interrupts from EXTI line x */
+void exti_interrupt_disable(exti_line_enum linex);
+/* disable the events from EXTI line x */
+void exti_event_disable(exti_line_enum linex);
+
+/* interrupt & flag functions */
+/* get EXTI lines pending flag */
+FlagStatus exti_flag_get(exti_line_enum linex);
+/* clear EXTI lines pending flag */
+void exti_flag_clear(exti_line_enum linex);
+/* get EXTI lines flag when the interrupt flag is set */
+FlagStatus exti_interrupt_flag_get(exti_line_enum linex);
+/* clear EXTI lines pending flag */
+void exti_interrupt_flag_clear(exti_line_enum linex);
+/* enable the EXTI software interrupt event  */
+void exti_software_interrupt_enable(exti_line_enum linex);
+/* disable the EXTI software interrupt event  */
+void exti_software_interrupt_disable(exti_line_enum linex);
+
+#endif /* GD32VF103_EXTI_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_fmc.h

@@ -0,0 +1,311 @@
+/*!
+    \file  gd32vf103_fmc.h
+    \brief definitions for the FMC
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_FMC_H
+#define GD32VF103_FMC_H
+
+#include "gd32vf103.h"
+
+/* FMC and option byte definition */
+#define FMC                        FMC_BASE                        /*!< FMC register base address */
+#define OB                         OB_BASE                         /*!< option bytes base address */
+
+/* registers definitions */
+#define FMC_WS                     REG32((FMC) + 0x00U)            /*!< FMC wait state register */
+#define FMC_KEY0                   REG32((FMC) + 0x04U)            /*!< FMC unlock key register 0 */
+#define FMC_OBKEY                  REG32((FMC) + 0x08U)            /*!< FMC option bytes unlock key register */
+#define FMC_STAT0                  REG32((FMC) + 0x0CU)            /*!< FMC status register 0 */
+#define FMC_CTL0                   REG32((FMC) + 0x10U)            /*!< FMC control register 0 */
+#define FMC_ADDR0                  REG32((FMC) + 0x14U)            /*!< FMC address register 0 */
+#define FMC_OBSTAT                 REG32((FMC) + 0x1CU)            /*!< FMC option bytes status register */
+#define FMC_WP                     REG32((FMC) + 0x20U)            /*!< FMC erase/program protection register */
+#define FMC_PID                    REG32((FMC) + 0x100U)           /*!< FMC product ID register */
+
+#define OB_SPC                     REG16((OB) + 0x00U)             /*!< option byte security protection value */
+#define OB_USER                    REG16((OB) + 0x02U)             /*!< option byte user value*/
+#define OB_WP0                     REG16((OB) + 0x08U)             /*!< option byte write protection 0 */
+#define OB_WP1                     REG16((OB) + 0x0AU)             /*!< option byte write protection 1 */
+#define OB_WP2                     REG16((OB) + 0x0CU)             /*!< option byte write protection 2 */
+#define OB_WP3                     REG16((OB) + 0x0EU)             /*!< option byte write protection 3 */
+
+/* bits definitions */
+/* FMC_WS */
+#define FMC_WS_WSCNT               BITS(0,2)                       /*!< wait state counter */
+
+/* FMC_KEY0 */
+#define FMC_KEY0_KEY               BITS(0,31)                      /*!< FMC_CTL0 unlock key bits */
+
+/* FMC_OBKEY */
+#define FMC_OBKEY_OBKEY            BITS(0,31)                      /*!< option bytes unlock key bits */
+
+/* FMC_STAT0 */
+#define FMC_STAT0_BUSY             BIT(0)                          /*!< flash busy flag bit */
+#define FMC_STAT0_PGERR            BIT(2)                          /*!< flash program error flag bit */
+#define FMC_STAT0_WPERR            BIT(4)                          /*!< erase/program protection error flag bit */
+#define FMC_STAT0_ENDF             BIT(5)                          /*!< end of operation flag bit */
+
+/* FMC_CTL0 */
+#define FMC_CTL0_PG                BIT(0)                          /*!< main flash program for bank0 command bit */
+#define FMC_CTL0_PER               BIT(1)                          /*!< main flash page erase for bank0 command bit */
+#define FMC_CTL0_MER               BIT(2)                          /*!< main flash mass erase for bank0 command bit */
+#define FMC_CTL0_OBPG              BIT(4)                          /*!< option bytes program command bit */
+#define FMC_CTL0_OBER              BIT(5)                          /*!< option bytes erase command bit */
+#define FMC_CTL0_START             BIT(6)                          /*!< send erase command to FMC bit */
+#define FMC_CTL0_LK                BIT(7)                          /*!< FMC_CTL0 lock bit */
+#define FMC_CTL0_OBWEN             BIT(9)                          /*!< option bytes erase/program enable bit */
+#define FMC_CTL0_ERRIE             BIT(10)                         /*!< error interrupt enable bit */
+#define FMC_CTL0_ENDIE             BIT(12)                         /*!< end of operation interrupt enable bit */
+
+/* FMC_ADDR0 */
+#define FMC_ADDR0_ADDR             BITS(0,31)                      /*!< Flash erase/program command address bits */
+
+/* FMC_OBSTAT */
+#define FMC_OBSTAT_OBERR           BIT(0)                          /*!< option bytes read error bit. */
+#define FMC_OBSTAT_SPC             BIT(1)                          /*!< option bytes security protection code */
+#define FMC_OBSTAT_USER            BITS(2,9)                       /*!< store USER of option bytes block after system reset */
+#define FMC_OBSTAT_DATA            BITS(10,25)                     /*!< store DATA of option bytes block after system reset. */
+
+/* FMC_WP */
+#define FMC_WP_WP                  BITS(0,31)                      /*!< store WP of option bytes block after system reset */
+
+/* FMC_WSEN */
+#define FMC_WSEN_WSEN              BIT(0)                          /*!< FMC wait state enable bit */
+
+/* FMC_PID */
+#define FMC_PID_PID                BITS(0,31)                      /*!< product ID bits */
+
+/* constants definitions */
+/* define the FMC bit position and its register index offset */
+#define FMC_REGIDX_BIT(regidx, bitpos)              (((uint32_t)(regidx) << 6) | (uint32_t)(bitpos))
+#define FMC_REG_VAL(offset)                         (REG32(FMC + ((uint32_t)(offset) >> 6)))
+#define FMC_BIT_POS(val)                            ((uint32_t)(val) & 0x1FU)
+#define FMC_REGIDX_BITS(regidx, bitpos0, bitpos1)   (((uint32_t)(regidx) << 12) | ((uint32_t)(bitpos0) << 6) | (uint32_t)(bitpos1))
+#define FMC_REG_VALS(offset)                        (REG32(FMC + ((uint32_t)(offset) >> 12)))
+#define FMC_BIT_POS0(val)                           (((uint32_t)(val) >> 6) & 0x1FU)
+#define FMC_BIT_POS1(val)                           ((uint32_t)(val) & 0x1FU)
+#define FMC_REG_OFFSET_GET(flag)                    ((uint32_t)(flag) >> 12)
+
+/* configuration register */
+#define FMC_STAT0_REG_OFFSET       0x0CU                          /*!< status register 0 offset */
+#define FMC_CTL0_REG_OFFSET        0x10U                          /*!< control register 0 offset */
+#define FMC_OBSTAT_REG_OFFSET      0x1CU                          /*!< option byte status register offset */
+
+/* fmc state */
+typedef enum
+{
+    FMC_READY,                                                    /*!< the operation has been completed */
+    FMC_BUSY,                                                     /*!< the operation is in progress */
+    FMC_PGERR,                                                    /*!< program error */
+    FMC_WPERR,                                                    /*!< erase/program protection error */
+    FMC_TOERR,                                                    /*!< timeout error */
+}fmc_state_enum;
+
+/* FMC interrupt enable */
+typedef enum
+{
+    FMC_INT_END     = FMC_REGIDX_BIT(FMC_CTL0_REG_OFFSET, 12U),            /*!< enable FMC end of program interrupt */
+    FMC_INT_ERR     = FMC_REGIDX_BIT(FMC_CTL0_REG_OFFSET, 10U),            /*!< enable FMC error interrupt */
+}fmc_int_enum;
+
+/* FMC flags */
+typedef enum
+{
+    FMC_FLAG_BUSY   = FMC_REGIDX_BIT(FMC_STAT0_REG_OFFSET, 0U),                  /*!< FMC busy flag */
+    FMC_FLAG_PGERR  = FMC_REGIDX_BIT(FMC_STAT0_REG_OFFSET, 2U),                  /*!< FMC operation error flag bit */
+    FMC_FLAG_WPERR  = FMC_REGIDX_BIT(FMC_STAT0_REG_OFFSET, 4U),                  /*!< FMC erase/program protection error flag bit */
+    FMC_FLAG_END    = FMC_REGIDX_BIT(FMC_STAT0_REG_OFFSET, 5U),                  /*!< FMC end of operation flag bit */
+    FMC_FLAG_OBERR  = FMC_REGIDX_BIT(FMC_OBSTAT_REG_OFFSET, 0U),                 /*!< FMC option bytes read error flag */
+}fmc_flag_enum;
+
+/* FMC interrupt flags */
+typedef enum
+{
+    FMC_INT_FLAG_PGERR  = FMC_REGIDX_BITS(FMC_STAT0_REG_OFFSET, 2U, 10U),  /*!< FMC operation error interrupt flag bit */
+    FMC_INT_FLAG_WPERR  = FMC_REGIDX_BITS(FMC_STAT0_REG_OFFSET, 4U, 10U),  /*!< FMC erase/program protection error interrupt flag bit */
+    FMC_INT_FLAG_END    = FMC_REGIDX_BITS(FMC_STAT0_REG_OFFSET, 5U, 12U),  /*!< FMC end of operation interrupt flag bit */
+}fmc_interrupt_flag_enum;
+
+/* unlock key */
+#define UNLOCK_KEY0                ((uint32_t)0x45670123U)        /*!< unlock key 0 */
+#define UNLOCK_KEY1                ((uint32_t)0xCDEF89ABU)        /*!< unlock key 1 */
+
+/* FMC wait state counter */
+#define WS_WSCNT(regval)           (BITS(0,2) & ((uint32_t)(regval)))
+#define WS_WSCNT_0                 WS_WSCNT(0)                    /*!< FMC 0 wait */
+#define WS_WSCNT_1                 WS_WSCNT(1)                    /*!< FMC 1 wait */
+#define WS_WSCNT_2                 WS_WSCNT(2)                    /*!< FMC 2 wait */
+
+/* option bytes software/hardware free watch dog timer */
+#define OB_FWDGT_SW                ((uint8_t)0x01U)               /*!< software free watchdog */
+#define OB_FWDGT_HW                ((uint8_t)0x00U)               /*!< hardware free watchdog */
+
+/* option bytes reset or not entering deep sleep mode */
+#define OB_DEEPSLEEP_NRST          ((uint8_t)0x02U)               /*!< no reset when entering deepsleep mode */
+#define OB_DEEPSLEEP_RST           ((uint8_t)0x00U)               /*!< generate a reset instead of entering deepsleep mode */
+
+/* option bytes reset or not entering standby mode */
+#define OB_STDBY_NRST              ((uint8_t)0x04U)               /*!< no reset when entering deepsleep mode */
+#define OB_STDBY_RST               ((uint8_t)0x00U)               /*!< generate a reset instead of entering standby mode */
+
+/* option bytes boot bank value */
+#define OB_BOOT_B0                 ((uint8_t)0x08U)               /*!< boot from bank0 */
+
+#define OB_USER_MASK               ((uint8_t)0xF0U)               /*!< MASK value */
+
+/* read protect configure */
+#define FMC_NSPC                   ((uint8_t)0xA5U)               /*!< no security protection */
+#define FMC_USPC                   ((uint8_t)0xBBU)               /*!< under security protection */
+
+/* OB_SPC */
+#define OB_SPC_SPC                 ((uint32_t)0x000000FFU)        /*!< option byte security protection value */
+#define OB_SPC_SPC_N               ((uint32_t)0x0000FF00U)        /*!< option byte security protection complement value */
+
+/* OB_USER */
+#define OB_USER_USER               ((uint32_t)0x00FF0000U)        /*!< user option value */
+#define OB_USER_USER_N             ((uint32_t)0xFF000000U)        /*!< user option complement value */
+
+/* OB_WP0 */
+#define OB_WP0_WP0                 ((uint32_t)0x000000FFU)        /*!< FMC write protection option value */
+
+/* OB_WP1 */
+#define OB_WP1_WP1                 ((uint32_t)0x0000FF00U)        /*!< FMC write protection option complement value */
+
+/* OB_WP2 */
+#define OB_WP2_WP2                 ((uint32_t)0x00FF0000U)        /*!< FMC write protection option value */
+
+/* OB_WP3 */
+#define OB_WP3_WP3                 ((uint32_t)0xFF000000U)        /*!< FMC write protection option complement value */
+
+/* option bytes write protection */
+#define OB_WP_0                    ((uint32_t)0x00000001U)        /*!< erase/program protection of sector 0  */
+#define OB_WP_1                    ((uint32_t)0x00000002U)        /*!< erase/program protection of sector 1  */
+#define OB_WP_2                    ((uint32_t)0x00000004U)        /*!< erase/program protection of sector 2  */
+#define OB_WP_3                    ((uint32_t)0x00000008U)        /*!< erase/program protection of sector 3  */
+#define OB_WP_4                    ((uint32_t)0x00000010U)        /*!< erase/program protection of sector 4  */
+#define OB_WP_5                    ((uint32_t)0x00000020U)        /*!< erase/program protection of sector 5  */
+#define OB_WP_6                    ((uint32_t)0x00000040U)        /*!< erase/program protection of sector 6  */
+#define OB_WP_7                    ((uint32_t)0x00000080U)        /*!< erase/program protection of sector 7  */
+#define OB_WP_8                    ((uint32_t)0x00000100U)        /*!< erase/program protection of sector 8  */
+#define OB_WP_9                    ((uint32_t)0x00000200U)        /*!< erase/program protection of sector 9  */
+#define OB_WP_10                   ((uint32_t)0x00000400U)        /*!< erase/program protection of sector 10 */
+#define OB_WP_11                   ((uint32_t)0x00000800U)        /*!< erase/program protection of sector 11 */
+#define OB_WP_12                   ((uint32_t)0x00001000U)        /*!< erase/program protection of sector 12 */
+#define OB_WP_13                   ((uint32_t)0x00002000U)        /*!< erase/program protection of sector 13 */
+#define OB_WP_14                   ((uint32_t)0x00004000U)        /*!< erase/program protection of sector 14 */
+#define OB_WP_15                   ((uint32_t)0x00008000U)        /*!< erase/program protection of sector 15 */
+#define OB_WP_16                   ((uint32_t)0x00010000U)        /*!< erase/program protection of sector 16 */
+#define OB_WP_17                   ((uint32_t)0x00020000U)        /*!< erase/program protection of sector 17 */
+#define OB_WP_18                   ((uint32_t)0x00040000U)        /*!< erase/program protection of sector 18 */
+#define OB_WP_19                   ((uint32_t)0x00080000U)        /*!< erase/program protection of sector 19 */
+#define OB_WP_20                   ((uint32_t)0x00100000U)        /*!< erase/program protection of sector 20 */
+#define OB_WP_21                   ((uint32_t)0x00200000U)        /*!< erase/program protection of sector 21 */
+#define OB_WP_22                   ((uint32_t)0x00400000U)        /*!< erase/program protection of sector 22 */
+#define OB_WP_23                   ((uint32_t)0x00800000U)        /*!< erase/program protection of sector 23 */
+#define OB_WP_24                   ((uint32_t)0x01000000U)        /*!< erase/program protection of sector 24 */
+#define OB_WP_25                   ((uint32_t)0x02000000U)        /*!< erase/program protection of sector 25 */
+#define OB_WP_26                   ((uint32_t)0x04000000U)        /*!< erase/program protection of sector 26 */
+#define OB_WP_27                   ((uint32_t)0x08000000U)        /*!< erase/program protection of sector 27 */
+#define OB_WP_28                   ((uint32_t)0x10000000U)        /*!< erase/program protection of sector 28 */
+#define OB_WP_29                   ((uint32_t)0x20000000U)        /*!< erase/program protection of sector 29 */
+#define OB_WP_30                   ((uint32_t)0x40000000U)        /*!< erase/program protection of sector 30 */
+#define OB_WP_31                   ((uint32_t)0x80000000U)        /*!< erase/program protection of sector 31 */
+#define OB_WP_ALL                  ((uint32_t)0xFFFFFFFFU)        /*!< erase/program protection of all sectors */
+
+/* FMC timeout */
+#define FMC_TIMEOUT_COUNT          ((uint32_t)0x000F0000U)        /*!< FMC timeout count value */
+
+/* FMC BANK address */
+#define FMC_SIZE                   (*(uint16_t *)0x1FFFF7E0U)     /*!< FMC size */
+#define SRAM_SIZE                  (*(uint16_t *)0x1FFFF7E2U)     /*!< SRAM size*/
+
+/* function declarations */
+/* FMC main memory programming functions */
+/* set the FMC wait state counter */
+void fmc_wscnt_set(uint32_t wscnt);
+/* unlock the main FMC operation */
+void fmc_unlock(void);
+/* lock the main FMC operation */
+void fmc_lock(void);
+/* FMC erase page */
+fmc_state_enum fmc_page_erase(uint32_t page_address);
+/* FMC erase whole chip */
+fmc_state_enum fmc_mass_erase(void);
+/* FMC program a word at the corresponding address */
+fmc_state_enum fmc_word_program(uint32_t address, uint32_t data);
+/* FMC program a half word at the corresponding address */
+fmc_state_enum fmc_halfword_program(uint32_t address, uint16_t data);
+
+/* FMC option bytes programming functions */
+/* unlock the option byte operation */
+void ob_unlock(void);
+/* lock the option byte operation */
+void ob_lock(void);
+/* erase the FMC option byte */
+fmc_state_enum ob_erase(void);
+/* enable write protect */
+fmc_state_enum ob_write_protection_enable(uint32_t ob_wp);
+/* configure the option byte security protection */
+fmc_state_enum ob_security_protection_config(uint8_t ob_spc);
+/* write the FMC option byte */
+fmc_state_enum ob_user_write(uint8_t ob_fwdgt, uint8_t ob_deepsleep, uint8_t ob_stdby, uint8_t ob_boot);
+/* program option bytes data */
+fmc_state_enum ob_data_program(uint32_t address, uint8_t data);
+/* get the FMC option byte user */
+uint8_t ob_user_get(void);
+/* get OB_DATA in register FMC_OBSTAT */
+uint16_t ob_data_get(void);
+/* get the FMC option byte write protection */
+uint32_t ob_write_protection_get(void);
+/* get FMC option byte security protection code value */
+FlagStatus ob_spc_get(void);
+
+/* FMC interrupts and flags management functions */
+/* enable FMC interrupt */
+void fmc_interrupt_enable(uint32_t interrupt);
+/* disable FMC interrupt */
+void fmc_interrupt_disable(uint32_t interrupt);
+/* check flag is set or not */
+FlagStatus fmc_flag_get(uint32_t flag);
+/* clear the FMC flag */
+void fmc_flag_clear(uint32_t flag);
+/* get FMC interrupt flag state */
+FlagStatus fmc_interrupt_flag_get(fmc_interrupt_flag_enum flag);
+/* clear FMC interrupt flag state */
+void fmc_interrupt_flag_clear(fmc_interrupt_flag_enum flag);
+/* return the FMC  state */
+fmc_state_enum fmc_state_get(void);
+/* check FMC ready or not */
+fmc_state_enum fmc_ready_wait(uint32_t timeout);
+
+#endif /* GD32VF103_FMC_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_fwdgt.h

@@ -0,0 +1,104 @@
+/*!
+    \file  gd32vf103_fwdgt.h
+    \brief definitions for the FWDGT
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_FWDGT_H
+#define GD32VF103_FWDGT_H
+
+#include "gd32vf103.h"
+
+/* FWDGT definitions */
+#define FWDGT                       FWDGT_BASE                                /*!< FWDGT base address */
+
+/* registers definitions */
+#define FWDGT_CTL                   REG32((FWDGT) + 0x00000000U)              /*!< FWDGT control register */
+#define FWDGT_PSC                   REG32((FWDGT) + 0x00000004U)              /*!< FWDGT prescaler register */
+#define FWDGT_RLD                   REG32((FWDGT) + 0x00000008U)              /*!< FWDGT reload register */
+#define FWDGT_STAT                  REG32((FWDGT) + 0x0000000CU)              /*!< FWDGT status register */
+
+/* bits definitions */
+/* FWDGT_CTL */
+#define FWDGT_CTL_CMD               BITS(0,15)                                /*!< FWDGT command value */
+
+/* FWDGT_PSC */
+#define FWDGT_PSC_PSC               BITS(0,2)                                 /*!< FWDGT prescaler divider value */
+
+/* FWDGT_RLD */
+#define FWDGT_RLD_RLD               BITS(0,11)                                /*!< FWDGT counter reload value */
+
+/* FWDGT_STAT */
+#define FWDGT_STAT_PUD              BIT(0)                                    /*!< FWDGT prescaler divider value update */
+#define FWDGT_STAT_RUD              BIT(1)                                    /*!< FWDGT counter reload value update */
+
+/* constants definitions */
+/* psc register value */
+#define PSC_PSC(regval)             (BITS(0,2) & ((uint32_t)(regval) << 0))
+#define FWDGT_PSC_DIV4              ((uint8_t)PSC_PSC(0))                     /*!< FWDGT prescaler set to 4 */
+#define FWDGT_PSC_DIV8              ((uint8_t)PSC_PSC(1))                     /*!< FWDGT prescaler set to 8 */
+#define FWDGT_PSC_DIV16             ((uint8_t)PSC_PSC(2))                     /*!< FWDGT prescaler set to 16 */
+#define FWDGT_PSC_DIV32             ((uint8_t)PSC_PSC(3))                     /*!< FWDGT prescaler set to 32 */
+#define FWDGT_PSC_DIV64             ((uint8_t)PSC_PSC(4))                     /*!< FWDGT prescaler set to 64 */
+#define FWDGT_PSC_DIV128            ((uint8_t)PSC_PSC(5))                     /*!< FWDGT prescaler set to 128 */
+#define FWDGT_PSC_DIV256            ((uint8_t)PSC_PSC(6))                     /*!< FWDGT prescaler set to 256 */
+
+/* control value */
+#define FWDGT_WRITEACCESS_ENABLE    ((uint16_t)0x5555U)                       /*!< FWDGT_CTL bits write access enable value */
+#define FWDGT_WRITEACCESS_DISABLE   ((uint16_t)0x0000U)                       /*!< FWDGT_CTL bits write access disable value */
+#define FWDGT_KEY_RELOAD            ((uint16_t)0xAAAAU)                       /*!< FWDGT_CTL bits fwdgt counter reload value */
+#define FWDGT_KEY_ENABLE            ((uint16_t)0xCCCCU)                       /*!< FWDGT_CTL bits fwdgt counter enable value */
+
+/* FWDGT timeout value */
+#define FWDGT_PSC_TIMEOUT           ((uint32_t)0x000FFFFFU)                   /*!< FWDGT_PSC register write operation state flag timeout */
+#define FWDGT_RLD_TIMEOUT           ((uint32_t)0x000FFFFFU)                   /*!< FWDGT_RLD register write operation state flag timeout */
+
+/* FWDGT flag definitions */
+#define FWDGT_FLAG_PUD              FWDGT_STAT_PUD                            /*!< FWDGT prescaler divider value update flag */
+#define FWDGT_FLAG_RUD              FWDGT_STAT_RUD                            /*!< FWDGT counter reload value update flag */
+
+/* function declarations */
+/* enable write access to FWDGT_PSC and FWDGT_RLD */
+void fwdgt_write_enable(void);
+/* disable write access to FWDGT_PSC and FWDGT_RLD */
+void fwdgt_write_disable(void);
+/* start the free watchdog timer counter */
+void fwdgt_enable(void);
+
+/* reload the counter of FWDGT */
+void fwdgt_counter_reload(void);
+/* configure counter reload value, and prescaler divider value */
+ErrStatus fwdgt_config(uint16_t reload_value, uint8_t prescaler_div);
+
+/* get flag state of FWDGT */
+FlagStatus fwdgt_flag_get(uint16_t flag);
+
+#endif /* GD32VF103_FWDGT_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_gpio.h

@@ -0,0 +1,423 @@
+/*!
+    \file  gd32vf103_gpio.h
+    \brief definitions for the GPIO
+
+    \version 2019-06-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_GPIO_H
+#define GD32VF103_GPIO_H
+
+#include "gd32vf103.h"
+
+/* GPIOx(x=A,B,C,D,E) definitions */
+#define GPIOA                      (GPIO_BASE + 0x00000000U)
+#define GPIOB                      (GPIO_BASE + 0x00000400U)
+#define GPIOC                      (GPIO_BASE + 0x00000800U)
+#define GPIOD                      (GPIO_BASE + 0x00000C00U)
+#define GPIOE                      (GPIO_BASE + 0x00001000U)
+
+/* AFIO definitions */
+#define AFIO                       AFIO_BASE
+
+/* registers definitions */
+
+/* GPIO registers definitions */
+#define GPIO_CTL0(gpiox)           REG32((gpiox) + 0x00U)    /*!< GPIO port control register 0 */
+#define GPIO_CTL1(gpiox)           REG32((gpiox) + 0x04U)    /*!< GPIO port control register 1 */
+#define GPIO_ISTAT(gpiox)          REG32((gpiox) + 0x08U)    /*!< GPIO port input status register */
+#define GPIO_OCTL(gpiox)           REG32((gpiox) + 0x0CU)    /*!< GPIO port output control register */
+#define GPIO_BOP(gpiox)            REG32((gpiox) + 0x10U)    /*!< GPIO port bit operation register */
+#define GPIO_BC(gpiox)             REG32((gpiox) + 0x14U)    /*!< GPIO bit clear register */
+#define GPIO_LOCK(gpiox)           REG32((gpiox) + 0x18U)    /*!< GPIO port configuration lock register */
+
+/* AFIO registers definitions */
+#define AFIO_EC                    REG32(AFIO + 0x00U)       /*!< AFIO event control register */
+#define AFIO_PCF0                  REG32(AFIO + 0x04U)       /*!< AFIO port configuration register 0 */
+#define AFIO_EXTISS0               REG32(AFIO + 0x08U)       /*!< AFIO port EXTI sources selection register 0 */
+#define AFIO_EXTISS1               REG32(AFIO + 0x0CU)       /*!< AFIO port EXTI sources selection register 1 */
+#define AFIO_EXTISS2               REG32(AFIO + 0x10U)       /*!< AFIO port EXTI sources selection register 2 */
+#define AFIO_EXTISS3               REG32(AFIO + 0x14U)       /*!< AFIO port EXTI sources selection register 3 */
+#define AFIO_PCF1                  REG32(AFIO + 0x1CU)       /*!< AFIO port configuration register 1 */
+
+/* bits definitions */
+/* GPIO_CTL0 */
+#define GPIO_CTL0_MD0              BITS(0, 1)                /*!< port 0 mode bits */
+#define GPIO_CTL0_CTL0             BITS(2, 3)                /*!< pin 0 configuration bits */
+#define GPIO_CTL0_MD1              BITS(4, 5)                /*!< port 1 mode bits */
+#define GPIO_CTL0_CTL1             BITS(6, 7)                /*!< pin 1 configuration bits */
+#define GPIO_CTL0_MD2              BITS(8, 9)                /*!< port 2 mode bits */
+#define GPIO_CTL0_CTL2             BITS(10, 11)              /*!< pin 2 configuration bits */
+#define GPIO_CTL0_MD3              BITS(12, 13)              /*!< port 3 mode bits */
+#define GPIO_CTL0_CTL3             BITS(14, 15)              /*!< pin 3 configuration bits */
+#define GPIO_CTL0_MD4              BITS(16, 17)              /*!< port 4 mode bits */
+#define GPIO_CTL0_CTL4             BITS(18, 19)              /*!< pin 4 configuration bits */
+#define GPIO_CTL0_MD5              BITS(20, 21)              /*!< port 5 mode bits */
+#define GPIO_CTL0_CTL5             BITS(22, 23)              /*!< pin 5 configuration bits */
+#define GPIO_CTL0_MD6              BITS(24, 25)              /*!< port 6 mode bits */
+#define GPIO_CTL0_CTL6             BITS(26, 27)              /*!< pin 6 configuration bits */
+#define GPIO_CTL0_MD7              BITS(28, 29)              /*!< port 7 mode bits */
+#define GPIO_CTL0_CTL7             BITS(30, 31)              /*!< pin 7 configuration bits */
+
+/* GPIO_CTL1 */
+#define GPIO_CTL1_MD8              BITS(0, 1)                /*!< port 8 mode bits */
+#define GPIO_CTL1_CTL8             BITS(2, 3)                /*!< pin 8 configuration bits */
+#define GPIO_CTL1_MD9              BITS(4, 5)                /*!< port 9 mode bits */
+#define GPIO_CTL1_CTL9             BITS(6, 7)                /*!< pin 9 configuration bits */
+#define GPIO_CTL1_MD10             BITS(8, 9)                /*!< port 10 mode bits */
+#define GPIO_CTL1_CTL10            BITS(10, 11)              /*!< pin 10 configuration bits */
+#define GPIO_CTL1_MD11             BITS(12, 13)              /*!< port 11 mode bits */
+#define GPIO_CTL1_CTL11            BITS(14, 15)              /*!< pin 11 configuration bits */
+#define GPIO_CTL1_MD12             BITS(16, 17)              /*!< port 12 mode bits */
+#define GPIO_CTL1_CTL12            BITS(18, 19)              /*!< pin 12 configuration bits */
+#define GPIO_CTL1_MD13             BITS(20, 21)              /*!< port 13 mode bits */
+#define GPIO_CTL1_CTL13            BITS(22, 23)              /*!< pin 13 configuration bits */
+#define GPIO_CTL1_MD14             BITS(24, 25)              /*!< port 14 mode bits */
+#define GPIO_CTL1_CTL14            BITS(26, 27)              /*!< pin 14 configuration bits */
+#define GPIO_CTL1_MD15             BITS(28, 29)              /*!< port 15 mode bits */
+#define GPIO_CTL1_CTL15            BITS(30, 31)              /*!< pin 15 configuration bits */
+
+/* GPIO_ISTAT */
+#define GPIO_ISTAT_ISTAT0          BIT(0)                    /*!< pin 0 input status */
+#define GPIO_ISTAT_ISTAT1          BIT(1)                    /*!< pin 1 input status */
+#define GPIO_ISTAT_ISTAT2          BIT(2)                    /*!< pin 2 input status */
+#define GPIO_ISTAT_ISTAT3          BIT(3)                    /*!< pin 3 input status */
+#define GPIO_ISTAT_ISTAT4          BIT(4)                    /*!< pin 4 input status */
+#define GPIO_ISTAT_ISTAT5          BIT(5)                    /*!< pin 5 input status */
+#define GPIO_ISTAT_ISTAT6          BIT(6)                    /*!< pin 6 input status */
+#define GPIO_ISTAT_ISTAT7          BIT(7)                    /*!< pin 7 input status */
+#define GPIO_ISTAT_ISTAT8          BIT(8)                    /*!< pin 8 input status */
+#define GPIO_ISTAT_ISTAT9          BIT(9)                    /*!< pin 9 input status */
+#define GPIO_ISTAT_ISTAT10         BIT(10)                   /*!< pin 10 input status */
+#define GPIO_ISTAT_ISTAT11         BIT(11)                   /*!< pin 11 input status */
+#define GPIO_ISTAT_ISTAT12         BIT(12)                   /*!< pin 12 input status */
+#define GPIO_ISTAT_ISTAT13         BIT(13)                   /*!< pin 13 input status */
+#define GPIO_ISTAT_ISTAT14         BIT(14)                   /*!< pin 14 input status */
+#define GPIO_ISTAT_ISTAT15         BIT(15)                   /*!< pin 15 input status */
+
+/* GPIO_OCTL */
+#define GPIO_OCTL_OCTL0            BIT(0)                    /*!< pin 0 output bit */
+#define GPIO_OCTL_OCTL1            BIT(1)                    /*!< pin 1 output bit */
+#define GPIO_OCTL_OCTL2            BIT(2)                    /*!< pin 2 output bit */
+#define GPIO_OCTL_OCTL3            BIT(3)                    /*!< pin 3 output bit */
+#define GPIO_OCTL_OCTL4            BIT(4)                    /*!< pin 4 output bit */
+#define GPIO_OCTL_OCTL5            BIT(5)                    /*!< pin 5 output bit */
+#define GPIO_OCTL_OCTL6            BIT(6)                    /*!< pin 6 output bit */
+#define GPIO_OCTL_OCTL7            BIT(7)                    /*!< pin 7 output bit */
+#define GPIO_OCTL_OCTL8            BIT(8)                    /*!< pin 8 output bit */
+#define GPIO_OCTL_OCTL9            BIT(9)                    /*!< pin 9 output bit */
+#define GPIO_OCTL_OCTL10           BIT(10)                   /*!< pin 10 output bit */
+#define GPIO_OCTL_OCTL11           BIT(11)                   /*!< pin 11 output bit */
+#define GPIO_OCTL_OCTL12           BIT(12)                   /*!< pin 12 output bit */
+#define GPIO_OCTL_OCTL13           BIT(13)                   /*!< pin 13 output bit */
+#define GPIO_OCTL_OCTL14           BIT(14)                   /*!< pin 14 output bit */
+#define GPIO_OCTL_OCTL15           BIT(15)                   /*!< pin 15 output bit */
+
+/* GPIO_BOP */
+#define GPIO_BOP_BOP0              BIT(0)                    /*!< pin 0 set bit */
+#define GPIO_BOP_BOP1              BIT(1)                    /*!< pin 1 set bit */
+#define GPIO_BOP_BOP2              BIT(2)                    /*!< pin 2 set bit */
+#define GPIO_BOP_BOP3              BIT(3)                    /*!< pin 3 set bit */
+#define GPIO_BOP_BOP4              BIT(4)                    /*!< pin 4 set bit */
+#define GPIO_BOP_BOP5              BIT(5)                    /*!< pin 5 set bit */
+#define GPIO_BOP_BOP6              BIT(6)                    /*!< pin 6 set bit */
+#define GPIO_BOP_BOP7              BIT(7)                    /*!< pin 7 set bit */
+#define GPIO_BOP_BOP8              BIT(8)                    /*!< pin 8 set bit */
+#define GPIO_BOP_BOP9              BIT(9)                    /*!< pin 9 set bit */
+#define GPIO_BOP_BOP10             BIT(10)                   /*!< pin 10 set bit */
+#define GPIO_BOP_BOP11             BIT(11)                   /*!< pin 11 set bit */
+#define GPIO_BOP_BOP12             BIT(12)                   /*!< pin 12 set bit */
+#define GPIO_BOP_BOP13             BIT(13)                   /*!< pin 13 set bit */
+#define GPIO_BOP_BOP14             BIT(14)                   /*!< pin 14 set bit */
+#define GPIO_BOP_BOP15             BIT(15)                   /*!< pin 15 set bit */
+#define GPIO_BOP_CR0               BIT(16)                   /*!< pin 0 clear bit */
+#define GPIO_BOP_CR1               BIT(17)                   /*!< pin 1 clear bit */
+#define GPIO_BOP_CR2               BIT(18)                   /*!< pin 2 clear bit */
+#define GPIO_BOP_CR3               BIT(19)                   /*!< pin 3 clear bit */
+#define GPIO_BOP_CR4               BIT(20)                   /*!< pin 4 clear bit */
+#define GPIO_BOP_CR5               BIT(21)                   /*!< pin 5 clear bit */
+#define GPIO_BOP_CR6               BIT(22)                   /*!< pin 6 clear bit */
+#define GPIO_BOP_CR7               BIT(23)                   /*!< pin 7 clear bit */
+#define GPIO_BOP_CR8               BIT(24)                   /*!< pin 8 clear bit */
+#define GPIO_BOP_CR9               BIT(25)                   /*!< pin 9 clear bit */
+#define GPIO_BOP_CR10              BIT(26)                   /*!< pin 10 clear bit */
+#define GPIO_BOP_CR11              BIT(27)                   /*!< pin 11 clear bit */
+#define GPIO_BOP_CR12              BIT(28)                   /*!< pin 12 clear bit */
+#define GPIO_BOP_CR13              BIT(29)                   /*!< pin 13 clear bit */
+#define GPIO_BOP_CR14              BIT(30)                   /*!< pin 14 clear bit */
+#define GPIO_BOP_CR15              BIT(31)                   /*!< pin 15 clear bit */
+
+/* GPIO_BC */
+#define GPIO_BC_CR0                BIT(0)                    /*!< pin 0 clear bit */
+#define GPIO_BC_CR1                BIT(1)                    /*!< pin 1 clear bit */
+#define GPIO_BC_CR2                BIT(2)                    /*!< pin 2 clear bit */
+#define GPIO_BC_CR3                BIT(3)                    /*!< pin 3 clear bit */
+#define GPIO_BC_CR4                BIT(4)                    /*!< pin 4 clear bit */
+#define GPIO_BC_CR5                BIT(5)                    /*!< pin 5 clear bit */
+#define GPIO_BC_CR6                BIT(6)                    /*!< pin 6 clear bit */
+#define GPIO_BC_CR7                BIT(7)                    /*!< pin 7 clear bit */
+#define GPIO_BC_CR8                BIT(8)                    /*!< pin 8 clear bit */
+#define GPIO_BC_CR9                BIT(9)                    /*!< pin 9 clear bit */
+#define GPIO_BC_CR10               BIT(10)                   /*!< pin 10 clear bit */
+#define GPIO_BC_CR11               BIT(11)                   /*!< pin 11 clear bit */
+#define GPIO_BC_CR12               BIT(12)                   /*!< pin 12 clear bit */
+#define GPIO_BC_CR13               BIT(13)                   /*!< pin 13 clear bit */
+#define GPIO_BC_CR14               BIT(14)                   /*!< pin 14 clear bit */
+#define GPIO_BC_CR15               BIT(15)                   /*!< pin 15 clear bit */
+
+/* GPIO_LOCK */
+#define GPIO_LOCK_LK0              BIT(0)                    /*!< pin 0 lock bit */
+#define GPIO_LOCK_LK1              BIT(1)                    /*!< pin 1 lock bit */
+#define GPIO_LOCK_LK2              BIT(2)                    /*!< pin 2 lock bit */
+#define GPIO_LOCK_LK3              BIT(3)                    /*!< pin 3 lock bit */
+#define GPIO_LOCK_LK4              BIT(4)                    /*!< pin 4 lock bit */
+#define GPIO_LOCK_LK5              BIT(5)                    /*!< pin 5 lock bit */
+#define GPIO_LOCK_LK6              BIT(6)                    /*!< pin 6 lock bit */
+#define GPIO_LOCK_LK7              BIT(7)                    /*!< pin 7 lock bit */
+#define GPIO_LOCK_LK8              BIT(8)                    /*!< pin 8 lock bit */
+#define GPIO_LOCK_LK9              BIT(9)                    /*!< pin 9 lock bit */
+#define GPIO_LOCK_LK10             BIT(10)                   /*!< pin 10 lock bit */
+#define GPIO_LOCK_LK11             BIT(11)                   /*!< pin 11 lock bit */
+#define GPIO_LOCK_LK12             BIT(12)                   /*!< pin 12 lock bit */
+#define GPIO_LOCK_LK13             BIT(13)                   /*!< pin 13 lock bit */
+#define GPIO_LOCK_LK14             BIT(14)                   /*!< pin 14 lock bit */
+#define GPIO_LOCK_LK15             BIT(15)                   /*!< pin 15 lock bit */
+#define GPIO_LOCK_LKK              BIT(16)                   /*!< pin sequence lock key */
+
+/* AFIO_EC */
+#define AFIO_EC_PIN                BITS(0, 3)                /*!< event output pin selection */
+#define AFIO_EC_PORT               BITS(4, 6)                /*!< event output port selection */
+#define AFIO_EC_EOE                BIT(7)                    /*!< event output enable */
+
+/* AFIO_PCF0 */
+/* memory map and bit definitions for GD32F10X_CL devices */
+#define AFIO_PCF0_SPI0_REMAP             BIT(0)              /*!< SPI0 remapping */
+#define AFIO_PCF0_I2C0_REMAP             BIT(1)              /*!< I2C0 remapping */
+#define AFIO_PCF0_USART0_REMAP           BIT(2)              /*!< USART0 remapping */
+#define AFIO_PCF0_USART1_REMAP           BIT(3)              /*!< USART1 remapping */
+#define AFIO_PCF0_USART2_REMAP           BITS(4, 5)          /*!< USART2 remapping */
+#define AFIO_PCF0_TIMER0_REMAP           BITS(6, 7)          /*!< TIMER0 remapping */
+#define AFIO_PCF0_TIMER1_REMAP           BITS(8, 9)          /*!< TIMER1 remapping */
+#define AFIO_PCF0_TIMER2_REMAP           BITS(10, 11)        /*!< TIMER2 remapping */
+#define AFIO_PCF0_TIMER3_REMAP           BIT(12)             /*!< TIMER3 remapping */
+#define AFIO_PCF0_CAN_REMAP              BITS(13, 14)        /*!< CAN remapping */
+#define AFIO_PCF0_PD01_REMAP             BIT(15)             /*!< port D0/port D1 mapping on OSC_IN/OSC_OUT */
+#define AFIO_PCF0_TIMER4CH3_IREMAP       BIT(16)             /*!< TIMER3 channel3 internal remapping */
+#define AFIO_PCF0_SWJ_CFG                BITS(24, 26)        /*!< serial wire JTAG configuration */
+#define AFIO_PCF0_SPI2_REMAP             BIT(28)             /*!< SPI2/I2S2 remapping */
+#define AFIO_PCF0_TIMER1_ITI1_REMAP      BIT(29)             /*!< TIMER1 internal trigger 1 remapping */
+
+/* AFIO_EXTISS0 */
+#define AFIO_EXTI0_SS                    BITS(0, 3)          /*!< EXTI 0 sources selection */
+#define AFIO_EXTI1_SS                    BITS(4, 7)          /*!< EXTI 1 sources selection */
+#define AFIO_EXTI2_SS                    BITS(8, 11)         /*!< EXTI 2 sources selection */
+#define AFIO_EXTI3_SS                    BITS(12, 15)        /*!< EXTI 3 sources selection */
+
+/* AFIO_EXTISS1 */
+#define AFIO_EXTI4_SS                    BITS(0, 3)          /*!< EXTI 4 sources selection */
+#define AFIO_EXTI5_SS                    BITS(4, 7)          /*!< EXTI 5 sources selection */
+#define AFIO_EXTI6_SS                    BITS(8, 11)         /*!< EXTI 6 sources selection */
+#define AFIO_EXTI7_SS                    BITS(12, 15)        /*!< EXTI 7 sources selection */
+
+/* AFIO_EXTISS2 */
+#define AFIO_EXTI8_SS                    BITS(0, 3)          /*!< EXTI 8 sources selection */
+#define AFIO_EXTI9_SS                    BITS(4, 7)          /*!< EXTI 9 sources selection */
+#define AFIO_EXTI10_SS                   BITS(8, 11)         /*!< EXTI 10 sources selection */
+#define AFIO_EXTI11_SS                   BITS(12, 15)        /*!< EXTI 11 sources selection */
+
+/* AFIO_EXTISS3 */
+#define AFIO_EXTI12_SS                   BITS(0, 3)          /*!< EXTI 12 sources selection */
+#define AFIO_EXTI13_SS                   BITS(4, 7)          /*!< EXTI 13 sources selection */
+#define AFIO_EXTI14_SS                   BITS(8, 11)         /*!< EXTI 14 sources selection */
+#define AFIO_EXTI15_SS                   BITS(12, 15)        /*!< EXTI 15 sources selection */
+
+/* AFIO_PCF1 */
+#define AFIO_PCF1_EXMC_NADV              BIT(10)             /*!< EXMC_NADV connect/disconnect */
+
+/* constants definitions */
+typedef FlagStatus bit_status;
+
+/* GPIO mode values set */
+#define GPIO_MODE_SET(n, mode)           ((uint32_t)((uint32_t)(mode) << (4U * (n))))
+#define GPIO_MODE_MASK(n)                (0xFU << (4U * (n)))
+
+/* GPIO mode definitions */
+#define GPIO_MODE_AIN                    ((uint8_t)0x00U)          /*!< analog input mode */
+#define GPIO_MODE_IN_FLOATING            ((uint8_t)0x04U)          /*!< floating input mode */
+#define GPIO_MODE_IPD                    ((uint8_t)0x28U)          /*!< pull-down input mode */
+#define GPIO_MODE_IPU                    ((uint8_t)0x48U)          /*!< pull-up input mode */
+#define GPIO_MODE_OUT_OD                 ((uint8_t)0x14U)          /*!< GPIO output with open-drain */
+#define GPIO_MODE_OUT_PP                 ((uint8_t)0x10U)          /*!< GPIO output with push-pull */
+#define GPIO_MODE_AF_OD                  ((uint8_t)0x1CU)          /*!< AFIO output with open-drain */
+#define GPIO_MODE_AF_PP                  ((uint8_t)0x18U)          /*!< AFIO output with push-pull */
+
+/* GPIO output max speed value */
+#define GPIO_OSPEED_10MHZ                ((uint8_t)0x01U)          /*!< output max speed 10MHz */
+#define GPIO_OSPEED_2MHZ                 ((uint8_t)0x02U)          /*!< output max speed 2MHz */
+#define GPIO_OSPEED_50MHZ                ((uint8_t)0x03U)          /*!< output max speed 50MHz */
+
+/* GPIO event output port definitions */
+#define GPIO_EVENT_PORT_GPIOA            ((uint8_t)0x00U)          /*!< event output port A */
+#define GPIO_EVENT_PORT_GPIOB            ((uint8_t)0x01U)          /*!< event output port B */
+#define GPIO_EVENT_PORT_GPIOC            ((uint8_t)0x02U)          /*!< event output port C */
+#define GPIO_EVENT_PORT_GPIOD            ((uint8_t)0x03U)          /*!< event output port D */
+#define GPIO_EVENT_PORT_GPIOE            ((uint8_t)0x04U)          /*!< event output port E */
+
+/* GPIO output port source definitions */
+#define GPIO_PORT_SOURCE_GPIOA           ((uint8_t)0x00U)          /*!< output port source A */
+#define GPIO_PORT_SOURCE_GPIOB           ((uint8_t)0x01U)          /*!< output port source B */
+#define GPIO_PORT_SOURCE_GPIOC           ((uint8_t)0x02U)          /*!< output port source C */
+#define GPIO_PORT_SOURCE_GPIOD           ((uint8_t)0x03U)          /*!< output port source D */
+#define GPIO_PORT_SOURCE_GPIOE           ((uint8_t)0x04U)          /*!< output port source E */
+
+/* GPIO event output pin definitions */
+#define GPIO_EVENT_PIN_0                 ((uint8_t)0x00U)          /*!< GPIO event pin 0 */
+#define GPIO_EVENT_PIN_1                 ((uint8_t)0x01U)          /*!< GPIO event pin 1 */
+#define GPIO_EVENT_PIN_2                 ((uint8_t)0x02U)          /*!< GPIO event pin 2 */
+#define GPIO_EVENT_PIN_3                 ((uint8_t)0x03U)          /*!< GPIO event pin 3 */
+#define GPIO_EVENT_PIN_4                 ((uint8_t)0x04U)          /*!< GPIO event pin 4 */
+#define GPIO_EVENT_PIN_5                 ((uint8_t)0x05U)          /*!< GPIO event pin 5 */
+#define GPIO_EVENT_PIN_6                 ((uint8_t)0x06U)          /*!< GPIO event pin 6 */
+#define GPIO_EVENT_PIN_7                 ((uint8_t)0x07U)          /*!< GPIO event pin 7 */
+#define GPIO_EVENT_PIN_8                 ((uint8_t)0x08U)          /*!< GPIO event pin 8 */
+#define GPIO_EVENT_PIN_9                 ((uint8_t)0x09U)          /*!< GPIO event pin 9 */
+#define GPIO_EVENT_PIN_10                ((uint8_t)0x0AU)          /*!< GPIO event pin 10 */
+#define GPIO_EVENT_PIN_11                ((uint8_t)0x0BU)          /*!< GPIO event pin 11 */
+#define GPIO_EVENT_PIN_12                ((uint8_t)0x0CU)          /*!< GPIO event pin 12 */
+#define GPIO_EVENT_PIN_13                ((uint8_t)0x0DU)          /*!< GPIO event pin 13 */
+#define GPIO_EVENT_PIN_14                ((uint8_t)0x0EU)          /*!< GPIO event pin 14 */
+#define GPIO_EVENT_PIN_15                ((uint8_t)0x0FU)          /*!< GPIO event pin 15 */
+
+/* GPIO output pin source definitions */
+#define GPIO_PIN_SOURCE_0                ((uint8_t)0x00U)          /*!< GPIO pin source 0 */
+#define GPIO_PIN_SOURCE_1                ((uint8_t)0x01U)          /*!< GPIO pin source 1 */
+#define GPIO_PIN_SOURCE_2                ((uint8_t)0x02U)          /*!< GPIO pin source 2 */
+#define GPIO_PIN_SOURCE_3                ((uint8_t)0x03U)          /*!< GPIO pin source 3 */
+#define GPIO_PIN_SOURCE_4                ((uint8_t)0x04U)          /*!< GPIO pin source 4 */
+#define GPIO_PIN_SOURCE_5                ((uint8_t)0x05U)          /*!< GPIO pin source 5 */
+#define GPIO_PIN_SOURCE_6                ((uint8_t)0x06U)          /*!< GPIO pin source 6 */
+#define GPIO_PIN_SOURCE_7                ((uint8_t)0x07U)          /*!< GPIO pin source 7 */
+#define GPIO_PIN_SOURCE_8                ((uint8_t)0x08U)          /*!< GPIO pin source 8 */
+#define GPIO_PIN_SOURCE_9                ((uint8_t)0x09U)          /*!< GPIO pin source 9 */
+#define GPIO_PIN_SOURCE_10               ((uint8_t)0x0AU)          /*!< GPIO pin source 10 */
+#define GPIO_PIN_SOURCE_11               ((uint8_t)0x0BU)          /*!< GPIO pin source 11 */
+#define GPIO_PIN_SOURCE_12               ((uint8_t)0x0CU)          /*!< GPIO pin source 12 */
+#define GPIO_PIN_SOURCE_13               ((uint8_t)0x0DU)          /*!< GPIO pin source 13 */
+#define GPIO_PIN_SOURCE_14               ((uint8_t)0x0EU)          /*!< GPIO pin source 14 */
+#define GPIO_PIN_SOURCE_15               ((uint8_t)0x0FU)          /*!< GPIO pin source 15 */
+
+/* GPIO pin definitions */
+#define GPIO_PIN_0                       BIT(0)                    /*!< GPIO pin 0 */
+#define GPIO_PIN_1                       BIT(1)                    /*!< GPIO pin 1 */
+#define GPIO_PIN_2                       BIT(2)                    /*!< GPIO pin 2 */
+#define GPIO_PIN_3                       BIT(3)                    /*!< GPIO pin 3 */
+#define GPIO_PIN_4                       BIT(4)                    /*!< GPIO pin 4 */
+#define GPIO_PIN_5                       BIT(5)                    /*!< GPIO pin 5 */
+#define GPIO_PIN_6                       BIT(6)                    /*!< GPIO pin 6 */
+#define GPIO_PIN_7                       BIT(7)                    /*!< GPIO pin 7 */
+#define GPIO_PIN_8                       BIT(8)                    /*!< GPIO pin 8 */
+#define GPIO_PIN_9                       BIT(9)                    /*!< GPIO pin 9 */
+#define GPIO_PIN_10                      BIT(10)                   /*!< GPIO pin 10 */
+#define GPIO_PIN_11                      BIT(11)                   /*!< GPIO pin 11 */
+#define GPIO_PIN_12                      BIT(12)                   /*!< GPIO pin 12 */
+#define GPIO_PIN_13                      BIT(13)                   /*!< GPIO pin 13 */
+#define GPIO_PIN_14                      BIT(14)                   /*!< GPIO pin 14 */
+#define GPIO_PIN_15                      BIT(15)                   /*!< GPIO pin 15 */
+#define GPIO_PIN_ALL                     BITS(0, 15)               /*!< GPIO pin all */
+
+/* GPIO remap definitions */
+#define GPIO_SPI0_REMAP                  ((uint32_t)0x00000001U)   /*!< SPI0 remapping */
+#define GPIO_I2C0_REMAP                  ((uint32_t)0x00000002U)   /*!< I2C0 remapping */
+#define GPIO_USART0_REMAP                ((uint32_t)0x00000004U)   /*!< USART0 remapping */
+#define GPIO_USART1_REMAP                ((uint32_t)0x00000008U)   /*!< USART1 remapping */
+#define GPIO_USART2_PARTIAL_REMAP        ((uint32_t)0x00140010U)   /*!< USART2 partial remapping */
+#define GPIO_USART2_FULL_REMAP           ((uint32_t)0x00140030U)   /*!< USART2 full remapping */
+#define GPIO_TIMER0_PARTIAL_REMAP        ((uint32_t)0x00160040U)   /*!< TIMER0 partial remapping */
+#define GPIO_TIMER0_FULL_REMAP           ((uint32_t)0x001600C0U)   /*!< TIMER0 full remapping */
+#define GPIO_TIMER1_PARTIAL_REMAP0       ((uint32_t)0x00180100U)   /*!< TIMER1 partial remapping */
+#define GPIO_TIMER1_PARTIAL_REMAP1       ((uint32_t)0x00180200U)   /*!< TIMER1 partial remapping */
+#define GPIO_TIMER1_FULL_REMAP           ((uint32_t)0x00180300U)   /*!< TIMER1 full remapping */
+#define GPIO_TIMER2_PARTIAL_REMAP        ((uint32_t)0x001A0800U)   /*!< TIMER2 partial remapping */
+#define GPIO_TIMER2_FULL_REMAP           ((uint32_t)0x001A0C00U)   /*!< TIMER2 full remapping */
+#define GPIO_TIMER3_REMAP                ((uint32_t)0x00001000U)   /*!< TIMER3 remapping */
+#define GPIO_CAN0_PARTIAL_REMAP          ((uint32_t)0x001D4000U)   /*!< CAN0 partial remapping */
+#define GPIO_CAN0_FULL_REMAP             ((uint32_t)0x001D6000U)   /*!< CAN0 full remapping */
+#define GPIO_PD01_REMAP                  ((uint32_t)0x00008000U)   /*!< PD01 remapping */
+#define GPIO_TIMER4CH3_IREMAP            ((uint32_t)0x00200001U)   /*!< TIMER4 channel3 internal remapping */
+#define GPIO_CAN1_REMAP                  ((uint32_t)0x00200040U)   /*!< CAN1 remapping */
+#define GPIO_SWJ_NONJTRST_REMAP          ((uint32_t)0x00300100U)   /*!< full SWJ(JTAG-DP + SW-DP),but without NJTRST */
+#define GPIO_SWJ_SWDPENABLE_REMAP        ((uint32_t)0x00300200U)   /*!< JTAG-DP disabled */
+#define GPIO_SWJ_DISABLE_REMAP           ((uint32_t)0x00300400U)   /*!< JTAG-DP disabled */
+#define GPIO_SPI2_REMAP                  ((uint32_t)0x00201100U)   /*!< SPI2 remapping */
+#define GPIO_TIMER1ITI1_REMAP            ((uint32_t)0x00202000U)   /*!< TIMER1 internal trigger 1 remapping */
+#define GPIO_EXMC_NADV_REMAP             ((uint32_t)0x80000400U)   /*!< EXMC_NADV connect/disconnect */
+
+/* function declarations */
+/* reset GPIO port */
+void gpio_deinit(uint32_t gpio_periph);
+/* reset alternate function I/O(AFIO) */
+void gpio_afio_deinit(void);
+/* GPIO parameter initialization */
+void gpio_init(uint32_t gpio_periph,uint32_t mode,uint32_t speed,uint32_t pin);
+
+/* set GPIO pin bit */
+void gpio_bit_set(uint32_t gpio_periph, uint32_t pin);
+/* reset GPIO pin bit */
+void gpio_bit_reset(uint32_t gpio_periph, uint32_t pin);
+/* write data to the specified GPIO pin */
+void gpio_bit_write(uint32_t gpio_periph, uint32_t pin, bit_status bit_value);
+/* write data to the specified GPIO port */
+void gpio_port_write(uint32_t gpio_periph, uint16_t data);
+
+/* get GPIO pin input status */
+FlagStatus gpio_input_bit_get(uint32_t gpio_periph, uint32_t pin);
+/* get GPIO port input status */
+uint16_t gpio_input_port_get(uint32_t gpio_periph);
+/* get GPIO pin output status */
+FlagStatus gpio_output_bit_get(uint32_t gpio_periph, uint32_t pin);
+/* get GPIO port output status */
+uint16_t gpio_output_port_get(uint32_t gpio_periph);
+
+/* configure GPIO pin remap */
+void gpio_pin_remap_config(uint32_t remap, ControlStatus newvalue);
+
+/* select GPIO pin exti sources */
+void gpio_exti_source_select(uint8_t output_port, uint8_t output_pin);
+/* configure GPIO pin event output */
+void gpio_event_output_config(uint8_t output_port, uint8_t output_pin);
+/* enable GPIO pin event output */
+void gpio_event_output_enable(void);
+/* disable GPIO pin event output */
+void gpio_event_output_disable(void);
+
+/* lock GPIO pin bit */
+void gpio_pin_lock(uint32_t gpio_periph, uint32_t pin);
+
+#endif /* GD32VF103_GPIO_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_i2c.h

@@ -0,0 +1,342 @@
+/*!
+    \file  gd32vf103_i2c.h
+    \brief definitions for the I2C
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_I2C_H
+#define GD32VF103_I2C_H
+
+#include "gd32vf103.h"
+
+/* I2Cx(x=0,1) definitions */
+#define I2C0                          I2C_BASE                   /*!< I2C0 base address */
+#define I2C1                          (I2C_BASE + 0x00000400U)   /*!< I2C1 base address */
+
+/* registers definitions */
+#define I2C_CTL0(i2cx)                REG32((i2cx) + 0x00U)      /*!< I2C control register 0 */
+#define I2C_CTL1(i2cx)                REG32((i2cx) + 0x04U)      /*!< I2C control register 1 */
+#define I2C_SADDR0(i2cx)              REG32((i2cx) + 0x08U)      /*!< I2C slave address register 0*/
+#define I2C_SADDR1(i2cx)              REG32((i2cx) + 0x0CU)      /*!< I2C slave address register */
+#define I2C_DATA(i2cx)                REG32((i2cx) + 0x10U)      /*!< I2C transfer buffer register */
+#define I2C_STAT0(i2cx)               REG32((i2cx) + 0x14U)      /*!< I2C transfer status register 0 */
+#define I2C_STAT1(i2cx)               REG32((i2cx) + 0x18U)      /*!< I2C transfer status register */
+#define I2C_CKCFG(i2cx)               REG32((i2cx) + 0x1CU)      /*!< I2C clock configure register */
+#define I2C_RT(i2cx)                  REG32((i2cx) + 0x20U)      /*!< I2C rise time register */
+
+/* bits definitions */
+/* I2Cx_CTL0 */
+#define I2C_CTL0_I2CEN                BIT(0)        /*!< peripheral enable */
+#define I2C_CTL0_SMBEN                BIT(1)        /*!< SMBus mode */
+#define I2C_CTL0_SMBSEL               BIT(3)        /*!< SMBus type */
+#define I2C_CTL0_ARPEN                BIT(4)        /*!< ARP enable */
+#define I2C_CTL0_PECEN                BIT(5)        /*!< PEC enable */
+#define I2C_CTL0_GCEN                 BIT(6)        /*!< general call enable */
+#define I2C_CTL0_SS                   BIT(7)        /*!< clock stretching disable (slave mode) */
+#define I2C_CTL0_START                BIT(8)        /*!< start generation */
+#define I2C_CTL0_STOP                 BIT(9)        /*!< stop generation */
+#define I2C_CTL0_ACKEN                BIT(10)       /*!< acknowledge enable */
+#define I2C_CTL0_POAP                 BIT(11)       /*!< acknowledge/PEC position (for data reception) */
+#define I2C_CTL0_PECTRANS             BIT(12)       /*!< packet error checking */
+#define I2C_CTL0_SALT                 BIT(13)       /*!< SMBus alert */
+#define I2C_CTL0_SRESET               BIT(15)       /*!< software reset */
+
+/* I2Cx_CTL1 */
+#define I2C_CTL1_I2CCLK               BITS(0,5)     /*!< I2CCLK[5:0] bits (peripheral clock frequency) */
+#define I2C_CTL1_ERRIE                BIT(8)        /*!< error interrupt enable */
+#define I2C_CTL1_EVIE                 BIT(9)        /*!< event interrupt enable */
+#define I2C_CTL1_BUFIE                BIT(10)       /*!< buffer interrupt enable */
+#define I2C_CTL1_DMAON                BIT(11)       /*!< DMA requests enable */
+#define I2C_CTL1_DMALST               BIT(12)       /*!< DMA last transfer */
+
+/* I2Cx_SADDR0 */
+#define I2C_SADDR0_ADDRESS0           BIT(0)        /*!< bit 0 of a 10-bit address */
+#define I2C_SADDR0_ADDRESS            BITS(1,7)     /*!< 7-bit address or bits 7:1 of a 10-bit address */
+#define I2C_SADDR0_ADDRESS_H          BITS(8,9)     /*!< highest two bits of a 10-bit address */
+#define I2C_SADDR0_ADDFORMAT          BIT(15)       /*!< address mode for the I2C slave */
+
+/* I2Cx_SADDR1 */
+#define I2C_SADDR1_DUADEN             BIT(0)        /*!< aual-address mode switch */
+#define I2C_SADDR1_ADDRESS2           BITS(1,7)     /*!< second I2C address for the slave in dual-address mode */
+
+/* I2Cx_DATA */
+#define I2C_DATA_TRB                  BITS(0,7)     /*!< 8-bit data register */
+
+/* I2Cx_STAT0 */
+#define I2C_STAT0_SBSEND              BIT(0)        /*!< start bit (master mode) */
+#define I2C_STAT0_ADDSEND             BIT(1)        /*!< address sent (master mode)/matched (slave mode) */
+#define I2C_STAT0_BTC                 BIT(2)        /*!< byte transfer finished */
+#define I2C_STAT0_ADD10SEND           BIT(3)        /*!< 10-bit header sent (master mode) */
+#define I2C_STAT0_STPDET              BIT(4)        /*!< stop detection (slave mode) */
+#define I2C_STAT0_RBNE                BIT(6)        /*!< data register not empty (receivers) */
+#define I2C_STAT0_TBE                 BIT(7)        /*!< data register empty (transmitters) */
+#define I2C_STAT0_BERR                BIT(8)        /*!< bus error */
+#define I2C_STAT0_LOSTARB             BIT(9)        /*!< arbitration lost (master mode) */
+#define I2C_STAT0_AERR                BIT(10)       /*!< acknowledge failure */
+#define I2C_STAT0_OUERR               BIT(11)       /*!< overrun/underrun */
+#define I2C_STAT0_PECERR              BIT(12)       /*!< PEC error in reception */
+#define I2C_STAT0_SMBTO               BIT(14)       /*!< timeout signal in SMBus mode */
+#define I2C_STAT0_SMBALT              BIT(15)       /*!< SMBus alert status */
+
+/* I2Cx_STAT1 */
+#define I2C_STAT1_MASTER              BIT(0)        /*!< master/slave */
+#define I2C_STAT1_I2CBSY              BIT(1)        /*!< bus busy */
+#define I2C_STAT1_TR                  BIT(2)        /*!< transmitter/receiver */
+#define I2C_STAT1_RXGC                BIT(4)        /*!< general call address (slave mode) */
+#define I2C_STAT1_DEFSMB              BIT(5)        /*!< SMBus device default address (slave mode) */
+#define I2C_STAT1_HSTSMB              BIT(6)        /*!< SMBus host header (slave mode) */
+#define I2C_STAT1_DUMODF              BIT(7)        /*!< dual flag (slave mode) */
+#define I2C_STAT1_PECV                BITS(8,15)    /*!< packet error checking value */
+
+/* I2Cx_CKCFG */
+#define I2C_CKCFG_CLKC                BITS(0,11)    /*!< clock control register in fast/standard mode (master mode) */
+#define I2C_CKCFG_DTCY                BIT(14)       /*!< fast mode duty cycle */
+#define I2C_CKCFG_FAST                BIT(15)       /*!< I2C speed selection in master mode */
+
+/* I2Cx_RT */
+#define I2C_RT_RISETIME               BITS(0,5)     /*!< maximum rise time in fast/standard mode (Master mode) */
+
+/* constants definitions */
+/* define the I2C bit position and its register index offset */
+#define I2C_REGIDX_BIT(regidx, bitpos)  (((uint32_t)(regidx) << 6) | (uint32_t)(bitpos))
+#define I2C_REG_VAL(i2cx, offset)       (REG32((i2cx) + (((uint32_t)(offset) & 0xFFFFU) >> 6)))
+#define I2C_BIT_POS(val)                ((uint32_t)(val) & 0x1FU)
+#define I2C_REGIDX_BIT2(regidx, bitpos, regidx2, bitpos2)   (((uint32_t)(regidx2) << 22) | (uint32_t)((bitpos2) << 16)\
+                                                              | (((uint32_t)(regidx) << 6) | (uint32_t)(bitpos)))
+#define I2C_REG_VAL2(i2cx, offset)      (REG32((i2cx) + ((uint32_t)(offset) >> 22)))
+#define I2C_BIT_POS2(val)               (((uint32_t)(val) & 0x1F0000U) >> 16)
+
+/* register offset */
+#define I2C_CTL1_REG_OFFSET           0x04U         /*!< CTL1 register offset */
+#define I2C_STAT0_REG_OFFSET          0x14U         /*!< STAT0 register offset */
+#define I2C_STAT1_REG_OFFSET          0x18U         /*!< STAT1 register offset */
+
+/* I2C flags */
+typedef enum {
+    /* flags in STAT0 register */
+    I2C_FLAG_SBSEND = I2C_REGIDX_BIT(I2C_STAT0_REG_OFFSET, 0U), /*!< start condition sent out in master mode */
+    I2C_FLAG_ADDSEND = I2C_REGIDX_BIT(I2C_STAT0_REG_OFFSET, 1U), /*!< address is sent in master mode or received and matches in slave mode */
+    I2C_FLAG_BTC = I2C_REGIDX_BIT(I2C_STAT0_REG_OFFSET, 2U), /*!< byte transmission finishes */
+    I2C_FLAG_ADD10SEND = I2C_REGIDX_BIT(I2C_STAT0_REG_OFFSET, 3U), /*!< header of 10-bit address is sent in master mode */
+    I2C_FLAG_STPDET = I2C_REGIDX_BIT(I2C_STAT0_REG_OFFSET, 4U), /*!< stop condition detected in slave mode */
+    I2C_FLAG_RBNE = I2C_REGIDX_BIT(I2C_STAT0_REG_OFFSET, 6U), /*!< I2C_DATA is not Empty during receiving */
+    I2C_FLAG_TBE = I2C_REGIDX_BIT(I2C_STAT0_REG_OFFSET, 7U), /*!< I2C_DATA is empty during transmitting */
+    I2C_FLAG_BERR = I2C_REGIDX_BIT(I2C_STAT0_REG_OFFSET, 8U), /*!< a bus error occurs indication a unexpected start or stop condition on I2C bus */
+    I2C_FLAG_LOSTARB = I2C_REGIDX_BIT(I2C_STAT0_REG_OFFSET, 9U), /*!< arbitration lost in master mode */
+    I2C_FLAG_AERR = I2C_REGIDX_BIT(I2C_STAT0_REG_OFFSET, 10U), /*!< acknowledge error */
+    I2C_FLAG_OUERR = I2C_REGIDX_BIT(I2C_STAT0_REG_OFFSET, 11U), /*!< over-run or under-run situation occurs in slave mode */
+    I2C_FLAG_PECERR = I2C_REGIDX_BIT(I2C_STAT0_REG_OFFSET, 12U), /*!< PEC error when receiving data */
+    I2C_FLAG_SMBTO = I2C_REGIDX_BIT(I2C_STAT0_REG_OFFSET, 14U), /*!< timeout signal in SMBus mode */
+    I2C_FLAG_SMBALT = I2C_REGIDX_BIT(I2C_STAT0_REG_OFFSET, 15U), /*!< SMBus alert status */
+    /* flags in STAT1 register */
+    I2C_FLAG_MASTER = I2C_REGIDX_BIT(I2C_STAT1_REG_OFFSET, 0U), /*!< a flag indicating whether I2C block is in master or slave mode */
+    I2C_FLAG_I2CBSY = I2C_REGIDX_BIT(I2C_STAT1_REG_OFFSET, 1U), /*!< busy flag */
+    I2C_FLAG_TR = I2C_REGIDX_BIT(I2C_STAT1_REG_OFFSET, 2U), /*!< whether the I2C is a transmitter or a receiver */
+    I2C_FLAG_RXGC = I2C_REGIDX_BIT(I2C_STAT1_REG_OFFSET, 4U), /*!< general call address (00h) received */
+    I2C_FLAG_DEFSMB = I2C_REGIDX_BIT(I2C_STAT1_REG_OFFSET, 5U), /*!< default address of SMBus device */
+    I2C_FLAG_HSTSMB = I2C_REGIDX_BIT(I2C_STAT1_REG_OFFSET, 6U), /*!< SMBus host header detected in slave mode */
+    I2C_FLAG_DUMODF = I2C_REGIDX_BIT(I2C_STAT1_REG_OFFSET, 7U), /*!< dual flag in slave mode indicating which address is matched in dual-address mode */
+} i2c_flag_enum;
+
+/* I2C interrupt flags */
+typedef enum {
+    /* interrupt flags in CTL1 register */
+    I2C_INT_FLAG_SBSEND = I2C_REGIDX_BIT2(I2C_CTL1_REG_OFFSET, 9U,I2C_STAT0_REG_OFFSET, 0U), /*!< start condition sent out in master mode interrupt flag */
+    I2C_INT_FLAG_ADDSEND = I2C_REGIDX_BIT2(I2C_CTL1_REG_OFFSET, 9U,I2C_STAT0_REG_OFFSET, 1U), /*!< address is sent in master mode or received and matches in slave mode interrupt flag */
+    I2C_INT_FLAG_BTC = I2C_REGIDX_BIT2(I2C_CTL1_REG_OFFSET, 9U,I2C_STAT0_REG_OFFSET, 2U), /*!< byte transmission finishes */
+    I2C_INT_FLAG_ADD10SEND = I2C_REGIDX_BIT2(I2C_CTL1_REG_OFFSET, 9U,I2C_STAT0_REG_OFFSET, 3U), /*!< header of 10-bit address is sent in master mode interrupt flag */
+    I2C_INT_FLAG_STPDET = I2C_REGIDX_BIT2(I2C_CTL1_REG_OFFSET, 9U,I2C_STAT0_REG_OFFSET, 4U), /*!< stop condition detected in slave mode interrupt flag */
+    I2C_INT_FLAG_RBNE = I2C_REGIDX_BIT2(I2C_CTL1_REG_OFFSET, 9U,I2C_STAT0_REG_OFFSET, 6U), /*!< I2C_DATA is not Empty during receiving interrupt flag */
+    I2C_INT_FLAG_TBE = I2C_REGIDX_BIT2(I2C_CTL1_REG_OFFSET, 9U,I2C_STAT0_REG_OFFSET, 7U), /*!< I2C_DATA is empty during transmitting interrupt flag */
+    I2C_INT_FLAG_BERR = I2C_REGIDX_BIT2(I2C_CTL1_REG_OFFSET, 8U,I2C_STAT0_REG_OFFSET, 8U), /*!< a bus error occurs indication a unexpected start or stop condition on I2C bus interrupt flag */
+    I2C_INT_FLAG_LOSTARB = I2C_REGIDX_BIT2(I2C_CTL1_REG_OFFSET, 8U,I2C_STAT0_REG_OFFSET, 9U), /*!< arbitration lost in master mode interrupt flag */
+    I2C_INT_FLAG_AERR = I2C_REGIDX_BIT2(I2C_CTL1_REG_OFFSET, 8U,I2C_STAT0_REG_OFFSET, 10U), /*!< acknowledge error interrupt flag */
+    I2C_INT_FLAG_OUERR = I2C_REGIDX_BIT2(I2C_CTL1_REG_OFFSET, 8U,I2C_STAT0_REG_OFFSET, 11U), /*!< over-run or under-run situation occurs in slave mode interrupt flag */
+    I2C_INT_FLAG_PECERR = I2C_REGIDX_BIT2(I2C_CTL1_REG_OFFSET, 8U,I2C_STAT0_REG_OFFSET, 12U), /*!< PEC error when receiving data interrupt flag */
+    I2C_INT_FLAG_SMBTO = I2C_REGIDX_BIT2(I2C_CTL1_REG_OFFSET, 8U,I2C_STAT0_REG_OFFSET, 14U), /*!< timeout signal in SMBus mode interrupt flag */
+    I2C_INT_FLAG_SMBALT = I2C_REGIDX_BIT2(I2C_CTL1_REG_OFFSET, 8U,I2C_STAT0_REG_OFFSET, 15U), /*!< SMBus Alert status interrupt flag */
+} i2c_interrupt_flag_enum;
+
+/* I2C interrupt enable or disable */
+typedef enum {
+    /* interrupt in CTL1 register */
+    I2C_INT_ERR = I2C_REGIDX_BIT(I2C_CTL1_REG_OFFSET, 8U), /*!< error interrupt enable */
+    I2C_INT_EV = I2C_REGIDX_BIT(I2C_CTL1_REG_OFFSET, 9U), /*!< event interrupt enable */
+    I2C_INT_BUF = I2C_REGIDX_BIT(I2C_CTL1_REG_OFFSET, 10U), /*!< buffer interrupt enable */
+} i2c_interrupt_enum;
+
+/* SMBus/I2C mode switch and SMBus type selection */
+#define I2C_I2CMODE_ENABLE            ((uint32_t)0x00000000U)                  /*!< I2C mode */
+#define I2C_SMBUSMODE_ENABLE          I2C_CTL0_SMBEN                           /*!< SMBus mode */
+
+/* SMBus/I2C mode switch and SMBus type selection */
+#define I2C_SMBUS_DEVICE              ((uint32_t)0x00000000U)                  /*!< SMBus mode device type */
+#define I2C_SMBUS_HOST                I2C_CTL0_SMBSEL                          /*!< SMBus mode host type */
+
+/* I2C transfer direction */
+#define I2C_RECEIVER                  ((uint32_t)0x00000001U)                  /*!< receiver */
+#define I2C_TRANSMITTER               ((uint32_t)0xFFFFFFFEU)                  /*!< transmitter */
+
+/* whether or not to send an ACK */
+#define I2C_ACK_DISABLE               ((uint32_t)0x00000000U)                  /*!< ACK will be not sent */
+#define I2C_ACK_ENABLE                ((uint32_t)0x00000001U)                  /*!< ACK will be sent */
+
+/* I2C POAP position*/
+#define I2C_ACKPOS_NEXT               ((uint32_t)0x00000000U)                  /*!< ACKEN bit decides whether or not to send ACK for the next byte */
+#define I2C_ACKPOS_CURRENT            ((uint32_t)0x00000001U)                  /*!< ACKEN bit decides whether or not to send ACK or not for the current byte */
+
+/* I2C dual-address mode switch */
+#define I2C_DUADEN_DISABLE            ((uint32_t)0x00000000U)                  /*!< dual-address mode disabled */
+#define I2C_DUADEN_ENABLE             ((uint32_t)0x00000001U)                  /*!< dual-address mode enabled */
+
+/* whether or not to stretch SCL low */
+#define I2C_SCLSTRETCH_ENABLE         ((uint32_t)0x00000000U)                  /*!< SCL stretching is enabled */
+#define I2C_SCLSTRETCH_DISABLE        I2C_CTL0_SS                              /*!< SCL stretching is disabled */
+
+/* whether or not to response to a general call */
+#define I2C_GCEN_ENABLE               I2C_CTL0_GCEN                            /*!< slave will response to a general call */
+#define I2C_GCEN_DISABLE              ((uint32_t)0x00000000U)                  /*!< slave will not response to a general call */
+
+/* software reset I2C */
+#define I2C_SRESET_SET                I2C_CTL0_SRESET                          /*!< I2C is under reset */
+#define I2C_SRESET_RESET              ((uint32_t)0x00000000U)                  /*!< I2C is not under reset */
+
+/* I2C DMA mode configure */
+/* DMA mode switch */
+#define I2C_DMA_ON                    I2C_CTL1_DMAON                           /*!< DMA mode enabled */
+#define I2C_DMA_OFF                   ((uint32_t)0x00000000U)                  /*!< DMA mode disabled */
+
+/* flag indicating DMA last transfer */
+#define I2C_DMALST_ON                 I2C_CTL1_DMALST                          /*!< next DMA EOT is the last transfer */
+#define I2C_DMALST_OFF                ((uint32_t)0x00000000U)                  /*!< next DMA EOT is not the last transfer */
+
+/* I2C PEC configure */
+/* PEC enable */
+#define I2C_PEC_ENABLE                I2C_CTL0_PECEN                           /*!< PEC calculation on */
+#define I2C_PEC_DISABLE               ((uint32_t)0x00000000U)                   /*!< PEC calculation off */
+
+/* PEC transfer */
+#define I2C_PECTRANS_ENABLE           I2C_CTL0_PECTRANS                        /*!< transfer PEC */
+#define I2C_PECTRANS_DISABLE          ((uint32_t)0x00000000U)                  /*!< not transfer PEC value */
+
+/* I2C SMBus configure */
+/* issue or not alert through SMBA pin */
+#define I2C_SALTSEND_ENABLE           I2C_CTL0_SALT                            /*!< issue alert through SMBA pin */
+#define I2C_SALTSEND_DISABLE          ((uint32_t)0x00000000U)                  /*!< not issue alert through SMBA */
+
+/* ARP protocol in SMBus switch */
+#define I2C_ARP_ENABLE                I2C_CTL0_ARPEN                           /*!< ARP enable */
+#define I2C_ARP_DISABLE               ((uint32_t)0x00000000U)                  /*!< ARP disable */
+
+/* transmit I2C data */
+#define DATA_TRANS(regval)            (BITS(0,7) & ((uint32_t)(regval) << 0))
+
+/* receive I2C data */
+#define DATA_RECV(regval)             GET_BITS((uint32_t)(regval), 0, 7)
+
+/* I2C duty cycle in fast mode */
+#define I2C_DTCY_2                    ((uint32_t)0x00000000U)                  /*!< I2C fast mode Tlow/Thigh = 2 */
+#define I2C_DTCY_16_9                 I2C_CKCFG_DTCY                           /*!< I2C fast mode Tlow/Thigh = 16/9 */
+
+/* address mode for the I2C slave */
+#define I2C_ADDFORMAT_7BITS           ((uint32_t)0x00000000U)                  /*!< address:7 bits */
+#define I2C_ADDFORMAT_10BITS          I2C_SADDR0_ADDFORMAT                     /*!< address:10 bits */
+
+/* function declarations */
+/* reset I2C */
+void i2c_deinit(uint32_t i2c_periph);
+/* configure I2C clock */
+void i2c_clock_config(uint32_t i2c_periph, uint32_t clkspeed, uint32_t dutycyc);
+/* configure I2C address */
+void i2c_mode_addr_config(uint32_t i2c_periph, uint32_t mode,uint32_t addformat, uint32_t addr);
+/* SMBus type selection */
+void i2c_smbus_type_config(uint32_t i2c_periph, uint32_t type);
+/* whether or not to send an ACK */
+void i2c_ack_config(uint32_t i2c_periph, uint32_t ack);
+/* configure I2C POAP position */
+void i2c_ackpos_config(uint32_t i2c_periph, uint32_t pos);
+/* master sends slave address */
+void i2c_master_addressing(uint32_t i2c_periph, uint32_t addr,uint32_t trandirection);
+/* configure I2C saddress1 */
+void i2c_saddr1_config(uint32_t i2c_periph,uint32_t addr);
+/* enable dual-address mode */
+void i2c_dualaddr_enable(uint32_t i2c_periph, uint32_t dualaddr);
+/* disable dual-address mode */
+void i2c_dualaddr_disable(uint32_t i2c_periph);
+/* enable I2C */
+void i2c_enable(uint32_t i2c_periph);
+/* disable I2C */
+void i2c_disable(uint32_t i2c_periph);
+
+/* generate a START condition on I2C bus */
+void i2c_start_on_bus(uint32_t i2c_periph);
+/* generate a STOP condition on I2C bus */
+void i2c_stop_on_bus(uint32_t i2c_periph);
+/* I2C transmit data function */
+void i2c_data_transmit(uint32_t i2c_periph, uint8_t data);
+/* I2C receive data function */
+uint8_t i2c_data_receive(uint32_t i2c_periph);
+/* enable I2C DMA mode */
+void i2c_dma_enable(uint32_t i2c_periph, uint32_t dmastate);
+/* configure whether next DMA EOT is DMA last transfer or not */
+void i2c_dma_last_transfer_config(uint32_t i2c_periph, uint32_t dmalast);
+/* whether to stretch SCL low when data is not ready in slave mode */
+void i2c_stretch_scl_low_config(uint32_t i2c_periph, uint32_t stretchpara);
+/* whether or not to response to a general call */
+void i2c_slave_response_to_gcall_config(uint32_t i2c_periph, uint32_t gcallpara);
+/* software reset I2C */
+void i2c_software_reset_config(uint32_t i2c_periph, uint32_t sreset);
+
+/* I2C PEC calculation on or off */
+void i2c_pec_enable(uint32_t i2c_periph, uint32_t pecstate);
+/* I2C whether to transfer PEC value */
+void i2c_pec_transfer_enable(uint32_t i2c_periph, uint32_t pecpara);
+/* packet error checking value */
+uint8_t i2c_pec_value_get(uint32_t i2c_periph);
+/* I2C issue alert through SMBA pin */
+void i2c_smbus_issue_alert(uint32_t i2c_periph, uint32_t smbuspara);
+/* I2C ARP protocol in SMBus switch */
+void i2c_smbus_arp_enable(uint32_t i2c_periph, uint32_t arpstate);
+
+/* check I2C flag is set or not */
+FlagStatus i2c_flag_get(uint32_t i2c_periph, i2c_flag_enum flag);
+/* clear I2C flag */
+void i2c_flag_clear(uint32_t i2c_periph, i2c_flag_enum flag);
+/* enable I2C interrupt */
+void i2c_interrupt_enable(uint32_t i2c_periph, i2c_interrupt_enum interrupt);
+/* disable I2C interrupt */
+void i2c_interrupt_disable(uint32_t i2c_periph, i2c_interrupt_enum interrupt);
+/* check I2C interrupt flag */
+FlagStatus i2c_interrupt_flag_get(uint32_t i2c_periph,i2c_interrupt_flag_enum int_flag);
+/* clear I2C interrupt flag */
+void i2c_interrupt_flag_clear(uint32_t i2c_periph,i2c_interrupt_flag_enum int_flag);
+
+#endif /* GD32VF103_I2C_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_pmu.h

@@ -0,0 +1,125 @@
+/*!
+    \file    gd32vf103_pmu.h
+    \brief   definitions for the PMU
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_PMU_H
+#define GD32VF103_PMU_H
+
+#include "gd32vf103.h"
+
+/* PMU definitions */
+#define PMU                           PMU_BASE                 /*!< PMU base address */
+
+/* registers definitions */
+#define PMU_CTL                       REG32((PMU) + 0x00U)     /*!< PMU control register */
+#define PMU_CS                        REG32((PMU) + 0x04U)     /*!< PMU control and status register */
+
+/* bits definitions */
+/* PMU_CTL */
+#define PMU_CTL_LDOLP                 BIT(0)                   /*!< LDO low power mode */
+#define PMU_CTL_STBMOD                BIT(1)                   /*!< standby mode */
+#define PMU_CTL_WURST                 BIT(2)                   /*!< wakeup flag reset */
+#define PMU_CTL_STBRST                BIT(3)                   /*!< standby flag reset */
+#define PMU_CTL_LVDEN                 BIT(4)                   /*!< low voltage detector enable */
+#define PMU_CTL_LVDT                  BITS(5,7)                /*!< low voltage detector threshold */
+#define PMU_CTL_BKPWEN                BIT(8)                   /*!< backup domain write enable */
+
+/* PMU_CS */
+#define PMU_CS_WUF                    BIT(0)                   /*!< wakeup flag */
+#define PMU_CS_STBF                   BIT(1)                   /*!< standby flag */
+#define PMU_CS_LVDF                   BIT(2)                   /*!< low voltage detector status flag */
+#define PMU_CS_WUPEN                  BIT(8)                   /*!< wakeup pin enable */
+
+/* constants definitions */
+/* PMU low voltage detector threshold definitions */
+#define CTL_LVDT(regval)              (BITS(5,7)&((uint32_t)(regval) << 5))
+#define PMU_LVDT_0                    CTL_LVDT(0)              /*!< voltage threshold is 2.2V */
+#define PMU_LVDT_1                    CTL_LVDT(1)              /*!< voltage threshold is 2.3V */
+#define PMU_LVDT_2                    CTL_LVDT(2)              /*!< voltage threshold is 2.4V */
+#define PMU_LVDT_3                    CTL_LVDT(3)              /*!< voltage threshold is 2.5V */
+#define PMU_LVDT_4                    CTL_LVDT(4)              /*!< voltage threshold is 2.6V */
+#define PMU_LVDT_5                    CTL_LVDT(5)              /*!< voltage threshold is 2.7V */
+#define PMU_LVDT_6                    CTL_LVDT(6)              /*!< voltage threshold is 2.8V */
+#define PMU_LVDT_7                    CTL_LVDT(7)              /*!< voltage threshold is 2.9V */
+
+/* PMU flag definitions */
+#define PMU_FLAG_WAKEUP               PMU_CS_WUF               /*!< wakeup flag status */
+#define PMU_FLAG_STANDBY              PMU_CS_STBF              /*!< standby flag status */
+#define PMU_FLAG_LVD                  PMU_CS_LVDF              /*!< lvd flag status */
+
+/* PMU ldo definitions */
+#define PMU_LDO_NORMAL                ((uint32_t)0x00000000U)  /*!< LDO normal work when PMU enter deepsleep mode */
+#define PMU_LDO_LOWPOWER              PMU_CTL_LDOLP            /*!< LDO work at low power status when PMU enter deepsleep mode */
+
+/* PMU flag reset definitions */
+#define PMU_FLAG_RESET_WAKEUP         ((uint8_t)0x00U)         /*!< wakeup flag reset */
+#define PMU_FLAG_RESET_STANDBY        ((uint8_t)0x01U)         /*!< standby flag reset */
+
+/* PMU command constants definitions */
+#define WFI_CMD                       ((uint8_t)0x00U)         /*!< use WFI command */
+#define WFE_CMD                       ((uint8_t)0x01U)         /*!< use WFE command */
+
+/* function declarations */
+/* reset PMU registers */
+void pmu_deinit(void);
+
+/* select low voltage detector threshold */
+void pmu_lvd_select(uint32_t lvdt_n);
+/* disable PMU lvd */
+void pmu_lvd_disable(void);
+
+/* set PMU mode */
+/* PMU work at sleep mode */
+void pmu_to_sleepmode(uint8_t sleepmodecmd);
+/* PMU work at deepsleep mode */
+void pmu_to_deepsleepmode(uint32_t ldo, uint8_t deepsleepmodecmd);
+/* PMU work at standby mode */
+void pmu_to_standbymode(uint8_t standbymodecmd);
+/* enable PMU wakeup pin */
+void pmu_wakeup_pin_enable(void);
+/* disable PMU wakeup pin */
+void pmu_wakeup_pin_disable(void);
+
+/* backup related functions */
+/* enable write access to the registers in backup domain */
+void pmu_backup_write_enable(void);
+/* disable write access to the registers in backup domain */
+void pmu_backup_write_disable(void);
+
+/* flag functions */
+/* get flag state */
+FlagStatus pmu_flag_get(uint32_t flag);
+/* clear flag bit */
+void pmu_flag_clear(uint32_t flag_reset);
+
+#endif /* GD32VF103_PMU_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_rcu.h

@@ -0,0 +1,720 @@
+/*!
+    \file    gd32vf103_rcu.h
+    \brief   definitions for the RCU
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_RCU_H
+#define GD32VF103_RCU_H
+
+#include "gd32vf103.h"
+
+/* RCU definitions */
+#define RCU                             RCU_BASE
+
+/* registers definitions */
+
+#define RCU_CTL                         REG32(RCU + 0x00U)        /*!< control register */
+#define RCU_CFG0                        REG32(RCU + 0x04U)        /*!< clock configuration register 0 */
+#define RCU_INT                         REG32(RCU + 0x08U)        /*!< clock interrupt register */
+#define RCU_APB2RST                     REG32(RCU + 0x0CU)        /*!< APB2 reset register */
+#define RCU_APB1RST                     REG32(RCU + 0x10U)        /*!< APB1 reset register */
+#define RCU_AHBEN                       REG32(RCU + 0x14U)        /*!< AHB1 enable register */
+#define RCU_APB2EN                      REG32(RCU + 0x18U)        /*!< APB2 enable register */
+#define RCU_APB1EN                      REG32(RCU + 0x1CU)        /*!< APB1 enable register */
+#define RCU_BDCTL                       REG32(RCU + 0x20U)        /*!< backup domain control register */
+#define RCU_RSTSCK                      REG32(RCU + 0x24U)        /*!< reset source / clock register */
+#define RCU_AHBRST                      REG32(RCU + 0x28U)        /*!< AHB reset register */
+#define RCU_CFG1                        REG32(RCU + 0x2CU)        /*!< clock configuration register 1 */
+#define RCU_DSV                         REG32(RCU + 0x34U)        /*!< deep-sleep mode voltage register */
+
+
+/* bits definitions */
+/* RCU_CTL */
+#define RCU_CTL_IRC8MEN                 BIT(0)                    /*!< internal high speed oscillator enable */
+#define RCU_CTL_IRC8MSTB                BIT(1)                    /*!< IRC8M high speed internal oscillator stabilization flag */
+#define RCU_CTL_IRC8MADJ                BITS(3,7)                 /*!< high speed internal oscillator clock trim adjust value */
+#define RCU_CTL_IRC8MCALIB              BITS(8,15)                /*!< high speed internal oscillator calibration value register */
+#define RCU_CTL_HXTALEN                 BIT(16)                   /*!< external high speed oscillator enable */
+#define RCU_CTL_HXTALSTB                BIT(17)                   /*!< external crystal oscillator clock stabilization flag */
+#define RCU_CTL_HXTALBPS                BIT(18)                   /*!< external crystal oscillator clock bypass mode enable */
+#define RCU_CTL_CKMEN                   BIT(19)                   /*!< HXTAL clock monitor enable */
+#define RCU_CTL_PLLEN                   BIT(24)                   /*!< PLL enable */
+#define RCU_CTL_PLLSTB                  BIT(25)                   /*!< PLL clock stabilization flag */
+#define RCU_CTL_PLL1EN                  BIT(26)                   /*!< PLL1 enable */
+#define RCU_CTL_PLL1STB                 BIT(27)                   /*!< PLL1 clock stabilization flag */
+#define RCU_CTL_PLL2EN                  BIT(28)                   /*!< PLL2 enable */
+#define RCU_CTL_PLL2STB                 BIT(29)                   /*!< PLL2 clock stabilization flag */
+
+
+#define RCU_CFG0_SCS                    BITS(0,1)                 /*!< system clock switch */
+#define RCU_CFG0_SCSS                   BITS(2,3)                 /*!< system clock switch status */
+#define RCU_CFG0_AHBPSC                 BITS(4,7)                 /*!< AHB prescaler selection */
+#define RCU_CFG0_APB1PSC                BITS(8,10)                /*!< APB1 prescaler selection */
+#define RCU_CFG0_APB2PSC                BITS(11,13)               /*!< APB2 prescaler selection */
+#define RCU_CFG0_ADCPSC                 BITS(14,15)               /*!< ADC prescaler selection */
+#define RCU_CFG0_PLLSEL                 BIT(16)                   /*!< PLL clock source selection */
+#define RCU_CFG0_PREDV0_LSB             BIT(17)                   /*!< the LSB of PREDV0 division factor */
+#define RCU_CFG0_PLLMF                  BITS(18,21)               /*!< PLL clock multiplication factor */
+#define RCU_CFG0_USBFSPSC               BITS(22,23)               /*!< USBFS clock prescaler selection */
+#define RCU_CFG0_CKOUT0SEL              BITS(24,27)               /*!< CKOUT0 clock source selection */
+#define RCU_CFG0_ADCPSC_2               BIT(28)                   /*!< bit 2 of ADCPSC */
+#define RCU_CFG0_PLLMF_4                BIT(29)                   /*!< bit 4 of PLLMF */
+
+/* RCU_INT */
+#define RCU_INT_IRC40KSTBIF             BIT(0)                    /*!< IRC40K stabilization interrupt flag */
+#define RCU_INT_LXTALSTBIF              BIT(1)                    /*!< LXTAL stabilization interrupt flag */
+#define RCU_INT_IRC8MSTBIF              BIT(2)                    /*!< IRC8M stabilization interrupt flag */
+#define RCU_INT_HXTALSTBIF              BIT(3)                    /*!< HXTAL stabilization interrupt flag */
+#define RCU_INT_PLLSTBIF                BIT(4)                    /*!< PLL stabilization interrupt flag */
+#define RCU_INT_PLL1STBIF               BIT(5)                    /*!< PLL1 stabilization interrupt flag */
+#define RCU_INT_PLL2STBIF               BIT(6)                    /*!< PLL2 stabilization interrupt flag */
+#define RCU_INT_CKMIF                   BIT(7)                    /*!< HXTAL clock stuck interrupt flag */
+#define RCU_INT_IRC40KSTBIE             BIT(8)                    /*!< IRC40K stabilization interrupt enable */
+#define RCU_INT_LXTALSTBIE              BIT(9)                    /*!< LXTAL stabilization interrupt enable */
+#define RCU_INT_IRC8MSTBIE              BIT(10)                   /*!< IRC8M stabilization interrupt enable */
+#define RCU_INT_HXTALSTBIE              BIT(11)                   /*!< HXTAL stabilization interrupt enable */
+#define RCU_INT_PLLSTBIE                BIT(12)                   /*!< PLL stabilization interrupt enable */
+#define RCU_INT_PLL1STBIE               BIT(13)                   /*!< PLL1 stabilization interrupt enable */
+#define RCU_INT_PLL2STBIE               BIT(14)                   /*!< PLL2 stabilization interrupt enable */
+#define RCU_INT_IRC40KSTBIC             BIT(16)                   /*!< IRC40K stabilization interrupt clear */
+#define RCU_INT_LXTALSTBIC              BIT(17)                   /*!< LXTAL stabilization interrupt clear */
+#define RCU_INT_IRC8MSTBIC              BIT(18)                   /*!< IRC8M stabilization interrupt clear */
+#define RCU_INT_HXTALSTBIC              BIT(19)                   /*!< HXTAL stabilization interrupt clear */
+#define RCU_INT_PLLSTBIC                BIT(20)                   /*!< PLL stabilization interrupt clear */
+#define RCU_INT_PLL1STBIC               BIT(21)                   /*!< PLL1 stabilization interrupt clear */
+#define RCU_INT_PLL2STBIC               BIT(22)                   /*!< PLL2 stabilization interrupt clear */
+#define RCU_INT_CKMIC                   BIT(23)                   /*!< HXTAL clock stuck interrupt clear */
+
+/* RCU_APB2RST */
+#define RCU_APB2RST_AFRST               BIT(0)                    /*!< alternate function I/O reset */
+#define RCU_APB2RST_PARST               BIT(2)                    /*!< GPIO port A reset */
+#define RCU_APB2RST_PBRST               BIT(3)                    /*!< GPIO port B reset */
+#define RCU_APB2RST_PCRST               BIT(4)                    /*!< GPIO port C reset */
+#define RCU_APB2RST_PDRST               BIT(5)                    /*!< GPIO port D reset */
+#define RCU_APB2RST_PERST               BIT(6)                    /*!< GPIO port E reset */
+#define RCU_APB2RST_ADC0RST             BIT(9)                    /*!< ADC0 reset */
+#define RCU_APB2RST_ADC1RST             BIT(10)                   /*!< ADC1 reset */
+#define RCU_APB2RST_TIMER0RST           BIT(11)                   /*!< TIMER0 reset */
+#define RCU_APB2RST_SPI0RST             BIT(12)                   /*!< SPI0 reset */
+#define RCU_APB2RST_USART0RST           BIT(14)                   /*!< USART0 reset */
+
+/* RCU_APB1RST */
+#define RCU_APB1RST_TIMER1RST           BIT(0)                    /*!< TIMER1 reset */
+#define RCU_APB1RST_TIMER2RST           BIT(1)                    /*!< TIMER2 reset */
+#define RCU_APB1RST_TIMER3RST           BIT(2)                    /*!< TIMER3 reset */
+#define RCU_APB1RST_TIMER4RST           BIT(3)                    /*!< TIMER4 reset */
+#define RCU_APB1RST_TIMER5RST           BIT(4)                    /*!< TIMER5 reset */
+#define RCU_APB1RST_TIMER6RST           BIT(5)                    /*!< TIMER6 reset */
+
+#define RCU_APB1RST_WWDGTRST            BIT(11)                   /*!< WWDGT reset */
+#define RCU_APB1RST_SPI1RST             BIT(14)                   /*!< SPI1 reset */
+#define RCU_APB1RST_SPI2RST             BIT(15)                   /*!< SPI2 reset */
+#define RCU_APB1RST_USART1RST           BIT(17)                   /*!< USART1 reset */
+#define RCU_APB1RST_USART2RST           BIT(18)                   /*!< USART2 reset */
+#define RCU_APB1RST_UART3RST            BIT(19)                   /*!< UART3 reset */
+#define RCU_APB1RST_UART4RST            BIT(20)                   /*!< UART4 reset */
+#define RCU_APB1RST_I2C0RST             BIT(21)                   /*!< I2C0 reset */
+#define RCU_APB1RST_I2C1RST             BIT(22)                   /*!< I2C1 reset */
+#define RCU_APB1RST_CAN0RST             BIT(25)                   /*!< CAN0 reset */
+#define RCU_APB1RST_CAN1RST             BIT(26)                   /*!< CAN1 reset */
+#define RCU_APB1RST_BKPIRST             BIT(27)                   /*!< backup interface reset */
+#define RCU_APB1RST_PMURST              BIT(28)                   /*!< PMU reset */
+#define RCU_APB1RST_DACRST              BIT(29)                   /*!< DAC reset */
+
+/* RCU_AHBEN */
+#define RCU_AHBEN_DMA0EN                BIT(0)                    /*!< DMA0 clock enable */
+#define RCU_AHBEN_DMA1EN                BIT(1)                    /*!< DMA1 clock enable */
+#define RCU_AHBEN_SRAMSPEN              BIT(2)                    /*!< SRAM clock enable when sleep mode */
+#define RCU_AHBEN_FMCSPEN               BIT(4)                    /*!< FMC clock enable when sleep mode */
+#define RCU_AHBEN_CRCEN                 BIT(6)                    /*!< CRC clock enable */
+#define RCU_AHBEN_EXMCEN                BIT(8)                    /*!< EXMC clock enable */
+#define RCU_AHBEN_USBFSEN               BIT(12)                   /*!< USBFS clock enable */
+
+/* RCU_APB2EN */
+#define RCU_APB2EN_AFEN                 BIT(0)                    /*!< alternate function IO clock enable */
+#define RCU_APB2EN_PAEN                 BIT(2)                    /*!< GPIO port A clock enable */
+#define RCU_APB2EN_PBEN                 BIT(3)                    /*!< GPIO port B clock enable */
+#define RCU_APB2EN_PCEN                 BIT(4)                    /*!< GPIO port C clock enable */
+#define RCU_APB2EN_PDEN                 BIT(5)                    /*!< GPIO port D clock enable */
+#define RCU_APB2EN_PEEN                 BIT(6)                    /*!< GPIO port E clock enable */
+#define RCU_APB2EN_ADC0EN               BIT(9)                    /*!< ADC0 clock enable */
+#define RCU_APB2EN_ADC1EN               BIT(10)                   /*!< ADC1 clock enable */
+#define RCU_APB2EN_TIMER0EN             BIT(11)                   /*!< TIMER0 clock enable */
+#define RCU_APB2EN_SPI0EN               BIT(12)                   /*!< SPI0 clock enable */
+#define RCU_APB2EN_USART0EN             BIT(14)                   /*!< USART0 clock enable */
+
+/* RCU_APB1EN */
+#define RCU_APB1EN_TIMER1EN             BIT(0)                    /*!< TIMER1 clock enable */
+#define RCU_APB1EN_TIMER2EN             BIT(1)                    /*!< TIMER2 clock enable */
+#define RCU_APB1EN_TIMER3EN             BIT(2)                    /*!< TIMER3 clock enable */
+#define RCU_APB1EN_TIMER4EN             BIT(3)                    /*!< TIMER4 clock enable */
+#define RCU_APB1EN_TIMER5EN             BIT(4)                    /*!< TIMER5 clock enable */
+#define RCU_APB1EN_TIMER6EN             BIT(5)                    /*!< TIMER6 clock enable */
+#define RCU_APB1EN_WWDGTEN              BIT(11)                   /*!< WWDGT clock enable */
+#define RCU_APB1EN_SPI1EN               BIT(14)                   /*!< SPI1 clock enable */
+#define RCU_APB1EN_SPI2EN               BIT(15)                   /*!< SPI2 clock enable */
+#define RCU_APB1EN_USART1EN             BIT(17)                   /*!< USART1 clock enable */
+#define RCU_APB1EN_USART2EN             BIT(18)                   /*!< USART2 clock enable */
+#define RCU_APB1EN_UART3EN              BIT(19)                   /*!< UART3 clock enable */
+#define RCU_APB1EN_UART4EN              BIT(20)                   /*!< UART4 clock enable */
+#define RCU_APB1EN_I2C0EN               BIT(21)                   /*!< I2C0 clock enable */
+#define RCU_APB1EN_I2C1EN               BIT(22)                   /*!< I2C1 clock enable */
+#define RCU_APB1EN_CAN0EN               BIT(25)                   /*!< CAN0 clock enable */
+#define RCU_APB1EN_CAN1EN               BIT(26)                   /*!< CAN1 clock enable */
+#define RCU_APB1EN_BKPIEN               BIT(27)                   /*!< backup interface clock enable */
+#define RCU_APB1EN_PMUEN                BIT(28)                   /*!< PMU clock enable */
+#define RCU_APB1EN_DACEN                BIT(29)                   /*!< DAC clock enable */
+
+/* RCU_BDCTL */
+#define RCU_BDCTL_LXTALEN               BIT(0)                    /*!< LXTAL enable */
+#define RCU_BDCTL_LXTALSTB              BIT(1)                    /*!< low speed crystal oscillator stabilization flag */
+#define RCU_BDCTL_LXTALBPS              BIT(2)                    /*!< LXTAL bypass mode enable */
+#define RCU_BDCTL_RTCSRC                BITS(8,9)                 /*!< RTC clock entry selection */
+#define RCU_BDCTL_RTCEN                 BIT(15)                   /*!< RTC clock enable */
+#define RCU_BDCTL_BKPRST                BIT(16)                   /*!< backup domain reset */
+
+/* RCU_RSTSCK */
+#define RCU_RSTSCK_IRC40KEN             BIT(0)                    /*!< IRC40K enable */
+#define RCU_RSTSCK_IRC40KSTB            BIT(1)                    /*!< IRC40K stabilization flag */
+#define RCU_RSTSCK_RSTFC                BIT(24)                   /*!< reset flag clear */
+#define RCU_RSTSCK_EPRSTF               BIT(26)                   /*!< external pin reset flag */
+#define RCU_RSTSCK_PORRSTF              BIT(27)                   /*!< power reset flag */
+#define RCU_RSTSCK_SWRSTF               BIT(28)                   /*!< software reset flag */
+#define RCU_RSTSCK_FWDGTRSTF            BIT(29)                   /*!< free watchdog timer reset flag */
+#define RCU_RSTSCK_WWDGTRSTF            BIT(30)                   /*!< window watchdog timer reset flag */
+#define RCU_RSTSCK_LPRSTF               BIT(31)                   /*!< low-power reset flag */
+
+/* RCU_AHBRST */
+#define RCU_AHBRST_USBFSRST             BIT(12)                   /*!< USBFS reset */
+
+/* RCU_CFG1 */
+#define RCU_CFG1_PREDV0                 BITS(0,3)                 /*!< PREDV0 division factor */
+#define RCU_CFG1_PREDV1                 BITS(4,7)                 /*!< PREDV1 division factor */
+#define RCU_CFG1_PLL1MF                 BITS(8,11)                /*!< PLL1 clock multiplication factor */
+#define RCU_CFG1_PLL2MF                 BITS(12,15)               /*!< PLL2 clock multiplication factor */
+#define RCU_CFG1_PREDV0SEL              BIT(16)                   /*!< PREDV0 input clock source selection */
+#define RCU_CFG1_I2S1SEL                BIT(17)                   /*!< I2S1 clock source selection */
+#define RCU_CFG1_I2S2SEL                BIT(18)                   /*!< I2S2 clock source selection  */
+
+/* RCU_DSV */
+#define RCU_DSV_DSLPVS                  BITS(0,1)                 /*!< deep-sleep mode voltage select */
+
+/* constants definitions */
+/* define the peripheral clock enable bit position and its register index offset */
+#define RCU_REGIDX_BIT(regidx, bitpos)      (((uint32_t)(regidx) << 6) | (uint32_t)(bitpos))
+#define RCU_REG_VAL(periph)                 (REG32(RCU + ((uint32_t)(periph) >> 6)))
+#define RCU_BIT_POS(val)                    ((uint32_t)(val) & 0x1FU)
+
+/* register offset */
+/* peripherals enable */
+#define AHBEN_REG_OFFSET                0x14U                     /*!< AHB enable register offset */
+#define APB1EN_REG_OFFSET               0x1CU                     /*!< APB1 enable register offset */
+#define APB2EN_REG_OFFSET               0x18U                     /*!< APB2 enable register offset */
+
+/* peripherals reset */
+#define AHBRST_REG_OFFSET               0x28U                     /*!< AHB reset register offset */
+#define APB1RST_REG_OFFSET              0x10U                     /*!< APB1 reset register offset */
+#define APB2RST_REG_OFFSET              0x0CU                     /*!< APB2 reset register offset */
+#define RSTSCK_REG_OFFSET               0x24U                     /*!< reset source/clock register offset */
+
+/* clock control */
+#define CTL_REG_OFFSET                  0x00U                     /*!< control register offset */
+#define BDCTL_REG_OFFSET                0x20U                     /*!< backup domain control register offset */
+
+/* clock stabilization and stuck interrupt */
+#define INT_REG_OFFSET                  0x08U                     /*!< clock interrupt register offset */
+
+/* configuration register */
+#define CFG0_REG_OFFSET                 0x04U                     /*!< clock configuration register 0 offset */
+#define CFG1_REG_OFFSET                 0x2CU                     /*!< clock configuration register 1 offset */
+
+/* peripheral clock enable */
+typedef enum {
+	/* AHB peripherals */
+	RCU_DMA0 = RCU_REGIDX_BIT(AHBEN_REG_OFFSET, 0U),              /*!< DMA0 clock */
+	RCU_DMA1 = RCU_REGIDX_BIT(AHBEN_REG_OFFSET, 1U),              /*!< DMA1 clock */
+	RCU_CRC = RCU_REGIDX_BIT(AHBEN_REG_OFFSET, 6U),               /*!< CRC clock */
+	RCU_EXMC = RCU_REGIDX_BIT(AHBEN_REG_OFFSET, 8U),              /*!< EXMC clock */
+	RCU_USBFS = RCU_REGIDX_BIT(AHBEN_REG_OFFSET, 12U),            /*!< USBFS clock */
+	/* APB1 peripherals */
+	RCU_TIMER1 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 0U),           /*!< TIMER1 clock */
+	RCU_TIMER2 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 1U),           /*!< TIMER2 clock */
+	RCU_TIMER3 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 2U),           /*!< TIMER3 clock */
+	RCU_TIMER4 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 3U),           /*!< TIMER4 clock */
+	RCU_TIMER5 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 4U),           /*!< TIMER5 clock */
+	RCU_TIMER6 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 5U),           /*!< TIMER6 clock */
+	RCU_WWDGT = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 11U),           /*!< WWDGT clock */
+	RCU_SPI1 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 14U),            /*!< SPI1 clock */
+	RCU_SPI2 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 15U),            /*!< SPI2 clock */
+	RCU_USART1 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 17U),          /*!< USART1 clock */
+	RCU_USART2 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 18U),          /*!< USART2 clock */
+	RCU_UART3 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 19U),           /*!< UART3 clock */
+	RCU_UART4 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 20U),           /*!< UART4 clock */
+	RCU_I2C0 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 21U),            /*!< I2C0 clock */
+	RCU_I2C1 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 22U),            /*!< I2C1 clock */
+	RCU_CAN0 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 25U),            /*!< CAN0 clock */
+	RCU_CAN1 = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 26U),            /*!< CAN1 clock */
+	RCU_BKPI = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 27U),            /*!< BKPI clock */
+	RCU_PMU = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 28U),             /*!< PMU clock */
+	RCU_DAC = RCU_REGIDX_BIT(APB1EN_REG_OFFSET, 29U),             /*!< DAC clock */
+	RCU_RTC = RCU_REGIDX_BIT(BDCTL_REG_OFFSET, 15U),              /*!< RTC clock */
+	/* APB2 peripherals */
+	RCU_AF = RCU_REGIDX_BIT(APB2EN_REG_OFFSET, 0U),               /*!< alternate function clock */
+	RCU_GPIOA = RCU_REGIDX_BIT(APB2EN_REG_OFFSET, 2U),            /*!< GPIOA clock */
+	RCU_GPIOB = RCU_REGIDX_BIT(APB2EN_REG_OFFSET, 3U),            /*!< GPIOB clock */
+	RCU_GPIOC = RCU_REGIDX_BIT(APB2EN_REG_OFFSET, 4U),            /*!< GPIOC clock */
+	RCU_GPIOD = RCU_REGIDX_BIT(APB2EN_REG_OFFSET, 5U),            /*!< GPIOD clock */
+	RCU_GPIOE = RCU_REGIDX_BIT(APB2EN_REG_OFFSET, 6U),            /*!< GPIOE clock */
+	RCU_ADC0 = RCU_REGIDX_BIT(APB2EN_REG_OFFSET, 9U),             /*!< ADC0 clock */
+	RCU_ADC1 = RCU_REGIDX_BIT(APB2EN_REG_OFFSET, 10U),            /*!< ADC1 clock */
+	RCU_TIMER0 = RCU_REGIDX_BIT(APB2EN_REG_OFFSET, 11U),          /*!< TIMER0 clock */
+	RCU_SPI0 = RCU_REGIDX_BIT(APB2EN_REG_OFFSET, 12U),            /*!< SPI0 clock */
+	RCU_USART0 = RCU_REGIDX_BIT(APB2EN_REG_OFFSET, 14U),          /*!< USART0 clock */
+} rcu_periph_enum;
+
+/* peripheral clock enable when sleep mode*/
+typedef enum {
+/* AHB peripherals */
+	RCU_SRAM_SLP = RCU_REGIDX_BIT(AHBEN_REG_OFFSET, 2U),          /*!< SRAM clock */
+	RCU_FMC_SLP = RCU_REGIDX_BIT(AHBEN_REG_OFFSET, 4U),           /*!< FMC clock */
+} rcu_periph_sleep_enum;
+
+/* peripherals reset */
+typedef enum {
+	/* AHB peripherals */
+	RCU_USBFSRST = RCU_REGIDX_BIT(AHBRST_REG_OFFSET, 12U),        /*!< USBFS clock reset */
+	/* APB1 peripherals */
+	RCU_TIMER1RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 0U),       /*!< TIMER1 clock reset */
+	RCU_TIMER2RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 1U),       /*!< TIMER2 clock reset */
+	RCU_TIMER3RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 2U),       /*!< TIMER3 clock reset */
+	RCU_TIMER4RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 3U),       /*!< TIMER4 clock reset */
+	RCU_TIMER5RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 4U),       /*!< TIMER5 clock reset */
+	RCU_TIMER6RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 5U),       /*!< TIMER6 clock reset */
+	RCU_WWDGTRST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 11U),       /*!< WWDGT clock reset */
+	RCU_SPI1RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 14U),        /*!< SPI1 clock reset */
+	RCU_SPI2RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 15U),        /*!< SPI2 clock reset */
+	RCU_USART1RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 17U),      /*!< USART1 clock reset */
+	RCU_USART2RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 18U),      /*!< USART2 clock reset */
+	RCU_UART3RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 19U),       /*!< UART3 clock reset */
+	RCU_UART4RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 20U),       /*!< UART4 clock reset */
+	RCU_I2C0RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 21U),        /*!< I2C0 clock reset */
+	RCU_I2C1RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 22U),        /*!< I2C1 clock reset */
+	RCU_CAN0RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 25U),        /*!< CAN0 clock reset */
+	RCU_CAN1RST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 26U),        /*!< CAN1 clock reset */
+	RCU_BKPIRST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 27U),        /*!< BKPI clock reset */
+	RCU_PMURST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 28U),         /*!< PMU clock reset */
+	RCU_DACRST = RCU_REGIDX_BIT(APB1RST_REG_OFFSET, 29U),         /*!< DAC clock reset */
+	/* APB2 peripherals */
+	RCU_AFRST = RCU_REGIDX_BIT(APB2RST_REG_OFFSET, 0U),           /*!< alternate function clock reset */
+	RCU_GPIOARST = RCU_REGIDX_BIT(APB2RST_REG_OFFSET, 2U),        /*!< GPIOA clock reset */
+	RCU_GPIOBRST = RCU_REGIDX_BIT(APB2RST_REG_OFFSET, 3U),        /*!< GPIOB clock reset */
+	RCU_GPIOCRST = RCU_REGIDX_BIT(APB2RST_REG_OFFSET, 4U),        /*!< GPIOC clock reset */
+	RCU_GPIODRST = RCU_REGIDX_BIT(APB2RST_REG_OFFSET, 5U),        /*!< GPIOD clock reset */
+	RCU_GPIOERST = RCU_REGIDX_BIT(APB2RST_REG_OFFSET, 6U),        /*!< GPIOE clock reset */
+	RCU_ADC0RST = RCU_REGIDX_BIT(APB2RST_REG_OFFSET, 9U),         /*!< ADC0 clock reset */
+	RCU_ADC1RST = RCU_REGIDX_BIT(APB2RST_REG_OFFSET, 10U),        /*!< ADC1 clock reset */
+	RCU_TIMER0RST = RCU_REGIDX_BIT(APB2RST_REG_OFFSET, 11U),      /*!< TIMER0 clock reset */
+	RCU_SPI0RST = RCU_REGIDX_BIT(APB2RST_REG_OFFSET, 12U),        /*!< SPI0 clock reset */
+	RCU_USART0RST = RCU_REGIDX_BIT(APB2RST_REG_OFFSET, 14U),      /*!< USART0 clock reset */
+} rcu_periph_reset_enum;
+
+/* clock stabilization and peripheral reset flags */
+typedef enum {
+	/* clock stabilization flags */
+	RCU_FLAG_IRC8MSTB = RCU_REGIDX_BIT(CTL_REG_OFFSET, 1U),       /*!< IRC8M stabilization flags */
+	RCU_FLAG_HXTALSTB = RCU_REGIDX_BIT(CTL_REG_OFFSET, 17U),      /*!< HXTAL stabilization flags */
+	RCU_FLAG_PLLSTB = RCU_REGIDX_BIT(CTL_REG_OFFSET, 25U),        /*!< PLL stabilization flags */
+	RCU_FLAG_PLL1STB = RCU_REGIDX_BIT(CTL_REG_OFFSET, 27U),       /*!< PLL1 stabilization flags */
+	RCU_FLAG_PLL2STB = RCU_REGIDX_BIT(CTL_REG_OFFSET, 29U),       /*!< PLL2 stabilization flags */
+	RCU_FLAG_LXTALSTB = RCU_REGIDX_BIT(BDCTL_REG_OFFSET, 1U),     /*!< LXTAL stabilization flags */
+	RCU_FLAG_IRC40KSTB = RCU_REGIDX_BIT(RSTSCK_REG_OFFSET, 1U),   /*!< IRC40K stabilization flags */
+	/* reset source flags */
+	RCU_FLAG_EPRST = RCU_REGIDX_BIT(RSTSCK_REG_OFFSET, 26U),      /*!< external PIN reset flags */
+	RCU_FLAG_PORRST = RCU_REGIDX_BIT(RSTSCK_REG_OFFSET, 27U),     /*!< power reset flags */
+	RCU_FLAG_SWRST = RCU_REGIDX_BIT(RSTSCK_REG_OFFSET, 28U),      /*!< software reset flags */
+	RCU_FLAG_FWDGTRST = RCU_REGIDX_BIT(RSTSCK_REG_OFFSET, 29U),   /*!< FWDGT reset flags */
+	RCU_FLAG_WWDGTRST = RCU_REGIDX_BIT(RSTSCK_REG_OFFSET, 30U),   /*!< WWDGT reset flags */
+	RCU_FLAG_LPRST = RCU_REGIDX_BIT(RSTSCK_REG_OFFSET, 31U),      /*!< low-power reset flags */
+} rcu_flag_enum;
+
+/* clock stabilization and ckm interrupt flags */
+typedef enum {
+	RCU_INT_FLAG_IRC40KSTB = RCU_REGIDX_BIT(INT_REG_OFFSET, 0U),  /*!< IRC40K stabilization interrupt flag */
+	RCU_INT_FLAG_LXTALSTB = RCU_REGIDX_BIT(INT_REG_OFFSET, 1U),   /*!< LXTAL stabilization interrupt flag */
+	RCU_INT_FLAG_IRC8MSTB = RCU_REGIDX_BIT(INT_REG_OFFSET, 2U),   /*!< IRC8M stabilization interrupt flag */
+	RCU_INT_FLAG_HXTALSTB = RCU_REGIDX_BIT(INT_REG_OFFSET, 3U),   /*!< HXTAL stabilization interrupt flag */
+	RCU_INT_FLAG_PLLSTB = RCU_REGIDX_BIT(INT_REG_OFFSET, 4U),     /*!< PLL stabilization interrupt flag */
+	RCU_INT_FLAG_PLL1STB = RCU_REGIDX_BIT(INT_REG_OFFSET, 5U),    /*!< PLL1 stabilization interrupt flag */
+	RCU_INT_FLAG_PLL2STB = RCU_REGIDX_BIT(INT_REG_OFFSET, 6U),    /*!< PLL2 stabilization interrupt flag */
+	RCU_INT_FLAG_CKM = RCU_REGIDX_BIT(INT_REG_OFFSET, 7U),        /*!< HXTAL clock stuck interrupt flag */
+} rcu_int_flag_enum;
+
+/* clock stabilization and stuck interrupt flags clear */
+typedef enum {
+	RCU_INT_FLAG_IRC40KSTB_CLR = RCU_REGIDX_BIT(INT_REG_OFFSET, 16U), /*!< IRC40K stabilization interrupt flags clear */
+	RCU_INT_FLAG_LXTALSTB_CLR = RCU_REGIDX_BIT(INT_REG_OFFSET, 17U),  /*!< LXTAL stabilization interrupt flags clear */
+	RCU_INT_FLAG_IRC8MSTB_CLR = RCU_REGIDX_BIT(INT_REG_OFFSET, 18U),  /*!< IRC8M stabilization interrupt flags clear */
+	RCU_INT_FLAG_HXTALSTB_CLR = RCU_REGIDX_BIT(INT_REG_OFFSET, 19U),  /*!< HXTAL stabilization interrupt flags clear */
+	RCU_INT_FLAG_PLLSTB_CLR = RCU_REGIDX_BIT(INT_REG_OFFSET, 20U),    /*!< PLL stabilization interrupt flags clear */
+	RCU_INT_FLAG_PLL1STB_CLR = RCU_REGIDX_BIT(INT_REG_OFFSET, 21U),   /*!< PLL1 stabilization interrupt flags clear */
+	RCU_INT_FLAG_PLL2STB_CLR = RCU_REGIDX_BIT(INT_REG_OFFSET, 22U),   /*!< PLL2 stabilization interrupt flags clear */
+	RCU_INT_FLAG_CKM_CLR = RCU_REGIDX_BIT(INT_REG_OFFSET, 23U),       /*!< CKM interrupt flags clear */
+} rcu_int_flag_clear_enum;
+
+/* clock stabilization interrupt enable or disable */
+typedef enum {
+	RCU_INT_IRC40KSTB = RCU_REGIDX_BIT(INT_REG_OFFSET, 8U),  /*!< IRC40K stabilization interrupt */
+	RCU_INT_LXTALSTB = RCU_REGIDX_BIT(INT_REG_OFFSET, 9U),   /*!< LXTAL stabilization interrupt */
+	RCU_INT_IRC8MSTB = RCU_REGIDX_BIT(INT_REG_OFFSET, 10U),  /*!< IRC8M stabilization interrupt */
+	RCU_INT_HXTALSTB = RCU_REGIDX_BIT(INT_REG_OFFSET, 11U),  /*!< HXTAL stabilization interrupt */
+	RCU_INT_PLLSTB = RCU_REGIDX_BIT(INT_REG_OFFSET, 12U),    /*!< PLL stabilization interrupt */
+	RCU_INT_PLL1STB = RCU_REGIDX_BIT(INT_REG_OFFSET, 13U),   /*!< PLL1 stabilization interrupt */
+	RCU_INT_PLL2STB = RCU_REGIDX_BIT(INT_REG_OFFSET, 14U),   /*!< PLL2 stabilization interrupt */
+} rcu_int_enum;
+
+/* oscillator types */
+typedef enum {
+    RCU_HXTAL = RCU_REGIDX_BIT(CTL_REG_OFFSET, 16U),         /*!< HXTAL */
+    RCU_LXTAL = RCU_REGIDX_BIT(BDCTL_REG_OFFSET, 0U),        /*!< LXTAL */
+    RCU_IRC8M = RCU_REGIDX_BIT(CTL_REG_OFFSET, 0U),          /*!< IRC8M */
+    RCU_IRC40K = RCU_REGIDX_BIT(RSTSCK_REG_OFFSET, 0U),      /*!< IRC40K */
+    RCU_PLL_CK = RCU_REGIDX_BIT(CTL_REG_OFFSET, 24U),        /*!< PLL */
+    RCU_PLL1_CK = RCU_REGIDX_BIT(CTL_REG_OFFSET, 26U),       /*!< PLL1 */
+    RCU_PLL2_CK = RCU_REGIDX_BIT(CTL_REG_OFFSET, 28U),       /*!< PLL2 */
+} rcu_osci_type_enum;
+
+/* rcu clock frequency */
+typedef enum {
+    CK_SYS = 0, /*!< system clock */
+    CK_AHB, /*!< AHB clock */
+    CK_APB1, /*!< APB1 clock */
+    CK_APB2, /*!< APB2 clock */
+} rcu_clock_freq_enum;
+
+/* RCU_CFG0 register bit define */
+/* system clock source select */
+#define CFG0_SCS(regval)                (BITS(0,1) & ((uint32_t)(regval) << 0))
+#define RCU_CKSYSSRC_IRC8M              CFG0_SCS(0)                         /*!< system clock source select IRC8M */
+#define RCU_CKSYSSRC_HXTAL              CFG0_SCS(1)                         /*!< system clock source select HXTAL */
+#define RCU_CKSYSSRC_PLL                CFG0_SCS(2)                         /*!< system clock source select PLL */
+
+/* system clock source select status */
+#define CFG0_SCSS(regval)               (BITS(2,3) & ((uint32_t)(regval) << 2))
+#define RCU_SCSS_IRC8M                  CFG0_SCSS(0)                        /*!< system clock source select IRC8M */
+#define RCU_SCSS_HXTAL                  CFG0_SCSS(1)                        /*!< system clock source select HXTAL */
+#define RCU_SCSS_PLL                    CFG0_SCSS(2)                        /*!< system clock source select PLLP */
+
+/* AHB prescaler selection */
+#define CFG0_AHBPSC(regval)             (BITS(4,7) & ((uint32_t)(regval) << 4))
+#define RCU_AHB_CKSYS_DIV1              CFG0_AHBPSC(0)                      /*!< AHB prescaler select CK_SYS */
+#define RCU_AHB_CKSYS_DIV2              CFG0_AHBPSC(8)                      /*!< AHB prescaler select CK_SYS/2 */
+#define RCU_AHB_CKSYS_DIV4              CFG0_AHBPSC(9)                      /*!< AHB prescaler select CK_SYS/4 */
+#define RCU_AHB_CKSYS_DIV8              CFG0_AHBPSC(10)                     /*!< AHB prescaler select CK_SYS/8 */
+#define RCU_AHB_CKSYS_DIV16             CFG0_AHBPSC(11)                     /*!< AHB prescaler select CK_SYS/16 */
+#define RCU_AHB_CKSYS_DIV64             CFG0_AHBPSC(12)                     /*!< AHB prescaler select CK_SYS/64 */
+#define RCU_AHB_CKSYS_DIV128            CFG0_AHBPSC(13)                     /*!< AHB prescaler select CK_SYS/128 */
+#define RCU_AHB_CKSYS_DIV256            CFG0_AHBPSC(14)                     /*!< AHB prescaler select CK_SYS/256 */
+#define RCU_AHB_CKSYS_DIV512            CFG0_AHBPSC(15)                     /*!< AHB prescaler select CK_SYS/512 */
+
+/* APB1 prescaler selection */
+#define CFG0_APB1PSC(regval)            (BITS(8,10) & ((uint32_t)(regval) << 8))
+#define RCU_APB1_CKAHB_DIV1             CFG0_APB1PSC(0)                     /*!< APB1 prescaler select CK_AHB */
+#define RCU_APB1_CKAHB_DIV2             CFG0_APB1PSC(4)                     /*!< APB1 prescaler select CK_AHB/2 */
+#define RCU_APB1_CKAHB_DIV4             CFG0_APB1PSC(5)                     /*!< APB1 prescaler select CK_AHB/4 */
+#define RCU_APB1_CKAHB_DIV8             CFG0_APB1PSC(6)                     /*!< APB1 prescaler select CK_AHB/8 */
+#define RCU_APB1_CKAHB_DIV16            CFG0_APB1PSC(7)                     /*!< APB1 prescaler select CK_AHB/16 */
+
+/* APB2 prescaler selection */
+#define CFG0_APB2PSC(regval)            (BITS(11,13) & ((uint32_t)(regval) << 11))
+#define RCU_APB2_CKAHB_DIV1             CFG0_APB2PSC(0)                     /*!< APB2 prescaler select CK_AHB */
+#define RCU_APB2_CKAHB_DIV2             CFG0_APB2PSC(4)                     /*!< APB2 prescaler select CK_AHB/2 */
+#define RCU_APB2_CKAHB_DIV4             CFG0_APB2PSC(5)                     /*!< APB2 prescaler select CK_AHB/4 */
+#define RCU_APB2_CKAHB_DIV8             CFG0_APB2PSC(6)                     /*!< APB2 prescaler select CK_AHB/8 */
+#define RCU_APB2_CKAHB_DIV16            CFG0_APB2PSC(7)                     /*!< APB2 prescaler select CK_AHB/16 */
+
+/* ADC prescaler select */
+#define RCU_CKADC_CKAPB2_DIV2           ((uint32_t)0x00000000U)             /*!< ADC prescaler select CK_APB2/2 */
+#define RCU_CKADC_CKAPB2_DIV4           ((uint32_t)0x00000001U)             /*!< ADC prescaler select CK_APB2/4 */
+#define RCU_CKADC_CKAPB2_DIV6           ((uint32_t)0x00000002U)             /*!< ADC prescaler select CK_APB2/6 */
+#define RCU_CKADC_CKAPB2_DIV8           ((uint32_t)0x00000003U)             /*!< ADC prescaler select CK_APB2/8 */
+#define RCU_CKADC_CKAPB2_DIV12          ((uint32_t)0x00000005U)             /*!< ADC prescaler select CK_APB2/12 */
+#define RCU_CKADC_CKAPB2_DIV16          ((uint32_t)0x00000007U)             /*!< ADC prescaler select CK_APB2/16 */
+
+/* PLL clock source selection */
+#define RCU_PLLSRC_IRC8M_DIV2           ((uint32_t)0x00000000U)             /*!< IRC8M/2 clock selected as source clock of PLL */
+#define RCU_PLLSRC_HXTAL                RCU_CFG0_PLLSEL                     /*!< HXTAL clock selected as source clock of PLL */
+
+/* PLL clock multiplication factor */
+#define PLLMF_4                         RCU_CFG0_PLLMF_4                    /* bit 4 of PLLMF */
+
+#define CFG0_PLLMF(regval)              (BITS(18,21) & ((uint32_t)(regval) << 18))
+#define RCU_PLL_MUL2                    CFG0_PLLMF(0)                       /*!< PLL source clock multiply by 2 */
+#define RCU_PLL_MUL3                    CFG0_PLLMF(1)                       /*!< PLL source clock multiply by 3 */
+#define RCU_PLL_MUL4                    CFG0_PLLMF(2)                       /*!< PLL source clock multiply by 4 */
+#define RCU_PLL_MUL5                    CFG0_PLLMF(3)                       /*!< PLL source clock multiply by 5 */
+#define RCU_PLL_MUL6                    CFG0_PLLMF(4)                       /*!< PLL source clock multiply by 6 */
+#define RCU_PLL_MUL7                    CFG0_PLLMF(5)                       /*!< PLL source clock multiply by 7 */
+#define RCU_PLL_MUL8                    CFG0_PLLMF(6)                       /*!< PLL source clock multiply by 8 */
+#define RCU_PLL_MUL9                    CFG0_PLLMF(7)                       /*!< PLL source clock multiply by 9 */
+#define RCU_PLL_MUL10                   CFG0_PLLMF(8)                       /*!< PLL source clock multiply by 10 */
+#define RCU_PLL_MUL11                   CFG0_PLLMF(9)                       /*!< PLL source clock multiply by 11 */
+#define RCU_PLL_MUL12                   CFG0_PLLMF(10)                      /*!< PLL source clock multiply by 12 */
+#define RCU_PLL_MUL13                   CFG0_PLLMF(11)                      /*!< PLL source clock multiply by 13 */
+#define RCU_PLL_MUL14                   CFG0_PLLMF(12)                      /*!< PLL source clock multiply by 14 */
+#define RCU_PLL_MUL6_5                  CFG0_PLLMF(13)                      /*!< PLL source clock multiply by 6.5 */
+#define RCU_PLL_MUL16                   CFG0_PLLMF(14)                      /*!< PLL source clock multiply by 16 */
+#define RCU_PLL_MUL17                   (PLLMF_4 | CFG0_PLLMF(0))           /*!< PLL source clock multiply by 17 */
+#define RCU_PLL_MUL18                   (PLLMF_4 | CFG0_PLLMF(1))           /*!< PLL source clock multiply by 18 */
+#define RCU_PLL_MUL19                   (PLLMF_4 | CFG0_PLLMF(2))           /*!< PLL source clock multiply by 19 */
+#define RCU_PLL_MUL20                   (PLLMF_4 | CFG0_PLLMF(3))           /*!< PLL source clock multiply by 20 */
+#define RCU_PLL_MUL21                   (PLLMF_4 | CFG0_PLLMF(4))           /*!< PLL source clock multiply by 21 */
+#define RCU_PLL_MUL22                   (PLLMF_4 | CFG0_PLLMF(5))           /*!< PLL source clock multiply by 22 */
+#define RCU_PLL_MUL23                   (PLLMF_4 | CFG0_PLLMF(6))           /*!< PLL source clock multiply by 23 */
+#define RCU_PLL_MUL24                   (PLLMF_4 | CFG0_PLLMF(7))           /*!< PLL source clock multiply by 24 */
+#define RCU_PLL_MUL25                   (PLLMF_4 | CFG0_PLLMF(8))           /*!< PLL source clock multiply by 25 */
+#define RCU_PLL_MUL26                   (PLLMF_4 | CFG0_PLLMF(9))           /*!< PLL source clock multiply by 26 */
+#define RCU_PLL_MUL27                   (PLLMF_4 | CFG0_PLLMF(10))          /*!< PLL source clock multiply by 27 */
+#define RCU_PLL_MUL28                   (PLLMF_4 | CFG0_PLLMF(11))          /*!< PLL source clock multiply by 28 */
+#define RCU_PLL_MUL29                   (PLLMF_4 | CFG0_PLLMF(12))          /*!< PLL source clock multiply by 29 */
+#define RCU_PLL_MUL30                   (PLLMF_4 | CFG0_PLLMF(13))          /*!< PLL source clock multiply by 30 */
+#define RCU_PLL_MUL31                   (PLLMF_4 | CFG0_PLLMF(14))          /*!< PLL source clock multiply by 31 */
+#define RCU_PLL_MUL32                   (PLLMF_4 | CFG0_PLLMF(15))          /*!< PLL source clock multiply by 32 */
+
+/* USBFS prescaler select */
+#define CFG0_USBPSC(regval)             (BITS(22,23) & ((uint32_t)(regval) << 22))
+#define RCU_CKUSB_CKPLL_DIV1_5          CFG0_USBPSC(0)                      /*!< USBFS prescaler select CK_PLL/1.5 */
+#define RCU_CKUSB_CKPLL_DIV1            CFG0_USBPSC(1)                      /*!< USBFS prescaler select CK_PLL/1 */
+#define RCU_CKUSB_CKPLL_DIV2_5          CFG0_USBPSC(2)                      /*!< USBFS prescaler select CK_PLL/2.5 */
+#define RCU_CKUSB_CKPLL_DIV2            CFG0_USBPSC(3)                      /*!< USBFS prescaler select CK_PLL/2 */
+
+/* CKOUT0 clock source selection */
+#define CFG0_CKOUT0SEL(regval)          (BITS(24,27) & ((uint32_t)(regval) << 24))
+#define RCU_CKOUT0SRC_NONE              CFG0_CKOUT0SEL(0)                   /*!< no clock selected */
+#define RCU_CKOUT0SRC_CKSYS             CFG0_CKOUT0SEL(4)                   /*!< system clock selected */
+#define RCU_CKOUT0SRC_IRC8M             CFG0_CKOUT0SEL(5)                   /*!< internal 8M RC oscillator clock selected */
+#define RCU_CKOUT0SRC_HXTAL             CFG0_CKOUT0SEL(6)                   /*!< high speed crystal oscillator clock (HXTAL) selected */
+#define RCU_CKOUT0SRC_CKPLL_DIV2        CFG0_CKOUT0SEL(7)                   /*!< CK_PLL/2 clock selected */
+#define RCU_CKOUT0SRC_CKPLL1            CFG0_CKOUT0SEL(8)                   /*!< CK_PLL1 clock selected */
+#define RCU_CKOUT0SRC_CKPLL2_DIV2       CFG0_CKOUT0SEL(9)                   /*!< CK_PLL2/2 clock selected */
+#define RCU_CKOUT0SRC_EXT1              CFG0_CKOUT0SEL(10)                  /*!< EXT1 selected */
+#define RCU_CKOUT0SRC_CKPLL2            CFG0_CKOUT0SEL(11)                  /*!< CK_PLL2 clock selected */
+
+/* RTC clock entry selection */
+#define BDCTL_RTCSRC(regval)            (BITS(8,9) & ((uint32_t)(regval) << 8))
+#define RCU_RTCSRC_NONE                 BDCTL_RTCSRC(0)                     /*!< no clock selected */
+#define RCU_RTCSRC_LXTAL                BDCTL_RTCSRC(1)                     /*!< RTC source clock select LXTAL  */
+#define RCU_RTCSRC_IRC40K               BDCTL_RTCSRC(2)                     /*!< RTC source clock select IRC40K */
+#define RCU_RTCSRC_HXTAL_DIV_128        BDCTL_RTCSRC(3)                     /*!< RTC source clock select HXTAL/128 */
+
+/* PREDV0 division factor */
+#define CFG1_PREDV0(regval)             (BITS(0,3) & ((uint32_t)(regval) << 0))
+#define RCU_PREDV0_DIV1                CFG1_PREDV0(0)                       /*!< PREDV0 input source clock not divided */
+#define RCU_PREDV0_DIV2                CFG1_PREDV0(1)                       /*!< PREDV0 input source clock divided by 2 */
+#define RCU_PREDV0_DIV3                CFG1_PREDV0(2)                       /*!< PREDV0 input source clock divided by 3 */
+#define RCU_PREDV0_DIV4                CFG1_PREDV0(3)                       /*!< PREDV0 input source clock divided by 4 */
+#define RCU_PREDV0_DIV5                CFG1_PREDV0(4)                       /*!< PREDV0 input source clock divided by 5 */
+#define RCU_PREDV0_DIV6                CFG1_PREDV0(5)                       /*!< PREDV0 input source clock divided by 6 */
+#define RCU_PREDV0_DIV7                CFG1_PREDV0(6)                       /*!< PREDV0 input source clock divided by 7 */
+#define RCU_PREDV0_DIV8                CFG1_PREDV0(7)                       /*!< PREDV0 input source clock divided by 8 */
+#define RCU_PREDV0_DIV9                CFG1_PREDV0(8)                       /*!< PREDV0 input source clock divided by 9 */
+#define RCU_PREDV0_DIV10               CFG1_PREDV0(9)                       /*!< PREDV0 input source clock divided by 10 */
+#define RCU_PREDV0_DIV11               CFG1_PREDV0(10)                      /*!< PREDV0 input source clock divided by 11 */
+#define RCU_PREDV0_DIV12               CFG1_PREDV0(11)                      /*!< PREDV0 input source clock divided by 12 */
+#define RCU_PREDV0_DIV13               CFG1_PREDV0(12)                      /*!< PREDV0 input source clock divided by 13 */
+#define RCU_PREDV0_DIV14               CFG1_PREDV0(13)                      /*!< PREDV0 input source clock divided by 14 */
+#define RCU_PREDV0_DIV15               CFG1_PREDV0(14)                      /*!< PREDV0 input source clock divided by 15 */
+#define RCU_PREDV0_DIV16               CFG1_PREDV0(15)                      /*!< PREDV0 input source clock divided by 16 */
+
+/* PREDV1 division factor */
+#define CFG1_PREDV1(regval)             (BITS(4,7) & ((uint32_t)(regval) << 4))
+#define RCU_PREDV1_DIV1                CFG1_PREDV1(0)                       /*!< PREDV1 input source clock not divided */
+#define RCU_PREDV1_DIV2                CFG1_PREDV1(1)                       /*!< PREDV1 input source clock divided by 2 */
+#define RCU_PREDV1_DIV3                CFG1_PREDV1(2)                       /*!< PREDV1 input source clock divided by 3 */
+#define RCU_PREDV1_DIV4                CFG1_PREDV1(3)                       /*!< PREDV1 input source clock divided by 4 */
+#define RCU_PREDV1_DIV5                CFG1_PREDV1(4)                       /*!< PREDV1 input source clock divided by 5 */
+#define RCU_PREDV1_DIV6                CFG1_PREDV1(5)                       /*!< PREDV1 input source clock divided by 6 */
+#define RCU_PREDV1_DIV7                CFG1_PREDV1(6)                       /*!< PREDV1 input source clock divided by 7 */
+#define RCU_PREDV1_DIV8                CFG1_PREDV1(7)                       /*!< PREDV1 input source clock divided by 8 */
+#define RCU_PREDV1_DIV9                CFG1_PREDV1(8)                       /*!< PREDV1 input source clock divided by 9 */
+#define RCU_PREDV1_DIV10               CFG1_PREDV1(9)                       /*!< PREDV1 input source clock divided by 10 */
+#define RCU_PREDV1_DIV11               CFG1_PREDV1(10)                      /*!< PREDV1 input source clock divided by 11 */
+#define RCU_PREDV1_DIV12               CFG1_PREDV1(11)                      /*!< PREDV1 input source clock divided by 12 */
+#define RCU_PREDV1_DIV13               CFG1_PREDV1(12)                      /*!< PREDV1 input source clock divided by 13 */
+#define RCU_PREDV1_DIV14               CFG1_PREDV1(13)                      /*!< PREDV1 input source clock divided by 14 */
+#define RCU_PREDV1_DIV15               CFG1_PREDV1(14)                      /*!< PREDV1 input source clock divided by 15 */
+#define RCU_PREDV1_DIV16               CFG1_PREDV1(15)                      /*!< PREDV1 input source clock divided by 16 */
+
+/* PLL1 clock multiplication factor */
+#define CFG1_PLL1MF(regval)             (BITS(8,11) & ((uint32_t)(regval) << 8))
+#define RCU_PLL1_MUL8                   CFG1_PLL1MF(6)                      /*!< PLL1 source clock multiply by 8 */
+#define RCU_PLL1_MUL9                   CFG1_PLL1MF(7)                      /*!< PLL1 source clock multiply by 9 */
+#define RCU_PLL1_MUL10                  CFG1_PLL1MF(8)                      /*!< PLL1 source clock multiply by 10 */
+#define RCU_PLL1_MUL11                  CFG1_PLL1MF(9)                      /*!< PLL1 source clock multiply by 11 */
+#define RCU_PLL1_MUL12                  CFG1_PLL1MF(10)                     /*!< PLL1 source clock multiply by 12 */
+#define RCU_PLL1_MUL13                  CFG1_PLL1MF(11)                     /*!< PLL1 source clock multiply by 13 */
+#define RCU_PLL1_MUL14                  CFG1_PLL1MF(12)                     /*!< PLL1 source clock multiply by 14 */
+#define RCU_PLL1_MUL15                  CFG1_PLL1MF(13)                     /*!< PLL1 source clock multiply by 15 */
+#define RCU_PLL1_MUL16                  CFG1_PLL1MF(14)                     /*!< PLL1 source clock multiply by 16 */
+#define RCU_PLL1_MUL20                  CFG1_PLL1MF(15)                     /*!< PLL1 source clock multiply by 20 */
+
+/* PLL2 clock multiplication factor */
+#define CFG1_PLL2MF(regval)             (BITS(12,15) & ((uint32_t)(regval) << 12))
+#define RCU_PLL2_MUL8                   CFG1_PLL2MF(6)                      /*!< PLL2 source clock multiply by 8 */
+#define RCU_PLL2_MUL9                   CFG1_PLL2MF(7)                      /*!< PLL2 source clock multiply by 9 */
+#define RCU_PLL2_MUL10                  CFG1_PLL2MF(8)                      /*!< PLL2 source clock multiply by 10 */
+#define RCU_PLL2_MUL11                  CFG1_PLL2MF(9)                      /*!< PLL2 source clock multiply by 11 */
+#define RCU_PLL2_MUL12                  CFG1_PLL2MF(10)                     /*!< PLL2 source clock multiply by 12 */
+#define RCU_PLL2_MUL13                  CFG1_PLL2MF(11)                     /*!< PLL2 source clock multiply by 13 */
+#define RCU_PLL2_MUL14                  CFG1_PLL2MF(12)                     /*!< PLL2 source clock multiply by 14 */
+#define RCU_PLL2_MUL15                  CFG1_PLL2MF(13)                     /*!< PLL2 source clock multiply by 15 */
+#define RCU_PLL2_MUL16                  CFG1_PLL2MF(14)                     /*!< PLL2 source clock multiply by 16 */
+#define RCU_PLL2_MUL20                  CFG1_PLL2MF(15)                     /*!< PLL2 source clock multiply by 20 */
+
+
+/* PREDV0 input clock source selection */
+#define RCU_PREDV0SRC_HXTAL             ((uint32_t)0x00000000U)             /*!< HXTAL selected as PREDV0 input source clock */
+#define RCU_PREDV0SRC_CKPLL1            RCU_CFG1_PREDV0SEL                  /*!< CK_PLL1 selected as PREDV0 input source clock */
+
+/* I2S1 clock source selection */
+#define RCU_I2S1SRC_CKSYS               ((uint32_t)0x00000000U)             /*!< system clock selected as I2S1 source clock */
+#define RCU_I2S1SRC_CKPLL2_MUL2         RCU_CFG1_I2S1SEL                    /*!< (CK_PLL2 x 2) selected as I2S1 source clock */
+
+/* I2S2 clock source selection */
+#define RCU_I2S2SRC_CKSYS               ((uint32_t)0x00000000U)             /*!< system clock selected as I2S2 source clock */
+#define RCU_I2S2SRC_CKPLL2_MUL2         RCU_CFG1_I2S2SEL                    /*!< (CK_PLL2 x 2) selected as I2S2 source clock */
+
+
+/* deep-sleep mode voltage */
+#define DSV_DSLPVS(regval)              (BITS(0,1) & ((uint32_t)(regval) << 0))
+#define RCU_DEEPSLEEP_V_1_2             DSV_DSLPVS(0)                       /*!< core voltage is 1.2V in deep-sleep mode */
+#define RCU_DEEPSLEEP_V_1_1             DSV_DSLPVS(1)                       /*!< core voltage is 1.1V in deep-sleep mode */
+#define RCU_DEEPSLEEP_V_1_0             DSV_DSLPVS(2)                       /*!< core voltage is 1.0V in deep-sleep mode */
+#define RCU_DEEPSLEEP_V_0_9             DSV_DSLPVS(3)                       /*!< core voltage is 0.9V in deep-sleep mode */
+
+/* function declarations */
+/* initialization, peripheral clock enable/disable functions */
+/* deinitialize the RCU */
+void rcu_deinit(void);
+/* enable the peripherals clock */
+void rcu_periph_clock_enable(rcu_periph_enum periph);
+/* disable the peripherals clock */
+void rcu_periph_clock_disable(rcu_periph_enum periph);
+/* enable the peripherals clock when sleep mode */
+void rcu_periph_clock_sleep_enable(rcu_periph_sleep_enum periph);
+/* disable the peripherals clock when sleep mode */
+void rcu_periph_clock_sleep_disable(rcu_periph_sleep_enum periph);
+/* reset the peripherals */
+void rcu_periph_reset_enable(rcu_periph_reset_enum periph_reset);
+/* disable reset the peripheral */
+void rcu_periph_reset_disable(rcu_periph_reset_enum periph_reset);
+/* reset the BKP domain */
+void rcu_bkp_reset_enable(void);
+/* disable the BKP domain reset */
+void rcu_bkp_reset_disable(void);
+
+/* clock configuration functions */
+/* configure the system clock source */
+void rcu_system_clock_source_config(uint32_t ck_sys);
+/* get the system clock source */
+uint32_t rcu_system_clock_source_get(void);
+/* configure the AHB prescaler selection */
+void rcu_ahb_clock_config(uint32_t ck_ahb);
+/* configure the APB1 prescaler selection */
+void rcu_apb1_clock_config(uint32_t ck_apb1);
+/* configure the APB2 prescaler selection */
+void rcu_apb2_clock_config(uint32_t ck_apb2);
+/* configure the CK_OUT0 clock source and divider */
+void rcu_ckout0_config(uint32_t ckout0_src);
+/* configure the PLL clock source selection and PLL multiply factor */
+void rcu_pll_config(uint32_t pll_src, uint32_t pll_mul);
+
+/* configure the PREDV0 division factor and clock source */
+void rcu_predv0_config(uint32_t predv0_source, uint32_t predv0_div);
+/* configure the PREDV1 division factor */
+void rcu_predv1_config(uint32_t predv1_div);
+/* configure the PLL1 clock */
+void rcu_pll1_config(uint32_t pll_mul);
+/* configure the PLL2 clock */
+void rcu_pll2_config(uint32_t pll_mul);
+
+/* peripheral clock configuration functions */
+/* configure the ADC division factor */
+void rcu_adc_clock_config(uint32_t adc_psc);
+/* configure the USBD/USBFS prescaler factor */
+void rcu_usb_clock_config(uint32_t usb_psc);
+/* configure the RTC clock source selection */
+void rcu_rtc_clock_config(uint32_t rtc_clock_source);
+
+/* configure the I2S1 clock source selection */
+void rcu_i2s1_clock_config(uint32_t i2s_clock_source);
+/* configure the I2S2 clock source selection */
+void rcu_i2s2_clock_config(uint32_t i2s_clock_source);
+
+/* interrupt & flag functions */
+/* get the clock stabilization and periphral reset flags */
+FlagStatus rcu_flag_get(rcu_flag_enum flag);
+/* clear the reset flag */
+void rcu_all_reset_flag_clear(void);
+/* get the clock stabilization interrupt and ckm flags */
+FlagStatus rcu_interrupt_flag_get(rcu_int_flag_enum int_flag);
+/* clear the interrupt flags */
+void rcu_interrupt_flag_clear(rcu_int_flag_clear_enum int_flag_clear);
+/* enable the stabilization interrupt */
+void rcu_interrupt_enable(rcu_int_enum stab_int);
+/* disable the stabilization interrupt */
+void rcu_interrupt_disable(rcu_int_enum stab_int);
+
+/* oscillator configuration functions */
+/* wait for oscillator stabilization flags is SET or oscillator startup is timeout */
+ErrStatus rcu_osci_stab_wait(rcu_osci_type_enum osci);
+/* turn on the oscillator */
+void rcu_osci_on(rcu_osci_type_enum osci);
+/* turn off the oscillator */
+void rcu_osci_off(rcu_osci_type_enum osci);
+/* enable the oscillator bypass mode, HXTALEN or LXTALEN must be reset before it */
+void rcu_osci_bypass_mode_enable(rcu_osci_type_enum osci);
+/* disable the oscillator bypass mode, HXTALEN or LXTALEN must be reset before it */
+void rcu_osci_bypass_mode_disable(rcu_osci_type_enum osci);
+/* enable the HXTAL clock monitor */
+void rcu_hxtal_clock_monitor_enable(void);
+/* disable the HXTAL clock monitor */
+void rcu_hxtal_clock_monitor_disable(void);
+
+/* set the IRC8M adjust value */
+void rcu_irc8m_adjust_value_set(uint32_t irc8m_adjval);
+/* set the deep sleep mode voltage */
+void rcu_deepsleep_voltage_set(uint32_t dsvol);
+
+/* get the system clock, bus and peripheral clock frequency */
+uint32_t rcu_clock_freq_get(rcu_clock_freq_enum clock);
+
+#endif /* GD32VF103_RCU_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_rtc.h

@@ -0,0 +1,148 @@
+/*!
+    \file  gd32vf103_rtc.h
+    \brief definitions for the RTC
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_RTC_H
+#define GD32VF103_RTC_H
+
+#include "gd32vf103.h"
+
+/* RTC definitions */
+#define RTC                          RTC_BASE
+
+/* registers definitions */
+#define RTC_INTEN                    REG32(RTC + 0x00U)      /*!< interrupt enable register */
+#define RTC_CTL                      REG32(RTC + 0x04U)      /*!< control register */
+#define RTC_PSCH                     REG32(RTC + 0x08U)      /*!< prescaler high register */
+#define RTC_PSCL                     REG32(RTC + 0x0CU)      /*!< prescaler low register */
+#define RTC_DIVH                     REG32(RTC + 0x10U)      /*!< divider high register */
+#define RTC_DIVL                     REG32(RTC + 0x14U)      /*!< divider low register */
+#define RTC_CNTH                     REG32(RTC + 0x18U)      /*!< counter high register */
+#define RTC_CNTL                     REG32(RTC + 0x1CU)      /*!< counter low register */
+#define RTC_ALRMH                    REG32(RTC + 0x20U)      /*!< alarm high register */
+#define RTC_ALRML                    REG32(RTC + 0x24U)      /*!< alarm low register */
+
+/* bits definitions */
+/* RTC_INTEN */
+#define RTC_INTEN_SCIE               BIT(0)                   /*!< second interrupt enable */
+#define RTC_INTEN_ALRMIE             BIT(1)                   /*!< alarm interrupt enable */
+#define RTC_INTEN_OVIE               BIT(2)                   /*!< overflow interrupt enable */
+
+/* RTC_CTL */
+#define RTC_CTL_SCIF                 BIT(0)                   /*!< second interrupt flag */
+#define RTC_CTL_ALRMIF               BIT(1)                   /*!< alarm interrupt flag */
+#define RTC_CTL_OVIF                 BIT(2)                   /*!< overflow interrupt flag */
+#define RTC_CTL_RSYNF                BIT(3)                   /*!< registers synchronized flag */
+#define RTC_CTL_CMF                  BIT(4)                   /*!< configuration mode flag */
+#define RTC_CTL_LWOFF                BIT(5)                   /*!< last write operation finished flag */
+
+/* RTC_PSCH */
+#define RTC_PSCH_PSC                 BITS(0,3)                /*!< prescaler high value */
+
+/* RTC_PSCL */
+#define RTC_PSCL_PSC                 BITS(0,15)               /*!< prescaler low value */
+
+/* RTC_DIVH */
+#define RTC_DIVH_DIV                 BITS(0,3)                /*!< divider high value */
+
+/* RTC_DIVL */
+#define RTC_DIVL_DIV                 BITS(0,15)               /*!< divider low value */
+
+/* RTC_CNTH */
+#define RTC_CNTH_CNT                 BITS(0,15)               /*!< counter high value */
+
+/* RTC_CNTL */
+#define RTC_CNTL_CNT                 BITS(0,15)               /*!< counter low value */
+
+/* RTC_ALRMH */
+#define RTC_ALRMH_ALRM               BITS(0,15)               /*!< alarm high value */
+
+/* RTC_ALRML */
+#define RTC_ALRML_ALRM               BITS(0,15)               /*!< alarm low value */
+
+/* constants definitions */
+/* RTC interrupt enable or disable definitions */
+#define RTC_INT_SECOND               RTC_INTEN_SCIE           /*!< second interrupt enable */
+#define RTC_INT_ALARM                RTC_INTEN_ALRMIE         /*!< alarm interrupt enable */
+#define RTC_INT_OVERFLOW             RTC_INTEN_OVIE           /*!< overflow interrupt enable */
+
+/* RTC interrupt flag definitions */
+#define RTC_INT_FLAG_SECOND          RTC_CTL_SCIF             /*!< second interrupt flag */
+#define RTC_INT_FLAG_ALARM           RTC_CTL_ALRMIF           /*!< alarm interrupt flag */
+#define RTC_INT_FLAG_OVERFLOW        RTC_CTL_OVIF             /*!< overflow interrupt flag */
+
+/* RTC flag definitions */
+#define RTC_FLAG_SECOND              RTC_CTL_SCIF             /*!< second interrupt flag */
+#define RTC_FLAG_ALARM               RTC_CTL_ALRMIF           /*!< alarm interrupt flag */
+#define RTC_FLAG_OVERFLOW            RTC_CTL_OVIF             /*!< overflow interrupt flag */
+#define RTC_FLAG_RSYN                RTC_CTL_RSYNF            /*!< registers synchronized flag */
+#define RTC_FLAG_LWOF                RTC_CTL_LWOFF            /*!< last write operation finished flag */
+
+/* function declarations */
+/* initialization functions */
+/* enter RTC configuration mode */
+void rtc_configuration_mode_enter(void);
+/* exit RTC configuration mode */
+void rtc_configuration_mode_exit(void);
+/* set RTC counter value */
+void rtc_counter_set(uint32_t cnt);
+/* set RTC prescaler value */
+void rtc_prescaler_set(uint32_t psc);
+
+/* operation functions */
+/* wait RTC last write operation finished flag set */
+void rtc_lwoff_wait(void);
+/* wait RTC registers synchronized flag set */
+void rtc_register_sync_wait(void);
+/* set RTC alarm value */
+void rtc_alarm_config(uint32_t alarm);
+/* get RTC counter value */
+uint32_t rtc_counter_get(void);
+/* get RTC divider value */
+uint32_t rtc_divider_get(void);
+
+/* flag & interrupt functions */
+/* get RTC flag status */
+FlagStatus rtc_flag_get(uint32_t flag);
+/* clear RTC flag status */
+void rtc_flag_clear(uint32_t flag);
+/* get RTC interrupt flag status */
+FlagStatus rtc_interrupt_flag_get(uint32_t flag);
+/* clear RTC interrupt flag status */
+void rtc_interrupt_flag_clear(uint32_t flag);
+/* enable RTC interrupt */
+void rtc_interrupt_enable(uint32_t interrupt);
+/* disable RTC interrupt */
+void rtc_interrupt_disable(uint32_t interrupt);
+
+#endif /* GD32VF103_RTC_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_spi.h

@@ -0,0 +1,341 @@
+/*!
+    \file  gd32vf103_spi.h
+    \brief definitions for the SPI
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF10X_SPI_H
+#define GD32VF10X_SPI_H
+
+#include "gd32vf103.h"
+
+/* SPIx(x=0,1,2) definitions */
+#define SPI0                            (SPI_BASE + 0x0000F800U)
+#define SPI1                            SPI_BASE
+#define SPI2                            (SPI_BASE + 0x00000400U)
+
+/* SPI registers definitions */
+#define SPI_CTL0(spix)                  REG32((spix) + 0x00U)                   /*!< SPI control register 0 */
+#define SPI_CTL1(spix)                  REG32((spix) + 0x04U)                   /*!< SPI control register 1*/
+#define SPI_STAT(spix)                  REG32((spix) + 0x08U)                   /*!< SPI status register */
+#define SPI_DATA(spix)                  REG32((spix) + 0x0CU)                   /*!< SPI data register */
+#define SPI_CRCPOLY(spix)               REG32((spix) + 0x10U)                   /*!< SPI CRC polynomial register */
+#define SPI_RCRC(spix)                  REG32((spix) + 0x14U)                   /*!< SPI receive CRC register */
+#define SPI_TCRC(spix)                  REG32((spix) + 0x18U)                   /*!< SPI transmit CRC register */
+#define SPI_I2SCTL(spix)                REG32((spix) + 0x1CU)                   /*!< SPI I2S control register */
+#define SPI_I2SPSC(spix)                REG32((spix) + 0x20U)                   /*!< SPI I2S clock prescaler register */
+
+/* bits definitions */
+/* SPI_CTL0 */
+#define SPI_CTL0_CKPH                   BIT(0)                                  /*!< clock phase selection*/
+#define SPI_CTL0_CKPL                   BIT(1)                                  /*!< clock polarity selection */
+#define SPI_CTL0_MSTMOD                 BIT(2)                                  /*!< master mode enable */
+#define SPI_CTL0_PSC                    BITS(3,5)                               /*!< master clock prescaler selection */
+#define SPI_CTL0_SPIEN                  BIT(6)                                  /*!< SPI enable*/
+#define SPI_CTL0_LF                     BIT(7)                                  /*!< LSB first mode */
+#define SPI_CTL0_SWNSS                  BIT(8)                                  /*!< NSS pin selection in NSS software mode */
+#define SPI_CTL0_SWNSSEN                BIT(9)                                  /*!< NSS software mode selection */
+#define SPI_CTL0_RO                     BIT(10)                                 /*!< receive only */
+#define SPI_CTL0_FF16                   BIT(11)                                 /*!< data frame size */
+#define SPI_CTL0_CRCNT                  BIT(12)                                 /*!< CRC next transfer */
+#define SPI_CTL0_CRCEN                  BIT(13)                                 /*!< CRC calculation enable */
+#define SPI_CTL0_BDOEN                  BIT(14)                                 /*!< bidirectional transmit output enable*/
+#define SPI_CTL0_BDEN                   BIT(15)                                 /*!< bidirectional enable */
+
+/* SPI_CTL1 */
+#define SPI_CTL1_DMAREN                 BIT(0)                                  /*!< receive buffer dma enable */
+#define SPI_CTL1_DMATEN                 BIT(1)                                  /*!< transmit buffer dma enable */
+#define SPI_CTL1_NSSDRV                 BIT(2)                                  /*!< drive NSS output */
+#define SPI_CTL1_NSSP                   BIT(3)                                  /*!< SPI NSS pulse mode enable */
+#define SPI_CTL1_TMOD                   BIT(4)                                  /*!< SPI TI mode enable */
+#define SPI_CTL1_ERRIE                  BIT(5)                                  /*!< errors interrupt enable */
+#define SPI_CTL1_RBNEIE                 BIT(6)                                  /*!< receive buffer not empty interrupt enable */
+#define SPI_CTL1_TBEIE                  BIT(7)                                  /*!< transmit buffer empty interrupt enable */
+
+/* SPI_STAT */
+#define SPI_STAT_RBNE                   BIT(0)                                  /*!< receive buffer not empty */
+#define SPI_STAT_TBE                    BIT(1)                                  /*!< transmit buffer empty */
+#define SPI_STAT_I2SCH                  BIT(2)                                  /*!< I2S channel side */
+#define SPI_STAT_TXURERR                BIT(3)                                  /*!< I2S transmission underrun error bit */
+#define SPI_STAT_CRCERR                 BIT(4)                                  /*!< SPI CRC error bit */
+#define SPI_STAT_CONFERR                BIT(5)                                  /*!< SPI configuration error bit */
+#define SPI_STAT_RXORERR                BIT(6)                                  /*!< SPI reception overrun error bit */
+#define SPI_STAT_TRANS                  BIT(7)                                  /*!< transmitting on-going bit */
+#define SPI_STAT_FERR                   BIT(8)                                  /*!< format error bit */
+
+/* SPI_DATA */
+#define SPI_DATA_DATA                   BITS(0,15)                              /*!< data transfer register */
+
+/* SPI_CRCPOLY */
+#define SPI_CRCPOLY_CRCPOLY             BITS(0,15)                              /*!< CRC polynomial value */
+
+/* SPI_RCRC */
+#define SPI_RCRC_RCRC                   BITS(0,15)                              /*!< RX CRC value */
+
+/* SPI_TCRC */
+#define SPI_TCRC_TCRC                   BITS(0,15)                              /*!< TX CRC value */
+
+/* SPI_I2SCTL */
+#define SPI_I2SCTL_CHLEN                BIT(0)                                  /*!< channel length */
+#define SPI_I2SCTL_DTLEN                BITS(1,2)                               /*!< data length */
+#define SPI_I2SCTL_CKPL                 BIT(3)                                  /*!< idle state clock polarity */
+#define SPI_I2SCTL_I2SSTD               BITS(4,5)                               /*!< I2S standard selection */
+#define SPI_I2SCTL_PCMSMOD              BIT(7)                                  /*!< PCM frame synchronization mode */
+#define SPI_I2SCTL_I2SOPMOD             BITS(8,9)                               /*!< I2S operation mode */
+#define SPI_I2SCTL_I2SEN                BIT(10)                                 /*!< I2S enable */
+#define SPI_I2SCTL_I2SSEL               BIT(11)                                 /*!< I2S mode selection */
+
+/* SPI_I2SPSC */
+#define SPI_I2SPSC_DIV                  BITS(0,7)                               /*!< dividing factor for the prescaler */
+#define SPI_I2SPSC_OF                   BIT(8)                                  /*!< odd factor for the prescaler */
+#define SPI_I2SPSC_MCKOEN               BIT(9)                                  /*!< I2S MCK output enable */
+
+/* constants definitions */
+/* SPI and I2S parameter struct definitions */
+typedef struct
+{
+    uint32_t device_mode;                                                       /*!< SPI master or slave */
+    uint32_t trans_mode;                                                        /*!< SPI transtype */
+    uint32_t frame_size;                                                        /*!< SPI frame size */
+    uint32_t nss;                                                               /*!< SPI NSS control by handware or software */
+    uint32_t endian;                                                            /*!< SPI big endian or little endian */
+    uint32_t clock_polarity_phase;                                              /*!< SPI clock phase and polarity */
+    uint32_t prescale;                                                          /*!< SPI prescale factor */
+}spi_parameter_struct;
+
+/* SPI mode definitions */
+#define SPI_MASTER                      (SPI_CTL0_MSTMOD | SPI_CTL0_SWNSS)      /*!< SPI as master */
+#define SPI_SLAVE                       ((uint32_t)0x00000000U)                 /*!< SPI as slave */
+
+/* SPI bidirectional transfer direction */
+#define SPI_BIDIRECTIONAL_TRANSMIT      SPI_CTL0_BDOEN                          /*!< SPI work in transmit-only mode */
+#define SPI_BIDIRECTIONAL_RECEIVE       (~SPI_CTL0_BDOEN)                       /*!< SPI work in receive-only mode */
+
+/* SPI transmit type */
+#define SPI_TRANSMODE_FULLDUPLEX        ((uint32_t)0x00000000U)                 /*!< SPI receive and send data at fullduplex communication */
+#define SPI_TRANSMODE_RECEIVEONLY       SPI_CTL0_RO                             /*!< SPI only receive data */
+#define SPI_TRANSMODE_BDRECEIVE         SPI_CTL0_BDEN                           /*!< bidirectional receive data */
+#define SPI_TRANSMODE_BDTRANSMIT        (SPI_CTL0_BDEN | SPI_CTL0_BDOEN)        /*!< bidirectional transmit data*/
+
+/* SPI frame size */
+#define SPI_FRAMESIZE_16BIT             SPI_CTL0_FF16                           /*!< SPI frame size is 16 bits */
+#define SPI_FRAMESIZE_8BIT              ((uint32_t)0x00000000U)                 /*!< SPI frame size is 8 bits */
+
+/* SPI NSS control mode */
+#define SPI_NSS_SOFT                    SPI_CTL0_SWNSSEN                        /*!< SPI NSS control by software */
+#define SPI_NSS_HARD                    ((uint32_t)0x00000000U)                 /*!< SPI NSS control by hardware */
+
+/* SPI transmit way */
+#define SPI_ENDIAN_MSB                  ((uint32_t)0x00000000U)                 /*!< SPI transmit way is big endian: transmit MSB first */
+#define SPI_ENDIAN_LSB                  SPI_CTL0_LF                             /*!< SPI transmit way is little endian: transmit LSB first */
+
+/* SPI clock phase and polarity */
+#define SPI_CK_PL_LOW_PH_1EDGE          ((uint32_t)0x00000000U)                 /*!< SPI clock polarity is low level and phase is first edge */
+#define SPI_CK_PL_HIGH_PH_1EDGE         SPI_CTL0_CKPL                           /*!< SPI clock polarity is high level and phase is first edge */
+#define SPI_CK_PL_LOW_PH_2EDGE          SPI_CTL0_CKPH                           /*!< SPI clock polarity is low level and phase is second edge */
+#define SPI_CK_PL_HIGH_PH_2EDGE         (SPI_CTL0_CKPL | SPI_CTL0_CKPH)         /*!< SPI clock polarity is high level and phase is second edge */
+
+/* SPI clock prescale factor */
+#define CTL0_PSC(regval)                (BITS(3,5) & ((uint32_t)(regval) << 3))
+#define SPI_PSC_2                       CTL0_PSC(0)                             /*!< SPI clock prescale factor is 2 */
+#define SPI_PSC_4                       CTL0_PSC(1)                             /*!< SPI clock prescale factor is 4 */
+#define SPI_PSC_8                       CTL0_PSC(2)                             /*!< SPI clock prescale factor is 8 */
+#define SPI_PSC_16                      CTL0_PSC(3)                             /*!< SPI clock prescale factor is 16 */
+#define SPI_PSC_32                      CTL0_PSC(4)                             /*!< SPI clock prescale factor is 32 */
+#define SPI_PSC_64                      CTL0_PSC(5)                             /*!< SPI clock prescale factor is 64 */
+#define SPI_PSC_128                     CTL0_PSC(6)                             /*!< SPI clock prescale factor is 128 */
+#define SPI_PSC_256                     CTL0_PSC(7)                             /*!< SPI clock prescale factor is 256 */
+
+/* I2S audio sample rate */
+#define I2S_AUDIOSAMPLE_8K              ((uint32_t)8000U)                       /*!< I2S audio sample rate is 8KHz */
+#define I2S_AUDIOSAMPLE_11K             ((uint32_t)11025U)                      /*!< I2S audio sample rate is 11KHz */
+#define I2S_AUDIOSAMPLE_16K             ((uint32_t)16000U)                      /*!< I2S audio sample rate is 16KHz */
+#define I2S_AUDIOSAMPLE_22K             ((uint32_t)22050U)                      /*!< I2S audio sample rate is 22KHz */
+#define I2S_AUDIOSAMPLE_32K             ((uint32_t)32000U)                      /*!< I2S audio sample rate is 32KHz */
+#define I2S_AUDIOSAMPLE_44K             ((uint32_t)44100U)                      /*!< I2S audio sample rate is 44KHz */
+#define I2S_AUDIOSAMPLE_48K             ((uint32_t)48000U)                      /*!< I2S audio sample rate is 48KHz */
+#define I2S_AUDIOSAMPLE_96K             ((uint32_t)96000U)                      /*!< I2S audio sample rate is 96KHz */
+#define I2S_AUDIOSAMPLE_192K            ((uint32_t)192000U)                     /*!< I2S audio sample rate is 192KHz */
+
+/* I2S frame format */
+#define I2SCTL_DTLEN(regval)            (BITS(1,2) & ((uint32_t)(regval) << 1))
+#define I2S_FRAMEFORMAT_DT16B_CH16B     I2SCTL_DTLEN(0)                         /*!< I2S data length is 16 bit and channel length is 16 bit */
+#define I2S_FRAMEFORMAT_DT16B_CH32B     (I2SCTL_DTLEN(0) | SPI_I2SCTL_CHLEN)    /*!< I2S data length is 16 bit and channel length is 32 bit */
+#define I2S_FRAMEFORMAT_DT24B_CH32B     (I2SCTL_DTLEN(1) | SPI_I2SCTL_CHLEN)    /*!< I2S data length is 24 bit and channel length is 32 bit */
+#define I2S_FRAMEFORMAT_DT32B_CH32B     (I2SCTL_DTLEN(2) | SPI_I2SCTL_CHLEN)    /*!< I2S data length is 32 bit and channel length is 32 bit */
+
+/* I2S master clock output */
+#define I2S_MCKOUT_DISABLE              ((uint32_t)0x00000000U)                 /*!< I2S master clock output disable */
+#define I2S_MCKOUT_ENABLE               SPI_I2SPSC_MCKOEN                       /*!< I2S master clock output enable */
+
+/* I2S operation mode */
+#define I2SCTL_I2SOPMOD(regval)         (BITS(8,9) & ((uint32_t)(regval) << 8))
+#define I2S_MODE_SLAVETX                I2SCTL_I2SOPMOD(0)                      /*!< I2S slave transmit mode */
+#define I2S_MODE_SLAVERX                I2SCTL_I2SOPMOD(1)                      /*!< I2S slave receive mode */
+#define I2S_MODE_MASTERTX               I2SCTL_I2SOPMOD(2)                      /*!< I2S master transmit mode */
+#define I2S_MODE_MASTERRX               I2SCTL_I2SOPMOD(3)                      /*!< I2S master receive mode */
+
+/* I2S standard */
+#define I2SCTL_I2SSTD(regval)           (BITS(4,5) & ((uint32_t)(regval) << 4))
+#define I2S_STD_PHILLIPS                I2SCTL_I2SSTD(0)                        /*!< I2S phillips standard */
+#define I2S_STD_MSB                     I2SCTL_I2SSTD(1)                        /*!< I2S MSB standard */
+#define I2S_STD_LSB                     I2SCTL_I2SSTD(2)                        /*!< I2S LSB standard */
+#define I2S_STD_PCMSHORT                I2SCTL_I2SSTD(3)                        /*!< I2S PCM short standard */
+#define I2S_STD_PCMLONG                 (I2SCTL_I2SSTD(3) | SPI_I2SCTL_PCMSMOD) /*!< I2S PCM long standard */
+
+/* I2S clock polarity */
+#define I2S_CKPL_LOW                    ((uint32_t)0x00000000U)                 /*!< I2S clock polarity low level */
+#define I2S_CKPL_HIGH                   SPI_I2SCTL_CKPL                         /*!< I2S clock polarity high level */
+
+/* SPI DMA constants definitions */
+#define SPI_DMA_TRANSMIT                ((uint8_t)0x00U)                        /*!< SPI transmit data use DMA */
+#define SPI_DMA_RECEIVE                 ((uint8_t)0x01U)                        /*!< SPI receive data use DMA */
+
+/* SPI CRC constants definitions */
+#define SPI_CRC_TX                      ((uint8_t)0x00U)                        /*!< SPI transmit CRC value */
+#define SPI_CRC_RX                      ((uint8_t)0x01U)                        /*!< SPI receive CRC value */
+
+/* SPI/I2S interrupt enable/disable constants definitions */
+#define SPI_I2S_INT_TBE                 ((uint8_t)0x00U)                        /*!< transmit buffer empty interrupt */
+#define SPI_I2S_INT_RBNE                ((uint8_t)0x01U)                        /*!< receive buffer not empty interrupt */
+#define SPI_I2S_INT_ERR                 ((uint8_t)0x02U)                        /*!< error interrupt */
+
+/* SPI/I2S interrupt flag constants definitions */
+#define SPI_I2S_INT_FLAG_TBE            ((uint8_t)0x00U)                        /*!< transmit buffer empty interrupt flag */
+#define SPI_I2S_INT_FLAG_RBNE           ((uint8_t)0x01U)                        /*!< receive buffer not empty interrupt flag */
+#define SPI_I2S_INT_FLAG_RXORERR        ((uint8_t)0x02U)                        /*!< overrun interrupt flag */
+#define SPI_INT_FLAG_CONFERR            ((uint8_t)0x03U)                        /*!< config error interrupt flag */
+#define SPI_INT_FLAG_CRCERR             ((uint8_t)0x04U)                        /*!< CRC error interrupt flag */
+#define I2S_INT_FLAG_TXURERR            ((uint8_t)0x05U)                        /*!< underrun error interrupt flag */
+#define SPI_I2S_INT_FLAG_FERR           ((uint8_t)0x06U)                        /*!< format error interrupt flag */
+
+/* SPI/I2S flag definitions */
+#define SPI_FLAG_RBNE                   SPI_STAT_RBNE                           /*!< receive buffer not empty flag */
+#define SPI_FLAG_TBE                    SPI_STAT_TBE                            /*!< transmit buffer empty flag */
+#define SPI_FLAG_CRCERR                 SPI_STAT_CRCERR                         /*!< CRC error flag */
+#define SPI_FLAG_CONFERR                SPI_STAT_CONFERR                        /*!< mode config error flag */
+#define SPI_FLAG_RXORERR                SPI_STAT_RXORERR                        /*!< receive overrun error flag */
+#define SPI_FLAG_TRANS                  SPI_STAT_TRANS                          /*!< transmit on-going flag */
+#define SPI_FLAG_FERR                   SPI_STAT_FERR                           /*!< format error interrupt flag */
+#define I2S_FLAG_RBNE                   SPI_STAT_RBNE                           /*!< receive buffer not empty flag */
+#define I2S_FLAG_TBE                    SPI_STAT_TBE                            /*!< transmit buffer empty flag */
+#define I2S_FLAG_CH                     SPI_STAT_I2SCH                          /*!< channel side flag */
+#define I2S_FLAG_TXURERR                SPI_STAT_TXURERR                        /*!< underrun error flag */
+#define I2S_FLAG_RXORERR                SPI_STAT_RXORERR                        /*!< overrun error flag */
+#define I2S_FLAG_TRANS                  SPI_STAT_TRANS                          /*!< transmit on-going flag */
+#define I2S_FLAG_FERR                   SPI_STAT_FERR                           /*!< format error interrupt flag */
+
+/* function declarations */
+/* SPI/I2S deinitialization and initialization functions */
+/* reset SPI and I2S */
+void spi_i2s_deinit(uint32_t spi_periph);
+/* initialize the parameters of SPI struct with the default values */
+void spi_struct_para_init(spi_parameter_struct* spi_struct);
+/* initialize SPI parameter */
+void spi_init(uint32_t spi_periph, spi_parameter_struct* spi_struct);
+/* enable SPI */
+void spi_enable(uint32_t spi_periph);
+/* disable SPI */
+void spi_disable(uint32_t spi_periph);
+
+/* initialize I2S parameter */
+void i2s_init(uint32_t spi_periph, uint32_t mode, uint32_t standard, uint32_t ckpl);
+/* configure I2S prescaler */
+void i2s_psc_config(uint32_t spi_periph, uint32_t audiosample, uint32_t frameformat, uint32_t mckout);
+/* enable I2S */
+void i2s_enable(uint32_t spi_periph);
+/* disable I2S */
+void i2s_disable(uint32_t spi_periph);
+
+/* NSS functions */
+/* enable SPI NSS output */
+void spi_nss_output_enable(uint32_t spi_periph);
+/* disable SPI NSS output */
+void spi_nss_output_disable(uint32_t spi_periph);
+/* SPI NSS pin high level in software mode */
+void spi_nss_internal_high(uint32_t spi_periph);
+/* SPI NSS pin low level in software mode */
+void spi_nss_internal_low(uint32_t spi_periph);
+
+/* DMA communication */
+/* enable SPI DMA */
+void spi_dma_enable(uint32_t spi_periph, uint8_t dma);
+/* disable SPI DMA */
+void spi_dma_disable(uint32_t spi_periph, uint8_t dma);
+
+/* normal mode communication */
+/* configure SPI/I2S data frame format */
+void spi_i2s_data_frame_format_config(uint32_t spi_periph, uint16_t frame_format);
+/* SPI transmit data */
+void spi_i2s_data_transmit(uint32_t spi_periph, uint16_t data);
+/* SPI receive data */
+uint16_t spi_i2s_data_receive(uint32_t spi_periph);
+/* configure SPI bidirectional transfer direction */
+void spi_bidirectional_transfer_config(uint32_t spi_periph, uint32_t transfer_direction);
+
+/* SPI CRC functions */
+/* set SPI CRC polynomial */
+void spi_crc_polynomial_set(uint32_t spi_periph, uint16_t crc_poly);
+/* get SPI CRC polynomial */
+uint16_t spi_crc_polynomial_get(uint32_t spi_periph);
+/* turn on SPI CRC function */
+void spi_crc_on(uint32_t spi_periph);
+/* turn off SPI CRC function */
+void spi_crc_off(uint32_t spi_periph);
+/* SPI next data is CRC value */
+void spi_crc_next(uint32_t spi_periph);
+/* get SPI CRC send value or receive value */
+uint16_t spi_crc_get(uint32_t spi_periph, uint8_t crc);
+
+/* SPI TI mode functions */
+/* enable SPI TI mode */
+void spi_ti_mode_enable(uint32_t spi_periph);
+/* disable SPI TI mode */
+void spi_ti_mode_disable(uint32_t spi_periph);
+
+/* SPI NSS pulse mode functions */
+/* enable SPI NSS pulse mode */
+void spi_nssp_mode_enable(uint32_t spi_periph);
+/* disable SPI NSS pulse mode */
+void spi_nssp_mode_disable(uint32_t spi_periph);
+/* flag and interrupt functions */
+/* enable SPI and I2S interrupt */
+void spi_i2s_interrupt_enable(uint32_t spi_periph, uint8_t interrupt);
+/* disable SPI and I2S interrupt */
+void spi_i2s_interrupt_disable(uint32_t spi_periph, uint8_t interrupt);
+/* get SPI and I2S interrupt status */
+FlagStatus spi_i2s_interrupt_flag_get(uint32_t spi_periph, uint8_t interrupt);
+/* get SPI and I2S flag status */
+FlagStatus spi_i2s_flag_get(uint32_t spi_periph, uint32_t flag);
+/* clear SPI CRC error flag status */
+void spi_crc_error_clear(uint32_t spi_periph);
+
+#endif /* GD32VF103_SPI_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_timer.h

@@ -0,0 +1,722 @@
+/*!
+    \file    gd32vf103_timer.h
+    \brief   definitions for the TIMER
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_TIMER_H
+#define GD32VF103_TIMER_H
+
+#include "gd32vf103.h"
+
+/* TIMERx(x=0..13) definitions */
+#define TIMER0                           (TIMER_BASE + 0x00012C00U)
+#define TIMER1                           (TIMER_BASE + 0x00000000U)
+#define TIMER2                           (TIMER_BASE + 0x00000400U)
+#define TIMER3                           (TIMER_BASE + 0x00000800U)
+#define TIMER4                           (TIMER_BASE + 0x00000C00U)
+#define TIMER5                           (TIMER_BASE + 0x00001000U)
+#define TIMER6                           (TIMER_BASE + 0x00001400U)
+
+/* registers definitions */
+#define TIMER_CTL0(timerx)               REG32((timerx) + 0x00U)           /*!< TIMER control register 0 */
+#define TIMER_CTL1(timerx)               REG32((timerx) + 0x04U)           /*!< TIMER control register 1 */
+#define TIMER_SMCFG(timerx)              REG32((timerx) + 0x08U)           /*!< TIMER slave mode configuration register */
+#define TIMER_DMAINTEN(timerx)           REG32((timerx) + 0x0CU)           /*!< TIMER DMA and interrupt enable register */
+#define TIMER_INTF(timerx)               REG32((timerx) + 0x10U)           /*!< TIMER interrupt flag register */
+#define TIMER_SWEVG(timerx)              REG32((timerx) + 0x14U)           /*!< TIMER software event generation register */
+#define TIMER_CHCTL0(timerx)             REG32((timerx) + 0x18U)           /*!< TIMER channel control register 0 */
+#define TIMER_CHCTL1(timerx)             REG32((timerx) + 0x1CU)           /*!< TIMER channel control register 1 */
+#define TIMER_CHCTL2(timerx)             REG32((timerx) + 0x20U)           /*!< TIMER channel control register 2 */
+#define TIMER_CNT(timerx)                REG32((timerx) + 0x24U)           /*!< TIMER counter register */
+#define TIMER_PSC(timerx)                REG32((timerx) + 0x28U)           /*!< TIMER prescaler register */
+#define TIMER_CAR(timerx)                REG32((timerx) + 0x2CU)           /*!< TIMER counter auto reload register */
+#define TIMER_CREP(timerx)               REG32((timerx) + 0x30U)           /*!< TIMER counter repetition register */
+#define TIMER_CH0CV(timerx)              REG32((timerx) + 0x34U)           /*!< TIMER channel 0 capture/compare value register */
+#define TIMER_CH1CV(timerx)              REG32((timerx) + 0x38U)           /*!< TIMER channel 1 capture/compare value register */
+#define TIMER_CH2CV(timerx)              REG32((timerx) + 0x3CU)           /*!< TIMER channel 2 capture/compare value register */
+#define TIMER_CH3CV(timerx)              REG32((timerx) + 0x40U)           /*!< TIMER channel 3 capture/compare value register */
+#define TIMER_CCHP(timerx)               REG32((timerx) + 0x44U)           /*!< TIMER channel complementary protection register */
+#define TIMER_DMACFG(timerx)             REG32((timerx) + 0x48U)           /*!< TIMER DMA configuration register */
+#define TIMER_DMATB(timerx)              REG32((timerx) + 0x4CU)           /*!< TIMER DMA transfer buffer register */
+
+/* bits definitions */
+/* TIMER_CTL0 */
+#define TIMER_CTL0_CEN                   BIT(0)              /*!< TIMER counter enable */
+#define TIMER_CTL0_UPDIS                 BIT(1)              /*!< update disable */
+#define TIMER_CTL0_UPS                   BIT(2)              /*!< update source */
+#define TIMER_CTL0_SPM                   BIT(3)              /*!< single pulse mode */
+#define TIMER_CTL0_DIR                   BIT(4)              /*!< timer counter direction */
+#define TIMER_CTL0_CAM                   BITS(5,6)           /*!< center-aligned mode selection */
+#define TIMER_CTL0_ARSE                  BIT(7)              /*!< auto-reload shadow enable */
+#define TIMER_CTL0_CKDIV                 BITS(8,9)           /*!< clock division */
+
+/* TIMER_CTL1 */
+#define TIMER_CTL1_CCSE                  BIT(0)              /*!< commutation control shadow enable */
+#define TIMER_CTL1_CCUC                  BIT(2)              /*!< commutation control shadow register update control */
+#define TIMER_CTL1_DMAS                  BIT(3)              /*!< DMA request source selection */
+#define TIMER_CTL1_MMC                   BITS(4,6)           /*!< master mode control */
+#define TIMER_CTL1_TI0S                  BIT(7)              /*!< channel 0 trigger input selection(hall mode selection) */
+#define TIMER_CTL1_ISO0                  BIT(8)              /*!< idle state of channel 0 output */
+#define TIMER_CTL1_ISO0N                 BIT(9)              /*!< idle state of channel 0 complementary output */
+#define TIMER_CTL1_ISO1                  BIT(10)             /*!< idle state of channel 1 output */
+#define TIMER_CTL1_ISO1N                 BIT(11)             /*!< idle state of channel 1 complementary output */
+#define TIMER_CTL1_ISO2                  BIT(12)             /*!< idle state of channel 2 output */
+#define TIMER_CTL1_ISO2N                 BIT(13)             /*!< idle state of channel 2 complementary output */
+#define TIMER_CTL1_ISO3                  BIT(14)             /*!< idle state of channel 3 output */
+
+/* TIMER_SMCFG */
+#define TIMER_SMCFG_SMC                  BITS(0,2)           /*!< slave mode control */
+#define TIMER_SMCFG_TRGS                 BITS(4,6)           /*!< trigger selection */
+#define TIMER_SMCFG_MSM                  BIT(7)              /*!< master-slave mode */
+#define TIMER_SMCFG_ETFC                 BITS(8,11)          /*!< external trigger filter control */
+#define TIMER_SMCFG_ETPSC                BITS(12,13)         /*!< external trigger prescaler */
+#define TIMER_SMCFG_SMC1                 BIT(14)             /*!< part of SMC for enable external clock mode 1 */
+#define TIMER_SMCFG_ETP                  BIT(15)             /*!< external trigger polarity */
+
+/* TIMER_DMAINTEN */
+#define TIMER_DMAINTEN_UPIE              BIT(0)              /*!< update interrupt enable */
+#define TIMER_DMAINTEN_CH0IE             BIT(1)              /*!< channel 0 capture/compare interrupt enable */
+#define TIMER_DMAINTEN_CH1IE             BIT(2)              /*!< channel 1 capture/compare interrupt enable */
+#define TIMER_DMAINTEN_CH2IE             BIT(3)              /*!< channel 2 capture/compare interrupt enable */
+#define TIMER_DMAINTEN_CH3IE             BIT(4)              /*!< channel 3 capture/compare interrupt enable */
+#define TIMER_DMAINTEN_CMTIE             BIT(5)              /*!< commutation interrupt request enable */
+#define TIMER_DMAINTEN_TRGIE             BIT(6)              /*!< trigger interrupt enable */
+#define TIMER_DMAINTEN_BRKIE             BIT(7)              /*!< break interrupt enable */
+#define TIMER_DMAINTEN_UPDEN             BIT(8)              /*!< update DMA request enable */
+#define TIMER_DMAINTEN_CH0DEN            BIT(9)              /*!< channel 0 capture/compare DMA request enable */
+#define TIMER_DMAINTEN_CH1DEN            BIT(10)             /*!< channel 1 capture/compare DMA request enable */
+#define TIMER_DMAINTEN_CH2DEN            BIT(11)             /*!< channel 2 capture/compare DMA request enable */
+#define TIMER_DMAINTEN_CH3DEN            BIT(12)             /*!< channel 3 capture/compare DMA request enable */
+#define TIMER_DMAINTEN_CMTDEN            BIT(13)             /*!< commutation DMA request enable */
+#define TIMER_DMAINTEN_TRGDEN            BIT(14)             /*!< trigger DMA request enable */
+
+/* TIMER_INTF */
+#define TIMER_INTF_UPIF                  BIT(0)              /*!< update interrupt flag */
+#define TIMER_INTF_CH0IF                 BIT(1)              /*!< channel 0 capture/compare interrupt flag */
+#define TIMER_INTF_CH1IF                 BIT(2)              /*!< channel 1 capture/compare interrupt flag */
+#define TIMER_INTF_CH2IF                 BIT(3)              /*!< channel 2 capture/compare interrupt flag */
+#define TIMER_INTF_CH3IF                 BIT(4)              /*!< channel 3 capture/compare interrupt flag */
+#define TIMER_INTF_CMTIF                 BIT(5)              /*!< channel commutation interrupt flag */
+#define TIMER_INTF_TRGIF                 BIT(6)              /*!< trigger interrupt flag */
+#define TIMER_INTF_BRKIF                 BIT(7)              /*!< break interrupt flag */
+#define TIMER_INTF_CH0OF                 BIT(9)              /*!< channel 0 over capture flag */
+#define TIMER_INTF_CH1OF                 BIT(10)             /*!< channel 1 over capture flag */
+#define TIMER_INTF_CH2OF                 BIT(11)             /*!< channel 2 over capture flag */
+#define TIMER_INTF_CH3OF                 BIT(12)             /*!< channel 3 over capture flag */
+
+/* TIMER_SWEVG */
+#define TIMER_SWEVG_UPG                  BIT(0)              /*!< update event generate */
+#define TIMER_SWEVG_CH0G                 BIT(1)              /*!< channel 0 capture or compare event generation */
+#define TIMER_SWEVG_CH1G                 BIT(2)              /*!< channel 1 capture or compare event generation */
+#define TIMER_SWEVG_CH2G                 BIT(3)              /*!< channel 2 capture or compare event generation */
+#define TIMER_SWEVG_CH3G                 BIT(4)              /*!< channel 3 capture or compare event generation */
+#define TIMER_SWEVG_CMTG                 BIT(5)              /*!< channel commutation event generation */
+#define TIMER_SWEVG_TRGG                 BIT(6)              /*!< trigger event generation */
+#define TIMER_SWEVG_BRKG                 BIT(7)              /*!< break event generation */
+
+/* TIMER_CHCTL0 */
+/* output compare mode */
+#define TIMER_CHCTL0_CH0MS               BITS(0,1)           /*!< channel 0 mode selection */
+#define TIMER_CHCTL0_CH0COMFEN           BIT(2)              /*!< channel 0 output compare fast enable */
+#define TIMER_CHCTL0_CH0COMSEN           BIT(3)              /*!< channel 0 output compare shadow enable */
+#define TIMER_CHCTL0_CH0COMCTL           BITS(4,6)           /*!< channel 0 output compare control  */
+#define TIMER_CHCTL0_CH0COMCEN           BIT(7)              /*!< channel 0 output compare clear enable */
+#define TIMER_CHCTL0_CH1MS               BITS(8,9)           /*!< channel 1 mode selection */
+#define TIMER_CHCTL0_CH1COMFEN           BIT(10)             /*!< channel 1 output compare fast enable */
+#define TIMER_CHCTL0_CH1COMSEN           BIT(11)             /*!< channel 1 output compare shadow enable */
+#define TIMER_CHCTL0_CH1COMCTL           BITS(12,14)         /*!< channel 1 output compare control  */
+#define TIMER_CHCTL0_CH1COMCEN           BIT(15)             /*!< channel 1 output compare clear enable */
+/* input capture mode */
+#define TIMER_CHCTL0_CH0CAPPSC           BITS(2,3)           /*!< channel 0 input capture prescaler */
+#define TIMER_CHCTL0_CH0CAPFLT           BITS(4,7)           /*!< channel 0 input capture filter control */
+#define TIMER_CHCTL0_CH1CAPPSC           BITS(10,11)         /*!< channel 1 input capture prescaler */
+#define TIMER_CHCTL0_CH1CAPFLT           BITS(12,15)         /*!< channel 1 input capture filter control */
+
+/* TIMER_CHCTL1 */
+/* output compare mode */
+#define TIMER_CHCTL1_CH2MS               BITS(0,1)           /*!< channel 2 mode selection */
+#define TIMER_CHCTL1_CH2COMFEN           BIT(2)              /*!< channel 2 output compare fast enable */
+#define TIMER_CHCTL1_CH2COMSEN           BIT(3)              /*!< channel 2 output compare shadow enable */
+#define TIMER_CHCTL1_CH2COMCTL           BITS(4,6)           /*!< channel 2 output compare control */
+#define TIMER_CHCTL1_CH2COMCEN           BIT(7)              /*!< channel 2 output compare clear enable */
+#define TIMER_CHCTL1_CH3MS               BITS(8,9)           /*!< channel 3 mode selection */
+#define TIMER_CHCTL1_CH3COMFEN           BIT(10)             /*!< channel 3 output compare fast enable */
+#define TIMER_CHCTL1_CH3COMSEN           BIT(11)             /*!< channel 3 output compare shadow enable */
+#define TIMER_CHCTL1_CH3COMCTL           BITS(12,14)         /*!< channel 3 output compare control */
+#define TIMER_CHCTL1_CH3COMCEN           BIT(15)             /*!< channel 3 output compare clear enable */
+/* input capture mode */
+#define TIMER_CHCTL1_CH2CAPPSC           BITS(2,3)           /*!< channel 2 input capture prescaler */
+#define TIMER_CHCTL1_CH2CAPFLT           BITS(4,7)           /*!< channel 2 input capture filter control */
+#define TIMER_CHCTL1_CH3CAPPSC           BITS(10,11)         /*!< channel 3 input capture prescaler */
+#define TIMER_CHCTL1_CH3CAPFLT           BITS(12,15)         /*!< channel 3 input capture filter control */
+
+/* TIMER_CHCTL2 */
+#define TIMER_CHCTL2_CH0EN               BIT(0)              /*!< channel 0 capture/compare function enable */
+#define TIMER_CHCTL2_CH0P                BIT(1)              /*!< channel 0 capture/compare function polarity */
+#define TIMER_CHCTL2_CH0NEN              BIT(2)              /*!< channel 0 complementary output enable */
+#define TIMER_CHCTL2_CH0NP               BIT(3)              /*!< channel 0 complementary output polarity */
+#define TIMER_CHCTL2_CH1EN               BIT(4)              /*!< channel 1 capture/compare function enable  */
+#define TIMER_CHCTL2_CH1P                BIT(5)              /*!< channel 1 capture/compare function polarity */
+#define TIMER_CHCTL2_CH1NEN              BIT(6)              /*!< channel 1 complementary output enable */
+#define TIMER_CHCTL2_CH1NP               BIT(7)              /*!< channel 1 complementary output polarity */
+#define TIMER_CHCTL2_CH2EN               BIT(8)              /*!< channel 2 capture/compare function enable  */
+#define TIMER_CHCTL2_CH2P                BIT(9)              /*!< channel 2 capture/compare function polarity */
+#define TIMER_CHCTL2_CH2NEN              BIT(10)             /*!< channel 2 complementary output enable */
+#define TIMER_CHCTL2_CH2NP               BIT(11)             /*!< channel 2 complementary output polarity */
+#define TIMER_CHCTL2_CH3EN               BIT(12)             /*!< channel 3 capture/compare function enable  */
+#define TIMER_CHCTL2_CH3P                BIT(13)             /*!< channel 3 capture/compare function polarity */
+
+/* TIMER_CNT */
+#define TIMER_CNT_CNT                    BITS(0,15)          /*!< 16 bit timer counter */
+
+/* TIMER_PSC */
+#define TIMER_PSC_PSC                    BITS(0,15)          /*!< prescaler value of the counter clock */
+
+/* TIMER_CAR */
+#define TIMER_CAR_CARL                   BITS(0,15)          /*!< 16 bit counter auto reload value */
+
+/* TIMER_CREP */
+#define TIMER_CREP_CREP                  BITS(0,7)           /*!< counter repetition value */
+
+/* TIMER_CH0CV */
+#define TIMER_CH0CV_CH0VAL               BITS(0,15)          /*!< 16 bit capture/compare value of channel 0 */
+
+/* TIMER_CH1CV */
+#define TIMER_CH1CV_CH1VAL               BITS(0,15)          /*!< 16 bit capture/compare value of channel 1 */
+
+/* TIMER_CH2CV */
+#define TIMER_CH2CV_CH2VAL               BITS(0,15)          /*!< 16 bit capture/compare value of channel 2 */
+
+/* TIMER_CH3CV */
+#define TIMER_CH3CV_CH3VAL               BITS(0,15)          /*!< 16 bit capture/compare value of channel 3 */
+
+/* TIMER_CCHP */
+#define TIMER_CCHP_DTCFG                 BITS(0,7)           /*!< dead time configure */
+#define TIMER_CCHP_PROT                  BITS(8,9)           /*!< complementary register protect control */
+#define TIMER_CCHP_IOS                   BIT(10)             /*!< idle mode off-state configure */
+#define TIMER_CCHP_ROS                   BIT(11)             /*!< run mode off-state configure */
+#define TIMER_CCHP_BRKEN                 BIT(12)             /*!< break enable */
+#define TIMER_CCHP_BRKP                  BIT(13)             /*!< break polarity */
+#define TIMER_CCHP_OAEN                  BIT(14)             /*!< output automatic enable */
+#define TIMER_CCHP_POEN                  BIT(15)             /*!< primary output enable */
+
+/* TIMER_DMACFG */
+#define TIMER_DMACFG_DMATA               BITS(0,4)           /*!< DMA transfer access start address */
+#define TIMER_DMACFG_DMATC               BITS(8,12)          /*!< DMA transfer count */
+
+/* TIMER_DMATB */
+#define TIMER_DMATB_DMATB                BITS(0,15)          /*!< DMA transfer buffer address */
+
+/* constants definitions */
+/* TIMER init parameter struct definitions */
+typedef struct
+{
+    uint16_t prescaler;                                      /*!< prescaler value */
+    uint16_t alignedmode;                                    /*!< aligned mode */
+    uint16_t counterdirection;                               /*!< counter direction */
+    uint32_t period;                                         /*!< period value */
+    uint16_t clockdivision;                                  /*!< clock division value */
+    uint8_t  repetitioncounter;                              /*!< the counter repetition value */
+}timer_parameter_struct;
+
+/* break parameter struct definitions */
+typedef struct
+{
+    uint16_t runoffstate;                                    /*!< run mode off-state */
+    uint16_t ideloffstate;                                   /*!< idle mode off-state */
+    uint16_t deadtime;                                       /*!< dead time */
+    uint16_t breakpolarity;                                  /*!< break polarity */
+    uint16_t outputautostate;                                /*!< output automatic enable */
+    uint16_t protectmode;                                    /*!< complementary register protect control */
+    uint16_t breakstate;                                     /*!< break enable */
+}timer_break_parameter_struct;
+
+/* channel output parameter struct definitions */
+typedef struct
+{
+    uint16_t outputstate;                                    /*!< channel output state */
+    uint16_t outputnstate;                                   /*!< channel complementary output state */
+    uint16_t ocpolarity;                                     /*!< channel output polarity */
+    uint16_t ocnpolarity;                                    /*!< channel complementary output polarity */
+    uint16_t ocidlestate;                                    /*!< idle state of channel output */
+    uint16_t ocnidlestate;                                   /*!< idle state of channel complementary output */
+}timer_oc_parameter_struct;
+
+/* channel input parameter struct definitions */
+typedef struct
+{
+    uint16_t icpolarity;                                     /*!< channel input polarity */
+    uint16_t icselection;                                    /*!< channel input mode selection */
+    uint16_t icprescaler;                                    /*!< channel input capture prescaler */
+    uint16_t icfilter;                                       /*!< channel input capture filter control */
+}timer_ic_parameter_struct;
+
+/* TIMER interrupt enable or disable */
+#define TIMER_INT_UP                        TIMER_DMAINTEN_UPIE                     /*!< update interrupt */
+#define TIMER_INT_CH0                       TIMER_DMAINTEN_CH0IE                    /*!< channel 0 interrupt */
+#define TIMER_INT_CH1                       TIMER_DMAINTEN_CH1IE                    /*!< channel 1 interrupt */
+#define TIMER_INT_CH2                       TIMER_DMAINTEN_CH2IE                    /*!< channel 2 interrupt */
+#define TIMER_INT_CH3                       TIMER_DMAINTEN_CH3IE                    /*!< channel 3 interrupt */
+#define TIMER_INT_CMT                       TIMER_DMAINTEN_CMTIE                    /*!< channel commutation interrupt flag */
+#define TIMER_INT_TRG                       TIMER_DMAINTEN_TRGIE                    /*!< trigger interrupt */
+#define TIMER_INT_BRK                       TIMER_DMAINTEN_BRKIE                    /*!< break interrupt */
+
+/* TIMER interrupt flag */
+#define TIMER_INT_FLAG_UP                   TIMER_INT_UP                            /*!< update interrupt */
+#define TIMER_INT_FLAG_CH0                  TIMER_INT_CH0                           /*!< channel 0 interrupt */
+#define TIMER_INT_FLAG_CH1                  TIMER_INT_CH1                           /*!< channel 1 interrupt */
+#define TIMER_INT_FLAG_CH2                  TIMER_INT_CH2                           /*!< channel 2 interrupt */
+#define TIMER_INT_FLAG_CH3                  TIMER_INT_CH3                           /*!< channel 3 interrupt */
+#define TIMER_INT_FLAG_CMT                  TIMER_INT_CMT                           /*!< channel commutation interrupt flag */
+#define TIMER_INT_FLAG_TRG                  TIMER_INT_TRG                           /*!< trigger interrupt */
+#define TIMER_INT_FLAG_BRK                  TIMER_INT_BRK
+
+/* TIMER flag */
+#define TIMER_FLAG_UP                       TIMER_INTF_UPIF                         /*!< update flag */
+#define TIMER_FLAG_CH0                      TIMER_INTF_CH0IF                        /*!< channel 0 flag */
+#define TIMER_FLAG_CH1                      TIMER_INTF_CH1IF                        /*!< channel 1 flag */
+#define TIMER_FLAG_CH2                      TIMER_INTF_CH2IF                        /*!< channel 2 flag */
+#define TIMER_FLAG_CH3                      TIMER_INTF_CH3IF                        /*!< channel 3 flag */
+#define TIMER_FLAG_CMT                      TIMER_INTF_CMTIF                        /*!< channel control update flag */
+#define TIMER_FLAG_TRG                      TIMER_INTF_TRGIF                        /*!< trigger flag */
+#define TIMER_FLAG_BRK                      TIMER_INTF_BRKIF                        /*!< break flag */
+#define TIMER_FLAG_CH0O                     TIMER_INTF_CH0OF                        /*!< channel 0 overcapture flag */
+#define TIMER_FLAG_CH1O                     TIMER_INTF_CH1OF                        /*!< channel 1 overcapture flag */
+#define TIMER_FLAG_CH2O                     TIMER_INTF_CH2OF                        /*!< channel 2 overcapture flag */
+#define TIMER_FLAG_CH3O                     TIMER_INTF_CH3OF                        /*!< channel 3 overcapture flag */
+
+/* TIMER DMA source enable */
+#define TIMER_DMA_UPD                       ((uint16_t)TIMER_DMAINTEN_UPDEN)        /*!< update DMA enable */
+#define TIMER_DMA_CH0D                      ((uint16_t)TIMER_DMAINTEN_CH0DEN)       /*!< channel 0 DMA enable */
+#define TIMER_DMA_CH1D                      ((uint16_t)TIMER_DMAINTEN_CH1DEN)       /*!< channel 1 DMA enable */
+#define TIMER_DMA_CH2D                      ((uint16_t)TIMER_DMAINTEN_CH2DEN)       /*!< channel 2 DMA enable */
+#define TIMER_DMA_CH3D                      ((uint16_t)TIMER_DMAINTEN_CH3DEN)       /*!< channel 3 DMA enable */
+#define TIMER_DMA_CMTD                      ((uint16_t)TIMER_DMAINTEN_CMTDEN)       /*!< commutation DMA request enable */
+#define TIMER_DMA_TRGD                      ((uint16_t)TIMER_DMAINTEN_TRGDEN)       /*!< trigger DMA enable */
+
+/* channel DMA request source selection */
+#define TIMER_DMAREQUEST_UPDATEEVENT        TIMER_CTL1_DMAS                         /*!< DMA request of channel n is sent when update event occurs */
+#define TIMER_DMAREQUEST_CHANNELEVENT       ((uint32_t)0x00000000U)                 /*!< DMA request of channel n is sent when channel n event occurs */
+
+/* DMA access base address */
+#define DMACFG_DMATA(regval)                (BITS(0, 4) & ((uint32_t)(regval) << 0U))
+#define TIMER_DMACFG_DMATA_CTL0             DMACFG_DMATA(0)                         /*!< DMA transfer address is TIMER_CTL0 */
+#define TIMER_DMACFG_DMATA_CTL1             DMACFG_DMATA(1)                         /*!< DMA transfer address is TIMER_CTL1 */
+#define TIMER_DMACFG_DMATA_SMCFG            DMACFG_DMATA(2)                         /*!< DMA transfer address is TIMER_SMCFG */
+#define TIMER_DMACFG_DMATA_DMAINTEN         DMACFG_DMATA(3)                         /*!< DMA transfer address is TIMER_DMAINTEN */
+#define TIMER_DMACFG_DMATA_INTF             DMACFG_DMATA(4)                         /*!< DMA transfer address is TIMER_INTF */
+#define TIMER_DMACFG_DMATA_SWEVG            DMACFG_DMATA(5)                         /*!< DMA transfer address is TIMER_SWEVG */
+#define TIMER_DMACFG_DMATA_CHCTL0           DMACFG_DMATA(6)                         /*!< DMA transfer address is TIMER_CHCTL0 */
+#define TIMER_DMACFG_DMATA_CHCTL1           DMACFG_DMATA(7)                         /*!< DMA transfer address is TIMER_CHCTL1 */
+#define TIMER_DMACFG_DMATA_CHCTL2           DMACFG_DMATA(8)                         /*!< DMA transfer address is TIMER_CHCTL2 */
+#define TIMER_DMACFG_DMATA_CNT              DMACFG_DMATA(9)                         /*!< DMA transfer address is TIMER_CNT */
+#define TIMER_DMACFG_DMATA_PSC              DMACFG_DMATA(10)                        /*!< DMA transfer address is TIMER_PSC */
+#define TIMER_DMACFG_DMATA_CAR              DMACFG_DMATA(11)                        /*!< DMA transfer address is TIMER_CAR */
+#define TIMER_DMACFG_DMATA_CREP             DMACFG_DMATA(12)                        /*!< DMA transfer address is TIMER_CREP */
+#define TIMER_DMACFG_DMATA_CH0CV            DMACFG_DMATA(13)                        /*!< DMA transfer address is TIMER_CH0CV */
+#define TIMER_DMACFG_DMATA_CH1CV            DMACFG_DMATA(14)                        /*!< DMA transfer address is TIMER_CH1CV */
+#define TIMER_DMACFG_DMATA_CH2CV            DMACFG_DMATA(15)                        /*!< DMA transfer address is TIMER_CH2CV */
+#define TIMER_DMACFG_DMATA_CH3CV            DMACFG_DMATA(16)                        /*!< DMA transfer address is TIMER_CH3CV */
+#define TIMER_DMACFG_DMATA_CCHP             DMACFG_DMATA(17)                        /*!< DMA transfer address is TIMER_CCHP */
+#define TIMER_DMACFG_DMATA_DMACFG           DMACFG_DMATA(18)                        /*!< DMA transfer address is TIMER_DMACFG */
+
+/* DMA access burst length */
+#define DMACFG_DMATC(regval)                (BITS(8, 12) & ((uint32_t)(regval) << 8U))
+#define TIMER_DMACFG_DMATC_1TRANSFER        DMACFG_DMATC(0)                         /*!< DMA transfer 1 time */
+#define TIMER_DMACFG_DMATC_2TRANSFER        DMACFG_DMATC(1)                         /*!< DMA transfer 2 times */
+#define TIMER_DMACFG_DMATC_3TRANSFER        DMACFG_DMATC(2)                         /*!< DMA transfer 3 times */
+#define TIMER_DMACFG_DMATC_4TRANSFER        DMACFG_DMATC(3)                         /*!< DMA transfer 4 times */
+#define TIMER_DMACFG_DMATC_5TRANSFER        DMACFG_DMATC(4)                         /*!< DMA transfer 5 times */
+#define TIMER_DMACFG_DMATC_6TRANSFER        DMACFG_DMATC(5)                         /*!< DMA transfer 6 times */
+#define TIMER_DMACFG_DMATC_7TRANSFER        DMACFG_DMATC(6)                         /*!< DMA transfer 7 times */
+#define TIMER_DMACFG_DMATC_8TRANSFER        DMACFG_DMATC(7)                         /*!< DMA transfer 8 times */
+#define TIMER_DMACFG_DMATC_9TRANSFER        DMACFG_DMATC(8)                         /*!< DMA transfer 9 times */
+#define TIMER_DMACFG_DMATC_10TRANSFER       DMACFG_DMATC(9)                         /*!< DMA transfer 10 times */
+#define TIMER_DMACFG_DMATC_11TRANSFER       DMACFG_DMATC(10)                        /*!< DMA transfer 11 times */
+#define TIMER_DMACFG_DMATC_12TRANSFER       DMACFG_DMATC(11)                        /*!< DMA transfer 12 times */
+#define TIMER_DMACFG_DMATC_13TRANSFER       DMACFG_DMATC(12)                        /*!< DMA transfer 13 times */
+#define TIMER_DMACFG_DMATC_14TRANSFER       DMACFG_DMATC(13)                        /*!< DMA transfer 14 times */
+#define TIMER_DMACFG_DMATC_15TRANSFER       DMACFG_DMATC(14)                        /*!< DMA transfer 15 times */
+#define TIMER_DMACFG_DMATC_16TRANSFER       DMACFG_DMATC(15)                        /*!< DMA transfer 16 times */
+#define TIMER_DMACFG_DMATC_17TRANSFER       DMACFG_DMATC(16)                        /*!< DMA transfer 17 times */
+#define TIMER_DMACFG_DMATC_18TRANSFER       DMACFG_DMATC(17)                        /*!< DMA transfer 18 times */
+
+/* TIMER software event generation source */
+#define TIMER_EVENT_SRC_UPG                 ((uint16_t)0x0001U)                     /*!< update event generation */
+#define TIMER_EVENT_SRC_CH0G                ((uint16_t)0x0002U)                     /*!< channel 0 capture or compare event generation */
+#define TIMER_EVENT_SRC_CH1G                ((uint16_t)0x0004U)                     /*!< channel 1 capture or compare event generation */
+#define TIMER_EVENT_SRC_CH2G                ((uint16_t)0x0008U)                     /*!< channel 2 capture or compare event generation */
+#define TIMER_EVENT_SRC_CH3G                ((uint16_t)0x0010U)                     /*!< channel 3 capture or compare event generation */
+#define TIMER_EVENT_SRC_CMTG                ((uint16_t)0x0020U)                     /*!< channel commutation event generation */
+#define TIMER_EVENT_SRC_TRGG                ((uint16_t)0x0040U)                     /*!< trigger event generation */
+#define TIMER_EVENT_SRC_BRKG                ((uint16_t)0x0080U)                     /*!< break event generation */
+
+/* center-aligned mode selection */
+#define CTL0_CAM(regval)                    ((uint16_t)(BITS(5, 6) & ((uint32_t)(regval) << 5U)))
+#define TIMER_COUNTER_EDGE                  CTL0_CAM(0)                             /*!< edge-aligned mode */
+#define TIMER_COUNTER_CENTER_DOWN           CTL0_CAM(1)                             /*!< center-aligned and counting down assert mode */
+#define TIMER_COUNTER_CENTER_UP             CTL0_CAM(2)                             /*!< center-aligned and counting up assert mode */
+#define TIMER_COUNTER_CENTER_BOTH           CTL0_CAM(3)                             /*!< center-aligned and counting up/down assert mode */
+
+/* TIMER prescaler reload mode */
+#define TIMER_PSC_RELOAD_NOW                TIMER_SWEVG_UPG                         /*!< the prescaler is loaded right now */
+#define TIMER_PSC_RELOAD_UPDATE             ((uint32_t)0x00000000U)                 /*!< the prescaler is loaded at the next update event */
+
+/* count direction */
+#define TIMER_COUNTER_UP                    ((uint16_t)0x0000U)                     /*!< counter up direction */
+#define TIMER_COUNTER_DOWN                  ((uint16_t)TIMER_CTL0_DIR)              /*!< counter down direction */
+
+/* specify division ratio between TIMER clock and dead-time and sampling clock */
+#define CTL0_CKDIV(regval)                  ((uint16_t)(BITS(8, 9) & ((uint32_t)(regval) << 8U)))
+#define TIMER_CKDIV_DIV1                    CTL0_CKDIV(0)                           /*!< clock division value is 1,fDTS=fTIMER_CK */
+#define TIMER_CKDIV_DIV2                    CTL0_CKDIV(1)                           /*!< clock division value is 2,fDTS= fTIMER_CK/2 */
+#define TIMER_CKDIV_DIV4                    CTL0_CKDIV(2)                           /*!< clock division value is 4, fDTS= fTIMER_CK/4 */
+
+/* single pulse mode */
+#define TIMER_SP_MODE_SINGLE                TIMER_CTL0_SPM                          /*!< single pulse mode */
+#define TIMER_SP_MODE_REPETITIVE            ((uint32_t)0x00000000U)                 /*!< repetitive pulse mode */
+
+/* update source */
+#define TIMER_UPDATE_SRC_REGULAR            TIMER_CTL0_UPS                          /*!< update generate only by counter overflow/underflow */
+#define TIMER_UPDATE_SRC_GLOBAL             ((uint32_t)0x00000000U)                 /*!< update generate by setting of UPG bit or the counter overflow/underflow,or the slave mode controller trigger */
+
+/* run mode off-state configure */
+#define TIMER_ROS_STATE_ENABLE              ((uint16_t)TIMER_CCHP_ROS)              /*!< when POEN bit is set, the channel output signals(CHx_O/CHx_ON) are enabled, with relationship to CHxEN/CHxNEN bits */
+#define TIMER_ROS_STATE_DISABLE             ((uint16_t)0x0000U)                     /*!< when POEN bit is set, the channel output signals(CHx_O/CHx_ON) are disabled */
+
+
+/* idle mode off-state configure */
+#define TIMER_IOS_STATE_ENABLE              ((uint16_t)TIMER_CCHP_IOS)              /*!< when POEN bit is reset, he channel output signals(CHx_O/CHx_ON) are enabled, with relationship to CHxEN/CHxNEN bits */
+#define TIMER_IOS_STATE_DISABLE             ((uint16_t)0x0000U)                     /*!< when POEN bit is reset, the channel output signals(CHx_O/CHx_ON) are disabled */
+
+/* break input polarity */
+#define TIMER_BREAK_POLARITY_LOW            ((uint16_t)0x0000U)                     /*!< break input polarity is low */
+#define TIMER_BREAK_POLARITY_HIGH           ((uint16_t)TIMER_CCHP_BRKP)             /*!< break input polarity is high */
+
+/* output automatic enable */
+#define TIMER_OUTAUTO_ENABLE                ((uint16_t)TIMER_CCHP_OAEN)             /*!< output automatic enable */
+#define TIMER_OUTAUTO_DISABLE               ((uint16_t)0x0000U)                     /*!< output automatic disable */
+
+/* complementary register protect control */
+#define CCHP_PROT(regval)                   ((uint16_t)(BITS(8, 9) & ((uint32_t)(regval) << 8U)))
+#define TIMER_CCHP_PROT_OFF                 CCHP_PROT(0)                            /*!< protect disable */
+#define TIMER_CCHP_PROT_0                   CCHP_PROT(1)                            /*!< PROT mode 0 */
+#define TIMER_CCHP_PROT_1                   CCHP_PROT(2)                            /*!< PROT mode 1 */
+#define TIMER_CCHP_PROT_2                   CCHP_PROT(3)                            /*!< PROT mode 2 */
+
+/* break input enable */
+#define TIMER_BREAK_ENABLE                  ((uint16_t)TIMER_CCHP_BRKEN)            /*!< break input enable */
+#define TIMER_BREAK_DISABLE                 ((uint16_t)0x0000U)                     /*!< break input disable */
+
+/* TIMER channel n(n=0,1,2,3) */
+#define TIMER_CH_0                          ((uint16_t)0x0000U)                     /*!< TIMER channel 0(TIMERx(x=0..4)) */
+#define TIMER_CH_1                          ((uint16_t)0x0001U)                     /*!< TIMER channel 1(TIMERx(x=0..4)) */
+#define TIMER_CH_2                          ((uint16_t)0x0002U)                     /*!< TIMER channel 2(TIMERx(x=0..4)) */
+#define TIMER_CH_3                          ((uint16_t)0x0003U)                     /*!< TIMER channel 3(TIMERx(x=0..4)) */
+
+/* channel enable state */
+#define TIMER_CCX_ENABLE                    ((uint16_t)0x0001U)                     /*!< channel enable */
+#define TIMER_CCX_DISABLE                   ((uint16_t)0x0000U)                     /*!< channel disable */
+
+/* channel complementary output enable state */
+#define TIMER_CCXN_ENABLE                   ((uint16_t)0x0004U)                     /*!< channel complementary enable */
+#define TIMER_CCXN_DISABLE                  ((uint16_t)0x0000U)                     /*!< channel complementary disable */
+
+/* channel output polarity */
+#define TIMER_OC_POLARITY_HIGH              ((uint16_t)0x0000U)                     /*!< channel output polarity is high */
+#define TIMER_OC_POLARITY_LOW               ((uint16_t)0x0002U)                     /*!< channel output polarity is low */
+
+/* channel complementary output polarity */
+#define TIMER_OCN_POLARITY_HIGH             ((uint16_t)0x0000U)                     /*!< channel complementary output polarity is high */
+#define TIMER_OCN_POLARITY_LOW              ((uint16_t)0x0008U)                     /*!< channel complementary output polarity is low */
+
+/* idle state of channel output */
+#define TIMER_OC_IDLE_STATE_HIGH            ((uint16_t)0x0100)                      /*!< idle state of channel output is high */
+#define TIMER_OC_IDLE_STATE_LOW             ((uint16_t)0x0000)                      /*!< idle state of channel output is low */
+
+/* idle state of channel complementary output */
+#define TIMER_OCN_IDLE_STATE_HIGH           ((uint16_t)0x0200U)                     /*!< idle state of channel complementary output is high */
+#define TIMER_OCN_IDLE_STATE_LOW            ((uint16_t)0x0000U)                     /*!< idle state of channel complementary output is low */
+
+/* channel output compare mode */
+#define TIMER_OC_MODE_TIMING                ((uint16_t)0x0000U)                     /*!< timing mode */
+#define TIMER_OC_MODE_ACTIVE                ((uint16_t)0x0010U)                     /*!< active mode */
+#define TIMER_OC_MODE_INACTIVE              ((uint16_t)0x0020U)                     /*!< inactive mode */
+#define TIMER_OC_MODE_TOGGLE                ((uint16_t)0x0030U)                     /*!< toggle mode */
+#define TIMER_OC_MODE_LOW                   ((uint16_t)0x0040U)                     /*!< force low mode */
+#define TIMER_OC_MODE_HIGH                  ((uint16_t)0x0050U)                     /*!< force high mode */
+#define TIMER_OC_MODE_PWM0                  ((uint16_t)0x0060U)                     /*!< PWM0 mode */
+#define TIMER_OC_MODE_PWM1                  ((uint16_t)0x0070U)                     /*!< PWM1 mode */
+
+/* channel output compare shadow enable */
+#define TIMER_OC_SHADOW_ENABLE              ((uint16_t)0x0008U)                     /*!< channel output shadow state enable */
+#define TIMER_OC_SHADOW_DISABLE             ((uint16_t)0x0000U)                     /*!< channel output shadow state disable */
+
+/* channel output compare fast enable */
+#define TIMER_OC_FAST_ENABLE                ((uint16_t)0x0004)                      /*!< channel output fast function enable */
+#define TIMER_OC_FAST_DISABLE               ((uint16_t)0x0000)                      /*!< channel output fast function disable */
+
+/* channel output compare clear enable */
+#define TIMER_OC_CLEAR_ENABLE               ((uint16_t)0x0080U)                     /*!< channel output clear function enable */
+#define TIMER_OC_CLEAR_DISABLE              ((uint16_t)0x0000U)                     /*!< channel output clear function disable */
+
+/* channel control shadow register update control */
+#define TIMER_UPDATECTL_CCU                 ((uint32_t)0x00000000U)                 /*!< the shadow registers update by when CMTG bit is set */
+#define TIMER_UPDATECTL_CCUTRI              TIMER_CTL1_CCUC                         /*!< the shadow registers update by when CMTG bit is set or an rising edge of TRGI occurs */
+
+/* channel input capture polarity */
+#define TIMER_IC_POLARITY_RISING            ((uint16_t)0x0000U)                     /*!< input capture rising edge */
+#define TIMER_IC_POLARITY_FALLING           ((uint16_t)0x0002U)                     /*!< input capture falling edge */
+#define TIMER_IC_POLARITY_BOTH_EDGE         ((uint16_t)0x000AU)                     /*!< input capture both edge */
+
+/* TIMER input capture selection */
+#define TIMER_IC_SELECTION_DIRECTTI         ((uint16_t)0x0001U)                     /*!< channel n is configured as input and icy is mapped on CIy */
+#define TIMER_IC_SELECTION_INDIRECTTI       ((uint16_t)0x0002U)                     /*!< channel n is configured as input and icy is mapped on opposite input */
+#define TIMER_IC_SELECTION_ITS              ((uint16_t)0x0003U)                     /*!< channel n is configured as input and icy is mapped on ITS */
+
+/* channel input capture prescaler */
+#define TIMER_IC_PSC_DIV1                   ((uint16_t)0x0000U)                     /*!< no prescaler */
+#define TIMER_IC_PSC_DIV2                   ((uint16_t)0x0004U)                     /*!< divided by 2 */
+#define TIMER_IC_PSC_DIV4                   ((uint16_t)0x0008U)                     /*!< divided by 4 */
+#define TIMER_IC_PSC_DIV8                   ((uint16_t)0x000CU)                     /*!< divided by 8 */
+
+/* trigger selection */
+#define SMCFG_TRGSEL(regval)                (BITS(4, 6) & ((uint32_t)(regval) << 4U))
+#define TIMER_SMCFG_TRGSEL_ITI0             SMCFG_TRGSEL(0)                         /*!< internal trigger 0 */
+#define TIMER_SMCFG_TRGSEL_ITI1             SMCFG_TRGSEL(1)                         /*!< internal trigger 1 */
+#define TIMER_SMCFG_TRGSEL_ITI2             SMCFG_TRGSEL(2)                         /*!< internal trigger 2 */
+#define TIMER_SMCFG_TRGSEL_ITI3             SMCFG_TRGSEL(3)                         /*!< internal trigger 3 */
+#define TIMER_SMCFG_TRGSEL_CI0F_ED          SMCFG_TRGSEL(4)                         /*!< TI0 Edge Detector */
+#define TIMER_SMCFG_TRGSEL_CI0FE0           SMCFG_TRGSEL(5)                         /*!< filtered TIMER input 0 */
+#define TIMER_SMCFG_TRGSEL_CI1FE1           SMCFG_TRGSEL(6)                         /*!< filtered TIMER input 1 */
+#define TIMER_SMCFG_TRGSEL_ETIFP            SMCFG_TRGSEL(7)                         /*!< filtered external trigger input */
+
+/* master mode control */
+#define CTL1_MMC(regval)                    (BITS(4, 6) & ((uint32_t)(regval) << 4U))
+#define TIMER_TRI_OUT_SRC_RESET             CTL1_MMC(0)                             /*!< the UPG bit as trigger output */
+#define TIMER_TRI_OUT_SRC_ENABLE            CTL1_MMC(1)                             /*!< the counter enable signal TIMER_CTL0_CEN as trigger output */
+#define TIMER_TRI_OUT_SRC_UPDATE            CTL1_MMC(2)                             /*!< update event as trigger output */
+#define TIMER_TRI_OUT_SRC_CH0               CTL1_MMC(3)                             /*!< a capture or a compare match occurred in channel 0 as trigger output TRGO */
+#define TIMER_TRI_OUT_SRC_O0CPRE            CTL1_MMC(4)                             /*!< O0CPRE as trigger output */
+#define TIMER_TRI_OUT_SRC_O1CPRE            CTL1_MMC(5)                             /*!< O1CPRE as trigger output */
+#define TIMER_TRI_OUT_SRC_O2CPRE            CTL1_MMC(6)                             /*!< O2CPRE as trigger output */
+#define TIMER_TRI_OUT_SRC_O3CPRE            CTL1_MMC(7)                             /*!< O3CPRE as trigger output */
+
+/* slave mode control */
+#define SMCFG_SMC(regval)                   (BITS(0, 2) & ((uint32_t)(regval) << 0U))
+#define TIMER_SLAVE_MODE_DISABLE            SMCFG_SMC(0)                            /*!< slave mode disable */
+#define TIMER_ENCODER_MODE0                 SMCFG_SMC(1)                            /*!< encoder mode 0 */
+#define TIMER_ENCODER_MODE1                 SMCFG_SMC(2)                            /*!< encoder mode 1 */
+#define TIMER_ENCODER_MODE2                 SMCFG_SMC(3)                            /*!< encoder mode 2 */
+#define TIMER_SLAVE_MODE_RESTART            SMCFG_SMC(4)                            /*!< restart mode */
+#define TIMER_SLAVE_MODE_PAUSE              SMCFG_SMC(5)                            /*!< pause mode */
+#define TIMER_SLAVE_MODE_EVENT              SMCFG_SMC(6)                            /*!< event mode */
+#define TIMER_SLAVE_MODE_EXTERNAL0          SMCFG_SMC(7)                            /*!< external clock mode 0 */
+
+/* master slave mode selection */
+#define TIMER_MASTER_SLAVE_MODE_ENABLE      TIMER_SMCFG_MSM                         /*!< master slave mode enable */
+#define TIMER_MASTER_SLAVE_MODE_DISABLE     ((uint32_t)0x00000000U)                 /*!< master slave mode disable */
+
+/* external trigger prescaler */
+#define SMCFG_ETPSC(regval)                 (BITS(12, 13) & ((uint32_t)(regval) << 12U))
+#define TIMER_EXT_TRI_PSC_OFF               SMCFG_ETPSC(0)                          /*!< no divided */
+#define TIMER_EXT_TRI_PSC_DIV2              SMCFG_ETPSC(1)                          /*!< divided by 2 */
+#define TIMER_EXT_TRI_PSC_DIV4              SMCFG_ETPSC(2)                          /*!< divided by 4 */
+#define TIMER_EXT_TRI_PSC_DIV8              SMCFG_ETPSC(3)                          /*!< divided by 8 */
+
+/* external trigger polarity */
+#define TIMER_ETP_FALLING                   TIMER_SMCFG_ETP                         /*!< active low or falling edge active */
+#define TIMER_ETP_RISING                    ((uint32_t)0x00000000U)                 /*!< active high or rising edge active */
+
+/* channel 0 trigger input selection */
+#define TIMER_HALLINTERFACE_ENABLE          TIMER_CTL1_TI0S                         /*!< TIMER hall sensor mode enable */
+#define TIMER_HALLINTERFACE_DISABLE         ((uint32_t)0x00000000U)                 /*!< TIMER hall sensor mode disable */
+
+/* TIMERx(x=0..4) write CHxVAL register selection */
+#define TIMER_CHVSEL_ENABLE                 ((uint16_t)TIMER_CFG_OUTSEL)            /*!< write CHxVAL register selection enable */
+#define TIMER_CHVSEL_DISABLE                ((uint16_t)0x0000U)                     /*!< write CHxVAL register selection disable */
+
+/* function declarations */
+/* TIMER timebase */
+/* deinit a timer */
+void timer_deinit(uint32_t timer_periph);
+/* initialize TIMER init parameter struct */
+void timer_struct_para_init(timer_parameter_struct* initpara);
+/* initialize TIMER counter */
+void timer_init(uint32_t timer_periph, timer_parameter_struct* initpara);
+/* enable a timer */
+void timer_enable(uint32_t timer_periph);
+/* disable a timer */
+void timer_disable(uint32_t timer_periph);
+/* enable the auto reload shadow function */
+void timer_auto_reload_shadow_enable(uint32_t timer_periph);
+/* disable the auto reload shadow function */
+void timer_auto_reload_shadow_disable(uint32_t timer_periph);
+/* enable the update event */
+void timer_update_event_enable(uint32_t timer_periph);
+/* disable the update event */
+void timer_update_event_disable(uint32_t timer_periph);
+/* set TIMER counter alignment mode */
+void timer_counter_alignment(uint32_t timer_periph, uint16_t aligned);
+/* set TIMER counter up direction */
+void timer_counter_up_direction(uint32_t timer_periph);
+/* set TIMER counter down direction */
+void timer_counter_down_direction(uint32_t timer_periph);
+
+/* configure TIMER prescaler */
+void timer_prescaler_config(uint32_t timer_periph, uint16_t prescaler, uint32_t pscreload);
+/* configure TIMER repetition register value */
+void timer_repetition_value_config(uint32_t timer_periph, uint16_t repetition);
+/* configure TIMER autoreload register value */
+void timer_autoreload_value_config(uint32_t timer_periph, uint16_t autoreload);
+/* configure TIMER counter register value */
+void timer_counter_value_config(uint32_t timer_periph, uint16_t counter);
+/* read TIMER counter value */
+uint32_t timer_counter_read(uint32_t timer_periph);
+/* read TIMER prescaler value */
+uint16_t timer_prescaler_read(uint32_t timer_periph);
+/* configure TIMER single pulse mode */
+void timer_single_pulse_mode_config(uint32_t timer_periph, uint32_t spmode);
+/* configure TIMER update source */
+void timer_update_source_config(uint32_t timer_periph, uint32_t update);
+
+/* TIMER DMA and event */
+/* enable the TIMER DMA */
+void timer_dma_enable(uint32_t timer_periph, uint16_t dma);
+/* disable the TIMER DMA */
+void timer_dma_disable(uint32_t timer_periph, uint16_t dma);
+/* channel DMA request source selection */
+void timer_channel_dma_request_source_select(uint32_t timer_periph, uint32_t dma_request);
+/* configure the TIMER DMA transfer */
+void timer_dma_transfer_config(uint32_t timer_periph, uint32_t dma_baseaddr, uint32_t dma_lenth);
+/* software generate events */
+void timer_event_software_generate(uint32_t timer_periph, uint16_t event);
+
+/* TIMER channel complementary protection */
+/* initialize TIMER break parameter struct */
+void timer_break_struct_para_init(timer_break_parameter_struct* breakpara);
+/* configure TIMER break function */
+void timer_break_config(uint32_t timer_periph, timer_break_parameter_struct* breakpara);
+/* enable TIMER break function */
+void timer_break_enable(uint32_t timer_periph);
+/* disable TIMER break function */
+void timer_break_disable(uint32_t timer_periph);
+/* enable TIMER output automatic function */
+void timer_automatic_output_enable(uint32_t timer_periph);
+/* disable TIMER output automatic function */
+void timer_automatic_output_disable(uint32_t timer_periph);
+/* enable or disable TIMER primary output function */
+void timer_primary_output_config(uint32_t timer_periph, ControlStatus newvalue);
+/* enable or disable channel capture/compare control shadow register */
+void timer_channel_control_shadow_config(uint32_t timer_periph, ControlStatus newvalue);
+/* configure TIMER channel control shadow register update control */
+void timer_channel_control_shadow_update_config(uint32_t timer_periph, uint32_t ccuctl);
+
+/* TIMER channel output */
+/* initialize TIMER channel output parameter struct */
+void timer_channel_output_struct_para_init(timer_oc_parameter_struct* ocpara);
+/* configure TIMER channel output function */
+void timer_channel_output_config(uint32_t timer_periph, uint16_t channel, timer_oc_parameter_struct* ocpara);
+/* configure TIMER channel output compare mode */
+void timer_channel_output_mode_config(uint32_t timer_periph, uint16_t channel, uint16_t ocmode);
+/* configure TIMER channel output pulse value */
+void timer_channel_output_pulse_value_config(uint32_t timer_periph, uint16_t channel, uint32_t pulse);
+/* configure TIMER channel output shadow function */
+void timer_channel_output_shadow_config(uint32_t timer_periph, uint16_t channel, uint16_t ocshadow);
+/* configure TIMER channel output fast function */
+void timer_channel_output_fast_config(uint32_t timer_periph, uint16_t channel, uint16_t ocfast);
+/* configure TIMER channel output clear function */
+void timer_channel_output_clear_config(uint32_t timer_periph, uint16_t channel, uint16_t occlear);
+/* configure TIMER channel output polarity */
+void timer_channel_output_polarity_config(uint32_t timer_periph, uint16_t channel, uint16_t ocpolarity);
+/* configure TIMER channel complementary output polarity */
+void timer_channel_complementary_output_polarity_config(uint32_t timer_periph, uint16_t channel, uint16_t ocnpolarity);
+/* configure TIMER channel enable state */
+void timer_channel_output_state_config(uint32_t timer_periph, uint16_t channel, uint32_t state);
+/* configure TIMER channel complementary output enable state */
+void timer_channel_complementary_output_state_config(uint32_t timer_periph, uint16_t channel, uint16_t ocnstate);
+
+/* TIMER channel input */
+/* initialize TIMER channel input parameter struct */
+void timer_channel_input_struct_para_init(timer_ic_parameter_struct* icpara);
+/* configure TIMER input capture parameter */
+void timer_input_capture_config(uint32_t timer_periph, uint16_t channel, timer_ic_parameter_struct* icpara);
+/* configure TIMER channel input capture prescaler value */
+void timer_channel_input_capture_prescaler_config(uint32_t timer_periph, uint16_t channel, uint16_t prescaler);
+/* read TIMER channel capture compare register value */
+uint32_t timer_channel_capture_value_register_read(uint32_t timer_periph, uint16_t channel);
+/* configure TIMER input pwm capture function */
+void timer_input_pwm_capture_config(uint32_t timer_periph, uint16_t channel, timer_ic_parameter_struct* icpwm);
+/* configure TIMER hall sensor mode */
+void timer_hall_mode_config(uint32_t timer_periph, uint32_t hallmode);
+
+/* TIMER master and slave mode */
+/* select TIMER input trigger source */
+void timer_input_trigger_source_select(uint32_t timer_periph, uint32_t intrigger);
+/* select TIMER master mode output trigger source */
+void timer_master_output_trigger_source_select(uint32_t timer_periph, uint32_t outrigger);
+/* select TIMER slave mode */
+void timer_slave_mode_select(uint32_t timer_periph, uint32_t slavemode);
+/* configure TIMER master slave mode */
+void timer_master_slave_mode_config(uint32_t timer_periph, uint32_t masterslave);
+/* configure TIMER external trigger input */
+void timer_external_trigger_config(uint32_t timer_periph, uint32_t extprescaler, uint32_t extpolarity, uint32_t extfilter);
+/* configure TIMER quadrature decoder mode */
+void timer_quadrature_decoder_mode_config(uint32_t timer_periph, uint32_t decomode, uint16_t ic0polarity, uint16_t ic1polarity);
+/* configure TIMER internal clock mode */
+void timer_internal_clock_config(uint32_t timer_periph);
+/* configure TIMER the internal trigger as external clock input */
+void timer_internal_trigger_as_external_clock_config(uint32_t timer_periph, uint32_t intrigger);
+/* configure TIMER the external trigger as external clock input */
+void timer_external_trigger_as_external_clock_config(uint32_t timer_periph, uint32_t extrigger, uint16_t extpolarity, uint32_t extfilter);
+/* configure TIMER the external clock mode 0 */
+void timer_external_clock_mode0_config(uint32_t timer_periph, uint32_t extprescaler, uint32_t extpolarity, uint32_t extfilter);
+/* configure TIMER the external clock mode 1 */
+void timer_external_clock_mode1_config(uint32_t timer_periph, uint32_t extprescaler, uint32_t extpolarity, uint32_t extfilter);
+/* disable TIMER the external clock mode 1 */
+void timer_external_clock_mode1_disable(uint32_t timer_periph);
+
+/* TIMER interrupt and flag */
+/* enable the TIMER interrupt */
+void timer_interrupt_enable(uint32_t timer_periph, uint32_t interrupt);
+/* disable the TIMER interrupt */
+void timer_interrupt_disable(uint32_t timer_periph, uint32_t interrupt);
+/* get TIMER interrupt flag */
+FlagStatus timer_interrupt_flag_get(uint32_t timer_periph, uint32_t interrupt);
+/* clear TIMER interrupt flag */
+void timer_interrupt_flag_clear(uint32_t timer_periph, uint32_t interrupt);
+/* get TIMER flag */
+FlagStatus timer_flag_get(uint32_t timer_periph, uint32_t flag);
+/* clear TIMER flag */
+void timer_flag_clear(uint32_t timer_periph, uint32_t flag);
+
+#endif /* GD32VF103_TIMER_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_usart.h

@@ -0,0 +1,374 @@
+/*!
+    \file    gd32vf103_usart.h
+    \brief   definitions for the USART
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2018, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_USART_H
+#define GD32VF103_USART_H
+
+#include "gd32vf103.h"
+
+/* USARTx(x=0,1,2)/UARTx(x=3,4) definitions */
+#define USART1                        USART_BASE                        /*!< USART1 base address */
+#define USART2                        (USART_BASE+(0x00000400U))        /*!< USART2 base address */
+#define UART3                         (USART_BASE+(0x00000800U))        /*!< UART3 base address */
+#define UART4                         (USART_BASE+(0x00000C00U))        /*!< UART4 base address */
+#define USART0                        (USART_BASE+(0x0000F400U))        /*!< USART0 base address */
+
+/* registers definitions */
+#define USART_STAT(usartx)            REG32((usartx) + (0x00000000U))   /*!< USART status register */
+#define USART_DATA(usartx)            REG32((usartx) + (0x00000004U))   /*!< USART data register */
+#define USART_BAUD(usartx)            REG32((usartx) + (0x00000008U))   /*!< USART baud rate register */
+#define USART_CTL0(usartx)            REG32((usartx) + (0x0000000CU))   /*!< USART control register 0 */
+#define USART_CTL1(usartx)            REG32((usartx) + (0x00000010U))   /*!< USART control register 1 */
+#define USART_CTL2(usartx)            REG32((usartx) + (0x00000014U))   /*!< USART control register 2 */
+#define USART_GP(usartx)              REG32((usartx) + (0x00000018U))   /*!< USART guard time and prescaler register */
+
+/* bits definitions */
+/* USARTx_STAT */
+#define USART_STAT_PERR               BIT(0)                            /*!< parity error flag */
+#define USART_STAT_FERR               BIT(1)                            /*!< frame error flag */
+#define USART_STAT_NERR               BIT(2)                            /*!< noise error flag */
+#define USART_STAT_ORERR              BIT(3)                            /*!< overrun error */
+#define USART_STAT_IDLEF              BIT(4)                            /*!< IDLE frame detected flag */
+#define USART_STAT_RBNE               BIT(5)                            /*!< read data buffer not empty */
+#define USART_STAT_TC                 BIT(6)                            /*!< transmission complete */
+#define USART_STAT_TBE                BIT(7)                            /*!< transmit data buffer empty */
+#define USART_STAT_LBDF               BIT(8)                            /*!< LIN break detected flag */
+#define USART_STAT_CTSF               BIT(9)                            /*!< CTS change flag */
+
+/* USARTx_DATA */
+#define USART_DATA_DATA               BITS(0,8)                         /*!< transmit or read data value */
+
+/* USARTx_BAUD */
+#define USART_BAUD_FRADIV             BITS(0,3)                         /*!< fraction part of baud-rate divider */
+#define USART_BAUD_INTDIV             BITS(4,15)                        /*!< integer part of baud-rate divider */
+
+/* USARTx_CTL0 */
+#define USART_CTL0_SBKCMD             BIT(0)                            /*!< send break command */
+#define USART_CTL0_RWU                BIT(1)                            /*!< receiver wakeup from mute mode */
+#define USART_CTL0_REN                BIT(2)                            /*!< receiver enable */
+#define USART_CTL0_TEN                BIT(3)                            /*!< transmitter enable */
+#define USART_CTL0_IDLEIE             BIT(4)                            /*!< idle line detected interrupt enable */
+#define USART_CTL0_RBNEIE             BIT(5)                            /*!< read data buffer not empty interrupt and overrun error interrupt enable */
+#define USART_CTL0_TCIE               BIT(6)                            /*!< transmission complete interrupt enable */
+#define USART_CTL0_TBEIE              BIT(7)                            /*!< transmitter buffer empty interrupt enable */
+#define USART_CTL0_PERRIE             BIT(8)                            /*!< parity error interrupt enable */
+#define USART_CTL0_PM                 BIT(9)                            /*!< parity mode */
+#define USART_CTL0_PCEN               BIT(10)                           /*!< parity check function enable */
+#define USART_CTL0_WM                 BIT(11)                           /*!< wakeup method in mute mode */
+#define USART_CTL0_WL                 BIT(12)                           /*!< word length */
+#define USART_CTL0_UEN                BIT(13)                           /*!< USART enable */
+
+/* USARTx_CTL1 */
+#define USART_CTL1_ADDR               BITS(0,3)                         /*!< address of USART */
+#define USART_CTL1_LBLEN              BIT(5)                            /*!< LIN break frame length */
+#define USART_CTL1_LBDIE              BIT(6)                            /*!< LIN break detected interrupt eanble */
+#define USART_CTL1_CLEN               BIT(8)                            /*!< CK length */
+#define USART_CTL1_CPH                BIT(9)                            /*!< CK phase */
+#define USART_CTL1_CPL                BIT(10)                           /*!< CK polarity */
+#define USART_CTL1_CKEN               BIT(11)                           /*!< CK pin enable */
+#define USART_CTL1_STB                BITS(12,13)                       /*!< STOP bits length */
+#define USART_CTL1_LMEN               BIT(14)                           /*!< LIN mode enable */
+
+/* USARTx_CTL2 */
+#define USART_CTL2_ERRIE              BIT(0)                            /*!< error interrupt enable */
+#define USART_CTL2_IREN               BIT(1)                            /*!< IrDA mode enable */
+#define USART_CTL2_IRLP               BIT(2)                            /*!< IrDA low-power */
+#define USART_CTL2_HDEN               BIT(3)                            /*!< half-duplex enable */
+#define USART_CTL2_NKEN               BIT(4)                            /*!< NACK enable in smartcard mode */
+#define USART_CTL2_SCEN               BIT(5)                            /*!< smartcard mode enable */
+#define USART_CTL2_DENR               BIT(6)                            /*!< DMA request enable for reception */
+#define USART_CTL2_DENT               BIT(7)                            /*!< DMA request enable for transmission */
+#define USART_CTL2_RTSEN              BIT(8)                            /*!< RTS enable */
+#define USART_CTL2_CTSEN              BIT(9)                            /*!< CTS enable */
+#define USART_CTL2_CTSIE              BIT(10)                           /*!< CTS interrupt enable */
+
+/* USARTx_GP */
+#define USART_GP_PSC                  BITS(0,7)                         /*!< prescaler value for dividing the system clock */
+#define USART_GP_GUAT                 BITS(8,15)                        /*!< guard time value in smartcard mode */
+
+/* constants definitions */
+/* define the USART bit position and its register index offset */
+#define USART_REGIDX_BIT(regidx, bitpos)     (((uint32_t)(regidx) << 6) | (uint32_t)(bitpos))
+#define USART_REG_VAL(usartx, offset)        (REG32((usartx) + (((uint32_t)(offset) & (0x0000FFFFU)) >> 6)))
+#define USART_BIT_POS(val)                   ((uint32_t)(val) & (0x0000001FU))
+#define USART_REGIDX_BIT2(regidx, bitpos, regidx2, bitpos2)   (((uint32_t)(regidx2) << 22) | (uint32_t)((bitpos2) << 16)\
+                                                              | (((uint32_t)(regidx) << 6) | (uint32_t)(bitpos)))
+#define USART_REG_VAL2(usartx, offset)       (REG32((usartx) + ((uint32_t)(offset) >> 22)))
+#define USART_BIT_POS2(val)                  (((uint32_t)(val) & (0x001F0000U)) >> 16)
+
+/* register offset */
+#define USART_STAT_REG_OFFSET                     (0x00000000U)        	/*!< STAT register offset */
+#define USART_CTL0_REG_OFFSET                     (0x0000000CU)        	/*!< CTL0 register offset */
+#define USART_CTL1_REG_OFFSET                     (0x00000010U)        	/*!< CTL1 register offset */
+#define USART_CTL2_REG_OFFSET                     (0x00000014U)        	/*!< CTL2 register offset */
+
+/* USART flags */
+typedef enum
+{
+    /* flags in STAT register */
+    USART_FLAG_CTSF = USART_REGIDX_BIT(USART_STAT_REG_OFFSET, 9U),      /*!< CTS change flag */
+    USART_FLAG_LBDF = USART_REGIDX_BIT(USART_STAT_REG_OFFSET, 8U),      /*!< LIN break detected flag */
+    USART_FLAG_TBE = USART_REGIDX_BIT(USART_STAT_REG_OFFSET, 7U),       /*!< transmit data buffer empty */
+    USART_FLAG_TC = USART_REGIDX_BIT(USART_STAT_REG_OFFSET, 6U),        /*!< transmission complete */
+    USART_FLAG_RBNE = USART_REGIDX_BIT(USART_STAT_REG_OFFSET, 5U),      /*!< read data buffer not empty */
+    USART_FLAG_IDLEF = USART_REGIDX_BIT(USART_STAT_REG_OFFSET, 4U),     /*!< IDLE frame detected flag */
+    USART_FLAG_ORERR = USART_REGIDX_BIT(USART_STAT_REG_OFFSET, 3U),     /*!< overrun error */
+    USART_FLAG_NERR = USART_REGIDX_BIT(USART_STAT_REG_OFFSET, 2U),      /*!< noise error flag */
+    USART_FLAG_FERR = USART_REGIDX_BIT(USART_STAT_REG_OFFSET, 1U),      /*!< frame error flag */
+    USART_FLAG_PERR = USART_REGIDX_BIT(USART_STAT_REG_OFFSET, 0U),      /*!< parity error flag */
+}usart_flag_enum;
+
+/* USART interrupt flags */
+typedef enum
+{
+    /* interrupt flags in CTL0 register */
+    USART_INT_FLAG_PERR = USART_REGIDX_BIT2(USART_CTL0_REG_OFFSET, 8U, USART_STAT_REG_OFFSET, 0U),       /*!< parity error interrupt and flag */
+    USART_INT_FLAG_TBE = USART_REGIDX_BIT2(USART_CTL0_REG_OFFSET, 7U, USART_STAT_REG_OFFSET, 7U),        /*!< transmitter buffer empty interrupt and flag */
+    USART_INT_FLAG_TC = USART_REGIDX_BIT2(USART_CTL0_REG_OFFSET, 6U, USART_STAT_REG_OFFSET, 6U),         /*!< transmission complete interrupt and flag */
+    USART_INT_FLAG_RBNE = USART_REGIDX_BIT2(USART_CTL0_REG_OFFSET, 5U, USART_STAT_REG_OFFSET, 5U),       /*!< read data buffer not empty interrupt and flag */
+    USART_INT_FLAG_RBNE_ORERR = USART_REGIDX_BIT2(USART_CTL0_REG_OFFSET, 5U, USART_STAT_REG_OFFSET, 3U), /*!< read data buffer not empty interrupt and overrun error flag */
+    USART_INT_FLAG_IDLE = USART_REGIDX_BIT2(USART_CTL0_REG_OFFSET, 4U, USART_STAT_REG_OFFSET, 4U),       /*!< IDLE line detected interrupt and flag */
+    /* interrupt flags in CTL1 register */
+    USART_INT_FLAG_LBD = USART_REGIDX_BIT2(USART_CTL1_REG_OFFSET, 6U, USART_STAT_REG_OFFSET, 8U),        /*!< LIN break detected interrupt and flag */
+    /* interrupt flags in CTL2 register */
+    USART_INT_FLAG_CTS = USART_REGIDX_BIT2(USART_CTL2_REG_OFFSET, 10U, USART_STAT_REG_OFFSET, 9U),       /*!< CTS interrupt and flag */
+    USART_INT_FLAG_ERR_ORERR = USART_REGIDX_BIT2(USART_CTL2_REG_OFFSET, 0U, USART_STAT_REG_OFFSET, 3U),  /*!< error interrupt and overrun error */
+    USART_INT_FLAG_ERR_NERR = USART_REGIDX_BIT2(USART_CTL2_REG_OFFSET, 0U, USART_STAT_REG_OFFSET, 2U),   /*!< error interrupt and noise error flag */
+    USART_INT_FLAG_ERR_FERR = USART_REGIDX_BIT2(USART_CTL2_REG_OFFSET, 0U, USART_STAT_REG_OFFSET, 1U),   /*!< error interrupt and frame error flag */
+}usart_interrupt_flag_enum;
+
+/* USART interrupt enable or disable */
+typedef enum
+{
+    /* interrupt in CTL0 register */
+    USART_INT_PERR = USART_REGIDX_BIT(USART_CTL0_REG_OFFSET, 8U),       /*!< parity error interrupt */
+    USART_INT_TBE = USART_REGIDX_BIT(USART_CTL0_REG_OFFSET, 7U),        /*!< transmitter buffer empty interrupt */
+    USART_INT_TC = USART_REGIDX_BIT(USART_CTL0_REG_OFFSET, 6U),         /*!< transmission complete interrupt */
+    USART_INT_RBNE = USART_REGIDX_BIT(USART_CTL0_REG_OFFSET, 5U),       /*!< read data buffer not empty interrupt and overrun error interrupt */
+    USART_INT_IDLE = USART_REGIDX_BIT(USART_CTL0_REG_OFFSET, 4U),       /*!< IDLE line detected interrupt */
+    /* interrupt in CTL1 register */
+    USART_INT_LBD = USART_REGIDX_BIT(USART_CTL1_REG_OFFSET, 6U),        /*!< LIN break detected interrupt */
+    /* interrupt in CTL2 register */
+    USART_INT_CTS = USART_REGIDX_BIT(USART_CTL2_REG_OFFSET, 10U),       /*!< CTS interrupt */
+    USART_INT_ERR = USART_REGIDX_BIT(USART_CTL2_REG_OFFSET, 0U),        /*!< error interrupt */
+}usart_interrupt_enum;
+
+/* USART receiver configure */
+#define CTL0_REN(regval)              (BIT(2) & ((uint32_t)(regval) << 2))
+#define USART_RECEIVE_ENABLE          CTL0_REN(1)                       /*!< enable receiver */
+#define USART_RECEIVE_DISABLE         CTL0_REN(0)                       /*!< disable receiver */
+
+/* USART transmitter configure */
+#define CTL0_TEN(regval)              (BIT(3) & ((uint32_t)(regval) << 3))
+#define USART_TRANSMIT_ENABLE         CTL0_TEN(1)                       /*!< enable transmitter */
+#define USART_TRANSMIT_DISABLE        CTL0_TEN(0)                       /*!< disable transmitter */
+
+/* USART parity bits definitions */
+#define CTL0_PM(regval)               (BITS(9,10) & ((uint32_t)(regval) << 9))
+#define USART_PM_NONE                 CTL0_PM(0)                        /*!< no parity */
+#define USART_PM_EVEN                 CTL0_PM(2)                        /*!< even parity */
+#define USART_PM_ODD                  CTL0_PM(3)                        /*!< odd parity */
+
+/* USART wakeup method in mute mode */
+#define CTL0_WM(regval)               (BIT(11) & ((uint32_t)(regval) << 11))
+#define USART_WM_IDLE                 CTL0_WM(0)                        /*!< idle line */
+#define USART_WM_ADDR                 CTL0_WM(1)                        /*!< address match */
+
+/* USART word length definitions */
+#define CTL0_WL(regval)               (BIT(12) & ((uint32_t)(regval) << 12))
+#define USART_WL_8BIT                 CTL0_WL(0)                        /*!< 8 bits */
+#define USART_WL_9BIT                 CTL0_WL(1)                        /*!< 9 bits */
+
+/* USART stop bits definitions */
+#define CTL1_STB(regval)              (BITS(12,13) & ((uint32_t)(regval) << 12))
+#define USART_STB_1BIT                CTL1_STB(0)                       /*!< 1 bit */
+#define USART_STB_0_5BIT              CTL1_STB(1)                       /*!< 0.5 bit */
+#define USART_STB_2BIT                CTL1_STB(2)                       /*!< 2 bits */
+#define USART_STB_1_5BIT              CTL1_STB(3)                       /*!< 1.5 bits */
+
+/* USART LIN break frame length */
+#define CTL1_LBLEN(regval)            (BIT(5) & ((uint32_t)(regval) << 5))
+#define USART_LBLEN_10B               CTL1_LBLEN(0)                     /*!< 10 bits */
+#define USART_LBLEN_11B               CTL1_LBLEN(1)                     /*!< 11 bits */
+
+/* USART CK length */
+#define CTL1_CLEN(regval)             (BIT(8) & ((uint32_t)(regval) << 8))
+#define USART_CLEN_NONE               CTL1_CLEN(0)                      /*!< there are 7 CK pulses for an 8 bit frame and 8 CK pulses for a 9 bit frame */
+#define USART_CLEN_EN                 CTL1_CLEN(1)                      /*!< there are 8 CK pulses for an 8 bit frame and 9 CK pulses for a 9 bit frame */
+
+/* USART clock phase */
+#define CTL1_CPH(regval)              (BIT(9) & ((uint32_t)(regval) << 9))
+#define USART_CPH_1CK                 CTL1_CPH(0)                       /*!< first clock transition is the first data capture edge */
+#define USART_CPH_2CK                 CTL1_CPH(1)                       /*!< second clock transition is the first data capture edge */
+
+/* USART clock polarity */
+#define CTL1_CPL(regval)              (BIT(10) & ((uint32_t)(regval) << 10))
+#define USART_CPL_LOW                 CTL1_CPL(0)                       /*!< steady low value on CK pin */
+#define USART_CPL_HIGH                CTL1_CPL(1)                       /*!< steady high value on CK pin */
+
+/* USART DMA request for receive configure */
+#define CLT2_DENR(regval)             (BIT(6) & ((uint32_t)(regval) << 6))
+#define USART_DENR_ENABLE             CLT2_DENR(1)                      /*!< DMA request enable for reception */
+#define USART_DENR_DISABLE            CLT2_DENR(0)                      /*!< DMA request disable for reception */
+
+/* USART DMA request for transmission configure */
+#define CLT2_DENT(regval)             (BIT(7) & ((uint32_t)(regval) << 7))
+#define USART_DENT_ENABLE             CLT2_DENT(1)                      /*!< DMA request enable for transmission */
+#define USART_DENT_DISABLE            CLT2_DENT(0)                      /*!< DMA request disable for transmission */
+
+/* USART RTS configure */
+#define CLT2_RTSEN(regval)            (BIT(8) & ((uint32_t)(regval) << 8))
+#define USART_RTS_ENABLE              CLT2_RTSEN(1)                     /*!< RTS enable */
+#define USART_RTS_DISABLE             CLT2_RTSEN(0)                     /*!< RTS disable */
+
+/* USART CTS configure */
+#define CLT2_CTSEN(regval)            (BIT(9) & ((uint32_t)(regval) << 9))
+#define USART_CTS_ENABLE              CLT2_CTSEN(1)                     /*!< CTS enable */
+#define USART_CTS_DISABLE             CLT2_CTSEN(0)                     /*!< CTS disable */
+
+/* USART IrDA low-power enable */
+#define CTL2_IRLP(regval)             (BIT(2) & ((uint32_t)(regval) << 2))
+#define USART_IRLP_LOW                CTL2_IRLP(1)                      /*!< low-power */
+#define USART_IRLP_NORMAL             CTL2_IRLP(0)                      /*!< normal */
+
+/* function declarations */
+/* initialization functions */
+/* reset USART */
+void usart_deinit(uint32_t usart_periph);
+/* configure USART baud rate value */
+void usart_baudrate_set(uint32_t usart_periph, uint32_t baudval);
+/* configure USART parity function */
+void usart_parity_config(uint32_t usart_periph, uint32_t paritycfg);
+/* configure USART word length */
+void usart_word_length_set(uint32_t usart_periph, uint32_t wlen);
+/* configure USART stop bit length */
+void usart_stop_bit_set(uint32_t usart_periph, uint32_t stblen);
+
+/* USART normal mode communication */
+/* enable USART */
+void usart_enable(uint32_t usart_periph);
+/* disable USART */
+void usart_disable(uint32_t usart_periph);
+/* configure USART transmitter */
+void usart_transmit_config(uint32_t usart_periph, uint32_t txconfig);
+/* configure USART receiver */
+void usart_receive_config(uint32_t usart_periph, uint32_t rxconfig);
+/* USART transmit data function */
+void usart_data_transmit(uint32_t usart_periph, uint32_t data);
+/* USART receive data function */
+uint16_t usart_data_receive(uint32_t usart_periph);
+
+/* multi-processor communication */
+/* configure address of the USART */
+void usart_address_config(uint32_t usart_periph, uint8_t addr);
+/* enable mute mode */
+void usart_mute_mode_enable(uint32_t usart_periph);
+/* disable mute mode */
+void usart_mute_mode_disable(uint32_t usart_periph);
+/* configure wakeup method in mute mode */
+void usart_mute_mode_wakeup_config(uint32_t usart_periph, uint32_t wmethod);
+
+/* LIN mode communication */
+/* LIN mode enable */
+void usart_lin_mode_enable(uint32_t usart_periph);
+/* LIN mode disable */
+void usart_lin_mode_disable(uint32_t usart_periph);
+/* LIN break detection length */
+void usart_lin_break_detection_length_config(uint32_t usart_periph, uint32_t lblen);
+/* send break frame */
+void usart_send_break(uint32_t usart_periph);
+
+/* half-duplex communication */
+/* half-duplex enable */
+void usart_halfduplex_enable(uint32_t usart_periph);
+/* half-duplex disable */
+void usart_halfduplex_disable(uint32_t usart_periph);
+
+/* synchronous communication */
+/* clock enable */
+void usart_synchronous_clock_enable(uint32_t usart_periph);
+/* clock disable */
+void usart_synchronous_clock_disable(uint32_t usart_periph);
+/* configure usart synchronous mode parameters */
+void usart_synchronous_clock_config(uint32_t usart_periph, uint32_t clen, uint32_t cph, uint32_t cpl);
+
+/* smartcard communication */
+/* guard time value configure in smartcard mode */
+void usart_guard_time_config(uint32_t usart_periph, uint32_t gaut);
+/* smartcard mode enable */
+void usart_smartcard_mode_enable(uint32_t usart_periph);
+/* smartcard mode disable */
+void usart_smartcard_mode_disable(uint32_t usart_periph);
+/* NACK enable in smartcard mode */
+void usart_smartcard_mode_nack_enable(uint32_t usart_periph);
+/* NACK disable in smartcard mode */
+void usart_smartcard_mode_nack_disable(uint32_t usart_periph);
+
+/* IrDA communication */
+/* enable IrDA mode */
+void usart_irda_mode_enable(uint32_t usart_periph);
+/* disable IrDA mode */
+void usart_irda_mode_disable(uint32_t usart_periph);
+/* configure the peripheral clock prescaler */
+void usart_prescaler_config(uint32_t usart_periph, uint8_t psc);
+/* configure IrDA low-power */
+void usart_irda_lowpower_config(uint32_t usart_periph, uint32_t irlp);
+
+/* hardware flow communication */
+/* configure hardware flow control RTS */
+void usart_hardware_flow_rts_config(uint32_t usart_periph, uint32_t rtsconfig);
+/* configure hardware flow control CTS */
+void usart_hardware_flow_cts_config(uint32_t usart_periph, uint32_t ctsconfig);
+
+/* configure USART DMA for reception */
+void usart_dma_receive_config(uint32_t usart_periph, uint32_t dmacmd);
+/* configure USART DMA for transmission */
+void usart_dma_transmit_config(uint32_t usart_periph, uint32_t dmacmd);
+
+/* flag functions */
+/* get flag in STAT register */
+FlagStatus usart_flag_get(uint32_t usart_periph, usart_flag_enum flag);
+/* clear flag in STAT register */
+void usart_flag_clear(uint32_t usart_periph, usart_flag_enum flag);
+
+/* interrupt functions */
+/* enable USART interrupt */
+void usart_interrupt_enable(uint32_t usart_periph, uint32_t int_flag);
+/* disable USART interrupt */
+void usart_interrupt_disable(uint32_t usart_periph, uint32_t int_flag);
+/* get USART interrupt and flag status */
+FlagStatus usart_interrupt_flag_get(uint32_t usart_periph, uint32_t int_flag);
+/* clear interrupt flag in STAT register */
+void usart_interrupt_flag_clear(uint32_t usart_periph, uint32_t flag);
+#endif /* GD32VF103_USART_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Include/gd32vf103_wwdgt.h

@@ -0,0 +1,86 @@
+/*!
+    \file  gd32vf103_wwdgt.h
+    \brief definitions for the WWDGT
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_WWDGT_H
+#define GD32VF103_WWDGT_H
+
+#include "gd32vf103.h"
+
+/* WWDGT definitions */
+#define WWDGT                       WWDGT_BASE                                /*!< WWDGT base address */
+
+/* registers definitions */
+#define WWDGT_CTL                   REG32((WWDGT) + 0x00000000U)              /*!< WWDGT control register */
+#define WWDGT_CFG                   REG32((WWDGT) + 0x00000004U)              /*!< WWDGT configuration register */
+#define WWDGT_STAT                  REG32((WWDGT) + 0x00000008U)              /*!< WWDGT status register */
+
+/* bits definitions */
+/* WWDGT_CTL */
+#define WWDGT_CTL_CNT               BITS(0,6)                                 /*!< WWDGT counter value */
+#define WWDGT_CTL_WDGTEN            BIT(7)                                    /*!< WWDGT counter enable */
+
+/* WWDGT_CFG */
+#define WWDGT_CFG_WIN               BITS(0,6)                                 /*!< WWDGT counter window value */
+#define WWDGT_CFG_PSC               BITS(7,8)                                 /*!< WWDGT prescaler divider value */
+#define WWDGT_CFG_EWIE              BIT(9)                                    /*!< early wakeup interrupt enable */
+
+/* WWDGT_STAT */
+#define WWDGT_STAT_EWIF             BIT(0)                                    /*!< early wakeup interrupt flag */
+
+/* constants definitions */
+#define CFG_PSC(regval)             (BITS(7,8) & ((uint32_t)(regval) << 7))   /*!< write value to WWDGT_CFG_PSC bit field */
+#define WWDGT_CFG_PSC_DIV1          CFG_PSC(0)                                /*!< the time base of WWDGT = (PCLK1/4096)/1 */
+#define WWDGT_CFG_PSC_DIV2          CFG_PSC(1)                                /*!< the time base of WWDGT = (PCLK1/4096)/2 */
+#define WWDGT_CFG_PSC_DIV4          CFG_PSC(2)                                /*!< the time base of WWDGT = (PCLK1/4096)/4 */
+#define WWDGT_CFG_PSC_DIV8          CFG_PSC(3)                                /*!< the time base of WWDGT = (PCLK1/4096)/8 */
+
+/* function declarations */
+/* reset the window watchdog timer configuration */
+void wwdgt_deinit(void);
+/* start the window watchdog timer counter */
+void wwdgt_enable(void);
+
+/* configure the window watchdog timer counter value */
+void wwdgt_counter_update(uint16_t counter_value);
+/* configure counter value, window value, and prescaler divider value */
+void wwdgt_config(uint16_t counter, uint16_t window, uint32_t prescaler);
+
+/* enable early wakeup interrupt of WWDGT */
+void wwdgt_interrupt_enable(void);
+/* check early wakeup interrupt state of WWDGT */
+FlagStatus wwdgt_flag_get(void);
+/* clear early wakeup interrupt state of WWDGT */
+void wwdgt_flag_clear(void);
+
+#endif /* GD32VF103_WWDGT_H */

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_adc.c

@@ -0,0 +1,992 @@
+/*!
+    \file  gd32vf103_adc.c
+    \brief ADC driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_adc.h"
+
+/* discontinuous mode macro*/
+#define  ADC_CHANNEL_LENGTH_SUBTRACT_ONE            ((uint8_t)1U)
+
+/* ADC regular channel macro */
+#define  ADC_REGULAR_CHANNEL_RANK_SIX               ((uint8_t)6U)
+#define  ADC_REGULAR_CHANNEL_RANK_TWELVE            ((uint8_t)12U)
+#define  ADC_REGULAR_CHANNEL_RANK_SIXTEEN           ((uint8_t)16U)
+#define  ADC_REGULAR_CHANNEL_RANK_LENGTH            ((uint8_t)5U)
+
+/* ADC sampling time macro */
+#define  ADC_CHANNEL_SAMPLE_TEN                     ((uint8_t)10U)
+#define  ADC_CHANNEL_SAMPLE_EIGHTEEN                ((uint8_t)18U)
+#define  ADC_CHANNEL_SAMPLE_LENGTH                  ((uint8_t)3U)
+
+/* ADC inserted channel macro */
+#define  ADC_INSERTED_CHANNEL_RANK_LENGTH           ((uint8_t)5U)
+#define  ADC_INSERTED_CHANNEL_SHIFT_LENGTH          ((uint8_t)15U)
+
+/* ADC inserted channel offset macro */
+#define  ADC_OFFSET_LENGTH                          ((uint8_t)3U)
+#define  ADC_OFFSET_SHIFT_LENGTH                    ((uint8_t)4U)
+
+/*!
+    \brief      reset ADC
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[out] none
+    \retval     none
+*/
+void adc_deinit(uint32_t adc_periph)
+{
+    switch(adc_periph){
+    case ADC0:
+        /* reset ADC0 */
+        rcu_periph_reset_enable(RCU_ADC0RST);
+        rcu_periph_reset_disable(RCU_ADC0RST);
+        break;
+    case ADC1:
+        /* reset ADC1 */
+        rcu_periph_reset_enable(RCU_ADC1RST);
+        rcu_periph_reset_disable(RCU_ADC1RST);
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      configure the ADC sync mode
+    \param[in]  mode: ADC mode
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_MODE_FREE: all the ADCs work independently
+      \arg        ADC_DAUL_REGULAL_PARALLEL_INSERTED_PARALLEL: ADC0 and ADC1 work in combined regular parallel + inserted parallel mode
+      \arg        ADC_DAUL_REGULAL_PARALLEL_INSERTED_ROTATION: ADC0 and ADC1 work in combined regular parallel + trigger rotation mode
+      \arg        ADC_DAUL_INSERTED_PARALLEL_REGULAL_FOLLOWUP_FAST: ADC0 and ADC1 work in combined inserted parallel + follow-up fast mode
+      \arg        ADC_DAUL_INSERTED_PARALLEL_REGULAL_FOLLOWUP_SLOW: ADC0 and ADC1 work in combined inserted parallel + follow-up slow mode
+      \arg        ADC_DAUL_INSERTED_PARALLEL: ADC0 and ADC1 work in inserted parallel mode only
+      \arg        ADC_DAUL_REGULAL_PARALLEL: ADC0 and ADC1 work in regular parallel mode only
+      \arg        ADC_DAUL_REGULAL_FOLLOWUP_FAST: ADC0 and ADC1 work in follow-up fast mode only
+      \arg        ADC_DAUL_REGULAL_FOLLOWUP_SLOW: ADC0 and ADC1 work in follow-up slow mode only
+      \arg        ADC_DAUL_INSERTED_TRIGGER_ROTATION: ADC0 and ADC1 work in trigger rotation mode only
+    \param[out] none
+    \retval     none
+*/
+void adc_mode_config(uint32_t mode)
+{
+    ADC_CTL0(ADC0) &= ~(ADC_CTL0_SYNCM);
+    ADC_CTL0(ADC0) |= mode;
+}
+
+/*!
+    \brief      enable or disable ADC special function
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  function: the function to config
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_SCAN_MODE: scan mode select
+      \arg        ADC_INSERTED_CHANNEL_AUTO: inserted channel group convert automatically
+      \arg        ADC_CONTINUOUS_MODE: continuous mode select
+    \param[in]  newvalue: ENABLE or DISABLE
+    \param[out] none
+    \retval     none
+*/
+void adc_special_function_config(uint32_t adc_periph, uint32_t function, ControlStatus newvalue)
+{
+    if(newvalue){
+        if(0U != (function & ADC_SCAN_MODE)){
+            /* enable scan mode */
+            ADC_CTL0(adc_periph) |= ADC_SCAN_MODE;
+        }
+        if(0U != (function & ADC_INSERTED_CHANNEL_AUTO)){
+            /* enable inserted channel group convert automatically */
+            ADC_CTL0(adc_periph) |= ADC_INSERTED_CHANNEL_AUTO;
+        }
+        if(0U != (function & ADC_CONTINUOUS_MODE)){
+            /* enable continuous mode */
+            ADC_CTL1(adc_periph) |= ADC_CONTINUOUS_MODE;
+        }
+    }else{
+        if(0U != (function & ADC_SCAN_MODE)){
+            /* disable scan mode */
+            ADC_CTL0(adc_periph) &= ~ADC_SCAN_MODE;
+        }
+        if(0U != (function & ADC_INSERTED_CHANNEL_AUTO)){
+            /* disable inserted channel group convert automatically */
+            ADC_CTL0(adc_periph) &= ~ADC_INSERTED_CHANNEL_AUTO;
+        }
+        if(0U != (function & ADC_CONTINUOUS_MODE)){
+            /* disable continuous mode */
+            ADC_CTL1(adc_periph) &= ~ADC_CONTINUOUS_MODE;
+        }
+    }
+}
+
+/*!
+    \brief      configure ADC data alignment
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  data_alignment: data alignment select
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_DATAALIGN_RIGHT: LSB alignment
+      \arg        ADC_DATAALIGN_LEFT: MSB alignment
+    \param[out] none
+    \retval     none
+*/
+void adc_data_alignment_config(uint32_t adc_periph, uint32_t data_alignment)
+{
+    if(ADC_DATAALIGN_RIGHT != data_alignment){
+        /* MSB alignment */
+        ADC_CTL1(adc_periph) |= ADC_CTL1_DAL;
+    }else{
+        /* LSB alignment */
+        ADC_CTL1(adc_periph) &= ~((uint32_t)ADC_CTL1_DAL);
+    }
+}
+
+/*!
+    \brief      enable ADC interface
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[out] none
+    \retval     none
+*/
+void adc_enable(uint32_t adc_periph)
+{
+    if(RESET == (ADC_CTL1(adc_periph) & ADC_CTL1_ADCON)){
+        /* enable ADC */
+        ADC_CTL1(adc_periph) |= (uint32_t)ADC_CTL1_ADCON;
+    }
+}
+
+/*!
+    \brief      disable ADC interface
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[out] none
+    \retval     none
+*/
+void adc_disable(uint32_t adc_periph)
+{
+    /* disable ADC */
+    ADC_CTL1(adc_periph) &= ~((uint32_t)ADC_CTL1_ADCON);
+}
+
+/*!
+    \brief      ADC calibration and reset calibration
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[out] none
+    \retval     none
+*/
+void adc_calibration_enable(uint32_t adc_periph)
+{
+    /* reset the selected ADC1 calibration registers */
+    ADC_CTL1(adc_periph) |= (uint32_t) ADC_CTL1_RSTCLB;
+    /* check the RSTCLB bit state */
+    while(RESET != (ADC_CTL1(adc_periph) & ADC_CTL1_RSTCLB)){
+    }
+    /* enable ADC calibration process */
+    ADC_CTL1(adc_periph) |= ADC_CTL1_CLB;
+    /* check the CLB bit state */
+    while(RESET != (ADC_CTL1(adc_periph) & ADC_CTL1_CLB)){
+    }
+}
+
+/*!
+    \brief      enable the temperature sensor and Vrefint channel
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void adc_tempsensor_vrefint_enable(void)
+{
+    /* enable the temperature sensor and Vrefint channel */
+    ADC_CTL1(ADC0) |= ADC_CTL1_TSVREN;
+}
+
+/*!
+    \brief      disable the temperature sensor and Vrefint channel
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void adc_tempsensor_vrefint_disable(void)
+{
+    /* disable the temperature sensor and Vrefint channel */
+    ADC_CTL1(ADC0) &= ~ADC_CTL1_TSVREN;
+}
+
+/*!
+    \brief      enable DMA request
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[out] none
+    \retval     none
+*/
+void adc_dma_mode_enable(uint32_t adc_periph)
+{
+    /* enable DMA request */
+    ADC_CTL1(adc_periph) |= (uint32_t)(ADC_CTL1_DMA);
+}
+
+/*!
+    \brief      disable DMA request
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[out] none
+    \retval     none
+*/
+void adc_dma_mode_disable(uint32_t adc_periph)
+{
+    /* disable DMA request */
+    ADC_CTL1(adc_periph) &= ~((uint32_t)ADC_CTL1_DMA);
+}
+
+/*!
+    \brief      configure ADC discontinuous mode
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  adc_channel_group: select the channel group
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_REGULAR_CHANNEL: regular channel group
+      \arg        ADC_INSERTED_CHANNEL: inserted channel group
+      \arg        ADC_CHANNEL_DISCON_DISABLE: disable discontinuous mode of regular & inserted channel
+    \param[in]  length: number of conversions in discontinuous mode,the number can be 1..8
+                        for regular channel, the number has no effect for inserted channel
+    \param[out] none
+    \retval     none
+*/
+void adc_discontinuous_mode_config(uint32_t adc_periph, uint8_t adc_channel_group, uint8_t length)
+{
+    /* disable discontinuous mode of regular & inserted channel */
+    ADC_CTL0(adc_periph) &= ~((uint32_t)(ADC_CTL0_DISRC | ADC_CTL0_DISIC));
+    switch(adc_channel_group){
+    case ADC_REGULAR_CHANNEL:
+        /* config the number of conversions in discontinuous mode */
+        ADC_CTL0(adc_periph) &= ~((uint32_t)ADC_CTL0_DISNUM);
+        ADC_CTL0(adc_periph) |= CTL0_DISNUM(((uint32_t)length - ADC_CHANNEL_LENGTH_SUBTRACT_ONE));
+        /* enable regular channel group discontinuous mode */
+        ADC_CTL0(adc_periph) |= (uint32_t)ADC_CTL0_DISRC;
+        break;
+    case ADC_INSERTED_CHANNEL:
+        /* enable inserted channel group discontinuous mode */
+        ADC_CTL0(adc_periph) |= (uint32_t)ADC_CTL0_DISIC;
+        break;
+    case ADC_CHANNEL_DISCON_DISABLE:
+        /* disable discontinuous mode of regular & inserted channel */
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      configure the length of regular channel group or inserted channel group
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  adc_channel_group: select the channel group
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_REGULAR_CHANNEL: regular channel group
+      \arg        ADC_INSERTED_CHANNEL: inserted channel group
+    \param[in]  length: the length of the channel
+                        regular channel 1-16
+                        inserted channel 1-4
+    \param[out] none
+    \retval     none
+*/
+void adc_channel_length_config(uint32_t adc_periph, uint8_t adc_channel_group, uint32_t length)
+{
+    switch(adc_channel_group){
+    case ADC_REGULAR_CHANNEL:
+        /* configure the length of regular channel group */
+        ADC_RSQ0(adc_periph) &= ~((uint32_t)ADC_RSQ0_RL);
+        ADC_RSQ0(adc_periph) |= RSQ0_RL((uint32_t)(length-ADC_CHANNEL_LENGTH_SUBTRACT_ONE));
+        break;
+    case ADC_INSERTED_CHANNEL:
+        /* configure the length of inserted channel group */
+        ADC_ISQ(adc_periph) &= ~((uint32_t)ADC_ISQ_IL);
+        ADC_ISQ(adc_periph) |= ISQ_IL((uint32_t)(length-ADC_CHANNEL_LENGTH_SUBTRACT_ONE));
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      configure ADC regular channel
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  rank: the regular group sequence rank,this parameter must be between 0 to 15
+    \param[in]  adc_channel: the selected ADC channel
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_CHANNEL_x(x=0..17)(x=16 and x=17 are only for ADC0): ADC Channelx
+    \param[in]  sample_time: the sample time value
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_SAMPLETIME_1POINT5: 1.5 cycles
+      \arg        ADC_SAMPLETIME_7POINT5: 7.5 cycles
+      \arg        ADC_SAMPLETIME_13POINT5: 13.5 cycles
+      \arg        ADC_SAMPLETIME_28POINT5: 28.5 cycles
+      \arg        ADC_SAMPLETIME_41POINT5: 41.5 cycles
+      \arg        ADC_SAMPLETIME_55POINT5: 55.5 cycles
+      \arg        ADC_SAMPLETIME_71POINT5: 71.5 cycles
+      \arg        ADC_SAMPLETIME_239POINT5: 239.5 cycles
+    \param[out] none
+    \retval     none
+*/
+void adc_regular_channel_config(uint32_t adc_periph, uint8_t rank, uint8_t adc_channel, uint32_t sample_time)
+{
+    uint32_t rsq,sampt;
+
+    /* ADC regular sequence config */
+    if(rank < ADC_REGULAR_CHANNEL_RANK_SIX){
+        /* the regular group sequence rank is smaller than six */
+        rsq = ADC_RSQ2(adc_periph);
+        rsq &=  ~((uint32_t)(ADC_RSQX_RSQN << (ADC_REGULAR_CHANNEL_RANK_LENGTH*rank)));
+        /* the channel number is written to these bits to select a channel as the nth conversion in the regular channel group */
+        rsq |= ((uint32_t)adc_channel << (ADC_REGULAR_CHANNEL_RANK_LENGTH*rank));
+        ADC_RSQ2(adc_periph) = rsq;
+    }else if(rank < ADC_REGULAR_CHANNEL_RANK_TWELVE){
+        /* the regular group sequence rank is smaller than twelve */
+        rsq = ADC_RSQ1(adc_periph);
+        rsq &= ~((uint32_t)(ADC_RSQX_RSQN << (ADC_REGULAR_CHANNEL_RANK_LENGTH*(rank-ADC_REGULAR_CHANNEL_RANK_SIX))));
+        /* the channel number is written to these bits to select a channel as the nth conversion in the regular channel group */
+        rsq |= ((uint32_t)adc_channel << (ADC_REGULAR_CHANNEL_RANK_LENGTH*(rank-ADC_REGULAR_CHANNEL_RANK_SIX)));
+        ADC_RSQ1(adc_periph) = rsq;
+    }else if(rank < ADC_REGULAR_CHANNEL_RANK_SIXTEEN){
+        /* the regular group sequence rank is smaller than sixteen */
+        rsq = ADC_RSQ0(adc_periph);
+        rsq &= ~((uint32_t)(ADC_RSQX_RSQN << (ADC_REGULAR_CHANNEL_RANK_LENGTH*(rank-ADC_REGULAR_CHANNEL_RANK_TWELVE))));
+        /* the channel number is written to these bits to select a channel as the nth conversion in the regular channel group */
+        rsq |= ((uint32_t)adc_channel << (ADC_REGULAR_CHANNEL_RANK_LENGTH*(rank-ADC_REGULAR_CHANNEL_RANK_TWELVE)));
+        ADC_RSQ0(adc_periph) = rsq;
+    }else{
+    }
+
+    /* ADC sampling time config */
+    if(adc_channel < ADC_CHANNEL_SAMPLE_TEN){
+        /* the regular group sequence rank is smaller than ten */
+        sampt = ADC_SAMPT1(adc_periph);
+        sampt &= ~((uint32_t)(ADC_SAMPTX_SPTN << (ADC_CHANNEL_SAMPLE_LENGTH*adc_channel)));
+        /* channel sample time set*/
+        sampt |= (uint32_t)(sample_time << (ADC_CHANNEL_SAMPLE_LENGTH*adc_channel));
+        ADC_SAMPT1(adc_periph) = sampt;
+    }else if(adc_channel < ADC_CHANNEL_SAMPLE_EIGHTEEN){
+        /* the regular group sequence rank is smaller than eighteen */
+        sampt = ADC_SAMPT0(adc_periph);
+        sampt &= ~((uint32_t)(ADC_SAMPTX_SPTN << (ADC_CHANNEL_SAMPLE_LENGTH*(adc_channel-ADC_CHANNEL_SAMPLE_TEN))));
+        /* channel sample time set*/
+        sampt |= (uint32_t)(sample_time << (ADC_CHANNEL_SAMPLE_LENGTH*(adc_channel-ADC_CHANNEL_SAMPLE_TEN)));
+        ADC_SAMPT0(adc_periph) = sampt;
+    }else{
+    }
+}
+
+/*!
+    \brief      configure ADC inserted channel
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  rank: the inserted group sequencer rank,this parameter must be between 0 to 3
+    \param[in]  adc_channel: the selected ADC channel
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_CHANNEL_x(x=0..17)(x=16 and x=17 are only for ADC0): ADC Channelx
+    \param[in]  sample_time: The sample time value
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_SAMPLETIME_1POINT5: 1.5 cycles
+      \arg        ADC_SAMPLETIME_7POINT5: 7.5 cycles
+      \arg        ADC_SAMPLETIME_13POINT5: 13.5 cycles
+      \arg        ADC_SAMPLETIME_28POINT5: 28.5 cycles
+      \arg        ADC_SAMPLETIME_41POINT5: 41.5 cycles
+      \arg        ADC_SAMPLETIME_55POINT5: 55.5 cycles
+      \arg        ADC_SAMPLETIME_71POINT5: 71.5 cycles
+      \arg        ADC_SAMPLETIME_239POINT5: 239.5 cycles
+    \param[out] none
+    \retval     none
+*/
+void adc_inserted_channel_config(uint32_t adc_periph, uint8_t rank, uint8_t adc_channel, uint32_t sample_time)
+{
+    uint8_t inserted_length;
+    uint32_t isq,sampt;
+    /* get inserted channel group length */
+    inserted_length = (uint8_t)GET_BITS(ADC_ISQ(adc_periph) , 20U , 21U);
+    /* the channel number is written to these bits to select a channel as the nth conversion in the inserted channel group */
+    isq = ADC_ISQ(adc_periph);
+    isq &= ~((uint32_t)(ADC_ISQ_ISQN << (ADC_INSERTED_CHANNEL_SHIFT_LENGTH-(inserted_length-rank)*ADC_INSERTED_CHANNEL_RANK_LENGTH)));
+    isq |= ((uint32_t)adc_channel << (ADC_INSERTED_CHANNEL_SHIFT_LENGTH-(inserted_length-rank)*ADC_INSERTED_CHANNEL_RANK_LENGTH));
+    ADC_ISQ(adc_periph) = isq;
+
+    /* ADC sampling time config */
+    if(adc_channel < ADC_CHANNEL_SAMPLE_TEN){
+        /* the inserted group sequence rank is smaller than ten */
+        sampt = ADC_SAMPT1(adc_periph);
+        sampt &= ~((uint32_t)(ADC_SAMPTX_SPTN << (ADC_CHANNEL_SAMPLE_LENGTH*adc_channel)));
+        /* channel sample time set*/
+        sampt |= (uint32_t) sample_time << (ADC_CHANNEL_SAMPLE_LENGTH*adc_channel);
+        ADC_SAMPT1(adc_periph) = sampt;
+    }else if(adc_channel < ADC_CHANNEL_SAMPLE_EIGHTEEN){
+        /* the inserted group sequence rank is smaller than eighteen */
+        sampt = ADC_SAMPT0(adc_periph);
+        sampt &= ~((uint32_t)(ADC_SAMPTX_SPTN << (ADC_CHANNEL_SAMPLE_LENGTH*(adc_channel-ADC_CHANNEL_SAMPLE_TEN))));
+        /* channel sample time set*/
+        sampt |= ((uint32_t)sample_time << (ADC_CHANNEL_SAMPLE_LENGTH*(adc_channel-ADC_CHANNEL_SAMPLE_TEN)));
+        ADC_SAMPT0(adc_periph) = sampt;
+    }else{
+    }
+}
+
+/*!
+    \brief      configure ADC inserted channel offset
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  inserted_channel: insert channel select
+                only one parameter can be selected
+      \arg        ADC_INSERTED_CHANNEL_0: inserted channel0
+      \arg        ADC_INSERTED_CHANNEL_1: inserted channel1
+      \arg        ADC_INSERTED_CHANNEL_2: inserted channel2
+      \arg        ADC_INSERTED_CHANNEL_3: inserted channel3
+    \param[in]  offset: the offset data
+    \param[out] none
+    \retval     none
+*/
+void adc_inserted_channel_offset_config(uint32_t adc_periph, uint8_t inserted_channel, uint16_t offset)
+{
+    uint8_t inserted_length;
+    uint32_t num = 0U;
+
+    inserted_length = (uint8_t)GET_BITS(ADC_ISQ(adc_periph) , 20U , 21U);
+    num = ((uint32_t)ADC_OFFSET_LENGTH - ((uint32_t)inserted_length - (uint32_t)inserted_channel));
+
+    if(num <= ADC_OFFSET_LENGTH){
+        /* calculate the offset of the register */
+        num = num * ADC_OFFSET_SHIFT_LENGTH;
+        /* config the offset of the selected channels */
+        REG32((adc_periph) + 0x14U + num) = IOFFX_IOFF((uint32_t)offset);
+    }
+}
+
+/*!
+    \brief      configure ADC external trigger source
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  adc_channel_group: select the channel group
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_REGULAR_CHANNEL: regular channel group
+      \arg        ADC_INSERTED_CHANNEL: inserted channel group
+    \param[in]  external_trigger_source: regular or inserted group trigger source
+                only one parameter can be selected
+                for regular channel:
+      \arg        ADC0_1_EXTTRIG_REGULAR_T0_CH0: TIMER0 CH0 event select
+      \arg        ADC0_1_EXTTRIG_REGULAR_T0_CH1: TIMER0 CH1 event select
+      \arg        ADC0_1_EXTTRIG_REGULAR_T0_CH2: TIMER0 CH2 event select
+      \arg        ADC0_1_EXTTRIG_REGULAR_T1_CH1: TIMER1 CH1 event select
+      \arg        ADC0_1_EXTTRIG_REGULAR_T2_TRGO: TIMER2 TRGO event select
+      \arg        ADC0_1_EXTTRIG_REGULAR_T3_CH3: TIMER3 CH3 event select
+      \arg        ADC0_1_EXTTRIG_REGULAR_EXTI_11: external interrupt line 11
+      \arg        ADC0_1_EXTTRIG_REGULAR_NONE: software trigger
+                for inserted channel:
+      \arg        ADC0_1_EXTTRIG_INSERTED_T0_TRGO: TIMER0 TRGO event select
+      \arg        ADC0_1_EXTTRIG_INSERTED_T0_CH3: TIMER0 CH3 event select
+      \arg        ADC0_1_EXTTRIG_INSERTED_T1_TRGO: TIMER1 TRGO event select
+      \arg        ADC0_1_EXTTRIG_INSERTED_T1_CH0: TIMER1 CH0 event select
+      \arg        ADC0_1_EXTTRIG_INSERTED_T2_CH3: TIMER2 CH3 event select
+      \arg        ADC0_1_EXTTRIG_INSERTED_T3_TRGO: TIMER3 TRGO event select
+      \arg        ADC0_1_EXTTRIG_INSERTED_EXTI_15: external interrupt line 15
+      \arg        ADC0_1_EXTTRIG_INSERTED_NONE: software trigger
+    \param[out] none
+    \retval     none
+*/
+void adc_external_trigger_source_config(uint32_t adc_periph, uint8_t adc_channel_group, uint32_t external_trigger_source)
+{
+    switch(adc_channel_group){
+    case ADC_REGULAR_CHANNEL:
+        /* configure ADC regular group external trigger source */
+        ADC_CTL1(adc_periph) &= ~((uint32_t)ADC_CTL1_ETSRC);
+        ADC_CTL1(adc_periph) |= (uint32_t)external_trigger_source;
+        break;
+    case ADC_INSERTED_CHANNEL:
+        /* configure ADC inserted group external trigger source */
+        ADC_CTL1(adc_periph) &= ~((uint32_t)ADC_CTL1_ETSIC);
+        ADC_CTL1(adc_periph) |= (uint32_t)external_trigger_source;
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      configure ADC external trigger
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  adc_channel_group: select the channel group
+                one or more parameters can be selected which are shown as below:
+      \arg        ADC_REGULAR_CHANNEL: regular channel group
+      \arg        ADC_INSERTED_CHANNEL: inserted channel group
+    \param[in]  newvalue: ENABLE or DISABLE
+    \param[out] none
+    \retval     none
+*/
+void adc_external_trigger_config(uint32_t adc_periph, uint8_t adc_channel_group, ControlStatus newvalue)
+{
+    if(newvalue){
+        if(0U != (adc_channel_group & ADC_REGULAR_CHANNEL)){
+            /* enable ADC regular channel group external trigger */
+            ADC_CTL1(adc_periph) |= ADC_CTL1_ETERC;
+        }
+        if(0U != (adc_channel_group & ADC_INSERTED_CHANNEL)){
+            /* enable ADC inserted channel group external trigger */
+            ADC_CTL1(adc_periph) |= ADC_CTL1_ETEIC;
+        }
+    }else{
+        if(0U != (adc_channel_group & ADC_REGULAR_CHANNEL)){
+            /* disable ADC regular channel group external trigger */
+            ADC_CTL1(adc_periph) &= ~ADC_CTL1_ETERC;
+        }
+        if(0U != (adc_channel_group & ADC_INSERTED_CHANNEL)){
+            /* disable ADC regular channel group external trigger */
+            ADC_CTL1(adc_periph) &= ~ADC_CTL1_ETEIC;
+        }
+    }
+}
+
+/*!
+    \brief      enable ADC software trigger
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  adc_channel_group: select the channel group
+                one or more parameters can be selected which are shown as below:
+      \arg        ADC_REGULAR_CHANNEL: regular channel group
+      \arg        ADC_INSERTED_CHANNEL: inserted channel group
+    \param[out] none
+    \retval     none
+*/
+void adc_software_trigger_enable(uint32_t adc_periph, uint8_t adc_channel_group)
+{
+    if(0U != (adc_channel_group & ADC_REGULAR_CHANNEL)){
+        /* enable ADC regular channel group software trigger */
+        ADC_CTL1(adc_periph) |= ADC_CTL1_SWRCST;
+    }
+    if(0U != (adc_channel_group & ADC_INSERTED_CHANNEL)){
+        /* enable ADC inserted channel group software trigger */
+        ADC_CTL1(adc_periph) |= ADC_CTL1_SWICST;
+    }
+}
+
+/*!
+    \brief      read ADC regular group data register
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  none
+    \param[out] none
+    \retval     the conversion value
+*/
+uint16_t adc_regular_data_read(uint32_t adc_periph)
+{
+    return (uint16_t)(ADC_RDATA(adc_periph));
+}
+
+/*!
+    \brief      read ADC inserted group data register
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  inserted_channel: insert channel select
+                only one parameter can be selected
+      \arg        ADC_INSERTED_CHANNEL_0: inserted Channel0
+      \arg        ADC_INSERTED_CHANNEL_1: inserted channel1
+      \arg        ADC_INSERTED_CHANNEL_2: inserted Channel2
+      \arg        ADC_INSERTED_CHANNEL_3: inserted Channel3
+    \param[out] none
+    \retval     the conversion value
+*/
+uint16_t adc_inserted_data_read(uint32_t adc_periph, uint8_t inserted_channel)
+{
+    uint32_t idata;
+    /* read the data of the selected channel */
+    switch(inserted_channel){
+    case ADC_INSERTED_CHANNEL_0:
+        /* read the data of channel 0 */
+        idata = ADC_IDATA0(adc_periph);
+        break;
+    case ADC_INSERTED_CHANNEL_1:
+        /* read the data of channel 1 */
+        idata = ADC_IDATA1(adc_periph);
+        break;
+    case ADC_INSERTED_CHANNEL_2:
+        /* read the data of channel 2 */
+        idata = ADC_IDATA2(adc_periph);
+        break;
+    case ADC_INSERTED_CHANNEL_3:
+        /* read the data of channel 3 */
+        idata = ADC_IDATA3(adc_periph);
+        break;
+    default:
+        idata = 0U;
+        break;
+    }
+    return (uint16_t)idata;
+}
+
+/*!
+    \brief      read the last ADC0 and ADC1 conversion result data in sync mode
+    \param[in]  none
+    \param[out] none
+    \retval     the conversion value
+*/
+uint32_t adc_sync_mode_convert_value_read(void)
+{
+    /* return conversion value */
+    return ADC_RDATA(ADC0);
+}
+
+
+/*!
+    \brief      configure ADC analog watchdog single channel
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  adc_channel: the selected ADC channel
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_CHANNEL_x: ADC Channelx(x=0..17)(x=16 and x=17 are only for ADC0)
+    \param[out] none
+    \retval     none
+*/
+void adc_watchdog_single_channel_enable(uint32_t adc_periph, uint8_t adc_channel)
+{
+    ADC_CTL0(adc_periph) &= (uint32_t)~(ADC_CTL0_RWDEN | ADC_CTL0_IWDEN | ADC_CTL0_WDSC | ADC_CTL0_WDCHSEL);
+    /* analog watchdog channel select */
+    ADC_CTL0(adc_periph) |= (uint32_t)adc_channel;
+    ADC_CTL0(adc_periph) |= (uint32_t)(ADC_CTL0_RWDEN | ADC_CTL0_IWDEN | ADC_CTL0_WDSC);
+}
+
+/*!
+    \brief      configure ADC analog watchdog group channel
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  adc_channel_group: the channel group use analog watchdog
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_REGULAR_CHANNEL: regular channel group
+      \arg        ADC_INSERTED_CHANNEL: inserted channel group
+      \arg        ADC_REGULAR_INSERTED_CHANNEL: both regular and inserted group
+    \param[out] none
+    \retval     none
+*/
+void adc_watchdog_group_channel_enable(uint32_t adc_periph, uint8_t adc_channel_group)
+{
+    ADC_CTL0(adc_periph) &= (uint32_t)~(ADC_CTL0_RWDEN | ADC_CTL0_IWDEN | ADC_CTL0_WDSC);
+    /* select the group */
+    switch(adc_channel_group){
+    case ADC_REGULAR_CHANNEL:
+        /* regular channel analog watchdog enable */
+        ADC_CTL0(adc_periph) |= (uint32_t) ADC_CTL0_RWDEN;
+        break;
+    case ADC_INSERTED_CHANNEL:
+        /* inserted channel analog watchdog enable */
+        ADC_CTL0(adc_periph) |= (uint32_t) ADC_CTL0_IWDEN;
+        break;
+    case ADC_REGULAR_INSERTED_CHANNEL:
+        /* regular and inserted channel analog watchdog enable */
+        ADC_CTL0(adc_periph) |= (uint32_t)(ADC_CTL0_RWDEN | ADC_CTL0_IWDEN);
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      disable ADC analog watchdog
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[out] none
+    \retval     none
+*/
+void adc_watchdog_disable(uint32_t adc_periph)
+{
+    ADC_CTL0(adc_periph) &= (uint32_t)~(ADC_CTL0_RWDEN | ADC_CTL0_IWDEN | ADC_CTL0_WDSC | ADC_CTL0_WDCHSEL);
+}
+
+/*!
+    \brief      configure ADC analog watchdog threshold
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  low_threshold: analog watchdog low threshold, 0..4095
+    \param[in]  high_threshold: analog watchdog high threshold, 0..4095
+    \param[out] none
+    \retval     none
+*/
+void adc_watchdog_threshold_config(uint32_t adc_periph, uint16_t low_threshold, uint16_t high_threshold)
+{
+    ADC_WDLT(adc_periph) = (uint32_t)WDLT_WDLT(low_threshold);
+    ADC_WDHT(adc_periph) = (uint32_t)WDHT_WDHT(high_threshold);
+}
+
+/*!
+    \brief      get the ADC flag bits
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  adc_flag: the adc flag bits
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_FLAG_WDE: analog watchdog event flag
+      \arg        ADC_FLAG_EOC: end of group conversion flag
+      \arg        ADC_FLAG_EOIC: end of inserted group conversion flag
+      \arg        ADC_FLAG_STIC: start flag of inserted channel group
+      \arg        ADC_FLAG_STRC: start flag of regular channel group
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus adc_flag_get(uint32_t adc_periph, uint32_t adc_flag)
+{
+    FlagStatus reval = RESET;
+    if(ADC_STAT(adc_periph) & adc_flag){
+        reval = SET;
+    }
+    return reval;
+}
+
+/*!
+    \brief      clear the ADC flag bits
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  adc_flag: the adc flag bits
+                one or more parameters can be selected which are shown as below:
+      \arg        ADC_FLAG_WDE: analog watchdog event flag
+      \arg        ADC_FLAG_EOC: end of group conversion flag
+      \arg        ADC_FLAG_EOIC: end of inserted group conversion flag
+      \arg        ADC_FLAG_STIC: start flag of inserted channel group
+      \arg        ADC_FLAG_STRC: start flag of regular channel group
+    \param[out] none
+    \retval     none
+*/
+void adc_flag_clear(uint32_t adc_periph, uint32_t adc_flag)
+{
+    ADC_STAT(adc_periph) &= ~((uint32_t)adc_flag);
+}
+
+/*!
+    \brief      get the bit state of ADCx software start conversion
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  none
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus adc_regular_software_startconv_flag_get(uint32_t adc_periph)
+{
+    FlagStatus reval = RESET;
+    if((uint32_t)RESET != (ADC_CTL1(adc_periph) & ADC_CTL1_SWRCST)){
+        reval = SET;
+    }
+    return reval;
+}
+
+/*!
+    \brief      get the bit state of ADCx software inserted channel start conversion
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  none
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus adc_inserted_software_startconv_flag_get(uint32_t adc_periph)
+{
+    FlagStatus reval = RESET;
+    if((uint32_t)RESET != (ADC_CTL1(adc_periph) & ADC_CTL1_SWICST)){
+        reval = SET;
+    }
+    return reval;
+}
+
+/*!
+    \brief      get the ADC interrupt bits
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  adc_interrupt: the adc interrupt bits
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_INT_FLAG_WDE: analog watchdog interrupt
+      \arg        ADC_INT_FLAG_EOC: end of group conversion interrupt
+      \arg        ADC_INT_FLAG_EOIC: end of inserted group conversion interrupt
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus adc_interrupt_flag_get(uint32_t adc_periph, uint32_t adc_interrupt)
+{
+    FlagStatus interrupt_flag = RESET;
+    uint32_t state;
+    /* check the interrupt bits */
+    switch(adc_interrupt){
+    case ADC_INT_FLAG_WDE:
+        /* get the ADC analog watchdog interrupt bits */
+        state = ADC_STAT(adc_periph) & ADC_STAT_WDE;
+        if((ADC_CTL0(adc_periph) & ADC_CTL0_WDEIE) && state){
+          interrupt_flag = SET;
+        }
+        break;
+    case ADC_INT_FLAG_EOC:
+        /* get the ADC end of group conversion interrupt bits */
+        state = ADC_STAT(adc_periph) & ADC_STAT_EOC;
+          if((ADC_CTL0(adc_periph) & ADC_CTL0_EOCIE) && state){
+            interrupt_flag = SET;
+          }
+        break;
+    case ADC_INT_FLAG_EOIC:
+        /* get the ADC end of inserted group conversion interrupt bits */
+        state = ADC_STAT(adc_periph) & ADC_STAT_EOIC;
+        if((ADC_CTL0(adc_periph) & ADC_CTL0_EOICIE) && state){
+            interrupt_flag = SET;
+        }
+        break;
+    default:
+        break;
+    }
+    return interrupt_flag;
+}
+
+/*!
+    \brief      clear the ADC flag
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  adc_interrupt: the adc status flag
+                one or more parameters can be selected which are shown as below:
+      \arg        ADC_INT_FLAG_WDE: analog watchdog interrupt
+      \arg        ADC_INT_FLAG_EOC: end of group conversion interrupt
+      \arg        ADC_INT_FLAG_EOIC: end of inserted group conversion interrupt
+    \param[out] none
+    \retval     none
+*/
+void adc_interrupt_flag_clear(uint32_t adc_periph, uint32_t adc_interrupt)
+{
+    ADC_STAT(adc_periph) &= ~((uint32_t)adc_interrupt);
+}
+
+/*!
+    \brief      enable ADC interrupt
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  adc_interrupt: the adc interrupt
+                one or more parameters can be selected which are shown as below:
+      \arg        ADC_INT_WDE: analog watchdog interrupt flag
+      \arg        ADC_INT_EOC: end of group conversion interrupt flag
+      \arg        ADC_INT_EOIC: end of inserted group conversion interrupt flag
+    \param[out] none
+    \retval     none
+*/
+void adc_interrupt_enable(uint32_t adc_periph, uint32_t adc_interrupt)
+{
+    /* enable ADC analog watchdog interrupt */
+    if(0U != (adc_interrupt & ADC_INT_WDE)){
+        ADC_CTL0(adc_periph) |= (uint32_t) ADC_CTL0_WDEIE;
+    }
+    /* enable ADC end of group conversion interrupt */
+    if(0U != (adc_interrupt & ADC_INT_EOC)){
+        ADC_CTL0(adc_periph) |= (uint32_t) ADC_CTL0_EOCIE;
+    }
+    /* enable ADC end of inserted group conversion interrupt */
+    if(0U != (adc_interrupt & ADC_INT_EOIC)){
+        ADC_CTL0(adc_periph) |= (uint32_t) ADC_CTL0_EOICIE;
+    }
+}
+
+/*!
+    \brief      disable ADC interrupt
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  adc_interrupt: the adc interrupt flag
+                one or more parameters can be selected which are shown as below:
+      \arg        ADC_INT_WDE: analog watchdog interrupt flag
+      \arg        ADC_INT_EOC: end of group conversion interrupt flag
+      \arg        ADC_INT_EOIC: end of inserted group conversion interrupt flag
+    \param[out] none
+    \retval     none
+*/
+void adc_interrupt_disable(uint32_t adc_periph, uint32_t adc_interrupt)
+{
+    /* disable ADC analog watchdog interrupt */
+    if(0U != (adc_interrupt & ADC_INT_WDE)){
+        ADC_CTL0(adc_periph) &= ~(uint32_t) ADC_CTL0_WDEIE;
+    }
+    /* disable ADC end of group conversion interrupt */
+    if(0U != (adc_interrupt & ADC_INT_EOC)){
+        ADC_CTL0(adc_periph) &= ~(uint32_t) ADC_CTL0_EOCIE;
+    }
+    /* disable ADC end of inserted group conversion interrupt */
+    if(0U != (adc_interrupt & ADC_INT_EOIC)){
+        ADC_CTL0(adc_periph) &= ~(uint32_t) ADC_CTL0_EOICIE;
+    }
+}
+
+/*!
+    \brief      adc resolution config
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  resolution: ADC resolution
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_RESOLUTION_12B: 12-bit ADC resolution
+      \arg        ADC_RESOLUTION_10B: 10-bit ADC resolution
+      \arg        ADC_RESOLUTION_8B: 8-bit ADC resolution
+      \arg        ADC_RESOLUTION_6B: 6-bit ADC resolution
+    \param[out] none
+    \retval     none
+*/
+void adc_resolution_config(uint32_t adc_periph, uint32_t resolution)
+{
+    ADC_OVSCR(adc_periph) &= ~((uint32_t)ADC_OVSCR_DRES);
+    ADC_OVSCR(adc_periph) |= (uint32_t)resolution;
+}
+
+/*!
+    \brief      adc oversample mode config
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[in]  mode: ADC oversampling mode
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_OVERSAMPLING_ALL_CONVERT: all oversampled conversions for a channel
+                are done consecutively after a trigger
+      \arg        ADC_OVERSAMPLING_ONE_CONVERT: each oversampled conversion for a channel
+                needs a trigger
+    \param[in]  shift: ADC oversampling shift
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_OVERSAMPLING_SHIFT_NONE: no oversampling shift
+      \arg        ADC_OVERSAMPLING_SHIFT_1B: 1-bit oversampling shift
+      \arg        ADC_OVERSAMPLING_SHIFT_2B: 2-bit oversampling shift
+      \arg        ADC_OVERSAMPLING_SHIFT_3B: 3-bit oversampling shift
+      \arg        ADC_OVERSAMPLING_SHIFT_4B: 3-bit oversampling shift
+      \arg        ADC_OVERSAMPLING_SHIFT_5B: 5-bit oversampling shift
+      \arg        ADC_OVERSAMPLING_SHIFT_6B: 6-bit oversampling shift
+      \arg        ADC_OVERSAMPLING_SHIFT_7B: 7-bit oversampling shift
+      \arg        ADC_OVERSAMPLING_SHIFT_8B: 8-bit oversampling shift
+    \param[in]  ratio: ADC oversampling ratio
+                only one parameter can be selected which is shown as below:
+      \arg        ADC_OVERSAMPLING_RATIO_MUL2: oversampling ratio X2
+      \arg        ADC_OVERSAMPLING_RATIO_MUL4: oversampling ratio X4
+      \arg        ADC_OVERSAMPLING_RATIO_MUL8: oversampling ratio X8
+      \arg        ADC_OVERSAMPLING_RATIO_MUL16: oversampling ratio X16
+      \arg        ADC_OVERSAMPLING_RATIO_MUL32: oversampling ratio X32
+      \arg        ADC_OVERSAMPLING_RATIO_MUL64: oversampling ratio X64
+      \arg        ADC_OVERSAMPLING_RATIO_MUL128: oversampling ratio X128
+      \arg        ADC_OVERSAMPLING_RATIO_MUL256: oversampling ratio X256
+    \param[out] none
+    \retval     none
+*/
+void adc_oversample_mode_config(uint32_t adc_periph, uint8_t mode, uint16_t shift,uint8_t ratio)
+{
+    if(mode){
+        ADC_OVSCR(adc_periph) |= (uint32_t)ADC_OVSCR_TOVS;
+    }else{
+        ADC_OVSCR(adc_periph) &= ~((uint32_t)ADC_OVSCR_TOVS);
+    }
+    /* config the shift and ratio */
+    ADC_OVSCR(adc_periph) &= ~((uint32_t)(ADC_OVSCR_OVSR | ADC_OVSCR_OVSS));
+    ADC_OVSCR(adc_periph) |= ((uint32_t)shift | (uint32_t)ratio);
+}
+
+/*!
+    \brief      enable ADC oversample mode
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[out] none
+    \retval     none
+*/
+void adc_oversample_mode_enable(uint32_t adc_periph)
+{
+    ADC_OVSCR(adc_periph) |= ADC_OVSCR_OVSEN;
+}
+
+/*!
+    \brief      disable ADC oversample mode
+    \param[in]  adc_periph: ADCx, x=0,1
+    \param[out] none
+    \retval     none
+*/
+void adc_oversample_mode_disable(uint32_t adc_periph)
+{
+    ADC_OVSCR(adc_periph) &= ~((uint32_t)ADC_OVSCR_OVSEN);
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_bkp.c

@@ -0,0 +1,292 @@
+/*!
+    \file    gd32vf103_bkp.c
+    \brief   BKP driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_bkp.h"
+
+/* BKP register bits offset */
+#define BKP_TAMPER_BITS_OFFSET          ((uint32_t)8U)
+
+/*!
+    \brief      reset BKP registers
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void bkp_deinit(void)
+{
+    /* reset BKP domain register*/
+    rcu_bkp_reset_enable();
+    rcu_bkp_reset_disable();
+}
+
+/*!
+    \brief      write BKP data register
+    \param[in]  register_number: refer to bkp_data_register_enum
+                only one parameter can be selected which is shown as below:
+      \arg        BKP_DATA_x(x = 0..41): bkp data register number x
+    \param[in]  data: the data to be write in BKP data register
+    \param[out] none
+    \retval     none
+*/
+void bkp_data_write(bkp_data_register_enum register_number, uint16_t data)
+{
+    if((register_number >= BKP_DATA_10) && (register_number <= BKP_DATA_41)){
+        BKP_DATA10_41(register_number - 1U) = data;
+    }else if((register_number >= BKP_DATA_0) && (register_number <= BKP_DATA_9)){
+        BKP_DATA0_9(register_number - 1U) = data;
+    }else{
+        /* illegal parameters */
+    }
+}
+
+/*!
+    \brief      read BKP data register
+    \param[in]  register_number: refer to bkp_data_register_enum
+                only one parameter can be selected which is shown as below:
+      \arg        BKP_DATA_x(x = 0..41): bkp data register number x
+    \param[out] none
+    \retval     data of BKP data register
+*/
+uint16_t bkp_data_read(bkp_data_register_enum register_number)
+{
+    uint16_t data = 0U;
+
+    /* get the data from the BKP data register */
+    if((register_number >= BKP_DATA_10) && (register_number <= BKP_DATA_41)){
+        data = BKP_DATA10_41(register_number - 1U);
+    }else if((register_number >= BKP_DATA_0) && (register_number <= BKP_DATA_9)){
+        data = BKP_DATA0_9(register_number - 1U);
+    }else{
+        /* illegal parameters */
+    }
+    return data;
+}
+
+/*!
+    \brief      enable RTC clock calibration output
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void bkp_rtc_calibration_output_enable(void)
+{
+    BKP_OCTL |= (uint16_t)BKP_OCTL_COEN;
+}
+
+/*!
+    \brief      disable RTC clock calibration output
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void bkp_rtc_calibration_output_disable(void)
+{
+    BKP_OCTL &= (uint16_t)~BKP_OCTL_COEN;
+}
+
+/*!
+    \brief      enable RTC alarm or second signal output
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void bkp_rtc_signal_output_enable(void)
+{
+    BKP_OCTL |= (uint16_t)BKP_OCTL_ASOEN;
+}
+
+/*!
+    \brief      disable RTC alarm or second signal output
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void bkp_rtc_signal_output_disable(void)
+{
+    BKP_OCTL &= (uint16_t)~BKP_OCTL_ASOEN;
+}
+
+/*!
+    \brief      select RTC output
+    \param[in]  outputsel: RTC output selection
+                only one parameter can be selected which is shown as below:
+      \arg        RTC_OUTPUT_ALARM_PULSE: RTC alarm pulse is selected as the RTC output
+      \arg        RTC_OUTPUT_SECOND_PULSE: RTC second pulse is selected as the RTC output
+    \param[out] none
+    \retval     none
+*/
+void bkp_rtc_output_select(uint16_t outputsel)
+{
+    uint16_t ctl = 0U;
+
+    /* configure BKP_OCTL_ROSEL with outputsel */
+    ctl = BKP_OCTL;
+    ctl &= (uint16_t)~BKP_OCTL_ROSEL;
+    ctl |= outputsel;
+    BKP_OCTL = ctl;
+}
+
+/*!
+    \brief      set RTC clock calibration value
+    \param[in]  value: RTC clock calibration value
+      \arg        0x00 - 0x7F
+    \param[out] none
+    \retval     none
+*/
+void bkp_rtc_calibration_value_set(uint8_t value)
+{
+    uint16_t ctl;
+
+    /* configure BKP_OCTL_RCCV with value */
+    ctl = BKP_OCTL;
+    ctl &= (uint16_t)~BKP_OCTL_RCCV;
+    ctl |= (uint16_t)OCTL_RCCV(value);
+    BKP_OCTL = ctl;
+}
+
+/*!
+    \brief      enable tamper detection
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void bkp_tamper_detection_enable(void)
+{
+    BKP_TPCTL |= (uint16_t)BKP_TPCTL_TPEN;
+}
+
+/*!
+    \brief      disable tamper detection
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void bkp_tamper_detection_disable(void)
+{
+    BKP_TPCTL &= (uint16_t)~BKP_TPCTL_TPEN;
+}
+
+/*!
+    \brief      set tamper pin active level
+    \param[in]  level: tamper active level
+                only one parameter can be selected which is shown as below:
+      \arg        TAMPER_PIN_ACTIVE_HIGH: the tamper pin is active high
+      \arg        TAMPER_PIN_ACTIVE_LOW: the tamper pin is active low
+    \param[out] none
+    \retval     none
+*/
+void bkp_tamper_active_level_set(uint16_t level)
+{
+    uint16_t ctl = 0U;
+
+    /* configure BKP_TPCTL_TPAL with level */
+    ctl = BKP_TPCTL;
+    ctl &= (uint16_t)~BKP_TPCTL_TPAL;
+    ctl |= level;
+    BKP_TPCTL = ctl;
+}
+
+/*!
+    \brief      enable tamper interrupt
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void bkp_interrupt_enable(void)
+{
+    BKP_TPCS |= (uint16_t)BKP_TPCS_TPIE;
+}
+
+/*!
+    \brief      disable tamper interrupt
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void bkp_interrupt_disable(void)
+{
+    BKP_TPCS &= (uint16_t)~BKP_TPCS_TPIE;
+}
+
+/*!
+    \brief      get tamper flag state
+    \param[in]  none
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus bkp_flag_get(void)
+{
+    if(RESET != (BKP_TPCS & BKP_FLAG_TAMPER)){
+        return SET;
+    }else{
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear tamper flag state
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void bkp_flag_clear(void)
+{
+    BKP_TPCS |= (uint16_t)(BKP_FLAG_TAMPER >> BKP_TAMPER_BITS_OFFSET);
+}
+
+/*!
+    \brief      get tamper interrupt flag state
+    \param[in]  none
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus bkp_interrupt_flag_get(void)
+{
+    if(RESET != (BKP_TPCS & BKP_INT_FLAG_TAMPER)){
+        return SET;
+    }else{
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear tamper interrupt flag state
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void bkp_interrupt_flag_clear(void)
+{
+    BKP_TPCS |= (uint16_t)(BKP_INT_FLAG_TAMPER >> BKP_TAMPER_BITS_OFFSET);
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_can.c

@@ -0,0 +1,989 @@
+/*!
+    \file  gd32vf103_can.c
+    \brief CAN driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_can.h"
+
+#define CAN_ERROR_HANDLE(s)     do{}while(1)
+
+/*!
+    \brief      deinitialize CAN
+    \param[in]  can_periph
+    \arg        CANx(x=0,1)
+    \param[out] none
+    \retval     none
+*/
+void can_deinit(uint32_t can_periph)
+{
+    if(CAN0 == can_periph){
+        rcu_periph_reset_enable(RCU_CAN0RST);
+        rcu_periph_reset_disable(RCU_CAN0RST);
+    }else{
+        rcu_periph_reset_enable(RCU_CAN1RST);
+        rcu_periph_reset_disable(RCU_CAN1RST);
+    }
+}
+
+/*!
+    \brief      initialize CAN parameter struct with a default value
+    \param[in]  type: the type of CAN parameter struct
+                only one parameter can be selected which is shown as below:
+      \arg        CAN_INIT_STRUCT: the CAN initial struct
+      \arg        CAN_FILTER_STRUCT: the CAN filter struct
+      \arg        CAN_TX_MESSAGE_STRUCT: the CAN TX message struct
+      \arg        CAN_RX_MESSAGE_STRUCT: the CAN RX message struct
+    \param[in]  p_struct: the pointer of the specific struct
+    \param[out] none
+    \retval     none
+*/
+void can_struct_para_init(can_struct_type_enum type, void* p_struct)
+{
+    uint8_t i;
+
+    /* get type of the struct */
+    switch(type){
+        /* used for can_init() */
+        case CAN_INIT_STRUCT:
+            ((can_parameter_struct*)p_struct)->auto_bus_off_recovery = DISABLE;
+            ((can_parameter_struct*)p_struct)->auto_retrans = DISABLE;
+            ((can_parameter_struct*)p_struct)->auto_wake_up = DISABLE;
+            ((can_parameter_struct*)p_struct)->prescaler = 0x03FFU;
+            ((can_parameter_struct*)p_struct)->rec_fifo_overwrite = DISABLE;
+            ((can_parameter_struct*)p_struct)->resync_jump_width = CAN_BT_SJW_1TQ;
+            ((can_parameter_struct*)p_struct)->time_segment_1 = CAN_BT_BS1_3TQ;
+            ((can_parameter_struct*)p_struct)->time_segment_2 = CAN_BT_BS2_1TQ;
+            ((can_parameter_struct*)p_struct)->time_triggered = DISABLE;
+            ((can_parameter_struct*)p_struct)->trans_fifo_order = DISABLE;
+            ((can_parameter_struct*)p_struct)->working_mode = CAN_NORMAL_MODE;
+
+            break;
+        /* used for can_filter_init() */
+        case CAN_FILTER_STRUCT:
+            ((can_filter_parameter_struct*)p_struct)->filter_bits = CAN_FILTERBITS_32BIT;
+            ((can_filter_parameter_struct*)p_struct)->filter_enable = DISABLE;
+            ((can_filter_parameter_struct*)p_struct)->filter_fifo_number = CAN_FIFO0;
+            ((can_filter_parameter_struct*)p_struct)->filter_list_high = 0x0000U;
+            ((can_filter_parameter_struct*)p_struct)->filter_list_low = 0x0000U;
+            ((can_filter_parameter_struct*)p_struct)->filter_mask_high = 0x0000U;
+            ((can_filter_parameter_struct*)p_struct)->filter_mask_low = 0x0000U;
+            ((can_filter_parameter_struct*)p_struct)->filter_mode = CAN_FILTERMODE_MASK;
+            ((can_filter_parameter_struct*)p_struct)->filter_number = 0U;
+
+            break;
+        /* used for can_message_transmit() */
+        case CAN_TX_MESSAGE_STRUCT:
+            for(i = 0U; i < 8U; i++){
+                ((can_trasnmit_message_struct*)p_struct)->tx_data[i] = 0U;
+            }
+
+            ((can_trasnmit_message_struct*)p_struct)->tx_dlen = 0u;
+            ((can_trasnmit_message_struct*)p_struct)->tx_efid = 0U;
+            ((can_trasnmit_message_struct*)p_struct)->tx_ff = (uint8_t)CAN_FF_STANDARD;
+            ((can_trasnmit_message_struct*)p_struct)->tx_ft = (uint8_t)CAN_FT_DATA;
+            ((can_trasnmit_message_struct*)p_struct)->tx_sfid = 0U;
+
+            break;
+        /* used for can_message_receive() */
+        case CAN_RX_MESSAGE_STRUCT:
+            for(i = 0U; i < 8U; i++){
+                ((can_receive_message_struct*)p_struct)->rx_data[i] = 0U;
+            }
+
+            ((can_receive_message_struct*)p_struct)->rx_dlen = 0U;
+            ((can_receive_message_struct*)p_struct)->rx_efid = 0U;
+            ((can_receive_message_struct*)p_struct)->rx_ff = (uint8_t)CAN_FF_STANDARD;
+            ((can_receive_message_struct*)p_struct)->rx_fi = 0U;
+            ((can_receive_message_struct*)p_struct)->rx_ft = (uint8_t)CAN_FT_DATA;
+            ((can_receive_message_struct*)p_struct)->rx_sfid = 0U;
+
+            break;
+
+        default:
+            CAN_ERROR_HANDLE("parameter is invalid \r\n");
+    }
+}
+
+/*!
+    \brief      initialize CAN
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[in]  can_parameter_init: parameters for CAN initializtion
+      \arg        working_mode: CAN_NORMAL_MODE, CAN_LOOPBACK_MODE, CAN_SILENT_MODE, CAN_SILENT_LOOPBACK_MODE
+      \arg        resync_jump_width: CAN_BT_SJW_xTQ(x=1, 2, 3, 4)
+      \arg        time_segment_1: CAN_BT_BS1_xTQ(1..16)
+      \arg        time_segment_2: CAN_BT_BS2_xTQ(1..8)
+      \arg        time_triggered: ENABLE or DISABLE
+      \arg        auto_bus_off_recovery: ENABLE or DISABLE
+      \arg        auto_wake_up: ENABLE or DISABLE
+      \arg        auto_retrans: ENABLE or DISABLE
+      \arg        rec_fifo_overwrite: ENABLE or DISABLE
+      \arg        trans_fifo_order: ENABLE or DISABLE
+      \arg        prescaler: 0x0000 - 0x03FF
+    \param[out] none
+    \retval     ErrStatus: SUCCESS or ERROR
+*/
+ErrStatus can_init(uint32_t can_periph, can_parameter_struct* can_parameter_init)
+{
+    uint32_t timeout = CAN_TIMEOUT;
+    ErrStatus flag = ERROR;
+
+    /* disable sleep mode */
+    CAN_CTL(can_periph) &= ~CAN_CTL_SLPWMOD;
+    /* enable initialize mode */
+    CAN_CTL(can_periph) |= CAN_CTL_IWMOD;
+    /* wait ACK */
+    while((CAN_STAT_IWS != (CAN_STAT(can_periph) & CAN_STAT_IWS)) && (0U != timeout)){
+        timeout--;
+    }
+    /* check initialize working success */
+    if(CAN_STAT_IWS != (CAN_STAT(can_periph) & CAN_STAT_IWS)){
+        flag = ERROR;
+    }else{
+        /* set the bit timing register */
+        CAN_BT(can_periph) = (BT_MODE((uint32_t)can_parameter_init->working_mode) | \
+                              BT_SJW((uint32_t)can_parameter_init->resync_jump_width) | \
+                              BT_BS1((uint32_t)can_parameter_init->time_segment_1) | \
+                              BT_BS2((uint32_t)can_parameter_init->time_segment_2) | \
+                              BT_BAUDPSC(((uint32_t)(can_parameter_init->prescaler) - 1U)));
+
+        /* time trigger communication mode */
+        if(ENABLE == can_parameter_init->time_triggered){
+            CAN_CTL(can_periph) |= CAN_CTL_TTC;
+        }else{
+            CAN_CTL(can_periph) &= ~CAN_CTL_TTC;
+        }
+        /* automatic bus-off managment */
+        if(ENABLE == can_parameter_init->auto_bus_off_recovery){
+            CAN_CTL(can_periph) |= CAN_CTL_ABOR;
+        }else{
+            CAN_CTL(can_periph) &= ~CAN_CTL_ABOR;
+        }
+        /* automatic wakeup mode */
+        if(ENABLE == can_parameter_init->auto_wake_up){
+            CAN_CTL(can_periph) |= CAN_CTL_AWU;
+        }else{
+            CAN_CTL(can_periph) &= ~CAN_CTL_AWU;
+        }
+        /* automatic retransmission mode disable*/
+        if(ENABLE == can_parameter_init->auto_retrans){
+            CAN_CTL(can_periph) |= CAN_CTL_ARD;
+        }else{
+            CAN_CTL(can_periph) &= ~CAN_CTL_ARD;
+        }
+        /* receive fifo overwrite mode */
+        if(ENABLE == can_parameter_init->rec_fifo_overwrite){
+            CAN_CTL(can_periph) |= CAN_CTL_RFOD;
+        }else{
+            CAN_CTL(can_periph) &= ~CAN_CTL_RFOD;
+        }
+        /* transmit fifo order */
+        if(ENABLE == can_parameter_init->trans_fifo_order){
+            CAN_CTL(can_periph) |= CAN_CTL_TFO;
+        }else{
+            CAN_CTL(can_periph) &= ~CAN_CTL_TFO;
+        }
+        /* disable initialize mode */
+        CAN_CTL(can_periph) &= ~CAN_CTL_IWMOD;
+        timeout = CAN_TIMEOUT;
+        /* wait the ACK */
+        while((CAN_STAT_IWS == (CAN_STAT(can_periph) & CAN_STAT_IWS)) && (0U != timeout)){
+            timeout--;
+        }
+        /* check exit initialize mode */
+        if(0U != timeout){
+            flag = SUCCESS;
+        }
+    }
+    CAN_TMI0(can_periph) = 0x0;
+    CAN_TMI1(can_periph) = 0x0;
+    CAN_TMI2(can_periph) = 0x0;
+    CAN_TMP0(can_periph) = 0x0;
+    CAN_TMP1(can_periph) = 0x0;
+    CAN_TMP2(can_periph) = 0x0;
+    CAN_TMDATA00(can_periph) = 0x0;
+    CAN_TMDATA01(can_periph) = 0x0;
+    CAN_TMDATA02(can_periph) = 0x0;
+    CAN_TMDATA10(can_periph) = 0x0;
+    CAN_TMDATA11(can_periph) = 0x0;
+    CAN_TMDATA12(can_periph) = 0x0;
+
+    return flag;
+}
+
+/*!
+    \brief      initialize CAN filter
+    \param[in]  can_filter_parameter_init: struct for CAN filter initialization
+      \arg        filter_list_high: 0x0000 - 0xFFFF
+      \arg        filter_list_low: 0x0000 - 0xFFFF
+      \arg        filter_mask_high: 0x0000 - 0xFFFF
+      \arg        filter_mask_low: 0x0000 - 0xFFFF
+      \arg        filter_fifo_number: CAN_FIFO0, CAN_FIFO1
+      \arg        filter_number: 0 - 27
+      \arg        filter_mode: CAN_FILTERMODE_MASK, CAN_FILTERMODE_LIST
+      \arg        filter_bits: CAN_FILTERBITS_32BIT, CAN_FILTERBITS_16BIT
+      \arg        filter_enable: ENABLE or DISABLE
+    \param[out] none
+    \retval     none
+*/
+void can_filter_init(can_filter_parameter_struct* can_filter_parameter_init)
+{
+    uint32_t val = 0U;
+
+    val = ((uint32_t)1) << (can_filter_parameter_init->filter_number);
+    /* filter lock disable */
+    CAN_FCTL(CAN0) |= CAN_FCTL_FLD;
+    /* disable filter */
+    CAN_FW(CAN0) &= ~(uint32_t)val;
+
+    /* filter 16 bits */
+    if(CAN_FILTERBITS_16BIT == can_filter_parameter_init->filter_bits){
+        /* set filter 16 bits */
+        CAN_FSCFG(CAN0) &= ~(uint32_t)val;
+        /* first 16 bits list and first 16 bits mask or first 16 bits list and second 16 bits list */
+        CAN_FDATA0(CAN0, can_filter_parameter_init->filter_number) = \
+                                FDATA_MASK_HIGH((can_filter_parameter_init->filter_mask_low) & CAN_FILTER_MASK_16BITS) | \
+                                FDATA_MASK_LOW((can_filter_parameter_init->filter_list_low) & CAN_FILTER_MASK_16BITS);
+        /* second 16 bits list and second 16 bits mask or third 16 bits list and fourth 16 bits list */
+        CAN_FDATA1(CAN0, can_filter_parameter_init->filter_number) = \
+                                FDATA_MASK_HIGH((can_filter_parameter_init->filter_mask_high) & CAN_FILTER_MASK_16BITS) | \
+                                FDATA_MASK_LOW((can_filter_parameter_init->filter_list_high) & CAN_FILTER_MASK_16BITS);
+    }
+    /* filter 32 bits */
+    if(CAN_FILTERBITS_32BIT == can_filter_parameter_init->filter_bits){
+        /* set filter 32 bits */
+        CAN_FSCFG(CAN0) |= (uint32_t)val;
+        /* 32 bits list or first 32 bits list */
+        CAN_FDATA0(CAN0, can_filter_parameter_init->filter_number) = \
+                                FDATA_MASK_HIGH((can_filter_parameter_init->filter_list_high) & CAN_FILTER_MASK_16BITS) |
+                                FDATA_MASK_LOW((can_filter_parameter_init->filter_list_low) & CAN_FILTER_MASK_16BITS);
+        /* 32 bits mask or second 32 bits list */
+        CAN_FDATA1(CAN0, can_filter_parameter_init->filter_number) = \
+                                FDATA_MASK_HIGH((can_filter_parameter_init->filter_mask_high) & CAN_FILTER_MASK_16BITS) |
+                                FDATA_MASK_LOW((can_filter_parameter_init->filter_mask_low) & CAN_FILTER_MASK_16BITS);
+    }
+
+    /* filter mode */
+    if(CAN_FILTERMODE_MASK == can_filter_parameter_init->filter_mode){
+        /* mask mode */
+        CAN_FMCFG(CAN0) &= ~(uint32_t)val;
+    }else{
+        /* list mode */
+        CAN_FMCFG(CAN0) |= (uint32_t)val;
+    }
+
+    /* filter FIFO */
+    if(CAN_FIFO0 == (can_filter_parameter_init->filter_fifo_number)){
+        /* FIFO0 */
+        CAN_FAFIFO(CAN0) &= ~(uint32_t)val;
+    }else{
+        /* FIFO1 */
+        CAN_FAFIFO(CAN0) |= (uint32_t)val;
+    }
+
+    /* filter working */
+    if(ENABLE == can_filter_parameter_init->filter_enable){
+
+        CAN_FW(CAN0) |= (uint32_t)val;
+    }
+
+    /* filter lock enable */
+    CAN_FCTL(CAN0) &= ~CAN_FCTL_FLD;
+}
+
+/*!
+    \brief      set CAN1 fliter start bank number
+    \param[in]  start_bank: CAN1 start bank number
+                only one parameter can be selected which is shown as below:
+      \arg        (1..27)
+    \param[out] none
+    \retval     none
+*/
+void can1_filter_start_bank(uint8_t start_bank)
+{
+    /* filter lock disable */
+    CAN_FCTL(CAN0) |= CAN_FCTL_FLD;
+    /* set CAN1 filter start number */
+    CAN_FCTL(CAN0) &= ~(uint32_t)CAN_FCTL_HBC1F;
+    CAN_FCTL(CAN0) |= FCTL_HBC1F(start_bank);
+    /* filter lock enaable */
+    CAN_FCTL(CAN0) &= ~CAN_FCTL_FLD;
+}
+
+/*!
+    \brief      enable CAN debug freeze
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[out] none
+    \retval     none
+*/
+void can_debug_freeze_enable(uint32_t can_periph)
+{
+    /* set DFZ bit */
+    CAN_CTL(can_periph) |= CAN_CTL_DFZ;
+    if(CAN0 == can_periph){
+        dbg_periph_enable(DBG_CAN0_HOLD);
+    }else{
+        dbg_periph_enable(DBG_CAN1_HOLD);
+    }
+}
+
+/*!
+    \brief      disable CAN debug freeze
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[out] none
+    \retval     none
+*/
+void can_debug_freeze_disable(uint32_t can_periph)
+{
+    /* set DFZ bit */
+    CAN_CTL(can_periph) &= ~CAN_CTL_DFZ;
+    if(CAN0 == can_periph){
+        dbg_periph_disable(DBG_CAN0_HOLD);
+    }else{
+        dbg_periph_disable(DBG_CAN1_HOLD);
+    }
+}
+
+/*!
+    \brief      enable CAN time trigger mode
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[out] none
+    \retval     none
+*/
+void can_time_trigger_mode_enable(uint32_t can_periph)
+{
+    uint8_t mailbox_number;
+
+    /* enable the tcc mode */
+    CAN_CTL(can_periph) |= CAN_CTL_TTC;
+    /* enable time stamp */
+    for(mailbox_number = 0U; mailbox_number < 3U; mailbox_number++){
+        CAN_TMP(can_periph, mailbox_number) |= CAN_TMP_TSEN;
+    }
+}
+
+/*!
+    \brief      disable CAN time trigger mode
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[out] none
+    \retval     none
+*/
+void can_time_trigger_mode_disable(uint32_t can_periph)
+{
+    uint8_t mailbox_number;
+
+    /* disable the TCC mode */
+    CAN_CTL(can_periph) &= ~CAN_CTL_TTC;
+    /* reset TSEN bits */
+    for(mailbox_number = 0U; mailbox_number < 3U; mailbox_number++){
+        CAN_TMP(can_periph, mailbox_number) &= ~CAN_TMP_TSEN;
+    }
+}
+
+/*!
+    \brief       transmit CAN message
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[in]  transmit_message: struct for CAN transmit message
+      \arg        tx_sfid: 0x00000000 - 0x000007FF
+      \arg        tx_efid: 0x00000000 - 0x1FFFFFFF
+      \arg        tx_ff: CAN_FF_STANDARD, CAN_FF_EXTENDED
+      \arg        tx_ft: CAN_FT_DATA, CAN_FT_REMOTE
+      \arg        tx_dlenc: 1 - 7
+      \arg        tx_data[]: 0x00 - 0xFF
+    \param[out] none
+    \retval     mailbox_number
+*/
+uint8_t can_message_transmit(uint32_t can_periph, can_trasnmit_message_struct* transmit_message)
+{
+    uint8_t mailbox_number = CAN_MAILBOX0;
+
+    /* select one empty mailbox */
+    if(CAN_TSTAT_TME0 == (CAN_TSTAT(can_periph)&CAN_TSTAT_TME0)){
+        mailbox_number = CAN_MAILBOX0;
+    }else if(CAN_TSTAT_TME1 == (CAN_TSTAT(can_periph)&CAN_TSTAT_TME1)){
+        mailbox_number = CAN_MAILBOX1;
+    }else if(CAN_TSTAT_TME2 == (CAN_TSTAT(can_periph)&CAN_TSTAT_TME2)){
+        mailbox_number = CAN_MAILBOX2;
+    }else{
+        mailbox_number = CAN_NOMAILBOX;
+    }
+    /* return no mailbox empty */
+    if(CAN_NOMAILBOX == mailbox_number){
+        return CAN_NOMAILBOX;
+    }
+
+    CAN_TMI(can_periph, mailbox_number) &= CAN_TMI_TEN;
+    if(CAN_FF_STANDARD == transmit_message->tx_ff){
+        /* set transmit mailbox standard identifier */
+        CAN_TMI(can_periph, mailbox_number) |= (uint32_t)(TMI_SFID(transmit_message->tx_sfid) | \
+                                                transmit_message->tx_ft);
+    }else{
+        /* set transmit mailbox extended identifier */
+        CAN_TMI(can_periph, mailbox_number) |= (uint32_t)(TMI_EFID(transmit_message->tx_efid) | \
+                                                transmit_message->tx_ff | \
+                                                transmit_message->tx_ft);
+    }
+    /* set the data length */
+    CAN_TMP(can_periph, mailbox_number) &= ~CAN_TMP_DLENC;
+    CAN_TMP(can_periph, mailbox_number) |= transmit_message->tx_dlen;
+    /* set the data */
+    CAN_TMDATA0(can_periph, mailbox_number) = TMDATA0_DB3(transmit_message->tx_data[3]) | \
+                                              TMDATA0_DB2(transmit_message->tx_data[2]) | \
+                                              TMDATA0_DB1(transmit_message->tx_data[1]) | \
+                                              TMDATA0_DB0(transmit_message->tx_data[0]);
+    CAN_TMDATA1(can_periph, mailbox_number) = TMDATA1_DB7(transmit_message->tx_data[7]) | \
+                                              TMDATA1_DB6(transmit_message->tx_data[6]) | \
+                                              TMDATA1_DB5(transmit_message->tx_data[5]) | \
+                                              TMDATA1_DB4(transmit_message->tx_data[4]);
+    /* enable transmission */
+    CAN_TMI(can_periph, mailbox_number) |= CAN_TMI_TEN;
+
+    return mailbox_number;
+}
+
+/*!
+    \brief      get CAN transmit state
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[in]  mailbox_number
+                only one parameter can be selected which is shown as below:
+      \arg        CAN_MAILBOX(x=0,1,2)
+    \param[out] none
+    \retval     can_transmit_state_enum
+*/
+can_transmit_state_enum can_transmit_states(uint32_t can_periph, uint8_t mailbox_number)
+{
+    can_transmit_state_enum state = CAN_TRANSMIT_FAILED;
+    uint32_t val = 0U;
+
+    /* check selected mailbox state */
+    switch(mailbox_number){
+    /* mailbox0 */
+    case CAN_MAILBOX0:
+        val = CAN_TSTAT(can_periph) & (CAN_TSTAT_MTF0 | CAN_TSTAT_MTFNERR0 | CAN_TSTAT_TME0);
+        break;
+    /* mailbox1 */
+    case CAN_MAILBOX1:
+        val = CAN_TSTAT(can_periph) & (CAN_TSTAT_MTF1 | CAN_TSTAT_MTFNERR1 | CAN_TSTAT_TME1);
+        break;
+    /* mailbox2 */
+    case CAN_MAILBOX2:
+        val = CAN_TSTAT(can_periph) & (CAN_TSTAT_MTF2 | CAN_TSTAT_MTFNERR2 | CAN_TSTAT_TME2);
+        break;
+    default:
+        val = CAN_TRANSMIT_FAILED;
+        break;
+    }
+
+    switch(val){
+        /* transmit pending */
+    case (CAN_STATE_PENDING):
+        state = CAN_TRANSMIT_PENDING;
+        break;
+        /* mailbox0 transmit succeeded */
+    case (CAN_TSTAT_MTF0 | CAN_TSTAT_MTFNERR0 | CAN_TSTAT_TME0):
+        state = CAN_TRANSMIT_OK;
+        break;
+        /* mailbox1 transmit succeeded */
+    case (CAN_TSTAT_MTF1 | CAN_TSTAT_MTFNERR1 | CAN_TSTAT_TME1):
+        state = CAN_TRANSMIT_OK;
+        break;
+        /* mailbox2 transmit succeeded */
+    case (CAN_TSTAT_MTF2 | CAN_TSTAT_MTFNERR2 | CAN_TSTAT_TME2):
+        state = CAN_TRANSMIT_OK;
+        break;
+        /* transmit failed */
+    default:
+        state = CAN_TRANSMIT_FAILED;
+        break;
+    }
+    return state;
+}
+
+/*!
+    \brief      stop CAN transmission
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[in]  mailbox_number
+                only one parameter can be selected which is shown as below:
+      \arg        CAN_MAILBOXx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void can_transmission_stop(uint32_t can_periph, uint8_t mailbox_number)
+{
+    if(CAN_MAILBOX0 == mailbox_number){
+        CAN_TSTAT(can_periph) |= CAN_TSTAT_MST0;
+        while(CAN_TSTAT_MST0 == (CAN_TSTAT(can_periph) & CAN_TSTAT_MST0)){
+        }
+    }else if(CAN_MAILBOX1 == mailbox_number){
+        CAN_TSTAT(can_periph) |= CAN_TSTAT_MST1;
+        while(CAN_TSTAT_MST1 == (CAN_TSTAT(can_periph) & CAN_TSTAT_MST1)){
+        }
+    }else if(CAN_MAILBOX2 == mailbox_number){
+        CAN_TSTAT(can_periph) |= CAN_TSTAT_MST2;
+        while(CAN_TSTAT_MST2 == (CAN_TSTAT(can_periph) & CAN_TSTAT_MST2)){
+        }
+    }else{
+        /* illegal parameters */
+    }
+}
+
+/*!
+    \brief      CAN receive message
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[in]  fifo_number
+      \arg        CAN_FIFOx(x=0,1)
+    \param[out] receive_message: struct for CAN receive message
+      \arg        rx_sfid: 0x00000000 - 0x000007FF
+      \arg        rx_efid: 0x00000000 - 0x1FFFFFFF
+      \arg        rx_ff: CAN_FF_STANDARD, CAN_FF_EXTENDED
+      \arg        rx_ft: CAN_FT_DATA, CAN_FT_REMOTE
+      \arg        rx_dlenc: 1 - 7
+      \arg        rx_data[]: 0x00 - 0xFF
+      \arg        rx_fi: 0 - 27
+    \retval     none
+*/
+void can_message_receive(uint32_t can_periph, uint8_t fifo_number, can_receive_message_struct* receive_message)
+{
+    /* get the frame format */
+    receive_message->rx_ff = (uint8_t)(CAN_RFIFOMI_FF & CAN_RFIFOMI(can_periph, fifo_number));
+    if(CAN_FF_STANDARD == receive_message->rx_ff){
+        /* get standard identifier */
+        receive_message->rx_sfid = (uint32_t)(GET_RFIFOMI_SFID(CAN_RFIFOMI(can_periph, fifo_number)));
+    }else{
+        /* get extended identifier */
+        receive_message->rx_efid = (uint32_t)(GET_RFIFOMI_EFID(CAN_RFIFOMI(can_periph, fifo_number)));
+    }
+
+    /* get frame type */
+    receive_message->rx_ft = (uint8_t)(CAN_RFIFOMI_FT & CAN_RFIFOMI(can_periph, fifo_number));
+    /* filtering index */
+    receive_message->rx_fi = (uint8_t)(GET_RFIFOMP_FI(CAN_RFIFOMP(can_periph, fifo_number)));
+    /* get recevie data length */
+    receive_message->rx_dlen = (uint8_t)(GET_RFIFOMP_DLENC(CAN_RFIFOMP(can_periph, fifo_number)));
+
+    /* receive data */
+    receive_message -> rx_data[0] = (uint8_t)(GET_RFIFOMDATA0_DB0(CAN_RFIFOMDATA0(can_periph, fifo_number)));
+    receive_message -> rx_data[1] = (uint8_t)(GET_RFIFOMDATA0_DB1(CAN_RFIFOMDATA0(can_periph, fifo_number)));
+    receive_message -> rx_data[2] = (uint8_t)(GET_RFIFOMDATA0_DB2(CAN_RFIFOMDATA0(can_periph, fifo_number)));
+    receive_message -> rx_data[3] = (uint8_t)(GET_RFIFOMDATA0_DB3(CAN_RFIFOMDATA0(can_periph, fifo_number)));
+    receive_message -> rx_data[4] = (uint8_t)(GET_RFIFOMDATA1_DB4(CAN_RFIFOMDATA1(can_periph, fifo_number)));
+    receive_message -> rx_data[5] = (uint8_t)(GET_RFIFOMDATA1_DB5(CAN_RFIFOMDATA1(can_periph, fifo_number)));
+    receive_message -> rx_data[6] = (uint8_t)(GET_RFIFOMDATA1_DB6(CAN_RFIFOMDATA1(can_periph, fifo_number)));
+    receive_message -> rx_data[7] = (uint8_t)(GET_RFIFOMDATA1_DB7(CAN_RFIFOMDATA1(can_periph, fifo_number)));
+
+    /* release FIFO */
+    if(CAN_FIFO0 == fifo_number){
+        CAN_RFIFO0(can_periph) |= CAN_RFIFO0_RFD0;
+    }else{
+        CAN_RFIFO1(can_periph) |= CAN_RFIFO1_RFD1;
+    }
+}
+
+/*!
+    \brief      release FIFO0
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[in]  fifo_number
+                only one parameter can be selected which is shown as below:
+      \arg        CAN_FIFOx(x=0,1)
+    \param[out] none
+    \retval     none
+*/
+void can_fifo_release(uint32_t can_periph, uint8_t fifo_number)
+{
+    if(CAN_FIFO0 == fifo_number){
+        CAN_RFIFO0(can_periph) |= CAN_RFIFO0_RFD0;
+    }else if(CAN_FIFO1 == fifo_number){
+        CAN_RFIFO1(can_periph) |= CAN_RFIFO1_RFD1;
+    }else{
+        /* illegal parameters */
+        CAN_ERROR_HANDLE("CAN FIFO NUM is invalid \r\n");
+    }
+}
+
+/*!
+    \brief      CAN receive message length
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[in]  fifo_number
+                only one parameter can be selected which is shown as below:
+      \arg        CAN_FIFOx(x=0,1)
+    \param[out] none
+    \retval     message length
+*/
+uint8_t can_receive_message_length_get(uint32_t can_periph, uint8_t fifo_number)
+{
+    uint8_t val = 0U;
+
+    if(CAN_FIFO0 == fifo_number){
+        /* FIFO0 */
+        val = (uint8_t)(CAN_RFIFO0(can_periph) & CAN_RFIF_RFL_MASK);
+    }else if(CAN_FIFO1 == fifo_number){
+        /* FIFO1 */
+        val = (uint8_t)(CAN_RFIFO1(can_periph) & CAN_RFIF_RFL_MASK);
+    }else{
+        /* illegal parameters */
+    }
+    return val;
+}
+
+/*!
+    \brief      set CAN working mode
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[in]  can_working_mode
+                only one parameter can be selected which is shown as below:
+      \arg        CAN_MODE_INITIALIZE
+      \arg        CAN_MODE_NORMAL
+      \arg        CAN_MODE_SLEEP
+    \param[out] none
+    \retval     ErrStatus: SUCCESS or ERROR
+*/
+ErrStatus can_working_mode_set(uint32_t can_periph, uint8_t working_mode)
+{
+    ErrStatus flag = ERROR;
+    /* timeout for IWS or also for SLPWS bits */
+    uint32_t timeout = CAN_TIMEOUT;
+
+    if(CAN_MODE_INITIALIZE == working_mode){
+        /* disable sleep mode */
+        CAN_CTL(can_periph) &= (~(uint32_t)CAN_CTL_SLPWMOD);
+        /* set initialize mode */
+        CAN_CTL(can_periph) |= (uint8_t)CAN_CTL_IWMOD;
+        /* wait the acknowledge */
+        while((CAN_STAT_IWS != (CAN_STAT(can_periph) & CAN_STAT_IWS)) && (0U != timeout)){
+            timeout--;
+        }
+        if(CAN_STAT_IWS != (CAN_STAT(can_periph) & CAN_STAT_IWS)){
+            flag = ERROR;
+        }else{
+            flag = SUCCESS;
+        }
+    }else if(CAN_MODE_NORMAL == working_mode){
+        /* enter normal mode */
+        CAN_CTL(can_periph) &= ~(uint32_t)(CAN_CTL_SLPWMOD | CAN_CTL_IWMOD);
+        /* wait the acknowledge */
+        while((0U != (CAN_STAT(can_periph) & (CAN_STAT_IWS | CAN_STAT_SLPWS))) && (0U != timeout)){
+            timeout--;
+        }
+        if(0U != (CAN_STAT(can_periph) & (CAN_STAT_IWS | CAN_STAT_SLPWS))){
+            flag = ERROR;
+        }else{
+            flag = SUCCESS;
+        }
+    }else if(CAN_MODE_SLEEP == working_mode){
+        /* disable initialize mode */
+        CAN_CTL(can_periph) &= (~(uint32_t)CAN_CTL_IWMOD);
+        /* set sleep mode */
+        CAN_CTL(can_periph) |= (uint8_t)CAN_CTL_SLPWMOD;
+        /* wait the acknowledge */
+        while((CAN_STAT_SLPWS != (CAN_STAT(can_periph) & CAN_STAT_SLPWS)) && (0U != timeout)){
+            timeout--;
+        }
+        if(CAN_STAT_SLPWS != (CAN_STAT(can_periph) & CAN_STAT_SLPWS)){
+            flag = ERROR;
+        }else{
+            flag = SUCCESS;
+        }
+    }else{
+        flag = ERROR;
+    }
+    return flag;
+}
+
+/*!
+    \brief      wake up CAN
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[out] none
+    \retval     ErrStatus: SUCCESS or ERROR
+*/
+ErrStatus can_wakeup(uint32_t can_periph)
+{
+    ErrStatus flag = ERROR;
+    uint32_t timeout = CAN_TIMEOUT;
+
+    /* wakeup */
+    CAN_CTL(can_periph) &= ~CAN_CTL_SLPWMOD;
+
+    while((0U != (CAN_STAT(can_periph) & CAN_STAT_SLPWS)) && (0x00U != timeout)){
+        timeout--;
+    }
+    /* check state */
+    if(0U != (CAN_STAT(can_periph) & CAN_STAT_SLPWS)){
+        flag = ERROR;
+    }else{
+        flag = SUCCESS;
+    }
+    return flag;
+}
+
+/*!
+    \brief      get CAN error type
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[out] none
+    \retval     can_error_enum
+      \arg        CAN_ERROR_NONE: no error
+      \arg        CAN_ERROR_FILL: fill error
+      \arg        CAN_ERROR_FORMATE: format error
+      \arg        CAN_ERROR_ACK: ACK error
+      \arg        CAN_ERROR_BITRECESSIVE: bit recessive
+      \arg        CAN_ERROR_BITDOMINANTER: bit dominant error
+      \arg        CAN_ERROR_CRC: CRC error
+      \arg        CAN_ERROR_SOFTWARECFG: software configure
+*/
+can_error_enum can_error_get(uint32_t can_periph)
+{
+    can_error_enum error;
+    error = CAN_ERROR_NONE;
+
+    /* get error type */
+    error = (can_error_enum)(GET_ERR_ERRN(CAN_ERR(can_periph)));
+    return error;
+}
+
+/*!
+    \brief      get CAN receive error number
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[out] none
+    \retval     error number
+*/
+uint8_t can_receive_error_number_get(uint32_t can_periph)
+{
+    uint8_t val;
+
+    /* get error count */
+    val = (uint8_t)(GET_ERR_RECNT(CAN_ERR(can_periph)));
+    return val;
+}
+
+/*!
+    \brief      get CAN transmit error number
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[out] none
+    \retval     error number
+*/
+uint8_t can_transmit_error_number_get(uint32_t can_periph)
+{
+    uint8_t val;
+
+    val = (uint8_t)(GET_ERR_TECNT(CAN_ERR(can_periph)));
+    return val;
+}
+
+/*!
+    \brief      enable CAN interrupt
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[in]  interrupt
+                one or more parameters can be selected which are shown as below:
+      \arg        CAN_INT_TME: transmit mailbox empty interrupt enable
+      \arg        CAN_INT_RFNE0: receive FIFO0 not empty interrupt enable
+      \arg        CAN_INT_RFF0: receive FIFO0 full interrupt enable
+      \arg        CAN_INT_RFO0: receive FIFO0 overfull interrupt enable
+      \arg        CAN_INT_RFNE1: receive FIFO1 not empty interrupt enable
+      \arg        CAN_INT_RFF1: receive FIFO1 full interrupt enable
+      \arg        CAN_INT_RFO1: receive FIFO1 overfull interrupt enable
+      \arg        CAN_INT_WERR: warning error interrupt enable
+      \arg        CAN_INT_PERR: passive error interrupt enable
+      \arg        CAN_INT_BO: bus-off interrupt enable
+      \arg        CAN_INT_ERRN: error number interrupt enable
+      \arg        CAN_INT_ERR: error interrupt enable
+      \arg        CAN_INT_WU: wakeup interrupt enable
+      \arg        CAN_INT_SLPW: sleep working interrupt enable
+    \param[out] none
+    \retval     none
+*/
+void can_interrupt_enable(uint32_t can_periph, uint32_t interrupt)
+{
+    CAN_INTEN(can_periph) |= interrupt;
+}
+
+/*!
+    \brief      disable CAN interrupt
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[in]  interrupt
+                one or more parameters can be selected which are shown as below:
+      \arg        CAN_INT_TME: transmit mailbox empty interrupt enable
+      \arg        CAN_INT_RFNE0: receive FIFO0 not empty interrupt enable
+      \arg        CAN_INT_RFF0: receive FIFO0 full interrupt enable
+      \arg        CAN_INT_RFO0: receive FIFO0 overfull interrupt enable
+      \arg        CAN_INT_RFNE1: receive FIFO1 not empty interrupt enable
+      \arg        CAN_INT_RFF1: receive FIFO1 full interrupt enable
+      \arg        CAN_INT_RFO1: receive FIFO1 overfull interrupt enable
+      \arg        CAN_INT_WERR: warning error interrupt enable
+      \arg        CAN_INT_PERR: passive error interrupt enable
+      \arg        CAN_INT_BO: bus-off interrupt enable
+      \arg        CAN_INT_ERRN: error number interrupt enable
+      \arg        CAN_INT_ERR: error interrupt enable
+      \arg        CAN_INT_WU: wakeup interrupt enable
+      \arg        CAN_INT_SLPW: sleep working interrupt enable
+    \param[out] none
+    \retval     none
+*/
+void can_interrupt_disable(uint32_t can_periph, uint32_t interrupt)
+{
+    CAN_INTEN(can_periph) &= ~interrupt;
+}
+
+/*!
+    \brief      get CAN flag state
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[in]  flag: CAN flags, refer to can_flag_enum
+                only one parameter can be selected which is shown as below:
+      \arg        CAN_FLAG_MTE2: mailbox 2 transmit error
+      \arg        CAN_FLAG_MTE1: mailbox 1 transmit error
+      \arg        CAN_FLAG_MTE0: mailbox 0 transmit error
+      \arg        CAN_FLAG_MTF2: mailbox 2 transmit finished
+      \arg        CAN_FLAG_MTF1: mailbox 1 transmit finished
+      \arg        CAN_FLAG_MTF0: mailbox 0 transmit finished
+      \arg        CAN_FLAG_RFO0: receive FIFO0 overfull
+      \arg        CAN_FLAG_RFF0: receive FIFO0 full
+      \arg        CAN_FLAG_RFO1: receive FIFO1 overfull
+      \arg        CAN_FLAG_RFF1: receive FIFO1 full
+      \arg        CAN_FLAG_BOERR: bus-off error
+      \arg        CAN_FLAG_PERR: passive error
+      \arg        CAN_FLAG_WERR: warning error
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus can_flag_get(uint32_t can_periph, can_flag_enum flag)
+{
+    /* get flag and interrupt enable state */
+    if(RESET != (CAN_REG_VAL(can_periph, flag) & BIT(CAN_BIT_POS(flag)))){
+        return SET;
+    }else{
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear CAN flag state
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[in]  flag: CAN flags, refer to can_flag_enum
+                only one parameter can be selected which is shown as below:
+      \arg        CAN_FLAG_MTE2: mailbox 2 transmit error
+      \arg        CAN_FLAG_MTE1: mailbox 1 transmit error
+      \arg        CAN_FLAG_MTE0: mailbox 0 transmit error
+      \arg        CAN_FLAG_MTF2: mailbox 2 transmit finished
+      \arg        CAN_FLAG_MTF1: mailbox 1 transmit finished
+      \arg        CAN_FLAG_MTF0: mailbox 0 transmit finished
+      \arg        CAN_FLAG_RFO0: receive FIFO0 overfull
+      \arg        CAN_FLAG_RFF0: receive FIFO0 full
+      \arg        CAN_FLAG_RFO1: receive FIFO1 overfull
+      \arg        CAN_FLAG_RFF1: receive FIFO1 full
+      \arg		  CAN_FLAG_BOERR: bus-off error
+	  \arg		  CAN_FLAG_PERR: passive error
+	  \arg		  CAN_FLAG_WERR: warning error
+    \param[out] none
+    \retval     none
+*/
+void can_flag_clear(uint32_t can_periph, can_flag_enum flag)
+{
+    CAN_REG_VAL(can_periph, flag) = BIT(CAN_BIT_POS(flag));
+}
+
+/*!
+    \brief      get CAN interrupt flag state
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[in]  flag: CAN interrupt flags, refer to can_interrupt_flag_enum
+                only one parameter can be selected which is shown as below:
+      \arg        CAN_INT_FLAG_SLPIF: status change interrupt flag of sleep working mode entering
+      \arg        CAN_INT_FLAG_WUIF: status change interrupt flag of wakeup from sleep working mode
+      \arg        CAN_INT_FLAG_ERRIF: error interrupt flag
+      \arg        CAN_INT_FLAG_MTF2: mailbox 2 transmit finished interrupt flag
+      \arg        CAN_INT_FLAG_MTF1: mailbox 1 transmit finished interrupt flag
+      \arg        CAN_INT_FLAG_MTF0: mailbox 0 transmit finished interrupt flag
+      \arg        CAN_INT_FLAG_RFO0: receive FIFO0 overfull interrupt flag
+      \arg        CAN_INT_FLAG_RFF0: receive FIFO0 full interrupt flag
+      \arg        CAN_INT_FLAG_RFO1: receive FIFO1 overfull interrupt flag
+      \arg        CAN_INT_FLAG_RFF1: receive FIFO1 full interrupt flag
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus can_interrupt_flag_get(uint32_t can_periph, can_interrupt_flag_enum flag)
+{
+	uint32_t ret1 = RESET;
+	uint32_t ret2 = RESET;
+
+    /* get the staus of interrupt flag */
+    ret1 = CAN_REG_VALS(can_periph, flag) & BIT(CAN_BIT_POS0(flag));
+    /* get the staus of interrupt enale bit */
+    ret2 = CAN_INTEN(can_periph) & BIT(CAN_BIT_POS1(flag));
+    if(ret1 && ret2){
+        return SET;
+    }else{
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear CAN interrupt flag state
+    \param[in]  can_periph
+      \arg        CANx(x=0,1)
+    \param[in]  flag: CAN interrupt flags, refer to can_interrupt_flag_enum
+                only one parameter can be selected which is shown as below:
+      \arg        CAN_INT_FLAG_SLPIF: status change interrupt flag of sleep working mode entering
+      \arg        CAN_INT_FLAG_WUIF: status change interrupt flag of wakeup from sleep working mode
+      \arg        CAN_INT_FLAG_ERRIF: error interrupt flag
+      \arg        CAN_INT_FLAG_MTF2: mailbox 2 transmit finished interrupt flag
+      \arg        CAN_INT_FLAG_MTF1: mailbox 1 transmit finished interrupt flag
+      \arg        CAN_INT_FLAG_MTF0: mailbox 0 transmit finished interrupt flag
+      \arg        CAN_INT_FLAG_RFO0: receive FIFO0 overfull interrupt flag
+      \arg        CAN_INT_FLAG_RFF0: receive FIFO0 full interrupt flag
+      \arg        CAN_INT_FLAG_RFO1: receive FIFO1 overfull interrupt flag
+      \arg        CAN_INT_FLAG_RFF1: receive FIFO1 full interrupt flag
+	  \arg		  CAN_FLAG_BOERR: bus-off error
+	  \arg		  CAN_FLAG_PERR: passive error
+	  \arg		  CAN_FLAG_WERR: warning error
+    \param[out] none
+    \retval     none
+*/
+void can_interrupt_flag_clear(uint32_t can_periph, can_interrupt_flag_enum flag)
+{
+    CAN_REG_VALS(can_periph, flag) = BIT(CAN_BIT_POS0(flag));
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_crc.c

@@ -0,0 +1,127 @@
+/*!
+    \file  gd32vf103_crc.c
+    \brief CRC driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_crc.h"
+
+#define CRC_DATA_RESET_VALUE      ((uint32_t)0xFFFFFFFFU)
+#define CRC_FDATA_RESET_VALUE     ((uint32_t)0x00000000U)
+
+/*!
+    \brief      deinit CRC calculation unit
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void crc_deinit(void)
+{
+    CRC_DATA = CRC_DATA_RESET_VALUE;
+    CRC_FDATA = CRC_FDATA_RESET_VALUE;
+    CRC_CTL = (uint32_t)CRC_CTL_RST;
+}
+
+/*!
+    \brief      reset data register(CRC_DATA) to the value of 0xFFFFFFFF
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void crc_data_register_reset(void)
+{
+    CRC_CTL |= (uint32_t)CRC_CTL_RST;
+}
+
+/*!
+    \brief      read the value of the data register
+    \param[in]  none
+    \param[out] none
+    \retval     32-bit value of the data register
+*/
+uint32_t crc_data_register_read(void)
+{
+    uint32_t data;
+    data = CRC_DATA;
+    return (data);
+}
+
+/*!
+    \brief      read the value of the free data register
+    \param[in]  none
+    \param[out] none
+    \retval     8-bit value of the free data register
+*/
+uint8_t crc_free_data_register_read(void)
+{
+    uint8_t fdata;
+    fdata = (uint8_t)CRC_FDATA;
+    return (fdata);
+}
+
+/*!
+    \brief      write data to the free data register
+    \param[in]  free_data: specified 8-bit data
+    \param[out] none
+    \retval     none
+*/
+void crc_free_data_register_write(uint8_t free_data)
+{
+    CRC_FDATA = (uint32_t)free_data;
+}
+
+/*!
+    \brief      calculate the CRC value of a 32-bit data
+    \param[in]  sdata: specified 32-bit data
+    \param[out] none
+    \retval     32-bit value calculated by CRC
+*/
+uint32_t crc_single_data_calculate(uint32_t sdata)
+{
+    CRC_DATA = sdata;
+    return (CRC_DATA);
+}
+
+/*!
+    \brief      calculate the CRC value of an array of 32-bit values
+    \param[in]  array: pointer to an array of 32-bit values
+    \param[in]  size: size of the array
+    \param[out] none
+    \retval     32-bit value calculated by CRC
+*/
+uint32_t crc_block_data_calculate(uint32_t array[], uint32_t size)
+{
+    uint32_t index;
+    for(index = 0U; index < size; index++){
+        CRC_DATA = array[index];
+    }
+    return (CRC_DATA);
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_dac.c

@@ -0,0 +1,537 @@
+/*!
+    \file    gd32vf103_dac.c
+    \brief   DAC driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_dac.h"
+
+/* DAC register bit offset */
+#define DAC1_REG_OFFSET           ((uint32_t)16U)
+#define DH_12BIT_OFFSET           ((uint32_t)16U)
+#define DH_8BIT_OFFSET            ((uint32_t)8U)
+
+/*!
+    \brief      deinitialize DAC
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void dac_deinit(void)
+{
+    rcu_periph_reset_enable(RCU_DACRST);
+    rcu_periph_reset_disable(RCU_DACRST);
+}
+
+/*!
+    \brief      enable DAC
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[out] none
+    \retval     none
+*/
+void dac_enable(uint32_t dac_periph)
+{
+    if(DAC0 == dac_periph){
+        DAC_CTL |= DAC_CTL_DEN0;
+    }else{
+        DAC_CTL |= DAC_CTL_DEN1;
+    }
+}
+
+/*!
+    \brief      disable DAC
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[out] none
+    \retval     none
+*/
+void dac_disable(uint32_t dac_periph)
+{
+    if(DAC0 == dac_periph){
+        DAC_CTL &= ~DAC_CTL_DEN0;
+    }else{
+        DAC_CTL &= ~DAC_CTL_DEN1;
+    }
+}
+
+/*!
+    \brief      enable DAC DMA function
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[out] none
+    \retval     none
+*/
+void dac_dma_enable(uint32_t dac_periph)
+{
+    if(DAC0 == dac_periph){
+        DAC_CTL |= DAC_CTL_DDMAEN0;
+    }else{
+        DAC_CTL |= DAC_CTL_DDMAEN1;
+    }
+}
+
+/*!
+    \brief      disable DAC DMA function
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[out] none
+    \retval     none
+*/
+void dac_dma_disable(uint32_t dac_periph)
+{
+    if(DAC0 == dac_periph){
+        DAC_CTL &= ~DAC_CTL_DDMAEN0;
+    }else{
+        DAC_CTL &= ~DAC_CTL_DDMAEN1;
+    }
+}
+
+/*!
+    \brief      enable DAC output buffer
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[out] none
+    \retval     none
+*/
+void dac_output_buffer_enable(uint32_t dac_periph)
+{
+    if(DAC0 == dac_periph){
+        DAC_CTL &= ~DAC_CTL_DBOFF0;
+    }else{
+        DAC_CTL &= ~DAC_CTL_DBOFF1;
+    }
+}
+
+/*!
+    \brief      disable DAC output buffer
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[out] none
+    \retval     none
+*/
+void dac_output_buffer_disable(uint32_t dac_periph)
+{
+    if(DAC0 == dac_periph){
+        DAC_CTL |= DAC_CTL_DBOFF0;
+    }else{
+        DAC_CTL |= DAC_CTL_DBOFF1;
+    }
+}
+
+/*!
+    \brief      get DAC output value
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[out] none
+    \retval     DAC output data
+*/
+uint16_t dac_output_value_get(uint32_t dac_periph)
+{
+    uint16_t data = 0U;
+    if(DAC0 == dac_periph){
+        /* store the DAC0 output value */
+        data = (uint16_t)DAC0_DO;
+    }else{
+        /* store the DAC1 output value */
+        data = (uint16_t)DAC1_DO;
+    }
+    return data;
+}
+
+/*!
+    \brief      set the DAC specified data holding register value
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[in]  dac_align: data alignment
+                only one parameter can be selected which is shown as below:
+      \arg        DAC_ALIGN_8B_R: data right 8 bit alignment
+      \arg        DAC_ALIGN_12B_R: data right 12 bit alignment
+      \arg        DAC_ALIGN_12B_L: data left 12 bit alignment
+    \param[in]  data: data to be loaded
+    \param[out] none
+    \retval     none
+*/
+void dac_data_set(uint32_t dac_periph, uint32_t dac_align, uint16_t data)
+{
+    if(DAC0 == dac_periph){
+        switch(dac_align){
+        /* data right 12 bit alignment */
+        case DAC_ALIGN_12B_R:
+            DAC0_R12DH = data;
+            break;
+        /* data left 12 bit alignment */
+        case DAC_ALIGN_12B_L:
+            DAC0_L12DH = data;
+            break;
+        /* data right 8 bit alignment */
+        case DAC_ALIGN_8B_R:
+            DAC0_R8DH = data;
+            break;
+        default:
+            break;
+        }
+    }else{
+        switch(dac_align){
+        /* data right 12 bit alignment */
+        case DAC_ALIGN_12B_R:
+            DAC1_R12DH = data;
+            break;
+        /* data left 12 bit alignment */
+        case DAC_ALIGN_12B_L:
+            DAC1_L12DH = data;
+            break;
+        /* data right 8 bit alignment */
+        case DAC_ALIGN_8B_R:
+            DAC1_R8DH = data;
+            break;
+        default:
+            break;
+        }
+    }
+}
+
+/*!
+    \brief      enable DAC trigger
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[out] none
+    \retval     none
+*/
+void dac_trigger_enable(uint32_t dac_periph)
+{
+    if(DAC0 == dac_periph){
+        DAC_CTL |= DAC_CTL_DTEN0;
+    }else{
+        DAC_CTL |= DAC_CTL_DTEN1;
+    }
+}
+
+/*!
+    \brief      disable DAC trigger
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[out] none
+    \retval     none
+*/
+void dac_trigger_disable(uint32_t dac_periph)
+{
+    if(DAC0 == dac_periph){
+        DAC_CTL &= ~DAC_CTL_DTEN0;
+    }else{
+        DAC_CTL &= ~DAC_CTL_DTEN1;
+    }
+}
+
+/*!
+    \brief      set DAC trigger source
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[in]  triggersource: external triggers of DAC
+                only one parameter can be selected which is shown as below:
+      \arg        DAC_TRIGGER_T1_TRGO: TIMER1 TRGO
+      \arg        DAC_TRIGGER_T2_TRGO: TIMER2 TRGO
+      \arg        DAC_TRIGGER_T3_TRGO: TIMER3 TRGO
+      \arg        DAC_TRIGGER_T4_TRGO: TIMER4 TRGO
+      \arg        DAC_TRIGGER_T5_TRGO: TIMER5 TRGO
+      \arg        DAC_TRIGGER_T6_TRGO: TIMER6 TRGO
+      \arg        DAC_TRIGGER_EXTI_9: EXTI interrupt line9 event
+      \arg        DAC_TRIGGER_SOFTWARE: software trigger
+    \param[out] none
+    \retval     none
+*/
+void dac_trigger_source_config(uint32_t dac_periph,uint32_t triggersource)
+{
+    if(DAC0 == dac_periph){
+        /* configure DAC0 trigger source */
+        DAC_CTL &= ~DAC_CTL_DTSEL0;
+        DAC_CTL |= triggersource;
+    }else{
+        /* configure DAC1 trigger source */
+        DAC_CTL &= ~DAC_CTL_DTSEL1;
+        DAC_CTL |= (triggersource << DAC1_REG_OFFSET);
+    }
+}
+
+/*!
+    \brief      enable DAC software trigger
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \retval     none
+*/
+void dac_software_trigger_enable(uint32_t dac_periph)
+{
+    if(DAC0 == dac_periph){
+        DAC_SWT |= DAC_SWT_SWTR0;
+    }else{
+        DAC_SWT |= DAC_SWT_SWTR1;
+    }
+}
+
+/*!
+    \brief      disable DAC software trigger
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[out] none
+    \retval     none
+*/
+void dac_software_trigger_disable(uint32_t dac_periph)
+{
+    if(DAC0 == dac_periph){
+        DAC_SWT &= ~DAC_SWT_SWTR0;
+    }else{
+        DAC_SWT &= ~DAC_SWT_SWTR1;
+    }
+}
+
+/*!
+    \brief      configure DAC wave mode
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[in]  wave_mode: noise wave mode
+                only one parameter can be selected which is shown as below:
+      \arg        DAC_WAVE_DISABLE: wave disable
+      \arg        DAC_WAVE_MODE_LFSR: LFSR noise mode
+      \arg        DAC_WAVE_MODE_TRIANGLE: triangle noise mode
+    \param[out] none
+    \retval     none
+*/
+void dac_wave_mode_config(uint32_t dac_periph, uint32_t wave_mode)
+{
+    if(DAC0 == dac_periph){
+        /* configure DAC0 wave mode */
+        DAC_CTL &= ~DAC_CTL_DWM0;
+        DAC_CTL |= wave_mode;
+    }else{
+        /* configure DAC1 wave mode */
+        DAC_CTL &= ~DAC_CTL_DWM1;
+        DAC_CTL |= (wave_mode << DAC1_REG_OFFSET);
+    }
+}
+
+/*!
+    \brief      configure DAC wave bit width
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[in]  bit_width: noise wave bit width
+                only one parameter can be selected which is shown as below:
+      \arg        DAC_WAVE_BIT_WIDTH_1: bit width of the wave signal is 1
+      \arg        DAC_WAVE_BIT_WIDTH_2: bit width of the wave signal is 2
+      \arg        DAC_WAVE_BIT_WIDTH_3: bit width of the wave signal is 3
+      \arg        DAC_WAVE_BIT_WIDTH_4: bit width of the wave signal is 4
+      \arg        DAC_WAVE_BIT_WIDTH_5: bit width of the wave signal is 5
+      \arg        DAC_WAVE_BIT_WIDTH_6: bit width of the wave signal is 6
+      \arg        DAC_WAVE_BIT_WIDTH_7: bit width of the wave signal is 7
+      \arg        DAC_WAVE_BIT_WIDTH_8: bit width of the wave signal is 8
+      \arg        DAC_WAVE_BIT_WIDTH_9: bit width of the wave signal is 9
+      \arg        DAC_WAVE_BIT_WIDTH_10: bit width of the wave signal is 10
+      \arg        DAC_WAVE_BIT_WIDTH_11: bit width of the wave signal is 11
+      \arg        DAC_WAVE_BIT_WIDTH_12: bit width of the wave signal is 12
+    \param[out] none
+    \retval     none
+*/
+void dac_wave_bit_width_config(uint32_t dac_periph, uint32_t bit_width)
+{
+    if(DAC0 == dac_periph){
+        /* configure DAC0 wave bit width */
+        DAC_CTL &= ~DAC_CTL_DWBW0;
+        DAC_CTL |= bit_width;
+    }else{
+        /* configure DAC1 wave bit width */
+        DAC_CTL &= ~DAC_CTL_DWBW1;
+        DAC_CTL |= (bit_width << DAC1_REG_OFFSET);
+    }
+}
+
+/*!
+    \brief      configure DAC LFSR noise mode
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[in]  unmask_bits: unmask LFSR bits in DAC LFSR noise mode
+                only one parameter can be selected which is shown as below:
+      \arg        DAC_LFSR_BIT0: unmask the LFSR bit0
+      \arg        DAC_LFSR_BITS1_0: unmask the LFSR bits[1:0]
+      \arg        DAC_LFSR_BITS2_0: unmask the LFSR bits[2:0]
+      \arg        DAC_LFSR_BITS3_0: unmask the LFSR bits[3:0]
+      \arg        DAC_LFSR_BITS4_0: unmask the LFSR bits[4:0]
+      \arg        DAC_LFSR_BITS5_0: unmask the LFSR bits[5:0]
+      \arg        DAC_LFSR_BITS6_0: unmask the LFSR bits[6:0]
+      \arg        DAC_LFSR_BITS7_0: unmask the LFSR bits[7:0]
+      \arg        DAC_LFSR_BITS8_0: unmask the LFSR bits[8:0]
+      \arg        DAC_LFSR_BITS9_0: unmask the LFSR bits[9:0]
+      \arg        DAC_LFSR_BITS10_0: unmask the LFSR bits[10:0]
+      \arg        DAC_LFSR_BITS11_0: unmask the LFSR bits[11:0]
+    \param[out] none
+    \retval     none
+*/
+void dac_lfsr_noise_config(uint32_t dac_periph, uint32_t unmask_bits)
+{
+    if(DAC0 == dac_periph){
+        /* configure DAC0 LFSR noise mode */
+        DAC_CTL &= ~DAC_CTL_DWBW0;
+        DAC_CTL |= unmask_bits;
+    }else{
+        /* configure DAC1 LFSR noise mode */
+        DAC_CTL &= ~DAC_CTL_DWBW1;
+        DAC_CTL |= (unmask_bits << DAC1_REG_OFFSET);
+    }
+}
+
+/*!
+    \brief      configure DAC triangle noise mode
+    \param[in]  dac_periph: DACx(x = 0,1)
+    \param[in]  amplitude: triangle amplitude in DAC triangle noise mode
+                only one parameter can be selected which is shown as below:
+      \arg        DAC_TRIANGLE_AMPLITUDE_1: triangle amplitude is 1
+      \arg        DAC_TRIANGLE_AMPLITUDE_3: triangle amplitude is 3
+      \arg        DAC_TRIANGLE_AMPLITUDE_7: triangle amplitude is 7
+      \arg        DAC_TRIANGLE_AMPLITUDE_15: triangle amplitude is 15
+      \arg        DAC_TRIANGLE_AMPLITUDE_31: triangle amplitude is 31
+      \arg        DAC_TRIANGLE_AMPLITUDE_63: triangle amplitude is 63
+      \arg        DAC_TRIANGLE_AMPLITUDE_127: triangle amplitude is 127
+      \arg        DAC_TRIANGLE_AMPLITUDE_255: triangle amplitude is 255
+      \arg        DAC_TRIANGLE_AMPLITUDE_511: triangle amplitude is 511
+      \arg        DAC_TRIANGLE_AMPLITUDE_1023: triangle amplitude is 1023
+      \arg        DAC_TRIANGLE_AMPLITUDE_2047: triangle amplitude is 2047
+      \arg        DAC_TRIANGLE_AMPLITUDE_4095: triangle amplitude is 4095
+    \param[out] none
+    \retval     none
+*/
+void dac_triangle_noise_config(uint32_t dac_periph, uint32_t amplitude)
+{
+    if(DAC0 == dac_periph){
+        /* configure DAC0 triangle noise mode */
+        DAC_CTL &= ~DAC_CTL_DWBW0;
+        DAC_CTL |= amplitude;
+    }else{
+        /* configure DAC1 triangle noise mode */
+        DAC_CTL &= ~DAC_CTL_DWBW1;
+        DAC_CTL |= (amplitude << DAC1_REG_OFFSET);
+    }
+}
+
+/*!
+    \brief      enable DAC concurrent mode
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void dac_concurrent_enable(void)
+{
+    uint32_t ctl = 0U;
+    ctl = DAC_CTL_DEN0 | DAC_CTL_DEN1;
+    DAC_CTL |= (ctl);
+}
+
+/*!
+    \brief      disable DAC concurrent mode
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void dac_concurrent_disable(void)
+{
+    uint32_t ctl = 0U;
+    ctl = DAC_CTL_DEN0 | DAC_CTL_DEN1;
+    DAC_CTL &= (~ctl);
+}
+
+/*!
+    \brief      enable DAC concurrent software trigger function
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void dac_concurrent_software_trigger_enable(void)
+{
+    uint32_t swt = 0U;
+    swt = DAC_SWT_SWTR0 | DAC_SWT_SWTR1;
+    DAC_SWT |= (swt);
+}
+
+/*!
+    \brief      disable DAC concurrent software trigger function
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void dac_concurrent_software_trigger_disable(void)
+{
+    uint32_t swt = 0U;
+    swt = DAC_SWT_SWTR0 | DAC_SWT_SWTR1;
+    DAC_SWT &= (~swt);
+}
+
+/*!
+    \brief      enable DAC concurrent buffer function
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void dac_concurrent_output_buffer_enable(void)
+{
+    uint32_t ctl = 0U;
+    ctl = DAC_CTL_DBOFF0 | DAC_CTL_DBOFF1;
+    DAC_CTL &= (~ctl);
+}
+
+/*!
+    \brief      disable DAC concurrent buffer function
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void dac_concurrent_output_buffer_disable(void)
+{
+    uint32_t ctl = 0U;
+    ctl = DAC_CTL_DBOFF0 | DAC_CTL_DBOFF1;
+    DAC_CTL |= (ctl);
+}
+
+/*!
+    \brief      set DAC concurrent mode data holding register value
+    \param[in]  dac_align: data alignment
+                only one parameter can be selected which is shown as below:
+      \arg        DAC_ALIGN_8B_R: data right 8b alignment
+      \arg        DAC_ALIGN_12B_R: data right 12b alignment
+      \arg        DAC_ALIGN_12B_L: data left 12b alignment
+    \param[in]  data0: data to be loaded
+    \param[in]  data1: data to be loaded
+    \param[out] none
+    \retval     none
+*/
+void dac_concurrent_data_set(uint32_t dac_align, uint16_t data0, uint16_t data1)
+{
+    uint32_t data = 0U;
+    switch(dac_align){
+    /* data right 12b alignment */
+    case DAC_ALIGN_12B_R:
+        data = ((uint32_t)data1 << DH_12BIT_OFFSET) | data0;
+        DACC_R12DH = data;
+        break;
+    /* data left 12b alignment */
+    case DAC_ALIGN_12B_L:
+        data = ((uint32_t)data1 << DH_12BIT_OFFSET) | data0;
+        DACC_L12DH = data;
+        break;
+    /* data right 8b alignment */
+    case DAC_ALIGN_8B_R:
+        data = ((uint32_t)data1 << DH_8BIT_OFFSET) | data0;
+        DACC_R8DH = data;
+        break;
+    default:
+        break;
+    }
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_dbg.c

@@ -0,0 +1,110 @@
+/*!
+    \file  gd32vf103_dbg.c
+    \brief DBG driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_dbg.h"
+
+/*!
+    \brief      read DBG_ID code register
+    \param[in]  none
+    \param[out] none
+    \retval     DBG_ID code
+*/
+uint32_t dbg_id_get(void)
+{
+    return DBG_ID;
+}
+
+/*!
+    \brief      enable low power behavior when the mcu is in debug mode
+    \param[in]  dbg_low_power:
+                one or more parameters can be selected which are shown as below:
+      \arg        DBG_LOW_POWER_SLEEP: keep debugger connection during sleep mode
+      \arg        DBG_LOW_POWER_DEEPSLEEP: keep debugger connection during deepsleep mode
+      \arg        DBG_LOW_POWER_STANDBY: keep debugger connection during standby mode
+    \param[out] none
+    \retval     none
+*/
+void dbg_low_power_enable(uint32_t dbg_low_power)
+{
+    DBG_CTL |= dbg_low_power;
+}
+
+/*!
+    \brief      disable low power behavior when the mcu is in debug mode
+    \param[in]  dbg_low_power:
+                one or more parameters can be selected which are shown as below:
+      \arg        DBG_LOW_POWER_SLEEP: donot keep debugger connection during sleep mode
+      \arg        DBG_LOW_POWER_DEEPSLEEP: donot keep debugger connection during deepsleep mode
+      \arg        DBG_LOW_POWER_STANDBY: donot keep debugger connection during standby mode
+    \param[out] none
+    \retval     none
+*/
+void dbg_low_power_disable(uint32_t dbg_low_power)
+{
+    DBG_CTL &= ~dbg_low_power;
+}
+
+/*!
+    \brief      enable peripheral behavior when the mcu is in debug mode
+    \param[in]  dbg_periph: refer to dbg_periph_enum
+                one or more parameters can be selected which are shown as below:
+      \arg        DBG_FWDGT_HOLD : debug FWDGT kept when core is halted
+      \arg        DBG_WWDGT_HOLD : debug WWDGT kept when core is halted
+      \arg        DBG_CANx_HOLD (x=0,1): hold CANx counter when core is halted
+      \arg        DBG_I2Cx_HOLD (x=0,1): hold I2Cx smbus when core is halted
+      \arg        DBG_TIMERx_HOLD (x=0,1,2,3,4,5,6): hold TIMERx counter when core is halted
+    \param[out] none
+    \retval     none
+*/
+void dbg_periph_enable(dbg_periph_enum dbg_periph)
+{
+    DBG_CTL |= (uint32_t)dbg_periph;
+}
+
+/*!
+    \brief      disable peripheral behavior when the mcu is in debug mode
+    \param[in]  dbg_periph: refer to dbg_periph_enum
+                one or more parameters can be selected which are shown as below:
+      \arg        DBG_FWDGT_HOLD : debug FWDGT kept when core is halted
+      \arg        DBG_WWDGT_HOLD : debug WWDGT kept when core is halted
+      \arg        DBG_CANx_HOLD (x=0,1): hold CAN0 counter when core is halted
+      \arg        DBG_I2Cx_HOLD (x=0,1): hold I2Cx smbus when core is halted
+      \arg        DBG_TIMERx_HOLD (x=0,1,2,3,4,5,6): hold TIMERx counter when core is halted
+    \param[out] none
+    \retval     none
+*/
+void dbg_periph_disable(dbg_periph_enum dbg_periph)
+{
+    DBG_CTL &= ~(uint32_t)dbg_periph;
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_dma.c

@@ -0,0 +1,731 @@
+/*!
+    \file    gd32vf103_dma.c
+    \brief   DMA driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_dma.h"
+
+#define DMA_WRONG_HANDLE        while(1){}
+
+/* check whether peripheral matches channels or not */
+static ErrStatus dma_periph_and_channel_check(uint32_t dma_periph, dma_channel_enum channelx);
+
+/*!
+    \brief      deinitialize DMA a channel registers
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel is deinitialized
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void dma_deinit(uint32_t dma_periph, dma_channel_enum channelx)
+{
+	if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+		DMA_WRONG_HANDLE
+	}
+
+	/* disable DMA a channel */
+	DMA_CHCTL(dma_periph, channelx) &= ~DMA_CHXCTL_CHEN;
+	/* reset DMA channel registers */
+	DMA_CHCTL(dma_periph, channelx) = DMA_CHCTL_RESET_VALUE;
+	DMA_CHCNT(dma_periph, channelx) = DMA_CHCNT_RESET_VALUE;
+	DMA_CHPADDR(dma_periph, channelx) = DMA_CHPADDR_RESET_VALUE;
+	DMA_CHMADDR(dma_periph, channelx) = DMA_CHMADDR_RESET_VALUE;
+	DMA_INTC(dma_periph) |= DMA_FLAG_ADD(DMA_CHINTF_RESET_VALUE, channelx);
+}
+
+/*!
+    \brief      initialize the parameters of DMA struct with the default values
+    \param[in]  init_struct: the initialization data needed to initialize DMA channel
+    \param[out] none
+    \retval     none
+*/
+void dma_struct_para_init(dma_parameter_struct* init_struct)
+{
+    /* set the DMA struct with the default values */
+    init_struct->periph_addr  = 0U;
+    init_struct->periph_width = 0U;
+    init_struct->periph_inc   = DMA_PERIPH_INCREASE_DISABLE;
+    init_struct->memory_addr  = 0U;
+    init_struct->memory_width = 0U;
+    init_struct->memory_inc   = DMA_MEMORY_INCREASE_DISABLE;
+    init_struct->number       = 0U;
+    init_struct->direction    = DMA_PERIPHERAL_TO_MEMORY;
+    init_struct->priority     = DMA_PRIORITY_LOW;
+}
+
+/*!
+    \brief      initialize DMA channel
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel is initialized
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[in]  init_struct: the data needed to initialize DMA channel
+                  periph_addr: peripheral base address
+                  periph_width: DMA_PERIPHERAL_WIDTH_8BIT, DMA_PERIPHERAL_WIDTH_16BIT, DMA_PERIPHERAL_WIDTH_32BIT
+                  periph_inc: DMA_PERIPH_INCREASE_ENABLE, DMA_PERIPH_INCREASE_DISABLE
+                  memory_addr: memory base address
+                  memory_width: DMA_MEMORY_WIDTH_8BIT, DMA_MEMORY_WIDTH_16BIT, DMA_MEMORY_WIDTH_32BIT
+                  memory_inc: DMA_MEMORY_INCREASE_ENABLE, DMA_MEMORY_INCREASE_DISABLE
+                  direction: DMA_PERIPHERAL_TO_MEMORY, DMA_MEMORY_TO_PERIPHERAL
+                  number: the number of remaining data to be transferred by the DMA
+                  priority: DMA_PRIORITY_LOW, DMA_PRIORITY_MEDIUM, DMA_PRIORITY_HIGH, DMA_PRIORITY_ULTRA_HIGH
+    \param[out] none
+    \retval     none
+*/
+void dma_init(uint32_t dma_periph, dma_channel_enum channelx, dma_parameter_struct* init_struct)
+{
+    uint32_t ctl;
+
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    /* configure peripheral base address */
+    DMA_CHPADDR(dma_periph, channelx) = init_struct->periph_addr;
+
+    /* configure memory base address */
+    DMA_CHMADDR(dma_periph, channelx) = init_struct->memory_addr;
+
+    /* configure the number of remaining data to be transferred */
+    DMA_CHCNT(dma_periph, channelx) = (init_struct->number & DMA_CHANNEL_CNT_MASK);
+
+    /* configure peripheral transfer width,memory transfer width and priority */
+    ctl = DMA_CHCTL(dma_periph, channelx);
+    ctl &= ~(DMA_CHXCTL_PWIDTH | DMA_CHXCTL_MWIDTH | DMA_CHXCTL_PRIO);
+    ctl |= (init_struct->periph_width | init_struct->memory_width | init_struct->priority);
+    DMA_CHCTL(dma_periph, channelx) = ctl;
+
+    /* configure peripheral increasing mode */
+    if(DMA_PERIPH_INCREASE_ENABLE == init_struct->periph_inc){
+        DMA_CHCTL(dma_periph, channelx) |= DMA_CHXCTL_PNAGA;
+    }else{
+        DMA_CHCTL(dma_periph, channelx) &= ~DMA_CHXCTL_PNAGA;
+    }
+
+    /* configure memory increasing mode */
+    if(DMA_MEMORY_INCREASE_ENABLE == init_struct->memory_inc){
+        DMA_CHCTL(dma_periph, channelx) |= DMA_CHXCTL_MNAGA;
+    }else{
+        DMA_CHCTL(dma_periph, channelx) &= ~DMA_CHXCTL_MNAGA;
+    }
+
+    /* configure the direction of data transfer */
+    if(DMA_PERIPHERAL_TO_MEMORY == init_struct->direction){
+        DMA_CHCTL(dma_periph, channelx) &= ~DMA_CHXCTL_DIR;
+    }else{
+        DMA_CHCTL(dma_periph, channelx) |= DMA_CHXCTL_DIR;
+    }
+}
+
+/*!
+    \brief      enable DMA circulation mode
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void dma_circulation_enable(uint32_t dma_periph, dma_channel_enum channelx)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    DMA_CHCTL(dma_periph, channelx) |= DMA_CHXCTL_CMEN;
+}
+
+/*!
+    \brief      disable DMA circulation mode
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void dma_circulation_disable(uint32_t dma_periph, dma_channel_enum channelx)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    DMA_CHCTL(dma_periph, channelx) &= ~DMA_CHXCTL_CMEN;
+}
+
+/*!
+    \brief      enable memory to memory mode
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void dma_memory_to_memory_enable(uint32_t dma_periph, dma_channel_enum channelx)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    DMA_CHCTL(dma_periph, channelx) |= DMA_CHXCTL_M2M;
+}
+
+/*!
+    \brief      disable memory to memory mode
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void dma_memory_to_memory_disable(uint32_t dma_periph, dma_channel_enum channelx)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    DMA_CHCTL(dma_periph, channelx) &= ~DMA_CHXCTL_M2M;
+}
+
+/*!
+    \brief      enable DMA channel
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void dma_channel_enable(uint32_t dma_periph, dma_channel_enum channelx)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    DMA_CHCTL(dma_periph, channelx) |= DMA_CHXCTL_CHEN;
+}
+
+/*!
+    \brief      disable DMA channel
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void dma_channel_disable(uint32_t dma_periph, dma_channel_enum channelx)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    DMA_CHCTL(dma_periph, channelx) &= ~DMA_CHXCTL_CHEN;
+}
+
+/*!
+    \brief      set DMA peripheral base address
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel to set peripheral base address
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[in]  address: peripheral base address
+    \param[out] none
+    \retval     none
+*/
+void dma_periph_address_config(uint32_t dma_periph, dma_channel_enum channelx, uint32_t address)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    DMA_CHPADDR(dma_periph, channelx) = address;
+}
+
+/*!
+    \brief      set DMA memory base address
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel to set memory base address
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[in]  address: memory base address
+    \param[out] none
+    \retval     none
+*/
+void dma_memory_address_config(uint32_t dma_periph, dma_channel_enum channelx, uint32_t address)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    DMA_CHMADDR(dma_periph, channelx) = address;
+}
+
+/*!
+    \brief      set the number of remaining data to be transferred by the DMA
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel to set number
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[in]  number: the number of remaining data to be transferred by the DMA
+    \param[out] none
+    \retval     none
+*/
+void dma_transfer_number_config(uint32_t dma_periph, dma_channel_enum channelx, uint32_t number)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    DMA_CHCNT(dma_periph, channelx) = (number & DMA_CHANNEL_CNT_MASK);
+}
+
+/*!
+    \brief      get the number of remaining data to be transferred by the DMA
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel to set number
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[out] none
+    \retval     uint32_t: the number of remaining data to be transferred by the DMA
+*/
+uint32_t dma_transfer_number_get(uint32_t dma_periph, dma_channel_enum channelx)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    return (uint32_t)DMA_CHCNT(dma_periph, channelx);
+}
+
+/*!
+    \brief      configure priority level of DMA channel
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[in]  priority: priority Level of this channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA_PRIORITY_LOW: low priority
+      \arg        DMA_PRIORITY_MEDIUM: medium priority
+      \arg        DMA_PRIORITY_HIGH: high priority
+      \arg        DMA_PRIORITY_ULTRA_HIGH: ultra high priority
+    \param[out] none
+    \retval     none
+*/
+void dma_priority_config(uint32_t dma_periph, dma_channel_enum channelx, uint32_t priority)
+{
+    uint32_t ctl;
+
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    /* acquire DMA_CHxCTL register */
+    ctl = DMA_CHCTL(dma_periph, channelx);
+    /* assign regiser */
+    ctl &= ~DMA_CHXCTL_PRIO;
+    ctl |= priority;
+    DMA_CHCTL(dma_periph, channelx) = ctl;
+}
+
+/*!
+    \brief      configure transfer data size of memory
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[in]  mwidth: transfer data width of memory
+                only one parameter can be selected which is shown as below:
+      \arg        DMA_MEMORY_WIDTH_8BIT: transfer data width of memory is 8-bit
+      \arg        DMA_MEMORY_WIDTH_16BIT: transfer data width of memory is 16-bit
+      \arg        DMA_MEMORY_WIDTH_32BIT: transfer data width of memory is 32-bit
+    \param[out] none
+    \retval     none
+*/
+void dma_memory_width_config(uint32_t dma_periph, dma_channel_enum channelx, uint32_t mwidth)
+{
+    uint32_t ctl;
+
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    /* acquire DMA_CHxCTL register */
+    ctl = DMA_CHCTL(dma_periph, channelx);
+    /* assign regiser */
+    ctl &= ~DMA_CHXCTL_MWIDTH;
+    ctl |= mwidth;
+    DMA_CHCTL(dma_periph, channelx) = ctl;
+}
+
+/*!
+    \brief      configure transfer data size of peripheral
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[in]  pwidth: transfer data width of peripheral
+                only one parameter can be selected which is shown as below:
+      \arg        DMA_PERIPHERAL_WIDTH_8BIT: transfer data width of peripheral is 8-bit
+      \arg        DMA_PERIPHERAL_WIDTH_16BIT: transfer data width of peripheral is 16-bit
+      \arg        DMA_PERIPHERAL_WIDTH_32BIT: transfer data width of peripheral is 32-bit
+    \param[out] none
+    \retval     none
+*/
+void dma_periph_width_config (uint32_t dma_periph, dma_channel_enum channelx, uint32_t pwidth)
+{
+    uint32_t ctl;
+
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    /* acquire DMA_CHxCTL register */
+    ctl = DMA_CHCTL(dma_periph, channelx);
+    /* assign regiser */
+    ctl &= ~DMA_CHXCTL_PWIDTH;
+    ctl |= pwidth;
+    DMA_CHCTL(dma_periph, channelx) = ctl;
+}
+
+/*!
+    \brief      enable next address increasement algorithm of memory
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void dma_memory_increase_enable(uint32_t dma_periph, dma_channel_enum channelx)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    DMA_CHCTL(dma_periph, channelx) |= DMA_CHXCTL_MNAGA;
+}
+
+/*!
+    \brief      disable next address increasement algorithm of memory
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void dma_memory_increase_disable(uint32_t dma_periph, dma_channel_enum channelx)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    DMA_CHCTL(dma_periph, channelx) &= ~DMA_CHXCTL_MNAGA;
+}
+
+/*!
+    \brief      enable next address increasement algorithm of peripheral
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void dma_periph_increase_enable(uint32_t dma_periph, dma_channel_enum channelx)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    DMA_CHCTL(dma_periph, channelx) |= DMA_CHXCTL_PNAGA;
+}
+
+/*!
+    \brief      disable next address increasement algorithm of peripheral
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void dma_periph_increase_disable(uint32_t dma_periph, dma_channel_enum channelx)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    DMA_CHCTL(dma_periph, channelx) &= ~DMA_CHXCTL_PNAGA;
+}
+
+/*!
+    \brief      configure the direction of data transfer on the channel
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[in]  direction: specify the direction of data transfer
+                only one parameter can be selected which is shown as below:
+      \arg        DMA_PERIPHERAL_TO_MEMORY: read from peripheral and write to memory
+      \arg        DMA_MEMORY_TO_PERIPHERAL: read from memory and write to peripheral
+    \param[out] none
+    \retval     none
+*/
+void dma_transfer_direction_config(uint32_t dma_periph, dma_channel_enum channelx, uint32_t direction)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    if(DMA_PERIPHERAL_TO_MEMORY == direction){
+        DMA_CHCTL(dma_periph, channelx) &= ~DMA_CHXCTL_DIR;
+    } else {
+        DMA_CHCTL(dma_periph, channelx) |= DMA_CHXCTL_DIR;
+    }
+}
+
+/*!
+    \brief      check DMA flag is set or not
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel to get flag
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[in]  flag: specify get which flag
+                only one parameter can be selected which is shown as below:
+      \arg        DMA_FLAG_G: global interrupt flag of channel
+      \arg        DMA_FLAG_FTF: full transfer finish flag of channel
+      \arg        DMA_FLAG_HTF: half transfer finish flag of channel
+      \arg        DMA_FLAG_ERR: error flag of channel
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus dma_flag_get(uint32_t dma_periph, dma_channel_enum channelx, uint32_t flag)
+{
+    FlagStatus reval;
+
+    if(RESET != (DMA_INTF(dma_periph) & DMA_FLAG_ADD(flag, channelx))){
+        reval = SET;
+    }else{
+        reval = RESET;
+    }
+
+    return reval;
+}
+
+/*!
+    \brief      clear DMA a channel flag
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel to clear flag
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[in]  flag: specify get which flag
+                only one parameter can be selected which is shown as below:
+      \arg        DMA_FLAG_G: global interrupt flag of channel
+      \arg        DMA_FLAG_FTF: full transfer finish flag of channel
+      \arg        DMA_FLAG_HTF: half transfer finish flag of channel
+      \arg        DMA_FLAG_ERR: error flag of channel
+    \param[out] none
+    \retval     none
+*/
+void dma_flag_clear(uint32_t dma_periph, dma_channel_enum channelx, uint32_t flag)
+{
+    DMA_INTC(dma_periph) |= DMA_FLAG_ADD(flag, channelx);
+}
+
+/*!
+    \brief      check DMA flag and interrupt enable bit is set or not
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel to get flag
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[in]  flag: specify get which flag
+                only one parameter can be selected which is shown as below:
+      \arg        DMA_INT_FLAG_FTF: full transfer finish interrupt flag of channel
+      \arg        DMA_INT_FLAG_HTF: half transfer finish interrupt flag of channel
+      \arg        DMA_INT_FLAG_ERR: error interrupt flag of channel
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus dma_interrupt_flag_get(uint32_t dma_periph, dma_channel_enum channelx, uint32_t flag)
+{
+	uint32_t interrupt_enable = 0U, interrupt_flag = 0U;
+
+	switch(flag){
+		case DMA_INT_FLAG_FTF:
+			/* check whether the full transfer finish interrupt flag is set and enabled */
+			interrupt_flag = DMA_INTF(dma_periph) & DMA_FLAG_ADD(flag, channelx);
+			interrupt_enable = DMA_CHCTL(dma_periph, channelx) & DMA_CHXCTL_FTFIE;
+			break;
+		case DMA_INT_FLAG_HTF:
+			/* check whether the half transfer finish interrupt flag is set and enabled */
+			interrupt_flag = DMA_INTF(dma_periph) & DMA_FLAG_ADD(flag, channelx);
+			interrupt_enable = DMA_CHCTL(dma_periph, channelx) & DMA_CHXCTL_HTFIE;
+			break;
+		case DMA_INT_FLAG_ERR:
+			/* check whether the error interrupt flag is set and enabled */
+			interrupt_flag = DMA_INTF(dma_periph) & DMA_FLAG_ADD(flag, channelx);
+			interrupt_enable = DMA_CHCTL(dma_periph, channelx) & DMA_CHXCTL_ERRIE;
+			break;
+		default:
+			DMA_WRONG_HANDLE
+	}
+
+	/* when the interrupt flag is set and enabled, return SET */
+	if(interrupt_flag && interrupt_enable){
+		return SET;
+	}else{
+		return RESET;
+	}
+}
+
+/*!
+    \brief      clear DMA a channel flag
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel to clear flag
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[in]  flag: specify get which flag
+                only one parameter can be selected which is shown as below:
+      \arg        DMA_INT_FLAG_G: global interrupt flag of channel
+      \arg        DMA_INT_FLAG_FTF: full transfer finish interrupt flag of channel
+      \arg        DMA_INT_FLAG_HTF: half transfer finish interrupt flag of channel
+      \arg        DMA_INT_FLAG_ERR: error interrupt flag of channel
+    \param[out] none
+    \retval     none
+*/
+void dma_interrupt_flag_clear(uint32_t dma_periph, dma_channel_enum channelx, uint32_t flag)
+{
+    DMA_INTC(dma_periph) |= DMA_FLAG_ADD(flag, channelx);
+}
+
+/*!
+    \brief      enable DMA interrupt
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[in]  source: specify which interrupt to enbale
+                one or more parameters can be selected which are shown as below
+      \arg        DMA_INT_FTF: channel full transfer finish interrupt
+      \arg        DMA_INT_HTF: channel half transfer finish interrupt
+      \arg        DMA_INT_ERR: channel error interrupt
+    \param[out] none
+    \retval     none
+*/
+void dma_interrupt_enable(uint32_t dma_periph, dma_channel_enum channelx, uint32_t source)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    DMA_CHCTL(dma_periph, channelx) |= source;
+}
+
+/*!
+    \brief      disable DMA interrupt
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA0: DMA_CHx(x=0..6), DMA1: DMA_CHx(x=0..4)
+    \param[in]  source: specify which interrupt to disbale
+                one or more parameters can be selected which are shown as below
+      \arg        DMA_INT_FTF: channel full transfer finish interrupt
+      \arg        DMA_INT_HTF: channel half transfer finish interrupt
+      \arg        DMA_INT_ERR: channel error interrupt
+    \param[out] none
+    \retval     none
+*/
+void dma_interrupt_disable(uint32_t dma_periph, dma_channel_enum channelx, uint32_t source)
+{
+    if(ERROR == dma_periph_and_channel_check(dma_periph, channelx)){
+        DMA_WRONG_HANDLE
+    }
+
+    DMA_CHCTL(dma_periph, channelx) &= ~source;
+}
+
+/*!
+    \brief      check whether peripheral and channels match
+    \param[in]  dma_periph: DMAx(x=0,1)
+      \arg        DMAx(x=0,1)
+    \param[in]  channelx: specify which DMA channel
+                only one parameter can be selected which is shown as below:
+      \arg        DMA_CHx(x=0..6)
+    \param[out] none
+    \retval     none
+*/
+static ErrStatus dma_periph_and_channel_check(uint32_t dma_periph, dma_channel_enum channelx)
+{
+    ErrStatus val = SUCCESS;
+
+    if(DMA1 == dma_periph){
+        /* for DMA1, the channel is from DMA_CH0 to DMA_CH4 */
+        if(channelx > DMA_CH4){
+            val = ERROR;
+        }
+    }
+
+    return val;
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_eclic.c

@@ -0,0 +1,99 @@
+/*!
+    \file  gd32vf103_eclic.c
+    \brief ECLIC(Enhancement Core-Local Interrupt Controller) driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_eclic.h"
+#include "riscv_encoding.h"
+
+#define REG_DBGMCU2       ((uint32_t)0xE0042008)
+#define REG_DBGMCU2EN     ((uint32_t)0xE004200C)
+
+/*!
+    \brief      set the priority group
+    \param[in]  prigroup: specify the priority group
+      \arg        ECLIC_PRIGROUP_LEVEL0_PRIO4
+      \arg        ECLIC_PRIGROUP_LEVEL1_PRIO3
+      \arg        ECLIC_PRIGROUP_LEVEL2_PRIO2
+      \arg        ECLIC_PRIGROUP_LEVEL3_PRIO1
+      \arg        ECLIC_PRIGROUP_LEVEL4_PRIO0
+    \param[out] none
+    \retval     none
+*/
+void eclic_priority_group_set(uint32_t prigroup) {
+    eclic_set_nlbits(prigroup);
+}
+
+/*!
+    \brief      enable the interrupt request
+    \param[in]  source: interrupt request, detailed in IRQn_Type
+    \param[in]  level: the level needed to set (maximum is 16)
+    \param[in]  priority: the priority needed to set (maximum is 16)
+    \param[out] none
+    \retval     none
+*/
+void eclic_irq_enable(uint32_t source, uint8_t level, uint8_t priority) {
+    eclic_enable_interrupt(source);
+    eclic_set_int_level(source, level);
+    eclic_set_int_priority(source, priority);
+}
+
+/*!
+    \brief      disable the interrupt request
+    \param[in]  source: interrupt request, detailed in IRQn_Type
+    \param[out] none
+    \retval     none
+*/
+void eclic_irq_disable(uint32_t source) {
+    eclic_disable_interrupt(source);
+}
+
+/*!
+    \brief      reset system
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void eclic_system_reset(void) {
+    REG32(REG_DBGMCU2EN) = 0x4b5a6978;
+    REG32(REG_DBGMCU2) = 0x1;
+}
+
+/*!
+    \brief      send event(SEV)
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void eclic_send_event(void) {
+    set_csr(0x812, 0x1);
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_exmc.c

@@ -0,0 +1,164 @@
+/*!
+    \file    gd32vf103_exmc.c
+    \brief   EXMC driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_exmc.h"
+
+/* EXMC bank0 register reset value */
+#define BANK0_SNCTL0_REGION_RESET         ((uint32_t)0x000030DAU)
+#define BANK0_SNTCFG_RESET                ((uint32_t)0x0FFFFFFFU)
+
+/* EXMC register bit offset */
+#define SNCTL_NRMUX_OFFSET                ((uint32_t)1U)
+#define SNCTL_WREN_OFFSET                 ((uint32_t)12U)
+#define SNCTL_NRWTEN_OFFSET               ((uint32_t)13U)
+#define SNCTL_ASYNCWAIT_OFFSET            ((uint32_t)15U)
+
+#define SNTCFG_AHLD_OFFSET                ((uint32_t)4U)
+#define SNTCFG_DSET_OFFSET                ((uint32_t)8U)
+#define SNTCFG_BUSLAT_OFFSET              ((uint32_t)16U)
+
+/*!
+    \brief      deinitialize EXMC NOR/SRAM region
+    \param[in]  norsram_region: select the region of bank0
+      \arg        EXMC_BANK0_NORSRAM_REGIONx(x=0)
+    \param[out] none
+    \retval     none
+*/
+void exmc_norsram_deinit(uint32_t norsram_region)
+{
+    /* reset the registers */
+    if(EXMC_BANK0_NORSRAM_REGION0 == norsram_region){
+        EXMC_SNCTL(norsram_region) = BANK0_SNCTL0_REGION_RESET;
+    }
+
+    EXMC_SNTCFG(norsram_region) = BANK0_SNTCFG_RESET;
+}
+
+/*!
+    \brief      initialize the structure exmc_norsram_parameter_struct
+    \param[in]  none
+    \param[out] exmc_norsram_init_struct: the initialized structure exmc_norsram_parameter_struct pointer
+    \retval     none
+*/
+void exmc_norsram_struct_para_init(exmc_norsram_parameter_struct* exmc_norsram_init_struct)
+{
+    /* configure the structure with default value */
+    exmc_norsram_init_struct->norsram_region = EXMC_BANK0_NORSRAM_REGION0;
+    exmc_norsram_init_struct->address_data_mux = ENABLE;
+    exmc_norsram_init_struct->memory_type = EXMC_MEMORY_TYPE_SRAM;
+    exmc_norsram_init_struct->databus_width = EXMC_NOR_DATABUS_WIDTH_16B;
+    exmc_norsram_init_struct->nwait_polarity = EXMC_NWAIT_POLARITY_LOW;
+    exmc_norsram_init_struct->memory_write = ENABLE;
+    exmc_norsram_init_struct->nwait_signal = ENABLE;
+    exmc_norsram_init_struct->asyn_wait = DISABLE;
+
+    /* read/write timing configure */
+    exmc_norsram_init_struct->read_write_timing->asyn_address_setuptime = 0xFU;
+    exmc_norsram_init_struct->read_write_timing->asyn_address_holdtime = 0xFU;
+    exmc_norsram_init_struct->read_write_timing->asyn_data_setuptime = 0xFFU;
+    exmc_norsram_init_struct->read_write_timing->bus_latency = 0xFU;
+}
+
+/*!
+    \brief      initialize EXMC NOR/SRAM region
+    \param[in]  exmc_norsram_parameter_struct: configure the EXMC NOR/SRAM parameter
+                  norsram_region: EXMC_BANK0_NORSRAM_REGIONx,x=0
+                  asyn_wait: ENABLE or DISABLE
+                  nwait_signal: ENABLE or DISABLE
+                  memory_write: ENABLE or DISABLE
+                  nwait_polarity: EXMC_NWAIT_POLARITY_LOW,EXMC_NWAIT_POLARITY_HIGH
+                  databus_width: EXMC_NOR_DATABUS_WIDTH_8B,EXMC_NOR_DATABUS_WIDTH_16B
+                  memory_type: EXMC_MEMORY_TYPE_SRAM,EXMC_MEMORY_TYPE_PSRAM,EXMC_MEMORY_TYPE_NOR
+                  address_data_mux: ENABLE
+                  read_write_timing: structure exmc_norsram_timing_parameter_struct set the time
+    \param[out] none
+    \retval     none
+*/
+void exmc_norsram_init(exmc_norsram_parameter_struct* exmc_norsram_init_struct)
+{
+    uint32_t snctl = 0x00000000U, sntcfg = 0x00000000U;
+
+    /* get the register value */
+    snctl = EXMC_SNCTL(exmc_norsram_init_struct->norsram_region);
+
+    /* clear relative bits */
+    snctl &= ((uint32_t)~(EXMC_SNCTL_NREN | EXMC_SNCTL_NRTP | EXMC_SNCTL_NRW | EXMC_SNCTL_NRWTPOL |
+                          EXMC_SNCTL_WREN | EXMC_SNCTL_NRWTEN | EXMC_SNCTL_ASYNCWAIT | EXMC_SNCTL_NRMUX));
+
+    snctl |= (uint32_t)(exmc_norsram_init_struct->address_data_mux << SNCTL_NRMUX_OFFSET) |
+                        exmc_norsram_init_struct->memory_type |
+                        exmc_norsram_init_struct->databus_width |
+                        exmc_norsram_init_struct->nwait_polarity |
+                       (exmc_norsram_init_struct->memory_write << SNCTL_WREN_OFFSET) |
+                       (exmc_norsram_init_struct->nwait_signal << SNCTL_NRWTEN_OFFSET) |
+                       (exmc_norsram_init_struct->asyn_wait << SNCTL_ASYNCWAIT_OFFSET);
+
+    sntcfg = (uint32_t)((exmc_norsram_init_struct->read_write_timing->asyn_address_setuptime - 1U ) & EXMC_SNTCFG_ASET )|
+                       (((exmc_norsram_init_struct->read_write_timing->asyn_address_holdtime - 1U ) << SNTCFG_AHLD_OFFSET ) & EXMC_SNTCFG_AHLD ) |
+                       (((exmc_norsram_init_struct->read_write_timing->asyn_data_setuptime - 1U ) << SNTCFG_DSET_OFFSET ) & EXMC_SNTCFG_DSET ) |
+                       (((exmc_norsram_init_struct->read_write_timing->bus_latency - 1U ) << SNTCFG_BUSLAT_OFFSET ) & EXMC_SNTCFG_BUSLAT );
+
+    /* nor flash access enable */
+    if(EXMC_MEMORY_TYPE_NOR == exmc_norsram_init_struct->memory_type){
+        snctl |= (uint32_t)EXMC_SNCTL_NREN;
+    }
+
+    /* configure the registers */
+    EXMC_SNCTL(exmc_norsram_init_struct->norsram_region) = snctl;
+    EXMC_SNTCFG(exmc_norsram_init_struct->norsram_region) = sntcfg;
+}
+
+/*!
+    \brief      enable EXMC NOR/PSRAM bank region
+    \param[in]  norsram_region: specify the region of NOR/PSRAM bank
+      \arg        EXMC_BANK0_NORSRAM_REGIONx(x=0)
+    \param[out] none
+    \retval     none
+*/
+void exmc_norsram_enable(uint32_t norsram_region)
+{
+    EXMC_SNCTL(norsram_region) |= (uint32_t)EXMC_SNCTL_NRBKEN;
+}
+
+/*!
+    \brief      disable EXMC NOR/PSRAM bank region
+    \param[in]  norsram_region: specify the region of NOR/PSRAM bank
+      \arg        EXMC_BANK0_NORSRAM_REGIONx(x=0)
+    \param[out] none
+    \retval     none
+*/
+void exmc_norsram_disable(uint32_t norsram_region)
+{
+    EXMC_SNCTL(norsram_region) &= ~(uint32_t)EXMC_SNCTL_NRBKEN;
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_exti.c

@@ -0,0 +1,252 @@
+/*!
+    \file    gd32vf103_exti.c
+    \brief   EXTI driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_exti.h"
+
+#define EXTI_REG_RESET_VALUE            ((uint32_t)0x00000000U)
+
+/*!
+ \brief      deinitialize the EXTI
+ \param[in]  none
+ \param[out] none
+ \retval     none
+ */
+void exti_deinit(void)
+{
+    /* reset the value of all the EXTI registers */
+    EXTI_INTEN = EXTI_REG_RESET_VALUE;
+    EXTI_EVEN  = EXTI_REG_RESET_VALUE;
+    EXTI_RTEN  = EXTI_REG_RESET_VALUE;
+    EXTI_FTEN  = EXTI_REG_RESET_VALUE;
+    EXTI_SWIEV = EXTI_REG_RESET_VALUE;
+}
+
+/*!
+    \brief      initialize the EXTI
+    \param[in]  linex: EXTI line number, refer to exti_line_enum
+                only one parameter can be selected which is shown as below:
+      \arg        EXTI_x (x=0..18): EXTI line x
+    \param[in]  mode: interrupt or event mode, refer to exti_mode_enum
+                only one parameter can be selected which is shown as below:
+      \arg        EXTI_INTERRUPT: interrupt mode
+      \arg        EXTI_EVENT: event mode
+    \param[in]  trig_type: trigger type, refer to exti_trig_type_enum
+                only one parameter can be selected which is shown as below:
+      \arg        EXTI_TRIG_RISING: rising edge trigger
+      \arg        EXTI_TRIG_FALLING: falling edge trigger
+      \arg        EXTI_TRIG_BOTH: rising edge and falling edge trigger
+    \param[out] none
+    \retval     none
+ */
+void exti_init(exti_line_enum linex, exti_mode_enum mode, exti_trig_type_enum trig_type)
+{
+    /* reset the EXTI line x */
+    EXTI_INTEN &= ~(uint32_t) linex;
+    EXTI_EVEN &= ~(uint32_t) linex;
+    EXTI_RTEN &= ~(uint32_t) linex;
+    EXTI_FTEN &= ~(uint32_t) linex;
+
+    /* set the EXTI mode and enable the interrupts or events from EXTI line x */
+    switch (mode) {
+    case EXTI_INTERRUPT:
+        EXTI_INTEN |= (uint32_t) linex;
+        break;
+    case EXTI_EVENT:
+        EXTI_EVEN |= (uint32_t) linex;
+        break;
+    default:
+        break;
+    }
+
+    /* set the EXTI trigger type */
+    switch (trig_type) {
+    case EXTI_TRIG_RISING:
+        EXTI_RTEN |= (uint32_t) linex;
+        EXTI_FTEN &= ~(uint32_t) linex;
+        break;
+    case EXTI_TRIG_FALLING:
+        EXTI_RTEN &= ~(uint32_t) linex;
+        EXTI_FTEN |= (uint32_t) linex;
+        break;
+    case EXTI_TRIG_BOTH:
+        EXTI_RTEN |= (uint32_t) linex;
+        EXTI_FTEN |= (uint32_t) linex;
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      enable the interrupts from EXTI line x
+    \param[in]  linex: EXTI line number, refer to exti_line_enum
+                only one parameter can be selected which is shown as below:
+      \arg        EXTI_x (x=0..18): EXTI line x
+    \param[out] none
+    \retval     none
+*/
+void exti_interrupt_enable(exti_line_enum linex)
+{
+    EXTI_INTEN |= (uint32_t) linex;
+}
+
+/*!
+    \brief      enable the events from EXTI line x
+    \param[in]  linex: EXTI line number, refer to exti_line_enum
+                only one parameter can be selected which is shown as below:
+      \arg        EXTI_x (x=0..18): EXTI line x
+    \param[out] none
+    \retval     none
+*/
+void exti_event_enable(exti_line_enum linex)
+{
+    EXTI_EVEN |= (uint32_t) linex;
+}
+
+/*!
+    \brief      disable the interrupt from EXTI line x
+    \param[in]  linex: EXTI line number, refer to exti_line_enum
+                only one parameter can be selected which is shown as below:
+      \arg        EXTI_x (x=0..18): EXTI line x
+    \param[out] none
+    \retval     none
+*/
+void exti_interrupt_disable(exti_line_enum linex)
+{
+    EXTI_INTEN &= ~(uint32_t) linex;
+}
+
+/*!
+    \brief      disable the events from EXTI line x
+    \param[in]  linex: EXTI line number, refer to exti_line_enum
+                only one parameter can be selected which is shown as below:
+      \arg        EXTI_x (x=0..18): EXTI line x
+    \param[out] none
+    \retval     none
+*/
+void exti_event_disable(exti_line_enum linex)
+{
+    EXTI_EVEN &= ~(uint32_t) linex;
+}
+
+/*!
+    \brief      get EXTI lines flag
+    \param[in]  linex: EXTI line number, refer to exti_line_enum
+                only one parameter can be selected which is shown as below:
+      \arg        EXTI_x (x=0..18): EXTI line x
+    \param[out] none
+    \retval     FlagStatus: status of flag (RESET or SET)
+*/
+FlagStatus exti_flag_get(exti_line_enum linex)
+{
+    if (RESET != (EXTI_PD & (uint32_t) linex)) {
+        return SET;
+    } else {
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear EXTI lines pending flag
+    \param[in]  linex: EXTI line number, refer to exti_line_enum
+                only one parameter can be selected which is shown as below:
+      \arg        EXTI_x (x=0..18): EXTI line x
+    \param[out] none
+    \retval     none
+*/
+void exti_flag_clear(exti_line_enum linex)
+{
+    EXTI_PD = (uint32_t) linex;
+}
+
+/*!
+    \brief      get EXTI lines flag when the interrupt flag is set
+    \param[in]  linex: EXTI line number, refer to exti_line_enum
+                only one parameter can be selected which is shown as below:
+      \arg        EXTI_x (x=0..18): EXTI line x
+    \param[out] none
+    \retval     FlagStatus: status of flag (RESET or SET)
+*/
+FlagStatus exti_interrupt_flag_get(exti_line_enum linex)
+{
+    uint32_t flag_left, flag_right;
+
+    flag_left = EXTI_PD & (uint32_t) linex;
+    flag_right = EXTI_INTEN & (uint32_t) linex;
+
+    if ((RESET != flag_left) && (RESET != flag_right)) {
+        return SET;
+    } else {
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear EXTI lines pending flag
+    \param[in]  linex: EXTI line number, refer to exti_line_enum
+                only one parameter can be selected which is shown as below:
+      \arg        EXTI_x (x=0..18): EXTI line x
+    \param[out] none
+    \retval     none
+*/
+void exti_interrupt_flag_clear(exti_line_enum linex)
+{
+    EXTI_PD = (uint32_t) linex;
+}
+
+/*!
+    \brief      enable EXTI software interrupt event
+    \param[in]  linex: EXTI line number, refer to exti_line_enum
+                only one parameter can be selected which is shown as below:
+      \arg        EXTI_x (x=0..18): EXTI line x
+    \param[out] none
+    \retval     none
+*/
+void exti_software_interrupt_enable(exti_line_enum linex)
+{
+    EXTI_SWIEV |= (uint32_t) linex;
+}
+
+/*!
+    \brief      disable EXTI software interrupt event
+    \param[in]  linex: EXTI line number, refer to exti_line_enum
+                only one parameter can be selected which is shown as below:
+      \arg        EXTI_x (x=0..18): EXTI line x
+    \param[out] none
+    \retval     none
+*/
+void exti_software_interrupt_disable(exti_line_enum linex)
+{
+    EXTI_SWIEV &= ~(uint32_t) linex;
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_fmc.c

@@ -0,0 +1,649 @@
+/*!
+    \file  gd32vf103_fmc.c
+    \brief FMC driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_fmc.h"
+
+/*!
+    \brief      set the wait state counter value
+    \param[in]  wscnt£ºwait state counter value
+      \arg        WS_WSCNT_0: FMC 0 wait state
+      \arg        WS_WSCNT_1: FMC 1 wait state
+      \arg        WS_WSCNT_2: FMC 2 wait state
+    \param[out] none
+    \retval     none
+ */
+void fmc_wscnt_set(uint32_t wscnt)
+{
+    uint32_t reg;
+
+    reg = FMC_WS;
+    /* set the wait state counter value */
+    reg &= ~FMC_WS_WSCNT;
+    FMC_WS = (reg | wscnt);
+}
+
+/*!
+    \brief      unlock the main FMC operation
+    \param[in]  none
+    \param[out] none
+    \retval     none
+ */
+void fmc_unlock(void)
+{
+    if((RESET != (FMC_CTL0 & FMC_CTL0_LK))){
+        /* write the FMC unlock key */
+        FMC_KEY0 = UNLOCK_KEY0;
+        FMC_KEY0 = UNLOCK_KEY1;
+    }
+}
+
+/*!
+    \brief      lock the main FMC operation
+    \param[in]  none
+    \param[out] none
+    \retval     none
+ */
+void fmc_lock(void)
+{
+    /* set the LK bit */
+    FMC_CTL0 |= FMC_CTL0_LK;
+}
+
+
+/*!
+    \brief      FMC erase page
+    \param[in]  page_address: the page address to be erased.
+    \param[out] none
+    \retval     state of FMC, refer to fmc_state_enum
+ */
+fmc_state_enum fmc_page_erase(uint32_t page_address)
+{
+    fmc_state_enum fmc_state;
+    fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+    /* if the last operation is completed, start page erase */
+    if (FMC_READY == fmc_state) {
+        FMC_CTL0 |= FMC_CTL0_PER;
+        FMC_ADDR0 = page_address;
+        FMC_CTL0 |= FMC_CTL0_START;
+        /* wait for the FMC ready */
+        fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+        /* reset the PER bit */
+        FMC_CTL0 &= ~FMC_CTL0_PER;
+    }
+    /* return the FMC state */
+    return fmc_state;
+}
+
+/*!
+    \brief      FMC erase whole chip
+    \param[in]  none
+    \param[out] none
+    \retval     state of FMC, refer to fmc_state_enum
+ */
+fmc_state_enum fmc_mass_erase(void)
+{
+    fmc_state_enum fmc_state;
+        fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+
+        if(FMC_READY == fmc_state){
+            /* start whole chip erase */
+            FMC_CTL0 |= FMC_CTL0_MER;
+            FMC_CTL0 |= FMC_CTL0_START;
+            /* wait for the FMC ready */
+            fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+            /* reset the MER bit */
+            FMC_CTL0 &= ~FMC_CTL0_MER;
+        }
+    /* return the FMC state  */
+    return fmc_state;
+}
+
+/*!
+    \brief      FMC program a word at the corresponding address
+    \param[in]  address: address to program
+    \param[in]  data: word to program
+    \param[out] none
+    \retval     state of FMC, refer to fmc_state_enum
+ */
+fmc_state_enum fmc_word_program(uint32_t address, uint32_t data)
+{
+    fmc_state_enum fmc_state = FMC_READY;
+    fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+
+    if(FMC_READY == fmc_state){
+        /* set the PG bit to start program */
+        FMC_CTL0 |= FMC_CTL0_PG;
+        REG32(address) = data;
+        /* wait for the FMC ready */
+        fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+        /* reset the PG bit */
+        FMC_CTL0 &= ~FMC_CTL0_PG;
+    }
+    /* return the FMC state */
+    return fmc_state;
+}
+/*
+    \brief      FMC program a half word at the corresponding address
+    \param[in]  address: address to program
+    \param[in]  data: halfword to program
+    \param[out] none
+    \retval     state of FMC, refer to fmc_state_enum
+*/
+fmc_state_enum fmc_halfword_program(uint32_t address, uint16_t data)
+{
+    fmc_state_enum fmc_state = FMC_READY;
+    fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+
+    if(FMC_READY == fmc_state){
+        /* set the PG bit to start program */
+        FMC_CTL0 |= FMC_CTL0_PG;
+        REG16(address) = data;
+        /* wait for the FMC ready */
+        fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+        /* reset the PG bit */
+        FMC_CTL0 &= ~FMC_CTL0_PG;
+    }
+    /* return the FMC state */
+    return fmc_state;
+}
+
+/*!
+    \brief      unlock the option byte operation
+    \param[in]  none
+    \param[out] none
+    \retval     none
+ */
+void ob_unlock(void)
+{
+    if(RESET == (FMC_CTL0 & FMC_CTL0_OBWEN)){
+        /* write the FMC key */
+        FMC_OBKEY = UNLOCK_KEY0;
+        FMC_OBKEY = UNLOCK_KEY1;
+    }
+
+    /* wait until OBWEN bit is set by hardware */
+    while (RESET == (FMC_CTL0 & FMC_CTL0_OBWEN)) {
+    }
+}
+
+/*!
+    \brief      lock the option byte operation
+    \param[in]  none
+    \param[out] none
+    \retval     none
+ */
+void ob_lock(void)
+{
+    /* reset the OBWEN bit */
+    FMC_CTL0 &= ~FMC_CTL0_OBWEN;
+}
+
+/*!
+    \brief      erase the FMC option byte
+    unlock the FMC_CTL0 and option byte before calling this function
+    \param[in]  none
+    \param[out] none
+    \retval     state of FMC, refer to fmc_state_enum
+ */
+fmc_state_enum ob_erase(void)
+{
+    uint16_t temp_spc = FMC_NSPC;
+
+    fmc_state_enum fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+
+    /* check the option byte security protection value */
+    if(RESET != ob_spc_get()){
+        temp_spc = FMC_USPC;
+    }
+
+    if(FMC_READY == fmc_state){
+
+        /* start erase the option byte */
+        FMC_CTL0 |= FMC_CTL0_OBER;
+        FMC_CTL0 |= FMC_CTL0_START;
+
+        /* wait for the FMC ready */
+        fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+
+        if(FMC_READY == fmc_state){
+            /* reset the OBER bit */
+            FMC_CTL0 &= ~FMC_CTL0_OBER;
+            /* set the OBPG bit */
+            FMC_CTL0 |= FMC_CTL0_OBPG;
+            /* no security protection */
+            OB_SPC = (uint16_t) temp_spc;
+            /* wait for the FMC ready */
+            fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+            if (FMC_TOERR != fmc_state) {
+                /* reset the OBPG bit */
+                FMC_CTL0 &= ~FMC_CTL0_OBPG;
+            }
+        }else{
+            if(FMC_TOERR != fmc_state){
+                /* reset the OBPG bit */
+                FMC_CTL0 &= ~FMC_CTL0_OBPG;
+            }
+        }
+    }
+    /* return the FMC state */
+    return fmc_state;
+}
+
+/*!
+    \brief      enable write protection
+    \param[in]  ob_wp: specify sector to be write protected, set the bit to 1 if
+    you want to protect the corresponding pages. meanwhile, sector
+    macro could used to set specific sector write protected.
+    one or more parameters can be selected which are shown as below:
+      \arg        OB_WPx(x = 0..31): write protect specify sector
+      \arg        OB_WP_ALL: write protect all sector
+    \param[out] none
+    \retval     state of FMC, refer to fmc_state_enum
+ */
+fmc_state_enum ob_write_protection_enable(uint32_t ob_wp)
+{
+    uint16_t temp_wp0, temp_wp1, temp_wp2, temp_wp3;
+
+    fmc_state_enum fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+
+    ob_wp = (uint32_t) (~ob_wp);
+    temp_wp0 = (uint16_t) (ob_wp & OB_WP0_WP0);
+    temp_wp1 = (uint16_t) ((ob_wp & OB_WP1_WP1) >> 8U);
+    temp_wp2 = (uint16_t) ((ob_wp & OB_WP2_WP2) >> 16U);
+    temp_wp3 = (uint16_t) ((ob_wp & OB_WP3_WP3) >> 24U);
+
+    if(FMC_READY == fmc_state){
+
+        /* set the OBPG bit*/
+        FMC_CTL0 |= FMC_CTL0_OBPG;
+
+        if(0xFFU != temp_wp0){
+            OB_WP0 = temp_wp0;
+
+            /* wait for the FMC ready */
+            fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+        }
+        if((FMC_READY == fmc_state) && (0xFFU != temp_wp1)){
+            OB_WP1 = temp_wp1;
+
+            /* wait for the FMC ready */
+            fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+        }
+        if((FMC_READY == fmc_state) && (0xFFU != temp_wp2)){
+            OB_WP2 = temp_wp2;
+
+            /* wait for the FMC ready */
+            fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+        }
+        if((FMC_READY == fmc_state) && (0xFFU != temp_wp3)){
+            OB_WP3 = temp_wp3;
+
+            /* wait for the FMC ready */
+            fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+        }
+        if(FMC_TOERR != fmc_state){
+            /* reset the OBPG bit */
+            FMC_CTL0 &= ~FMC_CTL0_OBPG;
+        }
+    }
+    /* return the FMC state */
+    return fmc_state;
+}
+
+/*!
+    \brief      configure security protection
+    \param[in]  ob_spc: specify security protection
+    only one parameter can be selected which is shown as below:
+      \arg        FMC_NSPC: no security protection
+      \arg        FMC_USPC: under security protection
+    \param[out] none
+    \retval     state of FMC, refer to fmc_state_enum
+ */
+fmc_state_enum ob_security_protection_config(uint8_t ob_spc)
+{
+    fmc_state_enum fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+
+    if(FMC_READY == fmc_state){
+        FMC_CTL0 |= FMC_CTL0_OBER;
+        FMC_CTL0 |= FMC_CTL0_START;
+
+        /* wait for the FMC ready */
+        fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+
+        if(FMC_READY == fmc_state){
+            /* reset the OBER bit */
+            FMC_CTL0 &= ~FMC_CTL0_OBER;
+
+            /* start the option byte program */
+            FMC_CTL0 |= FMC_CTL0_OBPG;
+
+            OB_SPC = (uint16_t) ob_spc;
+
+            /* wait for the FMC ready */
+            fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+
+            if (FMC_TOERR != fmc_state) {
+                /* reset the OBPG bit */
+                FMC_CTL0 &= ~FMC_CTL0_OBPG;
+            }
+        }else{
+            if (FMC_TOERR != fmc_state) {
+                /* reset the OBER bit */
+                FMC_CTL0 &= ~FMC_CTL0_OBER;
+            }
+        }
+    }
+    /* return the FMC state */
+    return fmc_state;
+}
+
+/*!
+    \brief      program the FMC user option byte
+    \param[in]  ob_fwdgt: option byte watchdog value
+      \arg        OB_FWDGT_SW: software free watchdog
+     \arg        OB_FWDGT_HW: hardware free watchdog
+    \param[in]  ob_deepsleep: option byte deepsleep reset value
+      \arg        OB_DEEPSLEEP_NRST: no reset when entering deepsleep mode
+      \arg        OB_DEEPSLEEP_RST: generate a reset instead of entering deepsleep mode
+    \param[in]  ob_stdby:option byte standby reset value
+       \arg        OB_STDBY_NRST: no reset when entering standby mode
+      \arg        OB_STDBY_RST: generate a reset instead of entering standby mode
+    \param[in]  ob_boot: specifies the option byte boot bank value
+      \arg        OB_BOOT_B0: boot from bank0
+    \param[out] none
+    \retval     state of FMC, refer to fmc_state_enum
+ */
+fmc_state_enum ob_user_write(uint8_t ob_fwdgt, uint8_t ob_deepsleep, uint8_t ob_stdby, uint8_t ob_boot)
+{
+    fmc_state_enum fmc_state = FMC_READY;
+    uint8_t temp;
+
+    /* wait for the FMC ready */
+    fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+
+    if(FMC_READY == fmc_state){
+        /* set the OBPG bit*/
+        FMC_CTL0 |= FMC_CTL0_OBPG;
+
+        temp = ((uint8_t)((uint8_t)((uint8_t)(ob_boot | ob_fwdgt) | ob_deepsleep) | ob_stdby) | OB_USER_MASK);
+        OB_USER = (uint16_t) temp;
+
+        /* wait for the FMC ready */
+        fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+
+        if(FMC_TOERR != fmc_state){
+            /* reset the OBPG bit */
+            FMC_CTL0 &= ~FMC_CTL0_OBPG;
+        }
+    }
+    /* return the FMC state */
+    return fmc_state;
+}
+
+/*!
+    \brief      program option bytes data
+    \param[in]  address: the option bytes address to be programmed
+    \param[in]  data: the byte to be programmed
+    \param[out] none
+    \retval     state of FMC, refer to fmc_state_enum
+ */
+fmc_state_enum ob_data_program(uint32_t address, uint8_t data) {
+    fmc_state_enum fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+
+    if(FMC_READY == fmc_state){
+        /* set the OBPG bit */
+        FMC_CTL0 |= FMC_CTL0_OBPG;
+        REG16(address) = data;
+
+        /* wait for the FMC ready */
+        fmc_state = fmc_ready_wait(FMC_TIMEOUT_COUNT);
+
+        if(FMC_TOERR != fmc_state){
+            /* reset the OBPG bit */
+            FMC_CTL0 &= ~FMC_CTL0_OBPG;
+        }
+    }
+    /* return the FMC state */
+    return fmc_state;
+}
+
+/*!
+    \brief      get the FMC user option byte
+    \param[in]  none
+    \param[out] none
+    \retval     the FMC user option byte values
+ */
+uint8_t ob_user_get(void)
+{
+    /* return the FMC user option byte value */
+    return (uint8_t) (FMC_OBSTAT >> 2U);
+}
+
+/*!
+    \brief      get OB_DATA in register FMC_OBSTAT
+    \param[in]  none
+    \param[out] none
+    \retval     ob_data
+ */
+uint16_t ob_data_get(void)
+{
+    return (uint16_t) (FMC_OBSTAT >> 10U);
+}
+
+/*!
+    \brief      get the FMC option byte write protection
+    \param[in]  none
+    \param[out] none
+    \retval     the FMC write protection option byte value
+ */
+uint32_t ob_write_protection_get(void)
+{
+    /* return the FMC write protection option byte value */
+    return FMC_WP;
+}
+
+/*!
+    \brief      get the FMC option byte security protection
+    \param[in]  none
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+ */
+FlagStatus ob_spc_get(void)
+{
+    FlagStatus spc_state = RESET;
+
+    if(RESET != (FMC_OBSTAT & FMC_OBSTAT_SPC)){
+        spc_state = SET;
+    }else{
+        spc_state = RESET;
+    }
+    return spc_state;
+}
+
+/*!
+    \brief      enable FMC interrupt
+    \param[in]  interrupt: the FMC interrupt source
+    only one parameter can be selected which is shown as below:
+      \arg        FMC_INT_END: enable FMC end of program interrupt
+      \arg        FMC_INT_ERR: enable FMC error interrupt
+    \param[out] none
+    \retval     none
+ */
+void fmc_interrupt_enable(uint32_t interrupt)
+{
+    FMC_REG_VAL(interrupt) |= BIT(FMC_BIT_POS(interrupt));
+}
+
+/*!
+    \brief      disable FMC interrupt
+    \param[in]  interrupt: the FMC interrupt source
+    only one parameter can be selected which is shown as below:
+      \arg        FMC_INT_END: enable FMC end of program interrupt
+      \arg        FMC_INT_ERR: enable FMC error interrupt
+    \param[out] none
+    \retval     none
+ */
+void fmc_interrupt_disable(uint32_t interrupt)
+{
+    FMC_REG_VAL(interrupt) &= ~BIT(FMC_BIT_POS(interrupt));
+}
+
+/*!
+    \brief      check flag is set or not
+    \param[in]  flag: check FMC flag
+    only one parameter can be selected which is shown as below:
+      \arg        FMC_FLAG_BUSY: FMC busy flag bit
+      \arg        FMC_FLAG_PGERR: FMC operation error flag bit
+      \arg        FMC_FLAG_WPERR: FMC erase/program protection error flag bit
+      \arg        FMC_FLAG_END: FMC end of operation flag bit
+      \arg        FMC_FLAG_OBERR: FMC option bytes read error flag bit
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+ */
+FlagStatus fmc_flag_get(uint32_t flag)
+{
+    if(RESET != (FMC_REG_VAL(flag) & BIT(FMC_BIT_POS(flag)))){
+        return SET;
+    } else {
+        return RESET;
+    }
+}
+
+/*!
+ \brief      clear the FMC flag
+ \param[in]  flag: clear FMC flag
+ only one parameter can be selected which is shown as below:
+ \arg        FMC_FLAG_PGERR: FMC operation error flag bit
+ \arg        FMC_FLAG_WPERR: FMC erase/program protection error flag bit
+ \arg        FMC_FLAG_END: FMC end of operation flag bit
+ \param[out] none
+ \retval     none
+ */
+void fmc_flag_clear(uint32_t flag)
+{
+    FMC_REG_VAL(flag) = (!FMC_REG_VAL(flag)) | BIT(FMC_BIT_POS(flag));
+}
+
+/*!
+    \brief      get FMC interrupt flag state
+    \param[in]  flag: FMC interrupt flags, refer to fmc_interrupt_flag_enum
+    only one parameter can be selected which is shown as below:
+      \arg        FMC_INT_FLAG_PGERR: FMC operation error interrupt flag bit
+      \arg        FMC_INT_FLAG_WPERR: FMC erase/program protection error interrupt flag bit
+      \arg        FMC_INT_FLAG_END: FMC end of operation interrupt flag bit
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+ */
+FlagStatus fmc_interrupt_flag_get(fmc_interrupt_flag_enum flag)
+{
+    FlagStatus ret1 = RESET;
+    FlagStatus ret2 = RESET;
+
+    if(FMC_STAT0_REG_OFFSET == FMC_REG_OFFSET_GET(flag)){
+        /* get the staus of interrupt flag */
+        ret1 = (FlagStatus) (FMC_REG_VALS(flag) & BIT(FMC_BIT_POS0(flag)));
+        /* get the staus of interrupt enale bit */
+        ret2 = (FlagStatus) (FMC_CTL0 & BIT(FMC_BIT_POS1(flag)));
+    }
+
+    if(ret1 && ret2){
+        return SET;
+    }else{
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear FMC interrupt flag state
+    \param[in]  flag: FMC interrupt flags, refer to can_interrupt_flag_enum
+    only one parameter can be selected which is shown as below:
+      \arg        FMC_INT_FLAG_PGERR: FMC operation error interrupt flag bit
+      \arg        FMC_INT_FLAG_WPERR: FMC erase/program protection error interrupt flag bit
+      \arg        FMC_INT_FLAG_END: FMC end of operation interrupt flag bit
+     \param[out] none
+     \retval     none
+ */
+void fmc_interrupt_flag_clear(fmc_interrupt_flag_enum flag)
+{
+    FMC_REG_VALS(flag) |= BIT(FMC_BIT_POS0(flag));
+}
+
+/*!
+    \brief      get the FMC state
+    \param[in]  none
+    \param[out] none
+    \retval     state of FMC, refer to fmc_state_enum
+ */
+fmc_state_enum fmc_state_get(void)
+{
+    fmc_state_enum fmc_state = FMC_READY;
+
+    if((uint32_t) 0x00U != (FMC_STAT0 & FMC_STAT0_BUSY)){
+        fmc_state = FMC_BUSY;
+    }else{
+        if((uint32_t) 0x00U != (FMC_STAT0 & FMC_STAT0_WPERR)){
+            fmc_state = FMC_WPERR;
+        }else{
+            if((uint32_t) 0x00U != (FMC_STAT0 & (FMC_STAT0_PGERR))){
+                fmc_state = FMC_PGERR;
+            }
+        }
+    }
+    /* return the FMC state */
+    return fmc_state;
+}
+
+/*!
+    \brief      check whether FMC is ready or not
+    \param[in]  timeout: count of loop
+    \param[out] none
+    \retval     state of FMC, refer to fmc_state_enum
+ */
+fmc_state_enum fmc_ready_wait(uint32_t timeout)
+{
+    fmc_state_enum fmc_state = FMC_BUSY;
+
+    /* wait for FMC ready */
+    do{
+        /* get FMC state */
+        fmc_state = fmc_state_get();
+        timeout--;
+    }while((FMC_BUSY == fmc_state) && (0x00U != timeout));
+
+    if(FMC_BUSY == fmc_state){
+        fmc_state = FMC_TOERR;
+    }
+    /* return the FMC state */
+    return fmc_state;
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_fwdgt.c

@@ -0,0 +1,151 @@
+/*!
+    \file  gd32vf103_fwdgt.c
+    \brief FWDGT driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_fwdgt.h"
+
+/* write value to FWDGT_CTL_CMD bit field */
+#define CTL_CMD(regval)             (BITS(0,15) & ((uint32_t)(regval) << 0))
+/* write value to FWDGT_RLD_RLD bit field */
+#define RLD_RLD(regval)             (BITS(0,11) & ((uint32_t)(regval) << 0))
+
+/*!
+    \brief      enable write access to FWDGT_PSC and FWDGT_RLD
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void fwdgt_write_enable(void)
+{
+    FWDGT_CTL = FWDGT_WRITEACCESS_ENABLE;
+}
+
+/*!
+    \brief      disable write access to FWDGT_PSC and FWDGT_RLD
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void fwdgt_write_disable(void)
+{
+    FWDGT_CTL = FWDGT_WRITEACCESS_DISABLE;
+}
+
+/*!
+    \brief      start the free watchdog timer counter
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void fwdgt_enable(void)
+{
+    FWDGT_CTL = FWDGT_KEY_ENABLE;
+}
+
+/*!
+    \brief      reload the counter of FWDGT
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void fwdgt_counter_reload(void)
+{
+    FWDGT_CTL = FWDGT_KEY_RELOAD;
+}
+
+/*!
+    \brief      configure counter reload value, and prescaler divider value
+    \param[in]  reload_value: specify reload value(0x0000 - 0x0FFF)
+    \param[in]  prescaler_div: FWDGT prescaler value
+                only one parameter can be selected which is shown as below:
+      \arg        FWDGT_PSC_DIV4: FWDGT prescaler set to 4
+      \arg        FWDGT_PSC_DIV8: FWDGT prescaler set to 8
+      \arg        FWDGT_PSC_DIV16: FWDGT prescaler set to 16
+      \arg        FWDGT_PSC_DIV32: FWDGT prescaler set to 32
+      \arg        FWDGT_PSC_DIV64: FWDGT prescaler set to 64
+      \arg        FWDGT_PSC_DIV128: FWDGT prescaler set to 128
+      \arg        FWDGT_PSC_DIV256: FWDGT prescaler set to 256
+    \param[out] none
+    \retval     ErrStatus: ERROR or SUCCESS
+*/
+ErrStatus fwdgt_config(uint16_t reload_value, uint8_t prescaler_div)
+{
+    uint32_t timeout = FWDGT_PSC_TIMEOUT;
+    uint32_t flag_status = RESET;
+
+    /* enable write access to FWDGT_PSC,and FWDGT_RLD */
+    FWDGT_CTL = FWDGT_WRITEACCESS_ENABLE;
+    /* wait until the PUD flag to be reset */
+    do{
+       flag_status = FWDGT_STAT & FWDGT_STAT_PUD;
+    }while((--timeout > 0U) && ((uint32_t)RESET != flag_status));
+
+    if((uint32_t)RESET != flag_status){
+        return ERROR;
+    }
+    /* configure FWDGT */
+    FWDGT_PSC = (uint32_t)prescaler_div;
+
+    timeout = FWDGT_RLD_TIMEOUT;
+    /* wait until the RUD flag to be reset */
+    do{
+       flag_status = FWDGT_STAT & FWDGT_STAT_RUD;
+    }while((--timeout > 0U) && ((uint32_t)RESET != flag_status));
+
+    if((uint32_t)RESET != flag_status){
+        return ERROR;
+    }
+    FWDGT_RLD = RLD_RLD(reload_value);
+    /* reload the counter */
+    FWDGT_CTL = FWDGT_KEY_RELOAD;
+
+    return SUCCESS;
+}
+
+/*!
+    \brief      get flag state of FWDGT
+    \param[in]  flag: flag to get
+                only one parameter can be selected which is shown as below:
+      \arg        FWDGT_FLAG_PUD: a write operation to FWDGT_PSC register is on going
+      \arg        FWDGT_FLAG_RUD: a write operation to FWDGT_RLD register is on going
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus fwdgt_flag_get(uint16_t flag)
+{
+    if(FWDGT_STAT & flag){
+        return SET;
+    }
+
+    return RESET;
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_gpio.c

@@ -0,0 +1,503 @@
+/*!
+    \file  gd32vf103_gpio.c
+    \brief GPIO driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_gpio.h"
+
+#define AFIO_EXTI_SOURCE_MASK              ((uint8_t)0x03U)         /*!< AFIO exti source selection mask*/
+#define AFIO_EXTI_SOURCE_FIELDS            ((uint8_t)0x04U)         /*!< select AFIO exti source registers */
+#define LSB_16BIT_MASK                     ((uint16_t)0xFFFFU)      /*!< LSB 16-bit mask */
+#define PCF_POSITION_MASK                  ((uint32_t)0x000F0000U)  /*!< AFIO_PCF register position mask */
+#define PCF_SWJCFG_MASK                    ((uint32_t)0xF0FFFFFFU)  /*!< AFIO_PCF register SWJCFG mask */
+#define PCF_LOCATION1_MASK                 ((uint32_t)0x00200000U)  /*!< AFIO_PCF register location1 mask */
+#define PCF_LOCATION2_MASK                 ((uint32_t)0x00100000U)  /*!< AFIO_PCF register location2 mask */
+#define AFIO_PCF1_FIELDS                   ((uint32_t)0x80000000U)  /*!< select AFIO_PCF1 register */
+#define GPIO_OUTPUT_PORT_OFFSET            ((uint32_t)4U)           /*!< GPIO event output port offset*/
+
+/*!
+    \brief      reset GPIO port
+    \param[in]  gpio_periph: GPIOx(x = A,B,C,D,E)
+    \param[out] none
+    \retval     none
+*/
+void gpio_deinit(uint32_t gpio_periph)
+{
+    switch (gpio_periph) {
+    case GPIOA:
+        /* reset GPIOA */
+        rcu_periph_reset_enable(RCU_GPIOARST);
+        rcu_periph_reset_disable(RCU_GPIOARST);
+        break;
+    case GPIOB:
+        /* reset GPIOB */
+        rcu_periph_reset_enable(RCU_GPIOBRST);
+        rcu_periph_reset_disable(RCU_GPIOBRST);
+        break;
+    case GPIOC:
+        /* reset GPIOC */
+        rcu_periph_reset_enable(RCU_GPIOCRST);
+        rcu_periph_reset_disable(RCU_GPIOCRST);
+        break;
+    case GPIOD:
+        /* reset GPIOD */
+        rcu_periph_reset_enable(RCU_GPIODRST);
+        rcu_periph_reset_disable(RCU_GPIODRST);
+        break;
+    case GPIOE:
+        /* reset GPIOE */
+        rcu_periph_reset_enable(RCU_GPIOERST);
+        rcu_periph_reset_disable(RCU_GPIOERST);
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      reset alternate function I/O(AFIO)
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void gpio_afio_deinit(void)
+{
+    rcu_periph_reset_enable(RCU_AFRST);
+    rcu_periph_reset_disable(RCU_AFRST);
+}
+
+/*!
+    \brief      GPIO parameter initialization
+    \param[in]  gpio_periph: GPIOx(x = A,B,C,D,E)
+    \param[in]  mode: gpio pin mode
+                only one parameter can be selected which is shown as below:
+      \arg        GPIO_MODE_AIN: analog input mode
+      \arg        GPIO_MODE_IN_FLOATING: floating input mode
+      \arg        GPIO_MODE_IPD: pull-down input mode
+      \arg        GPIO_MODE_IPU: pull-up input mode
+      \arg        GPIO_MODE_OUT_OD: GPIO output with open-drain
+      \arg        GPIO_MODE_OUT_PP: GPIO output with push-pull
+      \arg        GPIO_MODE_AF_OD: AFIO output with open-drain
+      \arg        GPIO_MODE_AF_PP: AFIO output with push-pull
+    \param[in]  speed: gpio output max speed value
+                only one parameter can be selected which is shown as below:
+      \arg        GPIO_OSPEED_10MHZ: output max speed 10MHz
+      \arg        GPIO_OSPEED_2MHZ: output max speed 2MHz
+      \arg        GPIO_OSPEED_50MHZ: output max speed 50MHz
+    \param[in]  pin: GPIO pin
+                one or more parameters can be selected which are shown as below:
+      \arg        GPIO_PIN_x(x=0..15), GPIO_PIN_ALL
+
+    \param[out] none
+    \retval     none
+*/
+void gpio_init(uint32_t gpio_periph, uint32_t mode, uint32_t speed,
+        uint32_t pin)
+{
+    uint16_t i;
+    uint32_t temp_mode = 0U;
+    uint32_t reg = 0U;
+
+    /* GPIO mode configuration */
+    temp_mode = (uint32_t) (mode & ((uint32_t) 0x0FU));
+
+    /* GPIO speed configuration */
+    if (((uint32_t) 0x00U) != ((uint32_t) mode & ((uint32_t) 0x10U))) {
+        /* output mode max speed:10MHz,2MHz,50MHz */
+        temp_mode |= (uint32_t) speed;
+    }
+
+    /* configure the eight low port pins with GPIO_CTL0 */
+    for (i = 0U; i < 8U; i++) {
+        if ((1U << i) & pin) {
+            reg = GPIO_CTL0(gpio_periph);
+
+            /* clear the specified pin mode bits */
+            reg &= ~GPIO_MODE_MASK(i);
+            /* set the specified pin mode bits */
+            reg |= GPIO_MODE_SET(i, temp_mode);
+
+            /* set IPD or IPU */
+            if (GPIO_MODE_IPD == mode) {
+                /* reset the corresponding OCTL bit */
+                GPIO_BC(gpio_periph) = (uint32_t) ((1U << i) & pin);
+            } else {
+                /* set the corresponding OCTL bit */
+                if (GPIO_MODE_IPU == mode) {
+                    GPIO_BOP(gpio_periph) = (uint32_t) ((1U << i) & pin);
+                }
+            }
+            /* set GPIO_CTL0 register */
+            GPIO_CTL0(gpio_periph) = reg;
+        }
+    }
+    /* configure the eight high port pins with GPIO_CTL1 */
+    for (i = 8U; i < 16U; i++) {
+        if ((1U << i) & pin) {
+            reg = GPIO_CTL1(gpio_periph);
+
+            /* clear the specified pin mode bits */
+            reg &= ~GPIO_MODE_MASK(i - 8U);
+            /* set the specified pin mode bits */
+            reg |= GPIO_MODE_SET(i - 8U, temp_mode);
+
+            /* set IPD or IPU */
+            if (GPIO_MODE_IPD == mode) {
+                /* reset the corresponding OCTL bit */
+                GPIO_BC(gpio_periph) = (uint32_t) ((1U << i) & pin);
+            } else {
+                /* set the corresponding OCTL bit */
+                if (GPIO_MODE_IPU == mode) {
+                    GPIO_BOP(gpio_periph) = (uint32_t) ((1U << i) & pin);
+                }
+            }
+            /* set GPIO_CTL1 register */
+            GPIO_CTL1(gpio_periph) = reg;
+        }
+    }
+}
+
+/*!
+    \brief      set GPIO pin
+    \param[in]  gpio_periph: GPIOx(x = A,B,C,D,E)
+    \param[in]  pin: GPIO pin
+                one or more parameters can be selected which are shown as below:
+      \arg        GPIO_PIN_x(x=0..15), GPIO_PIN_ALL
+    \param[out] none
+    \retval     none
+*/
+void gpio_bit_set(uint32_t gpio_periph, uint32_t pin)
+{
+    GPIO_BOP(gpio_periph) = (uint32_t) pin;
+}
+
+/*!
+    \brief      reset GPIO pin
+    \param[in]  gpio_periph: GPIOx(x = A,B,C,D,E)
+    \param[in]  pin: GPIO pin
+                one or more parameters can be selected which are shown as below:
+      \arg        GPIO_PIN_x(x=0..15), GPIO_PIN_ALL
+    \param[out] none
+    \retval     none
+*/
+void gpio_bit_reset(uint32_t gpio_periph, uint32_t pin)
+{
+    GPIO_BC(gpio_periph) = (uint32_t) pin;
+}
+
+/*!
+    \brief      write data to the specified GPIO pin
+    \param[in]  gpio_periph: GPIOx(x = A,B,C,D,E)
+    \param[in]  pin: GPIO pin
+                one or more parameters can be selected which are shown as below:
+      \arg        GPIO_PIN_x(x=0..15), GPIO_PIN_ALL
+    \param[in]  bit_value: SET or RESET
+                only one parameter can be selected which is shown as below:
+      \arg        RESET: clear the port pin
+      \arg        SET: set the port pin
+    \param[out] none
+    \retval     none
+*/
+void gpio_bit_write(uint32_t gpio_periph, uint32_t pin, bit_status bit_value)
+{
+    if (RESET != bit_value) {
+        GPIO_BOP(gpio_periph) = (uint32_t) pin;
+    } else {
+        GPIO_BC(gpio_periph) = (uint32_t) pin;
+    }
+}
+
+/*!
+    \brief      write data to the specified GPIO port
+    \param[in]  gpio_periph: GPIOx(x = A,B,C,D,E)
+    \param[in]  data: specify the value to be written to the port output data register
+    \param[out] none
+    \retval     none
+*/
+void gpio_port_write(uint32_t gpio_periph, uint16_t data)
+{
+    GPIO_OCTL(gpio_periph) = (uint32_t) data;
+}
+
+/*!
+    \brief      get GPIO pin input status
+    \param[in]  gpio_periph: GPIOx(x = A,B,C,D,E)
+    \param[in]  pin: GPIO pin
+                only one parameter can be selected which are shown as below:
+      \arg        GPIO_PIN_x(x=0..15), GPIO_PIN_ALL
+    \param[out] none
+    \retval     input status of gpio pin: SET or RESET
+*/
+FlagStatus gpio_input_bit_get(uint32_t gpio_periph, uint32_t pin)
+{
+    if ((uint32_t) RESET != (GPIO_ISTAT(gpio_periph) & (pin))) {
+        return SET;
+    } else {
+        return RESET;
+    }
+}
+
+/*!
+    \brief      get GPIO port input status
+    \param[in]  gpio_periph: GPIOx(x = A,B,C,D,E)
+    \param[out] none
+    \retval     input status of gpio all pins
+*/
+uint16_t gpio_input_port_get(uint32_t gpio_periph)
+{
+    return (uint16_t) (GPIO_ISTAT(gpio_periph));
+}
+
+/*!
+    \brief      get GPIO pin output status
+    \param[in]  gpio_periph: GPIOx(x = A,B,C,D,E)
+    \param[in]  pin: GPIO pin
+                only one parameter can be selected which are shown as below:
+      \arg        GPIO_PIN_x(x=0..15), GPIO_PIN_ALL
+    \param[out] none
+    \retval     output status of gpio pin: SET or RESET
+*/
+FlagStatus gpio_output_bit_get(uint32_t gpio_periph, uint32_t pin)
+{
+    if ((uint32_t) RESET != (GPIO_OCTL(gpio_periph) & (pin))) {
+        return SET;
+    } else {
+        return RESET;
+    }
+}
+
+/*!
+    \brief      get GPIO port output status
+    \param[in]  gpio_periph: GPIOx(x = A,B,C,D,E)
+    \param[out] none
+    \retval     output status of gpio all pins
+*/
+uint16_t gpio_output_port_get(uint32_t gpio_periph)
+{
+    return ((uint16_t) GPIO_OCTL(gpio_periph));
+}
+
+/*!
+    \brief      configure GPIO pin remap
+    \param[in]  gpio_remap: select the pin to remap
+                only one parameter can be selected which are shown as below:
+      \arg        GPIO_SPI0_REMAP: SPI0 remapping
+      \arg        GPIO_I2C0_REMAP: I2C0 remapping
+      \arg        GPIO_USART0_REMAP: USART0 remapping
+      \arg        GPIO_USART1_REMAP: USART1 remapping
+      \arg        GPIO_USART2_PARTIAL_REMAP: USART2 partial remapping
+      \arg        GPIO_USART2_FULL_REMAP: USART2 full remapping
+      \arg        GPIO_TIMER0_PARTIAL_REMAP: TIMER0 partial remapping
+      \arg        GPIO_TIMER0_FULL_REMAP: TIMER0 full remapping
+      \arg        GPIO_TIMER1_PARTIAL_REMAP0: TIMER1 partial remapping
+      \arg        GPIO_TIMER1_PARTIAL_REMAP1: TIMER1 partial remapping
+      \arg        GPIO_TIMER1_FULL_REMAP: TIMER1 full remapping
+      \arg        GPIO_TIMER2_PARTIAL_REMAP: TIMER2 partial remapping
+      \arg        GPIO_TIMER2_FULL_REMAP: TIMER2 full remapping
+      \arg        GPIO_TIMER3_REMAP: TIMER3 remapping
+      \arg        GPIO_CAN0_PARTIAL_REMAP: CAN0 partial remapping
+      \arg        GPIO_CAN0_FULL_REMAP: CAN0 full remapping
+      \arg        GPIO_PD01_REMAP: PD01 remapping
+      \arg        GPIO_TIMER4CH3_IREMAP: TIMER4 channel3 internal remapping
+      \arg        GPIO_CAN1_REMAP: CAN1 remapping
+      \arg        GPIO_SWJ_NONJTRST_REMAP: full SWJ(JTAG-DP),but without NJTRST
+      \arg        GPIO_SWJ_SWDPENABLE_REMAP: JTAG-DP disabled and SW-DP enabled
+      \arg        GPIO_SWJ_DISABLE_REMAP: JTAG-DP disabled and SW-DP disabled
+      \arg        GPIO_SPI2_REMAP: SPI2 remapping
+      \arg        GPIO_TIMER1ITI1_REMAP: TIMER1 internal trigger 1 remapping
+      \arg        GPIO_EXMC_NADV_REMAP: EXMC_NADV connect/disconnect
+    \param[in]  newvalue: ENABLE or DISABLE
+    \param[out] none
+    \retval     none
+*/
+void gpio_pin_remap_config(uint32_t remap, ControlStatus newvalue)
+{
+    uint32_t remap1 = 0U, remap2 = 0U, temp_reg = 0U, temp_mask = 0U;
+
+    if (AFIO_PCF1_FIELDS == (remap & AFIO_PCF1_FIELDS)) {
+        /* get AFIO_PCF1 regiter value */
+        temp_reg = AFIO_PCF1;
+    } else {
+        /* get AFIO_PCF0 regiter value */
+        temp_reg = AFIO_PCF0;
+    }
+
+    temp_mask = (remap & PCF_POSITION_MASK) >> 0x10U;
+    remap1 = remap & LSB_16BIT_MASK;
+
+    /* judge pin remap type */
+    if ((PCF_LOCATION1_MASK | PCF_LOCATION2_MASK)
+            == (remap & (PCF_LOCATION1_MASK | PCF_LOCATION2_MASK))) {
+        temp_reg &= PCF_SWJCFG_MASK;
+        AFIO_PCF0 &= PCF_SWJCFG_MASK;
+    } else if (PCF_LOCATION2_MASK == (remap & PCF_LOCATION2_MASK)) {
+        remap2 = ((uint32_t) 0x03U) << temp_mask;
+        temp_reg &= ~remap2;
+        temp_reg |= ~PCF_SWJCFG_MASK;
+    }  else {
+        temp_reg &= ~(remap1 << ((remap >> 0x15U) * 0x10U));
+        temp_reg |= ~PCF_SWJCFG_MASK;
+    }
+
+    /* set pin remap value */
+    if (DISABLE != newvalue) {
+        temp_reg |= (remap1 << ((remap >> 0x15U) * 0x10U));
+    }
+
+    if (AFIO_PCF1_FIELDS == (remap & AFIO_PCF1_FIELDS)) {
+        /* set AFIO_PCF1 regiter value */
+        AFIO_PCF1 = temp_reg;
+    } else {
+        /* set AFIO_PCF0 regiter value */
+        AFIO_PCF0 = temp_reg;
+    }
+}
+
+/*!
+    \brief      select GPIO pin exti sources
+    \param[in]  gpio_outputport: gpio event output port
+                only one parameter can be selected which are shown as below:
+      \arg        GPIO_PORT_SOURCE_GPIOA: output port source A
+      \arg        GPIO_PORT_SOURCE_GPIOB: output port source B
+      \arg        GPIO_PORT_SOURCE_GPIOC: output port source C
+      \arg        GPIO_PORT_SOURCE_GPIOD: output port source D
+      \arg        GPIO_PORT_SOURCE_GPIOE: output port source E
+    \param[in]  gpio_outputpin: GPIO_PIN_SOURCE_x(x=0..15)
+    \param[out] none
+    \retval     none
+*/
+void gpio_exti_source_select(uint8_t output_port, uint8_t output_pin)
+{
+    uint32_t source = 0U;
+    source = ((uint32_t) 0x0FU)
+            << (AFIO_EXTI_SOURCE_FIELDS * (output_pin & AFIO_EXTI_SOURCE_MASK));
+
+    /* select EXTI sources */
+    if (GPIO_PIN_SOURCE_4 > output_pin) {
+        /* select EXTI0/EXTI1/EXTI2/EXTI3 */
+        AFIO_EXTISS0 &= ~source;
+        AFIO_EXTISS0 |= (((uint32_t) output_port)
+                << (AFIO_EXTI_SOURCE_FIELDS
+                        * (output_pin & AFIO_EXTI_SOURCE_MASK)));
+    } else if (GPIO_PIN_SOURCE_8 > output_pin) {
+        /* select EXTI4/EXTI5/EXTI6/EXTI7 */
+        AFIO_EXTISS1 &= ~source;
+        AFIO_EXTISS1 |= (((uint32_t) output_port)
+                << (AFIO_EXTI_SOURCE_FIELDS
+                        * (output_pin & AFIO_EXTI_SOURCE_MASK)));
+    } else if (GPIO_PIN_SOURCE_12 > output_pin) {
+        /* select EXTI8/EXTI9/EXTI10/EXTI11 */
+        AFIO_EXTISS2 &= ~source;
+        AFIO_EXTISS2 |= (((uint32_t) output_port)
+                << (AFIO_EXTI_SOURCE_FIELDS
+                        * (output_pin & AFIO_EXTI_SOURCE_MASK)));
+    } else {
+        /* select EXTI12/EXTI13/EXTI14/EXTI15 */
+        AFIO_EXTISS3 &= ~source;
+        AFIO_EXTISS3 |= (((uint32_t) output_port)
+                << (AFIO_EXTI_SOURCE_FIELDS
+                        * (output_pin & AFIO_EXTI_SOURCE_MASK)));
+    }
+}
+
+/*!
+    \brief      configure GPIO pin event output
+    \param[in]  output_port: gpio event output port
+                only one parameter can be selected which are shown as below:
+      \arg        GPIO_EVENT_PORT_GPIOA: event output port A
+      \arg        GPIO_EVENT_PORT_GPIOB: event output port B
+      \arg        GPIO_EVENT_PORT_GPIOC: event output port C
+      \arg        GPIO_EVENT_PORT_GPIOD: event output port D
+      \arg        GPIO_EVENT_PORT_GPIOE: event output port E
+    \param[in]  output_pin:
+                only one parameter can be selected which are shown as below:
+      \arg        GPIO_EVENT_PIN_x(x=0..15)
+    \param[out] none
+    \retval     none
+*/
+void gpio_event_output_config(uint8_t output_port, uint8_t output_pin)
+{
+    uint32_t reg = 0U;
+    reg = AFIO_EC;
+
+    /* clear AFIO_EC_PORT and AFIO_EC_PIN bits */
+    reg &= (uint32_t) (~(AFIO_EC_PORT | AFIO_EC_PIN));
+
+    reg |= (uint32_t) ((uint32_t) output_port << GPIO_OUTPUT_PORT_OFFSET);
+    reg |= (uint32_t) output_pin;
+
+    AFIO_EC = reg;
+}
+
+/*!
+    \brief      enable GPIO pin event output
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void gpio_event_output_enable(void)
+{
+    AFIO_EC |= AFIO_EC_EOE;
+}
+
+/*!
+    \brief      disable GPIO pin event output
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void gpio_event_output_disable(void)
+{
+    AFIO_EC &= (uint32_t) (~AFIO_EC_EOE);
+}
+
+/*!
+    \brief      lock GPIO pin
+    \param[in]  gpio_periph: GPIOx(x = A,B,C,D,E)
+    \param[in]  pin: GPIO pin
+                one or more parameters can be selected which are shown as below:
+      \arg        GPIO_PIN_x(x=0..15), GPIO_PIN_ALL
+    \param[out] none
+    \retval     none
+*/
+void gpio_pin_lock(uint32_t gpio_periph, uint32_t pin)
+{
+    uint32_t lock = 0x00010000U;
+    lock |= pin;
+
+    /* lock key writing sequence: write 1 -> write 0 -> write 1 -> read 0 -> read 1 */
+    GPIO_LOCK(gpio_periph) = (uint32_t) lock;
+    GPIO_LOCK(gpio_periph) = (uint32_t) pin;
+    GPIO_LOCK(gpio_periph) = (uint32_t) lock;
+    lock = GPIO_LOCK(gpio_periph);
+    lock = GPIO_LOCK(gpio_periph);
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_i2c.c

@@ -0,0 +1,726 @@
+/*!
+    \file  gd32vf103_i2c.c
+    \brief I2C driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_i2c.h"
+
+/* I2C register bit mask */
+#define I2CCLK_MAX                    ((uint32_t)0x00000048U)             /*!< i2cclk maximum value */
+#define I2CCLK_MIN                    ((uint32_t)0x00000002U)             /*!< i2cclk minimum value */
+#define I2C_FLAG_MASK                 ((uint32_t)0x0000FFFFU)             /*!< i2c flag mask */
+#define I2C_ADDRESS_MASK              ((uint32_t)0x000003FFU)             /*!< i2c address mask */
+#define I2C_ADDRESS2_MASK             ((uint32_t)0x000000FEU)             /*!< the second i2c address mask */
+
+/* I2C register bit offset */
+#define STAT1_PECV_OFFSET             ((uint32_t)8U)     /* bit offset of PECV in I2C_STAT1 */
+
+/*!
+    \brief      reset I2C
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[out] none
+    \retval     none
+ */
+void i2c_deinit(uint32_t i2c_periph)
+{
+    switch (i2c_periph) {
+    case I2C0:
+        /* reset I2C0 */
+        rcu_periph_reset_enable(RCU_I2C0RST);
+        rcu_periph_reset_disable(RCU_I2C0RST);
+        break;
+    case I2C1:
+        /* reset I2C1 */
+        rcu_periph_reset_enable(RCU_I2C1RST);
+        rcu_periph_reset_disable(RCU_I2C1RST);
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      configure I2C clock
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  clkspeed: I2C clock speed, supports standard mode (up to 100 kHz), fast mode (up to 400 kHz)
+    \param[in]  dutycyc: duty cycle in fast mode
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_DTCY_2: T_low/T_high=2
+    \arg        I2C_DTCY_16_9: T_low/T_high=16/9
+    \param[out] none
+    \retval     none
+ */
+void i2c_clock_config(uint32_t i2c_periph, uint32_t clkspeed, uint32_t dutycyc)
+{
+    uint32_t pclk1, clkc, freq, risetime;
+    uint32_t temp;
+
+    pclk1 = rcu_clock_freq_get(CK_APB1);
+    /* I2C peripheral clock frequency */
+    freq = (uint32_t) (pclk1 / 1000000U);
+    if (freq >= I2CCLK_MAX) {
+        freq = I2CCLK_MAX;
+    }
+    temp = I2C_CTL1(i2c_periph);
+    temp &= ~I2C_CTL1_I2CCLK;
+    temp |= freq;
+
+    I2C_CTL1(i2c_periph) = temp;
+
+    if (100000U >= clkspeed) {
+        /* the maximum SCL rise time is 1000ns in standard mode */
+        risetime = (uint32_t) ((pclk1 / 1000000U) + 1U);
+        if (risetime >= I2CCLK_MAX) {
+            I2C_RT(i2c_periph) = I2CCLK_MAX;
+        } else if (risetime <= I2CCLK_MIN) {
+            I2C_RT(i2c_periph) = I2CCLK_MIN;
+        } else {
+            I2C_RT(i2c_periph) = risetime;
+        }
+        clkc = (uint32_t) (pclk1 / (clkspeed * 2U));
+        if (clkc < 0x04U) {
+            /* the CLKC in standard mode minmum value is 4 */
+            clkc = 0x04U;
+        }
+        I2C_CKCFG(i2c_periph) |= (I2C_CKCFG_CLKC & clkc);
+
+    } else if (400000U >= clkspeed) {
+        /* the maximum SCL rise time is 300ns in fast mode */
+        I2C_RT(i2c_periph) = (uint32_t) (((freq * (uint32_t) 300U)
+                / (uint32_t) 1000U) + (uint32_t) 1U);
+        if (I2C_DTCY_2 == dutycyc) {
+            /* I2C duty cycle is 2 */
+            clkc = (uint32_t) (pclk1 / (clkspeed * 3U));
+            I2C_CKCFG(i2c_periph) &= ~I2C_CKCFG_DTCY;
+        } else {
+            /* I2C duty cycle is 16/9 */
+            clkc = (uint32_t) (pclk1 / (clkspeed * 25U));
+            I2C_CKCFG(i2c_periph) |= I2C_CKCFG_DTCY;
+        }
+        if (0U == (clkc & I2C_CKCFG_CLKC)) {
+            /* the CLKC in fast mode minmum value is 1 */
+            clkc |= 0x0001U;
+        }
+        I2C_CKCFG(i2c_periph) |= I2C_CKCFG_FAST;
+        I2C_CKCFG(i2c_periph) |= clkc;
+    } else {
+    }
+}
+
+/*!
+    \brief      configure I2C address
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  mode:
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_I2CMODE_ENABLE: I2C mode
+    \arg        I2C_SMBUSMODE_ENABLE: SMBus mode
+    \param[in]  addformat: 7bits or 10bits
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_ADDFORMAT_7BITS: 7bits
+    \arg        I2C_ADDFORMAT_10BITS: 10bits
+    \param[in]  addr: I2C address
+    \param[out] none
+    \retval     none
+ */
+void i2c_mode_addr_config(uint32_t i2c_periph, uint32_t mode,uint32_t addformat, uint32_t addr)
+{
+    /* SMBus/I2C mode selected */
+    uint32_t ctl = 0U;
+
+    ctl = I2C_CTL0(i2c_periph);
+    ctl &= ~(I2C_CTL0_SMBEN);
+    ctl |= mode;
+    I2C_CTL0(i2c_periph) = ctl;
+    /* configure address */
+    addr = addr & I2C_ADDRESS_MASK;
+    I2C_SADDR0(i2c_periph) = (addformat | addr);
+}
+
+/*!
+    \brief      SMBus type selection
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  type:
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_SMBUS_DEVICE: device
+    \arg        I2C_SMBUS_HOST: host
+    \param[out] none
+    \retval     none
+ */
+void i2c_smbus_type_config(uint32_t i2c_periph, uint32_t type)
+{
+    if (I2C_SMBUS_HOST == type) {
+        I2C_CTL0(i2c_periph) |= I2C_CTL0_SMBSEL;
+    } else {
+        I2C_CTL0(i2c_periph) &= ~(I2C_CTL0_SMBSEL);
+    }
+}
+
+/*!
+    \brief      whether or not to send an ACK
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  ack:
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_ACK_ENABLE: ACK will be sent
+    \arg        I2C_ACK_DISABLE: ACK will not be sent
+    \param[out] none
+    \retval     none
+ */
+void i2c_ack_config(uint32_t i2c_periph, uint32_t ack)
+{
+    if (I2C_ACK_ENABLE == ack) {
+        I2C_CTL0(i2c_periph) |= I2C_CTL0_ACKEN;
+    } else {
+        I2C_CTL0(i2c_periph) &= ~(I2C_CTL0_ACKEN);
+    }
+}
+
+/*!
+    \brief      configure I2C POAP position
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  pos:
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_ACKPOS_CURRENT: whether to send ACK or not for the current
+    \arg        I2C_ACKPOS_NEXT: whether to send ACK or not for the next byte
+    \param[out] none
+    \retval     none
+ */
+void i2c_ackpos_config(uint32_t i2c_periph, uint32_t pos)
+{
+    /* configure I2C POAP position */
+    if (I2C_ACKPOS_NEXT == pos) {
+        I2C_CTL0(i2c_periph) |= I2C_CTL0_POAP;
+    } else {
+        I2C_CTL0(i2c_periph) &= ~(I2C_CTL0_POAP);
+    }
+}
+
+/*!
+    \brief      master sends slave address
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  addr: slave address
+    \param[in]  trandirection: transmitter or receiver
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_TRANSMITTER: transmitter
+    \arg        I2C_RECEIVER:    receiver
+    \param[out] none
+    \retval     none
+ */
+void i2c_master_addressing(uint32_t i2c_periph, uint32_t addr,uint32_t trandirection)
+{
+    /* master is a transmitter or a receiver */
+    if (I2C_TRANSMITTER == trandirection) {
+        addr = addr & I2C_TRANSMITTER;
+    } else {
+        addr = addr | I2C_RECEIVER;
+    }
+    /* send slave address */
+    I2C_DATA(i2c_periph) = addr;
+}
+
+/*!
+    \brief      configure I2C saddress1
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  addr: I2C address
+    \param[out] none
+    \retval     none
+*/
+void i2c_saddr1_config(uint32_t i2c_periph,uint32_t addr)
+{
+    /* configure saddress1 */
+    I2C_SADDR1(i2c_periph) = (0xFE & addr);
+}
+
+/*!
+    \brief      enable dual-address mode
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  addr: the second address in dual-address mode
+    \param[out] none
+    \retval     none
+*/
+void i2c_dualaddr_enable(uint32_t i2c_periph, uint32_t addr)
+{
+    /* configure address */
+    addr = addr & I2C_ADDRESS2_MASK;
+    I2C_SADDR1(i2c_periph) = (I2C_SADDR1_DUADEN | addr);
+}
+
+/*!
+    \brief      disable dual-address mode
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[out] none
+    \retval     none
+*/
+void i2c_dualaddr_disable(uint32_t i2c_periph)
+{
+    I2C_SADDR1(i2c_periph) &= ~(I2C_SADDR1_DUADEN);
+}
+
+/*!
+    \brief      enable I2C
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[out] none
+    \retval     none
+ */
+void i2c_enable(uint32_t i2c_periph)
+{
+    I2C_CTL0(i2c_periph) |= I2C_CTL0_I2CEN;
+}
+
+/*!
+    \brief      disable I2C
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[out] none
+    \retval     none
+ */
+void i2c_disable(uint32_t i2c_periph)
+{
+    I2C_CTL0(i2c_periph) &= ~(I2C_CTL0_I2CEN);
+}
+
+/*!
+    \brief      generate a START condition on I2C bus
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[out] none
+    \retval     none
+ */
+void i2c_start_on_bus(uint32_t i2c_periph)
+{
+    I2C_CTL0(i2c_periph) |= I2C_CTL0_START;
+}
+
+/*!
+    \brief      generate a STOP condition on I2C bus
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[out] none
+    \retval     none
+ */
+void i2c_stop_on_bus(uint32_t i2c_periph)
+{
+    I2C_CTL0(i2c_periph) |= I2C_CTL0_STOP;
+}
+
+/*!
+    \brief      I2C transmit data function
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  data: data of transmission
+    \param[out] none
+    \retval     none
+ */
+void i2c_data_transmit(uint32_t i2c_periph, uint8_t data)
+{
+    I2C_DATA(i2c_periph) = DATA_TRANS(data);
+}
+
+/*!
+    \brief      I2C receive data function
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[out] none
+    \retval     data of received
+ */
+uint8_t i2c_data_receive(uint32_t i2c_periph)
+{
+    return (uint8_t) DATA_RECV(I2C_DATA(i2c_periph));
+}
+
+/*!
+    \brief      enable I2C DMA mode
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  dmastate:
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_DMA_ON: DMA mode enable
+    \arg        I2C_DMA_OFF: DMA mode disable
+    \param[out] none
+    \retval     none
+ */
+void i2c_dma_enable(uint32_t i2c_periph, uint32_t dmastate)
+{
+    /* configure I2C DMA function */
+    uint32_t ctl = 0U;
+
+    ctl = I2C_CTL1(i2c_periph);
+    ctl &= ~(I2C_CTL1_DMAON);
+    ctl |= dmastate;
+    I2C_CTL1(i2c_periph) = ctl;
+}
+
+/*!
+    \brief      configure whether next DMA EOT is DMA last transfer or not
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  dmalast:
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_DMALST_ON: next DMA EOT is the last transfer
+    \arg        I2C_DMALST_OFF: next DMA EOT is not the last transfer
+    \param[out] none
+    \retval     none
+ */
+void i2c_dma_last_transfer_config(uint32_t i2c_periph, uint32_t dmalast)
+{
+    /* configure DMA last transfer */
+    uint32_t ctl = 0U;
+
+    ctl = I2C_CTL1(i2c_periph);
+    ctl &= ~(I2C_CTL1_DMALST);
+    ctl |= dmalast;
+    I2C_CTL1(i2c_periph) = ctl;
+}
+
+/*!
+    \brief      whether to stretch SCL low when data is not ready in slave mode
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  stretchpara:
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_SCLSTRETCH_ENABLE: SCL stretching is enabled
+    \arg        I2C_SCLSTRETCH_DISABLE: SCL stretching is disabled
+    \param[out] none
+    \retval     none
+ */
+void i2c_stretch_scl_low_config(uint32_t i2c_periph, uint32_t stretchpara)
+{
+    /* configure I2C SCL strerching enable or disable */
+    uint32_t ctl = 0U;
+
+    ctl = I2C_CTL0(i2c_periph);
+    ctl &= ~(I2C_CTL0_SS);
+    ctl |= stretchpara;
+    I2C_CTL0(i2c_periph) = ctl;
+}
+
+/*!
+    \brief      whether or not to response to a general call
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  gcallpara:
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_GCEN_ENABLE: slave will response to a general call
+    \arg        I2C_GCEN_DISABLE: slave will not response to a general call
+    \param[out] none
+    \retval     none
+ */
+void i2c_slave_response_to_gcall_config(uint32_t i2c_periph, uint32_t gcallpara)
+{
+    /* configure slave response to a general call enable or disable */
+    uint32_t ctl = 0U;
+
+    ctl = I2C_CTL0(i2c_periph);
+    ctl &= ~(I2C_CTL0_GCEN);
+    ctl |= gcallpara;
+    I2C_CTL0(i2c_periph) = ctl;
+}
+
+/*!
+    \brief      software reset I2C
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  sreset:
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_SRESET_SET: I2C is under reset
+    \arg        I2C_SRESET_RESET: I2C is not under reset
+    \param[out] none
+    \retval     none
+ */
+void i2c_software_reset_config(uint32_t i2c_periph, uint32_t sreset)
+{
+    /* modify CTL0 and configure software reset I2C state */
+    uint32_t ctl = 0U;
+
+    ctl = I2C_CTL0(i2c_periph);
+    ctl &= ~(I2C_CTL0_SRESET);
+    ctl |= sreset;
+    I2C_CTL0(i2c_periph) = ctl;
+}
+
+/*!
+    \brief      I2C PEC calculation on or off
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  pecpara:
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_PEC_ENABLE: PEC calculation on
+    \arg        I2C_PEC_DISABLE: PEC calculation off
+    \param[out] none
+    \retval     none
+ */
+void i2c_pec_enable(uint32_t i2c_periph, uint32_t pecstate)
+{
+    /* on/off PEC calculation */
+    uint32_t ctl = 0U;
+
+    ctl = I2C_CTL0(i2c_periph);
+    ctl &= ~(I2C_CTL0_PECEN);
+    ctl |= pecstate;
+    I2C_CTL0(i2c_periph) = ctl;
+}
+
+/*!
+    \brief      I2C whether to transfer PEC value
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  pecpara:
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_PECTRANS_ENABLE: transfer PEC
+    \arg        I2C_PECTRANS_DISABLE: not transfer PEC
+    \param[out] none
+    \retval     none
+ */
+void i2c_pec_transfer_enable(uint32_t i2c_periph, uint32_t pecpara)
+{
+    /* whether to transfer PEC */
+    uint32_t ctl = 0U;
+
+    ctl = I2C_CTL0(i2c_periph);
+    ctl &= ~(I2C_CTL0_PECTRANS);
+    ctl |= pecpara;
+    I2C_CTL0(i2c_periph) = ctl;
+}
+
+/*!
+    \brief      get packet error checking value
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[out] none
+    \retval     PEC value
+ */
+uint8_t i2c_pec_value_get(uint32_t i2c_periph)
+{
+    return (uint8_t) ((I2C_STAT1(i2c_periph) & I2C_STAT1_PECV)>> STAT1_PECV_OFFSET);
+}
+
+/*!
+    \brief      I2C issue alert through SMBA pin
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  smbuspara:
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_SALTSEND_ENABLE: issue alert through SMBA pin
+    \arg        I2C_SALTSEND_DISABLE: not issue alert through SMBA pin
+    \param[out] none
+    \retval     none
+ */
+void i2c_smbus_issue_alert(uint32_t i2c_periph, uint32_t smbuspara)
+{
+    /* issue alert through SMBA pin configure*/
+    uint32_t ctl = 0U;
+
+    ctl = I2C_CTL0(i2c_periph);
+    ctl &= ~(I2C_CTL0_SALT);
+    ctl |= smbuspara;
+    I2C_CTL0(i2c_periph) = ctl;
+}
+
+/*!
+    \brief      enable or disable I2C ARP protocol in SMBus switch
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  arpstate:
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_ARP_ENABLE: enable ARP
+    \arg        I2C_ARP_DISABLE: disable ARP
+    \param[out] none
+    \retval     none
+ */
+void i2c_smbus_arp_enable(uint32_t i2c_periph, uint32_t arpstate)
+{
+    /* enable or disable I2C ARP protocol*/
+    uint32_t ctl = 0U;
+
+    ctl = I2C_CTL0(i2c_periph);
+    ctl &= ~(I2C_CTL0_ARPEN);
+    ctl |= arpstate;
+    I2C_CTL0(i2c_periph) = ctl;
+}
+
+/*!
+    \brief      check I2C flag is set or not
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  flag: I2C flags, refer to i2c_flag_enum
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_FLAG_SBSEND: start condition send out
+    \arg        I2C_FLAG_ADDSEND: address is sent in master mode or received and matches in slave mode
+    \arg        I2C_FLAG_BTC: byte transmission finishes
+    \arg        I2C_FLAG_ADD10SEND: header of 10-bit address is sent in master mode
+    \arg        I2C_FLAG_STPDET: stop condition detected in slave mode
+    \arg        I2C_FLAG_RBNE: I2C_DATA is not Empty during receiving
+    \arg        I2C_FLAG_TBE: I2C_DATA is empty during transmitting
+    \arg        I2C_FLAG_BERR: a bus error occurs indication a unexpected start or stop condition on I2C bus
+    \arg        I2C_FLAG_LOSTARB: arbitration lost in master mode
+    \arg        I2C_FLAG_AERR: acknowledge error
+    \arg        I2C_FLAG_OUERR: overrun or underrun situation occurs in slave mode
+    \arg        I2C_FLAG_PECERR: PEC error when receiving data
+    \arg        I2C_FLAG_SMBTO: timeout signal in SMBus mode
+    \arg        I2C_FLAG_SMBALT: SMBus alert status
+    \arg        I2C_FLAG_MASTER: a flag indicating whether I2C block is in master or slave mode
+    \arg        I2C_FLAG_I2CBSY: busy flag
+    \arg        I2C_FLAG_TR: whether the I2C is a transmitter or a receiver
+    \arg        I2C_FLAG_RXGC: general call address (00h) received
+    \arg        I2C_FLAG_DEFSMB: default address of SMBus device
+    \arg        I2C_FLAG_HSTSMB: SMBus host header detected in slave mode
+    \arg        I2C_FLAG_DUMODF: dual flag in slave mode indicating which address is matched in dual-address mode
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+ */
+FlagStatus i2c_flag_get(uint32_t i2c_periph, i2c_flag_enum flag)
+{
+    if (RESET != (I2C_REG_VAL(i2c_periph, flag) & BIT(I2C_BIT_POS(flag)))) {
+        return SET;
+    } else {
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear I2C flag
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  flag: I2C flags, refer to i2c_flag_enum
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_FLAG_SMBALT: SMBus Alert status
+    \arg        I2C_FLAG_SMBTO: timeout signal in SMBus mode
+    \arg        I2C_FLAG_PECERR: PEC error when receiving data
+    \arg        I2C_FLAG_OUERR: over-run or under-run situation occurs in slave mode
+    \arg        I2C_FLAG_AERR: acknowledge error
+    \arg        I2C_FLAG_LOSTARB: arbitration lost in master mode
+    \arg        I2C_FLAG_BERR: a bus error
+    \arg        I2C_FLAG_ADDSEND: cleared by reading I2C_STAT0 and reading I2C_STAT1
+    \param[out] none
+    \retval     none
+ */
+void i2c_flag_clear(uint32_t i2c_periph, i2c_flag_enum flag)
+{
+    uint32_t temp;
+    if (I2C_FLAG_ADDSEND == flag) {
+        /* read I2C_STAT0 and then read I2C_STAT1 to clear ADDSEND */
+        temp = I2C_STAT0(i2c_periph);
+        temp = I2C_STAT1(i2c_periph);
+    } else {
+        I2C_REG_VAL(i2c_periph, flag) &= ~BIT(I2C_BIT_POS(flag));
+    }
+}
+
+/*!
+    \brief      enable I2C interrupt
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  interrupt: I2C interrupts, refer to i2c_interrupt_enum
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_INT_ERR: error interrupt enable
+    \arg        I2C_INT_EV: event interrupt enable
+    \arg        I2C_INT_BUF: buffer interrupt enable
+    \param[out] none
+    \retval     none
+ */
+void i2c_interrupt_enable(uint32_t i2c_periph, i2c_interrupt_enum interrupt)
+{
+    I2C_REG_VAL(i2c_periph, interrupt) |= BIT(I2C_BIT_POS(interrupt));
+}
+
+/*!
+    \brief      disable I2C interrupt
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  interrupt: I2C interrupts, refer to i2c_flag_enum
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_INT_ERR: error interrupt enable
+    \arg        I2C_INT_EV: event interrupt enable
+    \arg        I2C_INT_BUF: buffer interrupt enable
+    \param[out] none
+    \retval     none
+ */
+void i2c_interrupt_disable(uint32_t i2c_periph, i2c_interrupt_enum interrupt)
+{
+    I2C_REG_VAL(i2c_periph, interrupt) &= ~BIT(I2C_BIT_POS(interrupt));
+}
+
+/*!
+    \brief      check I2C interrupt flag
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  int_flag: I2C interrupt flags, refer to i2c_interrupt_flag_enum
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_INT_FLAG_SBSEND: start condition sent out in master mode interrupt flag
+    \arg        I2C_INT_FLAG_ADDSEND: address is sent in master mode or received and matches in slave mode interrupt flag
+    \arg        I2C_INT_FLAG_BTC: byte transmission finishes
+    \arg        I2C_INT_FLAG_ADD10SEND: header of 10-bit address is sent in master mode interrupt flag
+    \arg        I2C_INT_FLAG_STPDET: etop condition detected in slave mode interrupt flag
+    \arg        I2C_INT_FLAG_RBNE: I2C_DATA is not Empty during receiving interrupt flag
+    \arg        I2C_INT_FLAG_TBE: I2C_DATA is empty during transmitting interrupt flag
+    \arg        I2C_INT_FLAG_BERR: a bus error occurs indication a unexpected start or stop condition on I2C bus interrupt flag
+    \arg        I2C_INT_FLAG_LOSTARB: arbitration lost in master mode interrupt flag
+    \arg        I2C_INT_FLAG_AERR: acknowledge error interrupt flag
+    \arg        I2C_INT_FLAG_OUERR: over-run or under-run situation occurs in slave mode interrupt flag
+    \arg        I2C_INT_FLAG_PECERR: PEC error when receiving data interrupt flag
+    \arg        I2C_INT_FLAG_SMBTO: timeout signal in SMBus mode interrupt flag
+    \arg        I2C_INT_FLAG_SMBALT: SMBus Alert status interrupt flag
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+ */
+FlagStatus i2c_interrupt_flag_get(uint32_t i2c_periph,i2c_interrupt_flag_enum int_flag)
+{
+    uint32_t intenable = 0U, flagstatus = 0U, bufie;
+
+    /* check BUFIE */
+    bufie = I2C_CTL1(i2c_periph) & I2C_CTL1_BUFIE;
+
+    /* get the interrupt enable bit status */
+    intenable = (I2C_REG_VAL(i2c_periph, int_flag) & BIT(I2C_BIT_POS(int_flag)));
+    /* get the corresponding flag bit status */
+    flagstatus = (I2C_REG_VAL2(i2c_periph, int_flag)& BIT(I2C_BIT_POS2(int_flag)));
+
+    if ((I2C_INT_FLAG_RBNE == int_flag) || (I2C_INT_FLAG_TBE == int_flag)) {
+        if (intenable && bufie) {
+            intenable = 1U;
+        } else {
+            intenable = 0U;
+        }
+    }
+    if ((0U != flagstatus) && (0U != intenable)) {
+        return SET;
+    } else {
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear I2C interrupt flag
+    \param[in]  i2c_periph: I2Cx(x=0,1)
+    \param[in]  int_flag: I2C interrupt flags, refer to i2c_interrupt_flag_enum
+                only one parameter can be selected which is shown as below:
+    \arg        I2C_INT_FLAG_ADDSEND: address is sent in master mode or received and matches in slave mode interrupt flag
+    \arg        I2C_INT_FLAG_BERR: a bus error occurs indication a unexpected start or stop condition on I2C bus interrupt flag
+    \arg        I2C_INT_FLAG_LOSTARB: arbitration lost in master mode interrupt flag
+    \arg        I2C_INT_FLAG_AERR: acknowledge error interrupt flag
+    \arg        I2C_INT_FLAG_OUERR: over-run or under-run situation occurs in slave mode interrupt flag
+    \arg        I2C_INT_FLAG_PECERR: PEC error when receiving data interrupt flag
+    \arg        I2C_INT_FLAG_SMBTO: timeout signal in SMBus mode interrupt flag
+    \arg        I2C_INT_FLAG_SMBALT: SMBus Alert status interrupt flag
+    \param[out] none
+    \retval     none
+ */
+void i2c_interrupt_flag_clear(uint32_t i2c_periph,i2c_interrupt_flag_enum int_flag)
+{
+    uint32_t temp;
+    if (I2C_INT_FLAG_ADDSEND == int_flag) {
+        /* read I2C_STAT0 and then read I2C_STAT1 to clear ADDSEND */
+        temp = I2C_STAT0(i2c_periph);
+        temp = I2C_STAT1(i2c_periph);
+    } else {
+        I2C_REG_VAL2(i2c_periph, int_flag) &= ~BIT(I2C_BIT_POS2(int_flag));
+    }
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_pmu.c

@@ -0,0 +1,270 @@
+/*!
+    \file    gd32vf103_pmu.c
+    \brief   PMU driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_pmu.h"
+#include "riscv_encoding.h"
+
+/*!
+    \brief      reset PMU register
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void pmu_deinit(void)
+{
+	/* reset PMU */
+	rcu_periph_reset_enable(RCU_PMURST);
+	rcu_periph_reset_disable(RCU_PMURST);
+}
+
+/*!
+    \brief      select low voltage detector threshold
+    \param[in]  lvdt_n:
+                only one parameter can be selected which is shown as below:
+      \arg        PMU_LVDT_0: voltage threshold is 2.2V
+      \arg        PMU_LVDT_1: voltage threshold is 2.3V
+      \arg        PMU_LVDT_2: voltage threshold is 2.4V
+      \arg        PMU_LVDT_3: voltage threshold is 2.5V
+      \arg        PMU_LVDT_4: voltage threshold is 2.6V
+      \arg        PMU_LVDT_5: voltage threshold is 2.7V
+      \arg        PMU_LVDT_6: voltage threshold is 2.8V
+      \arg        PMU_LVDT_7: voltage threshold is 2.9V
+    \param[out] none
+    \retval     none
+*/
+void pmu_lvd_select(uint32_t lvdt_n)
+{
+	/* disable LVD */
+	PMU_CTL &= ~PMU_CTL_LVDEN;
+	/* clear LVDT bits */
+	PMU_CTL &= ~PMU_CTL_LVDT;
+	/* set LVDT bits according to lvdt_n */
+	PMU_CTL |= lvdt_n;
+	/* enable LVD */
+	PMU_CTL |= PMU_CTL_LVDEN;
+}
+
+/*!
+    \brief      disable PMU lvd
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void pmu_lvd_disable(void)
+{
+	/* disable LVD */
+	PMU_CTL &= ~PMU_CTL_LVDEN;
+}
+
+/*!
+    \brief      PMU work at sleep mode
+    \param[in]  sleepmodecmd:
+                only one parameter can be selected which is shown as below:
+      \arg        WFI_CMD: use WFI command
+      \arg        WFE_CMD: use WFE command
+    \param[out] none
+    \retval     none
+*/
+void pmu_to_sleepmode(uint8_t sleepmodecmd)
+{
+    /* clear sleepdeep bit of Cortex-M3 system control register */
+	clear_csr(0x811, 0x1);
+
+    /* select WFI or WFE command to enter sleep mode */
+    if(WFI_CMD == sleepmodecmd){
+        __WFI();
+    }else{
+    	clear_csr(mstatus, MSTATUS_MIE);
+    	set_csr(0x810, 0x1);
+    	__WFI();
+    	clear_csr(0x810, 0x1);
+    	set_csr(mstatus, MSTATUS_MIE);
+    }
+}
+
+/*!
+    \brief      PMU work at deepsleep mode
+    \param[in]  ldo:
+                only one parameter can be selected which is shown as below:
+      \arg        PMU_LDO_NORMAL: LDO work at normal power mode when pmu enter deepsleep mode
+      \arg        PMU_LDO_LOWPOWER: LDO work at low power mode when pmu enter deepsleep mode
+    \param[in]  deepsleepmodecmd:
+                only one parameter can be selected which is shown as below:
+      \arg        WFI_CMD: use WFI command
+      \arg        WFE_CMD: use WFE command
+    \param[out] none
+    \retval     none
+*/
+void pmu_to_deepsleepmode(uint32_t ldo,uint8_t deepsleepmodecmd)
+{
+	/* clear stbmod and ldolp bits */
+    PMU_CTL &= ~((uint32_t)(PMU_CTL_STBMOD | PMU_CTL_LDOLP));
+    /* set ldolp bit according to pmu_ldo */
+    PMU_CTL |= ldo;
+    /* set CSR_SLEEPVALUE bit of RISC-V system control register */
+    set_csr(0x811, 0x1);
+    /* select WFI or WFE command to enter deepsleep mode */
+    if(WFI_CMD == deepsleepmodecmd){
+        __WFI();
+    }else{
+    	clear_csr(mstatus, MSTATUS_MIE);
+    	set_csr(0x810, 0x1);
+    	__WFI();
+    	clear_csr(0x810, 0x1);
+    	set_csr(mstatus, MSTATUS_MIE);
+    }
+    /* reset sleepdeep bit of RISC-V system control register */
+    clear_csr(0x811, 0x1);
+}
+
+/*!
+    \brief      pmu work at standby mode
+    \param[in]  standbymodecmd:
+                only one parameter can be selected which is shown as below:
+      \arg        WFI_CMD: use WFI command
+      \arg        WFE_CMD: use WFE command
+    \param[out] none
+    \retval     none
+*/
+void pmu_to_standbymode(uint8_t standbymodecmd)
+{
+    /* set CSR_SLEEPVALUE bit of RISC-V system control register */
+	set_csr(0x811, 0x1);
+
+    /* set stbmod bit */
+    PMU_CTL |= PMU_CTL_STBMOD;
+
+    /* reset wakeup flag */
+    PMU_CTL |= PMU_CTL_WURST;
+
+    /* select WFI or WFE command to enter standby mode */
+    if(WFI_CMD == standbymodecmd){
+        __WFI();
+    }else{
+    	clear_csr(mstatus, MSTATUS_MIE);
+    	set_csr(0x810, 0x1);
+    	__WFI();
+    	clear_csr(0x810, 0x1);
+    	set_csr(mstatus, MSTATUS_MIE);
+    }
+    clear_csr(0x811, 0x1);
+}
+
+/*!
+    \brief      enable wakeup pin
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void pmu_wakeup_pin_enable(void)
+{
+	PMU_CS |= PMU_CS_WUPEN;
+}
+
+/*!
+    \brief      disable wakeup pin
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void pmu_wakeup_pin_disable(void)
+{
+	PMU_CS &= ~PMU_CS_WUPEN;
+}
+
+/*!
+    \brief      enable write access to the registers in backup domain
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void pmu_backup_write_enable(void)
+{
+    PMU_CTL |= PMU_CTL_BKPWEN;
+}
+
+/*!
+    \brief      disable write access to the registers in backup domain
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void pmu_backup_write_disable(void)
+{
+    PMU_CTL &= ~PMU_CTL_BKPWEN;
+}
+
+/*!
+    \brief      get flag state
+    \param[in]  flag:
+                only one parameter can be selected which is shown as below:
+      \arg        PMU_FLAG_WAKEUP: wakeup flag
+      \arg        PMU_FLAG_STANDBY: standby flag
+      \arg        PMU_FLAG_LVD: lvd flag
+    \param[out] none
+    \retval     FlagStatus SET or RESET
+*/
+FlagStatus pmu_flag_get(uint32_t flag)
+{
+    if(PMU_CS & flag){
+        return  SET;
+    }else{
+        return  RESET;
+    }
+}
+
+/*!
+    \brief      clear flag bit
+    \param[in]  flag_reset:
+                only one parameter can be selected which is shown as below:
+      \arg        PMU_FLAG_RESET_WAKEUP: reset wakeup flag
+      \arg        PMU_FLAG_RESET_STANDBY: reset standby flag
+    \param[out] none
+    \retval     none
+*/
+void pmu_flag_clear(uint32_t flag_reset)
+{
+    switch(flag_reset){
+    case PMU_FLAG_RESET_WAKEUP:
+        /* reset wakeup flag */
+        PMU_CTL |= PMU_CTL_WURST;
+        break;
+    case PMU_FLAG_RESET_STANDBY:
+        /* reset standby flag */
+        PMU_CTL |= PMU_CTL_STBRST;
+        break;
+    default :
+        break;
+    }
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_rcu.c

@@ -0,0 +1,1111 @@
+/*!
+    \file    gd32vf103_rcu.c
+    \brief   RCU driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_rcu.h"
+
+/* define clock source */
+#define SEL_IRC8M                   ((uint16_t)0U)
+#define SEL_HXTAL                   ((uint16_t)1U)
+#define SEL_PLL                     ((uint16_t)2U)
+
+/* define startup timeout count */
+#define OSC_STARTUP_TIMEOUT         ((uint32_t)0xFFFFFU)
+#define LXTAL_STARTUP_TIMEOUT       ((uint32_t)0x3FFFFFFU)
+
+/*!
+    \brief      deinitialize the RCU
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void rcu_deinit(void)
+{
+    /* enable IRC8M */
+    RCU_CTL |= RCU_CTL_IRC8MEN;
+    rcu_osci_stab_wait(RCU_IRC8M);
+
+    /* reset CFG0 register */
+    RCU_CFG0 &= ~(RCU_CFG0_SCS | RCU_CFG0_AHBPSC | RCU_CFG0_APB1PSC | RCU_CFG0_APB2PSC |
+                  RCU_CFG0_ADCPSC | RCU_CFG0_PLLSEL | RCU_CFG0_PREDV0_LSB | RCU_CFG0_PLLMF |
+                  RCU_CFG0_USBFSPSC | RCU_CFG0_CKOUT0SEL | RCU_CFG0_ADCPSC_2 | RCU_CFG0_PLLMF_4);
+    /* reset CTL register */
+    RCU_CTL &= ~(RCU_CTL_HXTALEN | RCU_CTL_CKMEN | RCU_CTL_PLLEN);
+    RCU_CTL &= ~RCU_CTL_HXTALBPS;
+    RCU_CTL &= ~(RCU_CTL_PLL1EN | RCU_CTL_PLL2EN);
+    /* reset INT and CFG1 register */
+    RCU_INT = 0x00ff0000U;
+    RCU_CFG1 &= ~(RCU_CFG1_PREDV0 | RCU_CFG1_PREDV1 | RCU_CFG1_PLL1MF | RCU_CFG1_PLL2MF |
+                  RCU_CFG1_PREDV0SEL | RCU_CFG1_I2S1SEL | RCU_CFG1_I2S2SEL);
+}
+
+/*!
+    \brief      enable the peripherals clock
+    \param[in]  periph: RCU peripherals, refer to rcu_periph_enum
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_GPIOx (x=A,B,C,D,E): GPIO ports clock
+      \arg        RCU_AF : alternate function clock
+      \arg        RCU_CRC: CRC clock
+      \arg        RCU_DMAx (x=0,1): DMA clock
+      \arg        RCU_USBFS: USBFS clock
+      \arg        RCU_EXMC: EXMC clock
+      \arg        RCU_TIMERx (x=0,1,2,3,4,5,6): TIMER clock
+      \arg        RCU_WWDGT: WWDGT clock
+      \arg        RCU_SPIx (x=0,1,2): SPI clock
+      \arg        RCU_USARTx (x=0,1,2): USART clock
+      \arg        RCU_UARTx (x=3,4): UART clock
+      \arg        RCU_I2Cx (x=0,1): I2C clock
+      \arg        RCU_CANx (x=0,1): CAN clock
+      \arg        RCU_PMU: PMU clock
+      \arg        RCU_DAC: DAC clock
+      \arg        RCU_RTC: RTC clock
+      \arg        RCU_ADCx (x=0,1): ADC clock
+      \arg        RCU_BKPI: BKP interface clock
+    \param[out] none
+    \retval     none
+*/
+void rcu_periph_clock_enable(rcu_periph_enum periph)
+{
+    RCU_REG_VAL(periph) |= BIT(RCU_BIT_POS(periph));
+}
+
+/*!
+    \brief      disable the peripherals clock
+    \param[in]  periph: RCU peripherals, refer to rcu_periph_enum
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_GPIOx (x=A,B,C,D,E): GPIO ports clock
+      \arg        RCU_AF: alternate function clock
+      \arg        RCU_CRC: CRC clock
+      \arg        RCU_DMAx (x=0,1): DMA clock
+      \arg        RCU_USBFS: USBFS clock
+      \arg        RCU_EXMC: EXMC clock
+      \arg        RCU_TIMERx (x=0,1,2,3,4,5,6): TIMER clock
+      \arg        RCU_WWDGT: WWDGT clock
+      \arg        RCU_SPIx (x=0,1,2): SPI clock
+      \arg        RCU_USARTx (x=0,1,2): USART clock
+      \arg        RCU_UARTx (x=3,4): UART clock
+      \arg        RCU_I2Cx (x=0,1): I2C clock
+      \arg        RCU_CANx (x=0,1): CAN clock
+      \arg        RCU_PMU: PMU clock
+      \arg        RCU_DAC: DAC clock
+      \arg        RCU_RTC: RTC clock
+      \arg        RCU_ADCx (x=0,1): ADC clock
+      \arg        RCU_BKPI: BKP interface clock
+    \param[out] none
+    \retval     none
+*/
+void rcu_periph_clock_disable(rcu_periph_enum periph)
+{
+    RCU_REG_VAL(periph) &= ~BIT(RCU_BIT_POS(periph));
+}
+
+/*!
+    \brief      enable the peripherals clock when sleep mode
+    \param[in]  periph: RCU peripherals, refer to rcu_periph_sleep_enum
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_FMC_SLP: FMC clock
+      \arg        RCU_SRAM_SLP: SRAM clock
+    \param[out] none
+    \retval     none
+*/
+void rcu_periph_clock_sleep_enable(rcu_periph_sleep_enum periph)
+{
+    RCU_REG_VAL(periph) |= BIT(RCU_BIT_POS(periph));
+}
+
+/*!
+    \brief      disable the peripherals clock when sleep mode
+    \param[in]  periph: RCU peripherals, refer to rcu_periph_sleep_enum
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_FMC_SLP: FMC clock
+      \arg        RCU_SRAM_SLP: SRAM clock
+    \param[out] none
+    \retval     none
+*/
+void rcu_periph_clock_sleep_disable(rcu_periph_sleep_enum periph)
+{
+    RCU_REG_VAL(periph) &= ~BIT(RCU_BIT_POS(periph));
+}
+
+/*!
+    \brief      reset the peripherals
+    \param[in]  periph_reset: RCU peripherals reset, refer to rcu_periph_reset_enum
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_GPIOxRST (x=A,B,C,D,E): reset GPIO ports
+      \arg        RCU_AFRST : reset alternate function clock
+      \arg        RCU_USBFSRST: reset USBFS
+      \arg        RCU_TIMERxRST (x=0,1,2,3,4,5,6): reset TIMER
+      \arg        RCU_WWDGTRST: reset WWDGT
+      \arg        RCU_SPIxRST (x=0,1,2): reset SPI
+      \arg        RCU_USARTxRST (x=0,1,2): reset USART
+      \arg        RCU_UARTxRST (x=3,4): reset UART
+      \arg        RCU_I2CxRST (x=0,1): reset I2C
+      \arg        RCU_CANxRST (x=0,1): reset CAN
+      \arg        RCU_PMURST: reset PMU
+      \arg        RCU_DACRST: reset DAC
+      \arg        RCU_ADCxRST (x=0,1): reset ADC
+      \arg        RCU_BKPIRST: reset BKPI
+    \param[out] none
+    \retval     none
+*/
+void rcu_periph_reset_enable(rcu_periph_reset_enum periph_reset)
+{
+    RCU_REG_VAL(periph_reset) |= BIT(RCU_BIT_POS(periph_reset));
+}
+
+/*!
+    \brief      disable reset the peripheral
+    \param[in]  periph_reset: RCU peripherals reset, refer to rcu_periph_reset_enum
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_GPIOxRST (x=A,B,C,D,E): reset GPIO ports
+      \arg        RCU_AFRST : reset alternate function clock
+      \arg        RCU_USBFSRST: reset USBFS
+      \arg        RCU_TIMERxRST (x=0,1,2,3,4,5,6): reset TIMER
+      \arg        RCU_WWDGTRST: reset WWDGT
+      \arg        RCU_SPIxRST (x=0,1,2): reset SPI
+      \arg        RCU_USARTxRST (x=0,1,2): reset USART
+      \arg        RCU_UARTxRST (x=3,4): reset UART
+      \arg        RCU_I2CxRST (x=0,1): reset I2C
+      \arg        RCU_CANxRST (x=0,1): reset CAN
+      \arg        RCU_PMURST: reset PMU
+      \arg        RCU_DACRST: reset DAC
+      \arg        RCU_ADCxRST (x=0,1): reset ADC
+      \arg        RCU_BKPIRST: reset BKPI
+    \param[out] none
+    \retval     none
+*/
+void rcu_periph_reset_disable(rcu_periph_reset_enum periph_reset)
+{
+    RCU_REG_VAL(periph_reset) &= ~BIT(RCU_BIT_POS(periph_reset));
+}
+
+/*!
+    \brief      reset the BKP domain
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void rcu_bkp_reset_enable(void)
+{
+    RCU_BDCTL |= RCU_BDCTL_BKPRST;
+}
+
+/*!
+    \brief      disable the BKP domain reset
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void rcu_bkp_reset_disable(void)
+{
+    RCU_BDCTL &= ~RCU_BDCTL_BKPRST;
+}
+
+/*!
+    \brief      configure the system clock source
+    \param[in]  ck_sys: system clock source select
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_CKSYSSRC_IRC8M: select CK_IRC8M as the CK_SYS source
+      \arg        RCU_CKSYSSRC_HXTAL: select CK_HXTAL as the CK_SYS source
+      \arg        RCU_CKSYSSRC_PLL: select CK_PLL as the CK_SYS source
+    \param[out] none
+    \retval     none
+*/
+void rcu_system_clock_source_config(uint32_t ck_sys)
+{
+    uint32_t reg;
+
+    reg = RCU_CFG0;
+    /* reset the SCS bits and set according to ck_sys */
+    reg &= ~RCU_CFG0_SCS;
+    RCU_CFG0 = (reg | ck_sys);
+}
+
+/*!
+    \brief      get the system clock source
+    \param[in]  none
+    \param[out] none
+    \retval     which clock is selected as CK_SYS source
+      \arg        RCU_SCSS_IRC8M: CK_IRC8M is selected as the CK_SYS source
+      \arg        RCU_SCSS_HXTAL: CK_HXTAL is selected as the CK_SYS source
+      \arg        RCU_SCSS_PLL: CK_PLL is selected as the CK_SYS source
+*/
+uint32_t rcu_system_clock_source_get(void)
+{
+    return (RCU_CFG0 & RCU_CFG0_SCSS);
+}
+
+/*!
+    \brief      configure the AHB clock prescaler selection
+    \param[in]  ck_ahb: AHB clock prescaler selection
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_AHB_CKSYS_DIVx, x=1, 2, 4, 8, 16, 64, 128, 256, 512
+    \param[out] none
+    \retval     none
+*/
+void rcu_ahb_clock_config(uint32_t ck_ahb)
+{
+    uint32_t reg;
+
+    reg = RCU_CFG0;
+
+    /* reset the AHBPSC bits and set according to ck_ahb */
+    reg &= ~RCU_CFG0_AHBPSC;
+    RCU_CFG0 = (reg | ck_ahb);
+}
+
+/*!
+    \brief      configure the APB1 clock prescaler selection
+    \param[in]  ck_apb1: APB1 clock prescaler selection
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_APB1_CKAHB_DIV1: select CK_AHB as CK_APB1
+      \arg        RCU_APB1_CKAHB_DIV2: select CK_AHB/2 as CK_APB1
+      \arg        RCU_APB1_CKAHB_DIV4: select CK_AHB/4 as CK_APB1
+      \arg        RCU_APB1_CKAHB_DIV8: select CK_AHB/8 as CK_APB1
+      \arg        RCU_APB1_CKAHB_DIV16: select CK_AHB/16 as CK_APB1
+    \param[out] none
+    \retval     none
+*/
+void rcu_apb1_clock_config(uint32_t ck_apb1)
+{
+    uint32_t reg;
+
+    reg = RCU_CFG0;
+
+    /* reset the APB1PSC and set according to ck_apb1 */
+    reg &= ~RCU_CFG0_APB1PSC;
+    RCU_CFG0 = (reg | ck_apb1);
+}
+
+/*!
+    \brief      configure the APB2 clock prescaler selection
+    \param[in]  ck_apb2: APB2 clock prescaler selection
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_APB2_CKAHB_DIV1: select CK_AHB as CK_APB2
+      \arg        RCU_APB2_CKAHB_DIV2: select CK_AHB/2 as CK_APB2
+      \arg        RCU_APB2_CKAHB_DIV4: select CK_AHB/4 as CK_APB2
+      \arg        RCU_APB2_CKAHB_DIV8: select CK_AHB/8 as CK_APB2
+      \arg        RCU_APB2_CKAHB_DIV16: select CK_AHB/16 as CK_APB2
+    \param[out] none
+    \retval     none
+*/
+void rcu_apb2_clock_config(uint32_t ck_apb2)
+{
+    uint32_t reg;
+
+    reg = RCU_CFG0;
+
+    /* reset the APB2PSC and set according to ck_apb2 */
+    reg &= ~RCU_CFG0_APB2PSC;
+    RCU_CFG0 = (reg | ck_apb2);
+}
+
+/*!
+    \brief      configure the CK_OUT0 clock source
+    \param[in]  ckout0_src: CK_OUT0 clock source selection
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_CKOUT0SRC_NONE: no clock selected
+      \arg        RCU_CKOUT0SRC_CKSYS: system clock selected
+      \arg        RCU_CKOUT0SRC_IRC8M: high speed 8M internal oscillator clock selected
+      \arg        RCU_CKOUT0SRC_HXTAL: HXTAL selected
+      \arg        RCU_CKOUT0SRC_CKPLL_DIV2: CK_PLL/2 selected
+      \arg        RCU_CKOUT0SRC_CKPLL1: CK_PLL1 selected
+      \arg        RCU_CKOUT0SRC_CKPLL2_DIV2: CK_PLL2/2 selected
+      \arg        RCU_CKOUT0SRC_EXT1: EXT1 selected
+      \arg        RCU_CKOUT0SRC_CKPLL2: PLL2 selected
+    \param[out] none
+    \retval     none
+*/
+void rcu_ckout0_config(uint32_t ckout0_src)
+{
+    uint32_t reg;
+
+    reg = RCU_CFG0;
+
+    /* reset the CKOUT0SRC, set according to ckout0_src */
+    reg &= ~RCU_CFG0_CKOUT0SEL;
+    RCU_CFG0 = (reg | ckout0_src);
+}
+
+/*!
+    \brief      configure the main PLL clock
+    \param[in]  pll_src: PLL clock source selection
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_PLLSRC_IRC8M_DIV2: IRC8M/2 clock selected as source clock of PLL
+      \arg        RCU_PLLSRC_HXTAL: HXTAL selected as source clock of PLL
+    \param[in]  pll_mul: PLL clock multiplication factor
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_PLL_MULx (x = 2..14, 6.5, 16..32)
+    \param[out] none
+    \retval     none
+*/
+void rcu_pll_config(uint32_t pll_src, uint32_t pll_mul)
+{
+    uint32_t reg = 0U;
+
+    reg = RCU_CFG0;
+
+    /* PLL clock source and multiplication factor configuration */
+    reg &= ~(RCU_CFG0_PLLSEL | RCU_CFG0_PLLMF | RCU_CFG0_PLLMF_4);
+    reg |= (pll_src | pll_mul);
+
+    RCU_CFG0 = reg;
+}
+
+/*!
+    \brief      configure the PREDV0 division factor and clock source
+    \param[in]  predv0_source: PREDV0 input clock source selection
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_PREDV0SRC_HXTAL: HXTAL selected as PREDV0 input source clock
+      \arg        RCU_PREDV0SRC_CKPLL1: CK_PLL1 selected as PREDV0 input source clock
+    \param[in]  predv0_div: PREDV0 division factor
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_PREDV0_DIVx, x = 1..16
+    \param[out] none
+    \retval     none
+*/
+void rcu_predv0_config(uint32_t predv0_source, uint32_t predv0_div)
+{
+    uint32_t reg = 0U;
+
+    reg = RCU_CFG1;
+    /* reset PREDV0SEL and PREDV0 bits */
+    reg &= ~(RCU_CFG1_PREDV0SEL | RCU_CFG1_PREDV0);
+    /* set the PREDV0SEL and PREDV0 division factor */
+    reg |= (predv0_source | predv0_div);
+
+    RCU_CFG1 = reg;
+}
+
+/*!
+    \brief      configure the PREDV1 division factor
+    \param[in]  predv1_div: PREDV1 division factor
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_PREDV1_DIVx, x = 1..16
+    \param[out] none
+    \retval     none
+*/
+void rcu_predv1_config(uint32_t predv1_div)
+{
+    uint32_t reg = 0U;
+
+    reg = RCU_CFG1;
+    /* reset the PREDV1 bits */
+    reg &= ~RCU_CFG1_PREDV1;
+    /* set the PREDV1 division factor */
+    reg |= predv1_div;
+
+    RCU_CFG1 = reg;
+}
+
+/*!
+    \brief      configure the PLL1 clock
+    \param[in]  pll_mul: PLL clock multiplication factor
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_PLL1_MULx (x = 8..16, 20)
+    \param[out] none
+    \retval     none
+*/
+void rcu_pll1_config(uint32_t pll_mul)
+{
+    RCU_CFG1 &= ~RCU_CFG1_PLL1MF;
+    RCU_CFG1 |= pll_mul;
+}
+
+/*!
+    \brief      configure the PLL2 clock
+    \param[in]  pll_mul: PLL clock multiplication factor
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_PLL2_MULx (x = 8..16, 20)
+    \param[out] none
+    \retval     none
+*/
+void rcu_pll2_config(uint32_t pll_mul)
+{
+    RCU_CFG1 &= ~RCU_CFG1_PLL2MF;
+    RCU_CFG1 |= pll_mul;
+}
+
+/*!
+    \brief      configure the ADC prescaler factor
+    \param[in]  adc_psc: ADC prescaler factor
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_CKADC_CKAPB2_DIV2: ADC prescaler select CK_APB2/2
+      \arg        RCU_CKADC_CKAPB2_DIV4: ADC prescaler select CK_APB2/4
+      \arg        RCU_CKADC_CKAPB2_DIV6: ADC prescaler select CK_APB2/6
+      \arg        RCU_CKADC_CKAPB2_DIV8: ADC prescaler select CK_APB2/8
+      \arg        RCU_CKADC_CKAPB2_DIV12: ADC prescaler select CK_APB2/12
+      \arg        RCU_CKADC_CKAPB2_DIV16: ADC prescaler select CK_APB2/16
+    \param[out] none
+    \retval     none
+*/
+void rcu_adc_clock_config(uint32_t adc_psc)
+{
+    uint32_t reg0;
+
+    /* reset the ADCPSC bits */
+    reg0 = RCU_CFG0;
+    reg0 &= ~(RCU_CFG0_ADCPSC_2 | RCU_CFG0_ADCPSC);
+
+    /* set the ADC prescaler factor */
+    switch(adc_psc){
+        case RCU_CKADC_CKAPB2_DIV2:
+        case RCU_CKADC_CKAPB2_DIV4:
+        case RCU_CKADC_CKAPB2_DIV6:
+        case RCU_CKADC_CKAPB2_DIV8:
+            reg0 |= (adc_psc << 14);
+            break;
+
+        case RCU_CKADC_CKAPB2_DIV12:
+        case RCU_CKADC_CKAPB2_DIV16:
+            adc_psc &= ~BIT(2);
+            reg0 |= (adc_psc << 14 | RCU_CFG0_ADCPSC_2);
+            break;
+
+        default:
+            break;
+    }
+
+    /* set the register */
+    RCU_CFG0 = reg0;
+}
+
+/*!
+    \brief      configure the USBFS prescaler factor
+    \param[in]  usb_psc: USB prescaler factor
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_CKUSB_CKPLL_DIV1_5: USBFS prescaler select CK_PLL/1.5
+      \arg        RCU_CKUSB_CKPLL_DIV1: USBFS prescaler select CK_PLL/1
+      \arg        RCU_CKUSB_CKPLL_DIV2_5: USBFS prescaler select CK_PLL/2.5
+      \arg        RCU_CKUSB_CKPLL_DIV2: USBFS prescaler select CK_PLL/2
+    \param[out] none
+    \retval     none
+*/
+void rcu_usb_clock_config(uint32_t usb_psc)
+{
+    uint32_t reg;
+
+    reg = RCU_CFG0;
+
+    /* configure the USBFS prescaler factor */
+    reg &= ~RCU_CFG0_USBFSPSC;
+    RCU_CFG0 = (reg | usb_psc);
+}
+
+/*!
+    \brief      configure the RTC clock source selection
+    \param[in]  rtc_clock_source: RTC clock source selection
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_RTCSRC_NONE: no clock selected
+      \arg        RCU_RTCSRC_LXTAL: CK_LXTAL selected as RTC source clock
+      \arg        RCU_RTCSRC_IRC40K: CK_IRC40K selected as RTC source clock
+      \arg        RCU_RTCSRC_HXTAL_DIV_128: CK_HXTAL/128 selected as RTC source clock
+    \param[out] none
+    \retval     none
+*/
+void rcu_rtc_clock_config(uint32_t rtc_clock_source)
+{
+    uint32_t reg;
+
+    reg = RCU_BDCTL;
+    /* reset the RTCSRC bits and set according to rtc_clock_source */
+    reg &= ~RCU_BDCTL_RTCSRC;
+    RCU_BDCTL = (reg | rtc_clock_source);
+}
+
+/*!
+    \brief      configure the I2S1 clock source selection
+    \param[in]  i2s_clock_source: I2S1 clock source selection
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_I2S1SRC_CKSYS: System clock selected as I2S1 source clock
+      \arg        RCU_I2S1SRC_CKPLL2_MUL2: CK_PLL2x2 selected as I2S1 source clock
+    \param[out] none
+    \retval     none
+*/
+void rcu_i2s1_clock_config(uint32_t i2s_clock_source)
+{
+    uint32_t reg;
+
+    reg = RCU_CFG1;
+    /* reset the I2S1SEL bit and set according to i2s_clock_source */
+    reg &= ~RCU_CFG1_I2S1SEL;
+    RCU_CFG1 = (reg | i2s_clock_source);
+}
+
+/*!
+    \brief      configure the I2S2 clock source selection
+    \param[in]  i2s_clock_source: I2S2 clock source selection
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_I2S2SRC_CKSYS: system clock selected as I2S2 source clock
+      \arg        RCU_I2S2SRC_CKPLL2_MUL2: CK_PLL2x2 selected as I2S2 source clock
+    \param[out] none
+    \retval     none
+*/
+void rcu_i2s2_clock_config(uint32_t i2s_clock_source)
+{
+    uint32_t reg;
+
+    reg = RCU_CFG1;
+    /* reset the I2S2SEL bit and set according to i2s_clock_source */
+    reg &= ~RCU_CFG1_I2S2SEL;
+    RCU_CFG1 = (reg | i2s_clock_source);
+}
+
+/*!
+    \brief      get the clock stabilization and periphral reset flags
+    \param[in]  flag: the clock stabilization and periphral reset flags, refer to rcu_flag_enum
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_FLAG_IRC8MSTB: IRC8M stabilization flag
+      \arg        RCU_FLAG_HXTALSTB: HXTAL stabilization flag
+      \arg        RCU_FLAG_PLLSTB: PLL stabilization flag
+      \arg        RCU_FLAG_PLL1STB: PLL1 stabilization flag
+      \arg        RCU_FLAG_PLL2STB: PLL2 stabilization flag
+      \arg        RCU_FLAG_LXTALSTB: LXTAL stabilization flag
+      \arg        RCU_FLAG_IRC40KSTB: IRC40K stabilization flag
+      \arg        RCU_FLAG_EPRST: external PIN reset flag
+      \arg        RCU_FLAG_PORRST: power reset flag
+      \arg        RCU_FLAG_SWRST: software reset flag
+      \arg        RCU_FLAG_FWDGTRST: free watchdog timer reset flag
+      \arg        RCU_FLAG_WWDGTRST: window watchdog timer reset flag
+      \arg        RCU_FLAG_LPRST: low-power reset flag
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus rcu_flag_get(rcu_flag_enum flag)
+{
+    /* get the rcu flag */
+    if(RESET != (RCU_REG_VAL(flag) & BIT(RCU_BIT_POS(flag)))){
+        return SET;
+    }else{
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear all the reset flag
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void rcu_all_reset_flag_clear(void)
+{
+    RCU_RSTSCK |= RCU_RSTSCK_RSTFC;
+}
+
+/*!
+    \brief      get the clock stabilization interrupt and ckm flags
+    \param[in]  int_flag: interrupt and ckm flags, refer to rcu_int_flag_enum
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_INT_FLAG_IRC40KSTB: IRC40K stabilization interrupt flag
+      \arg        RCU_INT_FLAG_LXTALSTB: LXTAL stabilization interrupt flag
+      \arg        RCU_INT_FLAG_IRC8MSTB: IRC8M stabilization interrupt flag
+      \arg        RCU_INT_FLAG_HXTALSTB: HXTAL stabilization interrupt flag
+      \arg        RCU_INT_FLAG_PLLSTB: PLL stabilization interrupt flag
+      \arg        RCU_INT_FLAG_PLL1STB: PLL1 stabilization interrupt flag
+      \arg        RCU_INT_FLAG_PLL2STB: PLL2 stabilization interrupt flag
+      \arg        RCU_INT_FLAG_CKM: HXTAL clock stuck interrupt flag
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus rcu_interrupt_flag_get(rcu_int_flag_enum int_flag)
+{
+    /* get the rcu interrupt flag */
+    if(RESET != (RCU_REG_VAL(int_flag) & BIT(RCU_BIT_POS(int_flag)))){
+        return SET;
+    }else{
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear the interrupt flags
+    \param[in]  int_flag_clear: clock stabilization and stuck interrupt flags clear, refer to rcu_int_flag_clear_enum
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_INT_FLAG_IRC40KSTB_CLR: IRC40K stabilization interrupt flag clear
+      \arg        RCU_INT_FLAG_LXTALSTB_CLR: LXTAL stabilization interrupt flag clear
+      \arg        RCU_INT_FLAG_IRC8MSTB_CLR: IRC8M stabilization interrupt flag clear
+      \arg        RCU_INT_FLAG_HXTALSTB_CLR: HXTAL stabilization interrupt flag clear
+      \arg        RCU_INT_FLAG_PLLSTB_CLR: PLL stabilization interrupt flag clear
+      \arg        RCU_INT_FLAG_PLL1STB_CLR: PLL1 stabilization interrupt flag clear
+      \arg        RCU_INT_FLAG_PLL2STB_CLR: PLL2 stabilization interrupt flag clear
+      \arg        RCU_INT_FLAG_CKM_CLR: clock stuck interrupt flag clear
+    \param[out] none
+    \retval     none
+*/
+void rcu_interrupt_flag_clear(rcu_int_flag_clear_enum int_flag_clear)
+{
+    RCU_REG_VAL(int_flag_clear) |= BIT(RCU_BIT_POS(int_flag_clear));
+}
+
+/*!
+    \brief      enable the stabilization interrupt
+    \param[in]  stab_int: clock stabilization interrupt, refer to rcu_int_enum
+                Only one parameter can be selected which is shown as below:
+      \arg        RCU_INT_IRC40KSTB: IRC40K stabilization interrupt enable
+      \arg        RCU_INT_LXTALSTB: LXTAL stabilization interrupt enable
+      \arg        RCU_INT_IRC8MSTB: IRC8M stabilization interrupt enable
+      \arg        RCU_INT_HXTALSTB: HXTAL stabilization interrupt enable
+      \arg        RCU_INT_PLLSTB: PLL stabilization interrupt enable
+      \arg        RCU_INT_PLL1STB: PLL1 stabilization interrupt enable
+      \arg        RCU_INT_PLL2STB: PLL2 stabilization interrupt enable
+    \param[out] none
+    \retval     none
+*/
+void rcu_interrupt_enable(rcu_int_enum stab_int)
+{
+    RCU_REG_VAL(stab_int) |= BIT(RCU_BIT_POS(stab_int));
+}
+
+/*!
+    \brief      disable the stabilization interrupt
+    \param[in]  stab_int: clock stabilization interrupt, refer to rcu_int_enum
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_INT_IRC40KSTB: IRC40K stabilization interrupt enable
+      \arg        RCU_INT_LXTALSTB: LXTAL stabilization interrupt enable
+      \arg        RCU_INT_IRC8MSTB: IRC8M stabilization interrupt enable
+      \arg        RCU_INT_HXTALSTB: HXTAL stabilization interrupt enable
+      \arg        RCU_INT_PLLSTB: PLL stabilization interrupt enable
+      \arg        RCU_INT_PLL1STB: PLL1 stabilization interrupt enable
+      \arg        RCU_INT_PLL2STB: PLL2 stabilization interrupt enable
+    \param[out] none
+    \retval     none
+*/
+void rcu_interrupt_disable(rcu_int_enum stab_int)
+{
+    RCU_REG_VAL(stab_int) &= ~BIT(RCU_BIT_POS(stab_int));
+}
+
+/*!
+    \brief      wait for oscillator stabilization flags is SET or oscillator startup is timeout
+    \param[in]  osci: oscillator types, refer to rcu_osci_type_enum
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_HXTAL: high speed crystal oscillator(HXTAL)
+      \arg        RCU_LXTAL: low speed crystal oscillator(LXTAL)
+      \arg        RCU_IRC8M: internal 8M RC oscillators(IRC8M)
+      \arg        RCU_IRC40K: internal 40K RC oscillator(IRC40K)
+      \arg        RCU_PLL_CK: phase locked loop(PLL)
+      \arg        RCU_PLL1_CK: phase locked loop 1
+      \arg        RCU_PLL2_CK: phase locked loop 2
+    \param[out] none
+    \retval     ErrStatus: SUCCESS or ERROR
+*/
+ErrStatus rcu_osci_stab_wait(rcu_osci_type_enum osci)
+{
+    uint32_t stb_cnt = 0U;
+    ErrStatus reval = ERROR;
+    FlagStatus osci_stat = RESET;
+
+    switch(osci){
+    /* wait HXTAL stable */
+    case RCU_HXTAL:
+        while((RESET == osci_stat) && (HXTAL_STARTUP_TIMEOUT != stb_cnt)){
+            osci_stat = rcu_flag_get(RCU_FLAG_HXTALSTB);
+            stb_cnt++;
+        }
+
+        /* check whether flag is set or not */
+        if(RESET != rcu_flag_get(RCU_FLAG_HXTALSTB)){
+            reval = SUCCESS;
+        }
+        break;
+
+    /* wait LXTAL stable */
+    case RCU_LXTAL:
+        while((RESET == osci_stat) && (LXTAL_STARTUP_TIMEOUT != stb_cnt)){
+            osci_stat = rcu_flag_get(RCU_FLAG_LXTALSTB);
+            stb_cnt++;
+        }
+
+        /* check whether flag is set or not */
+        if(RESET != rcu_flag_get(RCU_FLAG_LXTALSTB)){
+            reval = SUCCESS;
+        }
+        break;
+
+    /* wait IRC8M stable */
+    case RCU_IRC8M:
+        while((RESET == osci_stat) && (IRC8M_STARTUP_TIMEOUT != stb_cnt)){
+            osci_stat = rcu_flag_get(RCU_FLAG_IRC8MSTB);
+            stb_cnt++;
+        }
+
+        /* check whether flag is set or not */
+        if(RESET != rcu_flag_get(RCU_FLAG_IRC8MSTB)){
+            reval = SUCCESS;
+        }
+        break;
+
+    /* wait IRC40K stable */
+    case RCU_IRC40K:
+        while((RESET == osci_stat) && (OSC_STARTUP_TIMEOUT != stb_cnt)){
+            osci_stat = rcu_flag_get(RCU_FLAG_IRC40KSTB);
+            stb_cnt++;
+        }
+
+        /* check whether flag is set or not */
+        if(RESET != rcu_flag_get(RCU_FLAG_IRC40KSTB)){
+            reval = SUCCESS;
+        }
+        break;
+
+    /* wait PLL stable */
+    case RCU_PLL_CK:
+        while((RESET == osci_stat) && (OSC_STARTUP_TIMEOUT != stb_cnt)){
+            osci_stat = rcu_flag_get(RCU_FLAG_PLLSTB);
+            stb_cnt++;
+        }
+
+        /* check whether flag is set or not */
+        if(RESET != rcu_flag_get(RCU_FLAG_PLLSTB)){
+            reval = SUCCESS;
+        }
+        break;
+    /* wait PLL1 stable */
+    case RCU_PLL1_CK:
+        while((RESET == osci_stat) && (OSC_STARTUP_TIMEOUT != stb_cnt)){
+            osci_stat = rcu_flag_get(RCU_FLAG_PLL1STB);
+            stb_cnt++;
+        }
+
+        /* check whether flag is set or not */
+        if(RESET != rcu_flag_get(RCU_FLAG_PLL1STB)){
+            reval = SUCCESS;
+        }
+        break;
+    /* wait PLL2 stable */
+    case RCU_PLL2_CK:
+        while((RESET == osci_stat) && (OSC_STARTUP_TIMEOUT != stb_cnt)){
+            osci_stat = rcu_flag_get(RCU_FLAG_PLL2STB);
+            stb_cnt++;
+        }
+
+        /* check whether flag is set or not */
+        if(RESET != rcu_flag_get(RCU_FLAG_PLL2STB)){
+            reval = SUCCESS;
+        }
+        break;
+
+    default:
+        break;
+    }
+
+    /* return value */
+    return reval;
+}
+
+/*!
+    \brief      turn on the oscillator
+    \param[in]  osci: oscillator types, refer to rcu_osci_type_enum
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_HXTAL: high speed crystal oscillator(HXTAL)
+      \arg        RCU_LXTAL: low speed crystal oscillator(LXTAL)
+      \arg        RCU_IRC8M: internal 8M RC oscillators(IRC8M)
+      \arg        RCU_IRC40K: internal 40K RC oscillator(IRC40K)
+      \arg        RCU_PLL_CK: phase locked loop(PLL)
+      \arg        RCU_PLL1_CK: phase locked loop 1
+      \arg        RCU_PLL2_CK: phase locked loop 2
+    \param[out] none
+    \retval     none
+*/
+void rcu_osci_on(rcu_osci_type_enum osci)
+{
+    RCU_REG_VAL(osci) |= BIT(RCU_BIT_POS(osci));
+}
+
+/*!
+    \brief      turn off the oscillator
+    \param[in]  osci: oscillator types, refer to rcu_osci_type_enum
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_HXTAL: high speed crystal oscillator(HXTAL)
+      \arg        RCU_LXTAL: low speed crystal oscillator(LXTAL)
+      \arg        RCU_IRC8M: internal 8M RC oscillators(IRC8M)
+      \arg        RCU_IRC40K: internal 40K RC oscillator(IRC40K)
+      \arg        RCU_PLL_CK: phase locked loop(PLL)
+      \arg        RCU_PLL1_CK: phase locked loop 1
+      \arg        RCU_PLL2_CK: phase locked loop 2
+    \param[out] none
+    \retval     none
+*/
+void rcu_osci_off(rcu_osci_type_enum osci)
+{
+    RCU_REG_VAL(osci) &= ~BIT(RCU_BIT_POS(osci));
+}
+
+/*!
+    \brief      enable the oscillator bypass mode, HXTALEN or LXTALEN must be reset before it
+    \param[in]  osci: oscillator types, refer to rcu_osci_type_enum
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_HXTAL: high speed crystal oscillator(HXTAL)
+      \arg        RCU_LXTAL: low speed crystal oscillator(LXTAL)
+    \param[out] none
+    \retval     none
+*/
+void rcu_osci_bypass_mode_enable(rcu_osci_type_enum osci)
+{
+    uint32_t reg;
+
+    switch(osci){
+    /* enable HXTAL to bypass mode */
+    case RCU_HXTAL:
+        reg = RCU_CTL;
+        RCU_CTL &= ~RCU_CTL_HXTALEN;
+        RCU_CTL = (reg | RCU_CTL_HXTALBPS);
+        break;
+    /* enable LXTAL to bypass mode */
+    case RCU_LXTAL:
+        reg = RCU_BDCTL;
+        RCU_BDCTL &= ~RCU_BDCTL_LXTALEN;
+        RCU_BDCTL = (reg | RCU_BDCTL_LXTALBPS);
+        break;
+    case RCU_IRC8M:
+    case RCU_IRC40K:
+    case RCU_PLL_CK:
+    case RCU_PLL1_CK:
+    case RCU_PLL2_CK:
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      disable the oscillator bypass mode, HXTALEN or LXTALEN must be reset before it
+    \param[in]  osci: oscillator types, refer to rcu_osci_type_enum
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_HXTAL: high speed crystal oscillator(HXTAL)
+      \arg        RCU_LXTAL: low speed crystal oscillator(LXTAL)
+    \param[out] none
+    \retval     none
+*/
+void rcu_osci_bypass_mode_disable(rcu_osci_type_enum osci)
+{
+    uint32_t reg;
+
+    switch(osci){
+    /* disable HXTAL to bypass mode */
+    case RCU_HXTAL:
+        reg = RCU_CTL;
+        RCU_CTL &= ~RCU_CTL_HXTALEN;
+        RCU_CTL = (reg & ~RCU_CTL_HXTALBPS);
+        break;
+    /* disable LXTAL to bypass mode */
+    case RCU_LXTAL:
+        reg = RCU_BDCTL;
+        RCU_BDCTL &= ~RCU_BDCTL_LXTALEN;
+        RCU_BDCTL = (reg & ~RCU_BDCTL_LXTALBPS);
+        break;
+    case RCU_IRC8M:
+    case RCU_IRC40K:
+    case RCU_PLL_CK:
+    case RCU_PLL1_CK:
+    case RCU_PLL2_CK:
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      enable the HXTAL clock monitor
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+
+void rcu_hxtal_clock_monitor_enable(void)
+{
+    RCU_CTL |= RCU_CTL_CKMEN;
+}
+
+/*!
+    \brief      disable the HXTAL clock monitor
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void rcu_hxtal_clock_monitor_disable(void)
+{
+    RCU_CTL &= ~RCU_CTL_CKMEN;
+}
+
+/*!
+    \brief      set the IRC8M adjust value
+    \param[in]  irc8m_adjval: IRC8M adjust value, must be between 0 and 0x1F
+    \param[out] none
+    \retval     none
+*/
+void rcu_irc8m_adjust_value_set(uint32_t irc8m_adjval)
+{
+    uint32_t reg;
+
+    reg = RCU_CTL;
+    /* reset the IRC8MADJ bits and set according to irc8m_adjval */
+    reg &= ~RCU_CTL_IRC8MADJ;
+    RCU_CTL = (reg | ((irc8m_adjval & 0x1FU) << 3));
+}
+
+/*!
+    \brief      deep-sleep mode voltage select
+    \param[in]  dsvol: deep sleep mode voltage
+                only one parameter can be selected which is shown as below:
+      \arg        RCU_DEEPSLEEP_V_1_2: the core voltage is 1.2V
+      \arg        RCU_DEEPSLEEP_V_1_1: the core voltage is 1.1V
+      \arg        RCU_DEEPSLEEP_V_1_0: the core voltage is 1.0V
+      \arg        RCU_DEEPSLEEP_V_0_9: the core voltage is 0.9V
+    \param[out] none
+    \retval     none
+*/
+void rcu_deepsleep_voltage_set(uint32_t dsvol)
+{
+    dsvol &= RCU_DSV_DSLPVS;
+    RCU_DSV = dsvol;
+}
+
+/*!
+    \brief      get the system clock, bus and peripheral clock frequency
+    \param[in]  clock: the clock frequency which to get
+                only one parameter can be selected which is shown as below:
+      \arg        CK_SYS: system clock frequency
+      \arg        CK_AHB: AHB clock frequency
+      \arg        CK_APB1: APB1 clock frequency
+      \arg        CK_APB2: APB2 clock frequency
+    \param[out] none
+    \retval     clock frequency of system, AHB, APB1, APB2
+*/
+uint32_t rcu_clock_freq_get(rcu_clock_freq_enum clock)
+{
+    uint32_t sws, ck_freq = 0U;
+    uint32_t cksys_freq, ahb_freq, apb1_freq, apb2_freq;
+    uint32_t pllsel, predv0sel, pllmf,ck_src, idx, clk_exp;
+    uint32_t predv0, predv1, pll1mf;
+
+    /* exponent of AHB, APB1 and APB2 clock divider */
+    uint8_t ahb_exp[16] = {0, 0, 0, 0, 0, 0, 0, 0, 1, 2, 3, 4, 6, 7, 8, 9};
+    uint8_t apb1_exp[8] = {0, 0, 0, 0, 1, 2, 3, 4};
+    uint8_t apb2_exp[8] = {0, 0, 0, 0, 1, 2, 3, 4};
+
+    sws = GET_BITS(RCU_CFG0, 2, 3);
+    switch(sws){
+    /* IRC8M is selected as CK_SYS */
+    case SEL_IRC8M:
+        cksys_freq = IRC8M_VALUE;
+        break;
+    /* HXTAL is selected as CK_SYS */
+    case SEL_HXTAL:
+        cksys_freq = HXTAL_VALUE;
+        break;
+    /* PLL is selected as CK_SYS */
+    case SEL_PLL:
+        /* PLL clock source selection, HXTAL or IRC8M/2 */
+        pllsel = (RCU_CFG0 & RCU_CFG0_PLLSEL);
+
+        if(RCU_PLLSRC_HXTAL == pllsel) {
+            /* PLL clock source is HXTAL */
+            ck_src = HXTAL_VALUE;
+
+            predv0sel = (RCU_CFG1 & RCU_CFG1_PREDV0SEL);
+            /* source clock use PLL1 */
+            if(RCU_PREDV0SRC_CKPLL1 == predv0sel){
+                predv1 = (uint32_t)((RCU_CFG1 & RCU_CFG1_PREDV1) >> 4) + 1U;
+                pll1mf = (uint32_t)((RCU_CFG1 & RCU_CFG1_PLL1MF) >> 8) + 2U;
+                if(17U == pll1mf){
+                    pll1mf = 20U;
+                }
+                ck_src = (ck_src / predv1) * pll1mf;
+            }
+            predv0 = (RCU_CFG1 & RCU_CFG1_PREDV0) + 1U;
+            ck_src /= predv0;
+        }else{
+            /* PLL clock source is IRC8M/2 */
+            ck_src = IRC8M_VALUE/2U;
+        }
+
+        /* PLL multiplication factor */
+        pllmf = GET_BITS(RCU_CFG0, 18, 21);
+        if((RCU_CFG0 & RCU_CFG0_PLLMF_4)){
+            pllmf |= 0x10U;
+        }
+        if(pllmf < 15U){
+            pllmf += 2U;
+        }else{
+            pllmf += 1U;
+        }
+
+        cksys_freq = ck_src * pllmf;
+
+        if(15U == pllmf){
+            /* PLL source clock multiply by 6.5 */
+            cksys_freq = ck_src * 6U + ck_src / 2U;
+        }
+
+        break;
+    /* IRC8M is selected as CK_SYS */
+    default:
+        cksys_freq = IRC8M_VALUE;
+        break;
+    }
+
+    /* calculate AHB clock frequency */
+    idx = GET_BITS(RCU_CFG0, 4, 7);
+    clk_exp = ahb_exp[idx];
+    ahb_freq = cksys_freq >> clk_exp;
+
+    /* calculate APB1 clock frequency */
+    idx = GET_BITS(RCU_CFG0, 8, 10);
+    clk_exp = apb1_exp[idx];
+    apb1_freq = ahb_freq >> clk_exp;
+
+    /* calculate APB2 clock frequency */
+    idx = GET_BITS(RCU_CFG0, 11, 13);
+    clk_exp = apb2_exp[idx];
+    apb2_freq = ahb_freq >> clk_exp;
+
+    /* return the clocks frequency */
+    switch(clock){
+    case CK_SYS:
+        ck_freq = cksys_freq;
+        break;
+    case CK_AHB:
+        ck_freq = ahb_freq;
+        break;
+    case CK_APB1:
+        ck_freq = apb1_freq;
+        break;
+    case CK_APB2:
+        ck_freq = apb2_freq;
+        break;
+    default:
+        break;
+    }
+    return ck_freq;
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_rtc.c

@@ -0,0 +1,273 @@
+/*!
+    \file  gd32vf103_rtc.c
+    \brief RTC driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_rtc.h"
+
+/* RTC register high / low bits mask */
+#define RTC_HIGH_BITS_MASK         ((uint32_t)0x000F0000U)  /* RTC high bits mask */
+#define RTC_LOW_BITS_MASK          ((uint32_t)0x0000FFFFU)  /* RTC low bits mask */
+
+/* RTC register high bits offset */
+#define RTC_HIGH_BITS_OFFSET       ((uint32_t)16U)
+
+/*!
+    \brief      enter RTC configuration mode
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void rtc_configuration_mode_enter(void)
+{
+    RTC_CTL |= RTC_CTL_CMF;
+}
+
+/*!
+    \brief      exit RTC configuration mode
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void rtc_configuration_mode_exit(void)
+{
+    RTC_CTL &= ~RTC_CTL_CMF;
+}
+
+/*!
+    \brief      set RTC counter value
+    \param[in]  cnt: RTC counter value
+    \param[out] none
+    \retval     none
+*/
+void rtc_counter_set(uint32_t cnt)
+{
+    rtc_configuration_mode_enter();
+    /* set the RTC counter high bits */
+    RTC_CNTH = (cnt >> RTC_HIGH_BITS_OFFSET);
+    /* set the RTC counter low bits */
+    RTC_CNTL = (cnt & RTC_LOW_BITS_MASK);
+    rtc_configuration_mode_exit();
+}
+
+/*!
+    \brief      set RTC prescaler value
+    \param[in]  psc: RTC prescaler value
+    \param[out] none
+    \retval     none
+*/
+void rtc_prescaler_set(uint32_t psc)
+{
+    rtc_configuration_mode_enter();
+    /* set the RTC prescaler high bits */
+    RTC_PSCH = ((psc & RTC_HIGH_BITS_MASK) >> RTC_HIGH_BITS_OFFSET);
+    /* set the RTC prescaler low bits */
+    RTC_PSCL = (psc & RTC_LOW_BITS_MASK);
+    rtc_configuration_mode_exit();
+}
+
+/*!
+    \brief      wait RTC last write operation finished flag set
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void rtc_lwoff_wait(void)
+{
+    /* loop until LWOFF flag is set */
+    while(RESET == (RTC_CTL & RTC_CTL_LWOFF)){
+    }
+}
+
+/*!
+    \brief      wait RTC registers synchronized flag set
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void rtc_register_sync_wait(void)
+{
+    /* clear RSYNF flag */
+    RTC_CTL &= ~RTC_CTL_RSYNF;
+    /* loop until RSYNF flag is set */
+    while(RESET == (RTC_CTL & RTC_CTL_RSYNF)){
+    }
+}
+
+/*!
+    \brief      set RTC alarm value
+    \param[in]  alarm: RTC alarm value
+    \param[out] none
+    \retval     none
+*/
+void rtc_alarm_config(uint32_t alarm)
+{
+    rtc_configuration_mode_enter();
+    /* set the alarm high bits */
+    RTC_ALRMH = (alarm >> RTC_HIGH_BITS_OFFSET);
+    /* set the alarm low bits */
+    RTC_ALRML = (alarm & RTC_LOW_BITS_MASK);
+    rtc_configuration_mode_exit();
+}
+
+/*!
+    \brief      get RTC counter value
+    \param[in]  none
+    \param[out] none
+    \retval     RTC counter value
+*/
+uint32_t rtc_counter_get(void)
+{
+    uint32_t temp = 0x0U;
+
+    temp = RTC_CNTL;
+    temp |= (RTC_CNTH << RTC_HIGH_BITS_OFFSET);
+    return temp;
+}
+
+/*!
+    \brief      get RTC divider value
+    \param[in]  none
+    \param[out] none
+    \retval     RTC divider value
+*/
+uint32_t rtc_divider_get(void)
+{
+    uint32_t temp = 0x00U;
+
+    temp = ((RTC_DIVH & RTC_DIVH_DIV) << RTC_HIGH_BITS_OFFSET);
+    temp |= RTC_DIVL;
+    return temp;
+}
+
+/*!
+    \brief      get RTC flag status
+    \param[in]  flag: specify which flag status to get
+                only one parameter can be selected which is shown as below:
+      \arg        RTC_FLAG_SECOND: second interrupt flag
+      \arg        RTC_FLAG_ALARM: alarm interrupt flag
+      \arg        RTC_FLAG_OVERFLOW: overflow interrupt flag
+      \arg        RTC_FLAG_RSYN: registers synchronized flag
+      \arg        RTC_FLAG_LWOF: last write operation finished flag
+    \param[out] none
+    \retval     SET or RESET
+*/
+FlagStatus rtc_flag_get(uint32_t flag)
+{
+    if(RESET != (RTC_CTL & flag)){
+        return SET;
+    }else{
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear RTC flag status
+    \param[in]  flag: specify which flag status to clear
+                one or more parameters can be selected which are shown as below:
+      \arg        RTC_FLAG_SECOND: second interrupt flag
+      \arg        RTC_FLAG_ALARM: alarm interrupt flag
+      \arg        RTC_FLAG_OVERFLOW: overflow interrupt flag
+      \arg        RTC_FLAG_RSYN: registers synchronized flag
+    \param[out] none
+    \retval     none
+*/
+void rtc_flag_clear(uint32_t flag)
+{
+    /* clear RTC flag */
+    RTC_CTL &= ~flag;
+}
+
+/*!
+    \brief      get RTC interrupt flag status
+    \param[in]  flag: specify which flag status to get
+                only one parameter can be selected which is shown as below:
+      \arg        RTC_INT_FLAG_SECOND: second interrupt flag
+      \arg        RTC_INT_FLAG_ALARM: alarm interrupt flag
+      \arg        RTC_INT_FLAG_OVERFLOW: overflow interrupt flag
+    \param[out] none
+    \retval     SET or RESET
+*/
+FlagStatus rtc_interrupt_flag_get(uint32_t flag)
+{
+    if(RESET != (RTC_CTL & flag)){
+        return SET;
+    }else{
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear RTC interrupt flag status
+    \param[in]  flag: specify which flag status to clear
+                one or more parameters can be selected which are shown as below:
+      \arg        RTC_INT_FLAG_SECOND: second interrupt flag
+      \arg        RTC_INT_FLAG_ALARM: alarm interrupt flag
+      \arg        RTC_INT_FLAG_OVERFLOW: overflow interrupt flag
+    \param[out] none
+    \retval     none
+*/
+void rtc_interrupt_flag_clear(uint32_t flag)
+{
+    /* clear RTC interrupt flag */
+    RTC_CTL &= ~flag;
+}
+
+/*!
+    \brief      enable RTC interrupt
+    \param[in]  interrupt: specify which interrupt to enbale
+                one or more parameters can be selected which are shown as below:
+      \arg        RTC_INT_SECOND: second interrupt
+      \arg        RTC_INT_ALARM: alarm interrupt
+      \arg        RTC_INT_OVERFLOW: overflow interrupt
+    \param[out] none
+    \retval     none
+*/
+void rtc_interrupt_enable(uint32_t interrupt)
+{
+    RTC_INTEN |= interrupt;
+}
+
+/*!
+    \brief      disable RTC interrupt
+    \param[in]  interrupt: specify which interrupt to disbale
+                one or more parameters can be selected which are shown as below:
+      \arg        RTC_INT_SECOND: second interrupt
+      \arg        RTC_INT_ALARM: alarm interrupt
+      \arg        RTC_INT_OVERFLOW: overflow interrupt
+    \param[out] none
+    \retval     none
+*/
+void rtc_interrupt_disable(uint32_t interrupt)
+{
+    RTC_INTEN &= ~interrupt;
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_spi.c

@@ -0,0 +1,766 @@
+/*!
+    \file  gd32vf103_spi.c
+    \brief SPI driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_spi.h"
+
+/* SPI/I2S parameter initialization mask */
+#define SPI_INIT_MASK                   ((uint32_t)0x00003040U)  /*!< SPI parameter initialization mask */
+#define I2S_INIT_MASK                   ((uint32_t)0x0000F047U)  /*!< I2S parameter initialization mask */
+
+/* I2S clock source selection, multiplication and division mask */
+#define I2S1_CLOCK_SEL                  ((uint32_t)0x00020000U)  /* I2S1 clock source selection */
+#define I2S2_CLOCK_SEL                  ((uint32_t)0x00040000U)  /* I2S2 clock source selection */
+#define I2S_CLOCK_MUL_MASK              ((uint32_t)0x0000F000U)  /* I2S clock multiplication mask */
+#define I2S_CLOCK_DIV_MASK              ((uint32_t)0x000000F0U)  /* I2S clock division mask */
+
+/* default value and offset */
+#define SPI_I2SPSC_DEFAULT_VALUE        ((uint32_t)0x00000002U)  /* default value of SPI_I2SPSC register */
+#define RCU_CFG1_PREDV1_OFFSET          4U                       /* PREDV1 offset in RCU_CFG1 */
+#define RCU_CFG1_PLL2MF_OFFSET          12U                      /* PLL2MF offset in RCU_CFG1 */
+
+/*!
+    \brief      reset SPI and I2S
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void spi_i2s_deinit(uint32_t spi_periph)
+{
+    switch(spi_periph){
+    case SPI0:
+        /* reset SPI0 */
+        rcu_periph_reset_enable(RCU_SPI0RST);
+        rcu_periph_reset_disable(RCU_SPI0RST);
+        break;
+    case SPI1:
+        /* reset SPI1 and I2S1 */
+        rcu_periph_reset_enable(RCU_SPI1RST);
+        rcu_periph_reset_disable(RCU_SPI1RST);
+        break;
+    case SPI2:
+        /* reset SPI2 and I2S2 */
+        rcu_periph_reset_enable(RCU_SPI2RST);
+        rcu_periph_reset_disable(RCU_SPI2RST);
+        break;
+    default :
+        break;
+    }
+}
+
+/*!
+    \brief      initialize the parameters of SPI struct with the default values
+    \param[in]  spi_struct: SPI parameter stuct
+    \param[out] none
+    \retval     none
+*/
+void spi_struct_para_init(spi_parameter_struct* spi_struct)
+{
+    /* set the SPI struct with the default values */
+    spi_struct->device_mode = SPI_SLAVE;
+    spi_struct->trans_mode = SPI_TRANSMODE_FULLDUPLEX;
+    spi_struct->frame_size = SPI_FRAMESIZE_8BIT;
+    spi_struct->nss = SPI_NSS_HARD;
+    spi_struct->clock_polarity_phase = SPI_CK_PL_LOW_PH_1EDGE;
+    spi_struct->prescale = SPI_PSC_2;
+}
+
+/*!
+    \brief      initialize SPI parameter
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[in]  spi_struct: SPI parameter initialization stuct members of the structure
+                            and the member values are shown as below:
+                  device_mode: SPI_MASTER, SPI_SLAVE
+                  trans_mode: SPI_TRANSMODE_FULLDUPLEX, SPI_TRANSMODE_RECEIVEONLY,
+                              SPI_TRANSMODE_BDRECEIVE, SPI_TRANSMODE_BDTRANSMIT
+                  frame_size: SPI_FRAMESIZE_16BIT, SPI_FRAMESIZE_8BIT
+                  nss: SPI_NSS_SOFT, SPI_NSS_HARD
+                  endian: SPI_ENDIAN_MSB, SPI_ENDIAN_LSB
+                  clock_polarity_phase: SPI_CK_PL_LOW_PH_1EDGE, SPI_CK_PL_HIGH_PH_1EDGE
+                                        SPI_CK_PL_LOW_PH_2EDGE, SPI_CK_PL_HIGH_PH_2EDGE
+                  prescale: SPI_PSC_n (n=2,4,8,16,32,64,128,256)
+    \param[out] none
+    \retval     none
+*/
+void spi_init(uint32_t spi_periph, spi_parameter_struct* spi_struct)
+{
+    uint32_t reg = 0U;
+    reg = SPI_CTL0(spi_periph);
+    reg &= SPI_INIT_MASK;
+
+    /* select SPI as master or slave */
+    reg |= spi_struct->device_mode;
+    /* select SPI transfer mode */
+    reg |= spi_struct->trans_mode;
+    /* select SPI frame size */
+    reg |= spi_struct->frame_size;
+    /* select SPI NSS use hardware or software */
+    reg |= spi_struct->nss;
+    /* select SPI LSB or MSB */
+    reg |= spi_struct->endian;
+    /* select SPI polarity and phase */
+    reg |= spi_struct->clock_polarity_phase;
+    /* select SPI prescale to adjust transmit speed */
+    reg |= spi_struct->prescale;
+
+    /* write to SPI_CTL0 register */
+    SPI_CTL0(spi_periph) = (uint32_t)reg;
+
+    SPI_I2SCTL(spi_periph) &= (uint32_t)(~SPI_I2SCTL_I2SSEL);
+}
+
+/*!
+    \brief      enable SPI
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void spi_enable(uint32_t spi_periph)
+{
+    SPI_CTL0(spi_periph) |= (uint32_t)SPI_CTL0_SPIEN;
+}
+
+/*!
+    \brief      disable SPI
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void spi_disable(uint32_t spi_periph)
+{
+    SPI_CTL0(spi_periph) &= (uint32_t)(~SPI_CTL0_SPIEN);
+}
+
+/*!
+    \brief      initialize I2S parameter
+    \param[in]  spi_periph: SPIx(x=1,2)
+    \param[in]  mode: I2S operation mode
+                only one parameter can be selected which is shown as below:
+      \arg        I2S_MODE_SLAVETX: I2S slave transmit mode
+      \arg        I2S_MODE_SLAVERX: I2S slave receive mode
+      \arg        I2S_MODE_MASTERTX: I2S master transmit mode
+      \arg        I2S_MODE_MASTERRX: I2S master receive mode
+    \param[in]  standard: I2S standard
+                only one parameter can be selected which is shown as below:
+      \arg        I2S_STD_PHILLIPS: I2S phillips standard
+      \arg        I2S_STD_MSB: I2S MSB standard
+      \arg        I2S_STD_LSB: I2S LSB standard
+      \arg        I2S_STD_PCMSHORT: I2S PCM short standard
+      \arg        I2S_STD_PCMLONG: I2S PCM long standard
+    \param[in]  ckpl: I2S idle state clock polarity
+                only one parameter can be selected which is shown as below:
+      \arg        I2S_CKPL_LOW: I2S clock polarity low level
+      \arg        I2S_CKPL_HIGH: I2S clock polarity high level
+    \param[out] none
+    \retval     none
+*/
+void i2s_init(uint32_t spi_periph, uint32_t mode, uint32_t standard, uint32_t ckpl)
+{
+    uint32_t reg = 0U;
+    reg = SPI_I2SCTL(spi_periph);
+    reg &= I2S_INIT_MASK;
+
+    /* enable I2S mode */
+    reg |= (uint32_t)SPI_I2SCTL_I2SSEL;
+    /* select I2S mode */
+    reg |= (uint32_t)mode;
+    /* select I2S standard */
+    reg |= (uint32_t)standard;
+    /* select I2S polarity */
+    reg |= (uint32_t)ckpl;
+
+    /* write to SPI_I2SCTL register */
+    SPI_I2SCTL(spi_periph) = (uint32_t)reg;
+}
+
+/*!
+    \brief      configure I2S prescaler
+    \param[in]  spi_periph: SPIx(x=1,2)
+    \param[in]  audiosample: I2S audio sample rate
+                only one parameter can be selected which is shown as below:
+      \arg        I2S_AUDIOSAMPLE_8K: audio sample rate is 8KHz
+      \arg        I2S_AUDIOSAMPLE_11K: audio sample rate is 11KHz
+      \arg        I2S_AUDIOSAMPLE_16K: audio sample rate is 16KHz
+      \arg        I2S_AUDIOSAMPLE_22K: audio sample rate is 22KHz
+      \arg        I2S_AUDIOSAMPLE_32K: audio sample rate is 32KHz
+      \arg        I2S_AUDIOSAMPLE_44K: audio sample rate is 44KHz
+      \arg        I2S_AUDIOSAMPLE_48K: audio sample rate is 48KHz
+      \arg        I2S_AUDIOSAMPLE_96K: audio sample rate is 96KHz
+      \arg        I2S_AUDIOSAMPLE_192K: audio sample rate is 192KHz
+    \param[in]  frameformat: I2S data length and channel length
+                only one parameter can be selected which is shown as below:
+      \arg        I2S_FRAMEFORMAT_DT16B_CH16B: I2S data length is 16 bit and channel length is 16 bit
+      \arg        I2S_FRAMEFORMAT_DT16B_CH32B: I2S data length is 16 bit and channel length is 32 bit
+      \arg        I2S_FRAMEFORMAT_DT24B_CH32B: I2S data length is 24 bit and channel length is 32 bit
+      \arg        I2S_FRAMEFORMAT_DT32B_CH32B: I2S data length is 32 bit and channel length is 32 bit
+    \param[in]  mckout: I2S master clock output
+                only one parameter can be selected which is shown as below:
+      \arg        I2S_MCKOUT_ENABLE: I2S master clock output enable
+      \arg        I2S_MCKOUT_DISABLE: I2S master clock output disable
+    \param[out] none
+    \retval     none
+*/
+void i2s_psc_config(uint32_t spi_periph, uint32_t audiosample, uint32_t frameformat, uint32_t mckout)
+{
+    uint32_t i2sdiv = 2U, i2sof = 0U;
+    uint32_t clks = 0U;
+    uint32_t i2sclock = 0U;
+
+    /* deinit SPI_I2SPSC register */
+    SPI_I2SPSC(spi_periph) = SPI_I2SPSC_DEFAULT_VALUE;
+
+    /* get the I2S clock source */
+    if(SPI1 == ((uint32_t)spi_periph)){
+        /* I2S1 clock source selection */
+        clks = I2S1_CLOCK_SEL;
+    }else{
+        /* I2S2 clock source selection */
+        clks = I2S2_CLOCK_SEL;
+    }
+
+    if(0U != (RCU_CFG1 & clks)){
+        /* get RCU PLL2 clock multiplication factor */
+        clks = (uint32_t)((RCU_CFG1 & I2S_CLOCK_MUL_MASK) >> RCU_CFG1_PLL2MF_OFFSET);
+
+        if((clks > 5U) && (clks < 15U)){
+            /* multiplier is between 8 and 16 */
+            clks += 2U;
+        }else{
+            if(15U == clks){
+                /* multiplier is 20 */
+                clks = 20U;
+            }
+        }
+
+        /* get the PREDV1 value */
+        i2sclock = (uint32_t)(((RCU_CFG1 & I2S_CLOCK_DIV_MASK) >>  RCU_CFG1_PREDV1_OFFSET) + 1U);
+        /* calculate I2S clock based on PLL2 and PREDV1 */
+        i2sclock = (uint32_t)((HXTAL_VALUE / i2sclock) * clks * 2U);
+    }else{
+        /* get system clock */
+        i2sclock = rcu_clock_freq_get(CK_SYS);
+    }
+
+    /* config the prescaler depending on the mclk output state, the frame format and audio sample rate */
+    if(I2S_MCKOUT_ENABLE == mckout){
+        clks = (uint32_t)(((i2sclock / 256U) * 10U) / audiosample);
+    }else{
+        if(I2S_FRAMEFORMAT_DT16B_CH16B == frameformat){
+            clks = (uint32_t)(((i2sclock / 32U) *10U ) / audiosample);
+        }else{
+            clks = (uint32_t)(((i2sclock / 64U) *10U ) / audiosample);
+        }
+    }
+
+    /* remove the floating point */
+    clks = (clks + 5U) / 10U;
+    i2sof  = (clks & 0x00000001U);
+    i2sdiv = ((clks - i2sof) / 2U);
+    i2sof  = (i2sof << 8U);
+
+    /* set the default values */
+    if((i2sdiv < 2U) || (i2sdiv > 255U)){
+        i2sdiv = 2U;
+        i2sof = 0U;
+    }
+    /* configure SPI_I2SPSC */
+    SPI_I2SPSC(spi_periph) = (uint32_t)(i2sdiv | i2sof | mckout);
+
+    /* clear SPI_I2SCTL_DTLEN and SPI_I2SCTL_CHLEN bits */
+    SPI_I2SCTL(spi_periph) &= (uint32_t)(~(SPI_I2SCTL_DTLEN | SPI_I2SCTL_CHLEN));
+    /* configure data frame format */
+    SPI_I2SCTL(spi_periph) |= (uint32_t)frameformat;
+}
+
+/*!
+    \brief      enable I2S
+    \param[in]  spi_periph: SPIx(x=1,2)
+    \param[out] none
+    \retval     none
+*/
+void i2s_enable(uint32_t spi_periph)
+{
+    SPI_I2SCTL(spi_periph) |= (uint32_t)SPI_I2SCTL_I2SEN;
+}
+
+/*!
+    \brief      disable I2S
+    \param[in]  spi_periph: SPIx(x=1,2)
+    \param[out] none
+    \retval     none
+*/
+void i2s_disable(uint32_t spi_periph)
+{
+    SPI_I2SCTL(spi_periph) &= (uint32_t)(~SPI_I2SCTL_I2SEN);
+}
+
+/*!
+    \brief      enable SPI NSS output
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void spi_nss_output_enable(uint32_t spi_periph)
+{
+    SPI_CTL1(spi_periph) |= (uint32_t)SPI_CTL1_NSSDRV;
+}
+
+/*!
+    \brief      disable SPI NSS output
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void spi_nss_output_disable(uint32_t spi_periph)
+{
+    SPI_CTL1(spi_periph) &= (uint32_t)(~SPI_CTL1_NSSDRV);
+}
+
+/*!
+    \brief      SPI NSS pin high level in software mode
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void spi_nss_internal_high(uint32_t spi_periph)
+{
+    SPI_CTL0(spi_periph) |= (uint32_t)SPI_CTL0_SWNSS;
+}
+
+/*!
+    \brief      SPI NSS pin low level in software mode
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void spi_nss_internal_low(uint32_t spi_periph)
+{
+    SPI_CTL0(spi_periph) &= (uint32_t)(~SPI_CTL0_SWNSS);
+}
+
+/*!
+    \brief      enable SPI DMA send or receive
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[in]  dma: SPI DMA mode
+                only one parameter can be selected which is shown as below:
+      \arg        SPI_DMA_TRANSMIT: SPI transmit data using DMA
+      \arg        SPI_DMA_RECEIVE: SPI receive data using DMA
+    \param[out] none
+    \retval     none
+*/
+void spi_dma_enable(uint32_t spi_periph, uint8_t dma)
+{
+    if(SPI_DMA_TRANSMIT == dma){
+        SPI_CTL1(spi_periph) |= (uint32_t)SPI_CTL1_DMATEN;
+    }else{
+        SPI_CTL1(spi_periph) |= (uint32_t)SPI_CTL1_DMAREN;
+    }
+}
+
+/*!
+    \brief      disable SPI DMA send or receive
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[in]  dma: SPI DMA mode
+                only one parameter can be selected which is shown as below:
+      \arg        SPI_DMA_TRANSMIT: SPI transmit data using DMA
+      \arg        SPI_DMA_RECEIVE: SPI receive data using DMA
+    \param[out] none
+    \retval     none
+*/
+void spi_dma_disable(uint32_t spi_periph, uint8_t dma)
+{
+    if(SPI_DMA_TRANSMIT == dma){
+        SPI_CTL1(spi_periph) &= (uint32_t)(~SPI_CTL1_DMATEN);
+    }else{
+        SPI_CTL1(spi_periph) &= (uint32_t)(~SPI_CTL1_DMAREN);
+    }
+}
+
+/*!
+    \brief      configure SPI/I2S data frame format
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[in]  frame_format: SPI frame size
+                only one parameter can be selected which is shown as below:
+      \arg        SPI_FRAMESIZE_16BIT: SPI frame size is 16 bits
+      \arg        SPI_FRAMESIZE_8BIT: SPI frame size is 8 bits
+    \param[out] none
+    \retval     none
+*/
+void spi_i2s_data_frame_format_config(uint32_t spi_periph, uint16_t frame_format)
+{
+    /* clear SPI_CTL0_FF16 bit */
+    SPI_CTL0(spi_periph) &= (uint32_t)(~SPI_CTL0_FF16);
+    /* configure SPI_CTL0_FF16 bit */
+    SPI_CTL0(spi_periph) |= (uint32_t)frame_format;
+}
+
+/*!
+    \brief      SPI transmit data
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[in]  data: 16-bit data
+    \param[out] none
+    \retval     none
+*/
+void spi_i2s_data_transmit(uint32_t spi_periph, uint16_t data)
+{
+    SPI_DATA(spi_periph) = (uint32_t)data;
+}
+
+/*!
+    \brief      SPI receive data
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     16-bit data
+*/
+uint16_t spi_i2s_data_receive(uint32_t spi_periph)
+{
+    return ((uint16_t)SPI_DATA(spi_periph));
+}
+
+/*!
+    \brief      configure SPI bidirectional transfer direction
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[in]  transfer_direction: SPI transfer direction
+                only one parameter can be selected which is shown as below:
+      \arg        SPI_BIDIRECTIONAL_TRANSMIT: SPI work in transmit-only mode
+      \arg        SPI_BIDIRECTIONAL_RECEIVE: SPI work in receive-only mode
+    \param[out] none
+    \retval     none
+*/
+void spi_bidirectional_transfer_config(uint32_t spi_periph, uint32_t transfer_direction)
+{
+    if(SPI_BIDIRECTIONAL_TRANSMIT == transfer_direction){
+        /* set the transmit-only mode */
+        SPI_CTL0(spi_periph) |= (uint32_t)SPI_BIDIRECTIONAL_TRANSMIT;
+    }else{
+        /* set the receive-only mode */
+        SPI_CTL0(spi_periph) &= SPI_BIDIRECTIONAL_RECEIVE;
+    }
+}
+
+/*!
+    \brief      set SPI CRC polynomial
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[in]  crc_poly: CRC polynomial value
+    \param[out] none
+    \retval     none
+*/
+void spi_crc_polynomial_set(uint32_t spi_periph,uint16_t crc_poly)
+{
+    /* enable SPI CRC */
+    SPI_CTL0(spi_periph) |= (uint32_t)SPI_CTL0_CRCEN;
+
+    /* set SPI CRC polynomial */
+    SPI_CRCPOLY(spi_periph) = (uint32_t)crc_poly;
+}
+
+/*!
+    \brief      get SPI CRC polynomial
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     16-bit CRC polynomial
+*/
+uint16_t spi_crc_polynomial_get(uint32_t spi_periph)
+{
+    return ((uint16_t)SPI_CRCPOLY(spi_periph));
+}
+
+/*!
+    \brief      turn on CRC function
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void spi_crc_on(uint32_t spi_periph)
+{
+    SPI_CTL0(spi_periph) |= (uint32_t)SPI_CTL0_CRCEN;
+}
+
+/*!
+    \brief      turn off CRC function
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void spi_crc_off(uint32_t spi_periph)
+{
+    SPI_CTL0(spi_periph) &= (uint32_t)(~SPI_CTL0_CRCEN);
+}
+
+/*!
+    \brief      SPI next data is CRC value
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void spi_crc_next(uint32_t spi_periph)
+{
+    SPI_CTL0(spi_periph) |= (uint32_t)SPI_CTL0_CRCNT;
+}
+
+/*!
+    \brief      get SPI CRC send value or receive value
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[in]  crc: SPI crc value
+                only one parameter can be selected which is shown as below:
+      \arg        SPI_CRC_TX: get transmit crc value
+      \arg        SPI_CRC_RX: get receive crc value
+    \param[out] none
+    \retval     16-bit CRC value
+*/
+uint16_t spi_crc_get(uint32_t spi_periph,uint8_t crc)
+{
+    if(SPI_CRC_TX == crc){
+        return ((uint16_t)(SPI_TCRC(spi_periph)));
+    }else{
+        return ((uint16_t)(SPI_RCRC(spi_periph)));
+    }
+}
+
+/*!
+    \brief      enable SPI TI mode
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void spi_ti_mode_enable(uint32_t spi_periph)
+{
+    SPI_CTL1(spi_periph) |= (uint32_t)SPI_CTL1_TMOD;
+}
+
+/*!
+    \brief      disable SPI TI mode
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void spi_ti_mode_disable(uint32_t spi_periph)
+{
+    SPI_CTL1(spi_periph) &= (uint32_t)(~SPI_CTL1_TMOD);
+}
+
+/*!
+    \brief      enable SPI NSS pulse mode
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void spi_nssp_mode_enable(uint32_t spi_periph)
+{
+    SPI_CTL1(spi_periph) |= (uint32_t)SPI_CTL1_NSSP;
+}
+
+/*!
+    \brief      disable SPI NSS pulse mode
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void spi_nssp_mode_disable(uint32_t spi_periph)
+{
+    SPI_CTL1(spi_periph) &= (uint32_t)(~SPI_CTL1_NSSP);
+}
+
+
+/*!
+    \brief      enable SPI and I2S interrupt
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[in]  interrupt: SPI/I2S interrupt
+                only one parameter can be selected which is shown as below:
+      \arg        SPI_I2S_INT_TBE: transmit buffer empty interrupt
+      \arg        SPI_I2S_INT_RBNE: receive buffer not empty interrupt
+      \arg        SPI_I2S_INT_ERR: CRC error,configuration error,reception overrun error,
+                                   transmission underrun error and format error interrupt
+    \param[out] none
+    \retval     none
+*/
+void spi_i2s_interrupt_enable(uint32_t spi_periph, uint8_t interrupt)
+{
+    switch(interrupt){
+    /* SPI/I2S transmit buffer empty interrupt */
+    case SPI_I2S_INT_TBE:
+        SPI_CTL1(spi_periph) |= (uint32_t)SPI_CTL1_TBEIE;
+        break;
+    /* SPI/I2S receive buffer not empty interrupt */
+    case SPI_I2S_INT_RBNE:
+        SPI_CTL1(spi_periph) |= (uint32_t)SPI_CTL1_RBNEIE;
+        break;
+    /* SPI/I2S error */
+    case SPI_I2S_INT_ERR:
+        SPI_CTL1(spi_periph) |= (uint32_t)SPI_CTL1_ERRIE;
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      disable SPI and I2S interrupt
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[in]  interrupt: SPI/I2S interrupt
+                only one parameter can be selected which is shown as below:
+      \arg        SPI_I2S_INT_TBE: transmit buffer empty interrupt
+      \arg        SPI_I2S_INT_RBNE: receive buffer not empty interrupt
+      \arg        SPI_I2S_INT_ERR: CRC error,configuration error,reception overrun error,
+                                   transmission underrun error and format error interrupt
+    \param[out] none
+    \retval     none
+*/
+void spi_i2s_interrupt_disable(uint32_t spi_periph, uint8_t interrupt)
+{
+    switch(interrupt){
+    /* SPI/I2S transmit buffer empty interrupt */
+    case SPI_I2S_INT_TBE:
+        SPI_CTL1(spi_periph) &= (uint32_t)(~SPI_CTL1_TBEIE);
+        break;
+    /* SPI/I2S receive buffer not empty interrupt */
+    case SPI_I2S_INT_RBNE:
+        SPI_CTL1(spi_periph) &= (uint32_t)(~SPI_CTL1_RBNEIE);
+        break;
+    /* SPI/I2S error */
+    case SPI_I2S_INT_ERR:
+        SPI_CTL1(spi_periph) &= (uint32_t)(~SPI_CTL1_ERRIE);
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      get SPI and I2S interrupt flag status
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[in]  interrupt: SPI/I2S interrupt flag status
+                only one parameter can be selected which is shown as below:
+      \arg        SPI_I2S_INT_FLAG_TBE: transmit buffer empty interrupt flag
+      \arg        SPI_I2S_INT_FLAG_RBNE: receive buffer not empty interrupt flag
+      \arg        SPI_I2S_INT_FLAG_RXORERR: overrun interrupt flag
+      \arg        SPI_INT_FLAG_CONFERR: config error interrupt flag
+      \arg        SPI_INT_FLAG_CRCERR: CRC error interrupt flag
+      \arg        I2S_INT_FLAG_TXURERR: underrun error interrupt flag
+      \arg        SPI_I2S_INT_FLAG_FERR: format error interrupt flag
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus spi_i2s_interrupt_flag_get(uint32_t spi_periph, uint8_t interrupt)
+{
+    uint32_t reg1 = SPI_STAT(spi_periph);
+    uint32_t reg2 = SPI_CTL1(spi_periph);
+
+    switch(interrupt){
+    /* SPI/I2S transmit buffer empty interrupt */
+    case SPI_I2S_INT_FLAG_TBE:
+        reg1 = reg1 & SPI_STAT_TBE;
+        reg2 = reg2 & SPI_CTL1_TBEIE;
+        break;
+    /* SPI/I2S receive buffer not empty interrupt */
+    case SPI_I2S_INT_FLAG_RBNE:
+        reg1 = reg1 & SPI_STAT_RBNE;
+        reg2 = reg2 & SPI_CTL1_RBNEIE;
+        break;
+    /* SPI/I2S overrun interrupt */
+    case SPI_I2S_INT_FLAG_RXORERR:
+        reg1 = reg1 & SPI_STAT_RXORERR;
+        reg2 = reg2 & SPI_CTL1_ERRIE;
+        break;
+    /* SPI config error interrupt */
+    case SPI_INT_FLAG_CONFERR:
+        reg1 = reg1 & SPI_STAT_CONFERR;
+        reg2 = reg2 & SPI_CTL1_ERRIE;
+        break;
+    /* SPI CRC error interrupt */
+    case SPI_INT_FLAG_CRCERR:
+        reg1 = reg1 & SPI_STAT_CRCERR;
+        reg2 = reg2 & SPI_CTL1_ERRIE;
+        break;
+    /* I2S underrun error interrupt */
+    case I2S_INT_FLAG_TXURERR:
+        reg1 = reg1 & SPI_STAT_TXURERR;
+        reg2 = reg2 & SPI_CTL1_ERRIE;
+        break;
+    /* SPI/I2S format error interrupt */
+    case SPI_I2S_INT_FLAG_FERR:
+        reg1 = reg1 & SPI_STAT_FERR;
+        reg2 = reg2 & SPI_CTL1_ERRIE;
+        break;
+    default:
+        break;
+    }
+    /* get SPI/I2S interrupt flag status */
+    if((0U != reg1) && (0U != reg2)){
+        return SET;
+    }else{
+        return RESET;
+    }
+}
+
+/*!
+    \brief      get SPI and I2S flag status
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[in]  flag: SPI/I2S flag status
+                one or more parameters can be selected which are shown as below:
+      \arg        SPI_FLAG_TBE: transmit buffer empty flag
+      \arg        SPI_FLAG_RBNE: receive buffer not empty flag
+      \arg        SPI_FLAG_TRANS: transmit on-going flag
+      \arg        SPI_FLAG_RXORERR: receive overrun error flag
+      \arg        SPI_FLAG_CONFERR: mode config error flag
+      \arg        SPI_FLAG_CRCERR: CRC error flag
+      \arg        SPI_FLAG_FERR: format error interrupt flag
+      \arg        I2S_FLAG_TBE: transmit buffer empty flag
+      \arg        I2S_FLAG_RBNE: receive buffer not empty flag
+      \arg        I2S_FLAG_TRANS: transmit on-going flag
+      \arg        I2S_FLAG_RXORERR: overrun error flag
+      \arg        I2S_FLAG_TXURERR: underrun error flag
+      \arg        I2S_FLAG_CH: channel side flag
+      \arg        I2S_FLAG_FERR: format error interrupt flag
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus spi_i2s_flag_get(uint32_t spi_periph, uint32_t flag)
+{
+    if(RESET != (SPI_STAT(spi_periph) & flag)){
+        return SET;
+    }else{
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear SPI CRC error flag status
+    \param[in]  spi_periph: SPIx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void spi_crc_error_clear(uint32_t spi_periph)
+{
+    SPI_STAT(spi_periph) &= (uint32_t)(~SPI_FLAG_CRCERR);
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_timer.c

@@ -0,0 +1,1965 @@
+/*!
+    \file  gd32vf103_timer.c
+    \brief TIMER driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+#include "gd32vf103_timer.h"
+
+/* TIMER init parameter mask */
+#define ALIGNEDMODE_MASK            ((uint32_t)0x00000060U)   /*!< TIMER init parameter aligne dmode mask */
+#define COUNTERDIRECTION_MASK       ((uint32_t)0x00000010U)   /*!< TIMER init parameter counter direction mask */
+#define CLOCKDIVISION_MASK          ((uint32_t)0x00000300U)   /*!< TIMER init parameter clock division value mask */
+
+/*!
+    \brief      deinit a timer
+    \param[in]  timer_periph: TIMERx(x=0..13)
+    \param[out] none
+    \retval     none
+*/
+void timer_deinit(uint32_t timer_periph)
+{
+    switch(timer_periph){
+    case TIMER0:
+        /* reset TIMER0 */
+        rcu_periph_reset_enable(RCU_TIMER0RST);
+        rcu_periph_reset_disable(RCU_TIMER0RST);
+        break;
+    case TIMER1:
+        /* reset TIMER1 */
+        rcu_periph_reset_enable(RCU_TIMER1RST);
+        rcu_periph_reset_disable(RCU_TIMER1RST);
+        break;
+    case TIMER2:
+        /* reset TIMER2 */
+        rcu_periph_reset_enable(RCU_TIMER2RST);
+        rcu_periph_reset_disable(RCU_TIMER2RST);
+        break;
+    case TIMER3:
+        /* reset TIMER3 */
+        rcu_periph_reset_enable(RCU_TIMER3RST);
+        rcu_periph_reset_disable(RCU_TIMER3RST);
+        break;
+    case TIMER4:
+        /* reset TIMER4 */
+        rcu_periph_reset_enable(RCU_TIMER4RST);
+        rcu_periph_reset_disable(RCU_TIMER4RST);
+        break;
+    case TIMER5:
+        /* reset TIMER5 */
+        rcu_periph_reset_enable(RCU_TIMER5RST);
+        rcu_periph_reset_disable(RCU_TIMER5RST);
+        break;
+    case TIMER6:
+        /* reset TIMER6 */
+        rcu_periph_reset_enable(RCU_TIMER6RST);
+        rcu_periph_reset_disable(RCU_TIMER6RST);
+        break;
+
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      initialize TIMER init parameter struct with a default value
+    \param[in]  initpara: init parameter struct
+    \param[out] none
+    \retval     none
+*/
+void timer_struct_para_init(timer_parameter_struct* initpara)
+{
+    /* initialize the init parameter struct member with the default value */
+    initpara->prescaler         = 0U;
+    initpara->alignedmode       = TIMER_COUNTER_EDGE;
+    initpara->counterdirection  = TIMER_COUNTER_UP;
+    initpara->period            = 65535U;
+    initpara->clockdivision     = TIMER_CKDIV_DIV1;
+    initpara->repetitioncounter = 0U;
+}
+
+/*!
+    \brief      initialize TIMER counter
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[in]  initpara: init parameter struct
+                  prescaler: prescaler value of the counter clock, 0~65535
+                  alignedmode: TIMER_COUNTER_EDGE, TIMER_COUNTER_CENTER_DOWN, TIMER_COUNTER_CENTER_UP,
+                               TIMER_COUNTER_CENTER_BOTH
+                  counterdirection: TIMER_COUNTER_UP, TIMER_COUNTER_DOWN
+                  period: counter auto reload value, 0~65535
+                  clockdivision: TIMER_CKDIV_DIV1, TIMER_CKDIV_DIV2, TIMER_CKDIV_DIV4
+                  repetitioncounter: counter repetition value, 0~255
+    \param[out] none
+    \retval     none
+*/
+void timer_init(uint32_t timer_periph, timer_parameter_struct* initpara)
+{
+    /* configure the counter prescaler value */
+    TIMER_PSC(timer_periph) = (uint16_t)initpara->prescaler;
+
+    /* configure the counter direction and aligned mode */
+    if((TIMER0 == timer_periph) || (TIMER1 == timer_periph) || (TIMER2 == timer_periph)
+        || (TIMER3 == timer_periph) || (TIMER4 == timer_periph) ){
+        TIMER_CTL0(timer_periph) &= (~(uint32_t)(TIMER_CTL0_DIR | TIMER_CTL0_CAM));
+        TIMER_CTL0(timer_periph) |= (uint32_t)(initpara->alignedmode & ALIGNEDMODE_MASK);
+        TIMER_CTL0(timer_periph) |= (uint32_t)(initpara->counterdirection & COUNTERDIRECTION_MASK);
+    }else{
+        TIMER_CTL0(timer_periph) &= (uint32_t)(~ TIMER_CTL0_DIR);
+        TIMER_CTL0(timer_periph) |= (uint32_t)(initpara->counterdirection & COUNTERDIRECTION_MASK);
+    }
+
+    /* configure the autoreload value */
+    TIMER_CAR(timer_periph) = (uint32_t)initpara->period;
+
+    if((TIMER5 != timer_periph) && (TIMER6 != timer_periph)){
+        /* reset the CKDIV bit */
+        TIMER_CTL0(timer_periph) &= (~(uint32_t)TIMER_CTL0_CKDIV);
+        TIMER_CTL0(timer_periph) |= (uint32_t)(initpara->clockdivision & CLOCKDIVISION_MASK);
+    }
+
+    if (TIMER0 == timer_periph) {
+        /* configure the repetition counter value */
+        TIMER_CREP(timer_periph) = (uint32_t)initpara->repetitioncounter;
+    }
+
+    /* generate an update event */
+    TIMER_SWEVG(timer_periph) |= (uint32_t)TIMER_SWEVG_UPG;
+}
+
+/*!
+    \brief      enable a timer
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[out] none
+    \retval     none
+*/
+void timer_enable(uint32_t timer_periph)
+{
+    TIMER_CTL0(timer_periph) |= (uint32_t)TIMER_CTL0_CEN;
+}
+
+/*!
+    \brief      disable a timer
+    \param[in]  timer_periph: TIMERx(x=0..13)
+    \param[out] none
+    \retval     none
+*/
+void timer_disable(uint32_t timer_periph)
+{
+    TIMER_CTL0(timer_periph) &= ~(uint32_t)TIMER_CTL0_CEN;
+}
+
+/*!
+    \brief      enable the auto reload shadow function
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[out] none
+    \retval     none
+*/
+void timer_auto_reload_shadow_enable(uint32_t timer_periph)
+{
+    TIMER_CTL0(timer_periph) |= (uint32_t)TIMER_CTL0_ARSE;
+}
+
+/*!
+    \brief      disable the auto reload shadow function
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[out] none
+    \retval     none
+*/
+void timer_auto_reload_shadow_disable(uint32_t timer_periph)
+{
+    TIMER_CTL0(timer_periph) &= ~(uint32_t)TIMER_CTL0_ARSE;
+}
+
+/*!
+    \brief      enable the update event
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[out] none
+    \retval     none
+*/
+void timer_update_event_enable(uint32_t timer_periph)
+{
+    TIMER_CTL0(timer_periph) &= ~(uint32_t)TIMER_CTL0_UPDIS;
+}
+
+/*!
+    \brief      disable the update event
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[out] none
+    \retval     none
+*/
+void timer_update_event_disable(uint32_t timer_periph)
+{
+    TIMER_CTL0(timer_periph) |= (uint32_t) TIMER_CTL0_UPDIS;
+}
+
+/*!
+    \brief      set TIMER counter alignment mode
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  aligned:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_COUNTER_EDGE: edge-aligned mode
+      \arg        TIMER_COUNTER_CENTER_DOWN: center-aligned and counting down assert mode
+      \arg        TIMER_COUNTER_CENTER_UP: center-aligned and counting up assert mode
+      \arg        TIMER_COUNTER_CENTER_BOTH: center-aligned and counting up/down assert mode
+    \param[out] none
+    \retval     none
+*/
+void timer_counter_alignment(uint32_t timer_periph, uint16_t aligned)
+{
+    TIMER_CTL0(timer_periph) &= (uint32_t)(~TIMER_CTL0_CAM);
+    TIMER_CTL0(timer_periph) |= (uint32_t)aligned;
+}
+
+/*!
+    \brief      set TIMER counter up direction
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void timer_counter_up_direction(uint32_t timer_periph)
+{
+    TIMER_CTL0(timer_periph) &= ~(uint32_t)TIMER_CTL0_DIR;
+}
+
+/*!
+    \brief      set TIMER counter down direction
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void timer_counter_down_direction(uint32_t timer_periph)
+{
+    TIMER_CTL0(timer_periph) |= (uint32_t)TIMER_CTL0_DIR;
+}
+
+/*!
+    \brief      configure TIMER prescaler
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[in]  prescaler: prescaler value
+    \param[in]  pscreload: prescaler reload mode
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_PSC_RELOAD_NOW: the prescaler is loaded right now
+      \arg        TIMER_PSC_RELOAD_UPDATE: the prescaler is loaded at the next update event
+    \param[out] none
+    \retval     none
+*/
+void timer_prescaler_config(uint32_t timer_periph, uint16_t prescaler, uint32_t pscreload)
+{
+    TIMER_PSC(timer_periph) = (uint32_t)prescaler;
+
+    if(TIMER_PSC_RELOAD_NOW == pscreload){
+        TIMER_SWEVG(timer_periph) |= (uint32_t)TIMER_SWEVG_UPG;
+    }
+}
+
+/*!
+    \brief      configure TIMER repetition register value
+    \param[in]  timer_periph: TIMERx(x=0)
+    \param[in]  repetition: the counter repetition value, 0~255
+    \param[out] none
+    \retval     none
+*/
+void timer_repetition_value_config(uint32_t timer_periph, uint16_t repetition)
+{
+    TIMER_CREP(timer_periph) = (uint32_t)repetition;
+}
+
+/*!
+    \brief      configure TIMER autoreload register value
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[in]  autoreload: the counter auto-reload value
+    \param[out] none
+    \retval     none
+*/
+void timer_autoreload_value_config(uint32_t timer_periph, uint16_t autoreload)
+{
+    TIMER_CAR(timer_periph) = (uint32_t)autoreload;
+}
+
+/*!
+    \brief      configure TIMER counter register value
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[in]  counter: the counter value
+    \param[out] none
+    \retval     none
+*/
+void timer_counter_value_config(uint32_t timer_periph, uint16_t counter)
+{
+    TIMER_CNT(timer_periph) = (uint32_t)counter;
+}
+
+/*!
+    \brief      read TIMER counter value
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[out] none
+    \retval     counter value
+*/
+uint32_t timer_counter_read(uint32_t timer_periph)
+{
+    uint32_t count_value = 0U;
+    count_value = TIMER_CNT(timer_periph);
+    return (count_value);
+}
+
+/*!
+    \brief      read TIMER prescaler value
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[out] none
+    \retval     prescaler register value
+*/
+uint16_t timer_prescaler_read(uint32_t timer_periph)
+{
+    uint16_t prescaler_value = 0U;
+    prescaler_value = (uint16_t) (TIMER_PSC(timer_periph));
+    return (prescaler_value);
+}
+
+/*!
+    \brief      configure TIMER single pulse mode
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[in]  spmode:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_SP_MODE_SINGLE: single pulse mode
+      \arg        TIMER_SP_MODE_REPETITIVE: repetitive pulse mode
+    \param[out] none
+    \retval     none
+*/
+void timer_single_pulse_mode_config(uint32_t timer_periph, uint32_t spmode)
+{
+    if(TIMER_SP_MODE_SINGLE == spmode){
+        TIMER_CTL0(timer_periph) |= (uint32_t)TIMER_CTL0_SPM;
+    }else if(TIMER_SP_MODE_REPETITIVE == spmode){
+        TIMER_CTL0(timer_periph) &= ~((uint32_t)TIMER_CTL0_SPM);
+    }else{
+        /* illegal parameters */
+    }
+}
+
+/*!
+    \brief      configure TIMER update source
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[in]  update:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_UPDATE_SRC_GLOBAL: update generate by setting of UPG bit or the counter overflow/underflow,
+                                           or the slave mode controller trigger
+      \arg        TIMER_UPDATE_SRC_REGULAR: update generate only by counter overflow/underflow
+    \param[out] none
+    \retval     none
+*/
+void timer_update_source_config(uint32_t timer_periph, uint32_t update)
+{
+    if(TIMER_UPDATE_SRC_REGULAR == update){
+        TIMER_CTL0(timer_periph) |= (uint32_t)TIMER_CTL0_UPS;
+    }else if(TIMER_UPDATE_SRC_GLOBAL == update){
+        TIMER_CTL0(timer_periph) &= ~(uint32_t)TIMER_CTL0_UPS;
+    }else{
+        /* illegal parameters */
+    }
+}
+
+/*!
+    \brief      enable the TIMER DMA
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[in]  dma: specify which DMA to enable
+                one or more parameters can be selected which are shown as below:
+      \arg        TIMER_DMA_UPD:  update DMA enable, TIMERx(x=0..6)
+      \arg        TIMER_DMA_CH0D: channel 0 DMA enable, TIMERx(x=0..4)
+      \arg        TIMER_DMA_CH1D: channel 1 DMA enable, TIMERx(x=0..4)
+      \arg        TIMER_DMA_CH2D: channel 2 DMA enable, TIMERx(x=0..4)
+      \arg        TIMER_DMA_CH3D: channel 3 DMA enable, TIMERx(x=0..4)
+      \arg        TIMER_DMA_CMTD: channel commutation DMA request enable, TIMERx(x=0)
+      \arg        TIMER_DMA_TRGD: trigger DMA enable, TIMERx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void timer_dma_enable(uint32_t timer_periph, uint16_t dma)
+{
+    TIMER_DMAINTEN(timer_periph) |= (uint32_t) dma;
+}
+
+/*!
+    \brief      disable the TIMER DMA
+    \param[in]  timer_periph: TIMERxTIMERx(x=0..6)
+    \param[in]  dma: specify which DMA to disbale
+                one or more parameters can be selected which are shown as below:
+      \arg        TIMER_DMA_UPD:  update DMA enable, TIMERx(x=0..6)
+      \arg        TIMER_DMA_CH0D: channel 0 DMA enable, TIMERx(x=0..4)
+      \arg        TIMER_DMA_CH1D: channel 1 DMA enable, TIMERx(x=0..4)
+      \arg        TIMER_DMA_CH2D: channel 2 DMA enable, TIMERx(x=0..4)
+      \arg        TIMER_DMA_CH3D: channel 3 DMA enable, TIMERx(x=0..4)
+      \arg        TIMER_DMA_CMTD: channel commutation DMA request enable, TIMERx(x=0)
+      \arg        TIMER_DMA_TRGD: trigger DMA enable, TIMERx(x=0..4,7)
+    \param[out] none
+    \retval     none
+*/
+void timer_dma_disable(uint32_t timer_periph, uint16_t dma)
+{
+    TIMER_DMAINTEN(timer_periph) &= (~(uint32_t)(dma));
+}
+
+/*!
+    \brief      channel DMA request source selection
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  dma_request: channel DMA request source selection
+                only one parameter can be selected which is shown as below:
+       \arg        TIMER_DMAREQUEST_CHANNELEVENT: DMA request of channel n is sent when channel n event occurs
+       \arg        TIMER_DMAREQUEST_UPDATEEVENT: DMA request of channel n is sent when update event occurs
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_dma_request_source_select(uint32_t timer_periph, uint32_t dma_request)
+{
+    if(TIMER_DMAREQUEST_UPDATEEVENT == dma_request){
+        TIMER_CTL1(timer_periph) |= (uint32_t)TIMER_CTL1_DMAS;
+    }else if(TIMER_DMAREQUEST_CHANNELEVENT == dma_request){
+        TIMER_CTL1(timer_periph) &= ~(uint32_t)TIMER_CTL1_DMAS;
+    }else{
+        /* illegal parameters */
+    }
+}
+
+/*!
+    \brief      configure the TIMER DMA transfer
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  dma_baseaddr:
+                only one parameter can be selected which is shown as below:
+       \arg        TIMER_DMACFG_DMATA_CTL0: DMA transfer address is TIMER_CTL0, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_CTL1: DMA transfer address is TIMER_CTL1, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_SMCFG: DMA transfer address is TIMER_SMCFG, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_DMAINTEN: DMA transfer address is TIMER_DMAINTEN, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_INTF: DMA transfer address is TIMER_INTF, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_SWEVG: DMA transfer address is TIMER_SWEVG, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_CHCTL0: DMA transfer address is TIMER_CHCTL0, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_CHCTL1: DMA transfer address is TIMER_CHCTL1, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_CHCTL2: DMA transfer address is TIMER_CHCTL2, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_CNT: DMA transfer address is TIMER_CNT, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_PSC: DMA transfer address is TIMER_PSC, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_CAR: DMA transfer address is TIMER_CAR, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_CREP: DMA transfer address is TIMER_CREP, TIMERx(x=0)
+       \arg        TIMER_DMACFG_DMATA_CH0CV: DMA transfer address is TIMER_CH0CV, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_CH1CV: DMA transfer address is TIMER_CH1CV, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_CH2CV: DMA transfer address is TIMER_CH2CV, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_CH3CV: DMA transfer address is TIMER_CH3CV, TIMERx(x=0..4)
+       \arg        TIMER_DMACFG_DMATA_CCHP: DMA transfer address is TIMER_CCHP, TIMERx(x=0)
+       \arg        TIMER_DMACFG_DMATA_DMACFG: DMA transfer address is TIMER_DMACFG, TIMERx(x=0..4)
+    \param[in]  dma_lenth:
+                only one parameter can be selected which is shown as below:
+       \arg        TIMER_DMACFG_DMATC_xTRANSFER(x=1..6): DMA transfer x time
+    \param[out] none
+    \retval     none
+*/
+void timer_dma_transfer_config(uint32_t timer_periph, uint32_t dma_baseaddr, uint32_t dma_lenth)
+{
+    TIMER_DMACFG(timer_periph) &= (~(uint32_t)(TIMER_DMACFG_DMATA | TIMER_DMACFG_DMATC));
+    TIMER_DMACFG(timer_periph) |= (uint32_t)(dma_baseaddr | dma_lenth);
+}
+
+/*!
+    \brief      software generate events
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  event: the timer software event generation sources
+                one or more parameters can be selected which are shown as below:
+      \arg        TIMER_EVENT_SRC_UPG: update event generation, TIMERx(x=0..6)
+      \arg        TIMER_EVENT_SRC_CH0G: channel 0 capture or compare event generation, TIMERx(x=0..4)
+      \arg        TIMER_EVENT_SRC_CH1G: channel 1 capture or compare event generation, TIMERx(x=0..4)
+      \arg        TIMER_EVENT_SRC_CH2G: channel 2 capture or compare event generation, TIMERx(x=0..4)
+      \arg        TIMER_EVENT_SRC_CH3G: channel 3 capture or compare event generation, TIMERx(x=0..4)
+      \arg        TIMER_EVENT_SRC_CMTG: channel commutation event generation, TIMERx(x=0)
+      \arg        TIMER_EVENT_SRC_TRGG: trigger event generation, TIMERx(x=0..4)
+      \arg        TIMER_EVENT_SRC_BRKG:  break event generation, TIMERx(x=0)
+    \param[out] none
+    \retval     none
+*/
+void timer_event_software_generate(uint32_t timer_periph, uint16_t event)
+{
+    TIMER_SWEVG(timer_periph) |= (uint32_t)event;
+}
+
+/*!
+    \brief      initialize TIMER break parameter struct with a default value
+    \param[in]  breakpara: TIMER break parameter struct
+    \param[out] none
+    \retval     none
+*/
+void timer_break_struct_para_init(timer_break_parameter_struct* breakpara)
+{
+    /* initialize the break parameter struct member with the default value */
+    breakpara->runoffstate     = TIMER_ROS_STATE_DISABLE;
+    breakpara->ideloffstate    = TIMER_IOS_STATE_DISABLE;
+    breakpara->deadtime        = 0U;
+    breakpara->breakpolarity   = TIMER_BREAK_POLARITY_LOW;
+    breakpara->outputautostate = TIMER_OUTAUTO_DISABLE;
+    breakpara->protectmode     = TIMER_CCHP_PROT_OFF;
+    breakpara->breakstate      = TIMER_BREAK_DISABLE;
+}
+
+/*!
+    \brief      configure TIMER break function
+    \param[in]  timer_periph: TIMERx(x=0)
+    \param[in]  breakpara: TIMER break parameter struct
+                  runoffstate: TIMER_ROS_STATE_ENABLE, TIMER_ROS_STATE_DISABLE
+                  ideloffstate: TIMER_IOS_STATE_ENABLE, TIMER_IOS_STATE_DISABLE
+                  deadtime: 0~255
+                  breakpolarity: TIMER_BREAK_POLARITY_LOW, TIMER_BREAK_POLARITY_HIGH
+                  outputautostate: TIMER_OUTAUTO_ENABLE, TIMER_OUTAUTO_DISABLE
+                  protectmode: TIMER_CCHP_PROT_OFF, TIMER_CCHP_PROT_0, TIMER_CCHP_PROT_1, TIMER_CCHP_PROT_2
+                  breakstate: TIMER_BREAK_ENABLE, TIMER_BREAK_DISABLE
+    \param[out] none
+    \retval     none
+*/
+void timer_break_config(uint32_t timer_periph, timer_break_parameter_struct* breakpara)
+{
+    TIMER_CCHP(timer_periph) = (uint32_t)(((uint32_t)(breakpara->runoffstate)) |
+                                          ((uint32_t)(breakpara->ideloffstate))|
+                                          ((uint32_t)(breakpara->deadtime)) |
+                                          ((uint32_t)(breakpara->breakpolarity)) |
+                                          ((uint32_t)(breakpara->outputautostate)) |
+                                          ((uint32_t)(breakpara->protectmode)) |
+                                          ((uint32_t)(breakpara->breakstate)));
+}
+
+/*!
+    \brief      enable TIMER break function
+    \param[in]  timer_periph: TIMERx(x=0)
+    \param[out] none
+    \retval     none
+*/
+void timer_break_enable(uint32_t timer_periph)
+{
+    TIMER_CCHP(timer_periph) |= (uint32_t)TIMER_CCHP_BRKEN;
+}
+
+/*!
+    \brief      disable TIMER break function
+    \param[in]  timer_periph: TIMERx(x=0)
+    \param[out] none
+    \retval     none
+*/
+void timer_break_disable(uint32_t timer_periph)
+{
+    TIMER_CCHP(timer_periph) &= ~(uint32_t)TIMER_CCHP_BRKEN;
+}
+
+/*!
+    \brief      enable TIMER output automatic function
+    \param[in]  timer_periph: TIMERx(x=0)
+    \param[out] none
+    \retval     none
+*/
+void timer_automatic_output_enable(uint32_t timer_periph)
+{
+    TIMER_CCHP(timer_periph) |= (uint32_t)TIMER_CCHP_OAEN;
+}
+
+/*!
+    \brief      disable TIMER output automatic function
+    \param[in]  timer_periph: TIMERx(x=0)
+    \param[out] none
+    \retval     none
+*/
+void timer_automatic_output_disable(uint32_t timer_periph)
+{
+    TIMER_CCHP(timer_periph) &= ~(uint32_t)TIMER_CCHP_OAEN;
+}
+
+/*!
+    \brief      enable or disable TIMER primary output function
+    \param[in]  timer_periph: TIMERx(x=0)
+    \param[in]  newvalue: ENABLE or DISABLE
+    \param[out] none
+    \retval     none
+*/
+void timer_primary_output_config(uint32_t timer_periph, ControlStatus newvalue)
+{
+    if(ENABLE == newvalue){
+        TIMER_CCHP(timer_periph) |= (uint32_t)TIMER_CCHP_POEN;
+    }else{
+        TIMER_CCHP(timer_periph) &= (~(uint32_t)TIMER_CCHP_POEN);
+    }
+}
+
+/*!
+    \brief      enable or disable channel capture/compare control shadow register
+    \param[in]  timer_periph: TIMERx(x=0)
+    \param[in]  newvalue: ENABLE or DISABLE
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_control_shadow_config(uint32_t timer_periph, ControlStatus newvalue)
+{
+     if(ENABLE == newvalue){
+        TIMER_CTL1(timer_periph) |= (uint32_t)TIMER_CTL1_CCSE;
+    }else{
+        TIMER_CTL1(timer_periph) &= (~(uint32_t)TIMER_CTL1_CCSE);
+    }
+}
+
+/*!
+    \brief      configure TIMER channel control shadow register update control
+    \param[in]  timer_periph: TIMERx(x=0)
+    \param[in]  ccuctl: channel control shadow register update control
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_UPDATECTL_CCU: the shadow registers update by when CMTG bit is set
+      \arg        TIMER_UPDATECTL_CCUTRI: the shadow registers update by when CMTG bit is set or an rising edge of TRGI occurs
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_control_shadow_update_config(uint32_t timer_periph, uint32_t ccuctl)
+{
+    if(TIMER_UPDATECTL_CCU == ccuctl){
+        TIMER_CTL1(timer_periph) &= (~(uint32_t)TIMER_CTL1_CCUC);
+    }else if(TIMER_UPDATECTL_CCUTRI == ccuctl){
+        TIMER_CTL1(timer_periph) |= (uint32_t)TIMER_CTL1_CCUC;
+    }else{
+        /* illegal parameters */
+    }
+}
+
+/*!
+    \brief      initialize TIMER channel output parameter struct with a default value
+    \param[in]  ocpara: TIMER channel n output parameter struct
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_output_struct_para_init(timer_oc_parameter_struct* ocpara)
+{
+    /* initialize the channel output parameter struct member with the default value */
+    ocpara->outputstate  = TIMER_CCX_DISABLE;
+    ocpara->outputnstate = TIMER_CCXN_DISABLE;
+    ocpara->ocpolarity   = TIMER_OC_POLARITY_HIGH;
+    ocpara->ocnpolarity  = TIMER_OCN_POLARITY_HIGH;
+    ocpara->ocidlestate  = TIMER_OC_IDLE_STATE_LOW;
+    ocpara->ocnidlestate = TIMER_OCN_IDLE_STATE_LOW;
+}
+
+/*!
+    \brief      configure TIMER channel output function
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  channel:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CH_0: TIMER channel 0(TIMERx(x=0..4))
+      \arg        TIMER_CH_1: TIMER channel 1(TIMERx(x=0..4))
+      \arg        TIMER_CH_2: TIMER channel 2(TIMERx(x=0..4))
+      \arg        TIMER_CH_3: TIMER channel 3(TIMERx(x=0..4))
+    \param[in]  ocpara: TIMER channeln output parameter struct
+                  outputstate: TIMER_CCX_ENABLE, TIMER_CCX_DISABLE
+                  outputnstate: TIMER_CCXN_ENABLE, TIMER_CCXN_DISABLE
+                  ocpolarity: TIMER_OC_POLARITY_HIGH, TIMER_OC_POLARITY_LOW
+                  ocnpolarity: TIMER_OCN_POLARITY_HIGH, TIMER_OCN_POLARITY_LOW
+                  ocidlestate: TIMER_OC_IDLE_STATE_LOW, TIMER_OC_IDLE_STATE_HIGH
+                  ocnidlestate: TIMER_OCN_IDLE_STATE_LOW, TIMER_OCN_IDLE_STATE_HIGH
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_output_config(uint32_t timer_periph, uint16_t channel, timer_oc_parameter_struct* ocpara)
+{
+    switch(channel){
+    /* configure TIMER_CH_0 */
+    case TIMER_CH_0:
+        /* reset the CH0EN bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH0EN);
+        /* set the CH0EN bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)ocpara->outputstate;
+        /* reset the CH0P bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH0P);
+        /* set the CH0P bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)ocpara->ocpolarity;
+
+        if (TIMER0 == timer_periph) {
+            /* reset the CH0NEN bit */
+            TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH0NEN);
+            /* set the CH0NEN bit */
+            TIMER_CHCTL2(timer_periph) |= (uint32_t)ocpara->outputnstate;
+            /* reset the CH0NP bit */
+            TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH0NP);
+            /* set the CH0NP bit */
+            TIMER_CHCTL2(timer_periph) |= (uint32_t)ocpara->ocnpolarity;
+            /* reset the ISO0 bit */
+            TIMER_CTL1(timer_periph) &= (~(uint32_t)TIMER_CTL1_ISO0);
+            /* set the ISO0 bit */
+            TIMER_CTL1(timer_periph) |= (uint32_t)ocpara->ocidlestate;
+            /* reset the ISO0N bit */
+            TIMER_CTL1(timer_periph) &= (~(uint32_t)TIMER_CTL1_ISO0N);
+            /* set the ISO0N bit */
+            TIMER_CTL1(timer_periph) |= (uint32_t)ocpara->ocnidlestate;
+        }
+        TIMER_CHCTL0(timer_periph) &= ~(uint32_t)TIMER_CHCTL0_CH0MS;
+        break;
+    /* configure TIMER_CH_1 */
+    case TIMER_CH_1:
+        /* reset the CH1EN bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH1EN);
+        /* set the CH1EN bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)(ocpara->outputstate) << 4U);
+        /* reset the CH1P bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH1P);
+        /* set the CH1P bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)(ocpara->ocpolarity) << 4U);
+
+        if (TIMER0 == timer_periph) {
+            /* reset the CH1NEN bit */
+            TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH1NEN);
+            /* set the CH1NEN bit */
+            TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)(ocpara->outputnstate) << 4U);
+            /* reset the CH1NP bit */
+            TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH1NP);
+            /* set the CH1NP bit */
+            TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)(ocpara->ocnpolarity) << 4U);
+            /* reset the ISO1 bit */
+            TIMER_CTL1(timer_periph) &= (~(uint32_t)TIMER_CTL1_ISO1);
+            /* set the ISO1 bit */
+            TIMER_CTL1(timer_periph) |= (uint32_t)((uint32_t)(ocpara->ocidlestate) << 2U);
+            /* reset the ISO1N bit */
+            TIMER_CTL1(timer_periph) &= (~(uint32_t)TIMER_CTL1_ISO1N);
+            /* set the ISO1N bit */
+            TIMER_CTL1(timer_periph) |= (uint32_t)((uint32_t)(ocpara->ocnidlestate) << 2U);
+        }
+        TIMER_CHCTL0(timer_periph) &= ~(uint32_t)TIMER_CHCTL0_CH1MS;
+        break;
+    /* configure TIMER_CH_2 */
+    case TIMER_CH_2:
+        /* reset the CH2EN bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH2EN);
+        /* set the CH2EN bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)(ocpara->outputstate) << 8U);
+        /* reset the CH2P bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH2P);
+        /* set the CH2P bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)(ocpara->ocpolarity) << 8U);
+
+        if (TIMER0 == timer_periph) {
+            /* reset the CH2NEN bit */
+            TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH2NEN);
+            /* set the CH2NEN bit */
+            TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)(ocpara->outputnstate) << 8U);
+            /* reset the CH2NP bit */
+            TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH2NP);
+            /* set the CH2NP bit */
+            TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)(ocpara->ocnpolarity) << 8U);
+            /* reset the ISO2 bit */
+            TIMER_CTL1(timer_periph) &= (~(uint32_t)TIMER_CTL1_ISO2);
+            /* set the ISO2 bit */
+            TIMER_CTL1(timer_periph) |= (uint32_t)((uint32_t)(ocpara->ocidlestate) << 4U);
+            /* reset the ISO2N bit */
+            TIMER_CTL1(timer_periph) &= (~(uint32_t)TIMER_CTL1_ISO2N);
+            /* set the ISO2N bit */
+            TIMER_CTL1(timer_periph) |= (uint32_t)((uint32_t)(ocpara->ocnidlestate) << 4U);
+        }
+        TIMER_CHCTL1(timer_periph) &= ~(uint32_t)TIMER_CHCTL1_CH2MS;
+        break;
+    /* configure TIMER_CH_3 */
+    case TIMER_CH_3:
+        /* reset the CH3EN bit */
+        TIMER_CHCTL2(timer_periph) &=(~(uint32_t)TIMER_CHCTL2_CH3EN);
+        /* set the CH3EN bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)(ocpara->outputstate) << 12U);
+        /* reset the CH3P bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH3P);
+        /* set the CH3P bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)(ocpara->ocpolarity) << 12U);
+
+        if (TIMER0 == timer_periph) {
+            /* reset the ISO3 bit */
+            TIMER_CTL1(timer_periph) &= (~(uint32_t)TIMER_CTL1_ISO3);
+            /* set the ISO3 bit */
+            TIMER_CTL1(timer_periph) |= (uint32_t)((uint32_t)(ocpara->ocidlestate) << 6U);
+        }
+        TIMER_CHCTL1(timer_periph) &= ~(uint32_t)TIMER_CHCTL1_CH3MS;
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      configure TIMER channel output compare mode
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  channel:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CH_0: TIMER channel 0(TIMERx(x=0..4))
+      \arg        TIMER_CH_1: TIMER channel 1(TIMERx(x=0..4))
+      \arg        TIMER_CH_2: TIMER channel 2(TIMERx(x=0..4))
+      \arg        TIMER_CH_3: TIMER channel 3(TIMERx(x=0..4))
+    \param[in]  ocmode: channel output compare mode
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_OC_MODE_TIMING: timing mode
+      \arg        TIMER_OC_MODE_ACTIVE: active mode
+      \arg        TIMER_OC_MODE_INACTIVE: inactive mode
+      \arg        TIMER_OC_MODE_TOGGLE: toggle mode
+      \arg        TIMER_OC_MODE_LOW: force low mode
+      \arg        TIMER_OC_MODE_HIGH: force high mode
+      \arg        TIMER_OC_MODE_PWM0: PWM mode 0
+      \arg        TIMER_OC_MODE_PWM1: PWM mode 1
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_output_mode_config(uint32_t timer_periph, uint16_t channel, uint16_t ocmode)
+{
+    switch(channel){
+    /* configure TIMER_CH_0 */
+    case TIMER_CH_0:
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH0COMCTL);
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)ocmode;
+        break;
+    /* configure TIMER_CH_1 */
+    case TIMER_CH_1:
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH1COMCTL);
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)((uint32_t)(ocmode) << 8U);
+        break;
+    /* configure TIMER_CH_2 */
+    case TIMER_CH_2:
+        TIMER_CHCTL1(timer_periph) &= (~(uint32_t)TIMER_CHCTL1_CH2COMCTL);
+        TIMER_CHCTL1(timer_periph) |= (uint32_t)ocmode;
+        break;
+    /* configure TIMER_CH_3 */
+    case TIMER_CH_3:
+        TIMER_CHCTL1(timer_periph) &= (~(uint32_t)TIMER_CHCTL1_CH3COMCTL);
+        TIMER_CHCTL1(timer_periph) |= (uint32_t)((uint32_t)(ocmode) << 8U);
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      configure TIMER channel output pulse value
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  channel:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CH_0: TIMER channel 0(TIMERx(x=0..4))
+      \arg        TIMER_CH_1: TIMER channel 1(TIMERx(x=0..4))
+      \arg        TIMER_CH_2: TIMER channel 2(TIMERx(x=0..4))
+      \arg        TIMER_CH_3: TIMER channel 3(TIMERx(x=0..4))
+    \param[in]  pulse: channel output pulse value
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_output_pulse_value_config(uint32_t timer_periph, uint16_t channel, uint32_t pulse)
+{
+    switch(channel){
+    /* configure TIMER_CH_0 */
+    case TIMER_CH_0:
+        TIMER_CH0CV(timer_periph) = (uint32_t)pulse;
+        break;
+    /* configure TIMER_CH_1 */
+    case TIMER_CH_1:
+        TIMER_CH1CV(timer_periph) = (uint32_t)pulse;
+        break;
+    /* configure TIMER_CH_2 */
+    case TIMER_CH_2:
+        TIMER_CH2CV(timer_periph) = (uint32_t)pulse;
+        break;
+    /* configure TIMER_CH_3 */
+    case TIMER_CH_3:
+         TIMER_CH3CV(timer_periph) = (uint32_t)pulse;
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      configure TIMER channel output shadow function
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  channel:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CH_0: TIMER channel 0(TIMERx(x=0..4))
+      \arg        TIMER_CH_1: TIMER channel 1(TIMERx(x=0..4))
+      \arg        TIMER_CH_2: TIMER channel 2(TIMERx(x=0..4))
+      \arg        TIMER_CH_3: TIMER channel 3(TIMERx(x=0..4))
+    \param[in]  ocshadow: channel output shadow state
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_OC_SHADOW_ENABLE: channel output shadow state enable
+      \arg        TIMER_OC_SHADOW_DISABLE: channel output shadow state disable
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_output_shadow_config(uint32_t timer_periph, uint16_t channel, uint16_t ocshadow)
+{
+    switch(channel){
+    /* configure TIMER_CH_0 */
+    case TIMER_CH_0:
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH0COMSEN);
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)ocshadow;
+        break;
+    /* configure TIMER_CH_1 */
+    case TIMER_CH_1:
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH1COMSEN);
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)((uint32_t)(ocshadow) << 8U);
+        break;
+    /* configure TIMER_CH_2 */
+    case TIMER_CH_2:
+        TIMER_CHCTL1(timer_periph) &= (~(uint32_t)TIMER_CHCTL1_CH2COMSEN);
+        TIMER_CHCTL1(timer_periph) |= (uint32_t)ocshadow;
+        break;
+    /* configure TIMER_CH_3 */
+    case TIMER_CH_3:
+        TIMER_CHCTL1(timer_periph) &= (~(uint32_t)TIMER_CHCTL1_CH3COMSEN);
+        TIMER_CHCTL1(timer_periph) |= (uint32_t)((uint32_t)(ocshadow) << 8U);
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      configure TIMER channel output fast function
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  channel:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CH_0: TIMER channel 0(TIMERx(x=0..4))
+      \arg        TIMER_CH_1: TIMER channel 1(TIMERx(x=0..4))
+      \arg        TIMER_CH_2: TIMER channel 2(TIMERx(x=0..4))
+      \arg        TIMER_CH_3: TIMER channel 3(TIMERx(x=0..4))
+    \param[in]  ocfast: channel output fast function
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_OC_FAST_ENABLE: channel output fast function enable
+      \arg        TIMER_OC_FAST_DISABLE: channel output fast function disable
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_output_fast_config(uint32_t timer_periph, uint16_t channel, uint16_t ocfast)
+{
+    switch(channel){
+    /* configure TIMER_CH_0 */
+    case TIMER_CH_0:
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH0COMFEN);
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)ocfast;
+        break;
+    /* configure TIMER_CH_1 */
+    case TIMER_CH_1:
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH1COMFEN);
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)((uint32_t)ocfast << 8U);
+        break;
+    /* configure TIMER_CH_2 */
+    case TIMER_CH_2:
+        TIMER_CHCTL1(timer_periph) &= (~(uint32_t)TIMER_CHCTL1_CH2COMFEN);
+        TIMER_CHCTL1(timer_periph) |= (uint32_t)ocfast;
+        break;
+    /* configure TIMER_CH_3 */
+    case TIMER_CH_3:
+        TIMER_CHCTL1(timer_periph) &= (~(uint32_t)TIMER_CHCTL1_CH3COMFEN);
+        TIMER_CHCTL1(timer_periph) |= (uint32_t)((uint32_t)ocfast << 8U);
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      configure TIMER channel output clear function
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  channel:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CH_0: TIMER channel 0(TIMERx(x=0..4))
+      \arg        TIMER_CH_1: TIMER channel 1(TIMERx(x=0..41))
+      \arg        TIMER_CH_2: TIMER channel 2(TIMERx(x=0..4))
+      \arg        TIMER_CH_3: TIMER channel 3(TIMERx(x=0..4))
+    \param[in]  occlear: channel output clear function
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_OC_CLEAR_ENABLE: channel output clear function enable
+      \arg        TIMER_OC_CLEAR_DISABLE: channel output clear function disable
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_output_clear_config(uint32_t timer_periph, uint16_t channel, uint16_t occlear)
+{
+    switch(channel){
+    /* configure TIMER_CH_0 */
+    case TIMER_CH_0:
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH0COMCEN);
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)occlear;
+        break;
+    /* configure TIMER_CH_1 */
+    case TIMER_CH_1:
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH1COMCEN);
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)((uint32_t)occlear << 8U);
+        break;
+    /* configure TIMER_CH_2 */
+    case TIMER_CH_2:
+        TIMER_CHCTL1(timer_periph) &= (~(uint32_t)TIMER_CHCTL1_CH2COMCEN);
+        TIMER_CHCTL1(timer_periph) |= (uint32_t)occlear;
+        break;
+    /* configure TIMER_CH_3 */
+    case TIMER_CH_3:
+        TIMER_CHCTL1(timer_periph) &= (~(uint32_t)TIMER_CHCTL1_CH3COMCEN);
+        TIMER_CHCTL1(timer_periph) |= (uint32_t)((uint32_t)occlear << 8U);
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      configure TIMER channel output polarity
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  channel:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CH_0: TIMER channel 0(TIMERx(x=0..4))
+      \arg        TIMER_CH_1: TIMER channel 1(TIMERx(x=0..4))
+      \arg        TIMER_CH_2: TIMER channel 2(TIMERx(x=0..4))
+      \arg        TIMER_CH_3: TIMER channel 3(TIMERx(x=0..4))
+    \param[in]  ocpolarity: channel output polarity
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_OC_POLARITY_HIGH: channel output polarity is high
+      \arg        TIMER_OC_POLARITY_LOW: channel output polarity is low
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_output_polarity_config(uint32_t timer_periph, uint16_t channel, uint16_t ocpolarity)
+{
+    switch(channel){
+    /* configure TIMER_CH_0 */
+    case TIMER_CH_0:
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH0P);
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)ocpolarity;
+        break;
+    /* configure TIMER_CH_1 */
+    case TIMER_CH_1:
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH1P);
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)ocpolarity << 4U);
+        break;
+    /* configure TIMER_CH_2 */
+    case TIMER_CH_2:
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH2P);
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)ocpolarity << 8U);
+        break;
+    /* configure TIMER_CH_3 */
+    case TIMER_CH_3:
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH3P);
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)ocpolarity << 12U);
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      configure TIMER channel complementary output polarity
+    \param[in]  timer_periph: TIMERx(x=0)
+    \param[in]  channel:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CH_0: TIMER channel 0(TIMERx(x=0))
+      \arg        TIMER_CH_1: TIMER channel 1(TIMERx(x=0))
+      \arg        TIMER_CH_2: TIMER channel 2(TIMERx(x=0))
+    \param[in]  ocnpolarity: channel complementary output polarity
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_OCN_POLARITY_HIGH: channel complementary output polarity is high
+      \arg        TIMER_OCN_POLARITY_LOW: channel complementary output polarity is low
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_complementary_output_polarity_config(uint32_t timer_periph, uint16_t channel, uint16_t ocnpolarity)
+{
+    switch(channel){
+    /* configure TIMER_CH_0 */
+    case TIMER_CH_0:
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH0NP);
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)ocnpolarity;
+        break;
+    /* configure TIMER_CH_1 */
+    case TIMER_CH_1:
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH1NP);
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)ocnpolarity << 4U);
+        break;
+    /* configure TIMER_CH_2 */
+    case TIMER_CH_2:
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH2NP);
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)ocnpolarity << 8U);
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      configure TIMER channel enable state
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  channel:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CH_0: TIMER channel 0(TIMERx(x=0..4))
+      \arg        TIMER_CH_1: TIMER channel 1(TIMERx(x=0..4))
+      \arg        TIMER_CH_2: TIMER channel 2(TIMERx(x=0..4))
+      \arg        TIMER_CH_3: TIMER channel 3(TIMERx(x=0..4))
+    \param[in]  state: TIMER channel enable state
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CCX_ENABLE: channel enable
+      \arg        TIMER_CCX_DISABLE: channel disable
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_output_state_config(uint32_t timer_periph, uint16_t channel, uint32_t state)
+{
+    switch(channel){
+    /* configure TIMER_CH_0 */
+    case TIMER_CH_0:
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH0EN);
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)state;
+        break;
+    /* configure TIMER_CH_1 */
+    case TIMER_CH_1:
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH1EN);
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)state << 4U);
+        break;
+    /* configure TIMER_CH_2 */
+    case TIMER_CH_2:
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH2EN);
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)state << 8U);
+        break;
+    /* configure TIMER_CH_3 */
+    case TIMER_CH_3:
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH3EN);
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)state << 12U);
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      configure TIMER channel complementary output enable state
+    \param[in]  timer_periph: TIMERx(x=0)
+    \param[in]  channel:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CH_0: TIMER channel 0
+      \arg        TIMER_CH_1: TIMER channel 1
+      \arg        TIMER_CH_2: TIMER channel 2
+    \param[in]  ocnstate: TIMER channel complementary output enable state
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CCXN_ENABLE: channel complementary enable
+      \arg        TIMER_CCXN_DISABLE: channel complementary disable
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_complementary_output_state_config(uint32_t timer_periph, uint16_t channel, uint16_t ocnstate)
+{
+    switch(channel){
+    /* configure TIMER_CH_0 */
+    case TIMER_CH_0:
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH0NEN);
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)ocnstate;
+        break;
+    /* configure TIMER_CH_1 */
+    case TIMER_CH_1:
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH1NEN);
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)ocnstate << 4U);
+        break;
+    /* configure TIMER_CH_2 */
+    case TIMER_CH_2:
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH2NEN);
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)ocnstate << 8U);
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      initialize TIMER channel input parameter struct with a default value
+    \param[in]  icpara: TIMER channel intput parameter struct
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_input_struct_para_init(timer_ic_parameter_struct* icpara)
+{
+    /* initialize the channel input parameter struct member with the default value */
+    icpara->icpolarity  = TIMER_IC_POLARITY_RISING;
+    icpara->icselection = TIMER_IC_SELECTION_DIRECTTI;
+    icpara->icprescaler = TIMER_IC_PSC_DIV1;
+    icpara->icfilter    = 0U;
+}
+
+/*!
+    \brief      configure TIMER input capture parameter
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  channel:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CH_0: TIMER channel 0(TIMERx(x=0..4))
+      \arg        TIMER_CH_1: TIMER channel 1(TIMERx(x=0..4))
+      \arg        TIMER_CH_2: TIMER channel 2(TIMERx(x=0..4))
+      \arg        TIMER_CH_3: TIMER channel 3(TIMERx(x=0..4))
+    \param[in]  icpara: TIMER channel intput parameter struct
+                  icpolarity: TIMER_IC_POLARITY_RISING, TIMER_IC_POLARITY_FALLING,
+                              TIMER_IC_POLARITY_BOTH_EDGE(only for TIMER1~TIMER8)
+                  icselection: TIMER_IC_SELECTION_DIRECTTI, TIMER_IC_SELECTION_INDIRECTTI,
+                               TIMER_IC_SELECTION_ITS
+                  icprescaler: TIMER_IC_PSC_DIV1, TIMER_IC_PSC_DIV2, TIMER_IC_PSC_DIV4,
+                               TIMER_IC_PSC_DIV8
+                  icfilter: 0~15
+    \param[out]  none
+    \retval      none
+*/
+void timer_input_capture_config(uint32_t timer_periph, uint16_t channel, timer_ic_parameter_struct* icpara)
+{
+    switch(channel){
+    /* configure TIMER_CH_0 */
+    case TIMER_CH_0:
+        /* reset the CH0EN bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH0EN);
+
+        /* reset the CH0P and CH0NP bits */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)(TIMER_CHCTL2_CH0P | TIMER_CHCTL2_CH0NP));
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)(icpara->icpolarity);
+        /* reset the CH0MS bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH0MS);
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)(icpara->icselection);
+        /* reset the CH0CAPFLT bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH0CAPFLT);
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)((uint32_t)(icpara->icfilter) << 4U);
+
+        /* set the CH0EN bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)TIMER_CHCTL2_CH0EN;
+        break;
+
+    /* configure TIMER_CH_1 */
+    case TIMER_CH_1:
+        /* reset the CH1EN bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH1EN);
+
+        /* reset the CH1P and CH1NP bits */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)(TIMER_CHCTL2_CH1P | TIMER_CHCTL2_CH1NP));
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)(icpara->icpolarity) << 4U);
+        /* reset the CH1MS bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH1MS);
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)((uint32_t)(icpara->icselection) << 8U);
+        /* reset the CH1CAPFLT bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH1CAPFLT);
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)((uint32_t)(icpara->icfilter) << 12U);
+
+        /* set the CH1EN bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)TIMER_CHCTL2_CH1EN;
+        break;
+    /* configure TIMER_CH_2 */
+    case TIMER_CH_2:
+        /* reset the CH2EN bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH2EN);
+
+        /* reset the CH2P and CH2NP bits */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)(TIMER_CHCTL2_CH2P | TIMER_CHCTL2_CH2NP));
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)(icpara->icpolarity) << 8U);
+
+        /* reset the CH2MS bit */
+        TIMER_CHCTL1(timer_periph) &= (~(uint32_t)TIMER_CHCTL1_CH2MS);
+        TIMER_CHCTL1(timer_periph) |= (uint32_t)((uint32_t)(icpara->icselection));
+
+        /* reset the CH2CAPFLT bit */
+        TIMER_CHCTL1(timer_periph) &= (~(uint32_t)TIMER_CHCTL1_CH2CAPFLT);
+        TIMER_CHCTL1(timer_periph) |= (uint32_t)((uint32_t)(icpara->icfilter) << 4U);
+
+        /* set the CH2EN bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)TIMER_CHCTL2_CH2EN;
+        break;
+    /* configure TIMER_CH_3 */
+    case TIMER_CH_3:
+        /* reset the CH3EN bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH3EN);
+
+        /* reset the CH3P bits */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)(TIMER_CHCTL2_CH3P));
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)(icpara->icpolarity) << 12U);
+
+        /* reset the CH3MS bit */
+        TIMER_CHCTL1(timer_periph) &= (~(uint32_t)TIMER_CHCTL1_CH3MS);
+        TIMER_CHCTL1(timer_periph) |= (uint32_t)((uint32_t)(icpara->icselection) << 8U);
+
+        /* reset the CH3CAPFLT bit */
+        TIMER_CHCTL1(timer_periph) &= (~(uint32_t)TIMER_CHCTL1_CH3CAPFLT);
+        TIMER_CHCTL1(timer_periph) |= (uint32_t)((uint32_t)(icpara->icfilter) << 12U);
+
+        /* set the CH3EN bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)TIMER_CHCTL2_CH3EN;
+        break;
+    default:
+        break;
+    }
+    /* configure TIMER channel input capture prescaler value */
+    timer_channel_input_capture_prescaler_config(timer_periph, channel, (uint16_t)(icpara->icprescaler));
+}
+
+/*!
+    \brief      configure TIMER channel input capture prescaler value
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  channel:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CH_0: TIMER channel 0(TIMERx(x=0..4))
+      \arg        TIMER_CH_1: TIMER channel 1(TIMERx(x=0..4))
+      \arg        TIMER_CH_2: TIMER channel 2(TIMERx(x=0..4))
+      \arg        TIMER_CH_3: TIMER channel 3(TIMERx(x=0..4))
+    \param[in]  prescaler: channel input capture prescaler value
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_IC_PSC_DIV1: no prescaler
+      \arg        TIMER_IC_PSC_DIV2: divided by 2
+      \arg        TIMER_IC_PSC_DIV4: divided by 4
+      \arg        TIMER_IC_PSC_DIV8: divided by 8
+    \param[out] none
+    \retval     none
+*/
+void timer_channel_input_capture_prescaler_config(uint32_t timer_periph, uint16_t channel, uint16_t prescaler)
+{
+    switch(channel){
+    /* configure TIMER_CH_0 */
+    case TIMER_CH_0:
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH0CAPPSC);
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)prescaler;
+        break;
+    /* configure TIMER_CH_1 */
+    case TIMER_CH_1:
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH1CAPPSC);
+        TIMER_CHCTL0(timer_periph) |= ((uint32_t)prescaler << 8U);
+        break;
+    /* configure TIMER_CH_2 */
+    case TIMER_CH_2:
+        TIMER_CHCTL1(timer_periph) &= (~(uint32_t)TIMER_CHCTL1_CH2CAPPSC);
+        TIMER_CHCTL1(timer_periph) |= (uint32_t)prescaler;
+        break;
+    /* configure TIMER_CH_3 */
+    case TIMER_CH_3:
+        TIMER_CHCTL1(timer_periph) &= (~(uint32_t)TIMER_CHCTL1_CH3CAPPSC);
+        TIMER_CHCTL1(timer_periph) |= ((uint32_t)prescaler << 8U);
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      read TIMER channel capture compare register value
+    \param[in]  timer_periph: please refer to the following parameters
+    \param[in]  channel:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CH_0: TIMER channel 0(TIMERx(x=0..4))
+      \arg        TIMER_CH_1: TIMER channel 1(TIMERx(x=0..4))
+      \arg        TIMER_CH_2: TIMER channel 2(TIMERx(x=0..4))
+      \arg        TIMER_CH_3: TIMER channel 3(TIMERx(x=0..4))
+    \param[out] none
+    \retval     channel capture compare register value
+*/
+uint32_t timer_channel_capture_value_register_read(uint32_t timer_periph, uint16_t channel)
+{
+    uint32_t count_value = 0U;
+
+    switch(channel){
+    case TIMER_CH_0:
+        /* read TIMER channel 0 capture compare register value */
+        count_value = TIMER_CH0CV(timer_periph);
+        break;
+    case TIMER_CH_1:
+        /* read TIMER channel 1 capture compare register value */
+        count_value = TIMER_CH1CV(timer_periph);
+        break;
+    case TIMER_CH_2:
+        /* read TIMER channel 2 capture compare register value */
+        count_value = TIMER_CH2CV(timer_periph);
+        break;
+    case TIMER_CH_3:
+        /* read TIMER channel 3 capture compare register value */
+        count_value = TIMER_CH3CV(timer_periph);
+        break;
+    default:
+        break;
+    }
+    return (count_value);
+}
+
+/*!
+    \brief      configure TIMER input pwm capture function
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  channel:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_CH_0: TIMER channel 0
+      \arg        TIMER_CH_1: TIMER channel 1
+     \param[in] icpwm: TIMER channel intput pwm parameter struct
+                  icpolarity: TIMER_IC_POLARITY_RISING, TIMER_IC_POLARITY_FALLING
+                  icselection: TIMER_IC_SELECTION_DIRECTTI, TIMER_IC_SELECTION_INDIRECTTI
+                  icprescaler: TIMER_IC_PSC_DIV1, TIMER_IC_PSC_DIV2, TIMER_IC_PSC_DIV4,
+                               TIMER_IC_PSC_DIV8
+                  icfilter: 0~15
+    \param[out] none
+    \retval     none
+*/
+void timer_input_pwm_capture_config(uint32_t timer_periph, uint16_t channel, timer_ic_parameter_struct* icpwm)
+{
+    uint16_t icpolarity  = 0x0U;
+    uint16_t icselection = 0x0U;
+
+    /* Set channel input polarity */
+    if(TIMER_IC_POLARITY_RISING == icpwm->icpolarity){
+        icpolarity = TIMER_IC_POLARITY_FALLING;
+    }else{
+        icpolarity = TIMER_IC_POLARITY_RISING;
+    }
+    /* Set channel input mode selection */
+    if(TIMER_IC_SELECTION_DIRECTTI == icpwm->icselection){
+        icselection = TIMER_IC_SELECTION_INDIRECTTI;
+    }else{
+        icselection = TIMER_IC_SELECTION_DIRECTTI;
+    }
+
+    if(TIMER_CH_0 == channel){
+        /* reset the CH0EN bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH0EN);
+        /* reset the CH0P and CH0NP bits */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)(TIMER_CHCTL2_CH0P | TIMER_CHCTL2_CH0NP));
+        /* set the CH0P and CH0NP bits */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)(icpwm->icpolarity);
+        /* reset the CH0MS bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH0MS);
+        /* set the CH0MS bit */
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)(icpwm->icselection);
+        /* reset the CH0CAPFLT bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH0CAPFLT);
+        /* set the CH0CAPFLT bit */
+        TIMER_CHCTL0(timer_periph) |= ((uint32_t)(icpwm->icfilter) << 4U);
+        /* set the CH0EN bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)TIMER_CHCTL2_CH0EN;
+        /* configure TIMER channel input capture prescaler value */
+        timer_channel_input_capture_prescaler_config(timer_periph, TIMER_CH_0, (uint16_t)(icpwm->icprescaler));
+
+        /* reset the CH1EN bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH1EN);
+        /* reset the CH1P and CH1NP bits */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)(TIMER_CHCTL2_CH1P | TIMER_CHCTL2_CH1NP));
+        /* set the CH1P and CH1NP bits */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)icpolarity<< 4U);
+        /* reset the CH1MS bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH1MS);
+        /* set the CH1MS bit */
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)((uint32_t)icselection << 8U);
+        /* reset the CH1CAPFLT bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH1CAPFLT);
+        /* set the CH1CAPFLT bit */
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)((uint32_t)(icpwm->icfilter) << 12U);
+        /* set the CH1EN bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)TIMER_CHCTL2_CH1EN;
+        /* configure TIMER channel input capture prescaler value */
+        timer_channel_input_capture_prescaler_config(timer_periph, TIMER_CH_1, (uint16_t)(icpwm->icprescaler));
+    }else{
+        /* reset the CH1EN bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH1EN);
+        /* reset the CH1P and CH1NP bits */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)(TIMER_CHCTL2_CH1P | TIMER_CHCTL2_CH1NP));
+        /* set the CH1P and CH1NP bits */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)(icpwm->icpolarity) << 4U);
+        /* reset the CH1MS bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH1MS);
+        /* set the CH1MS bit */
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)((uint32_t)(icpwm->icselection) << 8U);
+        /* reset the CH1CAPFLT bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH1CAPFLT);
+        /* set the CH1CAPFLT bit */
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)((uint32_t)(icpwm->icfilter) << 12U);
+        /* set the CH1EN bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)TIMER_CHCTL2_CH1EN;
+        /* configure TIMER channel input capture prescaler value */
+        timer_channel_input_capture_prescaler_config(timer_periph, TIMER_CH_1, (uint16_t)(icpwm->icprescaler));
+
+        /* reset the CH0EN bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH0EN);
+        /* reset the CH0P and CH0NP bits */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)(TIMER_CHCTL2_CH0P | TIMER_CHCTL2_CH0NP));
+        /* set the CH0P and CH0NP bits */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)icpolarity;
+        /* reset the CH0MS bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH0MS);
+        /* set the CH0MS bit */
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)icselection;
+        /* reset the CH0CAPFLT bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH0CAPFLT);
+        /* set the CH0CAPFLT bit */
+        TIMER_CHCTL0(timer_periph) |= ((uint32_t)(icpwm->icfilter) << 4U);
+        /* set the CH0EN bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)TIMER_CHCTL2_CH0EN;
+        /* configure TIMER channel input capture prescaler value */
+        timer_channel_input_capture_prescaler_config(timer_periph, TIMER_CH_0, (uint16_t)(icpwm->icprescaler));
+    }
+}
+
+/*!
+    \brief      configure TIMER hall sensor mode
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  hallmode:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_HALLINTERFACE_ENABLE: TIMER hall sensor mode enable
+      \arg        TIMER_HALLINTERFACE_DISABLE: TIMER hall sensor mode disable
+    \param[out] none
+    \retval     none
+*/
+void timer_hall_mode_config(uint32_t timer_periph, uint32_t hallmode)
+{
+    if(TIMER_HALLINTERFACE_ENABLE == hallmode){
+        TIMER_CTL1(timer_periph) |= (uint32_t)TIMER_CTL1_TI0S;
+    }else if(TIMER_HALLINTERFACE_DISABLE == hallmode){
+        TIMER_CTL1(timer_periph) &= ~(uint32_t)TIMER_CTL1_TI0S;
+    }else{
+        /* illegal parameters */
+    }
+}
+
+/*!
+    \brief      select TIMER input trigger source
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  intrigger:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_SMCFG_TRGSEL_ITI0: internal trigger 0(TIMERx(x=0..4))
+      \arg        TIMER_SMCFG_TRGSEL_ITI1: internal trigger 1(TIMERx(x=0..4))
+      \arg        TIMER_SMCFG_TRGSEL_ITI2: internal trigger 2(TIMERx(x=0..4))
+      \arg        TIMER_SMCFG_TRGSEL_ITI3: internal trigger 3(TIMERx(x=0..4))
+      \arg        TIMER_SMCFG_TRGSEL_CI0F_ED: TI0 edge detector(TIMERx(x=0..4))
+      \arg        TIMER_SMCFG_TRGSEL_CI0FE0: filtered TIMER input 0(TIMERx(x=0..4))
+      \arg        TIMER_SMCFG_TRGSEL_CI1FE1: filtered TIMER input 1(TIMERx(x=0..4))
+      \arg        TIMER_SMCFG_TRGSEL_ETIFP: filtered external trigger input(TIMERx(x=0..4))
+    \param[out] none
+    \retval     none
+*/
+void timer_input_trigger_source_select(uint32_t timer_periph, uint32_t intrigger)
+{
+    TIMER_SMCFG(timer_periph) &= (~(uint32_t)TIMER_SMCFG_TRGS);
+    TIMER_SMCFG(timer_periph) |= (uint32_t)intrigger;
+}
+
+/*!
+    \brief      select TIMER master mode output trigger source
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[in]  outrigger:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_TRI_OUT_SRC_RESET: the UPG bit as trigger output(TIMERx(x=0..6))
+      \arg        TIMER_TRI_OUT_SRC_ENABLE: the counter enable signal TIMER_CTL0_CEN as trigger output(TIMERx(x=0..6))
+      \arg        TIMER_TRI_OUT_SRC_UPDATE: update event as trigger output(TIMERx(x=0..6))
+      \arg        TIMER_TRI_OUT_SRC_CH0: a capture or a compare match occurred in channel 0 as trigger output TRGO(TIMERx(x=0..4))
+      \arg        TIMER_TRI_OUT_SRC_O0CPRE: O0CPRE as trigger output(TIMERx(x=0..4))
+      \arg        TIMER_TRI_OUT_SRC_O1CPRE: O1CPRE as trigger output(TIMERx(x=0..4))
+      \arg        TIMER_TRI_OUT_SRC_O2CPRE: O2CPRE as trigger output(TIMERx(x=0..4))
+      \arg        TIMER_TRI_OUT_SRC_O3CPRE: O3CPRE as trigger output(TIMERx(x=0..4))
+    \param[out] none
+    \retval     none
+*/
+void timer_master_output_trigger_source_select(uint32_t timer_periph, uint32_t outrigger)
+{
+    TIMER_CTL1(timer_periph) &= (~(uint32_t)TIMER_CTL1_MMC);
+    TIMER_CTL1(timer_periph) |= (uint32_t)outrigger;
+}
+
+/*!
+    \brief      select TIMER slave mode
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  slavemode:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_SLAVE_MODE_DISABLE: slave mode disable
+      \arg        TIMER_ENCODER_MODE0: encoder mode 0
+      \arg        TIMER_ENCODER_MODE1: encoder mode 1
+      \arg        TIMER_ENCODER_MODE2: encoder mode 2
+      \arg        TIMER_SLAVE_MODE_RESTART: restart mode
+      \arg        TIMER_SLAVE_MODE_PAUSE: pause mode
+      \arg        TIMER_SLAVE_MODE_EVENT: event mode
+      \arg        TIMER_SLAVE_MODE_EXTERNAL0: external clock mode 0
+    \param[out] none
+    \retval     none
+*/
+
+void timer_slave_mode_select(uint32_t timer_periph, uint32_t slavemode)
+{
+    TIMER_SMCFG(timer_periph) &= (~(uint32_t)TIMER_SMCFG_SMC);
+    TIMER_SMCFG(timer_periph) |= (uint32_t)slavemode;
+}
+
+/*!
+    \brief      configure TIMER master slave mode
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  masterslave:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_MASTER_SLAVE_MODE_ENABLE: master slave mode enable
+      \arg        TIMER_MASTER_SLAVE_MODE_DISABLE: master slave mode disable
+    \param[out] none
+    \retval     none
+*/
+void timer_master_slave_mode_config(uint32_t timer_periph, uint32_t masterslave)
+{
+    if(TIMER_MASTER_SLAVE_MODE_ENABLE == masterslave){
+        TIMER_SMCFG(timer_periph) |= (uint32_t)TIMER_SMCFG_MSM;
+    }else if(TIMER_MASTER_SLAVE_MODE_DISABLE == masterslave){
+        TIMER_SMCFG(timer_periph) &= ~(uint32_t)TIMER_SMCFG_MSM;
+    }else{
+        /* illegal parameters */
+    }
+}
+
+/*!
+    \brief      configure TIMER external trigger input
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  extprescaler:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_EXT_TRI_PSC_OFF: no divided
+      \arg        TIMER_EXT_TRI_PSC_DIV2: divided by 2
+      \arg        TIMER_EXT_TRI_PSC_DIV4: divided by 4
+      \arg        TIMER_EXT_TRI_PSC_DIV8: divided by 8
+    \param[in]  extpolarity:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_ETP_FALLING: active low or falling edge active
+      \arg        TIMER_ETP_RISING: active high or rising edge active
+    \param[in]  extfilter: a value between 0 and 15
+    \param[out] none
+    \retval     none
+*/
+void timer_external_trigger_config(uint32_t timer_periph, uint32_t extprescaler, uint32_t extpolarity, uint32_t extfilter)
+{
+    TIMER_SMCFG(timer_periph) &= (~(uint32_t)(TIMER_SMCFG_ETP | TIMER_SMCFG_ETPSC | TIMER_SMCFG_ETFC));
+    TIMER_SMCFG(timer_periph) |= (uint32_t)(extprescaler | extpolarity);
+    TIMER_SMCFG(timer_periph) |= (uint32_t)(extfilter << 8U);
+}
+
+/*!
+    \brief      configure TIMER quadrature decoder mode
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  decomode:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_ENCODER_MODE0: counter counts on CI0FE0 edge depending on CI1FE1 level
+      \arg        TIMER_ENCODER_MODE1: counter counts on CI1FE1 edge depending on CI0FE0 level
+      \arg        TIMER_ENCODER_MODE2: counter counts on both CI0FE0 and CI1FE1 edges depending on the level of the other input
+    \param[in]  ic0polarity:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_IC_POLARITY_RISING: capture rising edge
+      \arg        TIMER_IC_POLARITY_FALLING: capture falling edge
+    \param[in]  ic1polarity:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_IC_POLARITY_RISING: capture rising edge
+      \arg        TIMER_IC_POLARITY_FALLING: capture falling edge
+    \param[out] none
+    \retval     none
+*/
+void timer_quadrature_decoder_mode_config(uint32_t timer_periph, uint32_t decomode, uint16_t ic0polarity, uint16_t ic1polarity)
+{
+    /* configure the quadrature decoder mode */
+    TIMER_SMCFG(timer_periph) &= (~(uint32_t)TIMER_SMCFG_SMC);
+    TIMER_SMCFG(timer_periph) |= (uint32_t)decomode;
+    /* configure input capture selection */
+    TIMER_CHCTL0(timer_periph) &= (uint32_t)(((~(uint32_t)TIMER_CHCTL0_CH0MS)) & ((~(uint32_t)TIMER_CHCTL0_CH1MS)));
+    TIMER_CHCTL0(timer_periph) |= (uint32_t)(TIMER_IC_SELECTION_DIRECTTI | ((uint32_t)TIMER_IC_SELECTION_DIRECTTI << 8U));
+    /* configure channel input capture polarity */
+    TIMER_CHCTL2(timer_periph) &= (~(uint32_t)(TIMER_CHCTL2_CH0P | TIMER_CHCTL2_CH0NP));
+    TIMER_CHCTL2(timer_periph) &= (~(uint32_t)(TIMER_CHCTL2_CH1P | TIMER_CHCTL2_CH1NP));
+    TIMER_CHCTL2(timer_periph) |= ((uint32_t)ic0polarity | ((uint32_t)ic1polarity << 4U));
+}
+
+/*!
+    \brief      configure TIMER internal clock mode
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void timer_internal_clock_config(uint32_t timer_periph)
+{
+    TIMER_SMCFG(timer_periph) &= ~(uint32_t)TIMER_SMCFG_SMC;
+}
+
+/*!
+    \brief      configure TIMER the internal trigger as external clock input
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  intrigger:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_SMCFG_TRGSEL_ITI0: internal trigger 0
+      \arg        TIMER_SMCFG_TRGSEL_ITI1: internal trigger 1
+      \arg        TIMER_SMCFG_TRGSEL_ITI2: internal trigger 2
+      \arg        TIMER_SMCFG_TRGSEL_ITI3: internal trigger 3
+    \param[out] none
+    \retval     none
+*/
+void timer_internal_trigger_as_external_clock_config(uint32_t timer_periph, uint32_t intrigger)
+{
+    timer_input_trigger_source_select(timer_periph, intrigger);
+    TIMER_SMCFG(timer_periph) &= ~(uint32_t)TIMER_SMCFG_SMC;
+    TIMER_SMCFG(timer_periph) |= (uint32_t)TIMER_SLAVE_MODE_EXTERNAL0;
+}
+
+/*!
+    \brief      configure TIMER the external trigger as external clock input
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  extrigger:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_SMCFG_TRGSEL_CI0F_ED: TI0 edge detector
+      \arg        TIMER_SMCFG_TRGSEL_CI0FE0: filtered TIMER input 0
+      \arg        TIMER_SMCFG_TRGSEL_CI1FE1: filtered TIMER input 1
+    \param[in]  extpolarity:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_IC_POLARITY_RISING: active low or falling edge active
+      \arg        TIMER_IC_POLARITY_FALLING: active high or rising edge active
+    \param[in]  extfilter: a value between 0 and 15
+    \param[out] none
+    \retval     none
+*/
+void timer_external_trigger_as_external_clock_config(uint32_t timer_periph, uint32_t extrigger, uint16_t extpolarity, uint32_t extfilter)
+{
+    if(TIMER_SMCFG_TRGSEL_CI1FE1 == extrigger){
+        /* reset the CH1EN bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH1EN);
+        /* reset the CH1NP bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)(TIMER_CHCTL2_CH1P | TIMER_CHCTL2_CH1NP));
+        /* set the CH1NP bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)((uint32_t)extpolarity << 4U);
+        /* reset the CH1MS bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH1MS);
+        /* set the CH1MS bit */
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)((uint32_t)TIMER_IC_SELECTION_DIRECTTI << 8U);
+        /* reset the CH1CAPFLT bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH1CAPFLT);
+        /* set the CH1CAPFLT bit */
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)(extfilter << 12U);
+        /* set the CH1EN bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)TIMER_CHCTL2_CH1EN;
+    }else{
+        /* reset the CH0EN bit */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)TIMER_CHCTL2_CH0EN);
+        /* reset the CH0P and CH0NP bits */
+        TIMER_CHCTL2(timer_periph) &= (~(uint32_t)(TIMER_CHCTL2_CH0P | TIMER_CHCTL2_CH0NP));
+        /* set the CH0P and CH0NP bits */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)extpolarity;
+        /* reset the CH0MS bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH0MS);
+        /* set the CH0MS bit */
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)TIMER_IC_SELECTION_DIRECTTI;
+        /* reset the CH0CAPFLT bit */
+        TIMER_CHCTL0(timer_periph) &= (~(uint32_t)TIMER_CHCTL0_CH0CAPFLT);
+        /* reset the CH0CAPFLT bit */
+        TIMER_CHCTL0(timer_periph) |= (uint32_t)(extfilter << 4U);
+        /* set the CH0EN bit */
+        TIMER_CHCTL2(timer_periph) |= (uint32_t)TIMER_CHCTL2_CH0EN;
+    }
+    /* select TIMER input trigger source */
+    timer_input_trigger_source_select(timer_periph, extrigger);
+    /* reset the SMC bit */
+    TIMER_SMCFG(timer_periph) &= (~(uint32_t)TIMER_SMCFG_SMC);
+    /* set the SMC bit */
+    TIMER_SMCFG(timer_periph) |= (uint32_t)TIMER_SLAVE_MODE_EXTERNAL0;
+}
+
+/*!
+    \brief      configure TIMER the external clock mode0
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  extprescaler:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_EXT_TRI_PSC_OFF: no divided
+      \arg        TIMER_EXT_TRI_PSC_DIV2: divided by 2
+      \arg        TIMER_EXT_TRI_PSC_DIV4: divided by 4
+      \arg        TIMER_EXT_TRI_PSC_DIV8: divided by 8
+    \param[in]  extpolarity:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_ETP_FALLING: active low or falling edge active
+      \arg        TIMER_ETP_RISING: active high or rising edge active
+    \param[in]  extfilter: a value between 0 and 15
+    \param[out] none
+    \retval     none
+*/
+void timer_external_clock_mode0_config(uint32_t timer_periph, uint32_t extprescaler, uint32_t extpolarity, uint32_t extfilter)
+{
+    /* configure TIMER external trigger input */
+    timer_external_trigger_config(timer_periph, extprescaler, extpolarity, extfilter);
+    /* reset the SMC bit,TRGS bit */
+    TIMER_SMCFG(timer_periph) &= (~(uint32_t)(TIMER_SMCFG_SMC | TIMER_SMCFG_TRGS));
+    /* set the SMC bit,TRGS bit */
+    TIMER_SMCFG(timer_periph) |= (uint32_t)(TIMER_SLAVE_MODE_EXTERNAL0 | TIMER_SMCFG_TRGSEL_ETIFP);
+}
+
+/*!
+    \brief      configure TIMER the external clock mode1
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[in]  extprescaler:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_EXT_TRI_PSC_OFF: no divided
+      \arg        TIMER_EXT_TRI_PSC_DIV2: divided by 2
+      \arg        TIMER_EXT_TRI_PSC_DIV4: divided by 4
+      \arg        TIMER_EXT_TRI_PSC_DIV8: divided by 8
+    \param[in]  extpolarity:
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_ETP_FALLING: active low or falling edge active
+      \arg        TIMER_ETP_RISING: active high or rising edge active
+    \param[in]  extfilter: a value between 0 and 15
+    \param[out] none
+    \retval     none
+*/
+void timer_external_clock_mode1_config(uint32_t timer_periph, uint32_t extprescaler, uint32_t extpolarity, uint32_t extfilter)
+{
+    /* configure TIMER external trigger input */
+    timer_external_trigger_config(timer_periph, extprescaler, extpolarity, extfilter);
+    TIMER_SMCFG(timer_periph) |= (uint32_t)TIMER_SMCFG_SMC1;
+}
+
+/*!
+    \brief      disable TIMER the external clock mode1
+    \param[in]  timer_periph: TIMERx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void timer_external_clock_mode1_disable(uint32_t timer_periph)
+{
+    TIMER_SMCFG(timer_periph) &= ~(uint32_t)TIMER_SMCFG_SMC1;
+}
+
+/*!
+    \brief      enable the TIMER interrupt
+    \param[in]  timer_periph: please refer to the following parameters
+    \param[in]  interrupt: specify which interrupt to enable
+                one or more parameters can be selected which are shown as below:
+      \arg        TIMER_INT_UP: update interrupt enable, TIMERx(x=0..6)
+      \arg        TIMER_INT_CH0: channel 0 interrupt enable, TIMERx(x=0..4)
+      \arg        TIMER_INT_CH1: channel 1 interrupt enable, TIMERx(x=0..4)
+      \arg        TIMER_INT_CH2: channel 2 interrupt enable, TIMERx(x=0..4)
+      \arg        TIMER_INT_CH3: channel 3 interrupt enable, TIMERx(x=0..4)
+      \arg        TIMER_INT_CMT: commutation interrupt enable, TIMERx(x=0)
+      \arg        TIMER_INT_TRG: trigger interrupt enable, TIMERx(x=0..4)
+      \arg        TIMER_INT_BRK: break interrupt enable, TIMERx(x=0)
+    \param[out] none
+    \retval     none
+*/
+void timer_interrupt_enable(uint32_t timer_periph, uint32_t interrupt)
+{
+    TIMER_DMAINTEN(timer_periph) |= (uint32_t) interrupt;
+}
+
+/*!
+    \brief      disable the TIMER interrupt
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[in]  interrupt: specify which interrupt to disbale
+                one or more parameters can be selected which are shown as below:
+      \arg        TIMER_INT_UP: update interrupt enable, TIMERx(x=0..6)
+      \arg        TIMER_INT_CH0: channel 0 interrupt enable, TIMERx(x=0..4)
+      \arg        TIMER_INT_CH1: channel 1 interrupt enable, TIMERx(x=0..4)
+      \arg        TIMER_INT_CH2: channel 2 interrupt enable, TIMERx(x=0..4)
+      \arg        TIMER_INT_CH3: channel 3 interrupt enable , TIMERx(x=0..4)
+      \arg        TIMER_INT_CMT: commutation interrupt enable, TIMERx(x=0)
+      \arg        TIMER_INT_TRG: trigger interrupt enable, TIMERx(x=0..4)
+      \arg        TIMER_INT_BRK: break interrupt enable, TIMERx(x=0)
+    \param[out] none
+    \retval     none
+*/
+void timer_interrupt_disable(uint32_t timer_periph, uint32_t interrupt)
+{
+    TIMER_DMAINTEN(timer_periph) &= (~(uint32_t)interrupt);
+}
+
+/*!
+    \brief      get timer interrupt flag
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[in]  interrupt: the timer interrupt bits
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_INT_FLAG_UP: update interrupt flag, TIMERx(x=0..6)
+      \arg        TIMER_INT_FLAG_CH0: channel 0 interrupt flag, TIMERx(x=0..4)
+      \arg        TIMER_INT_FLAG_CH1: channel 1 interrupt flag, TIMERx(x=0..4)
+      \arg        TIMER_INT_FLAG_CH2: channel 2 interrupt flag, TIMERx(x=0..4)
+      \arg        TIMER_INT_FLAG_CH3: channel 3 interrupt flag, TIMERx(x=0..4)
+      \arg        TIMER_INT_FLAG_CMT: channel commutation interrupt flag, TIMERx(x=0)
+      \arg        TIMER_INT_FLAG_TRG: trigger interrupt flag, TIMERx(x=0)
+      \arg        TIMER_INT_FLAG_BRK: break interrupt flag, TIMERx(x=0)
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus timer_interrupt_flag_get(uint32_t timer_periph, uint32_t interrupt)
+{
+    uint32_t val;
+    val = (TIMER_DMAINTEN(timer_periph) & interrupt);
+    if((RESET != (TIMER_INTF(timer_periph) & interrupt)) && (RESET != val)){
+        return SET;
+    }else{
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear TIMER interrupt flag
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[in]  interrupt: the timer interrupt bits
+                one or more parameters can be selected which are shown as below:
+      \arg        TIMER_INT_FLAG_UP: update interrupt flag, TIMERx(x=0..6)
+      \arg        TIMER_INT_FLAG_CH0: channel 0 interrupt flag, TIMERx(x=0..4)
+      \arg        TIMER_INT_FLAG_CH1: channel 1 interrupt flag, TIMERx(x=0..4)
+      \arg        TIMER_INT_FLAG_CH2: channel 2 interrupt flag, TIMERx(x=0..4)
+      \arg        TIMER_INT_FLAG_CH3: channel 3 interrupt flag, TIMERx(x=0..4)
+      \arg        TIMER_INT_FLAG_CMT: channel commutation interrupt flag, TIMERx(x=0)
+      \arg        TIMER_INT_FLAG_TRG: trigger interrupt flag, TIMERx(x=0)
+      \arg        TIMER_INT_FLAG_BRK: break interrupt flag, TIMERx(x=0)
+    \param[out] none
+    \retval     none
+*/
+void timer_interrupt_flag_clear(uint32_t timer_periph, uint32_t interrupt)
+{
+    TIMER_INTF(timer_periph) = (~(uint32_t)interrupt);
+}
+
+/*!
+    \brief      get TIMER flags
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[in]  flag: the timer interrupt flags
+                only one parameter can be selected which is shown as below:
+      \arg        TIMER_FLAG_UP: update flag, TIMERx(x=0..6)
+      \arg        TIMER_FLAG_CH0: channel 0 flag, TIMERx(x=0..4)
+      \arg        TIMER_FLAG_CH1: channel 1 flag, TIMERx(x=0..4)
+      \arg        TIMER_FLAG_CH2: channel 2 flag, TIMERx(x=0..4)
+      \arg        TIMER_FLAG_CH3: channel 3 flag, TIMERx(x=0..4)
+      \arg        TIMER_FLAG_CMT: channel commutation flag, TIMERx(x=0)
+      \arg        TIMER_FLAG_TRG: trigger flag, TIMERx(x=0)
+      \arg        TIMER_FLAG_BRK: break flag, TIMERx(x=0)
+      \arg        TIMER_FLAG_CH0O: channel 0 overcapture flag, TIMERx(x=0..4)
+      \arg        TIMER_FLAG_CH1O: channel 1 overcapture flag, TIMERx(x=0..4)
+      \arg        TIMER_FLAG_CH2O: channel 2 overcapture flag, TIMERx(x=0..4)
+      \arg        TIMER_FLAG_CH3O: channel 3 overcapture flag, TIMERx(x=0..4)
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus timer_flag_get(uint32_t timer_periph, uint32_t flag)
+{
+    if(RESET != (TIMER_INTF(timer_periph) & flag)){
+        return SET;
+    }else{
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear TIMER flags
+    \param[in]  timer_periph: TIMERx(x=0..6)
+    \param[in]  flag: the timer interrupt flags
+                one or more parameters can be selected which are shown as below:
+      \arg        TIMER_FLAG_UP: update flag, TIMERx(x=0..6)
+      \arg        TIMER_FLAG_CH0: channel 0 flag, TIMERx(x=0..4)
+      \arg        TIMER_FLAG_CH1: channel 1 flag, TIMERx(x=0..4)
+      \arg        TIMER_FLAG_CH2: channel 2 flag, TIMERx(x=0..4)
+      \arg        TIMER_FLAG_CH3: channel 3 flag, TIMERx(x=0..4)
+      \arg        TIMER_FLAG_CMT: channel commutation flag, TIMERx(x=0)
+      \arg        TIMER_FLAG_TRG: trigger flag, TIMERx(x=0)
+      \arg        TIMER_FLAG_BRK: break flag, TIMERx(x=0)
+      \arg        TIMER_FLAG_CH0O: channel 0 overcapture flag, TIMERx(x=0..4)
+      \arg        TIMER_FLAG_CH1O: channel 1 overcapture flag, TIMERx(x=0..4)
+      \arg        TIMER_FLAG_CH2O: channel 2 overcapture flag, TIMERx(x=0..4)
+      \arg        TIMER_FLAG_CH3O: channel 3 overcapture flag, TIMERx(x=0..4)
+    \param[out] none
+    \retval     none
+*/
+void timer_flag_clear(uint32_t timer_periph, uint32_t flag)
+{
+    TIMER_INTF(timer_periph) = (~(uint32_t)flag);
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_usart.c

@@ -0,0 +1,764 @@
+/*!
+    \file    gd32vf103_usart.c
+    \brief   USART driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_usart.h"
+
+/*!
+    \brief      reset USART/UART
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[out] none
+    \retval     none
+*/
+void usart_deinit(uint32_t usart_periph)
+{
+    switch(usart_periph){
+    case USART0:
+        /* reset USART0 */
+        rcu_periph_reset_enable(RCU_USART0RST);
+        rcu_periph_reset_disable(RCU_USART0RST);
+        break;
+    case USART1:
+        /* reset USART1 */
+        rcu_periph_reset_enable(RCU_USART1RST);
+        rcu_periph_reset_disable(RCU_USART1RST);
+        break;
+    case USART2:
+        /* reset USART2 */
+        rcu_periph_reset_enable(RCU_USART2RST);
+        rcu_periph_reset_disable(RCU_USART2RST);
+        break;
+    case UART3:
+        /* reset UART3 */
+        rcu_periph_reset_enable(RCU_UART3RST);
+        rcu_periph_reset_disable(RCU_UART3RST);
+        break;
+    case UART4:
+        /* reset UART4 */
+        rcu_periph_reset_enable(RCU_UART4RST);
+        rcu_periph_reset_disable(RCU_UART4RST);
+        break;
+    default:
+        break;
+    }
+}
+
+/*!
+    \brief      configure USART baud rate value
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in]  baudval: baud rate value
+    \param[out] none
+    \retval     none
+*/
+void usart_baudrate_set(uint32_t usart_periph, uint32_t baudval)
+{
+    uint32_t uclk=0U, intdiv=0U, fradiv=0U, udiv=0U;
+    switch(usart_periph){
+         /* get clock frequency */
+    case USART0:
+         /* get USART0 clock */
+         uclk=rcu_clock_freq_get(CK_APB2);
+         break;
+    case USART1:
+         /* get USART1 clock */
+         uclk=rcu_clock_freq_get(CK_APB1);
+         break;
+    case USART2:
+         /* get USART2 clock */
+         uclk=rcu_clock_freq_get(CK_APB1);
+         break;
+    case UART3:
+         /* get UART3 clock */
+         uclk=rcu_clock_freq_get(CK_APB1);
+         break;
+    case UART4:
+         /* get UART4 clock */
+         uclk=rcu_clock_freq_get(CK_APB1);
+         break;
+    default:
+         break;
+    }
+    /* oversampling by 16, configure the value of USART_BAUD */
+    udiv = (uclk+baudval/2U)/baudval;
+    intdiv = udiv & (0x0000fff0U);
+    fradiv = udiv & (0x0000000fU);
+    USART_BAUD(usart_periph) = ((USART_BAUD_FRADIV | USART_BAUD_INTDIV) & (intdiv | fradiv));
+}
+
+/*!
+    \brief     configure USART parity
+    \param[in] usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in] paritycfg: configure USART parity
+               only one parameter can be selected which is shown as below:
+      \arg       USART_PM_NONE: no parity
+      \arg       USART_PM_ODD:  odd parity
+      \arg       USART_PM_EVEN: even parity
+    \param[out] none
+    \retval     none
+*/
+void usart_parity_config(uint32_t usart_periph, uint32_t paritycfg)
+{
+    /* clear USART_CTL0 PM,PCEN bits */
+    USART_CTL0(usart_periph) &= ~(USART_CTL0_PM | USART_CTL0_PCEN);
+    /* configure USART parity mode */
+    USART_CTL0(usart_periph) |= paritycfg ;
+}
+
+/*!
+    \brief     configure USART word length
+    \param[in] usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in] wlen: USART word length configure
+               only one parameter can be selected which is shown as below:
+      \arg       USART_WL_8BIT: 8 bits
+      \arg       USART_WL_9BIT: 9 bits
+    \param[out] none
+    \retval     none
+*/
+void usart_word_length_set(uint32_t usart_periph, uint32_t wlen)
+{
+    /* clear USART_CTL0 WL bit */
+    USART_CTL0(usart_periph) &= ~USART_CTL0_WL;
+    /* configure USART word length */
+    USART_CTL0(usart_periph) |= wlen;
+}
+
+/*!
+    \brief     configure USART stop bit length
+    \param[in] usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in] stblen: USART stop bit configure
+               only one parameter can be selected which is shown as below:
+      \arg       USART_STB_1BIT:   1 bit
+      \arg       USART_STB_0_5BIT: 0.5 bit, not available for UARTx(x=3,4)
+      \arg       USART_STB_2BIT:   2 bits
+      \arg       USART_STB_1_5BIT: 1.5 bits, not available for UARTx(x=3,4)
+    \param[out] none
+    \retval     none
+*/
+void usart_stop_bit_set(uint32_t usart_periph, uint32_t stblen)
+{
+    /* clear USART_CTL1 STB bits */
+    USART_CTL1(usart_periph) &= ~USART_CTL1_STB;
+    /* configure USART stop bits */
+    USART_CTL1(usart_periph) |= stblen;
+}
+
+/*!
+    \brief      enable USART
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[out] none
+    \retval     none
+*/
+void usart_enable(uint32_t usart_periph)
+{
+    USART_CTL0(usart_periph) |= USART_CTL0_UEN;
+}
+
+/*!
+    \brief     disable USART
+    \param[in] usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[out] none
+    \retval     none
+*/
+void usart_disable(uint32_t usart_periph)
+{
+    USART_CTL0(usart_periph) &= ~(USART_CTL0_UEN);
+}
+
+/*!
+    \brief      configure USART transmitter
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in]  txconfig: enable or disable USART transmitter
+                only one parameter can be selected which is shown as below:
+      \arg        USART_TRANSMIT_ENABLE: enable USART transmission
+      \arg        USART_TRANSMIT_DISABLE: disable USART transmission
+    \param[out] none
+    \retval     none
+*/
+void usart_transmit_config(uint32_t usart_periph, uint32_t txconfig)
+{
+    uint32_t ctl = 0U;
+
+    ctl = USART_CTL0(usart_periph);
+    ctl &= ~USART_CTL0_TEN;
+    ctl |= txconfig;
+    /* configure transfer mode */
+    USART_CTL0(usart_periph) = ctl;
+}
+
+/*!
+    \brief      configure USART receiver
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in]  rxconfig: enable or disable USART receiver
+                only one parameter can be selected which is shown as below:
+      \arg        USART_RECEIVE_ENABLE: enable USART reception
+      \arg        USART_RECEIVE_DISABLE: disable USART reception
+    \param[out] none
+    \retval     none
+*/
+void usart_receive_config(uint32_t usart_periph, uint32_t rxconfig)
+{
+    uint32_t ctl = 0U;
+
+    ctl = USART_CTL0(usart_periph);
+    ctl &= ~USART_CTL0_REN;
+    ctl |= rxconfig;
+    /* configure receiver mode */
+    USART_CTL0(usart_periph) = ctl;
+}
+
+/*!
+    \brief      USART transmit data function
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in]  data: data of transmission
+    \param[out] none
+    \retval     none
+*/
+void usart_data_transmit(uint32_t usart_periph, uint32_t data)
+{
+    USART_DATA(usart_periph) = USART_DATA_DATA & data;
+}
+
+/*!
+    \brief      USART receive data function
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[out] none
+    \retval     data of received
+*/
+uint16_t usart_data_receive(uint32_t usart_periph)
+{
+    return (uint16_t)(GET_BITS(USART_DATA(usart_periph), 0U, 8U));
+}
+
+/*!
+    \brief      configure the address of the USART in wake up by address match mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in]  addr: address of USART/UART
+    \param[out] none
+    \retval     none
+*/
+void usart_address_config(uint32_t usart_periph, uint8_t addr)
+{
+    USART_CTL1(usart_periph) &= ~(USART_CTL1_ADDR);
+    USART_CTL1(usart_periph) |= (USART_CTL1_ADDR & addr);
+}
+
+/*!
+    \brief      receiver in mute mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[out] none
+    \retval     none
+*/
+void usart_mute_mode_enable(uint32_t usart_periph)
+{
+    USART_CTL0(usart_periph) |= USART_CTL0_RWU;
+}
+
+/*!
+    \brief      receiver in active mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[out] none
+    \retval     none
+*/
+void usart_mute_mode_disable(uint32_t usart_periph)
+{
+    USART_CTL0(usart_periph) &= ~(USART_CTL0_RWU);
+}
+
+/*!
+    \brief      configure wakeup method in mute mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in]  wmethod: two methods be used to enter or exit the mute mode
+                only one parameter can be selected which is shown as below:
+      \arg        USART_WM_IDLE: idle line
+      \arg        USART_WM_ADDR: address mask
+    \param[out] none
+    \retval     none
+*/
+void usart_mute_mode_wakeup_config(uint32_t usart_periph, uint32_t wmethod)
+{
+    USART_CTL0(usart_periph) &= ~(USART_CTL0_WM);
+    USART_CTL0(usart_periph) |= wmethod;
+}
+
+/*!
+    \brief      enable LIN mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[out] none
+    \retval     none
+*/
+void usart_lin_mode_enable(uint32_t usart_periph)
+{
+    USART_CTL1(usart_periph) |= USART_CTL1_LMEN;
+}
+
+/*!
+    \brief      disable LIN mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[out] none
+    \retval     none
+*/
+void usart_lin_mode_disable(uint32_t usart_periph)
+{
+    USART_CTL1(usart_periph) &= ~(USART_CTL1_LMEN);
+}
+
+/*!
+    \brief      configure lin break frame length
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in]  lblen: lin break frame length
+                only one parameter can be selected which is shown as below:
+      \arg        USART_LBLEN_10B: 10 bits
+      \arg        USART_LBLEN_11B: 11 bits
+    \param[out] none
+    \retval     none
+*/
+void usart_lin_break_detection_length_config(uint32_t usart_periph, uint32_t lblen)
+{
+    USART_CTL1(usart_periph) &= ~(USART_CTL1_LBLEN);
+    USART_CTL1(usart_periph) |= (USART_CTL1_LBLEN & lblen);
+}
+
+/*!
+    \brief      send break frame
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[out] none
+    \retval     none
+*/
+void usart_send_break(uint32_t usart_periph)
+{
+    USART_CTL0(usart_periph) |= USART_CTL0_SBKCMD;
+}
+
+/*!
+    \brief      enable half duplex mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[out] none
+    \retval     none
+*/
+void usart_halfduplex_enable(uint32_t usart_periph)
+{
+    USART_CTL2(usart_periph) |= USART_CTL2_HDEN;
+}
+
+/*!
+    \brief      disable half duplex mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[out] none
+    \retval     none
+*/
+void usart_halfduplex_disable(uint32_t usart_periph)
+{
+    USART_CTL2(usart_periph) &= ~(USART_CTL2_HDEN);
+}
+
+/*!
+    \brief      enable CK pin in synchronous mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void usart_synchronous_clock_enable(uint32_t usart_periph)
+{
+    USART_CTL1(usart_periph) |= USART_CTL1_CKEN;
+}
+
+/*!
+    \brief      disable CK pin in synchronous mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void usart_synchronous_clock_disable(uint32_t usart_periph)
+{
+    USART_CTL1(usart_periph) &= ~(USART_CTL1_CKEN);
+}
+
+/*!
+    \brief      configure USART synchronous mode parameters
+    \param[in]  usart_periph: USARTx(x=0,1,2)
+    \param[in]  clen: CK length
+                only one parameter can be selected which is shown as below:
+      \arg        USART_CLEN_NONE: there are 7 CK pulses for an 8 bit frame and 8 CK pulses for a 9 bit frame
+      \arg        USART_CLEN_EN:   there are 8 CK pulses for an 8 bit frame and 9 CK pulses for a 9 bit frame
+    \param[in]  cph: clock phase
+                only one parameter can be selected which is shown as below:
+      \arg        USART_CPH_1CK: first clock transition is the first data capture edge
+      \arg        USART_CPH_2CK: second clock transition is the first data capture edge
+    \param[in]  cpl: clock polarity
+                only one parameter can be selected which is shown as below:
+      \arg        USART_CPL_LOW:  steady low value on CK pin
+      \Rag        USART_CPL_HIGH: steady high value on CK pin
+    \param[out] none
+    \retval     none
+*/
+void usart_synchronous_clock_config(uint32_t usart_periph, uint32_t clen, uint32_t cph, uint32_t cpl)
+{
+    uint32_t ctl = 0U;
+
+    /* read USART_CTL1 register */
+    ctl = USART_CTL1(usart_periph);
+    ctl &= ~(USART_CTL1_CLEN | USART_CTL1_CPH | USART_CTL1_CPL);
+    /* set CK length, CK phase, CK polarity */
+    ctl |= (USART_CTL1_CLEN & clen) | (USART_CTL1_CPH & cph) | (USART_CTL1_CPL & cpl);
+
+    USART_CTL1(usart_periph) = ctl;
+}
+
+/*!
+    \brief      configure guard time value in smartcard mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)
+    \param[in]  gaut: guard time value
+    \param[out] none
+    \retval     none
+*/
+void usart_guard_time_config(uint32_t usart_periph,uint32_t gaut)
+{
+    USART_GP(usart_periph) &= ~(USART_GP_GUAT);
+    USART_GP(usart_periph) |= (USART_GP_GUAT & ((gaut)<<8));
+}
+
+/*!
+    \brief      enable smartcard mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void usart_smartcard_mode_enable(uint32_t usart_periph)
+{
+    USART_CTL2(usart_periph) |= USART_CTL2_SCEN;
+}
+
+/*!
+    \brief      disable smartcard mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void usart_smartcard_mode_disable(uint32_t usart_periph)
+{
+    USART_CTL2(usart_periph) &= ~(USART_CTL2_SCEN);
+}
+
+/*!
+    \brief      enable NACK in smartcard mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void usart_smartcard_mode_nack_enable(uint32_t usart_periph)
+{
+    USART_CTL2(usart_periph) |= USART_CTL2_NKEN;
+}
+
+/*!
+    \brief      disable NACK in smartcard mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)
+    \param[out] none
+    \retval     none
+*/
+void usart_smartcard_mode_nack_disable(uint32_t usart_periph)
+{
+    USART_CTL2(usart_periph) &= ~(USART_CTL2_NKEN);
+}
+
+/*!
+    \brief      enable IrDA mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[out] none
+    \retval     none
+*/
+void usart_irda_mode_enable(uint32_t usart_periph)
+{
+    USART_CTL2(usart_periph) |= USART_CTL2_IREN;
+}
+
+/*!
+    \brief      disable IrDA mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[out] none
+    \retval     none
+*/
+void usart_irda_mode_disable(uint32_t usart_periph)
+{
+    USART_CTL2(usart_periph) &= ~(USART_CTL2_IREN);
+}
+
+/*!
+    \brief      configure the peripheral clock prescaler in USART IrDA low-power mode
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in]  psc: 0x00-0xFF
+    \param[out] none
+    \retval     none
+*/
+void usart_prescaler_config(uint32_t usart_periph, uint8_t psc)
+{
+    USART_GP(usart_periph) &= ~(USART_GP_PSC);
+    USART_GP(usart_periph) |= psc;
+}
+
+/*!
+    \brief      configure IrDA low-power
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in]  irlp: IrDA low-power or normal
+                only one parameter can be selected which is shown as below:
+      \arg        USART_IRLP_LOW: low-power
+      \arg        USART_IRLP_NORMAL: normal
+    \param[out] none
+    \retval     none
+*/
+void usart_irda_lowpower_config(uint32_t usart_periph, uint32_t irlp)
+{
+    USART_CTL2(usart_periph) &= ~(USART_CTL2_IRLP);
+    USART_CTL2(usart_periph) |= (USART_CTL2_IRLP & irlp);
+}
+
+/*!
+    \brief      configure hardware flow control RTS
+    \param[in]  usart_periph: USARTx(x=0,1,2)
+    \param[in]  rtsconfig: enable or disable RTS
+                only one parameter can be selected which is shown as below:
+      \arg        USART_RTS_ENABLE:  enable RTS
+      \arg        USART_RTS_DISABLE: disable RTS
+    \param[out] none
+    \retval     none
+*/
+void usart_hardware_flow_rts_config(uint32_t usart_periph, uint32_t rtsconfig)
+{
+    uint32_t ctl = 0U;
+
+    ctl = USART_CTL2(usart_periph);
+    ctl &= ~USART_CTL2_RTSEN;
+    ctl |= rtsconfig;
+    /* configure RTS */
+    USART_CTL2(usart_periph) = ctl;
+}
+
+/*!
+    \brief      configure hardware flow control CTS
+    \param[in]  usart_periph: USARTx(x=0,1,2)
+    \param[in]  ctsconfig: enable or disable CTS
+                only one parameter can be selected which is shown as below:
+      \arg        USART_CTS_ENABLE:  enable CTS
+      \arg        USART_CTS_DISABLE: disable CTS
+    \param[out] none
+    \retval     none
+*/
+void usart_hardware_flow_cts_config(uint32_t usart_periph, uint32_t ctsconfig)
+{
+    uint32_t ctl = 0U;
+
+    ctl = USART_CTL2(usart_periph);
+    ctl &= ~USART_CTL2_CTSEN;
+    ctl |= ctsconfig;
+    /* configure CTS */
+    USART_CTL2(usart_periph) = ctl;
+}
+
+/*!
+    \brief      configure USART DMA reception
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3)
+    \param[in]  dmacmd: enable or disable DMA for reception
+                only one parameter can be selected which is shown as below:
+      \arg        USART_DENR_ENABLE:  DMA enable for reception
+      \arg        USART_DENR_DISABLE: DMA disable for reception
+    \param[out] none
+    \retval     none
+*/
+void usart_dma_receive_config(uint32_t usart_periph, uint32_t dmacmd)
+{
+    uint32_t ctl = 0U;
+
+    ctl = USART_CTL2(usart_periph);
+    ctl &= ~USART_CTL2_DENR;
+    ctl |= dmacmd;
+    /* configure DMA reception */
+    USART_CTL2(usart_periph) = ctl;
+}
+
+/*!
+    \brief      configure USART DMA transmission
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3)
+    \param[in]  dmacmd: enable or disable DMA for transmission
+                only one parameter can be selected which is shown as below:
+      \arg        USART_DENT_ENABLE:  DMA enable for transmission
+      \arg        USART_DENT_DISABLE: DMA disable for transmission
+    \param[out] none
+    \retval     none
+*/
+void usart_dma_transmit_config(uint32_t usart_periph, uint32_t dmacmd)
+{
+    uint32_t ctl = 0U;
+
+    ctl = USART_CTL2(usart_periph);
+    ctl &= ~USART_CTL2_DENT;
+    ctl |= dmacmd;
+    /* configure DMA transmission */
+    USART_CTL2(usart_periph) = ctl;
+}
+
+/*!
+    \brief      get flag in STAT register
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in]  flag: USART flags, refer to usart_flag_enum
+                only one parameter can be selected which is shown as below:
+      \arg        USART_FLAG_CTSF: CTS change flag
+      \arg        USART_FLAG_LBDF: LIN break detected flag
+      \arg        USART_FLAG_TBE: transmit data buffer empty
+      \arg        USART_FLAG_TC: transmission complete
+      \arg        USART_FLAG_RBNE: read data buffer not empty
+      \arg        USART_FLAG_IDLEF: IDLE frame detected flag
+      \arg        USART_FLAG_ORERR: overrun error
+      \arg        USART_FLAG_NERR: noise error flag
+      \arg        USART_FLAG_FERR: frame error flag
+      \arg        USART_FLAG_PERR: parity error flag
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus usart_flag_get(uint32_t usart_periph, usart_flag_enum flag)
+{
+    if(RESET != (USART_REG_VAL(usart_periph, flag) & BIT(USART_BIT_POS(flag)))){
+        return SET;
+    }else{
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear flag in STAT register
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in]  flag: USART flags, refer to usart_flag_enum
+                only one parameter can be selected which is shown as below:
+      \arg        USART_FLAG_CTSF: CTS change flag
+      \arg        USART_FLAG_LBDF: LIN break detected flag
+      \arg        USART_FLAG_TC: transmission complete
+      \arg        USART_FLAG_RBNE: read data buffer not empty
+    \param[out] none
+    \retval     none
+*/
+void usart_flag_clear(uint32_t usart_periph, usart_flag_enum flag)
+{
+    USART_REG_VAL(usart_periph, flag) &= ~BIT(USART_BIT_POS(flag));
+}
+
+/*!
+    \brief      enable USART interrupt
+     \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in]  int_flag
+                only one parameter can be selected which is shown as below:
+      \arg        USART_INT_PERR: parity error interrupt
+      \arg        USART_INT_TBE: transmitter buffer empty interrupt
+      \arg        USART_INT_TC: transmission complete interrupt
+      \arg        USART_INT_RBNE: read data buffer not empty interrupt and overrun error interrupt
+      \arg        USART_INT_IDLE: IDLE line detected interrupt
+      \arg        USART_INT_LBD: LIN break detected interrupt
+      \arg        USART_INT_ERR: error interrupt
+      \arg        USART_INT_CTS: CTS interrupt
+    \param[out] none
+    \retval     none
+*/
+void usart_interrupt_enable(uint32_t usart_periph, uint32_t int_flag)
+{
+    USART_REG_VAL(usart_periph, int_flag) |= BIT(USART_BIT_POS(int_flag));
+}
+
+/*!
+    \brief      disable USART interrupt
+     \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in]  int_flag
+                only one parameter can be selected which is shown as below:
+      \arg        USART_INT_PERR: parity error interrupt
+      \arg        USART_INT_TBE: transmitter buffer empty interrupt
+      \arg        USART_INT_TC: transmission complete interrupt
+      \arg        USART_INT_RBNE: read data buffer not empty interrupt and overrun error interrupt
+      \arg        USART_INT_IDLE: IDLE line detected interrupt
+      \arg        USART_INT_LBD: LIN break detected interrupt
+      \arg        USART_INT_ERR: error interrupt
+      \arg        USART_INT_CTS: CTS interrupt
+    \param[out] none
+    \retval     none
+*/
+void usart_interrupt_disable(uint32_t usart_periph, uint32_t int_flag)
+{
+    USART_REG_VAL(usart_periph, int_flag) &= ~BIT(USART_BIT_POS(int_flag));
+}
+
+/*!
+    \brief      get USART interrupt and flag status
+     \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in]  int_flag
+                only one parameter can be selected which is shown as below:
+      \arg        USART_INT_FLAG_PERR: parity error interrupt and flag
+      \arg        USART_INT_FLAG_TBE: transmitter buffer empty interrupt and flag
+      \arg        USART_INT_FLAG_TC: transmission complete interrupt and flag
+      \arg        USART_INT_FLAG_RBNE: read data buffer not empty interrupt and flag
+      \arg        USART_INT_FLAG_RBNE_ORERR: read data buffer not empty interrupt and overrun error flag
+      \arg        USART_INT_FLAG_IDLE: IDLE line detected interrupt and flag
+      \arg        USART_INT_FLAG_LBD: LIN break detected interrupt and flag
+      \arg        USART_INT_FLAG_CTS: CTS interrupt and flag
+      \arg        USART_INT_FLAG_ERR_ORERR: error interrupt and overrun error
+      \arg        USART_INT_FLAG_ERR_NERR: error interrupt and noise error flag
+      \arg        USART_INT_FLAG_ERR_FERR: error interrupt and frame error flag
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus usart_interrupt_flag_get(uint32_t usart_periph, uint32_t int_flag)
+{
+    uint32_t intenable = 0U, flagstatus = 0U;
+    /* get the interrupt enable bit status */
+    intenable = (USART_REG_VAL(usart_periph, int_flag) & BIT(USART_BIT_POS(int_flag)));
+    /* get the corresponding flag bit status */
+    flagstatus = (USART_REG_VAL2(usart_periph, int_flag) & BIT(USART_BIT_POS2(int_flag)));
+
+    if(flagstatus && intenable){
+        return SET;
+    }else{
+        return RESET;
+    }
+}
+
+/*!
+    \brief      clear USART interrupt flag in STAT register
+    \param[in]  usart_periph: USARTx(x=0,1,2)/UARTx(x=3,4)
+    \param[in]  flag: USART interrupt flag
+                only one parameter can be selected which is shown as below:
+      \arg        USART_INT_FLAG_CTS: CTS change flag
+      \arg        USART_INT_FLAG_LBD: LIN break detected flag
+      \arg        USART_INT_FLAG_TC: transmission complete
+      \arg        USART_INT_FLAG_RBNE: read data buffer not empty
+    \param[out] none
+    \retval     none
+*/
+void usart_interrupt_flag_clear(uint32_t usart_periph, uint32_t flag)
+{
+    USART_REG_VAL2(usart_periph, flag) &= ~BIT(USART_BIT_POS2(flag));
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/Source/gd32vf103_wwdgt.c

@@ -0,0 +1,146 @@
+/*!
+    \file  gd32vf103_wwdgt.c
+    \brief WWDGT driver
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#include "gd32vf103_wwdgt.h"
+
+/* write value to WWDGT_CTL_CNT bit field */
+#define CTL_CNT(regval)             (BITS(0,6) & ((uint32_t)(regval) << 0))
+/* write value to WWDGT_CFG_WIN bit field */
+#define CFG_WIN(regval)             (BITS(0,6) & ((uint32_t)(regval) << 0))
+
+/*!
+    \brief      reset the window watchdog timer configuration
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void wwdgt_deinit(void)
+{
+    rcu_periph_reset_enable(RCU_WWDGTRST);
+    rcu_periph_reset_disable(RCU_WWDGTRST);
+}
+
+/*!
+    \brief      start the window watchdog timer counter
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void wwdgt_enable(void)
+{
+    WWDGT_CTL |= WWDGT_CTL_WDGTEN;
+}
+
+/*!
+    \brief      configure the window watchdog timer counter value
+    \param[in]  counter_value: 0x00 - 0x7F
+    \param[out] none
+    \retval     none
+*/
+void wwdgt_counter_update(uint16_t counter_value)
+{
+    uint32_t reg = 0U;
+
+    reg = (WWDGT_CTL & (~WWDGT_CTL_CNT));
+    reg |= CTL_CNT(counter_value);
+
+    WWDGT_CTL = reg;
+}
+
+/*!
+    \brief      configure counter value, window value, and prescaler divider value
+    \param[in]  counter: 0x00 - 0x7F
+    \param[in]  window: 0x00 - 0x7F
+    \param[in]  prescaler: wwdgt prescaler value
+                only one parameter can be selected which is shown as below:
+      \arg        WWDGT_CFG_PSC_DIV1: the time base of window watchdog counter = (PCLK1/4096)/1
+      \arg        WWDGT_CFG_PSC_DIV2: the time base of window watchdog counter = (PCLK1/4096)/2
+      \arg        WWDGT_CFG_PSC_DIV4: the time base of window watchdog counter = (PCLK1/4096)/4
+      \arg        WWDGT_CFG_PSC_DIV8: the time base of window watchdog counter = (PCLK1/4096)/8
+    \param[out] none
+    \retval     none
+*/
+void wwdgt_config(uint16_t counter, uint16_t window, uint32_t prescaler)
+{
+    uint32_t reg_cfg = 0U, reg_ctl = 0U;
+
+    /* clear WIN and PSC bits, clear CNT bit */
+    reg_cfg = (WWDGT_CFG &(~(WWDGT_CFG_WIN|WWDGT_CFG_PSC)));
+    reg_ctl = (WWDGT_CTL &(~WWDGT_CTL_CNT));
+
+    /* configure WIN and PSC bits, configure CNT bit */
+    reg_cfg |= CFG_WIN(window);
+    reg_cfg |= prescaler;
+    reg_ctl |= CTL_CNT(counter);
+
+    WWDGT_CTL = reg_ctl;
+    WWDGT_CFG = reg_cfg;
+}
+
+/*!
+    \brief      enable early wakeup interrupt of WWDGT
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void wwdgt_interrupt_enable(void)
+{
+    WWDGT_CFG |= WWDGT_CFG_EWIE;
+}
+
+/*!
+    \brief      check early wakeup interrupt state of WWDGT
+    \param[in]  none
+    \param[out] none
+    \retval     FlagStatus: SET or RESET
+*/
+FlagStatus wwdgt_flag_get(void)
+{
+    if(WWDGT_STAT & WWDGT_STAT_EWIF){
+        return SET;
+    }
+
+    return RESET;
+}
+
+/*!
+    \brief      clear early wakeup interrupt state of WWDGT
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+void wwdgt_flag_clear(void)
+{
+    WWDGT_STAT &= (~WWDGT_STAT_EWIF);
+}

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/gd32vf103.h

@@ -0,0 +1,230 @@
+/*!
+    \file    gd32vf103.h
+    \brief   general definitions for GD32VF103
+
+    \version 2019-6-5, V1.0.0, firmware for GD32VF103
+*/
+
+/*
+    Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+    Redistribution and use in source and binary forms, with or without modification,
+are permitted provided that the following conditions are met:
+
+    1. Redistributions of source code must retain the above copyright notice, this
+       list of conditions and the following disclaimer.
+    2. Redistributions in binary form must reproduce the above copyright notice,
+       this list of conditions and the following disclaimer in the documentation
+       and/or other materials provided with the distribution.
+    3. Neither the name of the copyright holder nor the names of its contributors
+       may be used to endorse or promote products derived from this software without
+       specific prior written permission.
+
+    THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+OF SUCH DAMAGE.
+*/
+
+#ifndef GD32VF103_H
+#define GD32VF103_H
+
+#ifdef cplusplus
+ extern "C" {
+#endif
+
+ /* IO definitions (access restrictions to peripheral registers) */
+ /**
+
+     <strong>IO Type Qualifiers</strong> are used
+     \li to specify the access to peripheral variables.
+     \li for automatic generation of peripheral register debug information.
+ */
+ #ifdef __cplusplus
+   #define   __I     volatile             /*!< Defines 'read only' permissions                 */
+ #else
+   #define   __I     volatile const       /*!< Defines 'read only' permissions                 */
+ #endif
+ #define     __O     volatile             /*!< Defines 'write only' permissions                */
+ #define     __IO    volatile             /*!< Defines 'read / write' permissions              */
+
+
+#define HXTAL_VALUE    ((uint32_t)8000000) /*!< value of the external oscillator in Hz */
+
+/* define startup timeout value of high speed crystal oscillator (HXTAL) */
+#if !defined  (HXTAL_STARTUP_TIMEOUT)
+#define HXTAL_STARTUP_TIMEOUT   ((uint16_t)0xFFFF)
+#endif /* high speed crystal oscillator startup timeout */
+
+/* define value of internal 8MHz RC oscillator (IRC8M) in Hz */
+#if !defined  (IRC8M_VALUE)
+#define IRC8M_VALUE  ((uint32_t)8000000)
+#endif /* internal 8MHz RC oscillator value */
+
+/* define startup timeout value of internal 8MHz RC oscillator (IRC8M) */
+#if !defined  (IRC8M_STARTUP_TIMEOUT)
+#define IRC8M_STARTUP_TIMEOUT   ((uint16_t)0x0500)
+#endif /* internal 8MHz RC oscillator startup timeout */
+
+/* define value of internal 40KHz RC oscillator(IRC40K) in Hz */
+#if !defined  (IRC40K_VALUE)
+#define IRC40K_VALUE  ((uint32_t)40000)
+#endif /* internal 40KHz RC oscillator value */
+
+/* define value of low speed crystal oscillator (LXTAL)in Hz */
+#if !defined  (LXTAL_VALUE)
+#define LXTAL_VALUE  ((uint32_t)32768)
+#endif /* low speed crystal oscillator value */
+
+/* define interrupt number */
+typedef enum IRQn
+{
+	CLIC_INT_RESERVED        	 = 0,      			/*!< RISC-V reserved		*/
+	CLIC_INT_SFT         		 = 3,				/*!< Software interrupt		*/
+	CLIC_INT_TMR         		 = 7,				/*!< CPU Timer interrupt	*/
+	CLIC_INT_BWEI        		 = 17,				/*!< Bus Error interrupt	*/
+	CLIC_INT_PMOVI       		 = 18,				/*!< Performance Monitor	*/
+
+    /* interruput numbers */
+    WWDGT_IRQn                   = 19,      /*!< window watchDog timer interrupt                          */
+    LVD_IRQn                     = 20,      /*!< LVD through EXTI line detect interrupt                   */
+    TAMPER_IRQn                  = 21,      /*!< tamper through EXTI line detect                          */
+    RTC_IRQn                     = 22,      /*!< RTC alarm interrupt                                      */
+    FMC_IRQn                     = 23,      /*!< FMC interrupt                                            */
+    RCU_CTC_IRQn                 = 24,      /*!< RCU and CTC interrupt                                    */
+    EXTI0_IRQn                   = 25,      /*!< EXTI line 0 interrupts                                   */
+    EXTI1_IRQn                   = 26,      /*!< EXTI line 1 interrupts                                   */
+    EXTI2_IRQn                   = 27,      /*!< EXTI line 2 interrupts                                   */
+    EXTI3_IRQn                   = 28,      /*!< EXTI line 3 interrupts                                   */
+    EXTI4_IRQn                   = 29,     /*!< EXTI line 4 interrupts                                   */
+    DMA0_Channel0_IRQn           = 30,     /*!< DMA0 channel0 interrupt                                  */
+    DMA0_Channel1_IRQn           = 31,     /*!< DMA0 channel1 interrupt                                  */
+    DMA0_Channel2_IRQn           = 32,     /*!< DMA0 channel2 interrupt                                  */
+    DMA0_Channel3_IRQn           = 33,     /*!< DMA0 channel3 interrupt                                  */
+    DMA0_Channel4_IRQn           = 34,     /*!< DMA0 channel4 interrupt                                  */
+    DMA0_Channel5_IRQn           = 35,     /*!< DMA0 channel5 interrupt                                  */
+    DMA0_Channel6_IRQn           = 36,     /*!< DMA0 channel6 interrupt                                  */
+    ADC0_1_IRQn                  = 37,     /*!< ADC0 and ADC1 interrupt                                  */
+    CAN0_TX_IRQn                 = 38,     /*!< CAN0 TX interrupts                                       */
+    CAN0_RX0_IRQn                = 39,     /*!< CAN0 RX0 interrupts                                      */
+    CAN0_RX1_IRQn                = 40,     /*!< CAN0 RX1 interrupts                                      */
+    CAN0_EWMC_IRQn               = 41,     /*!< CAN0 EWMC interrupts                                     */
+    EXTI5_9_IRQn                 = 42,     /*!< EXTI[9:5] interrupts                                     */
+    TIMER0_BRK_IRQn              = 43,     /*!< TIMER0 break interrupts                                  */
+    TIMER0_UP_IRQn               = 44,     /*!< TIMER0 update interrupts                                 */
+    TIMER0_TRG_CMT_IRQn          = 45,     /*!< TIMER0 trigger and commutation interrupts                */
+    TIMER0_Channel_IRQn          = 46,     /*!< TIMER0 channel capture compare interrupts                */
+    TIMER1_IRQn                  = 47,     /*!< TIMER1 interrupt                                         */
+    TIMER2_IRQn                  = 48,     /*!< TIMER2 interrupt                                         */
+    TIMER3_IRQn                  = 49,     /*!< TIMER3 interrupts                                        */
+    I2C0_EV_IRQn                 = 50,     /*!< I2C0 event interrupt                                     */
+    I2C0_ER_IRQn                 = 51,     /*!< I2C0 error interrupt                                     */
+    I2C1_EV_IRQn                 = 52,     /*!< I2C1 event interrupt                                     */
+    I2C1_ER_IRQn                 = 53,     /*!< I2C1 error interrupt                                     */
+    SPI0_IRQn                    = 54,     /*!< SPI0 interrupt                                           */
+    SPI1_IRQn                    = 55,     /*!< SPI1 interrupt                                           */
+    USART0_IRQn                  = 56,     /*!< USART0 interrupt                                         */
+    USART1_IRQn                  = 57,     /*!< USART1 interrupt                                         */
+    USART2_IRQn                  = 58,     /*!< USART2 interrupt                                         */
+    EXTI10_15_IRQn               = 59,     /*!< EXTI[15:10] interrupts                                   */
+    RTC_ALARM_IRQn               = 60,     /*!< RTC alarm interrupt EXTI                                 */
+    USBFS_WKUP_IRQn              = 61,     /*!< USBFS wakeup interrupt                                   */
+
+    EXMC_IRQn                    = 67,     /*!< EXMC global interrupt                                    */
+
+    TIMER4_IRQn                  = 69,     /*!< TIMER4 global interrupt                                  */
+    SPI2_IRQn                    = 70,     /*!< SPI2 global interrupt                                    */
+    UART3_IRQn                   = 71,     /*!< UART3 global interrupt                                   */
+    UART4_IRQn                   = 72,     /*!< UART4 global interrupt                                   */
+    TIMER5_IRQn                  = 73,     /*!< TIMER5 global interrupt                                  */
+    TIMER6_IRQn                  = 74,     /*!< TIMER6 global interrupt                                  */
+    DMA1_Channel0_IRQn           = 75,     /*!< DMA1 channel0 global interrupt                           */
+    DMA1_Channel1_IRQn           = 76,     /*!< DMA1 channel1 global interrupt                           */
+    DMA1_Channel2_IRQn           = 77,     /*!< DMA1 channel2 global interrupt                           */
+    DMA1_Channel3_IRQn           = 78,     /*!< DMA1 channel3 global interrupt                           */
+    DMA1_Channel4_IRQn           = 79,     /*!< DMA1 channel3 global interrupt                           */
+
+    CAN1_TX_IRQn                 = 82,     /*!< CAN1 TX interrupt                                        */
+    CAN1_RX0_IRQn                = 83,     /*!< CAN1 RX0 interrupt                                       */
+    CAN1_RX1_IRQn                = 84,     /*!< CAN1 RX1 interrupt                                       */
+    CAN1_EWMC_IRQn               = 85,     /*!< CAN1 EWMC interrupt                                      */
+    USBFS_IRQn                   = 86,     /*!< USBFS global interrupt                                   */
+
+	ECLIC_NUM_INTERRUPTS
+} IRQn_Type;
+
+/* includes */
+#include "system_gd32vf103.h"
+#include <stdint.h>
+
+/* enum definitions */
+typedef enum {DISABLE = 0, ENABLE = !DISABLE} EventStatus, ControlStatus;
+typedef enum {FALSE = 0, TRUE = !FALSE} bool;
+typedef enum {RESET = 0, SET = 1,MAX = 0X7FFFFFFF} FlagStatus;
+typedef enum {ERROR = 0, SUCCESS = !ERROR} ErrStatus;
+
+/* bit operations */
+#define REG32(addr)                  (*(volatile uint32_t *)(uint32_t)(addr))
+#define REG16(addr)                  (*(volatile uint16_t *)(uint32_t)(addr))
+#define REG8(addr)                   (*(volatile uint8_t *)(uint32_t)(addr))
+#define BIT(x)                       ((uint32_t)((uint32_t)0x01U<<(x)))
+#define BITS(start, end)             ((0xFFFFFFFFUL << (start)) & (0xFFFFFFFFUL >> (31U - (uint32_t)(end))))
+#define GET_BITS(regval, start, end) (((regval) & BITS((start),(end))) >> (start))
+
+/* main flash and SRAM memory map */
+#define FLASH_BASE            ((uint32_t)0x08000000U)        /*!< main FLASH base address          */
+#define SRAM_BASE             ((uint32_t)0x20000000U)        /*!< SRAM0 base address               */
+#define OB_BASE               ((uint32_t)0x1FFFF800U)        /*!< OB base address                  */
+#define DBG_BASE              ((uint32_t)0xE0042000U)        /*!< DBG base address                 */
+#define EXMC_BASE             ((uint32_t)0xA0000000U)        /*!< EXMC register base address       */
+
+/* peripheral memory map */
+#define APB1_BUS_BASE         ((uint32_t)0x40000000U)        /*!< apb1 base address                */
+#define APB2_BUS_BASE         ((uint32_t)0x40010000U)        /*!< apb2 base address                */
+#define AHB1_BUS_BASE         ((uint32_t)0x40018000U)        /*!< ahb1 base address                */
+#define AHB3_BUS_BASE         ((uint32_t)0x60000000U)        /*!< ahb3 base address                */
+
+/* advanced peripheral bus 1 memory map */
+#define TIMER_BASE            (APB1_BUS_BASE + 0x00000000U)  /*!< TIMER base address               */
+#define RTC_BASE              (APB1_BUS_BASE + 0x00002800U)  /*!< RTC base address                 */
+#define WWDGT_BASE            (APB1_BUS_BASE + 0x00002C00U)  /*!< WWDGT base address               */
+#define FWDGT_BASE            (APB1_BUS_BASE + 0x00003000U)  /*!< FWDGT base address               */
+#define SPI_BASE              (APB1_BUS_BASE + 0x00003800U)  /*!< SPI base address                 */
+#define USART_BASE            (APB1_BUS_BASE + 0x00004400U)  /*!< USART base address               */
+#define I2C_BASE              (APB1_BUS_BASE + 0x00005400U)  /*!< I2C base address                 */
+#define CAN_BASE              (APB1_BUS_BASE + 0x00006400U)  /*!< CAN base address                 */
+#define BKP_BASE              (APB1_BUS_BASE + 0x00006C00U)  /*!< BKP base address                 */
+#define PMU_BASE              (APB1_BUS_BASE + 0x00007000U)  /*!< PMU base address                 */
+#define DAC_BASE              (APB1_BUS_BASE + 0x00007400U)  /*!< DAC base address                 */
+
+/* advanced peripheral bus 2 memory map */
+#define AFIO_BASE             (APB2_BUS_BASE + 0x00000000U)  /*!< AFIO base address                */
+#define EXTI_BASE             (APB2_BUS_BASE + 0x00000400U)  /*!< EXTI base address                */
+#define GPIO_BASE             (APB2_BUS_BASE + 0x00000800U)  /*!< GPIO base address                */
+#define ADC_BASE              (APB2_BUS_BASE + 0x00002400U)  /*!< ADC base address                 */
+
+/* advanced high performance bus 1 memory map */
+#define DMA_BASE              (AHB1_BUS_BASE + 0x00008000U)  /*!< DMA base address                 */
+#define RCU_BASE              (AHB1_BUS_BASE + 0x00009000U)  /*!< RCU base address                 */
+#define FMC_BASE              (AHB1_BUS_BASE + 0x0000A000U)  /*!< FMC base address                 */
+#define CRC_BASE              (AHB1_BUS_BASE + 0x0000B000U)  /*!< CRC base address                 */
+#define USBFS_BASE            (AHB1_BUS_BASE + 0x0FFE8000U)  /*!< USBFS base address               */
+
+/* define marco USE_STDPERIPH_DRIVER */
+#if !defined  USE_STDPERIPH_DRIVER
+#define USE_STDPERIPH_DRIVER
+#endif
+#ifdef USE_STDPERIPH_DRIVER
+#include "gd32vf103_libopt.h"
+#endif /* USE_STDPERIPH_DRIVER */
+
+#ifdef cplusplus
+}
+#endif
+#endif

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/system_gd32vf103.c

@@ -0,0 +1,998 @@
+/*!
+ \file    system_gd32vf103.c
+ \brief   RISC-V Device Peripheral Access Layer Source File for
+ GD32VF103 Device Series
+
+ \version 2019-6-5, V1.0.0, firmware for GD32VF103
+ */
+
+/*
+ Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+ Redistribution and use in source and binary forms, with or without modification,
+ are permitted provided that the following conditions are met:
+
+ 1. Redistributions of source code must retain the above copyright notice, this
+ list of conditions and the following disclaimer.
+ 2. Redistributions in binary form must reproduce the above copyright notice,
+ this list of conditions and the following disclaimer in the documentation
+ and/or other materials provided with the distribution.
+ 3. Neither the name of the copyright holder nor the names of its contributors
+ may be used to endorse or promote products derived from this software without
+ specific prior written permission.
+
+ THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+ WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+ IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+ INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+ NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+ PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+ WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+ OF SUCH DAMAGE.
+ */
+
+/* This file refers the RISC-V standard, some adjustments are made according to GigaDevice chips */
+
+#include "gd32vf103.h"
+
+/* system frequency define */
+#define __IRC8M           (IRC8M_VALUE)            /* internal 8 MHz RC oscillator frequency */
+#define __HXTAL           (HXTAL_VALUE)            /* high speed crystal oscillator frequency */
+#define __SYS_OSC_CLK     (__IRC8M)                /* main oscillator frequency */
+
+/* select a system clock by uncommenting the following line */
+/* use IRC8M */
+//#define __SYSTEM_CLOCK_48M_PLL_IRC8M            (uint32_t)(48000000)
+//#define __SYSTEM_CLOCK_72M_PLL_IRC8M            (uint32_t)(72000000)
+//#define __SYSTEM_CLOCK_108M_PLL_IRC8M           (uint32_t)(108000000)
+/********************************************************************/
+//#define __SYSTEM_CLOCK_HXTAL                    (HXTAL_VALUE)
+//#define __SYSTEM_CLOCK_24M_PLL_HXTAL            (uint32_t)(24000000)
+/********************************************************************/
+
+//#define __SYSTEM_CLOCK_36M_PLL_HXTAL            (uint32_t)(36000000)
+//#define __SYSTEM_CLOCK_48M_PLL_HXTAL            (uint32_t)(48000000)
+//#define __SYSTEM_CLOCK_56M_PLL_HXTAL            (uint32_t)(56000000)
+//#define __SYSTEM_CLOCK_72M_PLL_HXTAL            (uint32_t)(72000000)
+//#define __SYSTEM_CLOCK_96M_PLL_HXTAL            (uint32_t)(96000000)
+#define __SYSTEM_CLOCK_108M_PLL_HXTAL           (uint32_t)(108000000)
+
+#define SEL_IRC8M       0x00U
+#define SEL_HXTAL       0x01U
+#define SEL_PLL         0x02U
+
+/* set the system clock frequency and declare the system clock configuration function */
+#ifdef __SYSTEM_CLOCK_48M_PLL_IRC8M
+uint32_t SystemCoreClock = __SYSTEM_CLOCK_48M_PLL_IRC8M;
+static void system_clock_48m_irc8m(void);
+#elif defined (__SYSTEM_CLOCK_72M_PLL_IRC8M)
+uint32_t SystemCoreClock = __SYSTEM_CLOCK_72M_PLL_IRC8M;
+static void system_clock_72m_irc8m(void);
+#elif defined (__SYSTEM_CLOCK_108M_PLL_IRC8M)
+uint32_t SystemCoreClock = __SYSTEM_CLOCK_108M_PLL_IRC8M;
+static void system_clock_108m_irc8m(void);
+
+#elif defined (__SYSTEM_CLOCK_HXTAL)
+uint32_t SystemCoreClock = __SYSTEM_CLOCK_HXTAL;
+static void system_clock_hxtal(void);
+#elif defined (__SYSTEM_CLOCK_24M_PLL_HXTAL)
+uint32_t SystemCoreClock = __SYSTEM_CLOCK_24M_PLL_HXTAL;
+static void system_clock_24m_hxtal(void);
+#elif defined (__SYSTEM_CLOCK_36M_PLL_HXTAL)
+uint32_t SystemCoreClock = __SYSTEM_CLOCK_36M_PLL_HXTAL;
+static void system_clock_36m_hxtal(void);
+#elif defined (__SYSTEM_CLOCK_48M_PLL_HXTAL)
+uint32_t SystemCoreClock = __SYSTEM_CLOCK_48M_PLL_HXTAL;
+static void system_clock_48m_hxtal(void);
+#elif defined (__SYSTEM_CLOCK_56M_PLL_HXTAL)
+uint32_t SystemCoreClock = __SYSTEM_CLOCK_56M_PLL_HXTAL;
+static void system_clock_56m_hxtal(void);
+#elif defined (__SYSTEM_CLOCK_72M_PLL_HXTAL)
+uint32_t SystemCoreClock = __SYSTEM_CLOCK_72M_PLL_HXTAL;
+static void system_clock_72m_hxtal(void);
+#elif defined (__SYSTEM_CLOCK_96M_PLL_HXTAL)
+uint32_t SystemCoreClock = __SYSTEM_CLOCK_96M_PLL_HXTAL;
+static void system_clock_96m_hxtal(void);
+#elif defined (__SYSTEM_CLOCK_108M_PLL_HXTAL)
+uint32_t SystemCoreClock = __SYSTEM_CLOCK_108M_PLL_HXTAL;
+static void system_clock_108m_hxtal(void);
+#else
+uint32_t SystemCoreClock = IRC8M_VALUE;
+#endif /* __SYSTEM_CLOCK_48M_PLL_IRC8M */
+
+/* configure the system clock */
+static void system_clock_config(void);
+
+/*!
+ \brief      configure the system clock
+ \param[in]  none
+ \param[out] none
+ \retval     none
+ */
+static void system_clock_config(void) {
+#ifdef __SYSTEM_CLOCK_HXTAL
+    system_clock_hxtal();
+#elif defined (__SYSTEM_CLOCK_24M_PLL_HXTAL)
+    system_clock_24m_hxtal();
+#elif defined (__SYSTEM_CLOCK_36M_PLL_HXTAL)
+    system_clock_36m_hxtal();
+#elif defined (__SYSTEM_CLOCK_48M_PLL_HXTAL)
+    system_clock_48m_hxtal();
+#elif defined (__SYSTEM_CLOCK_56M_PLL_HXTAL)
+    system_clock_56m_hxtal();
+#elif defined (__SYSTEM_CLOCK_72M_PLL_HXTAL)
+    system_clock_72m_hxtal();
+#elif defined (__SYSTEM_CLOCK_96M_PLL_HXTAL)
+    system_clock_96m_hxtal();
+#elif defined (__SYSTEM_CLOCK_108M_PLL_HXTAL)
+    system_clock_108m_hxtal();
+
+#elif defined (__SYSTEM_CLOCK_48M_PLL_IRC8M)
+    system_clock_48m_irc8m();
+#elif defined (__SYSTEM_CLOCK_72M_PLL_IRC8M)
+    system_clock_72m_irc8m();
+#elif defined (__SYSTEM_CLOCK_108M_PLL_IRC8M)
+    system_clock_108m_irc8m();
+#endif /* __SYSTEM_CLOCK_HXTAL */
+}
+
+/*!
+ \brief      setup the microcontroller system, initialize the system
+ \param[in]  none
+ \param[out] none
+ \retval     none
+ */
+void SystemInit(void) {
+    /* reset the RCC clock configuration to the default reset state */
+    /* enable IRC8M */
+    RCU_CTL |= RCU_CTL_IRC8MEN;
+
+    /* reset SCS, AHBPSC, APB1PSC, APB2PSC, ADCPSC, CKOUT0SEL bits */
+    RCU_CFG0 &= ~(RCU_CFG0_SCS | RCU_CFG0_AHBPSC | RCU_CFG0_APB1PSC
+            | RCU_CFG0_APB2PSC |
+            RCU_CFG0_ADCPSC | RCU_CFG0_ADCPSC_2 | RCU_CFG0_CKOUT0SEL);
+
+    /* reset HXTALEN, CKMEN, PLLEN bits */
+    RCU_CTL &= ~(RCU_CTL_HXTALEN | RCU_CTL_CKMEN | RCU_CTL_PLLEN);
+
+    /* Reset HXTALBPS bit */
+    RCU_CTL &= ~(RCU_CTL_HXTALBPS);
+
+    /* reset PLLSEL, PREDV0_LSB, PLLMF, USBFSPSC bits */
+
+    RCU_CFG0 &= ~(RCU_CFG0_PLLSEL | RCU_CFG0_PREDV0_LSB | RCU_CFG0_PLLMF |
+    RCU_CFG0_USBFSPSC | RCU_CFG0_PLLMF_4);
+    RCU_CFG1 = 0x00000000U;
+
+    /* Reset HXTALEN, CKMEN, PLLEN, PLL1EN and PLL2EN bits */
+    RCU_CTL &= ~(RCU_CTL_PLLEN | RCU_CTL_PLL1EN | RCU_CTL_PLL2EN | RCU_CTL_CKMEN
+            | RCU_CTL_HXTALEN);
+    /* disable all interrupts */
+    RCU_INT = 0x00FF0000U;
+
+    /* Configure the System clock source, PLL Multiplier, AHB/APBx prescalers and Flash settings */
+    system_clock_config();
+}
+
+/*!
+ \brief      update the SystemCoreClock with current core clock retrieved from cpu registers
+ \param[in]  none
+ \param[out] none
+ \retval     none
+ */
+void SystemCoreClockUpdate(void) {
+    uint32_t scss;
+    uint32_t pllsel, predv0sel, pllmf, ck_src;
+    uint32_t predv0, predv1, pll1mf;
+
+    scss = GET_BITS(RCU_CFG0, 2, 3);
+
+    switch (scss) {
+    /* IRC8M is selected as CK_SYS */
+    case SEL_IRC8M:
+        SystemCoreClock = IRC8M_VALUE;
+        break;
+
+        /* HXTAL is selected as CK_SYS */
+    case SEL_HXTAL:
+        SystemCoreClock = HXTAL_VALUE;
+        break;
+
+        /* PLL is selected as CK_SYS */
+    case SEL_PLL:
+        /* PLL clock source selection, HXTAL or IRC8M/2 */
+        pllsel = (RCU_CFG0 & RCU_CFG0_PLLSEL);
+
+        if (RCU_PLLSRC_IRC8M_DIV2 == pllsel) {
+            /* PLL clock source is IRC8M/2 */
+            ck_src = IRC8M_VALUE / 2U;
+        } else {
+            /* PLL clock source is HXTAL */
+            ck_src = HXTAL_VALUE;
+
+            predv0sel = (RCU_CFG1 & RCU_CFG1_PREDV0SEL);
+
+            /* source clock use PLL1 */
+            if (RCU_PREDV0SRC_CKPLL1 == predv0sel) {
+                predv1 = ((RCU_CFG1 & RCU_CFG1_PREDV1) >> 4) + 1U;
+                pll1mf = ((RCU_CFG1 & RCU_CFG1_PLL1MF) >> 8) + 2U;
+                if (17U == pll1mf) {
+                    pll1mf = 20U;
+                }
+                ck_src = (ck_src / predv1) * pll1mf;
+            }
+            predv0 = (RCU_CFG1 & RCU_CFG1_PREDV0) + 1U;
+            ck_src /= predv0;
+        }
+
+        /* PLL multiplication factor */
+        pllmf = GET_BITS(RCU_CFG0, 18, 21);
+
+        if ((RCU_CFG0 & RCU_CFG0_PLLMF_4)) {
+            pllmf |= 0x10U;
+        }
+
+        if (pllmf >= 15U) {
+            pllmf += 1U;
+        } else {
+            pllmf += 2U;
+        }
+
+        SystemCoreClock = ck_src * pllmf;
+
+        if (15U == pllmf) {
+            /* PLL source clock multiply by 6.5 */
+            SystemCoreClock = ck_src * 6U + ck_src / 2U;
+        }
+
+        break;
+
+        /* IRC8M is selected as CK_SYS */
+    default:
+        SystemCoreClock = IRC8M_VALUE;
+        break;
+    }
+}
+
+#ifdef __SYSTEM_CLOCK_HXTAL
+/*!
+    \brief      configure the system clock to HXTAL
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+static void system_clock_hxtal(void)
+{
+    uint32_t timeout = 0U;
+    uint32_t stab_flag = 0U;
+
+    /* enable HXTAL */
+    RCU_CTL |= RCU_CTL_HXTALEN;
+
+    /* wait until HXTAL is stable or the startup time is longer than HXTAL_STARTUP_TIMEOUT */
+    do{
+        timeout++;
+        stab_flag = (RCU_CTL & RCU_CTL_HXTALSTB);
+    }while((0U == stab_flag) && (HXTAL_STARTUP_TIMEOUT != timeout));
+
+    /* if fail */
+    if(0U == (RCU_CTL & RCU_CTL_HXTALSTB)){
+        while(1){
+        }
+    }
+
+    /* AHB = SYSCLK */
+    RCU_CFG0 |= RCU_AHB_CKSYS_DIV1;
+    /* APB2 = AHB/1 */
+    RCU_CFG0 |= RCU_APB2_CKAHB_DIV1;
+    /* APB1 = AHB/2 */
+    RCU_CFG0 |= RCU_APB1_CKAHB_DIV2;
+
+    /* select HXTAL as system clock */
+    RCU_CFG0 &= ~RCU_CFG0_SCS;
+    RCU_CFG0 |= RCU_CKSYSSRC_HXTAL;
+
+    /* wait until HXTAL is selected as system clock */
+    while(0 == (RCU_CFG0 & RCU_SCSS_HXTAL)){
+    }
+}
+
+#elif defined (__SYSTEM_CLOCK_24M_PLL_HXTAL)
+/*!
+    \brief      configure the system clock to 24M by PLL which selects HXTAL(MD/HD/XD:8M; CL:25M) as its clock source
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+static void system_clock_24m_hxtal(void)
+{
+    uint32_t timeout = 0U;
+    uint32_t stab_flag = 0U;
+
+    /* enable HXTAL */
+    RCU_CTL |= RCU_CTL_HXTALEN;
+
+    /* wait until HXTAL is stable or the startup time is longer than HXTAL_STARTUP_TIMEOUT */
+    do{
+        timeout++;
+        stab_flag = (RCU_CTL & RCU_CTL_HXTALSTB);
+    }while((0U == stab_flag) && (HXTAL_STARTUP_TIMEOUT != timeout));
+
+    /* if fail */
+    if(0U == (RCU_CTL & RCU_CTL_HXTALSTB)){
+        while(1){
+        }
+    }
+
+    /* HXTAL is stable */
+    /* AHB = SYSCLK */
+    RCU_CFG0 |= RCU_AHB_CKSYS_DIV1;
+    /* APB2 = AHB/1 */
+    RCU_CFG0 |= RCU_APB2_CKAHB_DIV1;
+    /* APB1 = AHB/2 */
+    RCU_CFG0 |= RCU_APB1_CKAHB_DIV2;
+
+    /* CK_PLL = (CK_PREDIV0) * 6 = 24 MHz */
+    RCU_CFG0 &= ~(RCU_CFG0_PLLMF | RCU_CFG0_PLLMF_4);
+    RCU_CFG0 |= (RCU_PLLSRC_HXTAL | RCU_PLL_MUL6);
+
+    if(HXTAL_VALUE==25000000){
+        /* CK_PREDIV0 = (CK_HXTAL)/5 *8 /10 = 4 MHz */
+        RCU_CFG1 &= ~(RCU_CFG1_PREDV0SEL | RCU_CFG1_PLL1MF | RCU_CFG1_PREDV1 | RCU_CFG1_PREDV0);
+        RCU_CFG1 |= (RCU_PREDV0SRC_CKPLL1 | RCU_PLL1_MUL8 | RCU_PREDV1_DIV5 | RCU_PREDV0_DIV10);
+
+        /* enable PLL1 */
+        RCU_CTL |= RCU_CTL_PLL1EN;
+        /* wait till PLL1 is ready */
+        while((RCU_CTL & RCU_CTL_PLL1STB) == 0){
+        }
+
+    }else if(HXTAL_VALUE==8000000){
+		RCU_CFG1 &= ~(RCU_CFG1_PREDV0SEL | RCU_CFG1_PREDV1 | RCU_CFG1_PLL1MF | RCU_CFG1_PREDV0);
+		RCU_CFG1 |= (RCU_PREDV0SRC_HXTAL | RCU_PREDV0_DIV2 );
+    }
+
+    /* enable PLL */
+    RCU_CTL |= RCU_CTL_PLLEN;
+
+    /* wait until PLL is stable */
+    while(0U == (RCU_CTL & RCU_CTL_PLLSTB)){
+    }
+
+    /* select PLL as system clock */
+    RCU_CFG0 &= ~RCU_CFG0_SCS;
+    RCU_CFG0 |= RCU_CKSYSSRC_PLL;
+
+    /* wait until PLL is selected as system clock */
+    while(0U == (RCU_CFG0 & RCU_SCSS_PLL)){
+    }
+}
+
+#elif defined (__SYSTEM_CLOCK_36M_PLL_HXTAL)
+/*!
+    \brief      configure the system clock to 36M by PLL which selects HXTAL(MD/HD/XD:8M; CL:25M) as its clock source
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+static void system_clock_36m_hxtal(void)
+{
+    uint32_t timeout = 0U;
+    uint32_t stab_flag = 0U;
+
+    /* enable HXTAL */
+    RCU_CTL |= RCU_CTL_HXTALEN;
+
+    /* wait until HXTAL is stable or the startup time is longer than HXTAL_STARTUP_TIMEOUT */
+    do{
+        timeout++;
+        stab_flag = (RCU_CTL & RCU_CTL_HXTALSTB);
+    }while((0U == stab_flag) && (HXTAL_STARTUP_TIMEOUT != timeout));
+
+    /* if fail */
+    if(0U == (RCU_CTL & RCU_CTL_HXTALSTB)){
+        while(1){
+        }
+    }
+
+    /* HXTAL is stable */
+    /* AHB = SYSCLK */
+    RCU_CFG0 |= RCU_AHB_CKSYS_DIV1;
+    /* APB2 = AHB/1 */
+    RCU_CFG0 |= RCU_APB2_CKAHB_DIV1;
+    /* APB1 = AHB/2 */
+    RCU_CFG0 |= RCU_APB1_CKAHB_DIV2;
+
+    /* CK_PLL = (CK_PREDIV0) * 9 = 36 MHz */
+    RCU_CFG0 &= ~(RCU_CFG0_PLLMF | RCU_CFG0_PLLMF_4);
+    RCU_CFG0 |= (RCU_PLLSRC_HXTAL | RCU_PLL_MUL9);
+
+    if(HXTAL_VALUE==25000000){
+        /* CK_PREDIV0 = (CK_HXTAL)/5 *8 /10 = 4 MHz */
+        RCU_CFG1 &= ~(RCU_CFG1_PREDV0SEL | RCU_CFG1_PLL1MF | RCU_CFG1_PREDV1 | RCU_CFG1_PREDV0);
+        RCU_CFG1 |= (RCU_PREDV0SRC_CKPLL1 | RCU_PLL1_MUL8 | RCU_PREDV1_DIV5 | RCU_PREDV0_DIV10);
+
+        /* enable PLL1 */
+        RCU_CTL |= RCU_CTL_PLL1EN;
+        /* wait till PLL1 is ready */
+        while((RCU_CTL & RCU_CTL_PLL1STB) == 0){
+        }
+
+    }else if(HXTAL_VALUE==8000000){
+		RCU_CFG1 &= ~(RCU_CFG1_PREDV0SEL | RCU_CFG1_PREDV1 | RCU_CFG1_PLL1MF | RCU_CFG1_PREDV0);
+		RCU_CFG1 |= (RCU_PREDV0SRC_HXTAL | RCU_PREDV0_DIV2 );
+    }
+
+    /* enable PLL */
+    RCU_CTL |= RCU_CTL_PLLEN;
+
+    /* wait until PLL is stable */
+    while(0U == (RCU_CTL & RCU_CTL_PLLSTB)){
+    }
+
+    /* select PLL as system clock */
+    RCU_CFG0 &= ~RCU_CFG0_SCS;
+    RCU_CFG0 |= RCU_CKSYSSRC_PLL;
+
+    /* wait until PLL is selected as system clock */
+    while(0U == (RCU_CFG0 & RCU_SCSS_PLL)){
+    }
+}
+
+#elif defined (__SYSTEM_CLOCK_48M_PLL_HXTAL)
+/*!
+    \brief      configure the system clock to 48M by PLL which selects HXTAL(MD/HD/XD:8M; CL:25M) as its clock source
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+static void system_clock_48m_hxtal(void)
+{
+    uint32_t timeout = 0U;
+    uint32_t stab_flag = 0U;
+
+    /* enable HXTAL */
+    RCU_CTL |= RCU_CTL_HXTALEN;
+
+    /* wait until HXTAL is stable or the startup time is longer than HXTAL_STARTUP_TIMEOUT */
+    do{
+        timeout++;
+        stab_flag = (RCU_CTL & RCU_CTL_HXTALSTB);
+    }while((0U == stab_flag) && (HXTAL_STARTUP_TIMEOUT != timeout));
+
+    /* if fail */
+    if(0U == (RCU_CTL & RCU_CTL_HXTALSTB)){
+        while(1){
+        }
+    }
+
+    /* HXTAL is stable */
+    /* AHB = SYSCLK */
+    RCU_CFG0 |= RCU_AHB_CKSYS_DIV1;
+    /* APB2 = AHB/1 */
+    RCU_CFG0 |= RCU_APB2_CKAHB_DIV1;
+    /* APB1 = AHB/2 */
+    RCU_CFG0 |= RCU_APB1_CKAHB_DIV2;
+
+    /* CK_PLL = (CK_PREDIV0) * 12 = 48 MHz */
+    RCU_CFG0 &= ~(RCU_CFG0_PLLMF | RCU_CFG0_PLLMF_4);
+    RCU_CFG0 |= (RCU_PLLSRC_HXTAL | RCU_PLL_MUL12);
+
+    if(HXTAL_VALUE==25000000){
+
+        /* CK_PREDIV0 = (CK_HXTAL)/5 *8 /10 = 4 MHz */
+        RCU_CFG1 &= ~(RCU_CFG1_PREDV0SEL | RCU_CFG1_PLL1MF | RCU_CFG1_PREDV1 | RCU_CFG1_PREDV0);
+        RCU_CFG1 |= (RCU_PREDV0SRC_CKPLL1 | RCU_PLL1_MUL8 | RCU_PREDV1_DIV5 | RCU_PREDV0_DIV10);
+
+        /* enable PLL1 */
+        RCU_CTL |= RCU_CTL_PLL1EN;
+        /* wait till PLL1 is ready */
+        while((RCU_CTL & RCU_CTL_PLL1STB) == 0){
+        }
+
+    }else if(HXTAL_VALUE==8000000){
+		RCU_CFG1 &= ~(RCU_CFG1_PREDV0SEL | RCU_CFG1_PREDV1 | RCU_CFG1_PLL1MF | RCU_CFG1_PREDV0);
+		RCU_CFG1 |= (RCU_PREDV0SRC_HXTAL | RCU_PREDV0_DIV2 );
+    }
+
+
+
+    /* enable PLL */
+    RCU_CTL |= RCU_CTL_PLLEN;
+
+    /* wait until PLL is stable */
+    while(0U == (RCU_CTL & RCU_CTL_PLLSTB)){
+    }
+
+    /* select PLL as system clock */
+    RCU_CFG0 &= ~RCU_CFG0_SCS;
+    RCU_CFG0 |= RCU_CKSYSSRC_PLL;
+
+    /* wait until PLL is selected as system clock */
+    while(0U == (RCU_CFG0 & RCU_SCSS_PLL)){
+    }
+}
+
+#elif defined (__SYSTEM_CLOCK_56M_PLL_HXTAL)
+/*!
+    \brief      configure the system clock to 56M by PLL which selects HXTAL(MD/HD/XD:8M; CL:25M) as its clock source
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+static void system_clock_56m_hxtal(void)
+{
+    uint32_t timeout = 0U;
+    uint32_t stab_flag = 0U;
+
+    /* enable HXTAL */
+    RCU_CTL |= RCU_CTL_HXTALEN;
+
+    /* wait until HXTAL is stable or the startup time is longer than HXTAL_STARTUP_TIMEOUT */
+    do{
+        timeout++;
+        stab_flag = (RCU_CTL & RCU_CTL_HXTALSTB);
+    }while((0U == stab_flag) && (HXTAL_STARTUP_TIMEOUT != timeout));
+
+    /* if fail */
+    if(0U == (RCU_CTL & RCU_CTL_HXTALSTB)){
+        while(1){
+        }
+    }
+
+    /* HXTAL is stable */
+    /* AHB = SYSCLK */
+    RCU_CFG0 |= RCU_AHB_CKSYS_DIV1;
+    /* APB2 = AHB/1 */
+    RCU_CFG0 |= RCU_APB2_CKAHB_DIV1;
+    /* APB1 = AHB/2 */
+    RCU_CFG0 |= RCU_APB1_CKAHB_DIV2;
+
+    /* CK_PLL = (CK_PREDIV0) * 14 = 56 MHz */
+    RCU_CFG0 &= ~(RCU_CFG0_PLLMF | RCU_CFG0_PLLMF_4);
+    RCU_CFG0 |= (RCU_PLLSRC_HXTAL | RCU_PLL_MUL14);
+
+    if(HXTAL_VALUE==25000000){
+
+        /* CK_PREDIV0 = (CK_HXTAL)/5 *8 /10 = 4 MHz */
+        RCU_CFG1 &= ~(RCU_CFG1_PREDV0SEL | RCU_CFG1_PLL1MF | RCU_CFG1_PREDV1 | RCU_CFG1_PREDV0);
+        RCU_CFG1 |= (RCU_PREDV0SRC_CKPLL1 | RCU_PLL1_MUL8 | RCU_PREDV1_DIV5 | RCU_PREDV0_DIV10);
+
+        /* enable PLL1 */
+        RCU_CTL |= RCU_CTL_PLL1EN;
+        /* wait till PLL1 is ready */
+        while((RCU_CTL & RCU_CTL_PLL1STB) == 0){
+        }
+
+    }else if(HXTAL_VALUE==8000000){
+		RCU_CFG1 &= ~(RCU_CFG1_PREDV0SEL | RCU_CFG1_PREDV1 | RCU_CFG1_PLL1MF | RCU_CFG1_PREDV0);
+		RCU_CFG1 |= (RCU_PREDV0SRC_HXTAL | RCU_PREDV0_DIV2 );
+    }
+
+    /* enable PLL */
+    RCU_CTL |= RCU_CTL_PLLEN;
+
+    /* wait until PLL is stable */
+    while(0U == (RCU_CTL & RCU_CTL_PLLSTB)){
+    }
+
+    /* select PLL as system clock */
+    RCU_CFG0 &= ~RCU_CFG0_SCS;
+    RCU_CFG0 |= RCU_CKSYSSRC_PLL;
+
+    /* wait until PLL is selected as system clock */
+    while(0U == (RCU_CFG0 & RCU_SCSS_PLL)){
+    }
+}
+
+#elif defined (__SYSTEM_CLOCK_72M_PLL_HXTAL)
+/*!
+    \brief      configure the system clock to 72M by PLL which selects HXTAL(MD/HD/XD:8M; CL:25M) as its clock source
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+static void system_clock_72m_hxtal(void)
+{
+    uint32_t timeout = 0U;
+    uint32_t stab_flag = 0U;
+
+    /* enable HXTAL */
+    RCU_CTL |= RCU_CTL_HXTALEN;
+
+    /* wait until HXTAL is stable or the startup time is longer than HXTAL_STARTUP_TIMEOUT */
+    do{
+        timeout++;
+        stab_flag = (RCU_CTL & RCU_CTL_HXTALSTB);
+    }while((0U == stab_flag) && (HXTAL_STARTUP_TIMEOUT != timeout));
+
+    /* if fail */
+    if(0U == (RCU_CTL & RCU_CTL_HXTALSTB)){
+        while(1){
+        }
+    }
+
+    /* HXTAL is stable */
+    /* AHB = SYSCLK */
+    RCU_CFG0 |= RCU_AHB_CKSYS_DIV1;
+    /* APB2 = AHB/1 */
+    RCU_CFG0 |= RCU_APB2_CKAHB_DIV1;
+    /* APB1 = AHB/2 */
+    RCU_CFG0 |= RCU_APB1_CKAHB_DIV2;
+
+    /* CK_PLL = (CK_PREDIV0) * 18 = 72 MHz */
+    RCU_CFG0 &= ~(RCU_CFG0_PLLMF | RCU_CFG0_PLLMF_4);
+    RCU_CFG0 |= (RCU_PLLSRC_HXTAL | RCU_PLL_MUL18);
+
+
+    if(HXTAL_VALUE==25000000){
+
+        /* CK_PREDIV0 = (CK_HXTAL)/5 *8 /10 = 4 MHz */
+        RCU_CFG1 &= ~(RCU_CFG1_PREDV0SEL | RCU_CFG1_PLL1MF | RCU_CFG1_PREDV1 | RCU_CFG1_PREDV0);
+        RCU_CFG1 |= (RCU_PREDV0SRC_CKPLL1 | RCU_PLL1_MUL8 | RCU_PREDV1_DIV5 | RCU_PREDV0_DIV10);
+
+        /* enable PLL1 */
+        RCU_CTL |= RCU_CTL_PLL1EN;
+        /* wait till PLL1 is ready */
+        while((RCU_CTL & RCU_CTL_PLL1STB) == 0){
+        }
+
+    }else if(HXTAL_VALUE==8000000){
+		RCU_CFG1 &= ~(RCU_CFG1_PREDV0SEL | RCU_CFG1_PREDV1 | RCU_CFG1_PLL1MF | RCU_CFG1_PREDV0);
+		RCU_CFG1 |= (RCU_PREDV0SRC_HXTAL | RCU_PREDV0_DIV2 );
+    }
+
+    /* enable PLL */
+    RCU_CTL |= RCU_CTL_PLLEN;
+
+    /* wait until PLL is stable */
+    while(0U == (RCU_CTL & RCU_CTL_PLLSTB)){
+    }
+
+    /* select PLL as system clock */
+    RCU_CFG0 &= ~RCU_CFG0_SCS;
+    RCU_CFG0 |= RCU_CKSYSSRC_PLL;
+
+    /* wait until PLL is selected as system clock */
+    while(0U == (RCU_CFG0 & RCU_SCSS_PLL)){
+    }
+}
+
+#elif defined (__SYSTEM_CLOCK_96M_PLL_HXTAL)
+/*!
+    \brief      configure the system clock to 96M by PLL which selects HXTAL(MD/HD/XD:8M; CL:25M) as its clock source
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+static void system_clock_96m_hxtal(void)
+{
+    uint32_t timeout = 0U;
+    uint32_t stab_flag = 0U;
+
+    /* enable HXTAL */
+    RCU_CTL |= RCU_CTL_HXTALEN;
+
+    /* wait until HXTAL is stable or the startup time is longer than HXTAL_STARTUP_TIMEOUT */
+    do{
+        timeout++;
+        stab_flag = (RCU_CTL & RCU_CTL_HXTALSTB);
+    }while((0U == stab_flag) && (HXTAL_STARTUP_TIMEOUT != timeout));
+
+    /* if fail */
+    if(0U == (RCU_CTL & RCU_CTL_HXTALSTB)){
+        while(1){
+        }
+    }
+
+    /* HXTAL is stable */
+    /* AHB = SYSCLK */
+    RCU_CFG0 |= RCU_AHB_CKSYS_DIV1;
+    /* APB2 = AHB/1 */
+    RCU_CFG0 |= RCU_APB2_CKAHB_DIV1;
+    /* APB1 = AHB/2 */
+    RCU_CFG0 |= RCU_APB1_CKAHB_DIV2;
+
+    if(HXTAL_VALUE==25000000){
+
+        /* CK_PLL = (CK_PREDIV0) * 24 = 96 MHz */
+        RCU_CFG0 &= ~(RCU_CFG0_PLLMF | RCU_CFG0_PLLMF_4);
+        RCU_CFG0 |= (RCU_PLLSRC_HXTAL | RCU_PLL_MUL24);
+
+        /* CK_PREDIV0 = (CK_HXTAL)/5 *8 /10 = 4 MHz */
+        RCU_CFG1 &= ~(RCU_CFG1_PREDV0SEL | RCU_CFG1_PLL1MF | RCU_CFG1_PREDV1 | RCU_CFG1_PREDV0);
+        RCU_CFG1 |= (RCU_PREDV0SRC_CKPLL1 | RCU_PLL1_MUL8 | RCU_PREDV1_DIV5 | RCU_PREDV0_DIV10);
+        /* enable PLL1 */
+        RCU_CTL |= RCU_CTL_PLL1EN;
+        /* wait till PLL1 is ready */
+        while((RCU_CTL & RCU_CTL_PLL1STB) == 0){
+        }
+
+    }else if(HXTAL_VALUE==8000000){
+        /* CK_PLL = (CK_PREDIV0) * 24 = 96 MHz */
+        RCU_CFG0 &= ~(RCU_CFG0_PLLMF | RCU_CFG0_PLLMF_4);
+        RCU_CFG0 |= (RCU_PLLSRC_HXTAL | RCU_PLL_MUL24);
+
+		RCU_CFG1 &= ~(RCU_CFG1_PREDV0SEL | RCU_CFG1_PREDV1 | RCU_CFG1_PLL1MF | RCU_CFG1_PREDV0);
+		RCU_CFG1 |= (RCU_PREDV0SRC_HXTAL | RCU_PREDV0_DIV2 );
+    }
+
+    /* enable PLL */
+    RCU_CTL |= RCU_CTL_PLLEN;
+
+    /* wait until PLL is stable */
+    while(0U == (RCU_CTL & RCU_CTL_PLLSTB)){
+    }
+
+    /* select PLL as system clock */
+    RCU_CFG0 &= ~RCU_CFG0_SCS;
+    RCU_CFG0 |= RCU_CKSYSSRC_PLL;
+
+    /* wait until PLL is selected as system clock */
+    while(0U == (RCU_CFG0 & RCU_SCSS_PLL)){
+    }
+}
+
+#elif defined (__SYSTEM_CLOCK_108M_PLL_HXTAL)
+/*!
+ \brief      configure the system clock to 108M by PLL which selects HXTAL(MD/HD/XD:8M; CL:25M) as its clock source
+ \param[in]  none
+ \param[out] none
+ \retval     none
+ */
+
+static void system_clock_108m_hxtal(void) {
+    uint32_t timeout = 0U;
+    uint32_t stab_flag = 0U;
+
+    /* enable HXTAL */
+    RCU_CTL |= RCU_CTL_HXTALEN;
+
+    /* wait until HXTAL is stable or the startup time is longer than HXTAL_STARTUP_TIMEOUT */
+    do {
+        timeout++;
+        stab_flag = (RCU_CTL & RCU_CTL_HXTALSTB);
+    } while ((0U == stab_flag) && (HXTAL_STARTUP_TIMEOUT != timeout));
+
+    /* if fail */
+    if (0U == (RCU_CTL & RCU_CTL_HXTALSTB)) {
+        while (1) {
+        }
+    }
+
+    /* HXTAL is stable */
+    /* AHB = SYSCLK */
+    RCU_CFG0 |= RCU_AHB_CKSYS_DIV1;
+    /* APB2 = AHB/1 */
+    RCU_CFG0 |= RCU_APB2_CKAHB_DIV1;
+    /* APB1 = AHB/2 */
+    RCU_CFG0 |= RCU_APB1_CKAHB_DIV2;
+
+    /* CK_PLL = (CK_PREDIV0) * 27 = 108 MHz */
+    RCU_CFG0 &= ~(RCU_CFG0_PLLMF | RCU_CFG0_PLLMF_4);
+    RCU_CFG0 |= (RCU_PLLSRC_HXTAL | RCU_PLL_MUL27);
+
+    if (HXTAL_VALUE == 25000000) {
+        /* CK_PREDIV0 = (CK_HXTAL)/5 *8 /10 = 4 MHz */
+        RCU_CFG1 &= ~(RCU_CFG1_PREDV0SEL | RCU_CFG1_PREDV1 | RCU_CFG1_PLL1MF
+                | RCU_CFG1_PREDV0);
+        RCU_CFG1 |= (RCU_PREDV0SRC_CKPLL1 | RCU_PREDV1_DIV5 | RCU_PLL1_MUL8
+                | RCU_PREDV0_DIV10);
+
+        /* enable PLL1 */
+        RCU_CTL |= RCU_CTL_PLL1EN;
+        /* wait till PLL1 is ready */
+        while (0U == (RCU_CTL & RCU_CTL_PLL1STB)) {
+        }
+
+        /* enable PLL1 */
+        RCU_CTL |= RCU_CTL_PLL2EN;
+        /* wait till PLL1 is ready */
+        while (0U == (RCU_CTL & RCU_CTL_PLL2STB)) {
+        }
+    } else if (HXTAL_VALUE == 8000000) {
+        RCU_CFG1 &= ~(RCU_CFG1_PREDV0SEL | RCU_CFG1_PREDV1 | RCU_CFG1_PLL1MF
+                | RCU_CFG1_PREDV0);
+        RCU_CFG1 |= (RCU_PREDV0SRC_HXTAL | RCU_PREDV0_DIV2 | RCU_PREDV1_DIV2
+                | RCU_PLL1_MUL20 | RCU_PLL2_MUL20);
+
+        /* enable PLL1 */
+        RCU_CTL |= RCU_CTL_PLL1EN;
+        /* wait till PLL1 is ready */
+        while (0U == (RCU_CTL & RCU_CTL_PLL1STB)) {
+        }
+
+        /* enable PLL2 */
+        RCU_CTL |= RCU_CTL_PLL2EN;
+        /* wait till PLL1 is ready */
+        while (0U == (RCU_CTL & RCU_CTL_PLL2STB)) {
+        }
+
+    }
+    /* enable PLL */
+    RCU_CTL |= RCU_CTL_PLLEN;
+
+    /* wait until PLL is stable */
+    while (0U == (RCU_CTL & RCU_CTL_PLLSTB)) {
+    }
+
+    /* select PLL as system clock */
+    RCU_CFG0 &= ~RCU_CFG0_SCS;
+    RCU_CFG0 |= RCU_CKSYSSRC_PLL;
+
+    /* wait until PLL is selected as system clock */
+    while (0U == (RCU_CFG0 & RCU_SCSS_PLL)) {
+    }
+}
+
+#elif defined (__SYSTEM_CLOCK_48M_PLL_IRC8M)
+/*!
+    \brief      configure the system clock to 48M by PLL which selects IRC8M as its clock source
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+static void system_clock_48m_irc8m(void)
+{
+    uint32_t timeout = 0U;
+    uint32_t stab_flag = 0U;
+
+    /* enable IRC8M */
+    RCU_CTL |= RCU_CTL_IRC8MEN;
+
+    /* wait until IRC8M is stable or the startup time is longer than IRC8M_STARTUP_TIMEOUT */
+    do{
+        timeout++;
+        stab_flag = (RCU_CTL & RCU_CTL_IRC8MSTB);
+    }
+    while((0U == stab_flag) && (IRC8M_STARTUP_TIMEOUT != timeout));
+
+    /* if fail */
+    if(0U == (RCU_CTL & RCU_CTL_IRC8MSTB)){
+      while(1){
+      }
+    }
+
+    /* IRC8M is stable */
+    /* AHB = SYSCLK */
+    RCU_CFG0 |= RCU_AHB_CKSYS_DIV1;
+    /* APB2 = AHB/1 */
+    RCU_CFG0 |= RCU_APB2_CKAHB_DIV1;
+    /* APB1 = AHB/2 */
+    RCU_CFG0 |= RCU_APB1_CKAHB_DIV2;
+
+    /* CK_PLL = (CK_IRC8M/2) * 12 = 48 MHz */
+    RCU_CFG0 &= ~(RCU_CFG0_PLLMF | RCU_CFG0_PLLMF_4);
+    RCU_CFG0 |= RCU_PLL_MUL12;
+
+    /* enable PLL */
+    RCU_CTL |= RCU_CTL_PLLEN;
+
+    /* wait until PLL is stable */
+    while(0U == (RCU_CTL & RCU_CTL_PLLSTB)){
+    }
+
+    /* select PLL as system clock */
+    RCU_CFG0 &= ~RCU_CFG0_SCS;
+    RCU_CFG0 |= RCU_CKSYSSRC_PLL;
+
+    /* wait until PLL is selected as system clock */
+    while(0U == (RCU_CFG0 & RCU_SCSS_PLL)){
+    }
+}
+
+#elif defined (__SYSTEM_CLOCK_72M_PLL_IRC8M)
+/*!
+    \brief      configure the system clock to 72M by PLL which selects IRC8M as its clock source
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+static void system_clock_72m_irc8m(void)
+{
+    uint32_t timeout = 0U;
+    uint32_t stab_flag = 0U;
+
+    /* enable IRC8M */
+    RCU_CTL |= RCU_CTL_IRC8MEN;
+
+    /* wait until IRC8M is stable or the startup time is longer than IRC8M_STARTUP_TIMEOUT */
+    do{
+        timeout++;
+        stab_flag = (RCU_CTL & RCU_CTL_IRC8MSTB);
+    }
+    while((0U == stab_flag) && (IRC8M_STARTUP_TIMEOUT != timeout));
+
+    /* if fail */
+    if(0U == (RCU_CTL & RCU_CTL_IRC8MSTB)){
+      while(1){
+      }
+    }
+
+    /* IRC8M is stable */
+    /* AHB = SYSCLK */
+    RCU_CFG0 |= RCU_AHB_CKSYS_DIV1;
+    /* APB2 = AHB/1 */
+    RCU_CFG0 |= RCU_APB2_CKAHB_DIV1;
+    /* APB1 = AHB/2 */
+    RCU_CFG0 |= RCU_APB1_CKAHB_DIV2;
+
+    /* CK_PLL = (CK_IRC8M/2) * 18 = 72 MHz */
+    RCU_CFG0 &= ~(RCU_CFG0_PLLMF | RCU_CFG0_PLLMF_4);
+    RCU_CFG0 |= RCU_PLL_MUL18;
+
+    /* enable PLL */
+    RCU_CTL |= RCU_CTL_PLLEN;
+
+    /* wait until PLL is stable */
+    while(0U == (RCU_CTL & RCU_CTL_PLLSTB)){
+    }
+
+    /* select PLL as system clock */
+    RCU_CFG0 &= ~RCU_CFG0_SCS;
+    RCU_CFG0 |= RCU_CKSYSSRC_PLL;
+
+    /* wait until PLL is selected as system clock */
+    while(0U == (RCU_CFG0 & RCU_SCSS_PLL)){
+    }
+}
+
+#elif defined (__SYSTEM_CLOCK_108M_PLL_IRC8M)
+/*!
+    \brief      configure the system clock to 108M by PLL which selects IRC8M as its clock source
+    \param[in]  none
+    \param[out] none
+    \retval     none
+*/
+static void system_clock_108m_irc8m(void)
+{
+    uint32_t timeout = 0U;
+    uint32_t stab_flag = 0U;
+
+    /* enable IRC8M */
+    RCU_CTL |= RCU_CTL_IRC8MEN;
+
+    /* wait until IRC8M is stable or the startup time is longer than IRC8M_STARTUP_TIMEOUT */
+    do{
+        timeout++;
+        stab_flag = (RCU_CTL & RCU_CTL_IRC8MSTB);
+    }
+    while((0U == stab_flag) && (IRC8M_STARTUP_TIMEOUT != timeout));
+
+    /* if fail */
+    if(0U == (RCU_CTL & RCU_CTL_IRC8MSTB)){
+      while(1){
+      }
+    }
+
+    /* IRC8M is stable */
+    /* AHB = SYSCLK */
+    RCU_CFG0 |= RCU_AHB_CKSYS_DIV1;
+    /* APB2 = AHB/1 */
+    RCU_CFG0 |= RCU_APB2_CKAHB_DIV1;
+    /* APB1 = AHB/2 */
+    RCU_CFG0 |= RCU_APB1_CKAHB_DIV2;
+
+    /* CK_PLL = (CK_IRC8M/2) * 27 = 108 MHz */
+    RCU_CFG0 &= ~(RCU_CFG0_PLLMF | RCU_CFG0_PLLMF_4);
+    RCU_CFG0 |= RCU_PLL_MUL27;
+
+    /* enable PLL */
+    RCU_CTL |= RCU_CTL_PLLEN;
+
+    /* wait until PLL is stable */
+    while(0U == (RCU_CTL & RCU_CTL_PLLSTB)){
+    }
+
+    /* select PLL as system clock */
+    RCU_CFG0 &= ~RCU_CFG0_SCS;
+    RCU_CFG0 |= RCU_CKSYSSRC_PLL;
+
+    /* wait until PLL is selected as system clock */
+    while(0U == (RCU_CFG0 & RCU_SCSS_PLL)){
+    }
+}
+
+#endif

bsp/gd32vf103v-eval/libraries/GD32VF103_standard_peripheral/system_gd32vf103.h

@@ -0,0 +1,60 @@
+/*!
+ \file    system_gd32vf103.h
+ \brief   RISC-V Device Peripheral Access Layer Header File for
+ GD32VF103 Device Series
+
+ \version 2019-6-5, V1.0.0, firmware for GD32VF103
+ */
+
+/*
+ Copyright (c) 2019, GigaDevice Semiconductor Inc.
+
+ Redistribution and use in source and binary forms, with or without modification,
+ are permitted provided that the following conditions are met:
+
+ 1. Redistributions of source code must retain the above copyright notice, this
+ list of conditions and the following disclaimer.
+ 2. Redistributions in binary form must reproduce the above copyright notice,
+ this list of conditions and the following disclaimer in the documentation
+ and/or other materials provided with the distribution.
+ 3. Neither the name of the copyright holder nor the names of its contributors
+ may be used to endorse or promote products derived from this software without
+ specific prior written permission.
+
+ THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
+ AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
+ WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
+ IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
+ INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
+ NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
+ PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
+ WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
+ ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
+ OF SUCH DAMAGE.
+ */
+
+/* This file refers the RISC-V standard, some adjustments are made according to GigaDevice chips */
+
+#ifndef SYSTEM_GD32VF103_H
+#define SYSTEM_GD32VF103_H
+
+#ifdef __cplusplus
+extern "C" {
+#endif
+
+#include <stdint.h>
+
+/* system clock frequency (core clock) */
+extern uint32_t SystemCoreClock;
+
+/* function declarations */
+/* initialize the system and update the SystemCoreClock variable */
+extern void SystemInit(void);
+/* update the SystemCoreClock with current core clock retrieved from cpu registers */
+extern void SystemCoreClockUpdate(void);
+
+#ifdef __cplusplus
+}
+#endif
+
+#endif /* SYSTEM_GD32VF103_H */

bsp/gd32vf103v-eval/libraries/n22/drivers/core_v5.h

@@ -0,0 +1,127 @@
+#ifndef __CORE_V5_H__
+#define __CORE_V5_H__
+
+#define MSTATUS_UIE         	0x00000001
+#define MSTATUS_SIE         	0x00000002
+#define MSTATUS_HIE         	0x00000004
+#define MSTATUS_MIE         	0x00000008
+#define MSTATUS_UPIE        	0x00000010
+#define MSTATUS_SPIE        	0x00000020
+#define MSTATUS_HPIE        	0x00000040
+#define MSTATUS_MPIE        	0x00000080
+#define MSTATUS_SPP         	0x00000100
+#define MSTATUS_HPP         	0x00000600
+#define MSTATUS_MPP         	0x00001800
+#define MSTATUS_FS          	0x00006000
+#define MSTATUS_XS          	0x00018000
+#define MSTATUS_MPRV        	0x00020000
+#define MSTATUS_PUM         	0x00040000
+#define MSTATUS_MXR				0x00080000
+#define MSTATUS_VM          	0x1F000000
+#define MSTATUS32_SD        	0x80000000
+#define MSTATUS64_SD        	0x8000000000000000
+
+#if __riscv_xlen == 64
+#define MCAUSE_INT          	0x8000000000000000UL
+#define MCAUSE_CAUSE        	0x7FFFFFFFFFFFFFFFUL
+#else
+#define MCAUSE_INT          	0x80000000UL
+#define MCAUSE_CAUSE        	0x7FFFFFFFUL
+#endif
+
+#define IRQ_S_SOFT          	1
+#define IRQ_H_SOFT          	2
+#define IRQ_M_SOFT          	3
+#define IRQ_S_TIMER         	5
+#define IRQ_H_TIMER         	6
+#define IRQ_M_TIMER         	7
+#define IRQ_S_EXT           	9
+#define IRQ_H_EXT           	10
+#define IRQ_M_EXT           	11
+#define IRQ_COP             	12
+#define IRQ_HOST            	13
+
+/* Machine mode MCAUSE */
+#define TRAP_M_I_ACC_FAULT    	1   /* Instruction access fault */
+#define TRAP_M_L_ACC_FAULT   	5   /* Data load access fault */
+#define TRAP_M_S_ACC_FAULT   	7   /* Data store access fault */
+#define TRAP_U_ECALL        	8
+#define TRAP_S_ECALL        	9
+#define TRAP_H_ECALL        	10
+#define TRAP_M_ECALL        	11
+#define TRAP_M_I_PAGE_FAULT	12  /* Instruction page fault */
+#define TRAP_M_L_PAGE_FAULT	13  /* Data load page fault */
+#define TRAP_M_S_PAGE_FAULT	15  /* Data store page fault */
+#define TRAP_M_STACKOVF     	32
+#define TRAP_M_STACKUDF     	33
+
+/* Supervisor mode SCAUSE */
+#define TRAP_S_I_ACC_FAULT    	1   /* Instruction access fault */
+#define TRAP_S_L_ACC_FAULT   	5   /* Data load access fault */
+#define TRAP_S_S_ACC_FAULT   	7   /* Data store access fault */
+#define TRAP_S_I_PAGE_FAULT	12  /* Instruction page fault */
+#define TRAP_S_L_PAGE_FAULT	13  /* Data load page fault */
+#define TRAP_S_S_PAGE_FAULT	15  /* Data store page fault */
+
+#define MIP_SSIP            	(1 << IRQ_S_SOFT)
+#define MIP_HSIP            	(1 << IRQ_H_SOFT)
+#define MIP_MSIP            	(1 << IRQ_M_SOFT)
+#define MIP_STIP            	(1 << IRQ_S_TIMER)
+#define MIP_HTIP            	(1 << IRQ_H_TIMER)
+#define MIP_MTIP            	(1 << IRQ_M_TIMER)
+#define MIP_SEIP            	(1 << IRQ_S_EXT)
+#define MIP_HEIP            	(1 << IRQ_H_EXT)
+#define MIP_MEIP            	(1 << IRQ_M_EXT)
+
+/* MILMB and MDLMB */
+#define	MILMB_IEN		(0x1UL)
+#define	MDLMB_DEN		(0x1UL)
+
+#if __riscv_xlen == 64
+# define SLL32    		sllw
+# define STORE    		sd
+# define LOAD     		ld
+# define LWU      		lwu
+# define LOG_REGBYTES 		3
+#else
+# define SLL32    		sll
+# define STORE    		sw
+# define LOAD     		lw
+# define LWU      		lw
+# define LOG_REGBYTES		2
+#endif
+#define REGBYTES		(1 << LOG_REGBYTES)
+
+#if __riscv_flen == 64
+# define FPSTORE		fsd
+# define FPLOAD			fld
+# define LOG_FPREGBYTES		3
+#else
+# define FPSTORE		fsw
+# define FPLOAD			flw
+# define LOG_FPREGBYTES		2
+#endif
+#define FPREGBYTES              (1 << LOG_FPREGBYTES)
+
+#define STR(S)			#S
+#define XSTR(S)			STR(S)
+
+#define PUSH			XSTR(STORE)
+#define POP			XSTR(LOAD)
+#define REGSIZE			XSTR(REGBYTES)
+#define FPPUSH			XSTR(FPSTORE)
+#define FPPOP			XSTR(FPLOAD)
+#define FPREGSIZE		XSTR(FPREGBYTES)
+
+#ifndef __ASSEMBLER__
+
+
+#define read_csr(reg)		__nds__csrr(reg)
+#define write_csr(reg, val)	__nds__csrw(val, reg)
+#define swap_csr(reg, val)	__nds__csrrw(val, reg)
+#define set_csr(reg, bit)	__nds__csrrs(bit, reg)
+#define clear_csr(reg, bit)	__nds__csrrc(bit, reg)
+
+#endif
+
+#endif	// __CORE_V5_H__

bsp/gd32vf103v-eval/libraries/n22/drivers/n22_eclic.h

@@ -0,0 +1,47 @@
+// See LICENSE file for licence details
+
+#ifndef N22_ECLIC_H
+#define N22_ECLIC_H
+#include <riscv_const.h>
+
+#define ECLICINTCTLBITS  4
+
+//ECLIC memory map
+//   Offset
+//  0x0000       1B          RW        ecliccfg
+#define ECLIC_CFG_OFFSET            0x0
+//  0x0004       4B          R         eclicinfo
+#define ECLIC_INFO_OFFSET           0x4
+//  0x000B       1B          RW        mintthresh
+#define ECLIC_MTH_OFFSET            0xB
+//
+//  0x1000+4*i   1B/input    RW        eclicintip[i]
+#define ECLIC_INT_IP_OFFSET            _AC(0x1000,UL)
+//  0x1001+4*i   1B/input    RW        eclicintie[i]
+#define ECLIC_INT_IE_OFFSET            _AC(0x1001,UL)
+//  0x1002+4*i   1B/input    RW        eclicintattr[i]
+#define ECLIC_INT_ATTR_OFFSET          _AC(0x1002,UL)
+
+#define ECLIC_INT_ATTR_SHV              0x01
+#define ECLIC_INT_ATTR_TRIG_LEVEL       0x00
+#define ECLIC_INT_ATTR_TRIG_EDGE        0x02
+#define ECLIC_INT_ATTR_TRIG_POS         0x00
+#define ECLIC_INT_ATTR_TRIG_NEG         0x04
+
+//  0x1003+4*i   1B/input    RW        eclicintctl[i]
+#define ECLIC_INT_CTRL_OFFSET          _AC(0x1003,UL)
+//
+//  ...
+//
+#define ECLIC_ADDR_BASE           0xd2000000
+
+
+#define ECLIC_CFG_NLBITS_MASK          _AC(0x1E,UL)
+#define ECLIC_CFG_NLBITS_LSB     (1u)
+
+#define MSIP_HANDLER    eclic_msip_handler
+#define MTIME_HANDLER   eclic_mtip_handler
+#define BWEI_HANDLER    eclic_bwei_handler
+#define PMOVI_HANDLER   eclic_pmovi_handler
+
+#endif

bsp/gd32vf103v-eval/libraries/n22/drivers/n22_func.c

@@ -0,0 +1,279 @@
+// See LICENSE for license details.
+#include <gd32vf103.h>
+#include <stdio.h>
+#include <stdlib.h>
+#include <string.h>
+#include <unistd.h>
+
+#include "riscv_encoding.h"
+#include "n22_func.h"
+
+void switch_m2u_mode() {
+    clear_csr(mstatus, MSTATUS_MPP);
+    //printf("\nIn the m2u function, the mstatus is 0x%x\n", read_csr(mstatus));
+    //printf("\nIn the m2u function, the mepc is 0x%x\n", read_csr(mepc));
+    asm volatile ("la x6, 1f    ":::"x6");
+    asm volatile ("csrw mepc, x6":::);
+    asm volatile ("mret":::);
+    asm volatile ("1:":::);
+}
+
+uint32_t mtime_lo(void) {
+    return *(volatile uint32_t *) (TMR_CTRL_ADDR + TMR_MTIME);
+}
+
+uint32_t mtime_hi(void) {
+    return *(volatile uint32_t *) (TMR_CTRL_ADDR + TMR_MTIME + 4);
+}
+
+void enable_timer_interrupt(void) {
+    *(volatile uint32_t *) (TMR_CTRL_ADDR + TMR_MTIME + 0xffc) = 1;
+}
+
+void clear_timer_interrupt(void) {
+    *(volatile uint32_t *) (TMR_CTRL_ADDR + TMR_MTIME + 0xffc) = 0;
+}
+
+void close_timer(void) {
+    *(volatile uint32_t *) (TMR_CTRL_ADDR + TMR_MTIME + 0xff8) = 1;
+}
+
+void open_timer(void) {
+    *(volatile uint32_t *) (TMR_CTRL_ADDR + TMR_MTIME + 0xff8) = 0;
+}
+
+uint64_t get_timer_value() {
+    while (1) {
+        uint32_t hi = mtime_hi();
+        uint32_t lo = mtime_lo();
+
+        if (hi == mtime_hi())
+            return ((uint64_t) hi << 32) | lo;
+    }
+}
+
+uint32_t get_timer_freq() {
+    return TMR_FREQ;
+}
+
+uint64_t get_instret_value() {
+    while (1) {
+        uint32_t hi = read_csr(minstreth);
+        uint32_t lo = read_csr(minstret);
+        if (hi == read_csr(minstreth))
+            return ((uint64_t) hi << 32) | lo;
+    }
+}
+
+uint64_t get_cycle_value() {
+    while (1) {
+        uint32_t hi = read_csr(mcycleh);
+        uint32_t lo = read_csr(mcycle);
+        if (hi == read_csr(mcycleh))
+            return ((uint64_t) hi << 32) | lo;
+    }
+}
+// Note that there are no assertions or bounds checking on these
+// parameter values.
+
+void eclic_init(uint32_t num_irq) {
+    typedef volatile uint32_t vuint32_t;
+
+    //clear cfg register
+    *(volatile uint8_t*) (ECLIC_ADDR_BASE + ECLIC_CFG_OFFSET) = 0;
+
+    //clear minthresh register
+    *(volatile uint8_t*) (ECLIC_ADDR_BASE + ECLIC_MTH_OFFSET) = 0;
+
+    //clear all IP/IE/ATTR/CTRL bits for all interrupt sources
+    vuint32_t * ptr;
+
+    vuint32_t * base = (vuint32_t*) (ECLIC_ADDR_BASE + ECLIC_INT_IP_OFFSET);
+    vuint32_t * upper = (vuint32_t*) (base + num_irq * 4);
+
+    for (ptr = base; ptr < upper; ptr = ptr + 4) {
+        *ptr = 0;
+    }
+    eclic_set_nlbits(ECLIC_GROUP_LEVEL2_PRIO2);
+}
+
+void eclic_enable_interrupt(uint32_t source) {
+    *(volatile uint8_t*) (ECLIC_ADDR_BASE + ECLIC_INT_IE_OFFSET + source * 4) =
+            1;
+}
+
+void eclic_disable_interrupt(uint32_t source) {
+    *(volatile uint8_t*) (ECLIC_ADDR_BASE + ECLIC_INT_IE_OFFSET + source * 4) =
+            0;
+}
+
+void eclic_set_pending(uint32_t source) {
+    *(volatile uint8_t*) (ECLIC_ADDR_BASE + ECLIC_INT_IP_OFFSET + source * 4) =
+            1;
+}
+
+void eclic_clear_pending(uint32_t source) {
+    *(volatile uint8_t*) (ECLIC_ADDR_BASE + ECLIC_INT_IP_OFFSET + source * 4) =
+            0;
+}
+
+void eclic_set_intctrl(uint32_t source, uint8_t intctrl) {
+    *(volatile uint8_t*) (ECLIC_ADDR_BASE + ECLIC_INT_CTRL_OFFSET + source * 4) =
+            intctrl;
+}
+
+uint8_t eclic_get_intctrl(uint32_t source) {
+    return *(volatile uint8_t*) (ECLIC_ADDR_BASE + ECLIC_INT_CTRL_OFFSET
+            + source * 4);
+}
+
+void eclic_set_intattr(uint32_t source, uint8_t intattr) {
+    *(volatile uint8_t*) (ECLIC_ADDR_BASE + ECLIC_INT_ATTR_OFFSET + source * 4) =
+            intattr;
+}
+
+uint8_t eclic_get_intattr(uint32_t source) {
+    return *(volatile uint8_t*) (ECLIC_ADDR_BASE + ECLIC_INT_ATTR_OFFSET
+            + source * 4);
+}
+
+void eclic_set_ecliccfg(uint8_t ecliccfg) {
+    *(volatile uint8_t*) (ECLIC_ADDR_BASE + ECLIC_CFG_OFFSET) = ecliccfg;
+}
+
+uint8_t eclic_get_ecliccfg() {
+    return *(volatile uint8_t*) (ECLIC_ADDR_BASE + ECLIC_CFG_OFFSET);
+}
+
+void eclic_set_mth(uint8_t mth) {
+    *(volatile uint8_t*) (ECLIC_ADDR_BASE + ECLIC_MTH_OFFSET) = mth;
+}
+
+uint8_t eclic_get_mth() {
+    return *(volatile uint8_t*) (ECLIC_ADDR_BASE + ECLIC_MTH_OFFSET);
+}
+
+void eclic_set_nlbits(uint8_t nlbits) {
+    //shift nlbits to correct position
+    uint8_t nlbits_shifted = nlbits << ECLIC_CFG_NLBITS_LSB;
+
+    //read the current ecliccfg
+    uint8_t old_ecliccfg = eclic_get_ecliccfg();
+    uint8_t new_ecliccfg = (old_ecliccfg & (~ECLIC_CFG_NLBITS_MASK))
+            | (ECLIC_CFG_NLBITS_MASK & nlbits_shifted);
+
+    eclic_set_ecliccfg(new_ecliccfg);
+}
+
+uint8_t eclic_get_nlbits(void) {
+    //extract nlbits
+    uint8_t nlbits = eclic_get_ecliccfg();
+    nlbits = (nlbits & ECLIC_CFG_NLBITS_MASK) >> ECLIC_CFG_NLBITS_LSB;
+    return nlbits;
+}
+
+//sets an interrupt level based encoding of nlbits and ECLICINTCTLBITS
+uint8_t eclic_set_int_level(uint32_t source, uint8_t level) {
+    //extract nlbits
+    uint8_t nlbits = eclic_get_nlbits();
+    if (nlbits > ECLICINTCTLBITS) {
+        nlbits = ECLICINTCTLBITS;
+    }
+
+    //shift level into correct bit position
+    level = level << (8 - nlbits);
+
+    //write to eclicintctrl
+    uint8_t current_intctrl = eclic_get_intctrl(source);
+    //shift intctrl left to mask off unused bits
+    current_intctrl = current_intctrl << nlbits;
+    //shift intctrl into correct bit position
+    current_intctrl = current_intctrl >> nlbits;
+
+    eclic_set_intctrl(source, (current_intctrl | level));
+
+    return level;
+}
+
+//gets an interrupt level based encoding of nlbits
+uint8_t eclic_get_int_level(uint32_t source) {
+    //extract nlbits
+    uint8_t nlbits = eclic_get_nlbits();
+    if (nlbits > ECLICINTCTLBITS) {
+        nlbits = ECLICINTCTLBITS;
+    }
+
+    uint8_t intctrl = eclic_get_intctrl(source);
+
+    //shift intctrl
+    intctrl = intctrl >> (8 - nlbits);
+    //shift intctrl
+    uint8_t level = intctrl << (8 - nlbits);
+
+    return level;
+}
+
+//sets an interrupt priority based encoding of nlbits and ECLICINTCTLBITS
+uint8_t eclic_set_int_priority(uint32_t source, uint8_t priority) {
+    //extract nlbits
+    uint8_t nlbits = eclic_get_nlbits();
+    if (nlbits >= ECLICINTCTLBITS) {
+        nlbits = ECLICINTCTLBITS;
+        return 0;
+    }
+
+    //shift priority into correct bit position
+    priority = priority << (8 - ECLICINTCTLBITS);
+
+    //write to eclicintctrl
+    uint8_t current_intctrl = eclic_get_intctrl(source);
+    //shift intctrl right to mask off unused bits
+    current_intctrl = current_intctrl >> (8 - nlbits);
+    //shift intctrl into correct bit position
+    current_intctrl = current_intctrl << (8 - nlbits);
+
+    eclic_set_intctrl(source, (current_intctrl | priority));
+
+    return priority;
+}
+
+//gets an interrupt priority based encoding of nlbits
+uint8_t eclic_get_int_priority(uint32_t source) {
+    //extract nlbits
+    uint8_t nlbits = eclic_get_nlbits();
+    if (nlbits > ECLICINTCTLBITS) {
+        nlbits = ECLICINTCTLBITS;
+    }
+
+    uint8_t intctrl = eclic_get_intctrl(source);
+
+    //shift intctrl
+    intctrl = intctrl << nlbits;
+    //shift intctrl
+    uint8_t priority = intctrl >> (nlbits + (8 - ECLICINTCTLBITS));
+
+    return priority;
+}
+
+void eclic_mode_enable() {
+    uint32_t mtvec_value = read_csr(mtvec);
+    mtvec_value = mtvec_value & 0xFFFFFFC0;
+    mtvec_value = mtvec_value | 0x00000003;
+    write_csr(mtvec, mtvec_value);
+}
+
+void eclic_set_shv(uint32_t source, uint8_t shv) {
+    uint8_t attr = eclic_get_intattr(source);
+    if (shv) {
+        attr |= 0x01;
+        eclic_set_intattr(source, attr);
+    }
+}
+
+void eclic_set_trig(uint32_t source, uint8_t trig) {
+    uint8_t attr = eclic_get_intattr(source);
+    if ((trig & 0x1)) {
+        attr |= (trig << 1);
+        eclic_set_intattr(source, attr);
+    }
+}

bsp/gd32vf103v-eval/libraries/n22/drivers/n22_func.h

@@ -0,0 +1,82 @@
+// See LICENSE file for licence details
+
+#ifndef N22_FUNC_H
+#define N22_FUNC_H
+
+
+#include "n22_tmr.h"
+#include "n22_eclic.h"
+
+#define	ECLIC_GROUP_LEVEL0_PRIO4	0
+#define	ECLIC_GROUP_LEVEL1_PRIO3	1
+#define	ECLIC_GROUP_LEVEL2_PRIO2	2
+#define	ECLIC_GROUP_LEVEL3_PRIO1	3
+#define	ECLIC_GROUP_LEVEL4_PRIO0	4
+
+void switch_m2u_mode();
+uint32_t get_tmr_freq();
+uint32_t mtime_lo(void);
+uint32_t mtime_hi(void);
+uint64_t get_timer_value();
+uint64_t get_instret_value();
+uint64_t get_cycle_value();
+
+void eclic_init(uint32_t num_irq);
+
+void eclic_enable_interrupt(uint32_t source);
+void eclic_disable_interrupt(uint32_t source);
+
+void eclic_set_pending(uint32_t source);
+void eclic_clear_pending(uint32_t source);
+
+void eclic_set_intctrl(uint32_t source, uint8_t intctrl);
+uint8_t eclic_get_intctrl(uint32_t source);
+
+void eclic_set_intattr(uint32_t source, uint8_t intattr);
+uint8_t eclic_get_intattr(uint32_t source);
+
+void eclic_set_ecliccfg(uint8_t ecliccfg);
+uint8_t eclic_get_ecliccfg();
+
+void eclic_set_mth(uint8_t mth);
+uint8_t eclic_get_mth();
+
+void eclic_set_nlbits(uint8_t nlbits);
+uint8_t eclic_get_nlbits();
+
+uint8_t eclic_set_int_level(uint32_t source, uint8_t level);
+uint8_t eclic_get_int_level(uint32_t source);
+
+uint8_t eclic_set_int_priority(uint32_t source, uint8_t priority);
+uint8_t eclic_get_int_priority(uint32_t source);
+
+void eclic_mode_enable();
+void eclic_set_shv(uint32_t source, uint8_t shv);
+void eclic_set_trig(uint32_t source, uint8_t trig);
+
+///** \brief  Wait For Interrupt
+//
+//    Wait For Interrupt is a hint instruction that suspends execution
+//    until one of a number of events occurs.
+// */
+__attribute__( ( always_inline ) ) static inline void __WFI(void) {
+	__asm volatile ("wfi");
+}
+//
+//
+/** \brief  Wait For Event
+
+    Wait For Event is a hint instruction that permits the processor to enter
+    a low-power state until one of a number of events occurs.
+ */
+__attribute__( ( always_inline ) ) static inline  void __WFE(void)
+{
+  __asm volatile ("wfi");
+}
+
+void close_timer(void);
+void open_timer(void);
+void enable_timer_interrupt(void);
+void clear_timer_interrupt(void);
+
+#endif

bsp/gd32vf103v-eval/libraries/n22/drivers/n22_tmr.h

@@ -0,0 +1,17 @@
+// See LICENSE file for licence details
+
+#ifndef N22_TMR_H
+#define N22_TMR_H
+
+#define TMR_MSIP 0xFFC
+#define TMR_MSIP_size   0x4
+#define TMR_MTIMECMP 0x8
+#define TMR_MTIMECMP_size 0x8
+#define TMR_MTIME 0x0
+#define TMR_MTIME_size 0x8
+
+#define TMR_CTRL_ADDR           0xd1000000
+#define TMR_REG(offset)         _REG32(TMR_CTRL_ADDR, offset)
+#define TMR_FREQ	            ((uint32_t)SystemCoreClock/4)  //units HZ
+
+#endif

bsp/gd32vf103v-eval/libraries/n22/drivers/riscv_bits.h

@@ -0,0 +1,36 @@
+// See LICENSE for license details.
+#ifndef _RISCV_BITS_H
+#define _RISCV_BITS_H
+
+#define likely(x) __builtin_expect((x), 1)
+#define unlikely(x) __builtin_expect((x), 0)
+
+#define ROUNDUP(a, b) ((((a)-1)/(b)+1)*(b))
+#define ROUNDDOWN(a, b) ((a)/(b)*(b))
+
+#define MAX(a, b) ((a) > (b) ? (a) : (b))
+#define MIN(a, b) ((a) < (b) ? (a) : (b))
+#define CLAMP(a, lo, hi) MIN(MAX(a, lo), hi)
+
+#define EXTRACT_FIELD(val, which) (((val) & (which)) / ((which) & ~((which)-1)))
+#define INSERT_FIELD(val, which, fieldval) (((val) & ~(which)) | ((fieldval) * ((which) & ~((which)-1))))
+
+#define STR(x) XSTR(x)
+#define XSTR(x) #x
+
+#if __riscv_xlen == 64
+# define SLL32    sllw
+# define STORE    sd
+# define LOAD     ld
+# define LWU      lwu
+# define LOG_REGBYTES 3
+#else
+# define SLL32    sll
+# define STORE    sw
+# define LOAD     lw
+# define LWU      lw
+# define LOG_REGBYTES 2
+#endif
+#define REGBYTES (1 << LOG_REGBYTES)
+
+#endif

bsp/gd32vf103v-eval/libraries/n22/drivers/riscv_const.h

@@ -0,0 +1,18 @@
+// See LICENSE for license details.
+/* Derived from <linux/const.h> */
+
+#ifndef _RISCV_CONST_H
+#define _RISCV_CONST_H
+
+#ifdef __ASSEMBLER__
+#define _AC(X,Y)        X
+#define _AT(T,X)        X
+#else
+#define _AC(X,Y)        (X##Y)
+#define _AT(T,X)        ((T)(X))
+#endif /* !__ASSEMBLER__*/
+
+#define _BITUL(x)       (_AC(1,UL) << (x))
+#define _BITULL(x)      (_AC(1,ULL) << (x))
+
+#endif /* _NUCLEI_CONST_H */

bsp/gd32vf103v-eval/libraries/n22/drivers/riscv_encoding.h

@@ -0,0 +1,1342 @@
+// See LICENSE for license details.
+
+#ifndef RISCV_CSR_ENCODING_H
+#define RISCV_CSR_ENCODING_H
+
+#define MSTATUS_UIE         0x00000001
+#define MSTATUS_SIE         0x00000002
+#define MSTATUS_HIE         0x00000004
+#define MSTATUS_MIE         0x00000008
+#define MSTATUS_UPIE        0x00000010
+#define MSTATUS_SPIE        0x00000020
+#define MSTATUS_HPIE        0x00000040
+#define MSTATUS_MPIE        0x00000080
+#define MSTATUS_SPP         0x00000100
+#define MSTATUS_MPP         0x00001800
+#define MSTATUS_FS          0x00006000
+#define MSTATUS_XS          0x00018000
+#define MSTATUS_MPRV        0x00020000
+#define MSTATUS_PUM         0x00040000
+#define MSTATUS_MXR         0x00080000
+#define MSTATUS_VM          0x1F000000
+#define MSTATUS32_SD        0x80000000
+#define MSTATUS64_SD        0x8000000000000000
+
+#define SSTATUS_UIE         0x00000001
+#define SSTATUS_SIE         0x00000002
+#define SSTATUS_UPIE        0x00000010
+#define SSTATUS_SPIE        0x00000020
+#define SSTATUS_SPP         0x00000100
+#define SSTATUS_FS          0x00006000
+#define SSTATUS_XS          0x00018000
+#define SSTATUS_PUM         0x00040000
+#define SSTATUS32_SD        0x80000000
+#define SSTATUS64_SD        0x8000000000000000
+
+#define DCSR_XDEBUGVER      (3U<<30)
+#define DCSR_NDRESET        (1<<29)
+#define DCSR_FULLRESET      (1<<28)
+#define DCSR_EBREAKM        (1<<15)
+#define DCSR_EBREAKH        (1<<14)
+#define DCSR_EBREAKS        (1<<13)
+#define DCSR_EBREAKU        (1<<12)
+#define DCSR_STOPCYCLE      (1<<10)
+#define DCSR_STOPTIME       (1<<9)
+#define DCSR_CAUSE          (7<<6)
+#define DCSR_DEBUGINT       (1<<5)
+#define DCSR_HALT           (1<<3)
+#define DCSR_STEP           (1<<2)
+#define DCSR_PRV            (3<<0)
+
+#define DCSR_CAUSE_NONE     0
+#define DCSR_CAUSE_SWBP     1
+#define DCSR_CAUSE_HWBP     2
+#define DCSR_CAUSE_DEBUGINT 3
+#define DCSR_CAUSE_STEP     4
+#define DCSR_CAUSE_HALT     5
+
+#define MCONTROL_TYPE(xlen)    (0xfULL<<((xlen)-4))
+#define MCONTROL_DMODE(xlen)   (1ULL<<((xlen)-5))
+#define MCONTROL_MASKMAX(xlen) (0x3fULL<<((xlen)-11))
+
+#define MCONTROL_SELECT     (1<<19)
+#define MCONTROL_TIMING     (1<<18)
+#define MCONTROL_ACTION     (0x3f<<12)
+#define MCONTROL_CHAIN      (1<<11)
+#define MCONTROL_MATCH      (0xf<<7)
+#define MCONTROL_M          (1<<6)
+#define MCONTROL_H          (1<<5)
+#define MCONTROL_S          (1<<4)
+#define MCONTROL_U          (1<<3)
+#define MCONTROL_EXECUTE    (1<<2)
+#define MCONTROL_STORE      (1<<1)
+#define MCONTROL_LOAD       (1<<0)
+
+#define MCONTROL_TYPE_NONE      0
+#define MCONTROL_TYPE_MATCH     2
+
+#define MCONTROL_ACTION_DEBUG_EXCEPTION   0
+#define MCONTROL_ACTION_DEBUG_MODE        1
+#define MCONTROL_ACTION_TRACE_START       2
+#define MCONTROL_ACTION_TRACE_STOP        3
+#define MCONTROL_ACTION_TRACE_EMIT        4
+
+#define MCONTROL_MATCH_EQUAL     0
+#define MCONTROL_MATCH_NAPOT     1
+#define MCONTROL_MATCH_GE        2
+#define MCONTROL_MATCH_LT        3
+#define MCONTROL_MATCH_MASK_LOW  4
+#define MCONTROL_MATCH_MASK_HIGH 5
+
+#define MIP_SSIP            (1 << IRQ_S_SOFT)
+#define MIP_HSIP            (1 << IRQ_H_SOFT)
+#define MIP_MSIP            (1 << IRQ_M_SOFT)
+#define MIP_STIP            (1 << IRQ_S_TIMER)
+#define MIP_HTIP            (1 << IRQ_H_TIMER)
+#define MIP_MTIP            (1 << IRQ_M_TIMER)
+#define MIP_SEIP            (1 << IRQ_S_EXT)
+#define MIP_HEIP            (1 << IRQ_H_EXT)
+#define MIP_MEIP            (1 << IRQ_M_EXT)
+
+#define MIE_SSIE            MIP_SSIP
+#define MIE_HSIE            MIP_HSIP
+#define MIE_MSIE            MIP_MSIP
+#define MIE_STIE            MIP_STIP
+#define MIE_HTIE            MIP_HTIP
+#define MIE_MTIE            MIP_MTIP
+#define MIE_SEIE            MIP_SEIP
+#define MIE_HEIE            MIP_HEIP
+#define MIE_MEIE            MIP_MEIP
+
+#define SIP_SSIP MIP_SSIP
+#define SIP_STIP MIP_STIP
+
+#define PRV_U 0
+#define PRV_S 1
+#define PRV_H 2
+#define PRV_M 3
+
+#define VM_MBARE 0
+#define VM_MBB   1
+#define VM_MBBID 2
+#define VM_SV32  8
+#define VM_SV39  9
+#define VM_SV48  10
+
+#define IRQ_S_SOFT   1
+#define IRQ_H_SOFT   2
+#define IRQ_M_SOFT   3
+#define IRQ_S_TIMER  5
+#define IRQ_H_TIMER  6
+#define IRQ_M_TIMER  7
+#define IRQ_S_EXT    9
+#define IRQ_H_EXT    10
+#define IRQ_M_EXT    11
+#define IRQ_COP      12
+#define IRQ_HOST     13
+
+#define DEFAULT_RSTVEC     0x00001000
+#define DEFAULT_NMIVEC     0x00001004
+#define DEFAULT_MTVEC      0x00001010
+#define CONFIG_STRING_ADDR 0x0000100C
+#define EXT_IO_BASE        0x40000000
+#define DRAM_BASE          0x80000000
+
+// page table entry (PTE) fields
+#define PTE_V     0x001 // Valid
+#define PTE_R     0x002 // Read
+#define PTE_W     0x004 // Write
+#define PTE_X     0x008 // Execute
+#define PTE_U     0x010 // User
+#define PTE_G     0x020 // Global
+#define PTE_A     0x040 // Accessed
+#define PTE_D     0x080 // Dirty
+#define PTE_SOFT  0x300 // Reserved for Software
+
+#define PTE_PPN_SHIFT 10
+
+#define PTE_TABLE(PTE) (((PTE) & (PTE_V | PTE_R | PTE_W | PTE_X)) == PTE_V)
+
+#ifdef __riscv
+
+#ifdef __riscv64
+# define MSTATUS_SD MSTATUS64_SD
+# define SSTATUS_SD SSTATUS64_SD
+# define RISCV_PGLEVEL_BITS 9
+#else
+# define MSTATUS_SD MSTATUS32_SD
+# define SSTATUS_SD SSTATUS32_SD
+# define RISCV_PGLEVEL_BITS 10
+#endif
+#define RISCV_PGSHIFT 12
+#define RISCV_PGSIZE (1 << RISCV_PGSHIFT)
+
+#ifndef __ASSEMBLER__
+
+#ifdef __GNUC__
+
+#define read_csr(reg) ({ unsigned long __tmp; \
+  asm volatile ("csrr %0, " #reg : "=r"(__tmp)); \
+  __tmp; })
+
+#define write_csr(reg, val) ({ \
+  if (__builtin_constant_p(val) && (unsigned long)(val) < 32) \
+    asm volatile ("csrw " #reg ", %0" :: "i"(val)); \
+  else \
+    asm volatile ("csrw " #reg ", %0" :: "r"(val)); })
+
+#define swap_csr(reg, val) ({ unsigned long __tmp; \
+  if (__builtin_constant_p(val) && (unsigned long)(val) < 32) \
+    asm volatile ("csrrw %0, " #reg ", %1" : "=r"(__tmp) : "i"(val)); \
+  else \
+    asm volatile ("csrrw %0, " #reg ", %1" : "=r"(__tmp) : "r"(val)); \
+  __tmp; })
+
+#define set_csr(reg, bit) ({ unsigned long __tmp; \
+  if (__builtin_constant_p(bit) && (unsigned long)(bit) < 32) \
+    asm volatile ("csrrs %0, " #reg ", %1" : "=r"(__tmp) : "i"(bit)); \
+  else \
+    asm volatile ("csrrs %0, " #reg ", %1" : "=r"(__tmp) : "r"(bit)); \
+  __tmp; })
+
+#define clear_csr(reg, bit) ({ unsigned long __tmp; \
+  if (__builtin_constant_p(bit) && (unsigned long)(bit) < 32) \
+    asm volatile ("csrrc %0, " #reg ", %1" : "=r"(__tmp) : "i"(bit)); \
+  else \
+    asm volatile ("csrrc %0, " #reg ", %1" : "=r"(__tmp) : "r"(bit)); \
+  __tmp; })
+
+#define rdtime() read_csr(time)
+#define rdcycle() read_csr(cycle)
+#define rdinstret() read_csr(instret)
+
+#endif
+
+#endif
+
+#endif
+
+#endif
+/* Automatically generated by parse-opcodes */
+#ifndef RISCV_ENCODING_H
+#define RISCV_ENCODING_H
+#define MATCH_BEQ 0x63
+#define MASK_BEQ  0x707f
+#define MATCH_BNE 0x1063
+#define MASK_BNE  0x707f
+#define MATCH_BLT 0x4063
+#define MASK_BLT  0x707f
+#define MATCH_BGE 0x5063
+#define MASK_BGE  0x707f
+#define MATCH_BLTU 0x6063
+#define MASK_BLTU  0x707f
+#define MATCH_BGEU 0x7063
+#define MASK_BGEU  0x707f
+#define MATCH_JALR 0x67
+#define MASK_JALR  0x707f
+#define MATCH_JAL 0x6f
+#define MASK_JAL  0x7f
+#define MATCH_LUI 0x37
+#define MASK_LUI  0x7f
+#define MATCH_AUIPC 0x17
+#define MASK_AUIPC  0x7f
+#define MATCH_ADDI 0x13
+#define MASK_ADDI  0x707f
+#define MATCH_SLLI 0x1013
+#define MASK_SLLI  0xfc00707f
+#define MATCH_SLTI 0x2013
+#define MASK_SLTI  0x707f
+#define MATCH_SLTIU 0x3013
+#define MASK_SLTIU  0x707f
+#define MATCH_XORI 0x4013
+#define MASK_XORI  0x707f
+#define MATCH_SRLI 0x5013
+#define MASK_SRLI  0xfc00707f
+#define MATCH_SRAI 0x40005013
+#define MASK_SRAI  0xfc00707f
+#define MATCH_ORI 0x6013
+#define MASK_ORI  0x707f
+#define MATCH_ANDI 0x7013
+#define MASK_ANDI  0x707f
+#define MATCH_ADD 0x33
+#define MASK_ADD  0xfe00707f
+#define MATCH_SUB 0x40000033
+#define MASK_SUB  0xfe00707f
+#define MATCH_SLL 0x1033
+#define MASK_SLL  0xfe00707f
+#define MATCH_SLT 0x2033
+#define MASK_SLT  0xfe00707f
+#define MATCH_SLTU 0x3033
+#define MASK_SLTU  0xfe00707f
+#define MATCH_XOR 0x4033
+#define MASK_XOR  0xfe00707f
+#define MATCH_SRL 0x5033
+#define MASK_SRL  0xfe00707f
+#define MATCH_SRA 0x40005033
+#define MASK_SRA  0xfe00707f
+#define MATCH_OR 0x6033
+#define MASK_OR  0xfe00707f
+#define MATCH_AND 0x7033
+#define MASK_AND  0xfe00707f
+#define MATCH_ADDIW 0x1b
+#define MASK_ADDIW  0x707f
+#define MATCH_SLLIW 0x101b
+#define MASK_SLLIW  0xfe00707f
+#define MATCH_SRLIW 0x501b
+#define MASK_SRLIW  0xfe00707f
+#define MATCH_SRAIW 0x4000501b
+#define MASK_SRAIW  0xfe00707f
+#define MATCH_ADDW 0x3b
+#define MASK_ADDW  0xfe00707f
+#define MATCH_SUBW 0x4000003b
+#define MASK_SUBW  0xfe00707f
+#define MATCH_SLLW 0x103b
+#define MASK_SLLW  0xfe00707f
+#define MATCH_SRLW 0x503b
+#define MASK_SRLW  0xfe00707f
+#define MATCH_SRAW 0x4000503b
+#define MASK_SRAW  0xfe00707f
+#define MATCH_LB 0x3
+#define MASK_LB  0x707f
+#define MATCH_LH 0x1003
+#define MASK_LH  0x707f
+#define MATCH_LW 0x2003
+#define MASK_LW  0x707f
+#define MATCH_LD 0x3003
+#define MASK_LD  0x707f
+#define MATCH_LBU 0x4003
+#define MASK_LBU  0x707f
+#define MATCH_LHU 0x5003
+#define MASK_LHU  0x707f
+#define MATCH_LWU 0x6003
+#define MASK_LWU  0x707f
+#define MATCH_SB 0x23
+#define MASK_SB  0x707f
+#define MATCH_SH 0x1023
+#define MASK_SH  0x707f
+#define MATCH_SW 0x2023
+#define MASK_SW  0x707f
+#define MATCH_SD 0x3023
+#define MASK_SD  0x707f
+#define MATCH_FENCE 0xf
+#define MASK_FENCE  0x707f
+#define MATCH_FENCE_I 0x100f
+#define MASK_FENCE_I  0x707f
+#define MATCH_MUL 0x2000033
+#define MASK_MUL  0xfe00707f
+#define MATCH_MULH 0x2001033
+#define MASK_MULH  0xfe00707f
+#define MATCH_MULHSU 0x2002033
+#define MASK_MULHSU  0xfe00707f
+#define MATCH_MULHU 0x2003033
+#define MASK_MULHU  0xfe00707f
+#define MATCH_DIV 0x2004033
+#define MASK_DIV  0xfe00707f
+#define MATCH_DIVU 0x2005033
+#define MASK_DIVU  0xfe00707f
+#define MATCH_REM 0x2006033
+#define MASK_REM  0xfe00707f
+#define MATCH_REMU 0x2007033
+#define MASK_REMU  0xfe00707f
+#define MATCH_MULW 0x200003b
+#define MASK_MULW  0xfe00707f
+#define MATCH_DIVW 0x200403b
+#define MASK_DIVW  0xfe00707f
+#define MATCH_DIVUW 0x200503b
+#define MASK_DIVUW  0xfe00707f
+#define MATCH_REMW 0x200603b
+#define MASK_REMW  0xfe00707f
+#define MATCH_REMUW 0x200703b
+#define MASK_REMUW  0xfe00707f
+#define MATCH_AMOADD_W 0x202f
+#define MASK_AMOADD_W  0xf800707f
+#define MATCH_AMOXOR_W 0x2000202f
+#define MASK_AMOXOR_W  0xf800707f
+#define MATCH_AMOOR_W 0x4000202f
+#define MASK_AMOOR_W  0xf800707f
+#define MATCH_AMOAND_W 0x6000202f
+#define MASK_AMOAND_W  0xf800707f
+#define MATCH_AMOMIN_W 0x8000202f
+#define MASK_AMOMIN_W  0xf800707f
+#define MATCH_AMOMAX_W 0xa000202f
+#define MASK_AMOMAX_W  0xf800707f
+#define MATCH_AMOMINU_W 0xc000202f
+#define MASK_AMOMINU_W  0xf800707f
+#define MATCH_AMOMAXU_W 0xe000202f
+#define MASK_AMOMAXU_W  0xf800707f
+#define MATCH_AMOSWAP_W 0x800202f
+#define MASK_AMOSWAP_W  0xf800707f
+#define MATCH_LR_W 0x1000202f
+#define MASK_LR_W  0xf9f0707f
+#define MATCH_SC_W 0x1800202f
+#define MASK_SC_W  0xf800707f
+#define MATCH_AMOADD_D 0x302f
+#define MASK_AMOADD_D  0xf800707f
+#define MATCH_AMOXOR_D 0x2000302f
+#define MASK_AMOXOR_D  0xf800707f
+#define MATCH_AMOOR_D 0x4000302f
+#define MASK_AMOOR_D  0xf800707f
+#define MATCH_AMOAND_D 0x6000302f
+#define MASK_AMOAND_D  0xf800707f
+#define MATCH_AMOMIN_D 0x8000302f
+#define MASK_AMOMIN_D  0xf800707f
+#define MATCH_AMOMAX_D 0xa000302f
+#define MASK_AMOMAX_D  0xf800707f
+#define MATCH_AMOMINU_D 0xc000302f
+#define MASK_AMOMINU_D  0xf800707f
+#define MATCH_AMOMAXU_D 0xe000302f
+#define MASK_AMOMAXU_D  0xf800707f
+#define MATCH_AMOSWAP_D 0x800302f
+#define MASK_AMOSWAP_D  0xf800707f
+#define MATCH_LR_D 0x1000302f
+#define MASK_LR_D  0xf9f0707f
+#define MATCH_SC_D 0x1800302f
+#define MASK_SC_D  0xf800707f
+#define MATCH_ECALL 0x73
+#define MASK_ECALL  0xffffffff
+#define MATCH_EBREAK 0x100073
+#define MASK_EBREAK  0xffffffff
+#define MATCH_URET 0x200073
+#define MASK_URET  0xffffffff
+#define MATCH_SRET 0x10200073
+#define MASK_SRET  0xffffffff
+#define MATCH_HRET 0x20200073
+#define MASK_HRET  0xffffffff
+#define MATCH_MRET 0x30200073
+#define MASK_MRET  0xffffffff
+#define MATCH_DRET 0x7b200073
+#define MASK_DRET  0xffffffff
+#define MATCH_SFENCE_VM 0x10400073
+#define MASK_SFENCE_VM  0xfff07fff
+#define MATCH_WFI 0x10500073
+#define MASK_WFI  0xffffffff
+#define MATCH_CSRRW 0x1073
+#define MASK_CSRRW  0x707f
+#define MATCH_CSRRS 0x2073
+#define MASK_CSRRS  0x707f
+#define MATCH_CSRRC 0x3073
+#define MASK_CSRRC  0x707f
+#define MATCH_CSRRWI 0x5073
+#define MASK_CSRRWI  0x707f
+#define MATCH_CSRRSI 0x6073
+#define MASK_CSRRSI  0x707f
+#define MATCH_CSRRCI 0x7073
+#define MASK_CSRRCI  0x707f
+#define MATCH_FADD_S 0x53
+#define MASK_FADD_S  0xfe00007f
+#define MATCH_FSUB_S 0x8000053
+#define MASK_FSUB_S  0xfe00007f
+#define MATCH_FMUL_S 0x10000053
+#define MASK_FMUL_S  0xfe00007f
+#define MATCH_FDIV_S 0x18000053
+#define MASK_FDIV_S  0xfe00007f
+#define MATCH_FSGNJ_S 0x20000053
+#define MASK_FSGNJ_S  0xfe00707f
+#define MATCH_FSGNJN_S 0x20001053
+#define MASK_FSGNJN_S  0xfe00707f
+#define MATCH_FSGNJX_S 0x20002053
+#define MASK_FSGNJX_S  0xfe00707f
+#define MATCH_FMIN_S 0x28000053
+#define MASK_FMIN_S  0xfe00707f
+#define MATCH_FMAX_S 0x28001053
+#define MASK_FMAX_S  0xfe00707f
+#define MATCH_FSQRT_S 0x58000053
+#define MASK_FSQRT_S  0xfff0007f
+#define MATCH_FADD_D 0x2000053
+#define MASK_FADD_D  0xfe00007f
+#define MATCH_FSUB_D 0xa000053
+#define MASK_FSUB_D  0xfe00007f
+#define MATCH_FMUL_D 0x12000053
+#define MASK_FMUL_D  0xfe00007f
+#define MATCH_FDIV_D 0x1a000053
+#define MASK_FDIV_D  0xfe00007f
+#define MATCH_FSGNJ_D 0x22000053
+#define MASK_FSGNJ_D  0xfe00707f
+#define MATCH_FSGNJN_D 0x22001053
+#define MASK_FSGNJN_D  0xfe00707f
+#define MATCH_FSGNJX_D 0x22002053
+#define MASK_FSGNJX_D  0xfe00707f
+#define MATCH_FMIN_D 0x2a000053
+#define MASK_FMIN_D  0xfe00707f
+#define MATCH_FMAX_D 0x2a001053
+#define MASK_FMAX_D  0xfe00707f
+#define MATCH_FCVT_S_D 0x40100053
+#define MASK_FCVT_S_D  0xfff0007f
+#define MATCH_FCVT_D_S 0x42000053
+#define MASK_FCVT_D_S  0xfff0007f
+#define MATCH_FSQRT_D 0x5a000053
+#define MASK_FSQRT_D  0xfff0007f
+#define MATCH_FLE_S 0xa0000053
+#define MASK_FLE_S  0xfe00707f
+#define MATCH_FLT_S 0xa0001053
+#define MASK_FLT_S  0xfe00707f
+#define MATCH_FEQ_S 0xa0002053
+#define MASK_FEQ_S  0xfe00707f
+#define MATCH_FLE_D 0xa2000053
+#define MASK_FLE_D  0xfe00707f
+#define MATCH_FLT_D 0xa2001053
+#define MASK_FLT_D  0xfe00707f
+#define MATCH_FEQ_D 0xa2002053
+#define MASK_FEQ_D  0xfe00707f
+#define MATCH_FCVT_W_S 0xc0000053
+#define MASK_FCVT_W_S  0xfff0007f
+#define MATCH_FCVT_WU_S 0xc0100053
+#define MASK_FCVT_WU_S  0xfff0007f
+#define MATCH_FCVT_L_S 0xc0200053
+#define MASK_FCVT_L_S  0xfff0007f
+#define MATCH_FCVT_LU_S 0xc0300053
+#define MASK_FCVT_LU_S  0xfff0007f
+#define MATCH_FMV_X_S 0xe0000053
+#define MASK_FMV_X_S  0xfff0707f
+#define MATCH_FCLASS_S 0xe0001053
+#define MASK_FCLASS_S  0xfff0707f
+#define MATCH_FCVT_W_D 0xc2000053
+#define MASK_FCVT_W_D  0xfff0007f
+#define MATCH_FCVT_WU_D 0xc2100053
+#define MASK_FCVT_WU_D  0xfff0007f
+#define MATCH_FCVT_L_D 0xc2200053
+#define MASK_FCVT_L_D  0xfff0007f
+#define MATCH_FCVT_LU_D 0xc2300053
+#define MASK_FCVT_LU_D  0xfff0007f
+#define MATCH_FMV_X_D 0xe2000053
+#define MASK_FMV_X_D  0xfff0707f
+#define MATCH_FCLASS_D 0xe2001053
+#define MASK_FCLASS_D  0xfff0707f
+#define MATCH_FCVT_S_W 0xd0000053
+#define MASK_FCVT_S_W  0xfff0007f
+#define MATCH_FCVT_S_WU 0xd0100053
+#define MASK_FCVT_S_WU  0xfff0007f
+#define MATCH_FCVT_S_L 0xd0200053
+#define MASK_FCVT_S_L  0xfff0007f
+#define MATCH_FCVT_S_LU 0xd0300053
+#define MASK_FCVT_S_LU  0xfff0007f
+#define MATCH_FMV_S_X 0xf0000053
+#define MASK_FMV_S_X  0xfff0707f
+#define MATCH_FCVT_D_W 0xd2000053
+#define MASK_FCVT_D_W  0xfff0007f
+#define MATCH_FCVT_D_WU 0xd2100053
+#define MASK_FCVT_D_WU  0xfff0007f
+#define MATCH_FCVT_D_L 0xd2200053
+#define MASK_FCVT_D_L  0xfff0007f
+#define MATCH_FCVT_D_LU 0xd2300053
+#define MASK_FCVT_D_LU  0xfff0007f
+#define MATCH_FMV_D_X 0xf2000053
+#define MASK_FMV_D_X  0xfff0707f
+#define MATCH_FLW 0x2007
+#define MASK_FLW  0x707f
+#define MATCH_FLD 0x3007
+#define MASK_FLD  0x707f
+#define MATCH_FSW 0x2027
+#define MASK_FSW  0x707f
+#define MATCH_FSD 0x3027
+#define MASK_FSD  0x707f
+#define MATCH_FMADD_S 0x43
+#define MASK_FMADD_S  0x600007f
+#define MATCH_FMSUB_S 0x47
+#define MASK_FMSUB_S  0x600007f
+#define MATCH_FNMSUB_S 0x4b
+#define MASK_FNMSUB_S  0x600007f
+#define MATCH_FNMADD_S 0x4f
+#define MASK_FNMADD_S  0x600007f
+#define MATCH_FMADD_D 0x2000043
+#define MASK_FMADD_D  0x600007f
+#define MATCH_FMSUB_D 0x2000047
+#define MASK_FMSUB_D  0x600007f
+#define MATCH_FNMSUB_D 0x200004b
+#define MASK_FNMSUB_D  0x600007f
+#define MATCH_FNMADD_D 0x200004f
+#define MASK_FNMADD_D  0x600007f
+#define MATCH_C_NOP 0x1
+#define MASK_C_NOP  0xffff
+#define MATCH_C_ADDI16SP 0x6101
+#define MASK_C_ADDI16SP  0xef83
+#define MATCH_C_JR 0x8002
+#define MASK_C_JR  0xf07f
+#define MATCH_C_JALR 0x9002
+#define MASK_C_JALR  0xf07f
+#define MATCH_C_EBREAK 0x9002
+#define MASK_C_EBREAK  0xffff
+#define MATCH_C_LD 0x6000
+#define MASK_C_LD  0xe003
+#define MATCH_C_SD 0xe000
+#define MASK_C_SD  0xe003
+#define MATCH_C_ADDIW 0x2001
+#define MASK_C_ADDIW  0xe003
+#define MATCH_C_LDSP 0x6002
+#define MASK_C_LDSP  0xe003
+#define MATCH_C_SDSP 0xe002
+#define MASK_C_SDSP  0xe003
+#define MATCH_C_ADDI4SPN 0x0
+#define MASK_C_ADDI4SPN  0xe003
+#define MATCH_C_FLD 0x2000
+#define MASK_C_FLD  0xe003
+#define MATCH_C_LW 0x4000
+#define MASK_C_LW  0xe003
+#define MATCH_C_FLW 0x6000
+#define MASK_C_FLW  0xe003
+#define MATCH_C_FSD 0xa000
+#define MASK_C_FSD  0xe003
+#define MATCH_C_SW 0xc000
+#define MASK_C_SW  0xe003
+#define MATCH_C_FSW 0xe000
+#define MASK_C_FSW  0xe003
+#define MATCH_C_ADDI 0x1
+#define MASK_C_ADDI  0xe003
+#define MATCH_C_JAL 0x2001
+#define MASK_C_JAL  0xe003
+#define MATCH_C_LI 0x4001
+#define MASK_C_LI  0xe003
+#define MATCH_C_LUI 0x6001
+#define MASK_C_LUI  0xe003
+#define MATCH_C_SRLI 0x8001
+#define MASK_C_SRLI  0xec03
+#define MATCH_C_SRAI 0x8401
+#define MASK_C_SRAI  0xec03
+#define MATCH_C_ANDI 0x8801
+#define MASK_C_ANDI  0xec03
+#define MATCH_C_SUB 0x8c01
+#define MASK_C_SUB  0xfc63
+#define MATCH_C_XOR 0x8c21
+#define MASK_C_XOR  0xfc63
+#define MATCH_C_OR 0x8c41
+#define MASK_C_OR  0xfc63
+#define MATCH_C_AND 0x8c61
+#define MASK_C_AND  0xfc63
+#define MATCH_C_SUBW 0x9c01
+#define MASK_C_SUBW  0xfc63
+#define MATCH_C_ADDW 0x9c21
+#define MASK_C_ADDW  0xfc63
+#define MATCH_C_J 0xa001
+#define MASK_C_J  0xe003
+#define MATCH_C_BEQZ 0xc001
+#define MASK_C_BEQZ  0xe003
+#define MATCH_C_BNEZ 0xe001
+#define MASK_C_BNEZ  0xe003
+#define MATCH_C_SLLI 0x2
+#define MASK_C_SLLI  0xe003
+#define MATCH_C_FLDSP 0x2002
+#define MASK_C_FLDSP  0xe003
+#define MATCH_C_LWSP 0x4002
+#define MASK_C_LWSP  0xe003
+#define MATCH_C_FLWSP 0x6002
+#define MASK_C_FLWSP  0xe003
+#define MATCH_C_MV 0x8002
+#define MASK_C_MV  0xf003
+#define MATCH_C_ADD 0x9002
+#define MASK_C_ADD  0xf003
+#define MATCH_C_FSDSP 0xa002
+#define MASK_C_FSDSP  0xe003
+#define MATCH_C_SWSP 0xc002
+#define MASK_C_SWSP  0xe003
+#define MATCH_C_FSWSP 0xe002
+#define MASK_C_FSWSP  0xe003
+#define MATCH_CUSTOM0 0xb
+#define MASK_CUSTOM0  0x707f
+#define MATCH_CUSTOM0_RS1 0x200b
+#define MASK_CUSTOM0_RS1  0x707f
+#define MATCH_CUSTOM0_RS1_RS2 0x300b
+#define MASK_CUSTOM0_RS1_RS2  0x707f
+#define MATCH_CUSTOM0_RD 0x400b
+#define MASK_CUSTOM0_RD  0x707f
+#define MATCH_CUSTOM0_RD_RS1 0x600b
+#define MASK_CUSTOM0_RD_RS1  0x707f
+#define MATCH_CUSTOM0_RD_RS1_RS2 0x700b
+#define MASK_CUSTOM0_RD_RS1_RS2  0x707f
+#define MATCH_CUSTOM1 0x2b
+#define MASK_CUSTOM1  0x707f
+#define MATCH_CUSTOM1_RS1 0x202b
+#define MASK_CUSTOM1_RS1  0x707f
+#define MATCH_CUSTOM1_RS1_RS2 0x302b
+#define MASK_CUSTOM1_RS1_RS2  0x707f
+#define MATCH_CUSTOM1_RD 0x402b
+#define MASK_CUSTOM1_RD  0x707f
+#define MATCH_CUSTOM1_RD_RS1 0x602b
+#define MASK_CUSTOM1_RD_RS1  0x707f
+#define MATCH_CUSTOM1_RD_RS1_RS2 0x702b
+#define MASK_CUSTOM1_RD_RS1_RS2  0x707f
+#define MATCH_CUSTOM2 0x5b
+#define MASK_CUSTOM2  0x707f
+#define MATCH_CUSTOM2_RS1 0x205b
+#define MASK_CUSTOM2_RS1  0x707f
+#define MATCH_CUSTOM2_RS1_RS2 0x305b
+#define MASK_CUSTOM2_RS1_RS2  0x707f
+#define MATCH_CUSTOM2_RD 0x405b
+#define MASK_CUSTOM2_RD  0x707f
+#define MATCH_CUSTOM2_RD_RS1 0x605b
+#define MASK_CUSTOM2_RD_RS1  0x707f
+#define MATCH_CUSTOM2_RD_RS1_RS2 0x705b
+#define MASK_CUSTOM2_RD_RS1_RS2  0x707f
+#define MATCH_CUSTOM3 0x7b
+#define MASK_CUSTOM3  0x707f
+#define MATCH_CUSTOM3_RS1 0x207b
+#define MASK_CUSTOM3_RS1  0x707f
+#define MATCH_CUSTOM3_RS1_RS2 0x307b
+#define MASK_CUSTOM3_RS1_RS2  0x707f
+#define MATCH_CUSTOM3_RD 0x407b
+#define MASK_CUSTOM3_RD  0x707f
+#define MATCH_CUSTOM3_RD_RS1 0x607b
+#define MASK_CUSTOM3_RD_RS1  0x707f
+#define MATCH_CUSTOM3_RD_RS1_RS2 0x707b
+#define MASK_CUSTOM3_RD_RS1_RS2  0x707f
+#define CSR_FFLAGS 0x1
+#define CSR_FRM 0x2
+#define CSR_FCSR 0x3
+#define CSR_CYCLE 0xc00
+#define CSR_TIME 0xc01
+#define CSR_INSTRET 0xc02
+#define CSR_HPMCOUNTER3 0xc03
+#define CSR_HPMCOUNTER4 0xc04
+#define CSR_HPMCOUNTER5 0xc05
+#define CSR_HPMCOUNTER6 0xc06
+#define CSR_HPMCOUNTER7 0xc07
+#define CSR_HPMCOUNTER8 0xc08
+#define CSR_HPMCOUNTER9 0xc09
+#define CSR_HPMCOUNTER10 0xc0a
+#define CSR_HPMCOUNTER11 0xc0b
+#define CSR_HPMCOUNTER12 0xc0c
+#define CSR_HPMCOUNTER13 0xc0d
+#define CSR_HPMCOUNTER14 0xc0e
+#define CSR_HPMCOUNTER15 0xc0f
+#define CSR_HPMCOUNTER16 0xc10
+#define CSR_HPMCOUNTER17 0xc11
+#define CSR_HPMCOUNTER18 0xc12
+#define CSR_HPMCOUNTER19 0xc13
+#define CSR_HPMCOUNTER20 0xc14
+#define CSR_HPMCOUNTER21 0xc15
+#define CSR_HPMCOUNTER22 0xc16
+#define CSR_HPMCOUNTER23 0xc17
+#define CSR_HPMCOUNTER24 0xc18
+#define CSR_HPMCOUNTER25 0xc19
+#define CSR_HPMCOUNTER26 0xc1a
+#define CSR_HPMCOUNTER27 0xc1b
+#define CSR_HPMCOUNTER28 0xc1c
+#define CSR_HPMCOUNTER29 0xc1d
+#define CSR_HPMCOUNTER30 0xc1e
+#define CSR_HPMCOUNTER31 0xc1f
+#define CSR_SSTATUS 0x100
+#define CSR_SIE 0x104
+#define CSR_STVEC 0x105
+#define CSR_SSCRATCH 0x140
+#define CSR_SEPC 0x141
+#define CSR_SCAUSE 0x142
+#define CSR_SBADADDR 0x143
+#define CSR_SIP 0x144
+#define CSR_SPTBR 0x180
+#define CSR_MSTATUS 0x300
+#define CSR_MISA 0x301
+#define CSR_MEDELEG 0x302
+#define CSR_MIDELEG 0x303
+#define CSR_MIE 0x304
+#define CSR_MTVEC 0x305
+#define CSR_MCOUNTEREN 0x306
+#define CSR_MSCRATCH 0x340
+#define CSR_MEPC 0x341
+#define CSR_MCAUSE 0x342
+#define CSR_MBADADDR 0x343
+#define CSR_MIP 0x344
+#define CSR_TSELECT 0x7a0
+#define CSR_TDATA1 0x7a1
+#define CSR_TDATA2 0x7a2
+#define CSR_TDATA3 0x7a3
+#define CSR_DCSR 0x7b0
+#define CSR_DPC 0x7b1
+#define CSR_DSCRATCH 0x7b2
+#define CSR_MCYCLE 0xb00
+#define CSR_MINSTRET 0xb02
+#define CSR_MHPMCOUNTER3 0xb03
+#define CSR_MHPMCOUNTER4 0xb04
+#define CSR_MHPMCOUNTER5 0xb05
+#define CSR_MHPMCOUNTER6 0xb06
+#define CSR_MHPMCOUNTER7 0xb07
+#define CSR_MHPMCOUNTER8 0xb08
+#define CSR_MHPMCOUNTER9 0xb09
+#define CSR_MHPMCOUNTER10 0xb0a
+#define CSR_MHPMCOUNTER11 0xb0b
+#define CSR_MHPMCOUNTER12 0xb0c
+#define CSR_MHPMCOUNTER13 0xb0d
+#define CSR_MHPMCOUNTER14 0xb0e
+#define CSR_MHPMCOUNTER15 0xb0f
+#define CSR_MHPMCOUNTER16 0xb10
+#define CSR_MHPMCOUNTER17 0xb11
+#define CSR_MHPMCOUNTER18 0xb12
+#define CSR_MHPMCOUNTER19 0xb13
+#define CSR_MHPMCOUNTER20 0xb14
+#define CSR_MHPMCOUNTER21 0xb15
+#define CSR_MHPMCOUNTER22 0xb16
+#define CSR_MHPMCOUNTER23 0xb17
+#define CSR_MHPMCOUNTER24 0xb18
+#define CSR_MHPMCOUNTER25 0xb19
+#define CSR_MHPMCOUNTER26 0xb1a
+#define CSR_MHPMCOUNTER27 0xb1b
+#define CSR_MHPMCOUNTER28 0xb1c
+#define CSR_MHPMCOUNTER29 0xb1d
+#define CSR_MHPMCOUNTER30 0xb1e
+#define CSR_MHPMCOUNTER31 0xb1f
+#define CSR_MUCOUNTEREN 0x320
+#define CSR_MSCOUNTEREN 0x321
+#define CSR_MHPMEVENT3 0x323
+#define CSR_MHPMEVENT4 0x324
+#define CSR_MHPMEVENT5 0x325
+#define CSR_MHPMEVENT6 0x326
+#define CSR_MHPMEVENT7 0x327
+#define CSR_MHPMEVENT8 0x328
+#define CSR_MHPMEVENT9 0x329
+#define CSR_MHPMEVENT10 0x32a
+#define CSR_MHPMEVENT11 0x32b
+#define CSR_MHPMEVENT12 0x32c
+#define CSR_MHPMEVENT13 0x32d
+#define CSR_MHPMEVENT14 0x32e
+#define CSR_MHPMEVENT15 0x32f
+#define CSR_MHPMEVENT16 0x330
+#define CSR_MHPMEVENT17 0x331
+#define CSR_MHPMEVENT18 0x332
+#define CSR_MHPMEVENT19 0x333
+#define CSR_MHPMEVENT20 0x334
+#define CSR_MHPMEVENT21 0x335
+#define CSR_MHPMEVENT22 0x336
+#define CSR_MHPMEVENT23 0x337
+#define CSR_MHPMEVENT24 0x338
+#define CSR_MHPMEVENT25 0x339
+#define CSR_MHPMEVENT26 0x33a
+#define CSR_MHPMEVENT27 0x33b
+#define CSR_MHPMEVENT28 0x33c
+#define CSR_MHPMEVENT29 0x33d
+#define CSR_MHPMEVENT30 0x33e
+#define CSR_MHPMEVENT31 0x33f
+#define CSR_MVENDORID 0xf11
+#define CSR_MARCHID 0xf12
+#define CSR_MIMPID 0xf13
+#define CSR_MHARTID 0xf14
+#define CSR_CYCLEH 0xc80
+#define CSR_TIMEH 0xc81
+#define CSR_INSTRETH 0xc82
+#define CSR_HPMCOUNTER3H 0xc83
+#define CSR_HPMCOUNTER4H 0xc84
+#define CSR_HPMCOUNTER5H 0xc85
+#define CSR_HPMCOUNTER6H 0xc86
+#define CSR_HPMCOUNTER7H 0xc87
+#define CSR_HPMCOUNTER8H 0xc88
+#define CSR_HPMCOUNTER9H 0xc89
+#define CSR_HPMCOUNTER10H 0xc8a
+#define CSR_HPMCOUNTER11H 0xc8b
+#define CSR_HPMCOUNTER12H 0xc8c
+#define CSR_HPMCOUNTER13H 0xc8d
+#define CSR_HPMCOUNTER14H 0xc8e
+#define CSR_HPMCOUNTER15H 0xc8f
+#define CSR_HPMCOUNTER16H 0xc90
+#define CSR_HPMCOUNTER17H 0xc91
+#define CSR_HPMCOUNTER18H 0xc92
+#define CSR_HPMCOUNTER19H 0xc93
+#define CSR_HPMCOUNTER20H 0xc94
+#define CSR_HPMCOUNTER21H 0xc95
+#define CSR_HPMCOUNTER22H 0xc96
+#define CSR_HPMCOUNTER23H 0xc97
+#define CSR_HPMCOUNTER24H 0xc98
+#define CSR_HPMCOUNTER25H 0xc99
+#define CSR_HPMCOUNTER26H 0xc9a
+#define CSR_HPMCOUNTER27H 0xc9b
+#define CSR_HPMCOUNTER28H 0xc9c
+#define CSR_HPMCOUNTER29H 0xc9d
+#define CSR_HPMCOUNTER30H 0xc9e
+#define CSR_HPMCOUNTER31H 0xc9f
+#define CSR_MCYCLEH 0xb80
+#define CSR_MINSTRETH 0xb82
+#define CSR_MHPMCOUNTER3H 0xb83
+#define CSR_MHPMCOUNTER4H 0xb84
+#define CSR_MHPMCOUNTER5H 0xb85
+#define CSR_MHPMCOUNTER6H 0xb86
+#define CSR_MHPMCOUNTER7H 0xb87
+#define CSR_MHPMCOUNTER8H 0xb88
+#define CSR_MHPMCOUNTER9H 0xb89
+#define CSR_MHPMCOUNTER10H 0xb8a
+#define CSR_MHPMCOUNTER11H 0xb8b
+#define CSR_MHPMCOUNTER12H 0xb8c
+#define CSR_MHPMCOUNTER13H 0xb8d
+#define CSR_MHPMCOUNTER14H 0xb8e
+#define CSR_MHPMCOUNTER15H 0xb8f
+#define CSR_MHPMCOUNTER16H 0xb90
+#define CSR_MHPMCOUNTER17H 0xb91
+#define CSR_MHPMCOUNTER18H 0xb92
+#define CSR_MHPMCOUNTER19H 0xb93
+#define CSR_MHPMCOUNTER20H 0xb94
+#define CSR_MHPMCOUNTER21H 0xb95
+#define CSR_MHPMCOUNTER22H 0xb96
+#define CSR_MHPMCOUNTER23H 0xb97
+#define CSR_MHPMCOUNTER24H 0xb98
+#define CSR_MHPMCOUNTER25H 0xb99
+#define CSR_MHPMCOUNTER26H 0xb9a
+#define CSR_MHPMCOUNTER27H 0xb9b
+#define CSR_MHPMCOUNTER28H 0xb9c
+#define CSR_MHPMCOUNTER29H 0xb9d
+#define CSR_MHPMCOUNTER30H 0xb9e
+#define CSR_MHPMCOUNTER31H 0xb9f
+
+#define CSR_MTVT               0x307
+#define CSR_MNXTI              0x345
+
+#define CSR_MNVEC              0x7C3
+
+#define CSR_MIRQ_ENTRY           0x7EC
+#define CSR_MINTSEL_JAL          0x7ED
+#define CSR_PUSHMCAUSE           0x7EE
+#define CSR_PUSHMEPC             0x7EF
+#define CSR_PUSHMXSTATUS         0x7EB
+#define CSR_WFE            0x810
+#define CSR_SLEEPVALUE     0x811
+#define CSR_TXEVT          0x812
+
+#define CSR_MMISC_CTL      0x7d0
+#define CSR_MXSTATUS       0x7c4
+
+
+#define CAUSE_MISALIGNED_FETCH 0x0
+#define CAUSE_FAULT_FETCH 0x1
+#define CAUSE_ILLEGAL_INSTRUCTION 0x2
+#define CAUSE_BREAKPOINT 0x3
+#define CAUSE_MISALIGNED_LOAD 0x4
+#define CAUSE_FAULT_LOAD 0x5
+#define CAUSE_MISALIGNED_STORE 0x6
+#define CAUSE_FAULT_STORE 0x7
+#define CAUSE_USER_ECALL 0x8
+#define CAUSE_SUPERVISOR_ECALL 0x9
+#define CAUSE_HYPERVISOR_ECALL 0xa
+#define CAUSE_MACHINE_ECALL 0xb
+#endif
+#ifdef DECLARE_INSN
+DECLARE_INSN(beq, MATCH_BEQ, MASK_BEQ)
+DECLARE_INSN(bne, MATCH_BNE, MASK_BNE)
+DECLARE_INSN(blt, MATCH_BLT, MASK_BLT)
+DECLARE_INSN(bge, MATCH_BGE, MASK_BGE)
+DECLARE_INSN(bltu, MATCH_BLTU, MASK_BLTU)
+DECLARE_INSN(bgeu, MATCH_BGEU, MASK_BGEU)
+DECLARE_INSN(jalr, MATCH_JALR, MASK_JALR)
+DECLARE_INSN(jal, MATCH_JAL, MASK_JAL)
+DECLARE_INSN(lui, MATCH_LUI, MASK_LUI)
+DECLARE_INSN(auipc, MATCH_AUIPC, MASK_AUIPC)
+DECLARE_INSN(addi, MATCH_ADDI, MASK_ADDI)
+DECLARE_INSN(slli, MATCH_SLLI, MASK_SLLI)
+DECLARE_INSN(slti, MATCH_SLTI, MASK_SLTI)
+DECLARE_INSN(sltiu, MATCH_SLTIU, MASK_SLTIU)
+DECLARE_INSN(xori, MATCH_XORI, MASK_XORI)
+DECLARE_INSN(srli, MATCH_SRLI, MASK_SRLI)
+DECLARE_INSN(srai, MATCH_SRAI, MASK_SRAI)
+DECLARE_INSN(ori, MATCH_ORI, MASK_ORI)
+DECLARE_INSN(andi, MATCH_ANDI, MASK_ANDI)
+DECLARE_INSN(add, MATCH_ADD, MASK_ADD)
+DECLARE_INSN(sub, MATCH_SUB, MASK_SUB)
+DECLARE_INSN(sll, MATCH_SLL, MASK_SLL)
+DECLARE_INSN(slt, MATCH_SLT, MASK_SLT)
+DECLARE_INSN(sltu, MATCH_SLTU, MASK_SLTU)
+DECLARE_INSN(xor, MATCH_XOR, MASK_XOR)
+DECLARE_INSN(srl, MATCH_SRL, MASK_SRL)
+DECLARE_INSN(sra, MATCH_SRA, MASK_SRA)
+DECLARE_INSN(or, MATCH_OR, MASK_OR)
+DECLARE_INSN(and, MATCH_AND, MASK_AND)
+DECLARE_INSN(addiw, MATCH_ADDIW, MASK_ADDIW)
+DECLARE_INSN(slliw, MATCH_SLLIW, MASK_SLLIW)
+DECLARE_INSN(srliw, MATCH_SRLIW, MASK_SRLIW)
+DECLARE_INSN(sraiw, MATCH_SRAIW, MASK_SRAIW)
+DECLARE_INSN(addw, MATCH_ADDW, MASK_ADDW)
+DECLARE_INSN(subw, MATCH_SUBW, MASK_SUBW)
+DECLARE_INSN(sllw, MATCH_SLLW, MASK_SLLW)
+DECLARE_INSN(srlw, MATCH_SRLW, MASK_SRLW)
+DECLARE_INSN(sraw, MATCH_SRAW, MASK_SRAW)
+DECLARE_INSN(lb, MATCH_LB, MASK_LB)
+DECLARE_INSN(lh, MATCH_LH, MASK_LH)
+DECLARE_INSN(lw, MATCH_LW, MASK_LW)
+DECLARE_INSN(ld, MATCH_LD, MASK_LD)
+DECLARE_INSN(lbu, MATCH_LBU, MASK_LBU)
+DECLARE_INSN(lhu, MATCH_LHU, MASK_LHU)
+DECLARE_INSN(lwu, MATCH_LWU, MASK_LWU)
+DECLARE_INSN(sb, MATCH_SB, MASK_SB)
+DECLARE_INSN(sh, MATCH_SH, MASK_SH)
+DECLARE_INSN(sw, MATCH_SW, MASK_SW)
+DECLARE_INSN(sd, MATCH_SD, MASK_SD)
+DECLARE_INSN(fence, MATCH_FENCE, MASK_FENCE)
+DECLARE_INSN(fence_i, MATCH_FENCE_I, MASK_FENCE_I)
+DECLARE_INSN(mul, MATCH_MUL, MASK_MUL)
+DECLARE_INSN(mulh, MATCH_MULH, MASK_MULH)
+DECLARE_INSN(mulhsu, MATCH_MULHSU, MASK_MULHSU)
+DECLARE_INSN(mulhu, MATCH_MULHU, MASK_MULHU)
+DECLARE_INSN(div, MATCH_DIV, MASK_DIV)
+DECLARE_INSN(divu, MATCH_DIVU, MASK_DIVU)
+DECLARE_INSN(rem, MATCH_REM, MASK_REM)
+DECLARE_INSN(remu, MATCH_REMU, MASK_REMU)
+DECLARE_INSN(mulw, MATCH_MULW, MASK_MULW)
+DECLARE_INSN(divw, MATCH_DIVW, MASK_DIVW)
+DECLARE_INSN(divuw, MATCH_DIVUW, MASK_DIVUW)
+DECLARE_INSN(remw, MATCH_REMW, MASK_REMW)
+DECLARE_INSN(remuw, MATCH_REMUW, MASK_REMUW)
+DECLARE_INSN(amoadd_w, MATCH_AMOADD_W, MASK_AMOADD_W)
+DECLARE_INSN(amoxor_w, MATCH_AMOXOR_W, MASK_AMOXOR_W)
+DECLARE_INSN(amoor_w, MATCH_AMOOR_W, MASK_AMOOR_W)
+DECLARE_INSN(amoand_w, MATCH_AMOAND_W, MASK_AMOAND_W)
+DECLARE_INSN(amomin_w, MATCH_AMOMIN_W, MASK_AMOMIN_W)
+DECLARE_INSN(amomax_w, MATCH_AMOMAX_W, MASK_AMOMAX_W)
+DECLARE_INSN(amominu_w, MATCH_AMOMINU_W, MASK_AMOMINU_W)
+DECLARE_INSN(amomaxu_w, MATCH_AMOMAXU_W, MASK_AMOMAXU_W)
+DECLARE_INSN(amoswap_w, MATCH_AMOSWAP_W, MASK_AMOSWAP_W)
+DECLARE_INSN(lr_w, MATCH_LR_W, MASK_LR_W)
+DECLARE_INSN(sc_w, MATCH_SC_W, MASK_SC_W)
+DECLARE_INSN(amoadd_d, MATCH_AMOADD_D, MASK_AMOADD_D)
+DECLARE_INSN(amoxor_d, MATCH_AMOXOR_D, MASK_AMOXOR_D)
+DECLARE_INSN(amoor_d, MATCH_AMOOR_D, MASK_AMOOR_D)
+DECLARE_INSN(amoand_d, MATCH_AMOAND_D, MASK_AMOAND_D)
+DECLARE_INSN(amomin_d, MATCH_AMOMIN_D, MASK_AMOMIN_D)
+DECLARE_INSN(amomax_d, MATCH_AMOMAX_D, MASK_AMOMAX_D)
+DECLARE_INSN(amominu_d, MATCH_AMOMINU_D, MASK_AMOMINU_D)
+DECLARE_INSN(amomaxu_d, MATCH_AMOMAXU_D, MASK_AMOMAXU_D)
+DECLARE_INSN(amoswap_d, MATCH_AMOSWAP_D, MASK_AMOSWAP_D)
+DECLARE_INSN(lr_d, MATCH_LR_D, MASK_LR_D)
+DECLARE_INSN(sc_d, MATCH_SC_D, MASK_SC_D)
+DECLARE_INSN(ecall, MATCH_ECALL, MASK_ECALL)
+DECLARE_INSN(ebreak, MATCH_EBREAK, MASK_EBREAK)
+DECLARE_INSN(uret, MATCH_URET, MASK_URET)
+DECLARE_INSN(sret, MATCH_SRET, MASK_SRET)
+DECLARE_INSN(hret, MATCH_HRET, MASK_HRET)
+DECLARE_INSN(mret, MATCH_MRET, MASK_MRET)
+DECLARE_INSN(dret, MATCH_DRET, MASK_DRET)
+DECLARE_INSN(sfence_vm, MATCH_SFENCE_VM, MASK_SFENCE_VM)
+DECLARE_INSN(wfi, MATCH_WFI, MASK_WFI)
+DECLARE_INSN(csrrw, MATCH_CSRRW, MASK_CSRRW)
+DECLARE_INSN(csrrs, MATCH_CSRRS, MASK_CSRRS)
+DECLARE_INSN(csrrc, MATCH_CSRRC, MASK_CSRRC)
+DECLARE_INSN(csrrwi, MATCH_CSRRWI, MASK_CSRRWI)
+DECLARE_INSN(csrrsi, MATCH_CSRRSI, MASK_CSRRSI)
+DECLARE_INSN(csrrci, MATCH_CSRRCI, MASK_CSRRCI)
+DECLARE_INSN(fadd_s, MATCH_FADD_S, MASK_FADD_S)
+DECLARE_INSN(fsub_s, MATCH_FSUB_S, MASK_FSUB_S)
+DECLARE_INSN(fmul_s, MATCH_FMUL_S, MASK_FMUL_S)
+DECLARE_INSN(fdiv_s, MATCH_FDIV_S, MASK_FDIV_S)
+DECLARE_INSN(fsgnj_s, MATCH_FSGNJ_S, MASK_FSGNJ_S)
+DECLARE_INSN(fsgnjn_s, MATCH_FSGNJN_S, MASK_FSGNJN_S)
+DECLARE_INSN(fsgnjx_s, MATCH_FSGNJX_S, MASK_FSGNJX_S)
+DECLARE_INSN(fmin_s, MATCH_FMIN_S, MASK_FMIN_S)
+DECLARE_INSN(fmax_s, MATCH_FMAX_S, MASK_FMAX_S)
+DECLARE_INSN(fsqrt_s, MATCH_FSQRT_S, MASK_FSQRT_S)
+DECLARE_INSN(fadd_d, MATCH_FADD_D, MASK_FADD_D)
+DECLARE_INSN(fsub_d, MATCH_FSUB_D, MASK_FSUB_D)
+DECLARE_INSN(fmul_d, MATCH_FMUL_D, MASK_FMUL_D)
+DECLARE_INSN(fdiv_d, MATCH_FDIV_D, MASK_FDIV_D)
+DECLARE_INSN(fsgnj_d, MATCH_FSGNJ_D, MASK_FSGNJ_D)
+DECLARE_INSN(fsgnjn_d, MATCH_FSGNJN_D, MASK_FSGNJN_D)
+DECLARE_INSN(fsgnjx_d, MATCH_FSGNJX_D, MASK_FSGNJX_D)
+DECLARE_INSN(fmin_d, MATCH_FMIN_D, MASK_FMIN_D)
+DECLARE_INSN(fmax_d, MATCH_FMAX_D, MASK_FMAX_D)
+DECLARE_INSN(fcvt_s_d, MATCH_FCVT_S_D, MASK_FCVT_S_D)
+DECLARE_INSN(fcvt_d_s, MATCH_FCVT_D_S, MASK_FCVT_D_S)
+DECLARE_INSN(fsqrt_d, MATCH_FSQRT_D, MASK_FSQRT_D)
+DECLARE_INSN(fle_s, MATCH_FLE_S, MASK_FLE_S)
+DECLARE_INSN(flt_s, MATCH_FLT_S, MASK_FLT_S)
+DECLARE_INSN(feq_s, MATCH_FEQ_S, MASK_FEQ_S)
+DECLARE_INSN(fle_d, MATCH_FLE_D, MASK_FLE_D)
+DECLARE_INSN(flt_d, MATCH_FLT_D, MASK_FLT_D)
+DECLARE_INSN(feq_d, MATCH_FEQ_D, MASK_FEQ_D)
+DECLARE_INSN(fcvt_w_s, MATCH_FCVT_W_S, MASK_FCVT_W_S)
+DECLARE_INSN(fcvt_wu_s, MATCH_FCVT_WU_S, MASK_FCVT_WU_S)
+DECLARE_INSN(fcvt_l_s, MATCH_FCVT_L_S, MASK_FCVT_L_S)
+DECLARE_INSN(fcvt_lu_s, MATCH_FCVT_LU_S, MASK_FCVT_LU_S)
+DECLARE_INSN(fmv_x_s, MATCH_FMV_X_S, MASK_FMV_X_S)
+DECLARE_INSN(fclass_s, MATCH_FCLASS_S, MASK_FCLASS_S)
+DECLARE_INSN(fcvt_w_d, MATCH_FCVT_W_D, MASK_FCVT_W_D)
+DECLARE_INSN(fcvt_wu_d, MATCH_FCVT_WU_D, MASK_FCVT_WU_D)
+DECLARE_INSN(fcvt_l_d, MATCH_FCVT_L_D, MASK_FCVT_L_D)
+DECLARE_INSN(fcvt_lu_d, MATCH_FCVT_LU_D, MASK_FCVT_LU_D)
+DECLARE_INSN(fmv_x_d, MATCH_FMV_X_D, MASK_FMV_X_D)
+DECLARE_INSN(fclass_d, MATCH_FCLASS_D, MASK_FCLASS_D)
+DECLARE_INSN(fcvt_s_w, MATCH_FCVT_S_W, MASK_FCVT_S_W)
+DECLARE_INSN(fcvt_s_wu, MATCH_FCVT_S_WU, MASK_FCVT_S_WU)
+DECLARE_INSN(fcvt_s_l, MATCH_FCVT_S_L, MASK_FCVT_S_L)
+DECLARE_INSN(fcvt_s_lu, MATCH_FCVT_S_LU, MASK_FCVT_S_LU)
+DECLARE_INSN(fmv_s_x, MATCH_FMV_S_X, MASK_FMV_S_X)
+DECLARE_INSN(fcvt_d_w, MATCH_FCVT_D_W, MASK_FCVT_D_W)
+DECLARE_INSN(fcvt_d_wu, MATCH_FCVT_D_WU, MASK_FCVT_D_WU)
+DECLARE_INSN(fcvt_d_l, MATCH_FCVT_D_L, MASK_FCVT_D_L)
+DECLARE_INSN(fcvt_d_lu, MATCH_FCVT_D_LU, MASK_FCVT_D_LU)
+DECLARE_INSN(fmv_d_x, MATCH_FMV_D_X, MASK_FMV_D_X)
+DECLARE_INSN(flw, MATCH_FLW, MASK_FLW)
+DECLARE_INSN(fld, MATCH_FLD, MASK_FLD)
+DECLARE_INSN(fsw, MATCH_FSW, MASK_FSW)
+DECLARE_INSN(fsd, MATCH_FSD, MASK_FSD)
+DECLARE_INSN(fmadd_s, MATCH_FMADD_S, MASK_FMADD_S)
+DECLARE_INSN(fmsub_s, MATCH_FMSUB_S, MASK_FMSUB_S)
+DECLARE_INSN(fnmsub_s, MATCH_FNMSUB_S, MASK_FNMSUB_S)
+DECLARE_INSN(fnmadd_s, MATCH_FNMADD_S, MASK_FNMADD_S)
+DECLARE_INSN(fmadd_d, MATCH_FMADD_D, MASK_FMADD_D)
+DECLARE_INSN(fmsub_d, MATCH_FMSUB_D, MASK_FMSUB_D)
+DECLARE_INSN(fnmsub_d, MATCH_FNMSUB_D, MASK_FNMSUB_D)
+DECLARE_INSN(fnmadd_d, MATCH_FNMADD_D, MASK_FNMADD_D)
+DECLARE_INSN(c_nop, MATCH_C_NOP, MASK_C_NOP)
+DECLARE_INSN(c_addi16sp, MATCH_C_ADDI16SP, MASK_C_ADDI16SP)
+DECLARE_INSN(c_jr, MATCH_C_JR, MASK_C_JR)
+DECLARE_INSN(c_jalr, MATCH_C_JALR, MASK_C_JALR)
+DECLARE_INSN(c_ebreak, MATCH_C_EBREAK, MASK_C_EBREAK)
+DECLARE_INSN(c_ld, MATCH_C_LD, MASK_C_LD)
+DECLARE_INSN(c_sd, MATCH_C_SD, MASK_C_SD)
+DECLARE_INSN(c_addiw, MATCH_C_ADDIW, MASK_C_ADDIW)
+DECLARE_INSN(c_ldsp, MATCH_C_LDSP, MASK_C_LDSP)
+DECLARE_INSN(c_sdsp, MATCH_C_SDSP, MASK_C_SDSP)
+DECLARE_INSN(c_addi4spn, MATCH_C_ADDI4SPN, MASK_C_ADDI4SPN)
+DECLARE_INSN(c_fld, MATCH_C_FLD, MASK_C_FLD)
+DECLARE_INSN(c_lw, MATCH_C_LW, MASK_C_LW)
+DECLARE_INSN(c_flw, MATCH_C_FLW, MASK_C_FLW)
+DECLARE_INSN(c_fsd, MATCH_C_FSD, MASK_C_FSD)
+DECLARE_INSN(c_sw, MATCH_C_SW, MASK_C_SW)
+DECLARE_INSN(c_fsw, MATCH_C_FSW, MASK_C_FSW)
+DECLARE_INSN(c_addi, MATCH_C_ADDI, MASK_C_ADDI)
+DECLARE_INSN(c_jal, MATCH_C_JAL, MASK_C_JAL)
+DECLARE_INSN(c_li, MATCH_C_LI, MASK_C_LI)
+DECLARE_INSN(c_lui, MATCH_C_LUI, MASK_C_LUI)
+DECLARE_INSN(c_srli, MATCH_C_SRLI, MASK_C_SRLI)
+DECLARE_INSN(c_srai, MATCH_C_SRAI, MASK_C_SRAI)
+DECLARE_INSN(c_andi, MATCH_C_ANDI, MASK_C_ANDI)
+DECLARE_INSN(c_sub, MATCH_C_SUB, MASK_C_SUB)
+DECLARE_INSN(c_xor, MATCH_C_XOR, MASK_C_XOR)
+DECLARE_INSN(c_or, MATCH_C_OR, MASK_C_OR)
+DECLARE_INSN(c_and, MATCH_C_AND, MASK_C_AND)
+DECLARE_INSN(c_subw, MATCH_C_SUBW, MASK_C_SUBW)
+DECLARE_INSN(c_addw, MATCH_C_ADDW, MASK_C_ADDW)
+DECLARE_INSN(c_j, MATCH_C_J, MASK_C_J)
+DECLARE_INSN(c_beqz, MATCH_C_BEQZ, MASK_C_BEQZ)
+DECLARE_INSN(c_bnez, MATCH_C_BNEZ, MASK_C_BNEZ)
+DECLARE_INSN(c_slli, MATCH_C_SLLI, MASK_C_SLLI)
+DECLARE_INSN(c_fldsp, MATCH_C_FLDSP, MASK_C_FLDSP)
+DECLARE_INSN(c_lwsp, MATCH_C_LWSP, MASK_C_LWSP)
+DECLARE_INSN(c_flwsp, MATCH_C_FLWSP, MASK_C_FLWSP)
+DECLARE_INSN(c_mv, MATCH_C_MV, MASK_C_MV)
+DECLARE_INSN(c_add, MATCH_C_ADD, MASK_C_ADD)
+DECLARE_INSN(c_fsdsp, MATCH_C_FSDSP, MASK_C_FSDSP)
+DECLARE_INSN(c_swsp, MATCH_C_SWSP, MASK_C_SWSP)
+DECLARE_INSN(c_fswsp, MATCH_C_FSWSP, MASK_C_FSWSP)
+DECLARE_INSN(custom0, MATCH_CUSTOM0, MASK_CUSTOM0)
+DECLARE_INSN(custom0_rs1, MATCH_CUSTOM0_RS1, MASK_CUSTOM0_RS1)
+DECLARE_INSN(custom0_rs1_rs2, MATCH_CUSTOM0_RS1_RS2, MASK_CUSTOM0_RS1_RS2)
+DECLARE_INSN(custom0_rd, MATCH_CUSTOM0_RD, MASK_CUSTOM0_RD)
+DECLARE_INSN(custom0_rd_rs1, MATCH_CUSTOM0_RD_RS1, MASK_CUSTOM0_RD_RS1)
+DECLARE_INSN(custom0_rd_rs1_rs2, MATCH_CUSTOM0_RD_RS1_RS2, MASK_CUSTOM0_RD_RS1_RS2)
+DECLARE_INSN(custom1, MATCH_CUSTOM1, MASK_CUSTOM1)
+DECLARE_INSN(custom1_rs1, MATCH_CUSTOM1_RS1, MASK_CUSTOM1_RS1)
+DECLARE_INSN(custom1_rs1_rs2, MATCH_CUSTOM1_RS1_RS2, MASK_CUSTOM1_RS1_RS2)
+DECLARE_INSN(custom1_rd, MATCH_CUSTOM1_RD, MASK_CUSTOM1_RD)
+DECLARE_INSN(custom1_rd_rs1, MATCH_CUSTOM1_RD_RS1, MASK_CUSTOM1_RD_RS1)
+DECLARE_INSN(custom1_rd_rs1_rs2, MATCH_CUSTOM1_RD_RS1_RS2, MASK_CUSTOM1_RD_RS1_RS2)
+DECLARE_INSN(custom2, MATCH_CUSTOM2, MASK_CUSTOM2)
+DECLARE_INSN(custom2_rs1, MATCH_CUSTOM2_RS1, MASK_CUSTOM2_RS1)
+DECLARE_INSN(custom2_rs1_rs2, MATCH_CUSTOM2_RS1_RS2, MASK_CUSTOM2_RS1_RS2)
+DECLARE_INSN(custom2_rd, MATCH_CUSTOM2_RD, MASK_CUSTOM2_RD)
+DECLARE_INSN(custom2_rd_rs1, MATCH_CUSTOM2_RD_RS1, MASK_CUSTOM2_RD_RS1)
+DECLARE_INSN(custom2_rd_rs1_rs2, MATCH_CUSTOM2_RD_RS1_RS2, MASK_CUSTOM2_RD_RS1_RS2)
+DECLARE_INSN(custom3, MATCH_CUSTOM3, MASK_CUSTOM3)
+DECLARE_INSN(custom3_rs1, MATCH_CUSTOM3_RS1, MASK_CUSTOM3_RS1)
+DECLARE_INSN(custom3_rs1_rs2, MATCH_CUSTOM3_RS1_RS2, MASK_CUSTOM3_RS1_RS2)
+DECLARE_INSN(custom3_rd, MATCH_CUSTOM3_RD, MASK_CUSTOM3_RD)
+DECLARE_INSN(custom3_rd_rs1, MATCH_CUSTOM3_RD_RS1, MASK_CUSTOM3_RD_RS1)
+DECLARE_INSN(custom3_rd_rs1_rs2, MATCH_CUSTOM3_RD_RS1_RS2, MASK_CUSTOM3_RD_RS1_RS2)
+#endif
+#ifdef DECLARE_CSR
+DECLARE_CSR(fflags, CSR_FFLAGS)
+DECLARE_CSR(frm, CSR_FRM)
+DECLARE_CSR(fcsr, CSR_FCSR)
+DECLARE_CSR(cycle, CSR_CYCLE)
+DECLARE_CSR(time, CSR_TIME)
+DECLARE_CSR(instret, CSR_INSTRET)
+DECLARE_CSR(hpmcounter3, CSR_HPMCOUNTER3)
+DECLARE_CSR(hpmcounter4, CSR_HPMCOUNTER4)
+DECLARE_CSR(hpmcounter5, CSR_HPMCOUNTER5)
+DECLARE_CSR(hpmcounter6, CSR_HPMCOUNTER6)
+DECLARE_CSR(hpmcounter7, CSR_HPMCOUNTER7)
+DECLARE_CSR(hpmcounter8, CSR_HPMCOUNTER8)
+DECLARE_CSR(hpmcounter9, CSR_HPMCOUNTER9)
+DECLARE_CSR(hpmcounter10, CSR_HPMCOUNTER10)
+DECLARE_CSR(hpmcounter11, CSR_HPMCOUNTER11)
+DECLARE_CSR(hpmcounter12, CSR_HPMCOUNTER12)
+DECLARE_CSR(hpmcounter13, CSR_HPMCOUNTER13)
+DECLARE_CSR(hpmcounter14, CSR_HPMCOUNTER14)
+DECLARE_CSR(hpmcounter15, CSR_HPMCOUNTER15)
+DECLARE_CSR(hpmcounter16, CSR_HPMCOUNTER16)
+DECLARE_CSR(hpmcounter17, CSR_HPMCOUNTER17)
+DECLARE_CSR(hpmcounter18, CSR_HPMCOUNTER18)
+DECLARE_CSR(hpmcounter19, CSR_HPMCOUNTER19)
+DECLARE_CSR(hpmcounter20, CSR_HPMCOUNTER20)
+DECLARE_CSR(hpmcounter21, CSR_HPMCOUNTER21)
+DECLARE_CSR(hpmcounter22, CSR_HPMCOUNTER22)
+DECLARE_CSR(hpmcounter23, CSR_HPMCOUNTER23)
+DECLARE_CSR(hpmcounter24, CSR_HPMCOUNTER24)
+DECLARE_CSR(hpmcounter25, CSR_HPMCOUNTER25)
+DECLARE_CSR(hpmcounter26, CSR_HPMCOUNTER26)
+DECLARE_CSR(hpmcounter27, CSR_HPMCOUNTER27)
+DECLARE_CSR(hpmcounter28, CSR_HPMCOUNTER28)
+DECLARE_CSR(hpmcounter29, CSR_HPMCOUNTER29)
+DECLARE_CSR(hpmcounter30, CSR_HPMCOUNTER30)
+DECLARE_CSR(hpmcounter31, CSR_HPMCOUNTER31)
+DECLARE_CSR(sstatus, CSR_SSTATUS)
+DECLARE_CSR(sie, CSR_SIE)
+DECLARE_CSR(stvec, CSR_STVEC)
+DECLARE_CSR(sscratch, CSR_SSCRATCH)
+DECLARE_CSR(sepc, CSR_SEPC)
+DECLARE_CSR(scause, CSR_SCAUSE)
+DECLARE_CSR(sbadaddr, CSR_SBADADDR)
+DECLARE_CSR(sip, CSR_SIP)
+DECLARE_CSR(sptbr, CSR_SPTBR)
+DECLARE_CSR(mstatus, CSR_MSTATUS)
+DECLARE_CSR(misa, CSR_MISA)
+DECLARE_CSR(medeleg, CSR_MEDELEG)
+DECLARE_CSR(mideleg, CSR_MIDELEG)
+DECLARE_CSR(mie, CSR_MIE)
+DECLARE_CSR(mtvec, CSR_MTVEC)
+DECLARE_CSR(mscratch, CSR_MSCRATCH)
+DECLARE_CSR(mepc, CSR_MEPC)
+DECLARE_CSR(mcause, CSR_MCAUSE)
+DECLARE_CSR(mbadaddr, CSR_MBADADDR)
+DECLARE_CSR(mip, CSR_MIP)
+DECLARE_CSR(tselect, CSR_TSELECT)
+DECLARE_CSR(tdata1, CSR_TDATA1)
+DECLARE_CSR(tdata2, CSR_TDATA2)
+DECLARE_CSR(tdata3, CSR_TDATA3)
+DECLARE_CSR(dcsr, CSR_DCSR)
+DECLARE_CSR(dpc, CSR_DPC)
+DECLARE_CSR(dscratch, CSR_DSCRATCH)
+DECLARE_CSR(mcycle, CSR_MCYCLE)
+DECLARE_CSR(minstret, CSR_MINSTRET)
+DECLARE_CSR(mhpmcounter3, CSR_MHPMCOUNTER3)
+DECLARE_CSR(mhpmcounter4, CSR_MHPMCOUNTER4)
+DECLARE_CSR(mhpmcounter5, CSR_MHPMCOUNTER5)
+DECLARE_CSR(mhpmcounter6, CSR_MHPMCOUNTER6)
+DECLARE_CSR(mhpmcounter7, CSR_MHPMCOUNTER7)
+DECLARE_CSR(mhpmcounter8, CSR_MHPMCOUNTER8)
+DECLARE_CSR(mhpmcounter9, CSR_MHPMCOUNTER9)
+DECLARE_CSR(mhpmcounter10, CSR_MHPMCOUNTER10)
+DECLARE_CSR(mhpmcounter11, CSR_MHPMCOUNTER11)
+DECLARE_CSR(mhpmcounter12, CSR_MHPMCOUNTER12)
+DECLARE_CSR(mhpmcounter13, CSR_MHPMCOUNTER13)
+DECLARE_CSR(mhpmcounter14, CSR_MHPMCOUNTER14)
+DECLARE_CSR(mhpmcounter15, CSR_MHPMCOUNTER15)
+DECLARE_CSR(mhpmcounter16, CSR_MHPMCOUNTER16)
+DECLARE_CSR(mhpmcounter17, CSR_MHPMCOUNTER17)
+DECLARE_CSR(mhpmcounter18, CSR_MHPMCOUNTER18)
+DECLARE_CSR(mhpmcounter19, CSR_MHPMCOUNTER19)
+DECLARE_CSR(mhpmcounter20, CSR_MHPMCOUNTER20)
+DECLARE_CSR(mhpmcounter21, CSR_MHPMCOUNTER21)
+DECLARE_CSR(mhpmcounter22, CSR_MHPMCOUNTER22)
+DECLARE_CSR(mhpmcounter23, CSR_MHPMCOUNTER23)
+DECLARE_CSR(mhpmcounter24, CSR_MHPMCOUNTER24)
+DECLARE_CSR(mhpmcounter25, CSR_MHPMCOUNTER25)
+DECLARE_CSR(mhpmcounter26, CSR_MHPMCOUNTER26)
+DECLARE_CSR(mhpmcounter27, CSR_MHPMCOUNTER27)
+DECLARE_CSR(mhpmcounter28, CSR_MHPMCOUNTER28)
+DECLARE_CSR(mhpmcounter29, CSR_MHPMCOUNTER29)
+DECLARE_CSR(mhpmcounter30, CSR_MHPMCOUNTER30)
+DECLARE_CSR(mhpmcounter31, CSR_MHPMCOUNTER31)
+DECLARE_CSR(mucounteren, CSR_MUCOUNTEREN)
+DECLARE_CSR(mscounteren, CSR_MSCOUNTEREN)
+DECLARE_CSR(mhpmevent3, CSR_MHPMEVENT3)
+DECLARE_CSR(mhpmevent4, CSR_MHPMEVENT4)
+DECLARE_CSR(mhpmevent5, CSR_MHPMEVENT5)
+DECLARE_CSR(mhpmevent6, CSR_MHPMEVENT6)
+DECLARE_CSR(mhpmevent7, CSR_MHPMEVENT7)
+DECLARE_CSR(mhpmevent8, CSR_MHPMEVENT8)
+DECLARE_CSR(mhpmevent9, CSR_MHPMEVENT9)
+DECLARE_CSR(mhpmevent10, CSR_MHPMEVENT10)
+DECLARE_CSR(mhpmevent11, CSR_MHPMEVENT11)
+DECLARE_CSR(mhpmevent12, CSR_MHPMEVENT12)
+DECLARE_CSR(mhpmevent13, CSR_MHPMEVENT13)
+DECLARE_CSR(mhpmevent14, CSR_MHPMEVENT14)
+DECLARE_CSR(mhpmevent15, CSR_MHPMEVENT15)
+DECLARE_CSR(mhpmevent16, CSR_MHPMEVENT16)
+DECLARE_CSR(mhpmevent17, CSR_MHPMEVENT17)
+DECLARE_CSR(mhpmevent18, CSR_MHPMEVENT18)
+DECLARE_CSR(mhpmevent19, CSR_MHPMEVENT19)
+DECLARE_CSR(mhpmevent20, CSR_MHPMEVENT20)
+DECLARE_CSR(mhpmevent21, CSR_MHPMEVENT21)
+DECLARE_CSR(mhpmevent22, CSR_MHPMEVENT22)
+DECLARE_CSR(mhpmevent23, CSR_MHPMEVENT23)
+DECLARE_CSR(mhpmevent24, CSR_MHPMEVENT24)
+DECLARE_CSR(mhpmevent25, CSR_MHPMEVENT25)
+DECLARE_CSR(mhpmevent26, CSR_MHPMEVENT26)
+DECLARE_CSR(mhpmevent27, CSR_MHPMEVENT27)
+DECLARE_CSR(mhpmevent28, CSR_MHPMEVENT28)
+DECLARE_CSR(mhpmevent29, CSR_MHPMEVENT29)
+DECLARE_CSR(mhpmevent30, CSR_MHPMEVENT30)
+DECLARE_CSR(mhpmevent31, CSR_MHPMEVENT31)
+DECLARE_CSR(mvendorid, CSR_MVENDORID)
+DECLARE_CSR(marchid, CSR_MARCHID)
+DECLARE_CSR(mimpid, CSR_MIMPID)
+DECLARE_CSR(mhartid, CSR_MHARTID)
+DECLARE_CSR(cycleh, CSR_CYCLEH)
+DECLARE_CSR(timeh, CSR_TIMEH)
+DECLARE_CSR(instreth, CSR_INSTRETH)
+DECLARE_CSR(hpmcounter3h, CSR_HPMCOUNTER3H)
+DECLARE_CSR(hpmcounter4h, CSR_HPMCOUNTER4H)
+DECLARE_CSR(hpmcounter5h, CSR_HPMCOUNTER5H)
+DECLARE_CSR(hpmcounter6h, CSR_HPMCOUNTER6H)
+DECLARE_CSR(hpmcounter7h, CSR_HPMCOUNTER7H)
+DECLARE_CSR(hpmcounter8h, CSR_HPMCOUNTER8H)
+DECLARE_CSR(hpmcounter9h, CSR_HPMCOUNTER9H)
+DECLARE_CSR(hpmcounter10h, CSR_HPMCOUNTER10H)
+DECLARE_CSR(hpmcounter11h, CSR_HPMCOUNTER11H)
+DECLARE_CSR(hpmcounter12h, CSR_HPMCOUNTER12H)
+DECLARE_CSR(hpmcounter13h, CSR_HPMCOUNTER13H)
+DECLARE_CSR(hpmcounter14h, CSR_HPMCOUNTER14H)
+DECLARE_CSR(hpmcounter15h, CSR_HPMCOUNTER15H)
+DECLARE_CSR(hpmcounter16h, CSR_HPMCOUNTER16H)
+DECLARE_CSR(hpmcounter17h, CSR_HPMCOUNTER17H)
+DECLARE_CSR(hpmcounter18h, CSR_HPMCOUNTER18H)
+DECLARE_CSR(hpmcounter19h, CSR_HPMCOUNTER19H)
+DECLARE_CSR(hpmcounter20h, CSR_HPMCOUNTER20H)
+DECLARE_CSR(hpmcounter21h, CSR_HPMCOUNTER21H)
+DECLARE_CSR(hpmcounter22h, CSR_HPMCOUNTER22H)
+DECLARE_CSR(hpmcounter23h, CSR_HPMCOUNTER23H)
+DECLARE_CSR(hpmcounter24h, CSR_HPMCOUNTER24H)
+DECLARE_CSR(hpmcounter25h, CSR_HPMCOUNTER25H)
+DECLARE_CSR(hpmcounter26h, CSR_HPMCOUNTER26H)
+DECLARE_CSR(hpmcounter27h, CSR_HPMCOUNTER27H)
+DECLARE_CSR(hpmcounter28h, CSR_HPMCOUNTER28H)
+DECLARE_CSR(hpmcounter29h, CSR_HPMCOUNTER29H)
+DECLARE_CSR(hpmcounter30h, CSR_HPMCOUNTER30H)
+DECLARE_CSR(hpmcounter31h, CSR_HPMCOUNTER31H)
+DECLARE_CSR(mcycleh, CSR_MCYCLEH)
+DECLARE_CSR(minstreth, CSR_MINSTRETH)
+DECLARE_CSR(mhpmcounter3h, CSR_MHPMCOUNTER3H)
+DECLARE_CSR(mhpmcounter4h, CSR_MHPMCOUNTER4H)
+DECLARE_CSR(mhpmcounter5h, CSR_MHPMCOUNTER5H)
+DECLARE_CSR(mhpmcounter6h, CSR_MHPMCOUNTER6H)
+DECLARE_CSR(mhpmcounter7h, CSR_MHPMCOUNTER7H)
+DECLARE_CSR(mhpmcounter8h, CSR_MHPMCOUNTER8H)
+DECLARE_CSR(mhpmcounter9h, CSR_MHPMCOUNTER9H)
+DECLARE_CSR(mhpmcounter10h, CSR_MHPMCOUNTER10H)
+DECLARE_CSR(mhpmcounter11h, CSR_MHPMCOUNTER11H)
+DECLARE_CSR(mhpmcounter12h, CSR_MHPMCOUNTER12H)
+DECLARE_CSR(mhpmcounter13h, CSR_MHPMCOUNTER13H)
+DECLARE_CSR(mhpmcounter14h, CSR_MHPMCOUNTER14H)
+DECLARE_CSR(mhpmcounter15h, CSR_MHPMCOUNTER15H)
+DECLARE_CSR(mhpmcounter16h, CSR_MHPMCOUNTER16H)
+DECLARE_CSR(mhpmcounter17h, CSR_MHPMCOUNTER17H)
+DECLARE_CSR(mhpmcounter18h, CSR_MHPMCOUNTER18H)
+DECLARE_CSR(mhpmcounter19h, CSR_MHPMCOUNTER19H)
+DECLARE_CSR(mhpmcounter20h, CSR_MHPMCOUNTER20H)
+DECLARE_CSR(mhpmcounter21h, CSR_MHPMCOUNTER21H)
+DECLARE_CSR(mhpmcounter22h, CSR_MHPMCOUNTER22H)
+DECLARE_CSR(mhpmcounter23h, CSR_MHPMCOUNTER23H)
+DECLARE_CSR(mhpmcounter24h, CSR_MHPMCOUNTER24H)
+DECLARE_CSR(mhpmcounter25h, CSR_MHPMCOUNTER25H)
+DECLARE_CSR(mhpmcounter26h, CSR_MHPMCOUNTER26H)
+DECLARE_CSR(mhpmcounter27h, CSR_MHPMCOUNTER27H)
+DECLARE_CSR(mhpmcounter28h, CSR_MHPMCOUNTER28H)
+DECLARE_CSR(mhpmcounter29h, CSR_MHPMCOUNTER29H)
+DECLARE_CSR(mhpmcounter30h, CSR_MHPMCOUNTER30H)
+DECLARE_CSR(mhpmcounter31h, CSR_MHPMCOUNTER31H)
+#endif
+#ifdef DECLARE_CAUSE
+DECLARE_CAUSE("misaligned fetch", CAUSE_MISALIGNED_FETCH)
+DECLARE_CAUSE("fault fetch", CAUSE_FAULT_FETCH)
+DECLARE_CAUSE("illegal instruction", CAUSE_ILLEGAL_INSTRUCTION)
+DECLARE_CAUSE("breakpoint", CAUSE_BREAKPOINT)
+DECLARE_CAUSE("misaligned load", CAUSE_MISALIGNED_LOAD)
+DECLARE_CAUSE("fault load", CAUSE_FAULT_LOAD)
+DECLARE_CAUSE("misaligned store", CAUSE_MISALIGNED_STORE)
+DECLARE_CAUSE("fault store", CAUSE_FAULT_STORE)
+DECLARE_CAUSE("user_ecall", CAUSE_USER_ECALL)
+DECLARE_CAUSE("supervisor_ecall", CAUSE_SUPERVISOR_ECALL)
+DECLARE_CAUSE("hypervisor_ecall", CAUSE_HYPERVISOR_ECALL)
+DECLARE_CAUSE("machine_ecall", CAUSE_MACHINE_ECALL)
+#endif

bsp/gd32vf103v-eval/libraries/n22/drivers/sections.h

@@ -0,0 +1,17 @@
+// See LICENSE for license details.
+#ifndef _SECTIONS_H
+#define _SECTIONS_H
+
+extern unsigned char _rom[];
+extern unsigned char _rom_end[];
+
+extern unsigned char _ram[];
+extern unsigned char _ram_end[];
+
+extern unsigned char _ftext[];
+extern unsigned char _etext[];
+extern unsigned char _fbss[];
+extern unsigned char _ebss[];
+extern unsigned char _end[];
+
+#endif /* _SECTIONS_H */

bsp/gd32vf103v-eval/libraries/n22/env_Eclipse/GD32VF103x4.lds

@@ -0,0 +1,175 @@
+OUTPUT_ARCH( "riscv" )
+
+ENTRY( _start )
+
+MEMORY
+{
+	/* Run in FLASH */
+	flash (rxai!w) : ORIGIN = 0x08000000, LENGTH = 16k
+	ram   (wxa!ri) : ORIGIN = 0x20000000, LENGTH = 6k
+
+	/* Run in RAM */
+/*	flash (rxai!w) : ORIGIN = 0x20000000, LENGTH = 4k
+	ram   (wxa!ri) : ORIGIN = 0x20001000, LENGTH = 2K
+*/
+}
+
+
+SECTIONS
+{
+  __stack_size = DEFINED(__stack_size) ? __stack_size : 1K;
+
+
+  .init           :
+  {
+    KEEP (*(SORT_NONE(.init)))
+  } >flash AT>flash
+
+  .ilalign         :
+  {
+    . = ALIGN(4);
+    PROVIDE( _ilm_lma = . );
+  } >flash AT>flash
+
+  .ialign         :
+  {
+    PROVIDE( _ilm = . );
+  } >flash AT>flash
+
+  .text           :
+  {
+    *(.rodata .rodata.*)
+    *(.text.unlikely .text.unlikely.*)
+    *(.text.startup .text.startup.*)
+    *(.text .text.*)
+    *(.gnu.linkonce.t.*)
+  } >flash AT>flash
+
+  .fini           :
+  {
+    KEEP (*(SORT_NONE(.fini)))
+  } >flash AT>flash
+
+  . = ALIGN(4);
+
+  PROVIDE (__etext = .);
+  PROVIDE (_etext = .);/*0x80022c8*/
+  PROVIDE (etext = .);/*0x80022c8*/
+  PROVIDE( _eilm = . );
+
+  .preinit_array  :
+  {
+    PROVIDE_HIDDEN (__preinit_array_start = .);
+    KEEP (*(.preinit_array))
+    PROVIDE_HIDDEN (__preinit_array_end = .);
+  } >flash AT>flash
+
+  .init_array     :
+  {
+    PROVIDE_HIDDEN (__init_array_start = .);
+    KEEP (*(SORT_BY_INIT_PRIORITY(.init_array.*) SORT_BY_INIT_PRIORITY(.ctors.*)))
+    KEEP (*(.init_array EXCLUDE_FILE (*crtbegin.o *crtbegin?.o *crtend.o *crtend?.o ) .ctors))
+    PROVIDE_HIDDEN (__init_array_end = .);
+  } >flash AT>flash
+
+  .fini_array     :
+  {
+    PROVIDE_HIDDEN (__fini_array_start = .);
+    KEEP (*(SORT_BY_INIT_PRIORITY(.fini_array.*) SORT_BY_INIT_PRIORITY(.dtors.*)))
+    KEEP (*(.fini_array EXCLUDE_FILE (*crtbegin.o *crtbegin?.o *crtend.o *crtend?.o ) .dtors))
+    PROVIDE_HIDDEN (__fini_array_end = .);
+  } >flash AT>flash
+
+  .ctors          :
+  {
+    /* gcc uses crtbegin.o to find the start of
+       the constructors, so we make sure it is
+       first.  Because this is a wildcard, it
+       doesn't matter if the user does not
+       actually link against crtbegin.o; the
+       linker won't look for a file to match a
+       wildcard.  The wildcard also means that it
+       doesn't matter which directory crtbegin.o
+       is in.  */
+    KEEP (*crtbegin.o(.ctors))
+    KEEP (*crtbegin?.o(.ctors))
+    /* We don't want to include the .ctor section from
+       the crtend.o file until after the sorted ctors.
+       The .ctor section from the crtend file contains the
+       end of ctors marker and it must be last */
+    KEEP (*(EXCLUDE_FILE (*crtend.o *crtend?.o ) .ctors))
+    KEEP (*(SORT(.ctors.*)))
+    KEEP (*(.ctors))
+  } >flash AT>flash
+
+  .dtors          :
+  {
+    KEEP (*crtbegin.o(.dtors))
+    KEEP (*crtbegin?.o(.dtors))
+    KEEP (*(EXCLUDE_FILE (*crtend.o *crtend?.o ) .dtors))
+    KEEP (*(SORT(.dtors.*)))
+    KEEP (*(.dtors))
+  } >flash AT>flash
+
+    . = ALIGN(4);
+    PROVIDE( _eilm = . );
+
+  .lalign         :
+  {
+    . = ALIGN(4);
+    PROVIDE( _data_lma = . );
+  } >flash AT>flash
+
+  .dalign         :
+  {
+    . = ALIGN(4);
+    PROVIDE( _data = . );
+  } >ram AT>flash
+
+
+  .data          :
+  {
+    *(.rdata)
+
+    *(.gnu.linkonce.r.*)
+    *(.data .data.*)
+    *(.gnu.linkonce.d.*)
+    . = ALIGN(8);
+    PROVIDE( __global_pointer$ = . + 0x800);
+    *(.sdata .sdata.*)
+    *(.gnu.linkonce.s.*)
+    . = ALIGN(8);
+    *(.srodata.cst16)
+    *(.srodata.cst8)
+    *(.srodata.cst4)
+    *(.srodata.cst2)
+    *(.srodata .srodata.*)
+  } >ram AT>flash
+
+  . = ALIGN(4);
+  PROVIDE( _edata = . );
+  PROVIDE( edata = . );
+
+  PROVIDE( _fbss = . ); /*0X200052A0  0X200002A0*/
+  PROVIDE( __bss_start = . );
+  .bss            :
+  {
+    *(.sbss*)
+    *(.gnu.linkonce.sb.*)
+    *(.bss .bss.*)
+    *(.gnu.linkonce.b.*)
+    *(COMMON)
+    . = ALIGN(4);
+  } >ram AT>ram
+
+  . = ALIGN(8);
+  PROVIDE( _end = . ); /*0X2000,0340*/
+  PROVIDE( end = . );
+
+  .stack ORIGIN(ram) + LENGTH(ram) - __stack_size :
+  {
+    PROVIDE( _heap_end = . );
+    . = __stack_size;
+    PROVIDE( _sp = . );
+  } >ram AT>ram
+}

bsp/gd32vf103v-eval/libraries/n22/env_Eclipse/GD32VF103x6.lds

@@ -0,0 +1,175 @@
+OUTPUT_ARCH( "riscv" )
+
+ENTRY( _start )
+
+MEMORY
+{
+	/* Run in FLASH */
+	flash (rxai!w) : ORIGIN = 0x08000000, LENGTH = 32k
+	ram   (wxa!ri) : ORIGIN = 0x20000000, LENGTH = 10k
+
+	/* Run in RAM */
+/*	flash (rxai!w) : ORIGIN = 0x20000000, LENGTH = 7k
+	ram   (wxa!ri) : ORIGIN = 0x20001C00, LENGTH = 3K
+*/
+}
+
+
+SECTIONS
+{
+  __stack_size = DEFINED(__stack_size) ? __stack_size : 1K;
+
+
+  .init           :
+  {
+    KEEP (*(SORT_NONE(.init)))
+  } >flash AT>flash
+
+  .ilalign         :
+  {
+    . = ALIGN(4);
+    PROVIDE( _ilm_lma = . );
+  } >flash AT>flash
+
+  .ialign         :
+  {
+    PROVIDE( _ilm = . );
+  } >flash AT>flash
+
+  .text           :
+  {
+    *(.rodata .rodata.*)
+    *(.text.unlikely .text.unlikely.*)
+    *(.text.startup .text.startup.*)
+    *(.text .text.*)
+    *(.gnu.linkonce.t.*)
+  } >flash AT>flash
+
+  .fini           :
+  {
+    KEEP (*(SORT_NONE(.fini)))
+  } >flash AT>flash
+
+  . = ALIGN(4);
+
+  PROVIDE (__etext = .);
+  PROVIDE (_etext = .);/*0x80022c8*/
+  PROVIDE (etext = .);/*0x80022c8*/
+  PROVIDE( _eilm = . );
+
+  .preinit_array  :
+  {
+    PROVIDE_HIDDEN (__preinit_array_start = .);
+    KEEP (*(.preinit_array))
+    PROVIDE_HIDDEN (__preinit_array_end = .);
+  } >flash AT>flash
+
+  .init_array     :
+  {
+    PROVIDE_HIDDEN (__init_array_start = .);
+    KEEP (*(SORT_BY_INIT_PRIORITY(.init_array.*) SORT_BY_INIT_PRIORITY(.ctors.*)))
+    KEEP (*(.init_array EXCLUDE_FILE (*crtbegin.o *crtbegin?.o *crtend.o *crtend?.o ) .ctors))
+    PROVIDE_HIDDEN (__init_array_end = .);
+  } >flash AT>flash
+
+  .fini_array     :
+  {
+    PROVIDE_HIDDEN (__fini_array_start = .);
+    KEEP (*(SORT_BY_INIT_PRIORITY(.fini_array.*) SORT_BY_INIT_PRIORITY(.dtors.*)))
+    KEEP (*(.fini_array EXCLUDE_FILE (*crtbegin.o *crtbegin?.o *crtend.o *crtend?.o ) .dtors))
+    PROVIDE_HIDDEN (__fini_array_end = .);
+  } >flash AT>flash
+
+  .ctors          :
+  {
+    /* gcc uses crtbegin.o to find the start of
+       the constructors, so we make sure it is
+       first.  Because this is a wildcard, it
+       doesn't matter if the user does not
+       actually link against crtbegin.o; the
+       linker won't look for a file to match a
+       wildcard.  The wildcard also means that it
+       doesn't matter which directory crtbegin.o
+       is in.  */
+    KEEP (*crtbegin.o(.ctors))
+    KEEP (*crtbegin?.o(.ctors))
+    /* We don't want to include the .ctor section from
+       the crtend.o file until after the sorted ctors.
+       The .ctor section from the crtend file contains the
+       end of ctors marker and it must be last */
+    KEEP (*(EXCLUDE_FILE (*crtend.o *crtend?.o ) .ctors))
+    KEEP (*(SORT(.ctors.*)))
+    KEEP (*(.ctors))
+  } >flash AT>flash
+
+  .dtors          :
+  {
+    KEEP (*crtbegin.o(.dtors))
+    KEEP (*crtbegin?.o(.dtors))
+    KEEP (*(EXCLUDE_FILE (*crtend.o *crtend?.o ) .dtors))
+    KEEP (*(SORT(.dtors.*)))
+    KEEP (*(.dtors))
+  } >flash AT>flash
+
+    . = ALIGN(4);
+    PROVIDE( _eilm = . );
+
+  .lalign         :
+  {
+    . = ALIGN(4);
+    PROVIDE( _data_lma = . );
+  } >flash AT>flash
+
+  .dalign         :
+  {
+    . = ALIGN(4);
+    PROVIDE( _data = . );
+  } >ram AT>flash
+
+
+  .data          :
+  {
+    *(.rdata)
+
+    *(.gnu.linkonce.r.*)
+    *(.data .data.*)
+    *(.gnu.linkonce.d.*)
+    . = ALIGN(8);
+    PROVIDE( __global_pointer$ = . + 0x800);
+    *(.sdata .sdata.*)
+    *(.gnu.linkonce.s.*)
+    . = ALIGN(8);
+    *(.srodata.cst16)
+    *(.srodata.cst8)
+    *(.srodata.cst4)
+    *(.srodata.cst2)
+    *(.srodata .srodata.*)
+  } >ram AT>flash
+
+  . = ALIGN(4);
+  PROVIDE( _edata = . );
+  PROVIDE( edata = . );
+
+  PROVIDE( _fbss = . ); /*0X200052A0  0X200002A0*/
+  PROVIDE( __bss_start = . );
+  .bss            :
+  {
+    *(.sbss*)
+    *(.gnu.linkonce.sb.*)
+    *(.bss .bss.*)
+    *(.gnu.linkonce.b.*)
+    *(COMMON)
+    . = ALIGN(4);
+  } >ram AT>ram
+
+  . = ALIGN(8);
+  PROVIDE( _end = . ); /*0X2000,0340*/
+  PROVIDE( end = . );
+
+  .stack ORIGIN(ram) + LENGTH(ram) - __stack_size :
+  {
+    PROVIDE( _heap_end = . );
+    . = __stack_size;
+    PROVIDE( _sp = . );
+  } >ram AT>ram
+}

bsp/gd32vf103v-eval/libraries/n22/env_Eclipse/GD32VF103x8.lds

@@ -0,0 +1,175 @@
+OUTPUT_ARCH( "riscv" )
+
+ENTRY( _start )
+
+MEMORY
+{
+	/* Run in FLASH */
+	flash (rxai!w) : ORIGIN = 0x08000000, LENGTH = 64k
+	ram   (wxa!ri) : ORIGIN = 0x20000000, LENGTH = 20k
+
+	/* Run in RAM */
+/*	flash (rxai!w) : ORIGIN = 0x20000000, LENGTH = 15k
+	ram   (wxa!ri) : ORIGIN = 0x20003C00, LENGTH = 5K
+*/
+}
+
+
+SECTIONS
+{
+  __stack_size = DEFINED(__stack_size) ? __stack_size : 2K;
+
+
+  .init           :
+  {
+    KEEP (*(SORT_NONE(.init)))
+  } >flash AT>flash
+
+  .ilalign         :
+  {
+    . = ALIGN(4);
+    PROVIDE( _ilm_lma = . );
+  } >flash AT>flash
+
+  .ialign         :
+  {
+    PROVIDE( _ilm = . );
+  } >flash AT>flash
+
+  .text           :
+  {
+    *(.rodata .rodata.*)
+    *(.text.unlikely .text.unlikely.*)
+    *(.text.startup .text.startup.*)
+    *(.text .text.*)
+    *(.gnu.linkonce.t.*)
+  } >flash AT>flash
+
+  .fini           :
+  {
+    KEEP (*(SORT_NONE(.fini)))
+  } >flash AT>flash
+
+  . = ALIGN(4);
+
+  PROVIDE (__etext = .);
+  PROVIDE (_etext = .);/*0x80022c8*/
+  PROVIDE (etext = .);/*0x80022c8*/
+  PROVIDE( _eilm = . );
+
+  .preinit_array  :
+  {
+    PROVIDE_HIDDEN (__preinit_array_start = .);
+    KEEP (*(.preinit_array))
+    PROVIDE_HIDDEN (__preinit_array_end = .);
+  } >flash AT>flash
+
+  .init_array     :
+  {
+    PROVIDE_HIDDEN (__init_array_start = .);
+    KEEP (*(SORT_BY_INIT_PRIORITY(.init_array.*) SORT_BY_INIT_PRIORITY(.ctors.*)))
+    KEEP (*(.init_array EXCLUDE_FILE (*crtbegin.o *crtbegin?.o *crtend.o *crtend?.o ) .ctors))
+    PROVIDE_HIDDEN (__init_array_end = .);
+  } >flash AT>flash
+
+  .fini_array     :
+  {
+    PROVIDE_HIDDEN (__fini_array_start = .);
+    KEEP (*(SORT_BY_INIT_PRIORITY(.fini_array.*) SORT_BY_INIT_PRIORITY(.dtors.*)))
+    KEEP (*(.fini_array EXCLUDE_FILE (*crtbegin.o *crtbegin?.o *crtend.o *crtend?.o ) .dtors))
+    PROVIDE_HIDDEN (__fini_array_end = .);
+  } >flash AT>flash
+
+  .ctors          :
+  {
+    /* gcc uses crtbegin.o to find the start of
+       the constructors, so we make sure it is
+       first.  Because this is a wildcard, it
+       doesn't matter if the user does not
+       actually link against crtbegin.o; the
+       linker won't look for a file to match a
+       wildcard.  The wildcard also means that it
+       doesn't matter which directory crtbegin.o
+       is in.  */
+    KEEP (*crtbegin.o(.ctors))
+    KEEP (*crtbegin?.o(.ctors))
+    /* We don't want to include the .ctor section from
+       the crtend.o file until after the sorted ctors.
+       The .ctor section from the crtend file contains the
+       end of ctors marker and it must be last */
+    KEEP (*(EXCLUDE_FILE (*crtend.o *crtend?.o ) .ctors))
+    KEEP (*(SORT(.ctors.*)))
+    KEEP (*(.ctors))
+  } >flash AT>flash
+
+  .dtors          :
+  {
+    KEEP (*crtbegin.o(.dtors))
+    KEEP (*crtbegin?.o(.dtors))
+    KEEP (*(EXCLUDE_FILE (*crtend.o *crtend?.o ) .dtors))
+    KEEP (*(SORT(.dtors.*)))
+    KEEP (*(.dtors))
+  } >flash AT>flash
+
+    . = ALIGN(4);
+    PROVIDE( _eilm = . );
+
+  .lalign         :
+  {
+    . = ALIGN(4);
+    PROVIDE( _data_lma = . );
+  } >flash AT>flash
+
+  .dalign         :
+  {
+    . = ALIGN(4);
+    PROVIDE( _data = . );
+  } >ram AT>flash
+
+
+  .data          :
+  {
+    *(.rdata)
+
+    *(.gnu.linkonce.r.*)
+    *(.data .data.*)
+    *(.gnu.linkonce.d.*)
+    . = ALIGN(8);
+    PROVIDE( __global_pointer$ = . + 0x800);
+    *(.sdata .sdata.*)
+    *(.gnu.linkonce.s.*)
+    . = ALIGN(8);
+    *(.srodata.cst16)
+    *(.srodata.cst8)
+    *(.srodata.cst4)
+    *(.srodata.cst2)
+    *(.srodata .srodata.*)
+  } >ram AT>flash
+
+  . = ALIGN(4);
+  PROVIDE( _edata = . );
+  PROVIDE( edata = . );
+
+  PROVIDE( _fbss = . ); /*0X200052A0  0X200002A0*/
+  PROVIDE( __bss_start = . );
+  .bss            :
+  {
+    *(.sbss*)
+    *(.gnu.linkonce.sb.*)
+    *(.bss .bss.*)
+    *(.gnu.linkonce.b.*)
+    *(COMMON)
+    . = ALIGN(4);
+  } >ram AT>ram
+
+  . = ALIGN(8);
+  PROVIDE( _end = . ); /*0X2000,0340*/
+  PROVIDE( end = . );
+
+  .stack ORIGIN(ram) + LENGTH(ram) - __stack_size :
+  {
+    PROVIDE( _heap_end = . );
+    . = __stack_size;
+    PROVIDE( _sp = . );
+  } >ram AT>ram
+}

bsp/gd32vf103v-eval/libraries/n22/env_Eclipse/GD32VF103xB.lds

@@ -0,0 +1,199 @@
+OUTPUT_ARCH( "riscv" )
+
+ENTRY( _start )
+
+MEMORY
+{
+    /* Run in FLASH */
+    flash (rxai!w) : ORIGIN = 0x08000000, LENGTH = 128k
+    ram   (wxa!ri) : ORIGIN = 0x20000000, LENGTH = 32K
+
+    /* Run in RAM */
+/* flash (rxai!w) : ORIGIN = 0x20000000, LENGTH = 24k
+    ram   (wxa!ri) : ORIGIN = 0x20006000, LENGTH = 8K
+*/
+}
+
+
+SECTIONS
+{
+  __stack_size = DEFINED(__stack_size) ? __stack_size : 2K;
+
+
+  .init           :
+  {
+    KEEP (*(SORT_NONE(.init)))
+  } >flash AT>flash
+
+  .ilalign         :
+  {
+    . = ALIGN(4);
+    PROVIDE( _ilm_lma = . );
+  } >flash AT>flash
+
+  .ialign         :
+  {
+    PROVIDE( _ilm = . );
+  } >flash AT>flash
+
+  .text           :
+  {
+    *(.rodata .rodata.*)
+    *(.text.unlikely .text.unlikely.*)
+    *(.text.startup .text.startup.*)
+    *(.text .text.*)
+    *(.gnu.linkonce.t.*)
+
+    /* section information for finsh shell */
+    . = ALIGN(4);
+    __fsymtab_start = .;
+    KEEP(*(FSymTab))
+    __fsymtab_end = .;
+    . = ALIGN(4);
+    __vsymtab_start = .;
+    KEEP(*(VSymTab))
+    __vsymtab_end = .;
+    . = ALIGN(4);
+
+    /* section information for initial. */
+    . = ALIGN(4);
+    __rt_init_start = .;
+    KEEP(*(SORT(.rti_fn*)))
+    __rt_init_end = .;
+    . = ALIGN(4);
+
+    /* section information for modules */
+    . = ALIGN(4);
+    __rtmsymtab_start = .;
+    KEEP(*(RTMSymTab))
+    __rtmsymtab_end = .;
+  } >flash AT>flash
+
+  .fini           :
+  {
+    KEEP (*(SORT_NONE(.fini)))
+  } >flash AT>flash
+
+  . = ALIGN(4);
+
+  PROVIDE (__etext = .);
+  PROVIDE (_etext = .);/*0x80022c8*/
+  PROVIDE (etext = .);/*0x80022c8*/
+  PROVIDE( _eilm = . );
+
+  .preinit_array  :
+  {
+    PROVIDE_HIDDEN (__preinit_array_start = .);
+    KEEP (*(.preinit_array))
+    PROVIDE_HIDDEN (__preinit_array_end = .);
+  } >flash AT>flash
+
+  .init_array     :
+  {
+    PROVIDE_HIDDEN (__init_array_start = .);
+    KEEP (*(SORT_BY_INIT_PRIORITY(.init_array.*) SORT_BY_INIT_PRIORITY(.ctors.*)))
+    KEEP (*(.init_array EXCLUDE_FILE (*crtbegin.o *crtbegin?.o *crtend.o *crtend?.o ) .ctors))
+    PROVIDE_HIDDEN (__init_array_end = .);
+  } >flash AT>flash
+
+  .fini_array     :
+  {
+    PROVIDE_HIDDEN (__fini_array_start = .);
+    KEEP (*(SORT_BY_INIT_PRIORITY(.fini_array.*) SORT_BY_INIT_PRIORITY(.dtors.*)))
+    KEEP (*(.fini_array EXCLUDE_FILE (*crtbegin.o *crtbegin?.o *crtend.o *crtend?.o ) .dtors))
+    PROVIDE_HIDDEN (__fini_array_end = .);
+  } >flash AT>flash
+
+  .ctors          :
+  {
+    /* gcc uses crtbegin.o to find the start of
+       the constructors, so we make sure it is
+       first.  Because this is a wildcard, it
+       doesn't matter if the user does not
+       actually link against crtbegin.o; the
+       linker won't look for a file to match a
+       wildcard.  The wildcard also means that it
+       doesn't matter which directory crtbegin.o
+       is in.  */
+    KEEP (*crtbegin.o(.ctors))
+    KEEP (*crtbegin?.o(.ctors))
+    /* We don't want to include the .ctor section from
+       the crtend.o file until after the sorted ctors.
+       The .ctor section from the crtend file contains the
+       end of ctors marker and it must be last */
+    KEEP (*(EXCLUDE_FILE (*crtend.o *crtend?.o ) .ctors))
+    KEEP (*(SORT(.ctors.*)))
+    KEEP (*(.ctors))
+  } >flash AT>flash
+
+  .dtors          :
+  {
+    KEEP (*crtbegin.o(.dtors))
+    KEEP (*crtbegin?.o(.dtors))
+    KEEP (*(EXCLUDE_FILE (*crtend.o *crtend?.o ) .dtors))
+    KEEP (*(SORT(.dtors.*)))
+    KEEP (*(.dtors))
+  } >flash AT>flash
+
+    . = ALIGN(4);
+    PROVIDE( _eilm = . );
+
+  .lalign         :
+  {
+    . = ALIGN(4);
+    PROVIDE( _data_lma = . );
+  } >flash AT>flash
+
+  .dalign         :
+  {
+    . = ALIGN(4);
+    PROVIDE( _data = . );
+  } >ram AT>flash
+
+
+  .data          :
+  {
+    *(.rdata)
+
+    *(.gnu.linkonce.r.*)
+    *(.data .data.*)
+    *(.gnu.linkonce.d.*)
+    . = ALIGN(8);
+    PROVIDE( __global_pointer$ = . + 0x800);
+    *(.sdata .sdata.*)
+    *(.gnu.linkonce.s.*)
+    . = ALIGN(8);
+    *(.srodata.cst16)
+    *(.srodata.cst8)
+    *(.srodata.cst4)
+    *(.srodata.cst2)
+    *(.srodata .srodata.*)
+  } >ram AT>flash
+
+  . = ALIGN(4);
+  PROVIDE( _edata = . );
+  PROVIDE( edata = . );
+
+  PROVIDE( _fbss = . ); /*0X200052A0  0X200002A0*/
+  PROVIDE( __bss_start = . );
+  .bss            :
+  {
+    *(.sbss*)
+    *(.gnu.linkonce.sb.*)
+    *(.bss .bss.*)
+    *(.gnu.linkonce.b.*)
+    *(COMMON)
+    . = ALIGN(4);
+  } >ram AT>ram
+
+  . = ALIGN(8);
+  PROVIDE( _end = . ); /*0X2000,0340*/
+  PROVIDE( end = . );
+
+  .stack ORIGIN(ram) + LENGTH(ram) - __stack_size :
+  {
+    PROVIDE( _heap_end = . );
+    . = __stack_size;
+    PROVIDE( _sp = . );
+  } >ram AT>ram
+}

bsp/gd32vf103v-eval/libraries/n22/env_Eclipse/GD32VF103xB_I2S.lds

@@ -0,0 +1,182 @@
+OUTPUT_ARCH( "riscv" )
+
+ENTRY( _start )
+
+MEMORY
+{
+	/* Run in FLASH */
+	flash (rxai!w) : ORIGIN = 0x08000000, LENGTH = 128k
+	ram   (wxa!ri) : ORIGIN = 0x20000000, LENGTH = 32K
+
+	/* Run in RAM */
+/*	flash (rxai!w) : ORIGIN = 0x20000000, LENGTH = 24k
+	ram   (wxa!ri) : ORIGIN = 0x20006000, LENGTH = 8K
+*/
+}
+
+
+SECTIONS
+{
+  __stack_size = DEFINED(__stack_size) ? __stack_size : 2K;
+
+
+  .init           :
+  {
+    KEEP (*(SORT_NONE(.init)))
+  } >flash AT>flash
+
+  .ilalign         :
+  {
+    . = ALIGN(4);
+    PROVIDE( _ilm_lma = . );
+  } >flash AT>flash
+
+  .ialign         :
+  {
+    PROVIDE( _ilm = . );
+  } >flash AT>flash
+
+  .PrgData ALIGN(0x08004000,4) : AT(ALIGN(0x08004000,4))
+  {
+		KEEP(*(.PrgData))
+  }
+
+  .text           :
+  {
+    *(.rodata .rodata.*)
+    *(.text.unlikely .text.unlikely.*)
+    *(.text.startup .text.startup.*)
+    *(.text .text.*)
+    *(.gnu.linkonce.t.*)
+    *(.sdata2 .sdata2. *)
+  } >flash AT>flash
+
+
+  .fini           :
+  {
+    KEEP (*(SORT_NONE(.fini)))
+  } >flash AT>flash
+
+  . = ALIGN(4);
+
+  PROVIDE (__etext = .);
+  PROVIDE (_etext = .);/*0x80022c8*/
+  PROVIDE (etext = .);/*0x80022c8*/
+  PROVIDE( _eilm = . );
+
+  .preinit_array  :
+  {
+    PROVIDE_HIDDEN (__preinit_array_start = .);
+    KEEP (*(.preinit_array))
+    PROVIDE_HIDDEN (__preinit_array_end = .);
+  } >flash AT>flash
+
+  .init_array     :
+  {
+    PROVIDE_HIDDEN (__init_array_start = .);
+    KEEP (*(SORT_BY_INIT_PRIORITY(.init_array.*) SORT_BY_INIT_PRIORITY(.ctors.*)))
+    KEEP (*(.init_array EXCLUDE_FILE (*crtbegin.o *crtbegin?.o *crtend.o *crtend?.o ) .ctors))
+    PROVIDE_HIDDEN (__init_array_end = .);
+  } >flash AT>flash
+
+  .fini_array     :
+  {
+    PROVIDE_HIDDEN (__fini_array_start = .);
+    KEEP (*(SORT_BY_INIT_PRIORITY(.fini_array.*) SORT_BY_INIT_PRIORITY(.dtors.*)))
+    KEEP (*(.fini_array EXCLUDE_FILE (*crtbegin.o *crtbegin?.o *crtend.o *crtend?.o ) .dtors))
+    PROVIDE_HIDDEN (__fini_array_end = .);
+  } >flash AT>flash
+
+  .ctors          :
+  {
+    /* gcc uses crtbegin.o to find the start of
+       the constructors, so we make sure it is
+       first.  Because this is a wildcard, it
+       doesn't matter if the user does not
+       actually link against crtbegin.o; the
+       linker won't look for a file to match a
+       wildcard.  The wildcard also means that it
+       doesn't matter which directory crtbegin.o
+       is in.  */
+    KEEP (*crtbegin.o(.ctors))
+    KEEP (*crtbegin?.o(.ctors))
+    /* We don't want to include the .ctor section from
+       the crtend.o file until after the sorted ctors.
+       The .ctor section from the crtend file contains the
+       end of ctors marker and it must be last */
+    KEEP (*(EXCLUDE_FILE (*crtend.o *crtend?.o ) .ctors))
+    KEEP (*(SORT(.ctors.*)))
+    KEEP (*(.ctors))
+  } >flash AT>flash
+
+  .dtors          :
+  {
+    KEEP (*crtbegin.o(.dtors))
+    KEEP (*crtbegin?.o(.dtors))
+    KEEP (*(EXCLUDE_FILE (*crtend.o *crtend?.o ) .dtors))
+    KEEP (*(SORT(.dtors.*)))
+    KEEP (*(.dtors))
+  } >flash AT>flash
+
+    . = ALIGN(4);
+    PROVIDE( _eilm = . );
+
+  .lalign         :
+  {
+    . = ALIGN(4);
+    PROVIDE( _data_lma = . );
+  } >flash AT>flash
+
+  .dalign         :
+  {
+    . = ALIGN(4);
+    PROVIDE( _data = . );
+  } >ram AT>flash
+
+
+  .data          :
+  {
+    *(.rdata)
+
+    *(.gnu.linkonce.r.*)
+    *(.data .data.*)
+    *(.gnu.linkonce.d.*)
+    . = ALIGN(8);
+    PROVIDE( __global_pointer$ = . + 0x800);
+    *(.sdata .sdata.*)
+    *(.gnu.linkonce.s.*)
+    . = ALIGN(8);
+    *(.srodata.cst16)
+    *(.srodata.cst8)
+    *(.srodata.cst4)
+    *(.srodata.cst2)
+    *(.srodata .srodata.*)
+  } >ram AT>flash
+
+  . = ALIGN(4);
+  PROVIDE( _edata = . );
+  PROVIDE( edata = . );
+
+  PROVIDE( _fbss = . ); /*0X200052A0  0X200002A0*/
+  PROVIDE( __bss_start = . );
+  .bss            :
+  {
+    *(.sbss*)
+    *(.gnu.linkonce.sb.*)
+    *(.bss .bss.*)
+    *(.gnu.linkonce.b.*)
+    *(COMMON)
+    . = ALIGN(4);
+  } >ram AT>ram
+
+  . = ALIGN(8);
+  PROVIDE( _end = . ); /*0X2000,0340*/
+  PROVIDE( end = . );
+
+  .stack ORIGIN(ram) + LENGTH(ram) - __stack_size :
+  {
+    PROVIDE( _heap_end = . );
+    . = __stack_size;
+    PROVIDE( _sp = . );
+  } >ram AT>ram
+}

bsp/gd32vf103v-eval/libraries/n22/env_Eclipse/entry.S

@@ -0,0 +1,204 @@
+// See LICENSE for license details
+
+#ifndef ENTRY_S
+#define ENTRY_S
+
+#include "riscv_encoding.h"
+#include "riscv_bits.h"
+#include "n22_eclic.h"
+#include "n22_tmr.h"
+
+###############################################
+###############################################
+# Disable Interrupt
+#
+.macro DISABLE_MIE
+  csrc CSR_MSTATUS, MSTATUS_MIE
+.endm
+
+
+###############################################
+###############################################
+#Save caller registers
+.macro SAVE_CONTEXT
+
+  STORE x1,  0*REGBYTES(sp)
+  STORE x5,  1*REGBYTES(sp)
+  STORE x6,  2*REGBYTES(sp)
+  STORE x7,  3*REGBYTES(sp)
+  STORE x10, 4*REGBYTES(sp)
+  STORE x11, 5*REGBYTES(sp)
+  STORE x12, 6*REGBYTES(sp)
+  STORE x13, 7*REGBYTES(sp)
+  STORE x14, 8*REGBYTES(sp)
+  STORE x15, 9*REGBYTES(sp)
+  STORE x16, 10*REGBYTES(sp)
+  STORE x17, 11*REGBYTES(sp)
+  STORE x28, 12*REGBYTES(sp)
+  STORE x29, 13*REGBYTES(sp)
+  STORE x30, 14*REGBYTES(sp)
+  STORE x31, 15*REGBYTES(sp)
+.endm
+
+
+###############################################
+###############################################
+#restore caller registers
+.macro RESTORE_CONTEXT
+  LOAD x1,  0*REGBYTES(sp)
+  LOAD x5,  1*REGBYTES(sp)
+  LOAD x6,  2*REGBYTES(sp)
+  LOAD x7,  3*REGBYTES(sp)
+  LOAD x10, 4*REGBYTES(sp)
+  LOAD x11, 5*REGBYTES(sp)
+  LOAD x12, 6*REGBYTES(sp)
+  LOAD x13, 7*REGBYTES(sp)
+  LOAD x14, 8*REGBYTES(sp)
+  LOAD x15, 9*REGBYTES(sp)
+  LOAD x16, 10*REGBYTES(sp)
+  LOAD x17, 11*REGBYTES(sp)
+  LOAD x28, 12*REGBYTES(sp)
+  LOAD x29, 13*REGBYTES(sp)
+  LOAD x30, 14*REGBYTES(sp)
+  LOAD x31, 15*REGBYTES(sp)
+
+.endm
+
+###############################################
+###############################################
+#restore caller registers
+.macro RESTORE_CONTEXT_EXCPT_X5
+  LOAD x1,  0*REGBYTES(sp)
+  LOAD x6,  2*REGBYTES(sp)
+  LOAD x7,  3*REGBYTES(sp)
+  LOAD x10, 4*REGBYTES(sp)
+  LOAD x11, 5*REGBYTES(sp)
+  LOAD x12, 6*REGBYTES(sp)
+  LOAD x13, 7*REGBYTES(sp)
+  LOAD x14, 8*REGBYTES(sp)
+  LOAD x15, 9*REGBYTES(sp)
+  LOAD x16, 10*REGBYTES(sp)
+  LOAD x17, 11*REGBYTES(sp)
+  LOAD x28, 12*REGBYTES(sp)
+  LOAD x29, 13*REGBYTES(sp)
+  LOAD x30, 14*REGBYTES(sp)
+  LOAD x31, 15*REGBYTES(sp)
+
+.endm
+
+###############################################
+###############################################
+#restore caller registers
+.macro RESTORE_CONTEXT_ONLY_X5
+  LOAD x5,  1*REGBYTES(sp)
+.endm
+
+###############################################
+###############################################
+# Save the mepc and mstatus
+#
+.macro SAVE_MEPC_MSTATUS
+  csrr x5, CSR_MEPC
+  STORE x5,  16*REGBYTES(sp)
+  csrr x5, CSR_MSTATUS
+  STORE x5,  17*REGBYTES(sp)
+  csrr x5, CSR_MXSTATUS
+  STORE x5,  18*REGBYTES(sp)
+.endm
+
+###############################################
+###############################################
+# Restore the mepc and mstatus
+#
+.macro RESTORE_MEPC_MSTATUS
+  LOAD x5,  16*REGBYTES(sp)
+  csrw CSR_MEPC, x5
+  LOAD x5,  17*REGBYTES(sp)
+  csrw CSR_MSTATUS, x5
+  LOAD x5,  18*REGBYTES(sp)
+  csrw CSR_MXSTATUS, x5
+.endm
+
+###############################################
+###############################################
+// trap entry point
+//
+  .section      .text.entry
+  .align 6 // In ECLIC mode, the trap entry must be 64bytes aligned
+  .global trap_entry
+.weak trap_entry
+trap_entry:
+   // Allocate the stack space
+  addi sp, sp, -19*REGBYTES
+
+  // Save the caller saving registers (context)
+  SAVE_CONTEXT
+  // Save the MEPC/MStatus reg
+  SAVE_MEPC_MSTATUS
+
+     // Set the function argument
+  csrr a0, mcause
+  mv a1, sp
+     // Call the function
+  call handle_trap
+
+  // Restore the MEPC/MStatus reg
+  RESTORE_MEPC_MSTATUS
+  // Restore the caller saving registers (context)
+  RESTORE_CONTEXT
+
+  // De-allocate the stack space
+  addi sp, sp, 19*REGBYTES
+  // Return to regular code
+  mret
+###############################################
+###############################################
+// IRQ entry point
+//
+  .section      .text.irq
+  .align 2
+  .global irq_entry
+.weak irq_entry
+irq_entry: // -------------> This label will be set to MTVT2 register
+  // Allocate the stack space
+  addi sp, sp, -19*REGBYTES
+
+  SAVE_CONTEXT// Save 16 regs
+
+  //------This special CSR read operation, which is actually use mcause as operand to directly store it to memory
+  csrrwi  x0, CSR_PUSHMCAUSE, 16
+  //------This special CSR read operation, which is actually use mepc as operand to directly store it to memory
+  csrrwi  x0, CSR_PUSHMEPC, 17
+  //------This special CSR read operation, which is actually use mxstatus as operand to directly store it to memory
+  csrrwi  x0, CSR_PUSHMXSTATUS, 18
+
+service_loop:
+  //------This special CSR read/write operation, which is actually Claim the ECLIC to find its pending highest
+  // ID, if the ID is not 0, then automatically enable the mstatus.MIE, and jump to its vector-entry-label, and
+  // update the link register
+  csrrw ra, CSR_MINTSEL_JAL, ra
+
+  RESTORE_CONTEXT_EXCPT_X5
+
+  #---- Critical section with interrupts disabled -----------------------
+  DISABLE_MIE # Disable interrupts
+
+  LOAD x5,  18*REGBYTES(sp)
+  csrw CSR_MXSTATUS, x5
+  LOAD x5,  17*REGBYTES(sp)
+  csrw CSR_MEPC, x5
+  LOAD x5,  16*REGBYTES(sp)
+  csrw CSR_MCAUSE, x5
+
+
+  RESTORE_CONTEXT_ONLY_X5
+
+  // De-allocate the stack space
+  addi sp, sp, 19*REGBYTES
+  // Return to regular code
+  mret
+
+
+
+
+#endif

bsp/gd32vf103v-eval/libraries/n22/env_Eclipse/handlers.c

@@ -0,0 +1,24 @@
+//See LICENSE for license details.
+#include <stdint.h>
+#include <stdio.h>
+#include <unistd.h>
+#include "riscv_encoding.h"
+#include "n22_func.h"
+__attribute__((weak))  uintptr_t handle_nmi() {
+    write(1, "nmi\n", 5);
+    _exit(1);
+    return 0;
+}
+
+__attribute__((weak))  uintptr_t handle_trap(uintptr_t mcause, uintptr_t sp) {
+    if (mcause == 0xFFF) {
+        handle_nmi();
+    }
+    write(1, "trap\n", 5);
+    printf("In trap handler, the mcause is %d\n", mcause);
+    printf("In trap handler, the mepc is 0x%x\n", read_csr(mepc));
+    printf("In trap handler, the mtval is 0x%x\n", read_csr(mbadaddr));
+    _exit(mcause);
+    return 0;
+}
+

bsp/gd32vf103v-eval/libraries/n22/env_Eclipse/init.c

@@ -0,0 +1,28 @@
+//See LICENSE for license details.
+#include <gd32vf103.h>
+#include <stdint.h>
+#include <stdio.h>
+#include <unistd.h>
+#include "riscv_encoding.h"
+#include "n22_func.h"
+
+void _init() {
+    SystemInit();
+
+    //ECLIC init
+    eclic_init(ECLIC_NUM_INTERRUPTS);
+    eclic_mode_enable();
+    set_csr(mstatus, MSTATUS_MIE);
+
+    //printf("After ECLIC mode enabled, the mtvec value is %x \n\n\r", read_csr(mtvec));
+
+    // // It must be NOTED:
+    //  //    * In the RISC-V arch, if user mode and PMP supported, then by default if PMP is not configured
+    //  //      with valid entries, then user mode cannot access any memory, and cannot execute any instructions.
+    //  //    * So if switch to user-mode and still want to continue, then you must configure PMP first
+    //pmp_open_all_space();
+    //switch_m2u_mode();
+}
+
+void _fini() {
+}

bsp/gd32vf103v-eval/libraries/n22/env_Eclipse/start.S

@@ -0,0 +1,247 @@
+// See LICENSE for license details.
+
+// See LICENSE for license details.
+
+#include "riscv_encoding.h"
+
+	.section .init
+
+    .weak  eclic_msip_handler
+    .weak  eclic_mtip_handler
+    .weak  eclic_bwei_handler
+    .weak  eclic_pmovi_handler
+    .weak  WWDGT_IRQHandler
+    .weak  LVD_IRQHandler
+    .weak  TAMPER_IRQHandler
+    .weak  RTC_IRQHandler
+    .weak  FMC_IRQHandler
+    .weak  RCU_IRQHandler
+    .weak  EXTI0_IRQHandler
+    .weak  EXTI1_IRQHandler
+    .weak  EXTI2_IRQHandler
+    .weak  EXTI3_IRQHandler
+    .weak  EXTI4_IRQHandler
+    .weak  DMA0_Channel0_IRQHandler
+    .weak  DMA0_Channel1_IRQHandler
+    .weak  DMA0_Channel2_IRQHandler
+    .weak  DMA0_Channel3_IRQHandler
+    .weak  DMA0_Channel4_IRQHandler
+    .weak  DMA0_Channel5_IRQHandler
+    .weak  DMA0_Channel6_IRQHandler
+    .weak  ADC0_1_IRQHandler
+    .weak  CAN0_TX_IRQHandler
+    .weak  CAN0_RX0_IRQHandler
+    .weak  CAN0_RX1_IRQHandler
+    .weak  CAN0_EWMC_IRQHandler
+    .weak  EXTI5_9_IRQHandler
+    .weak  TIMER0_BRK_IRQHandler
+    .weak  TIMER0_UP_IRQHandler
+    .weak  TIMER0_TRG_CMT_IRQHandler
+    .weak  TIMER0_Channel_IRQHandler
+    .weak  TIMER1_IRQHandler
+    .weak  TIMER2_IRQHandler
+    .weak  TIMER3_IRQHandler
+    .weak  I2C0_EV_IRQHandler
+    .weak  I2C0_ER_IRQHandler
+    .weak  I2C1_EV_IRQHandler
+    .weak  I2C1_ER_IRQHandler
+    .weak  SPI0_IRQHandler
+    .weak  SPI1_IRQHandler
+    .weak  USART0_IRQHandler
+    .weak  USART1_IRQHandler
+    .weak  USART2_IRQHandler
+    .weak  EXTI10_15_IRQHandler
+    .weak  RTC_Alarm_IRQHandler
+    .weak  USBFS_WKUP_IRQHandler
+    .weak  EXMC_IRQHandler
+    .weak  TIMER4_IRQHandler
+    .weak  SPI2_IRQHandler
+    .weak  UART3_IRQHandler
+    .weak  UART4_IRQHandler
+    .weak  TIMER5_IRQHandler
+    .weak  TIMER6_IRQHandler
+    .weak  DMA1_Channel0_IRQHandler
+    .weak  DMA1_Channel1_IRQHandler
+    .weak  DMA1_Channel2_IRQHandler
+    .weak  DMA1_Channel3_IRQHandler
+    .weak  DMA1_Channel4_IRQHandler
+    .weak  CAN1_TX_IRQHandler
+    .weak  CAN1_RX0_IRQHandler
+    .weak  CAN1_RX1_IRQHandler
+    .weak  CAN1_EWMC_IRQHandler
+    .weak  USBFS_IRQHandler
+
+
+vector_base:
+    j _start
+    .align    2
+    .word     0
+    .word     0
+    .word     eclic_msip_handler
+    .word     0
+    .word     0
+    .word  	  0
+    .word  	  eclic_mtip_handler
+    .word  	  0
+    .word  	  0
+    .word  	  0
+    .word  	  0
+    .word  	  0
+    .word  	  0
+    .word  	  0
+    .word 	  0
+    .word  	  0
+    .word  	  eclic_bwei_handler
+    .word  	  eclic_pmovi_handler
+    .word  	  WWDGT_IRQHandler
+	.word     LVD_IRQHandler
+	.word     TAMPER_IRQHandler
+	.word     RTC_IRQHandler
+	.word     FMC_IRQHandler
+	.word     RCU_IRQHandler
+	.word     EXTI0_IRQHandler
+	.word     EXTI1_IRQHandler
+	.word     EXTI2_IRQHandler
+	.word     EXTI3_IRQHandler
+	.word     EXTI4_IRQHandler
+	.word     DMA0_Channel0_IRQHandler
+	.word     DMA0_Channel1_IRQHandler
+	.word     DMA0_Channel2_IRQHandler
+	.word     DMA0_Channel3_IRQHandler
+	.word     DMA0_Channel4_IRQHandler
+	.word     DMA0_Channel5_IRQHandler
+	.word     DMA0_Channel6_IRQHandler
+	.word     ADC0_1_IRQHandler
+	.word     CAN0_TX_IRQHandler
+	.word     CAN0_RX0_IRQHandler
+	.word     CAN0_RX1_IRQHandler
+	.word     CAN0_EWMC_IRQHandler
+	.word     EXTI5_9_IRQHandler
+	.word     TIMER0_BRK_IRQHandler
+	.word     TIMER0_UP_IRQHandler
+	.word     TIMER0_TRG_CMT_IRQHandler
+	.word     TIMER0_Channel_IRQHandler
+	.word     TIMER1_IRQHandler
+	.word     TIMER2_IRQHandler
+	.word     TIMER3_IRQHandler
+	.word     I2C0_EV_IRQHandler
+	.word     I2C0_ER_IRQHandler
+	.word     I2C1_EV_IRQHandler
+	.word     I2C1_ER_IRQHandler
+	.word     SPI0_IRQHandler
+	.word     SPI1_IRQHandler
+	.word     USART0_IRQHandler
+	.word     USART1_IRQHandler
+	.word     USART2_IRQHandler
+	.word     EXTI10_15_IRQHandler
+	.word     RTC_Alarm_IRQHandler
+	.word     USBFS_WKUP_IRQHandler
+    .word     0
+    .word     0
+    .word     0
+    .word     0
+	.word     0
+	.word     EXMC_IRQHandler
+	.word     0
+	.word     TIMER4_IRQHandler
+	.word     SPI2_IRQHandler
+	.word     UART3_IRQHandler
+	.word     UART4_IRQHandler
+	.word     TIMER5_IRQHandler
+	.word     TIMER6_IRQHandler
+	.word     DMA1_Channel0_IRQHandler
+	.word     DMA1_Channel1_IRQHandler
+	.word     DMA1_Channel2_IRQHandler
+	.word     DMA1_Channel3_IRQHandler
+	.word     DMA1_Channel4_IRQHandler
+    .word     0
+    .word     0
+	.word     CAN1_TX_IRQHandler
+	.word     CAN1_RX0_IRQHandler
+	.word     CAN1_RX1_IRQHandler
+	.word     CAN1_EWMC_IRQHandler
+	.word     USBFS_IRQHandler
+
+	.globl _start
+	.type _start,@function
+
+_start:
+
+	/* Jump to logical address first to ensure correct operation of RAM region  */
+    la		a0,	_start
+    li		a1,	1
+	slli	a1,	a1, 29
+    bleu	a1, a0, _start0800
+    srli	a1,	a1, 2
+    bleu	a1, a0, _start0800
+    la		a0,	_start0800
+    add		a0, a0, a1
+	jr      a0
+
+_start0800:
+
+    /* Set the the NMI base to share with mtvec by setting CSR_MMISC_CTL */
+    li t0, 0x200
+    csrs CSR_MMISC_CTL, t0
+
+	/* Intial the mtvt*/
+    la t0, vector_base
+    csrw CSR_MTVT, t0
+
+	/* Intial the mtvt2 and enable it*/
+    la t0, irq_entry
+    csrw CSR_MIRQ_ENTRY, t0
+    csrs CSR_MIRQ_ENTRY, 0x1
+
+    /* Intial the CSR MTVEC for the Trap ane NMI base addr*/
+    la t0, trap_entry
+    csrw CSR_MTVEC, t0
+
+#ifdef __riscv_flen
+	/* Enable FPU */
+	li t0, MSTATUS_FS
+	csrs mstatus, t0
+	csrw fcsr, x0
+#endif
+
+.option push
+.option norelax
+	la gp, __global_pointer$
+.option pop
+	la sp, _sp
+
+	/* Load data section */
+	la a0, _data_lma
+	la a1, _data
+	la a2, _edata
+	bgeu a1, a2, 2f
+1:
+	lw t0, (a0)
+	sw t0, (a1)
+	addi a0, a0, 4
+	addi a1, a1, 4
+	bltu a1, a2, 1b
+2:
+	/* Clear bss section */
+	la a0, __bss_start
+	la a1, _end
+	bgeu a0, a1, 2f
+1:
+	sw zero, (a0)
+	addi a0, a0, 4
+	bltu a0, a1, 1b
+2:
+	/* Call global constructors */
+	la a0, __libc_fini_array
+	call atexit
+	call __libc_init_array
+
+
+	/* argc = argv = 0 */
+	li a0, 0
+	li a1, 0
+	call entry
+	tail exit
+
+1:
+	j 1b

bsp/gd32vf103v-eval/libraries/n22/stubs/_exit.c

@@ -0,0 +1,17 @@
+/* See LICENSE of license details. */
+
+#include <unistd.h>
+
+#include "stub.h"
+
+
+void _exit(int code)
+{
+  const char message[] = "\nProgram has exited with code:";
+
+  write(STDERR_FILENO, message, sizeof(message) - 1);
+//  write_hex(STDERR_FILENO, code);
+//  write(STDERR_FILENO, "\n", 1);
+
+  for (;;);
+}

bsp/gd32vf103v-eval/libraries/n22/stubs/close.c

@@ -0,0 +1,8 @@
+/* See LICENSE of license details. */
+
+#include <errno.h>
+#include "stub.h"
+
+int _close(int fd) {
+    return _stub(EBADF);
+}

bsp/gd32vf103v-eval/libraries/n22/stubs/fstat.c

@@ -0,0 +1,16 @@
+/* See LICENSE of license details. */
+
+#include <errno.h>
+#include <unistd.h>
+#include <sys/stat.h>
+#include "stub.h"
+
+int _fstat(int fd, struct stat* st)
+{
+  if (isatty(fd)) {
+    st->st_mode = S_IFCHR;
+    return 0;
+  }
+
+  return _stub(EBADF);
+}

bsp/gd32vf103v-eval/libraries/n22/stubs/isatty.c

@@ -0,0 +1,10 @@
+/* See LICENSE of license details. */
+
+#include <unistd.h>
+
+int _isatty(int fd) {
+    if (fd == STDOUT_FILENO || fd == STDERR_FILENO)
+        return 1;
+
+    return 0;
+}

bsp/gd32vf103v-eval/libraries/n22/stubs/lseek.c

@@ -0,0 +1,13 @@
+/* See LICENSE of license details. */
+
+#include <errno.h>
+#include <unistd.h>
+#include <sys/types.h>
+#include "stub.h"
+
+off_t _lseek(int fd, off_t ptr, int dir) {
+    if (isatty(fd))
+        return 0;
+
+    return _stub(EBADF);
+}

bsp/gd32vf103v-eval/libraries/n22/stubs/read.c

@@ -0,0 +1,31 @@
+/* See LICENSE of license details. */
+
+#include <stdint.h>
+#include <errno.h>
+#include <unistd.h>
+#include <sys/types.h>
+
+#include "stub.h"
+
+ssize_t _read(int fd, void* ptr, size_t len)
+{
+    // The below code was copied from freedom-e-sdk, but seems it is definitely wrong, so just comment it out
+    //   Need to implement this function in the future, otherwise cannot use the C scanf function
+  //uint8_t * current = (uint8_t *)ptr;
+  //volatile uint32_t * uart_rx = (uint32_t *)(UART0_CTRL_ADDR + UART_REG_RXFIFO);
+  //volatile uint8_t * uart_rx_cnt = (uint8_t *)(UART0_CTRL_ADDR + UART_REG_RXCTRL + 2);
+
+  //ssize_t result = 0;
+
+  //if (isatty(fd)) {
+  //  for (current = (uint8_t *)ptr;
+  //      (current < ((uint8_t *)ptr) + len) && (*uart_rx_cnt > 0);
+  //      current ++) {
+  //    *current = *uart_rx;
+  //    result++;
+  //  }
+  //  return result;
+  //}
+
+  return _stub(EBADF);
+}
